Huepar W03CG New Construction 3D 3x360 Green Laser Level (Bluetooth, Electric 360° Base & Large LCD)

What this is and who it’s for

The Huepar W03CG is a 3D construction laser level designed for people who want 3x360° coverage without constantly re-positioning the unit. In plain terms: it projects three laser planes (a 360° horizontal and two vertical 360° lines that cross at 90°), and it can self-level for faster set-up on typical jobs.

It’s a tool that tends to make sense in renovation and layout work where you’re regularly marking levels, squares and alignments—think ceiling installations, framing checks, tiling grid lines, or lining up wall features. The green laser brightness is designed to be easier to see than many entry-level options, though real results still depend on conditions and whether you’re using a receiver.

Key takeaways you’ll notice in use

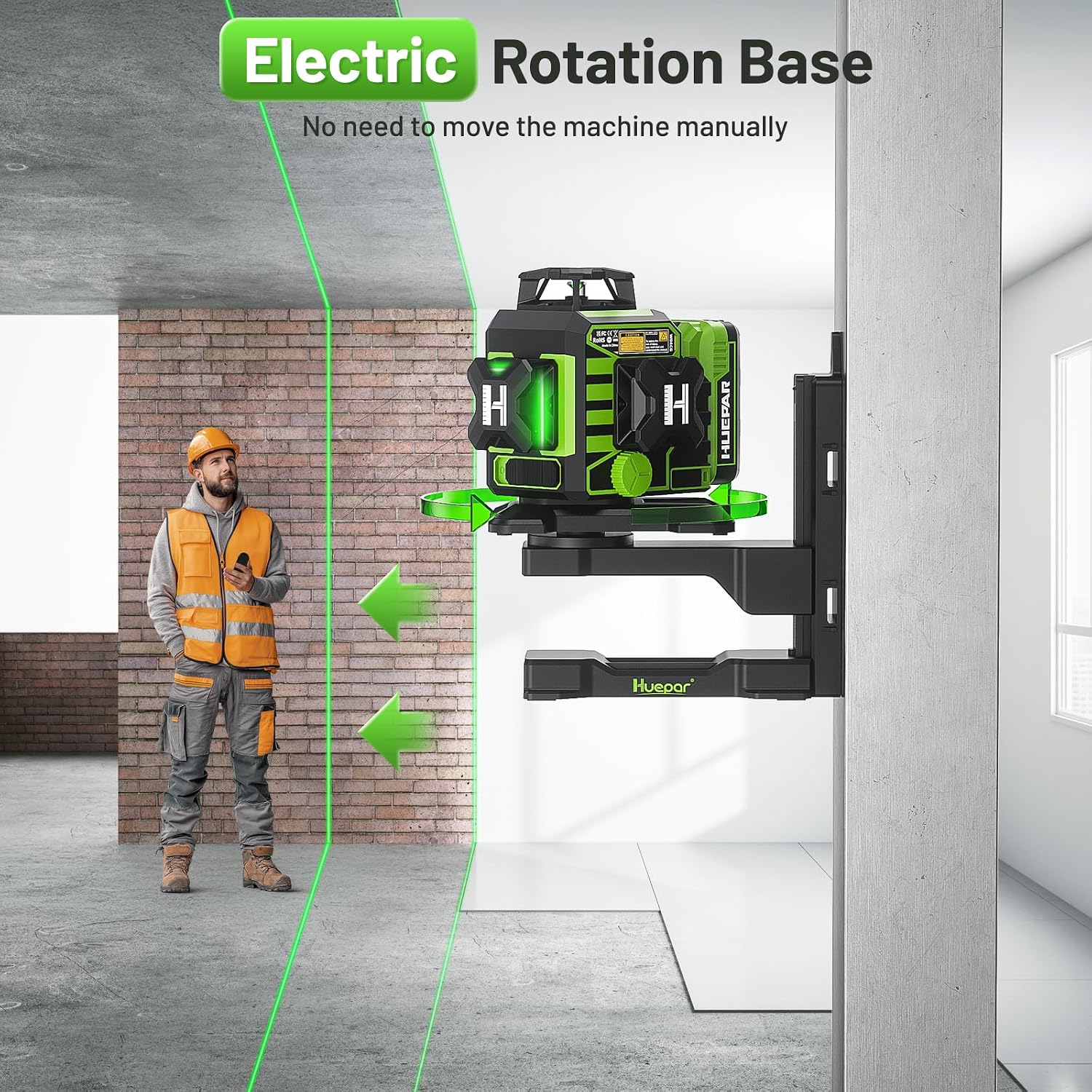

The biggest practical difference here is the electric rotating base paired with remote/phone control. Instead of physically walking over to rotate the laser, you can adjust the rotation at a distance (up to the control range stated) using either the included remote or Bluetooth via your phone.

The large backlit LCD screen is also a strong “day-to-day” detail: it shows not only the current state and angle information, but also things like battery status, pulse mode, auto/manual mode, and the rotation speed. If you’ve ever had to guess what mode a laser level is in from a tiny display, you’ll likely appreciate the emphasis on visibility.

One limitation to keep in mind: it’s still a laser tool that will struggle if you expect it to replace a full surveying workflow. For that, you’d be looking at more specialist kit and setup.

Where it stands out (and what you get for your money)

This model is built around three things that matter for construction use:

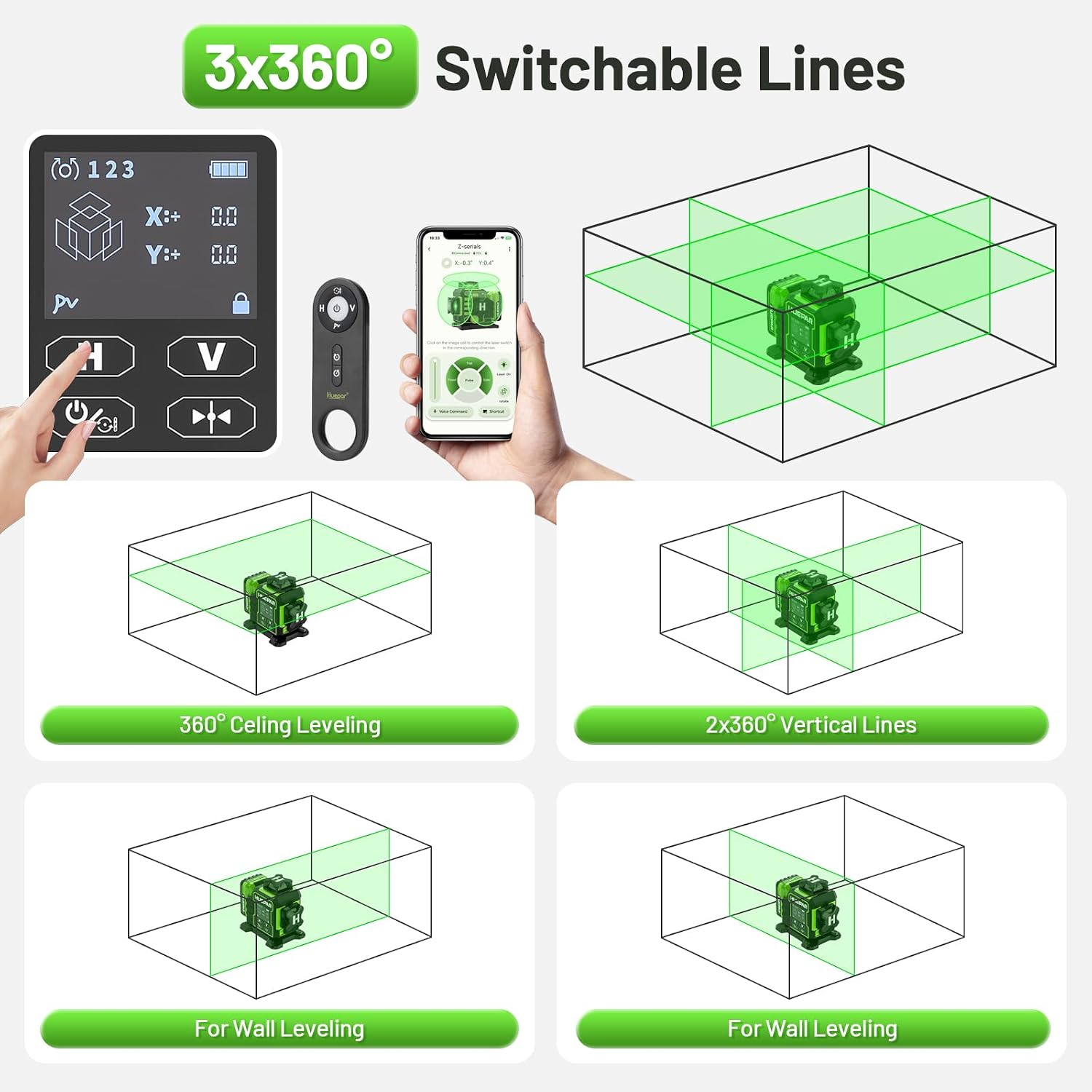

• 3x360° 3D coverage: The top 360° horizontal line is described as suitable for ceiling installation. The two vertical 360° lines crossing at 90° help you visualise square layouts and speed up layout work.
• Autonivel, manual, and pulse modes: Auto mode levels within ±3° (as stated). Manual mode lets you fix the laser at any angle if your project needs it. Pulse mode is positioned for better daytime visibility when used with a compatible laser receiver.
• Electric 360° base with three speeds: You can choose between high, medium, and low rotation speeds. The idea is simple: move lines quickly to a target location on higher speed, then slow down when you need accuracy while fine-positioning.

If you’re the sort of user who sets up, marks, checks, and re-checks repeatedly—this tool is clearly aimed at reducing the fiddly back-and-forth.

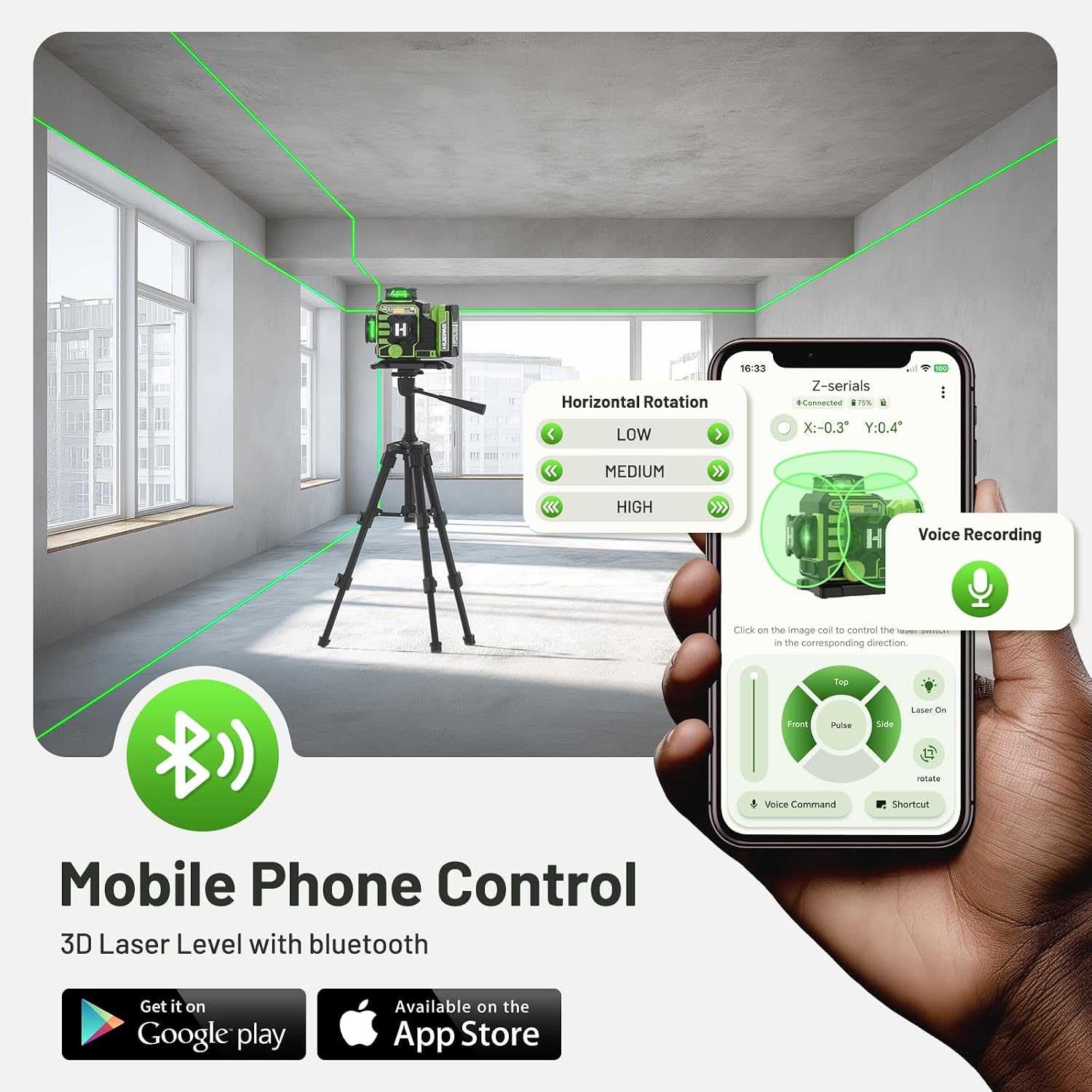

Bluetooth control, remote range, and the LCD experience

Bluetooth and remote control are a big part of the W03CG’s value for multi-step jobs. The brand notes that control can be done via the phone app (connected through Bluetooth) or using the included remote. It also states a control range of up to 65 feet, which is helpful if you’re adjusting the laser while staying near your work area.

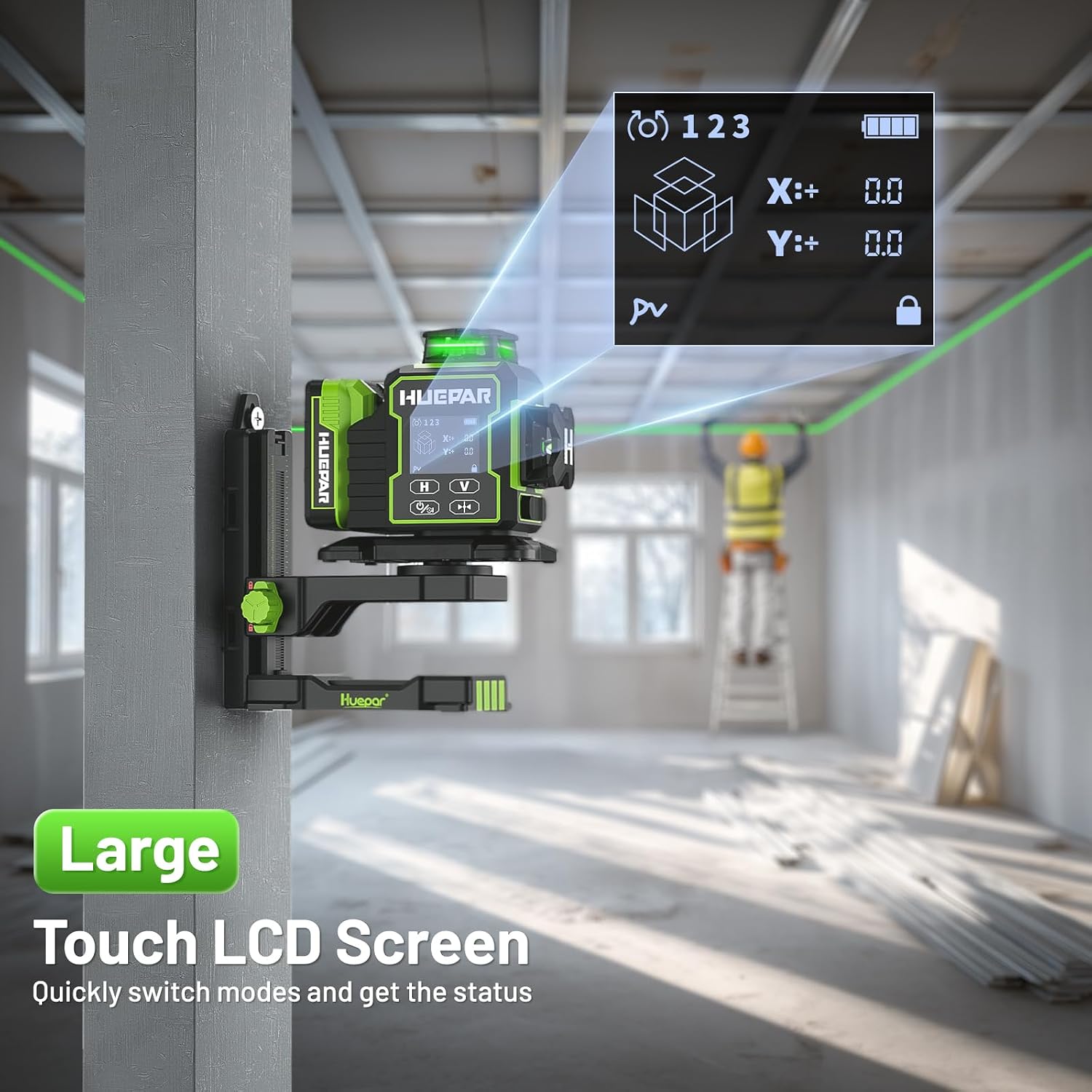

The LCD is also described as “large” and backlit. It displays multiple operational details, including:

• laser angle (tilt) information
• battery power status
• pulse mode and auto/manual mode
• rotation speed

On paper, this makes the unit more transparent in the field—less time checking controls, more time doing the layout.

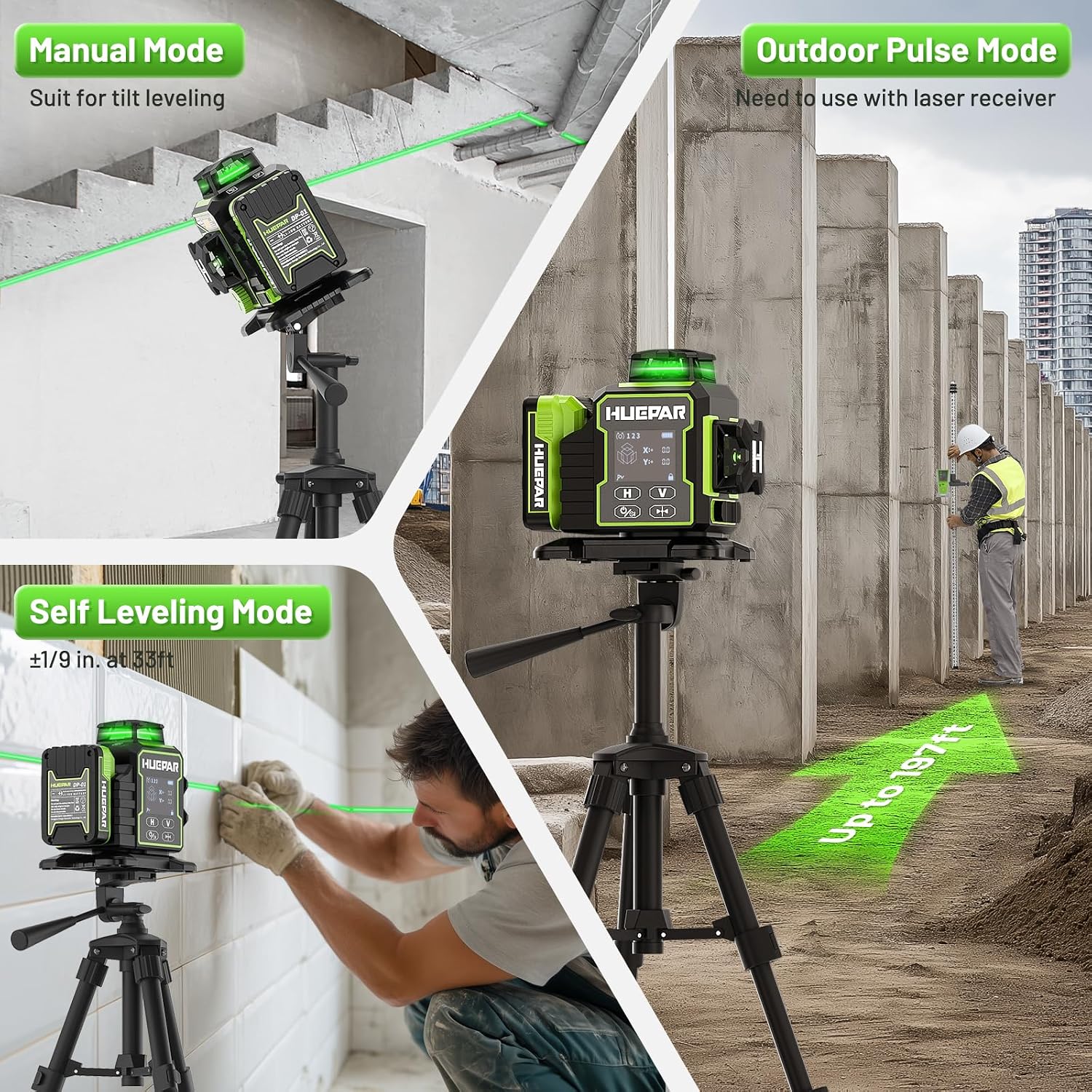

Self-levelling and modes: what you should expect

The Huepar W03CG supports three practical modes. Switch to ON for autonivel: it self-levels automatically within ±3°. Switch to OFF for manual positioning, where the laser can be set at an angle for tasks that don’t follow “perfect level” assumptions.

Pulse mode is meant for brighter daytime conditions when used with a laser receiver. The entry specifically notes that the receiver needs to be purchased additionally, and that it works with Huepar laser receivers (it says it works with all Huepar receivers).

That’s where a buyer should be a bit cautious: if you plan to work outdoors in strong light and you don’t intend to add a compatible receiver, the real-world reach and visibility may feel more limited than you’d hope.

Brightness, visibility and rotation speeds

The laser is green and described as “super bright”, with an adjustable brightness feature to suit your needs. The rotation base has three speed options (listed as 9.1 mm/s, 48 mm/s and 240 mm/s). While the exact effect you’ll notice depends on the task, the intent is clear: faster rotation to quickly bring lines into position, then slower speeds for more controlled adjustments.

If you often work alone or you’re moving between different marking points on the same day, being able to dial in rotation speed and control direction from a distance can reduce wasted time.

Durability and mounting options (useful for real sites)

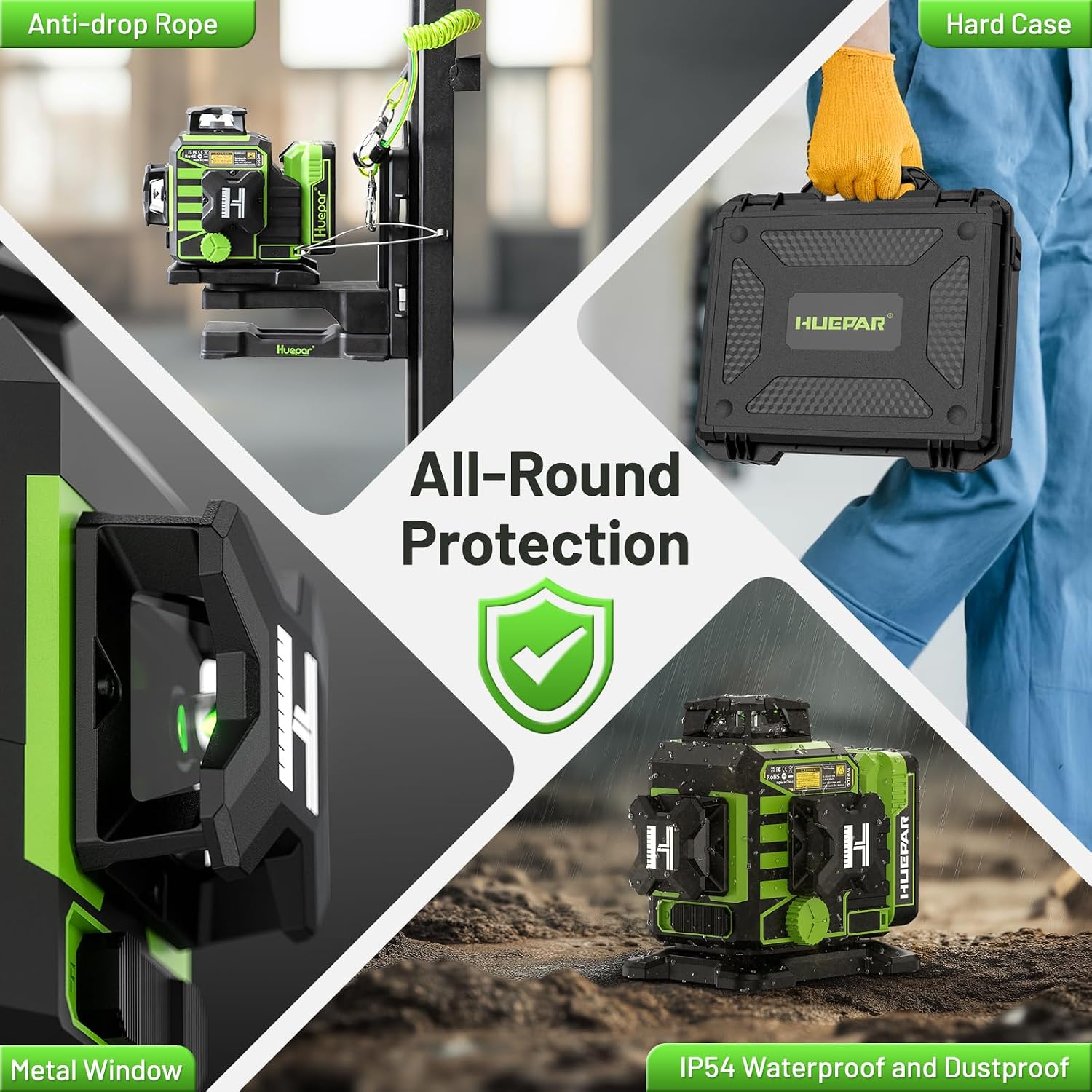

For jobsite durability, the laser window is described as metal and overmoulded, with IP54 protection against water and dust. That’s the kind of spec you look for when you’re not working in a clean, controlled environment.

Mounting is also covered. The unit includes a 360° magnetic support for quicker positioning on metal surfaces, and it provides mounting threads listed as 1/10.2 cm-20 and 5/20.3 cm-11 to fit a standard tripod or a pole mount.

So, if you already have a tripod/pole setup for layout work, there’s a plausible path to integrate this into your existing workflow—though you should double-check thread compatibility with your current mount.

Tech specs

• Type: 3D 3x360° self-levelling laser level (green laser)
• Laser planes: 3 plans (1 horizontal 360° + 2 vertical 360° lines crossing at 90°)
• Self-levelling range: ±3° (auto mode)
• Pulse mode: designed to work with a compatible laser receiver
• Laser receiver: requires additional purchase, works with Huepar receivers
• Autonivelation modes: auto, manual, pulse
• Electric 360° rotating base: yes
• Rotation control: electric rotation with three speeds
• Rotation speeds: 9.1 mm/s, 48 mm/s, 240 mm/s
• Bluetooth / remote control range: up to 65 feet
• Display: large backlit LCD
• Water/dust rating: IP54
• Mounting: 360° magnetic support + listed mounting threads (1/10.2 cm-20 and 5/20.3 cm-11)

Is it worth it?

You should buy the Huepar W03CG if your work involves frequent line marking across walls and ceilings, you want 3x360° 3D coverage, and you’ll actually benefit from off-site rotation control (Bluetooth/remote) plus an electric rotating base.

It may not be the best match if you’re expecting a “receiver-free outdoor laser” to perform like a dedicated long-range system, because the notes make it clear that pulse mode visibility relies on purchasing a compatible laser receiver.

It’s also worth considering if your priorities are simpler single-plane marking or basic indoor use—then you might find you don’t need this level of control and rotation complexity.

Mini FAQ

Can I adjust the laser rotation without moving the unit?

Yes—rotation can be controlled via the included remote or via Bluetooth using a phone, with a stated control range of up to 65 feet.

Does it self-level automatically?

Yes. In auto mode it self-levels within ±3°.

What does pulse mode do?

Pulse mode is intended to improve performance in bright daytime conditions, but it’s described as working well with a laser receiver (sold separately).

Does it work for ceiling work?

The horizontal 360° line is described as being suitable for ceiling installation.

What about durability on site?

The laser window is described as metal and overmoulded, with an IP54 water and dust rating.
