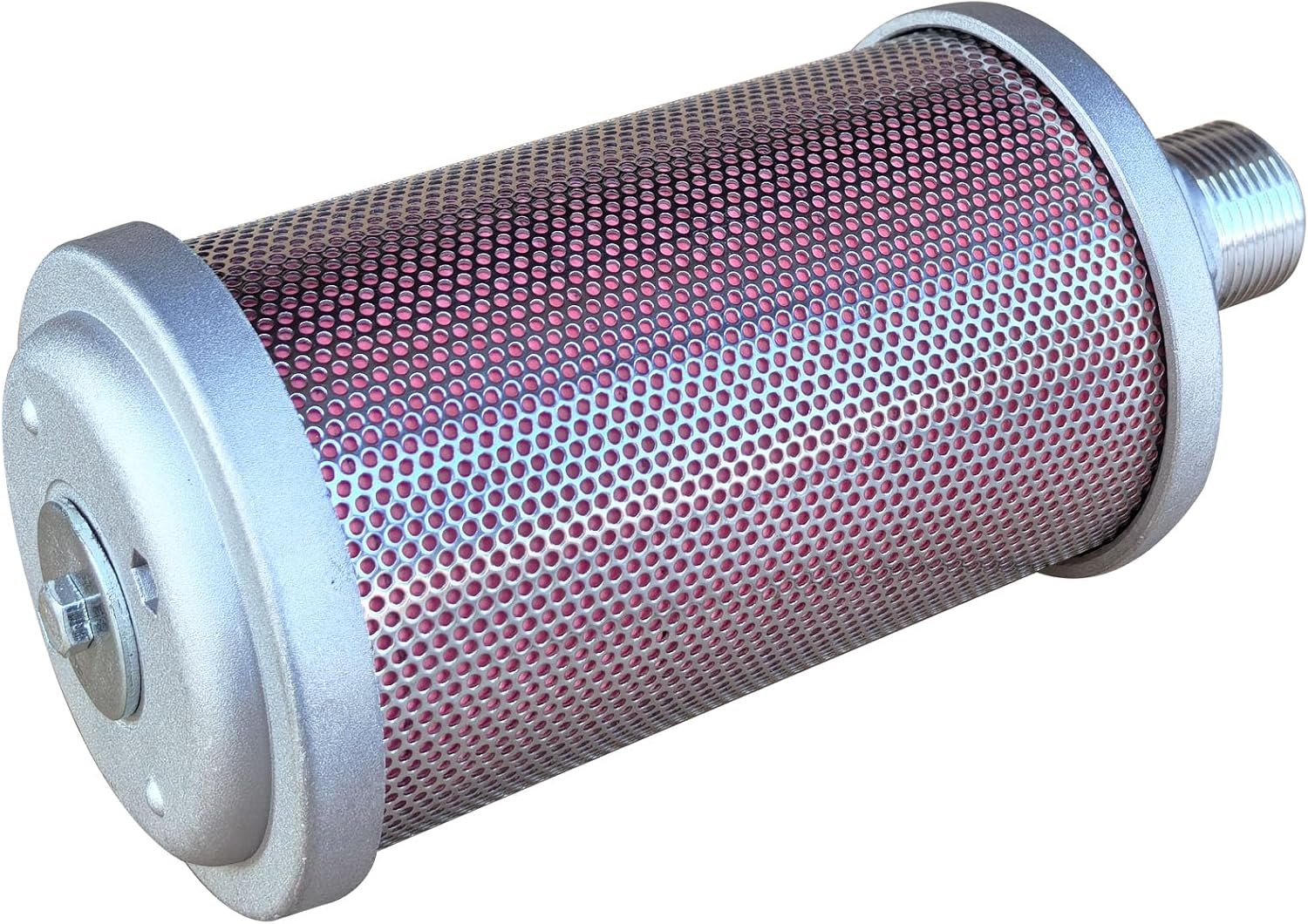

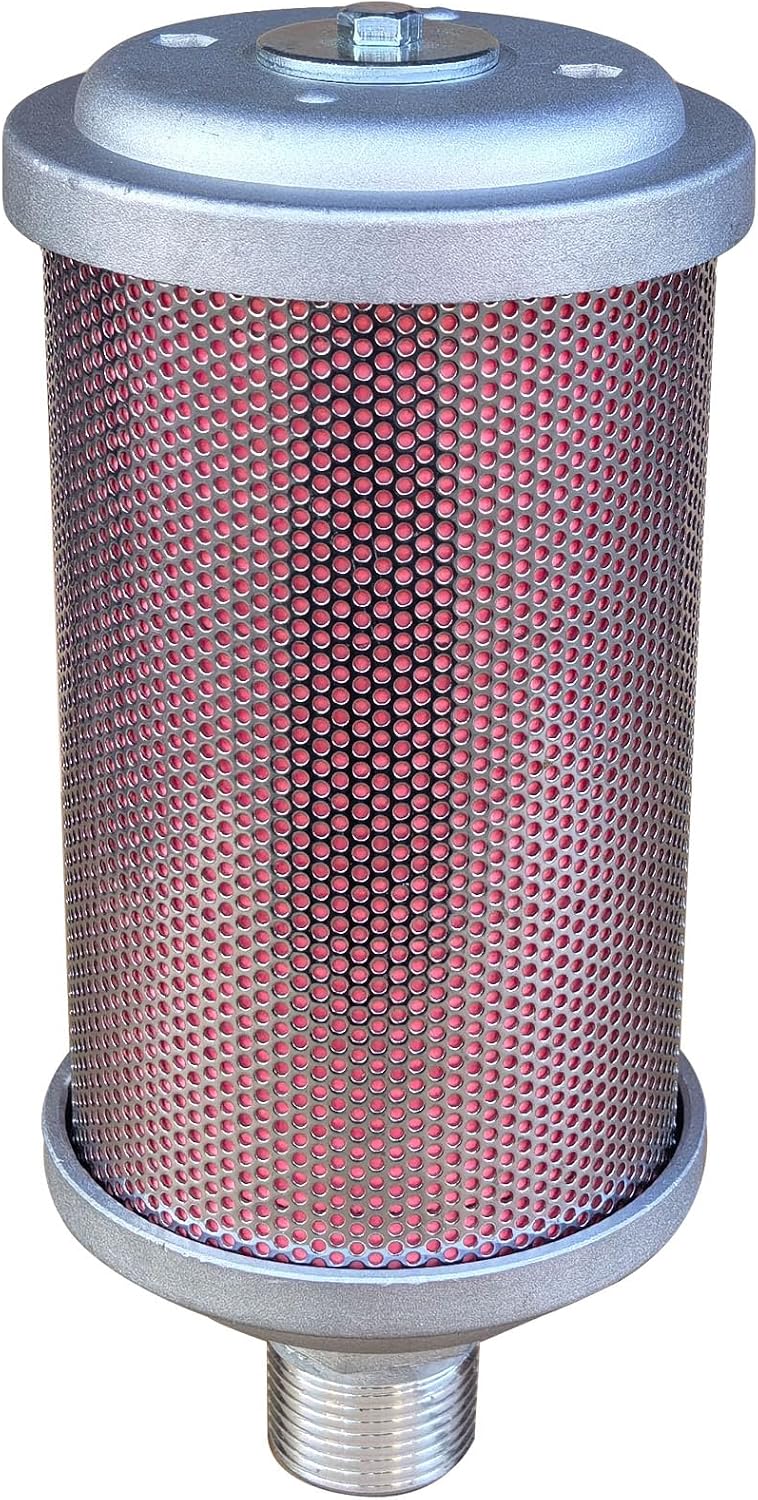

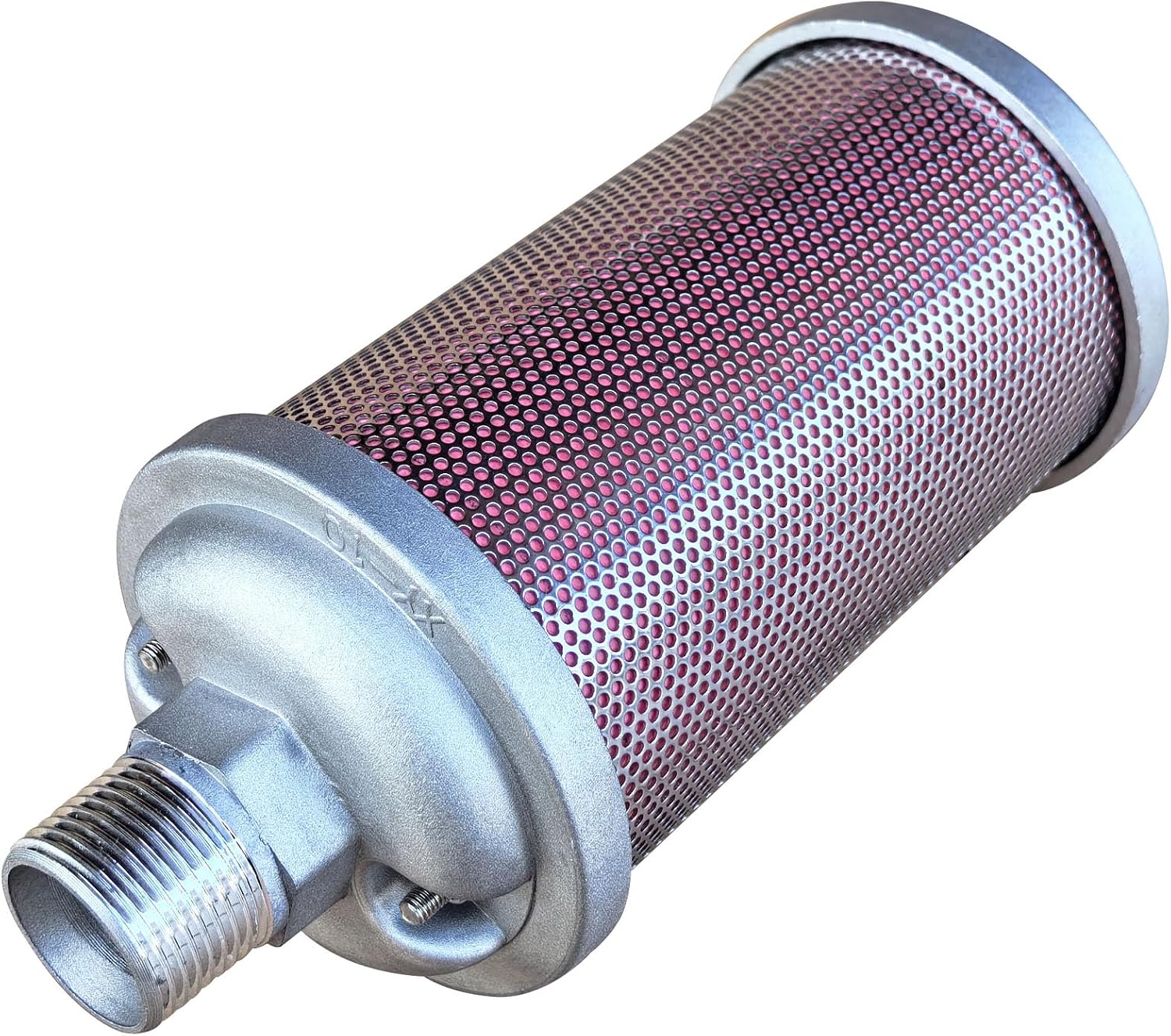

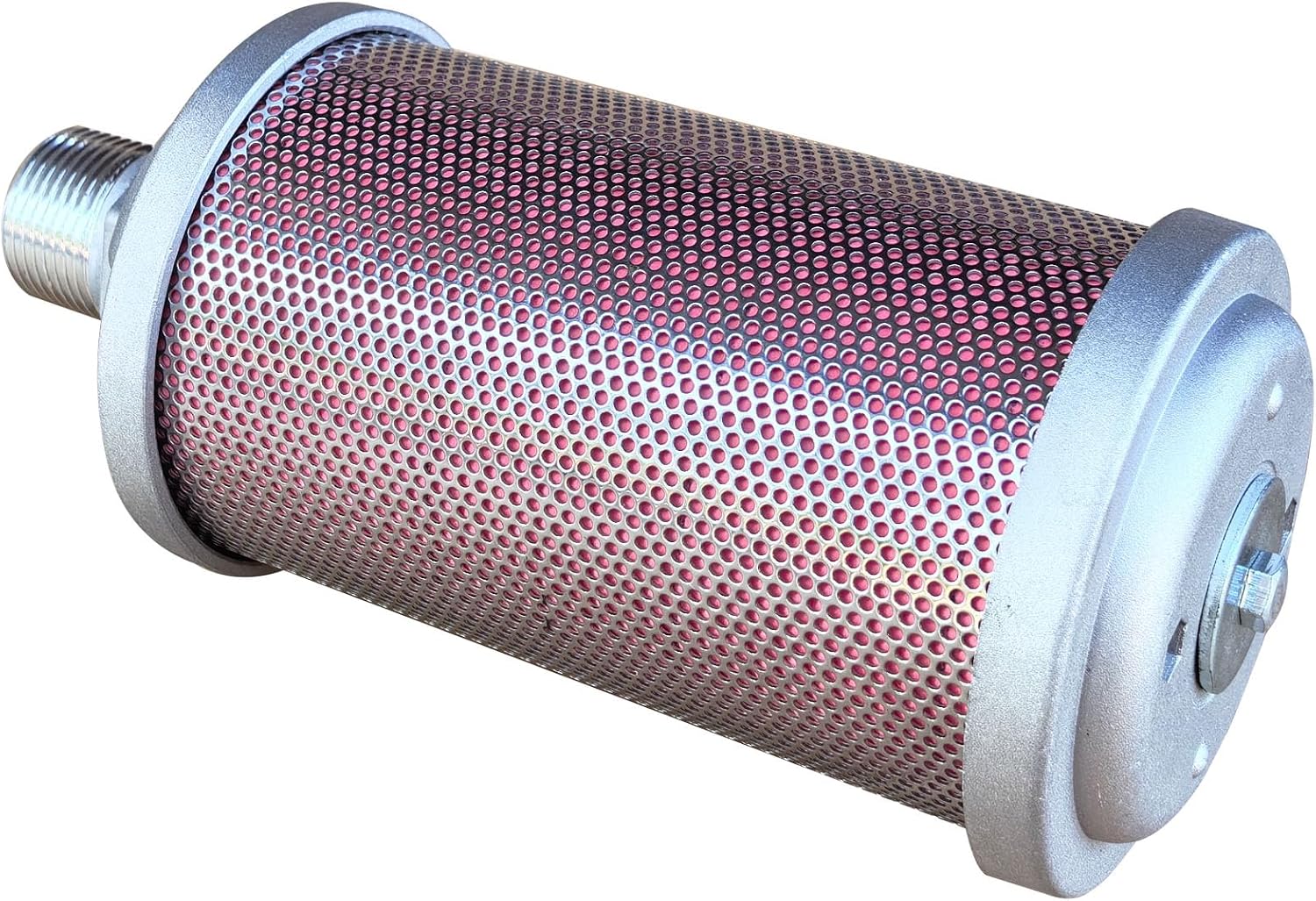

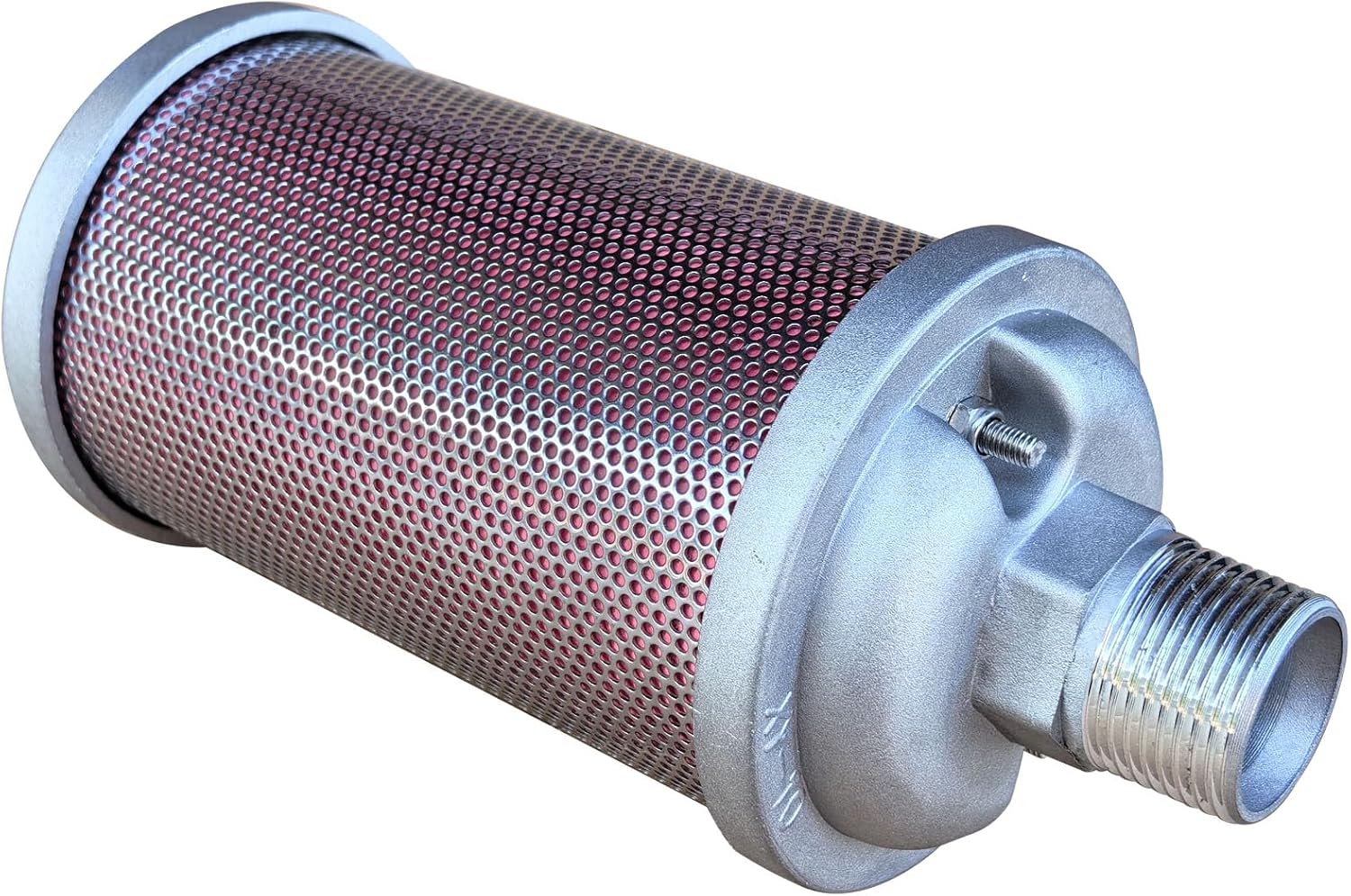

XY-10 Air Compressor Muffler
Product description
If your priority is quieting the exhaust from a dryer diaphragm pump, a dedicated muffler may make more sense than a generic noise-control part. The XY-10 is described as a replacement exhaust muffler for use with an adsorption dryer, with a 1" NPT connection. Its listed noise-reduction figure is greater than 40 dB, but the product details don’t explain how that figure was measured, so treat it as a stated specification rather than a guaranteed result in every setup.
What to know
This part is identified as replacement part XY-10 and is intended for emptying and venting when equipped with an adsorption dryer. The cylindrical framework is stainless steel with perforations, the listing says it is stronger than electroplated steel. It also describes a special-pulp core formed at 300–500°C and says the material resists corrosion, heat, pressure, and immersion. Those are maker claims, not independently verified performance details.
The listed silencing safety valve opening pressure is 2.0–2.2 kgf/cm. A circular-hole prefilter layer is also specified, with a working temperature below 180°C. Keep in mind that this temperature limit is stated for the prefilter layer, it should not be read as a rating for every component or the complete pump system. Check that the part number and 1" NPT connection match the component you’re replacing before ordering.
How to use it
The intended role is to fit the muffler to the dryer’s exhaust path so it can reduce noise as air is vented. The listing doesn’t provide installation steps, sealing requirements, or guidance for a particular dryer model. Use the XY-10 replacement number and thread size as identification points, and follow the equipment maker’s instructions for fitting and operation. Don’t assume that a matching thread alone confirms suitability for every pump or dryer.
Practical tips
Think about the sound and venting conditions around the equipment, not just the muffler itself. For example, if a diaphragm pump runs near a work area, this part is intended to address exhaust noise at the dryer outlet, it won’t establish how quiet the whole machine will be. The actual result can depend on the surrounding equipment and installation, details the listing doesn’t quantify.
If you’re comparing it with a more general-purpose muffler, the XY-10 has a clearer use case: dryer exhaust and a stated replacement-part number. That focus is useful when those details match your existing setup. A generic part may be the more flexible route when the equipment’s required part number or connection is different, but this listing doesn’t provide compatibility guidance beyond XY-10 and 1" NPT.
When it makes sense
A solid pick if you need an XY-10 replacement for an adsorption-dryer exhaust and the 1" NPT connection matches your equipment. The stainless-steel framework and stated noise-reduction figure may also matter when you’re choosing a purpose-built exhaust component rather than an unspecified muffler. It might not be a great match if you can’t confirm the replacement number or connection, or if you need documented compatibility with a specific pump model, none is provided here.
Practical doubts
Is this a complete air compressor? No. It is described as an exhaust muffler and replacement part, not as a compressor.
What connection does it use? The product name lists a 1" NPT connection. Confirm that this matches the port on your equipment.
Is the noise reduction guaranteed to exceed 40 dB? The listing states an effect greater than 40 dB, but gives no test conditions. The result in your setup may differ, according to the maker, that is the listed figure.
