WALI CM3790XL Ceiling TV Mount for 37-90
Product description

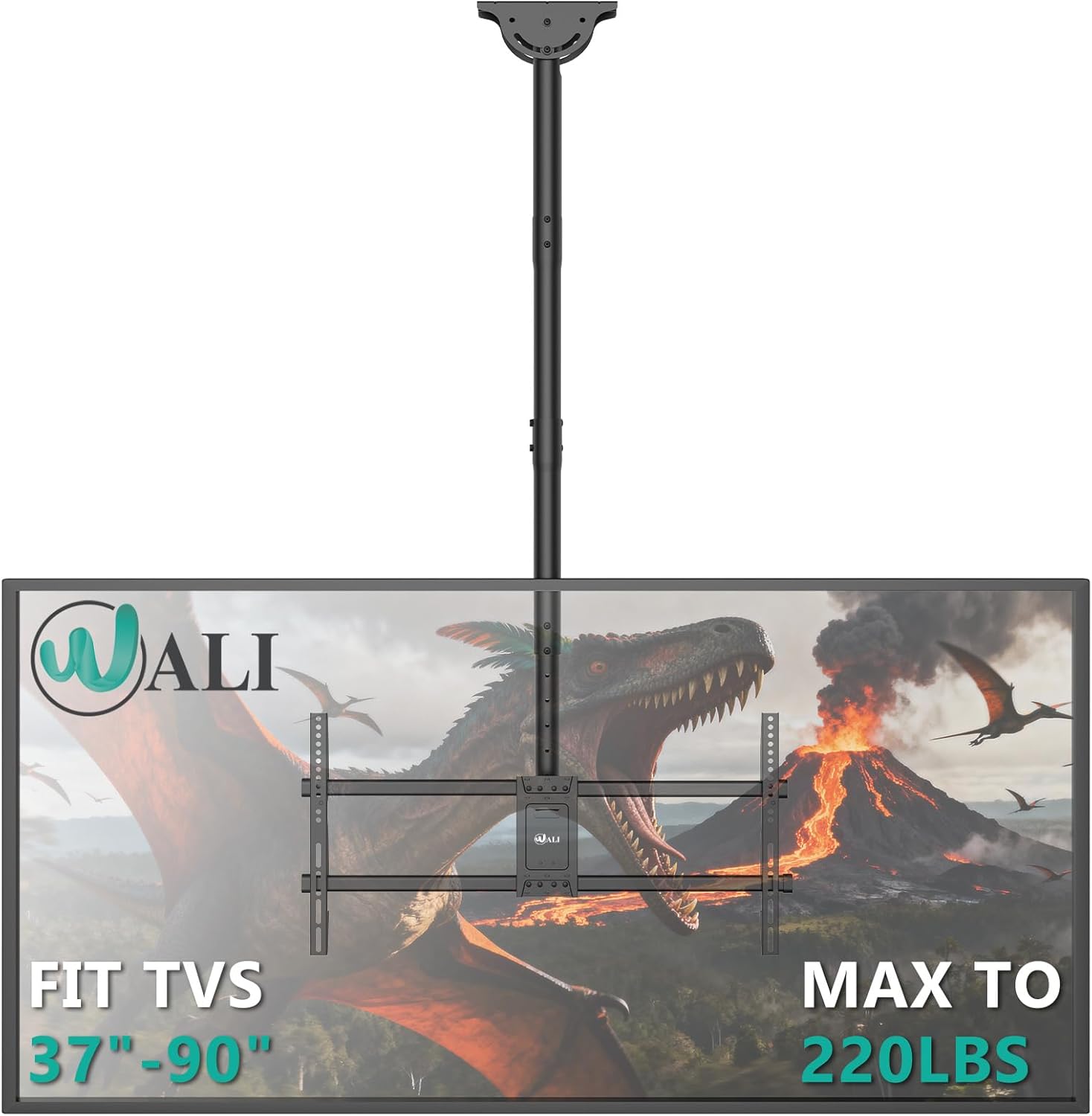

Getting the right TV height and viewing angle can be tricky when your room has high ceilings or a non standard layout. The WALI CM3790XL ceiling TV mount is built for 37 to 90 inch TVs, giving you a reliable overhead mounting option when floor space is limited. With a heavy duty solid steel design and full motion adjustments, it helps you dial in comfort without cluttering the room. 🛠️
If you manage a home workspace or a commercial setting, the mount is also designed to handle real world installs, including both flat and sloped ceilings. It supports up to 220 lbs, and the maximum VESA pattern is 800x400 mm, so you can match a wide range of TV mounting hole configurations.
Key points
This ceiling TV mount brings flexibility where it matters most, height and angle. Instead of being locked into a fixed position, you get incremental height adjustment from the ceiling down to the center of the mounting plate. That makes it easier to align the TV with seating height, standing viewing, or shared lines of sight in a room. 📺

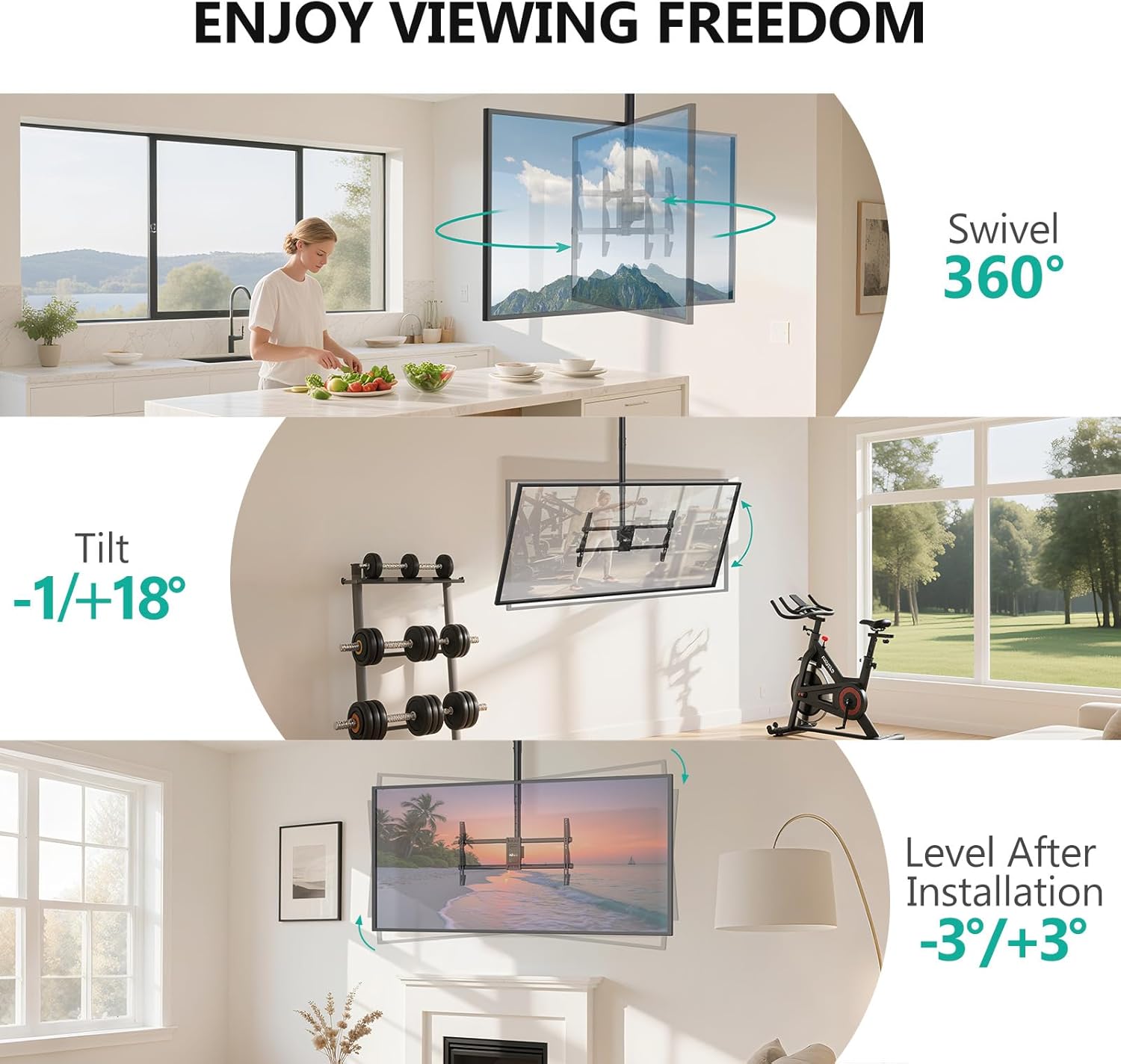

You also get full motion control. The mount can tilt down 18°, and it includes a 360° left right swivel range, which helps when viewers are positioned at different angles. That swivel is especially useful in open spaces where the TV needs to stay watchable from more than one spot.
Space saving is part of the appeal as well. By hanging the TV from the ceiling, the setup can free up wall space and reduce clutter in high ceiling homes, bars, restaurants, fitness centers, school spaces, grocery stores, and medical or dental offices. The overall goal is a cleaner look with a more organized viewing area, while still keeping the display securely mounted. ✅

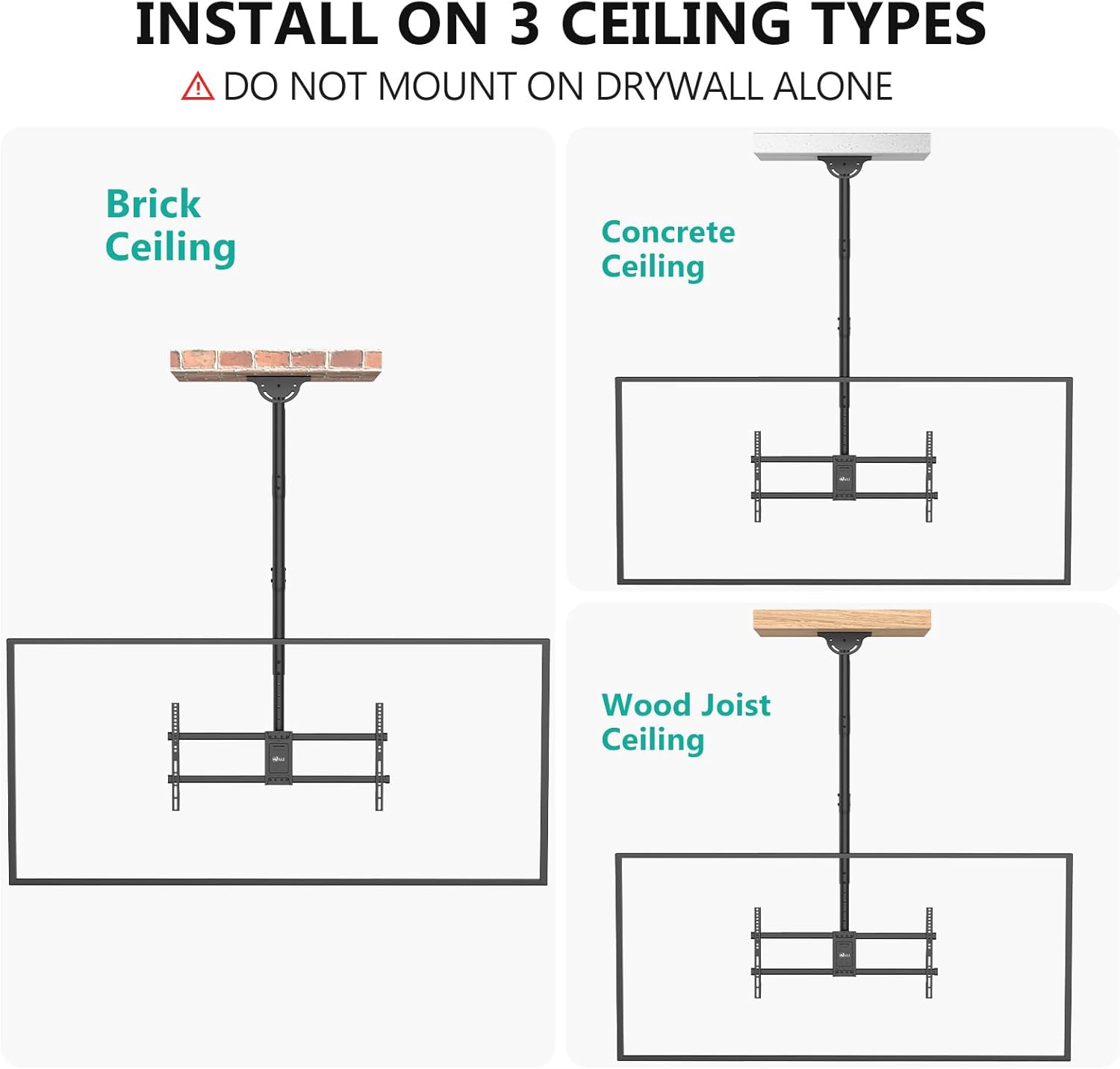

There is an installation note worth keeping in mind. This mount should not be mounted on drywall alone. Use proper mounting methods and hardware suited to the ceiling structure so the install stays safe and stable.
Tech specs
- Type: Ceiling TV mount, heavy duty telescoping hanging pole bracket

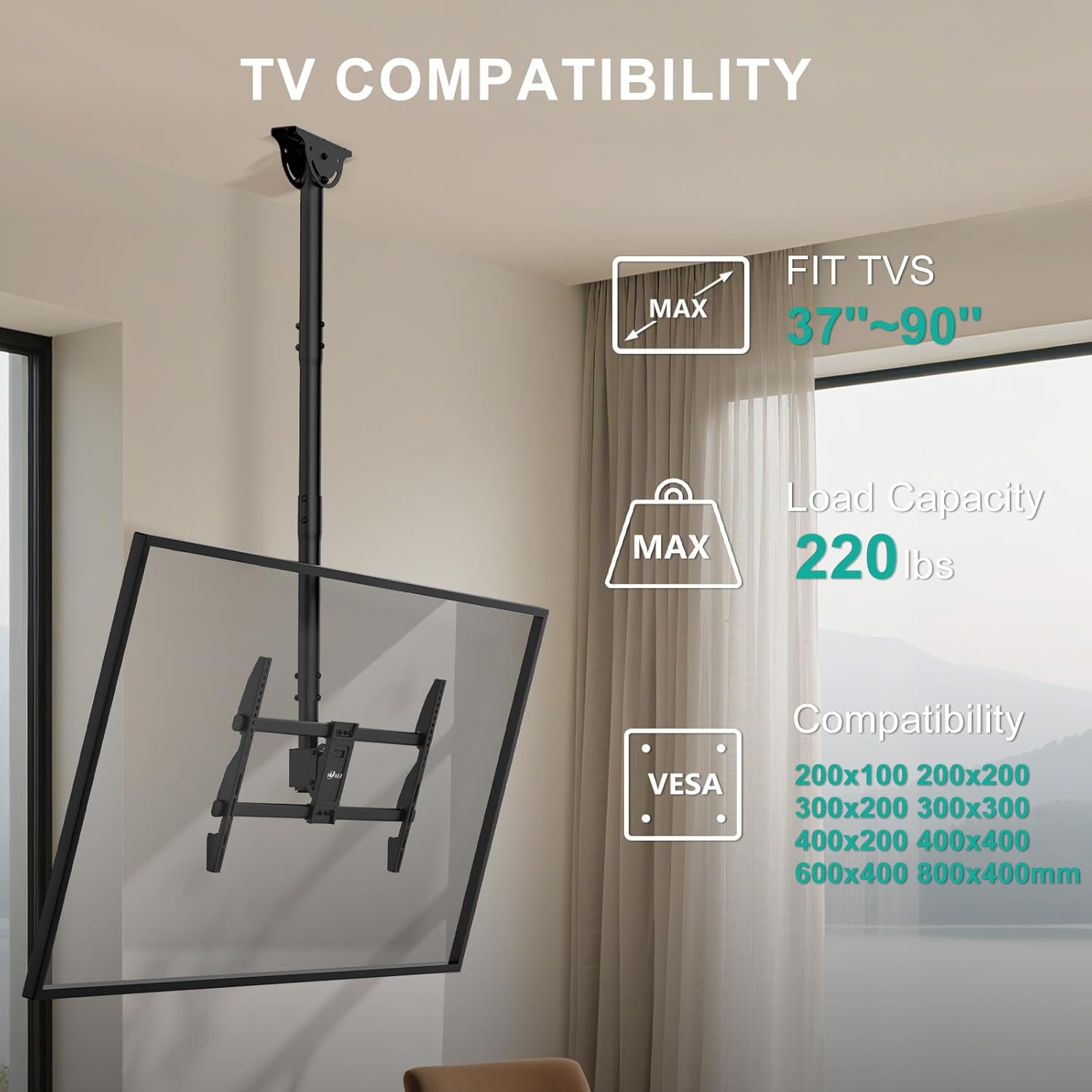

- Size: Fits 37 to 90 inch TVs
- Weight capacity: Holds up to 220 lbs
- Max VESA: 800x400 mm
- Mounting hole patterns: 200x100 mm, 200x200 mm, 300x200 mm, 300x300 mm, 400x200 mm, 400x400 mm, 600x400 mm, 800x400 mm
- Tilt range: Tilts down 18°
- Swivel range: Left right swivel of 360°
Why it’s worth it

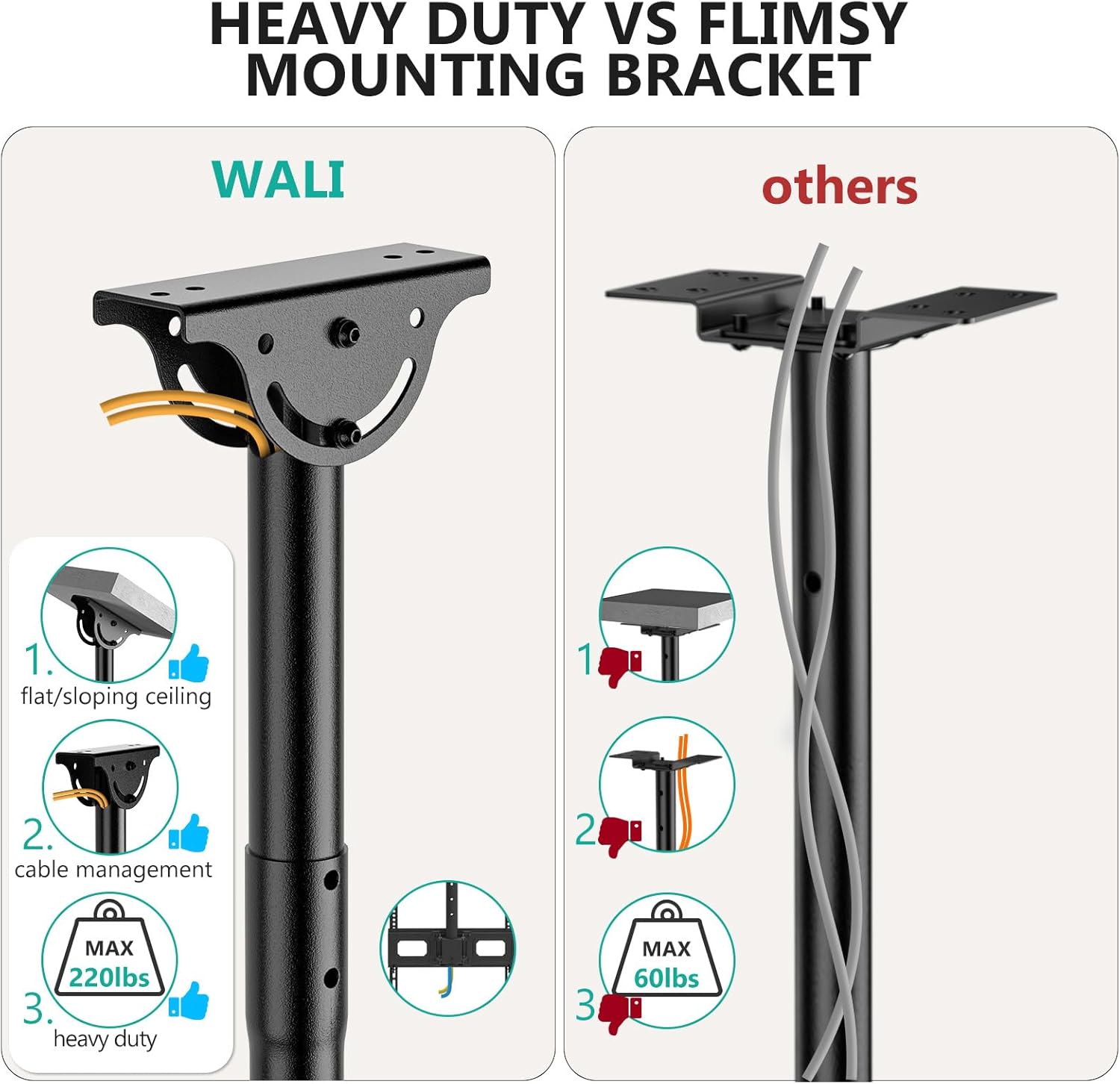

A ceiling mount is a practical solution when your layout demands overhead placement. This model is built with durable solid steel construction, aimed at securely holding the display while keeping the installation process straightforward. For installers who need consistent results, that sturdiness and the included mounting hardware kit are key parts of the setup. 🧰

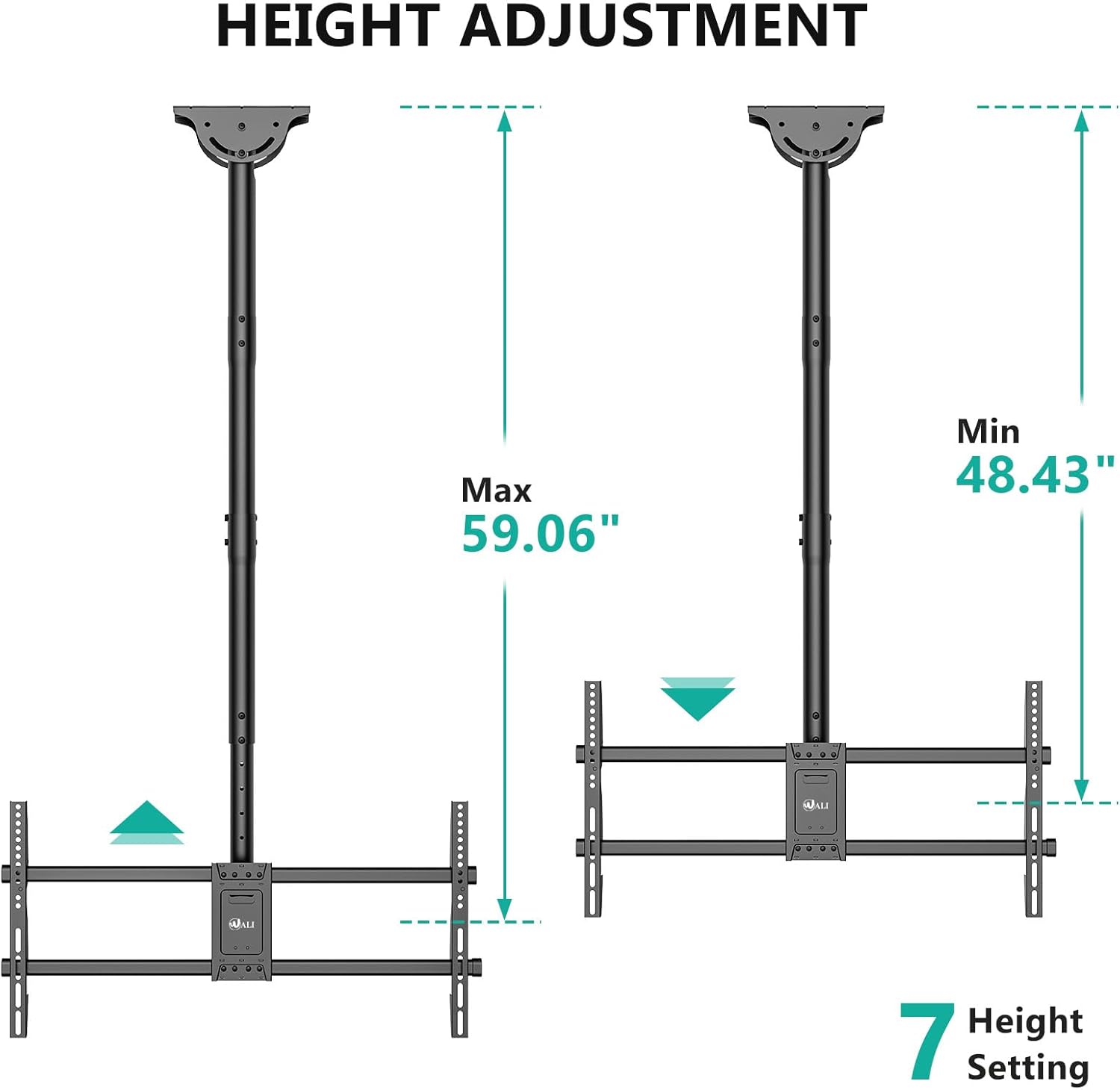

Height adjustment is a major day to day benefit. The incremental adjustment range goes from 48.43 in to 59.06 in from the ceiling to the center of the mounting plate. That range can help you achieve better viewing angles without forcing the TV to sit too high or too low.

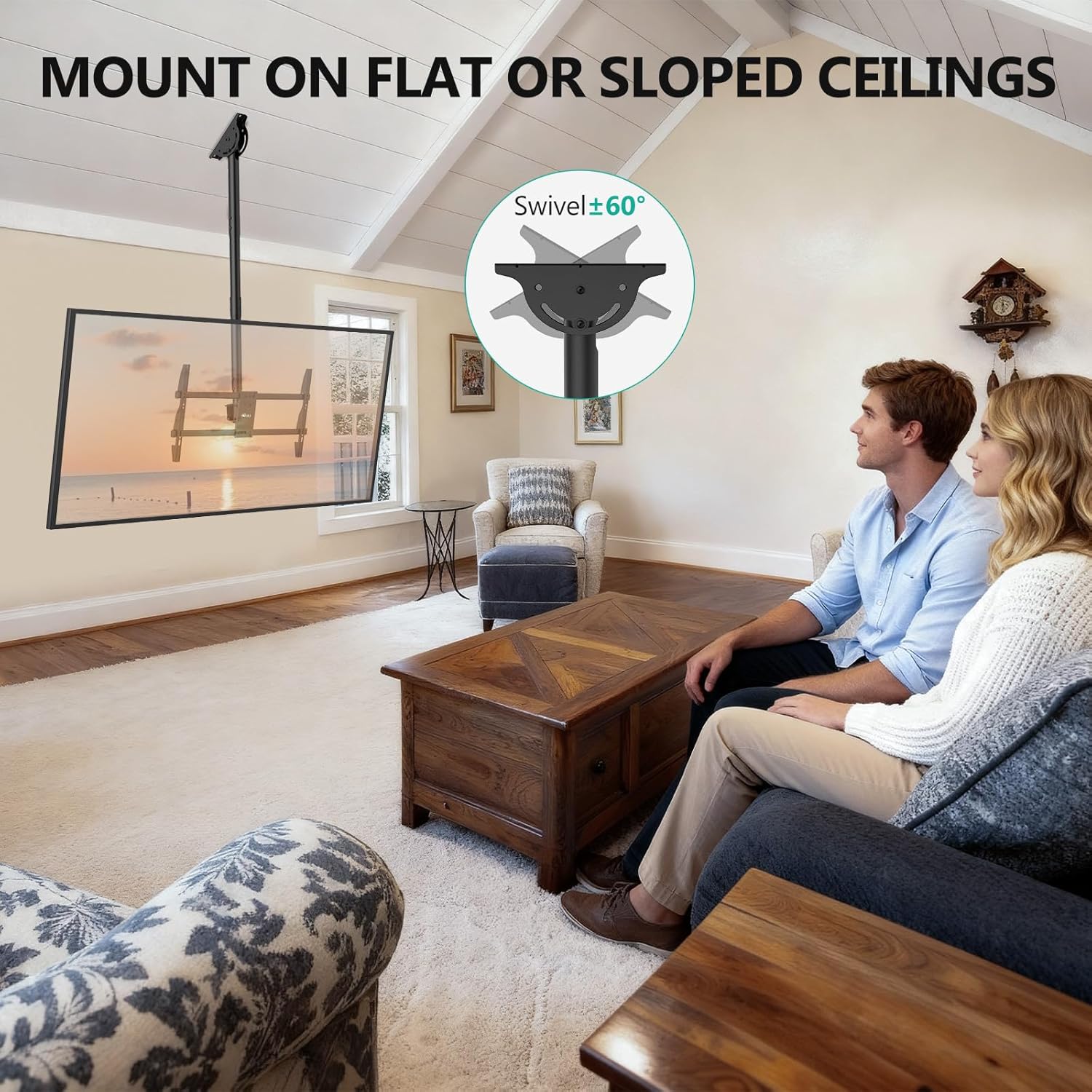

The mount also supports both flat and sloped ceilings, which expands where you can use it. In real rooms, ceilings are not always uniform, and having flexibility for sloped surfaces can reduce the need for workarounds. It can also help create a more open and organized living or working environment by keeping the TV up and out of the way.
If you are planning for a commercial or shared environment, the full motion features can matter. A tilt down angle plus a 360° swivel lets the TV align with shifting seating positions and changing viewing needs across a space. Is it the kind of mount you want if you care about angle control more than anything else? With this ceiling mount, you get both controlled tilt and smooth swivel.
What you get
The package includes the TV ceiling mount, a mounting hardware kit, and a user manual. You also get US based customer support available seven days a week for assistance during setup. The mount is designed to be a complete starting point for installation, with the included kit helping you move from unboxing to mounting.
WALI CM3790XL also comes with a 10 year service, which supports long term ownership confidence. That matters when the TV setup is not a quick weekend project, especially in higher ceiling spaces or locations like offices, clinics, fitness centers, or school environments. Having service coverage can make it easier to address questions that come up after installation.
