Voltset 12V 20W Solar Battery Charger

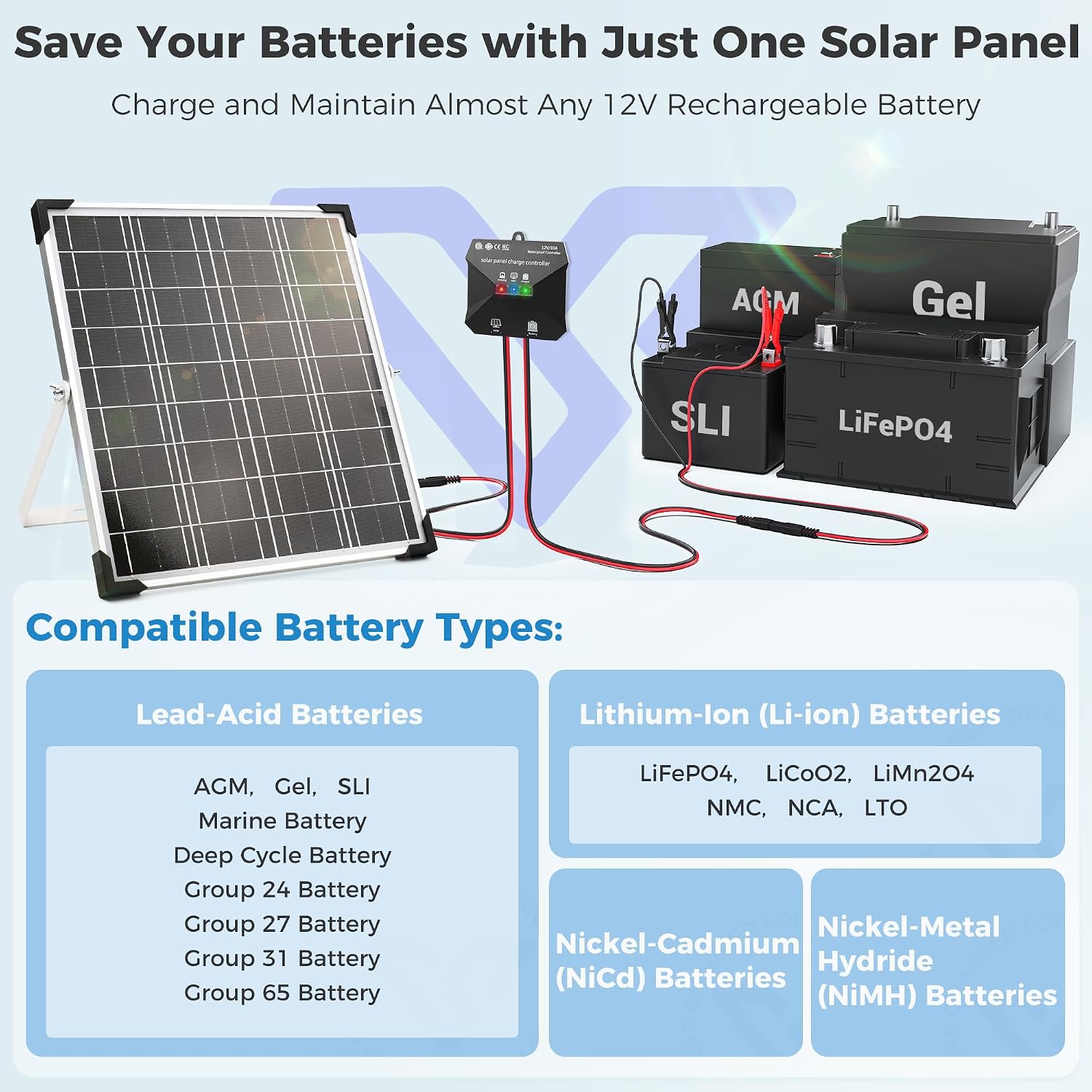

This 12V solar battery charger kit from Voltset keeps lead-acid and other 12V batteries topped up for vehicles and equipment with minimal fuss. It combines a compact 20W monocrystalline panel and an intelligent controller to maintain batteries for cars, RVs, boats, trailers, and small power systems while you are away or off-grid.

Key Points

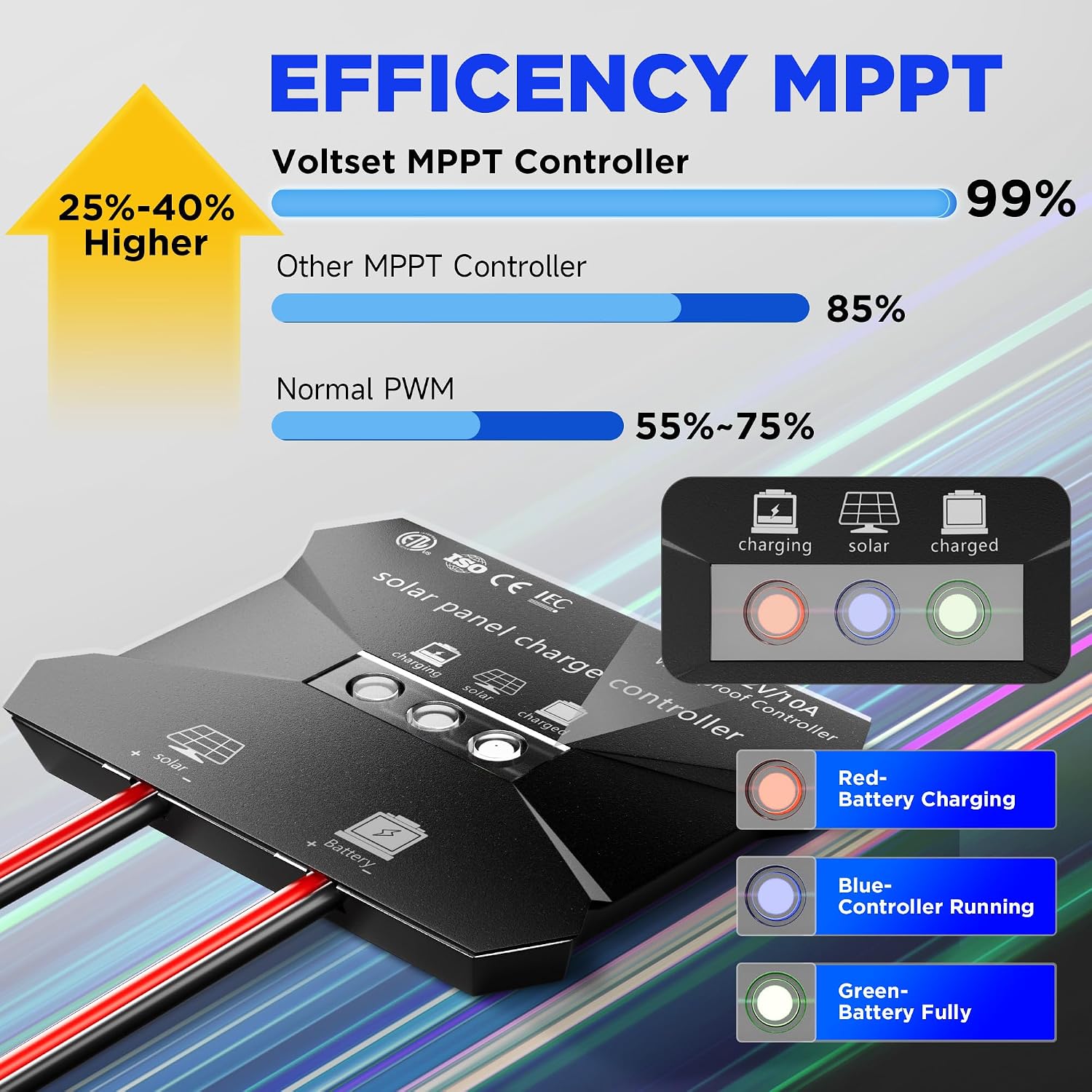

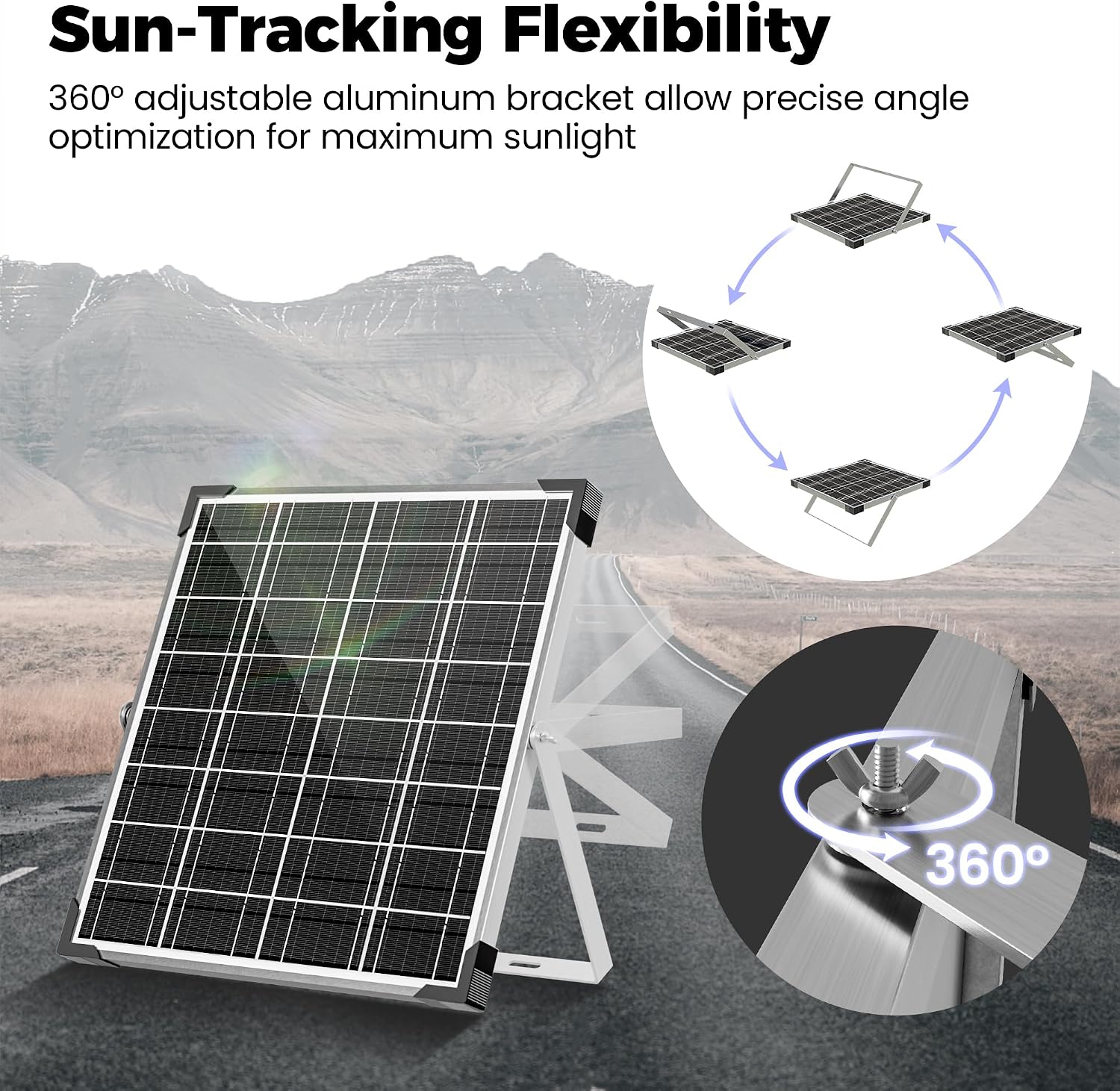

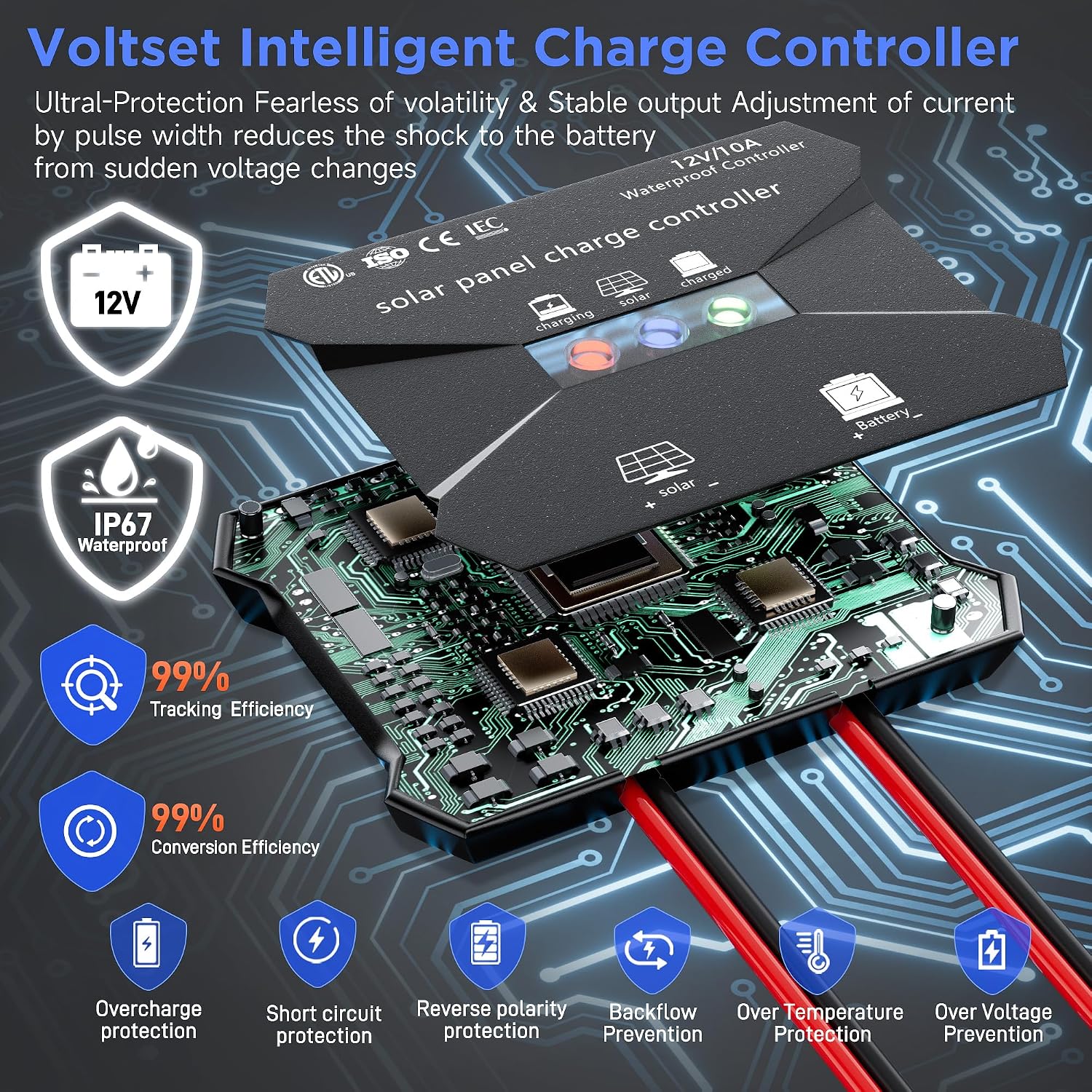

The kit includes a tempered glass solar panel framed in corrosion-resistant aluminum that, according to the manufacturer, uses A+ monocrystalline cells with up to 23% conversion efficiency. The integrated controller employs an upgraded MPPT algorithm to extract more energy from the panel, which the maker states increases power by about 20% to 30% versus traditional controllers. Installation is straightforward with a 360° adjustable mounting bracket and predrilled holes for floor, wall, or roof attachment. ⚡

Durability is a focus here, with an IP65 rating that protects the electronics from water and dust. The panel and bracket are designed to endure wind pressures up to 2400 Pa and snow loads up to 5400 Pa, so it can remain mounted in exposed conditions without frequent removal. A plug-and-play SAE connector and included crocodile clip make temporary or permanent connections easy.

Technical Specifications

• Name: Voltset 12V Solar Battery Charger
• Panel power: 20 W
• Nominal voltage: 12 V
• Controller type: MPPT 10 A
• Panel construction: tempered glass, aluminum frame, monocrystalline cells, ~23% conversion
• Protection rating: IP65

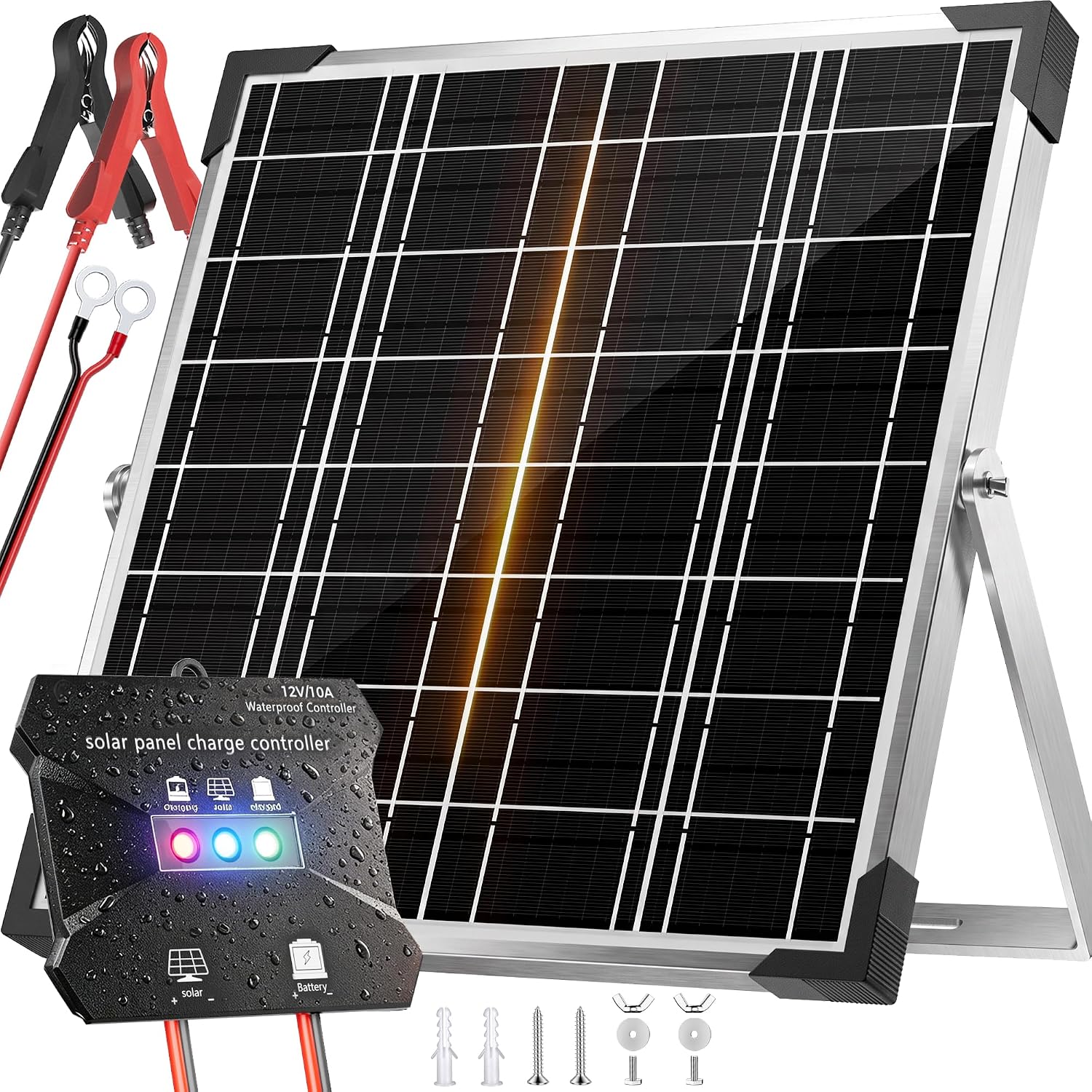

• Includes: mounting bracket, MPPT controller, crocodile clip, O-ring, mounting hardware

Usage Recommendations

Place the panel in a location with direct sunlight and minimal shading to maximize trickle charge efficiency. For vehicles parked for extended periods, connect the SAE plug to an existing compatible port or use the crocodile clip if you need a temporary connection. In snowy or icy conditions, clear heavy snow from the panel surface when safe to do so so output is not reduced. 🌤️

Consider that performance depends on available sunlight and battery condition. The MPPT controller helps with low-light harvesting, however this 20W module is intended for maintenance and slow charging rather than rapid replenishment of a fully depleted large battery. The package includes a 12-month warranty from the manufacturer and customer support as stated in the product materials.
