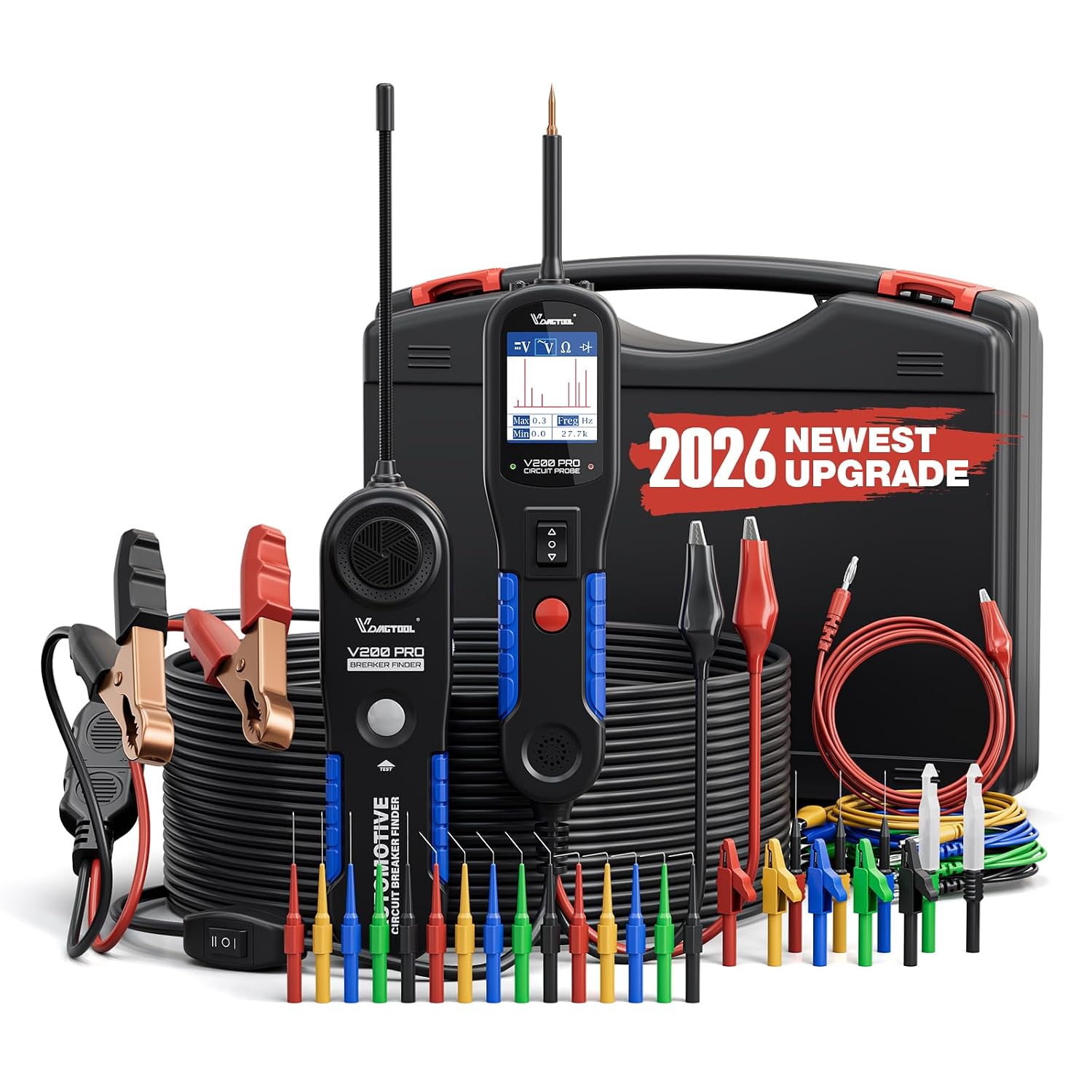

VDIAGTOOL V200 Pro 30PCS back probe kit

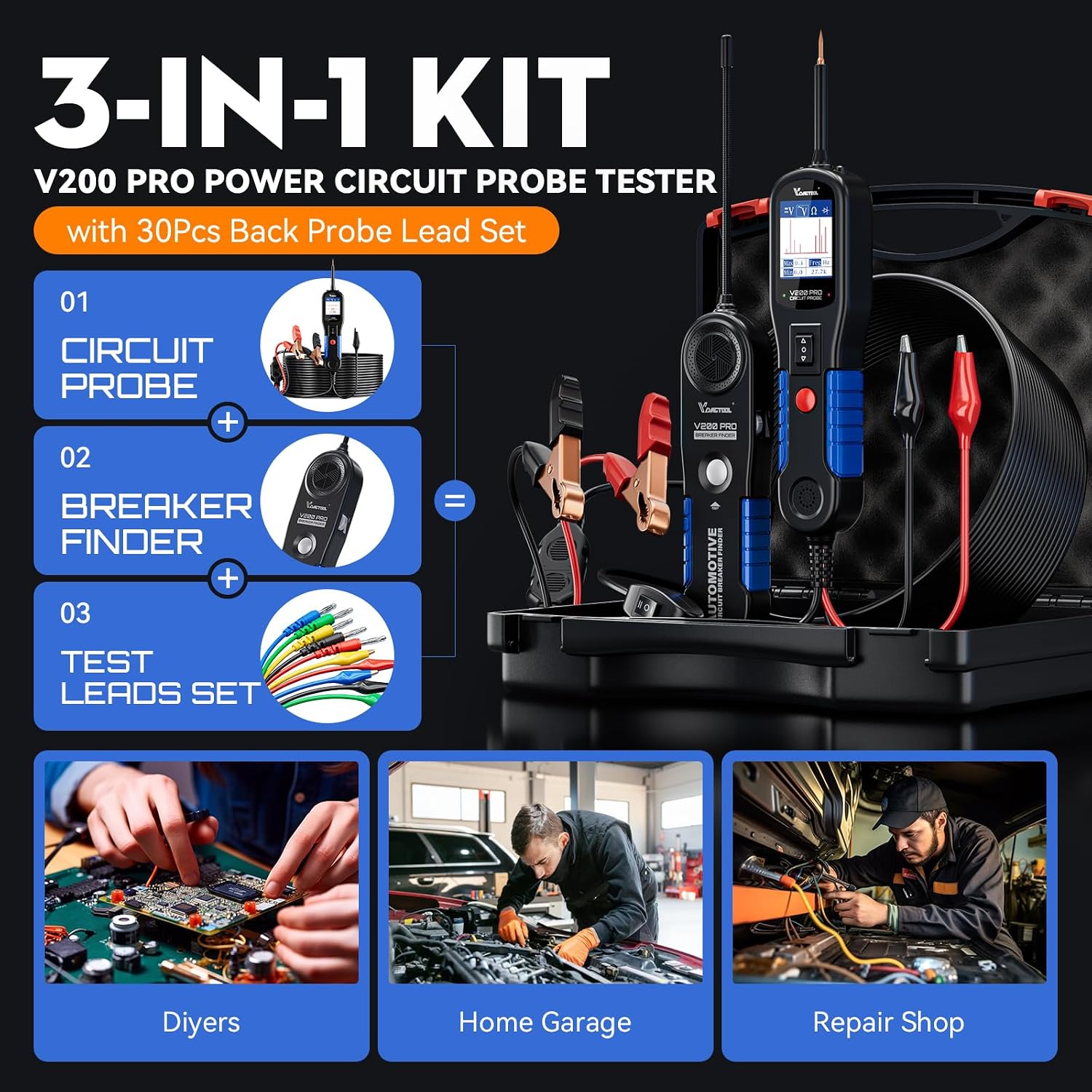

Turn automotive electrical testing into a faster, more organized workflow with the VDIAGTOOL V200 PRO Upgrade Kit. This automotive power circuit probe tester upgrade kit combines key circuit troubleshooting functions with a 30PCS back probe set, so you can inspect, trace, and verify live wiring without guesswork. 🚗⚡

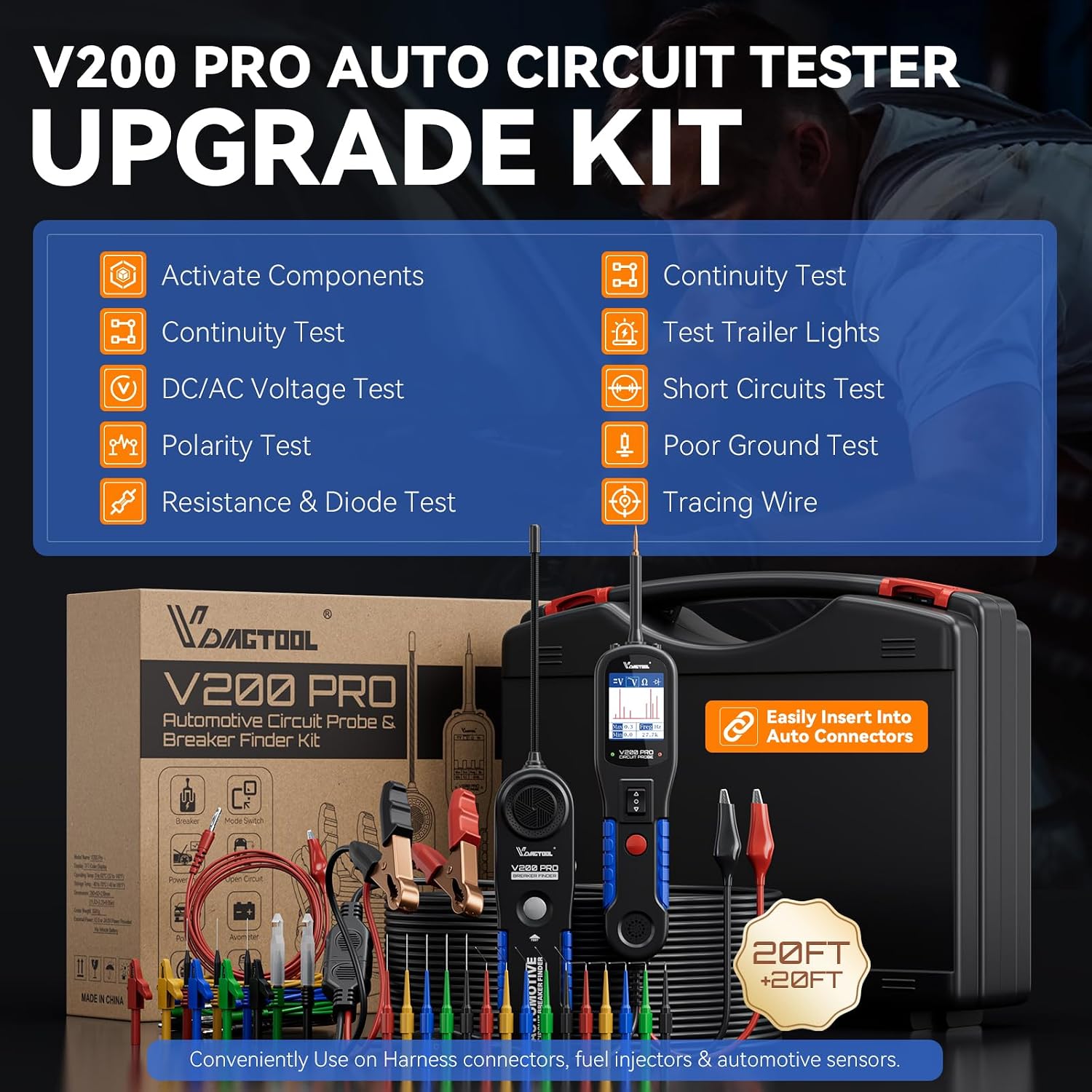

With an all-in-one approach, you can handle more than one kind of diagnostic task using the same kit. It covers circuit open checks, wire tracing, AC and DC voltage checks, diode and resistance testing, continuity and ground checks, polarity testing, and component activation. If you are dealing with shorts, broken wires, or wires that need careful identification, this kit is designed to help you locate the issue and move forward with repairs.

Key points

The VDIAGTOOL V200 PRO upgrade kit is built around practical automotive electrical needs, not just isolated testing. You can switch functional modes, so you can go from power circuit probe testing into circuit breaker finding with one click. That saves time when you are moving between common symptoms like blown fuses, open connections, or suspected current leaks.

Another advantage is the included 30PCS back probe set, which is meant to make harness and sensor work smoother. Back probe tools help you test at connectors, automotive sensors, and fuel injectors, so you can verify signals without relying only on external access. It can also speed up repeated checks during troubleshooting, especially when you need to confirm which side of a circuit is involved.

There is also a strong emphasis on component and signal troubleshooting. The kit can generate activation signals to electrical components such as car lights, motors, windshield wipers, radiator fans, and relay related circuits. For technicians and serious DIY enthusiasts who extract DTCs and then want to test sensors and signal circuits, this workflow can be especially helpful.

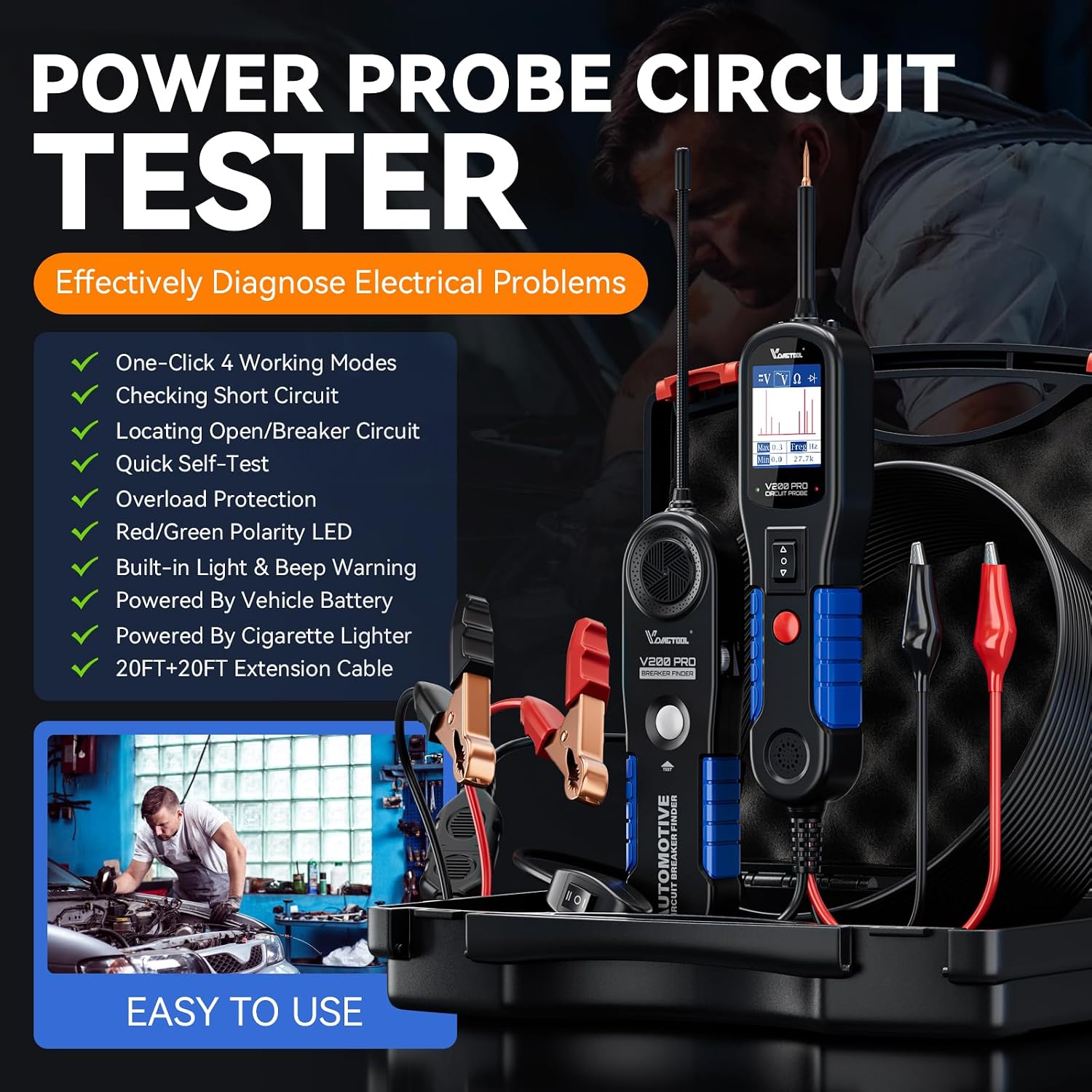

Finally, the kit is described as a power circuit tester that can be used without an external battery by connecting to a vehicle’s battery or cigarette lighter, depending on how you set up the connection. That matters when you want a straightforward bench or shop workflow, whether you are working in a service setting, home garage, school, or training environment.

Tech specs

• Working modes: AC/DC Voltage, Resistance, and Diode test modes
• System voltage support: 12/24V electrical system checks
• Circuit breaker finder coverage: works on vehicle circuit issues with 6 to 42 volt DC

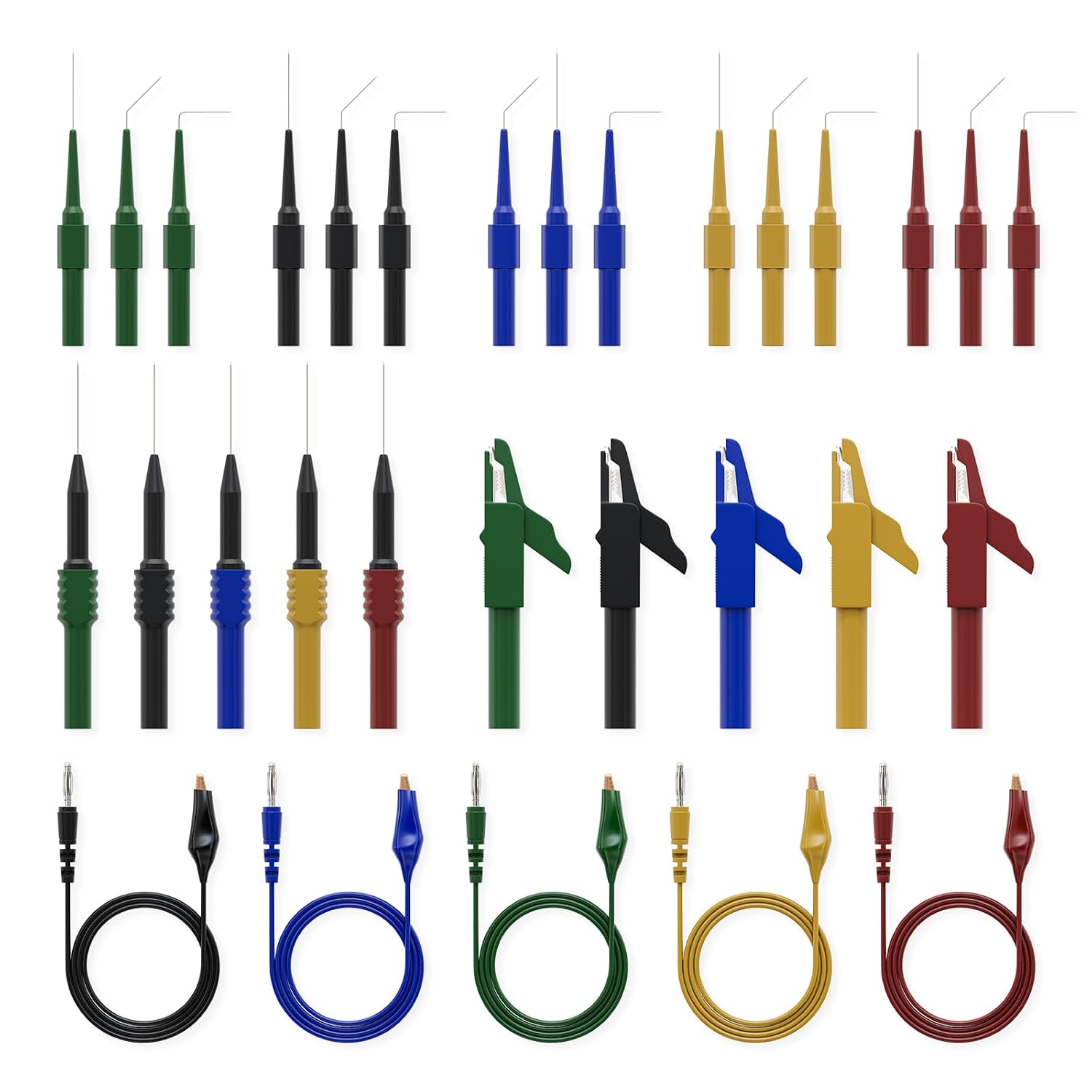

• Back probe kit size: 30PCS back probe set
• Back probe pins included: 15 back probe pins
• Test lead and clip variety included: 5 banana plug to alligator clip circuit test wires, 5 wire piercing probes, 5 nickel-plated copper alligator clips

What stands out

Mode I focuses on core circuit verification, including AC or DC voltage checks, resistance and diode testing, and the ability to determine whether a wire or circuit is live. It is also described as supporting multiple checks like polarity and continuity related verification, plus ground testing, which helps narrow down electrical faults. When you are trying to identify an open circuit or broken wire, those checks can guide your next steps.

Mode II shifts into breaker finder functionality, with a tone change intended to help you locate open connections, broken wires, and current leaks. The kit is also described as being able to trace wire or cable without damaging insulation, which can be important when you need to follow a harness path while keeping the wiring intact. You can use this approach across different vehicle types, including cars, SUVs, mini vans, trucks, tractors, boats, and RVs, as long as the circuit falls within the stated DC range.

Beyond finding faults, the kit supports activation and signal circuit testing. It can generate activation signals to components like relay and fuel injector related systems, as well as other common vehicle outputs such as lights, motors, and fans. If you have recurring blown fuses or you extracted diagnostic trouble codes from a vehicle ECU and then need to confirm sensors and signal circuit behavior, this “test and verify” cycle can help you pinpoint root causes.

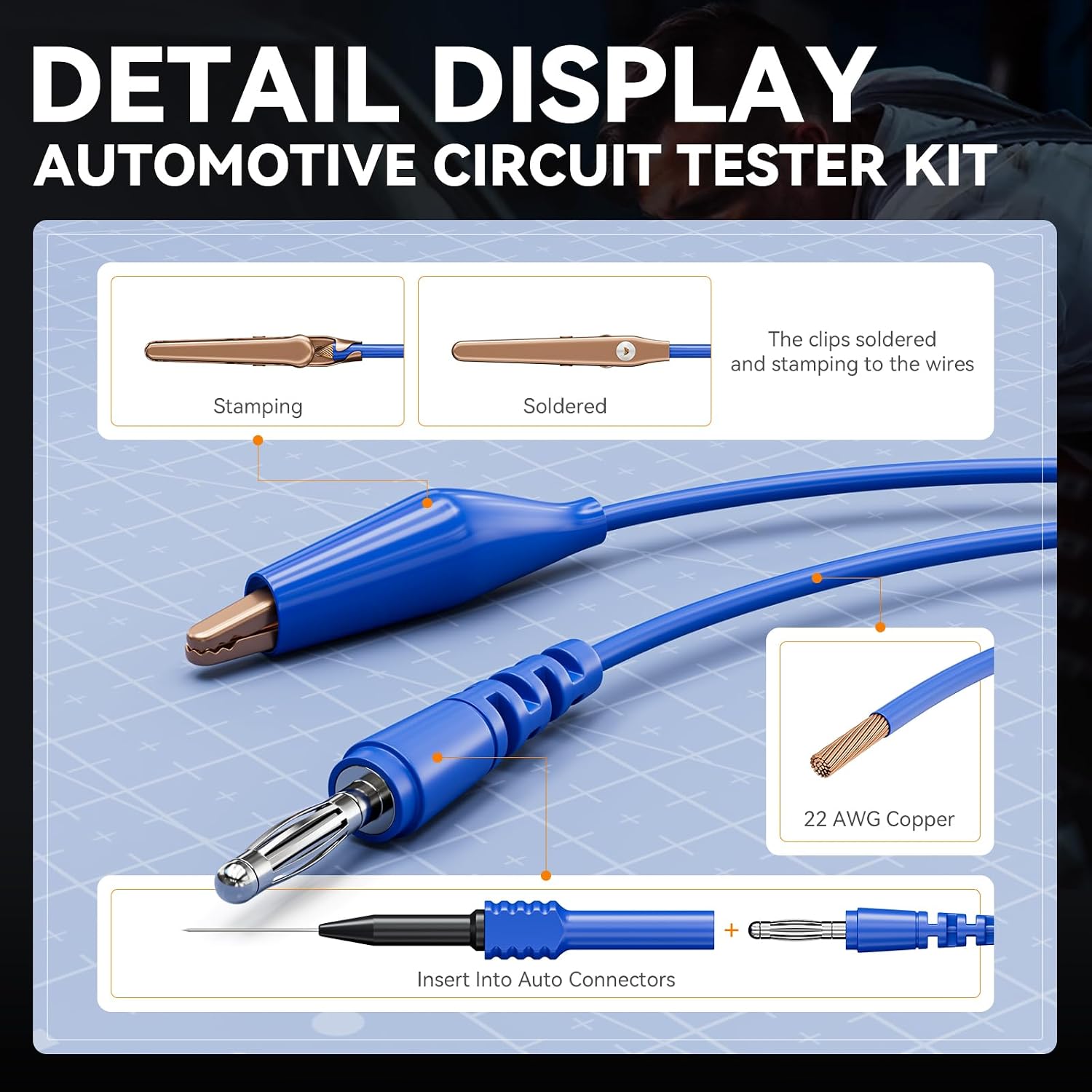

You also get specific accessory formats that match common connector work. The kit includes back probe pins designed for harness connectors, along with banana plug to alligator clip test wires, wire piercing probes, and nickel-plated copper alligator clips. That combination supports both careful connector probing and reliable connection stability during testing.

Who it’s for

It makes sense if you are working through automotive electrical problems like shorts, open circuits, broken wires, and unclear wiring paths. You will likely appreciate the workflow if you want a kit that supports multiple test types and lets you move between circuit probe testing and breaker finding without switching tools. It can fit DIY enthusiasts who want a more complete toolbox, as well as electronics engineers, technicians, and learners in schools.

It might not be a great match if your work requires specialized equipment beyond voltage, resistance, diode testing, and circuit breaker finding described here. Also, keep in mind that the kit’s effectiveness depends on proper access to wiring and connectors, since back probing is about getting the tester leads to the right points. If you are ready to do organized automotive circuit diagnostics, this upgrade kit is designed to support that process with practical probing tools and mode based testing. 🚘🔧.
