TOPDON thermal imaging camera 128 x 128 IR resolution

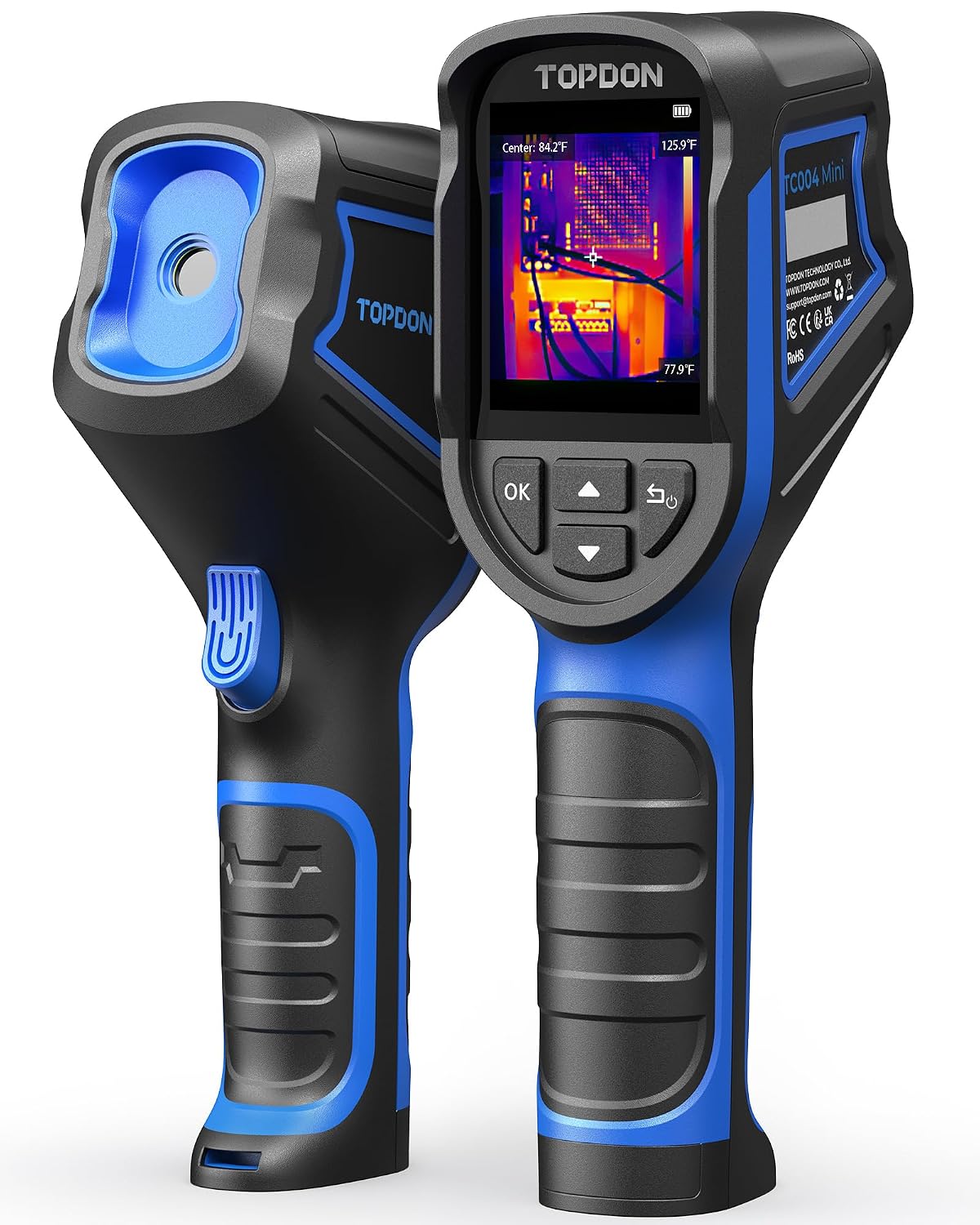

A hidden hot spot or uneven floor heating can be hard to track down with a standard visual check. The TOPDON TC004 Mini gives you a handheld way to scan temperature patterns and pinpoint areas that deserve a closer look.

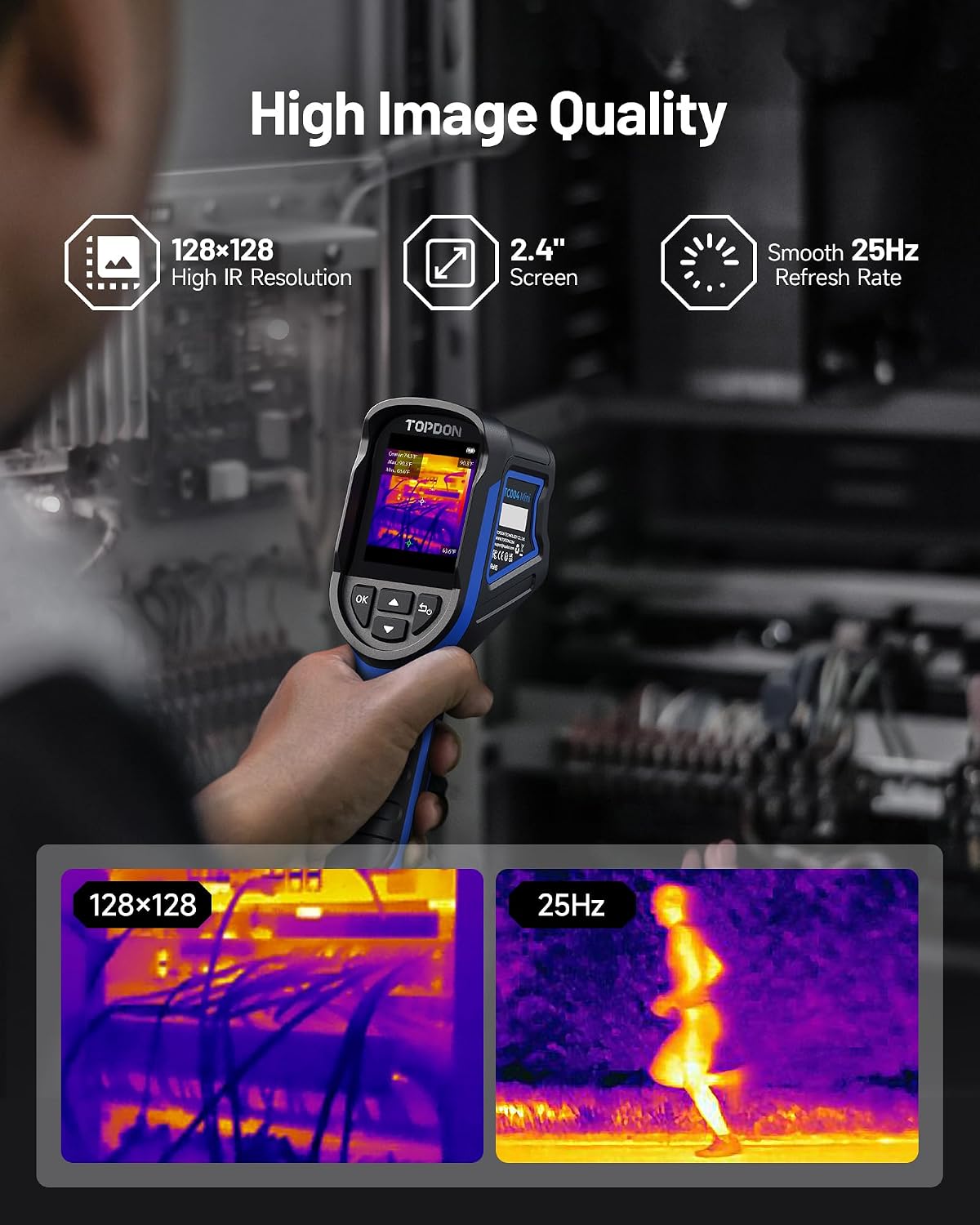

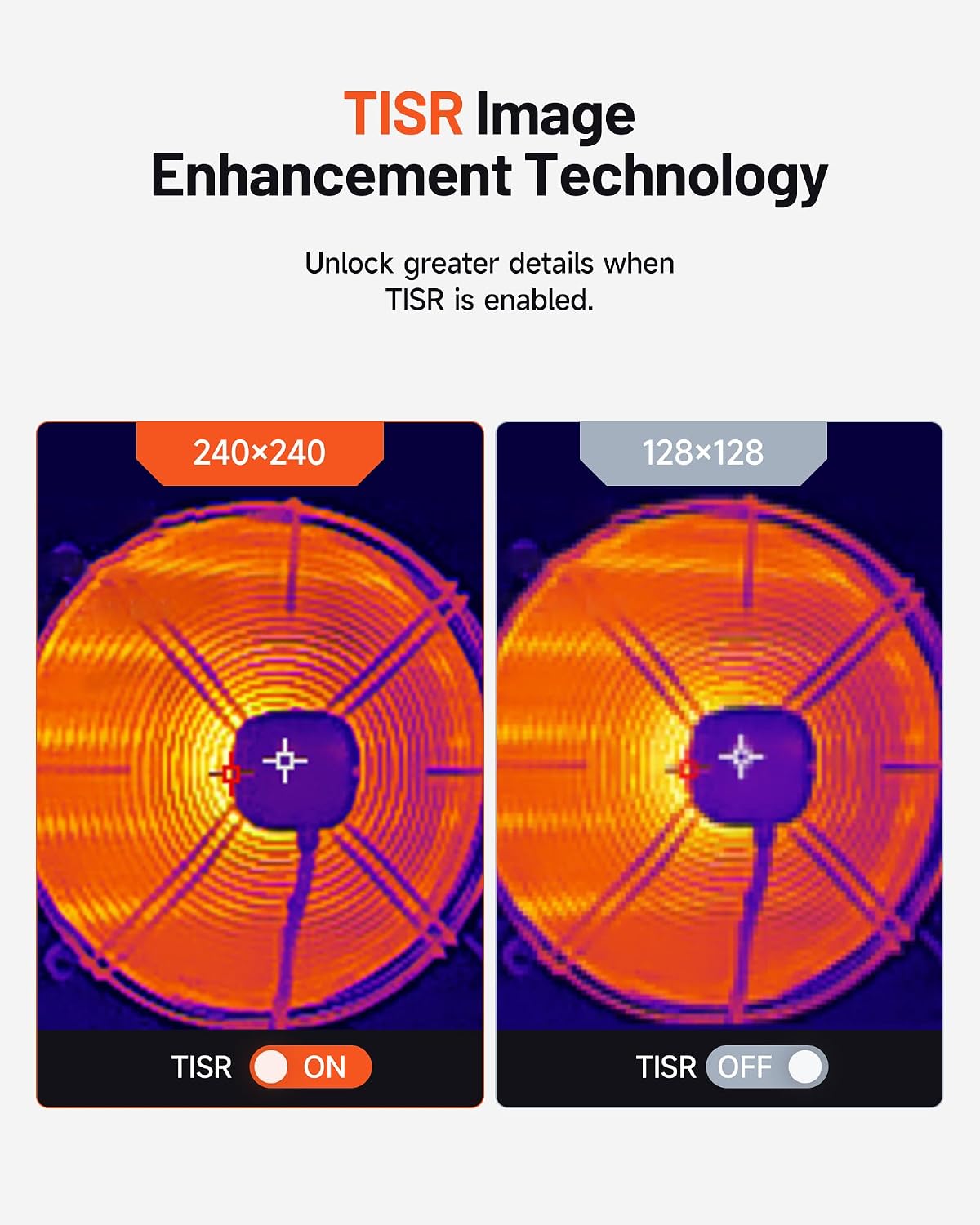

Its thermal image starts at 128 x 128 IR resolution, with TISR enhancement to 240 x 240. That added detail can make a scan easier to interpret, but the enhanced resolution is not the same as a native 240 x 240 sensor.

It’s designed for home, electrical, and machinery inspections. If you are checking a suspected leak or scanning an electrical panel, the high, low, and center temperature readings help you narrow down where to investigate next.

Best use cases

This camera makes sense for troubleshooting jobs where temperature differences are more useful than a regular photo: checking underfloor heating, looking for possible leaks, or comparing areas of electrical equipment and machinery. The 40° x 30° field of view gives you a broad view of the scene, while the 25Hz refresh rate is intended to keep the thermal image moving smoothly as you scan.

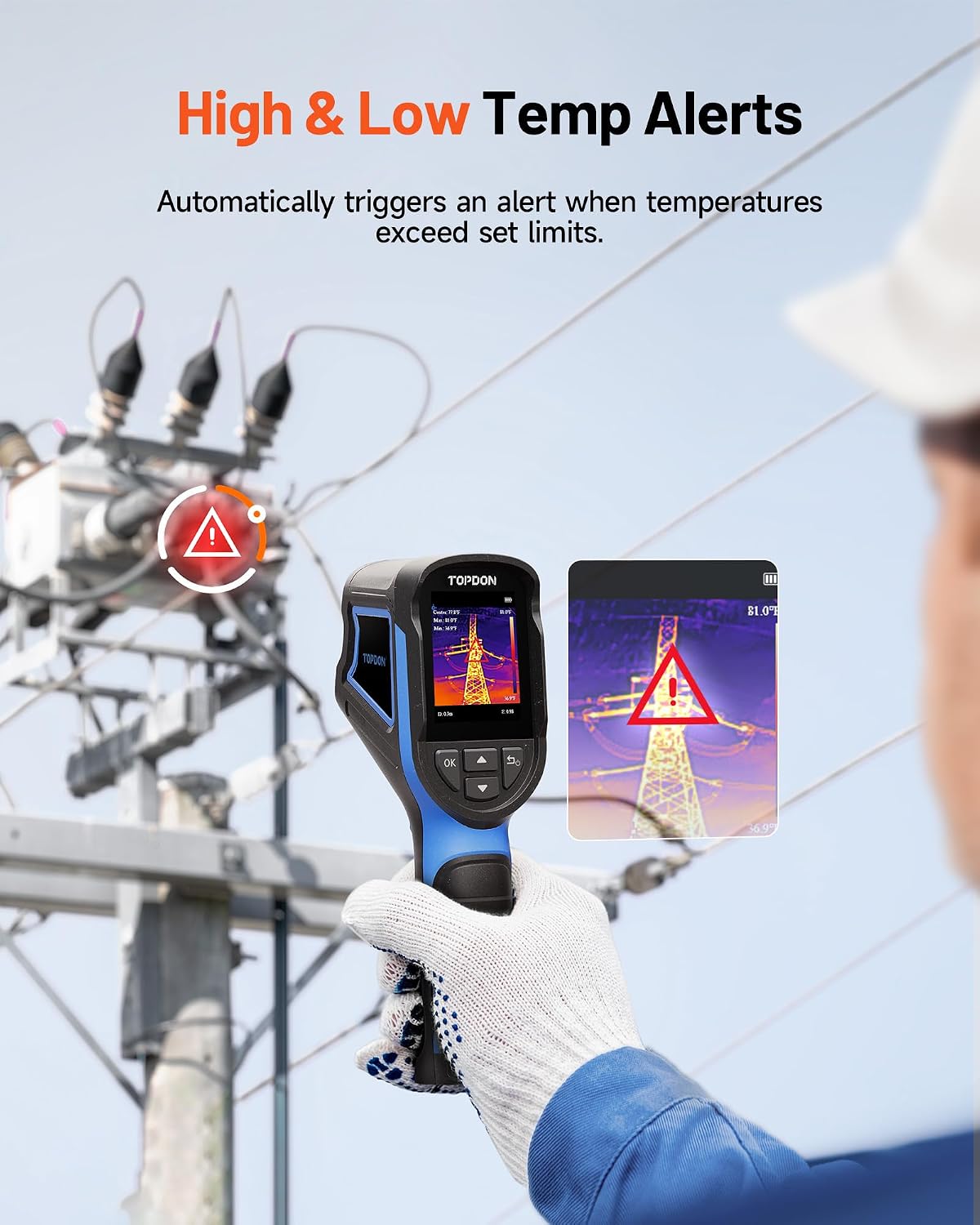

High- and low-temperature alerts can warn you when a preset threshold is exceeded, and the camera can automatically capture a photo at that point. You can also take photos manually. In practice, that means you could scan along a heated floor, pause when a section looks different, and save an image to refer to during follow-up work. The built-in 512MB eMMC storage is listed as holding up to 8,000 photos.

It’s a great fit if you want a standalone handheld scanner for occasional or ongoing inspections. Better avoided if you need a native 240 x 240 IR sensor or require temperature readings beyond the stated measurement range.

Product specs

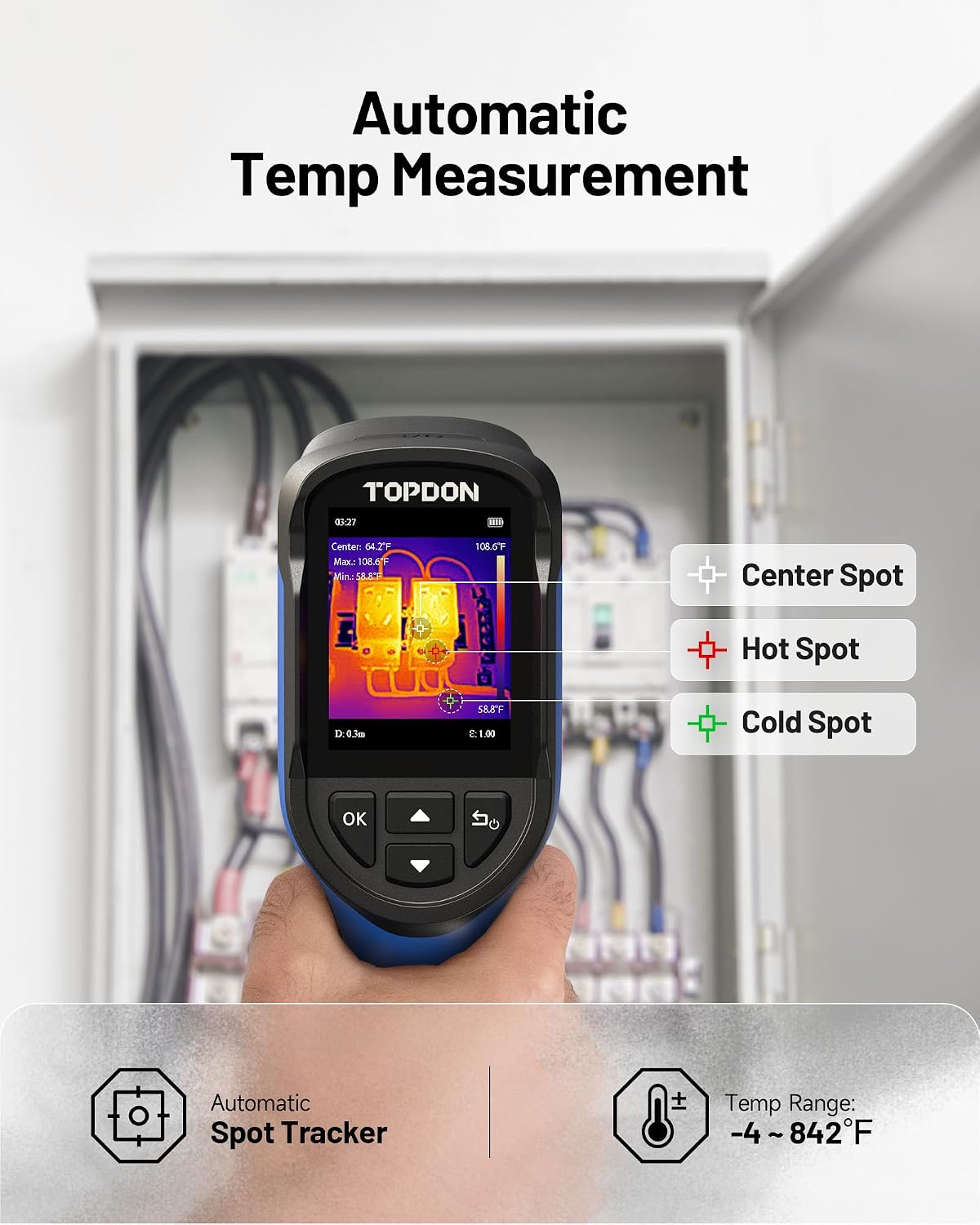

The stated temperature range is -4°F to 842°F (-20°C to 450°C), with an accuracy error within ±3.6°F/2%. It identifies the highest, lowest, and central temperature points, and offers White Hot, Black Hot, Iron, Rainbow, and Red Hot color palettes. Those tools help you view a scene in different ways, though the camera is still an inspection aid rather than a substitute for investigating the cause of an abnormal reading.

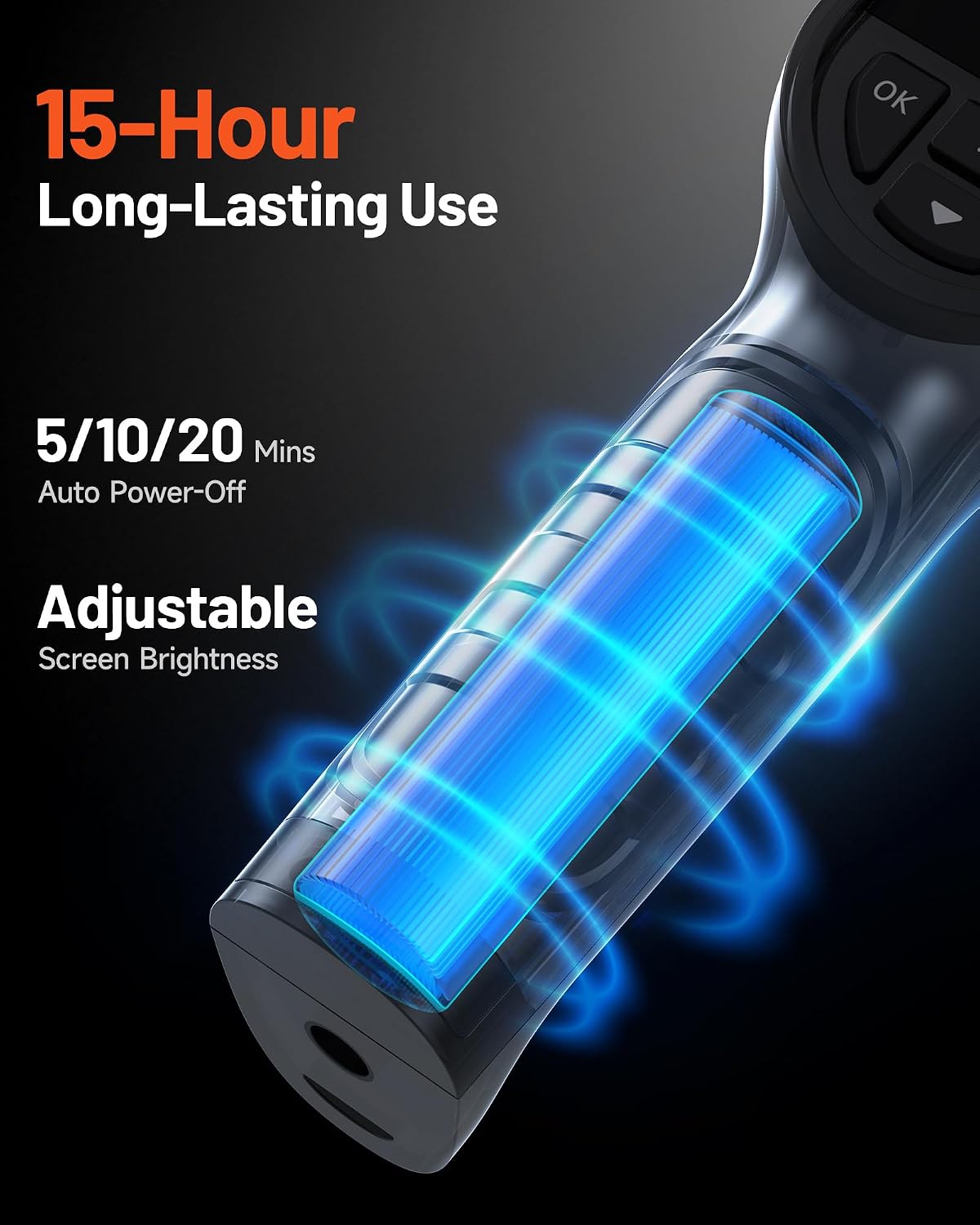

TOPDON lists up to 15 hours of battery life and automatic shutdown settings at 5, 10, and 20 minutes. The housing is rated IP54 and is stated to withstand drops up to 2 meters. A charging cable is included, but a charging head is not. The paper manual is also omitted, the electronic manual is available through the QR code on the package.

Where it shines

The useful part of this setup is the combination of live scanning, temperature alerts, and saved images. Instead of relying on memory after checking several spots, you can capture a photo when a threshold is crossed or record one manually. That can make it easier to compare findings later or share a visual reference while planning a repair.

The handheld format and listed battery runtime also suit inspections that involve moving from room to room or checking multiple pieces of equipment. From the way it is set up, its role is targeted diagnostics—not detailed visible-light photography or a guaranteed diagnosis of what caused a temperature change. The accuracy tolerance is worth keeping in mind when a small difference would affect your decision.

Is it worth it?

The TC004 Mini is worth considering if your work or home maintenance regularly involves finding temperature patterns, and you value alerts, image capture, and a range that reaches 842°F. Compared with a more basic spot-checking approach, it gives you a thermal view and a way to preserve findings, compared with more demanding inspection equipment, its native 128 x 128 IR resolution and stated accuracy tolerance set clear limits.

Choose it when a portable thermal scan can help you decide where to inspect next. Skip it if your task depends on native 240 x 240 thermal resolution, tighter stated accuracy, or a charging head in the box.
