SSK M.2 NVMe SSD Enclosure USB 3.2 Gen 2 (10Gbps) 🖥

This compact aluminum enclosure lets you turn an M.2 NVMe or SATA SSD into a fast external drive for transfers, backups, and on-the-go storage. It pairs a slim metal body with a USB-C Gen 2 10 Gbps interface to deliver high-speed file moves for media, system images, and large project folders, according to the manufacturer.

Key Points

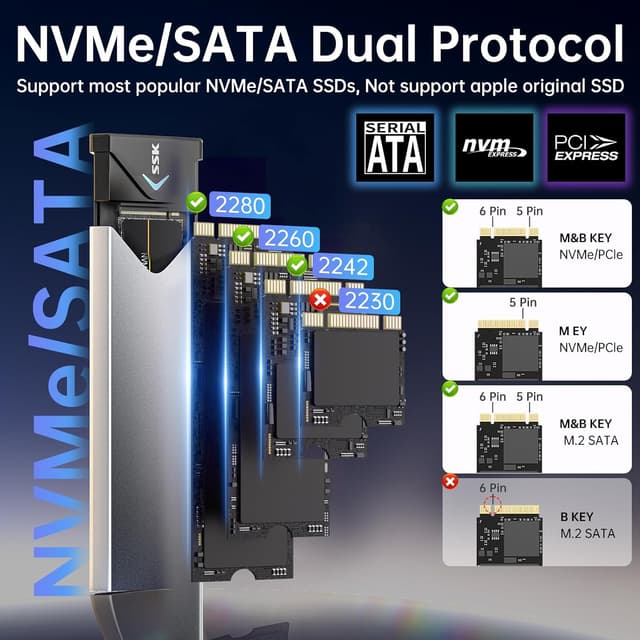

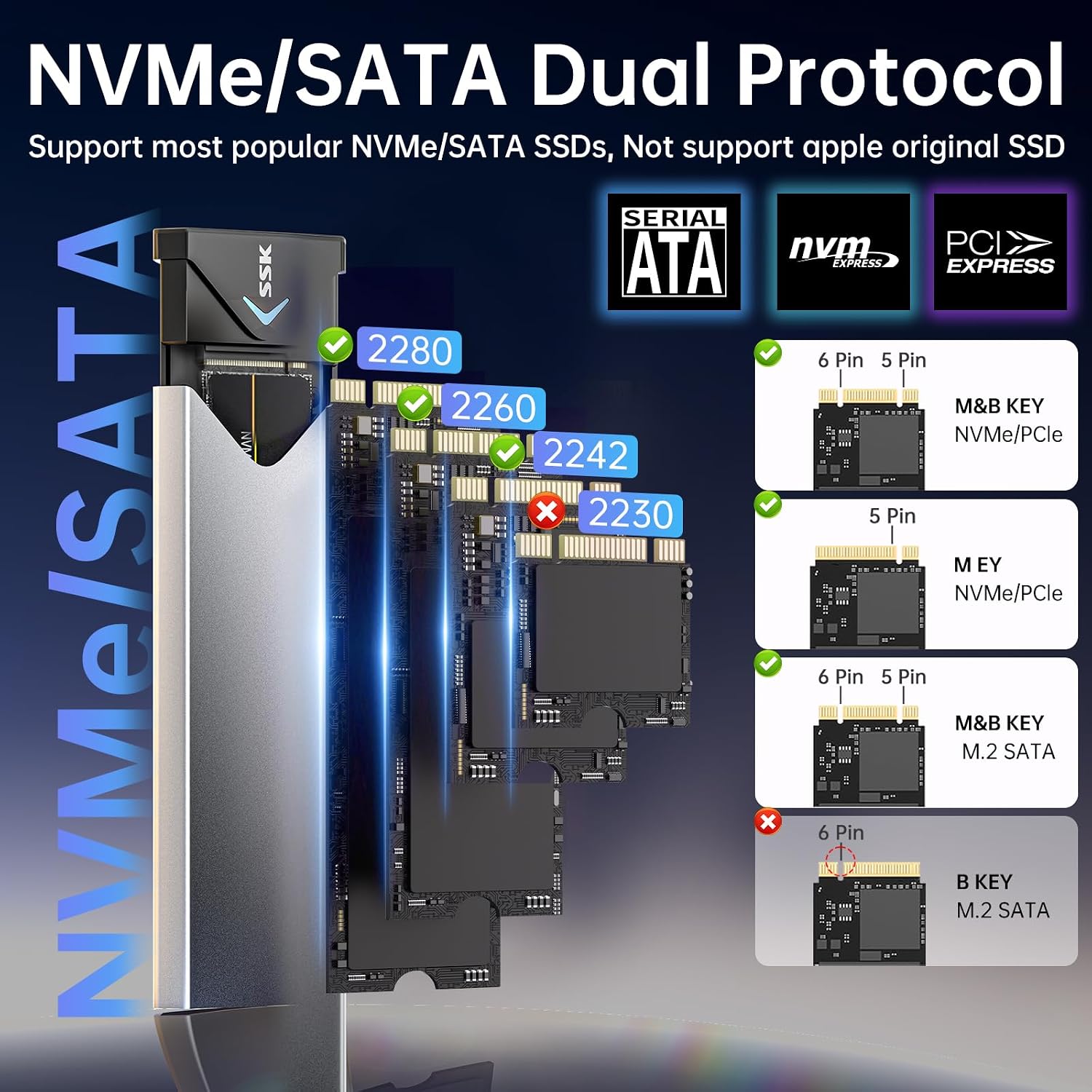

The enclosure supports M-Key and B+M Key M.2 SSDs in lengths 2242, 2260, and 2280, making it versatile for a range of NVMe and SATA modules. It includes a reversible USB-C cable and a USB-A 3.0 cable for backward compatibility with older ports. The aluminum housing improves heat dissipation and keeps the unit lightweight for travel. An activity LED provides a clear status indicator during transfers. Note that M.2 PCIe AHCI drives, non-M.2 form factors, and modules such as Wi-Fi cards or capture cards are not supported.

Technical Specifications

• Name: SSK Aluminum M.2 NVMe SATA SSD Enclosure Adapter
• Interface: USB 3.2 Gen 2 (10 Gbps) with backward compatibility to USB 3.0/3.1
• Supported SSD sizes: - 2242, - 2260, - 2280
• Supported keys: - M-Key and B+M Key

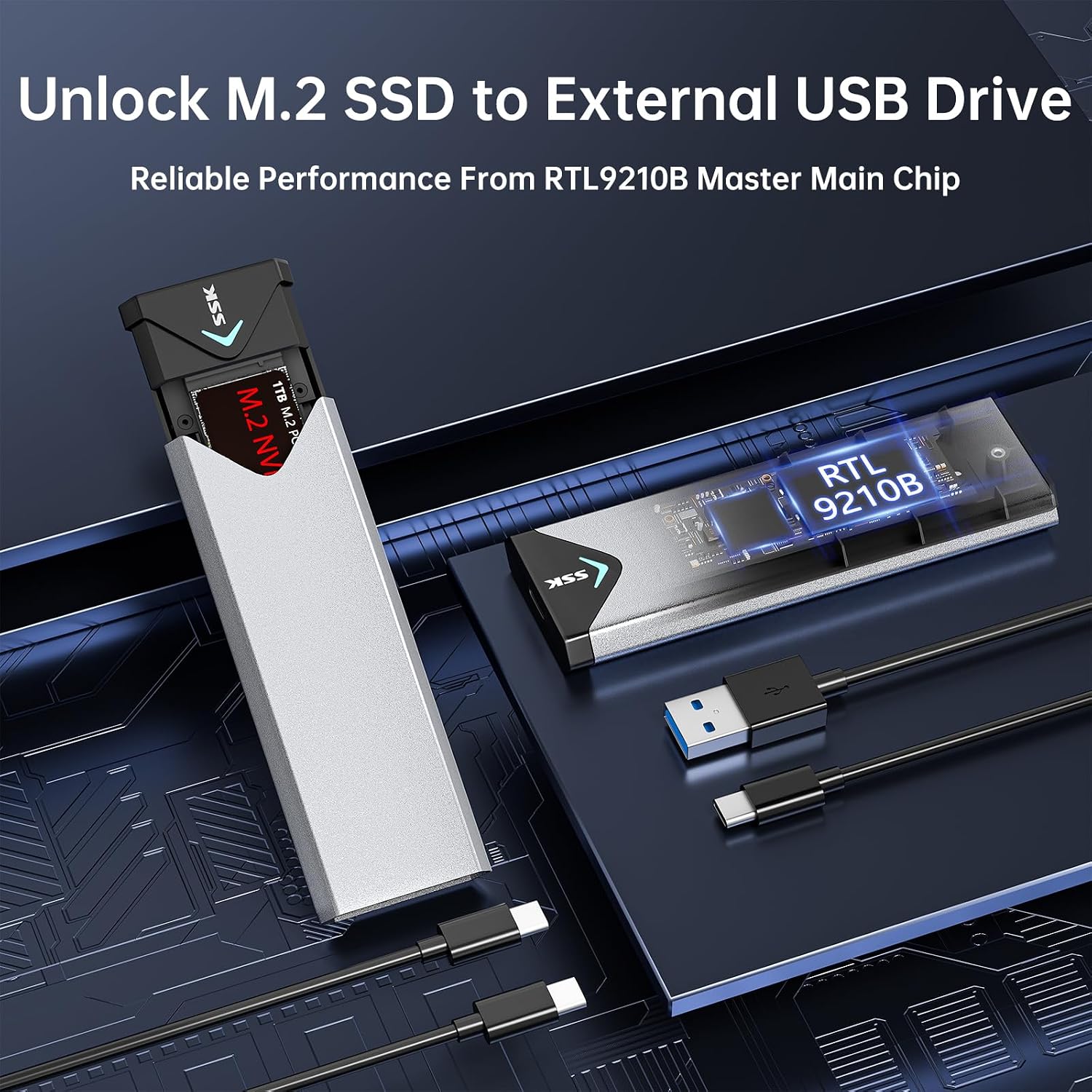

• Controller chipset: - RTL9210B

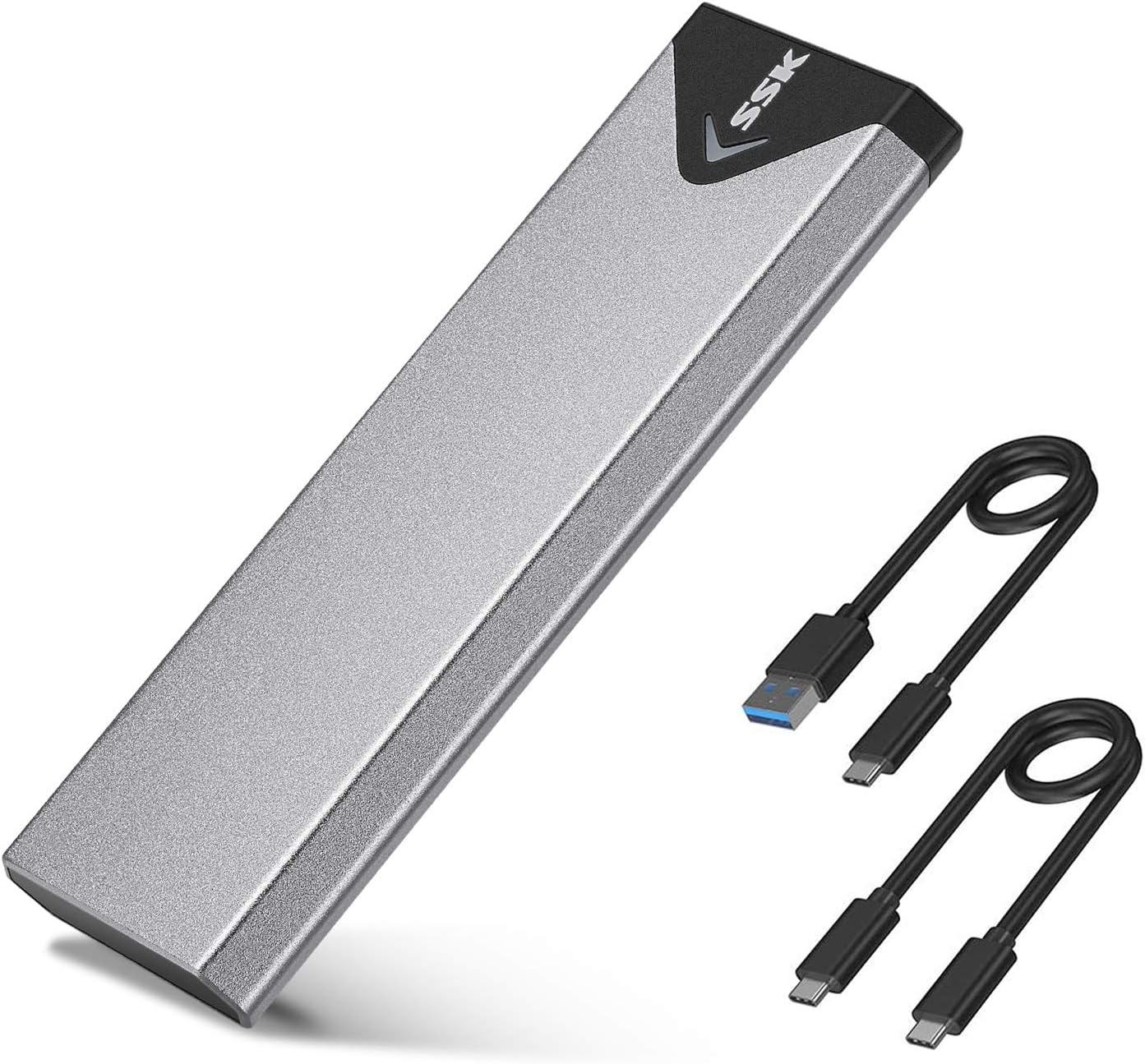

• Extras included: - Thermal pads, USB-C cable, USB-A (3.0) cable, screwdriver

Benefits

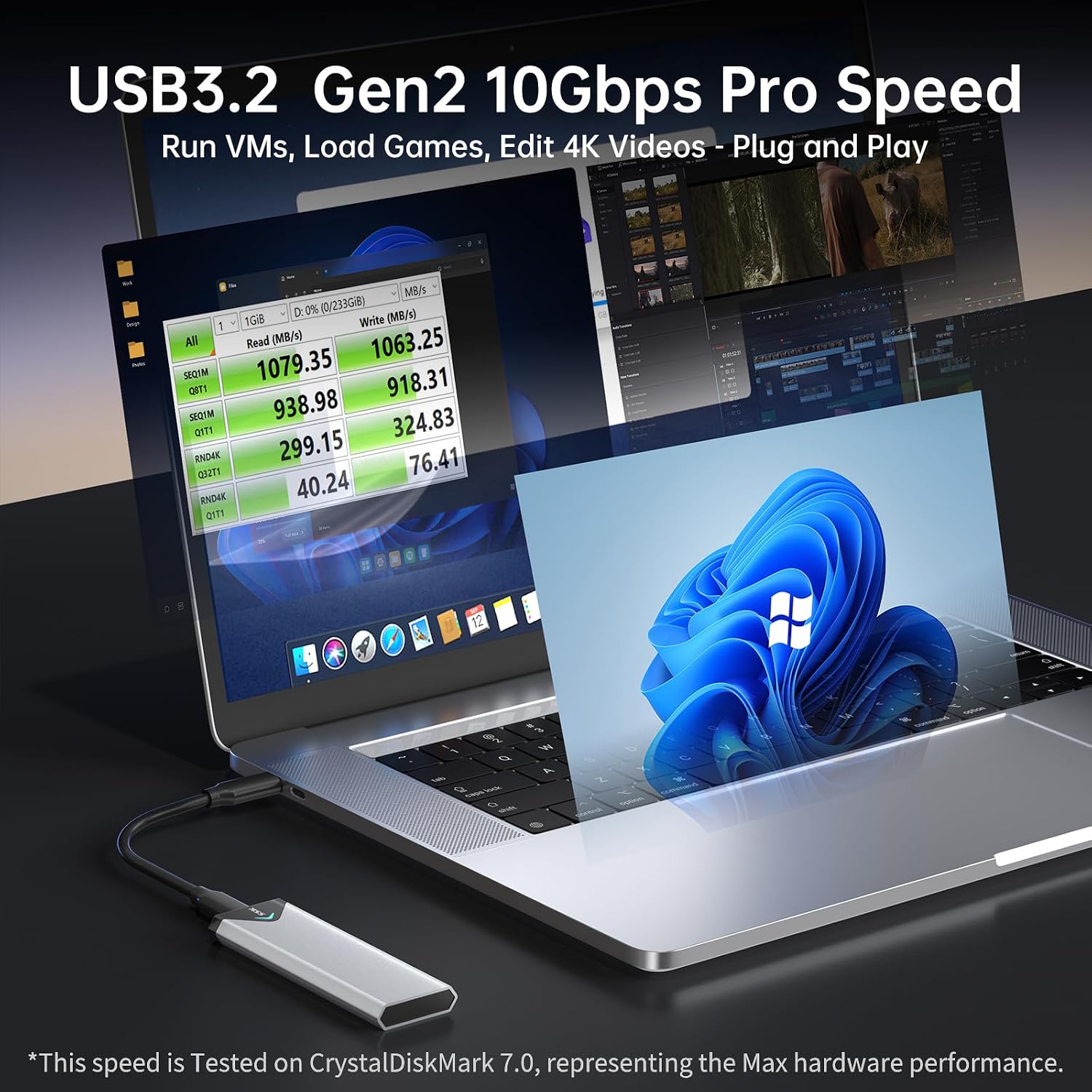

Because the enclosure uses the RTL9210B controller and supports UASP and TRIM, it can improve transfer efficiency and help maintain drive performance over time, according to the manufacturer. The USB-C Gen 2 connection allows Thunderbolt 3 or high-bandwidth USB-C hosts to approach the drive’s top throughput for quicker backups and large file transfers. Port flexibility with both USB-C and USB-A cables makes it easy to connect to laptops and desktops without extra adapters.

Usage Recommendations

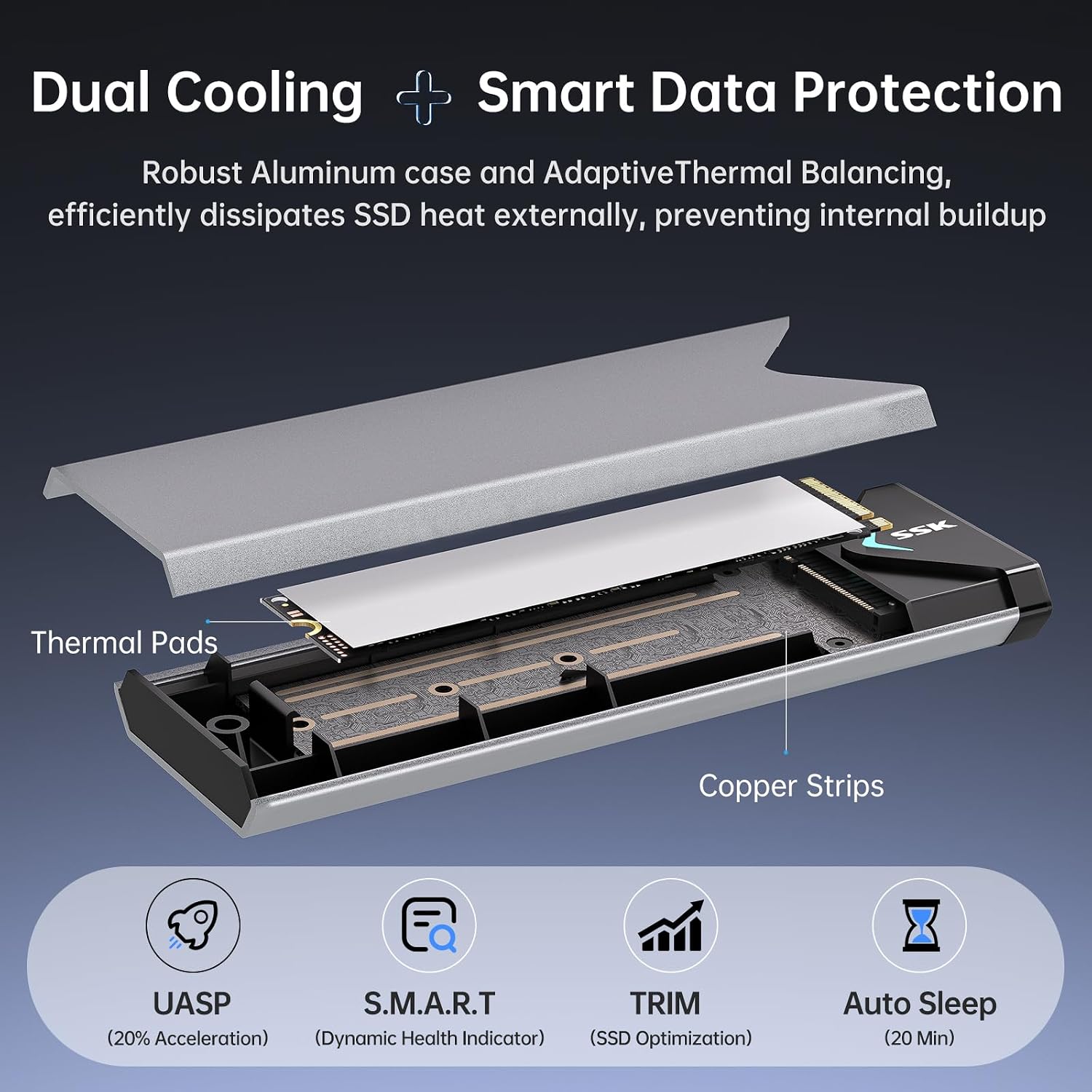

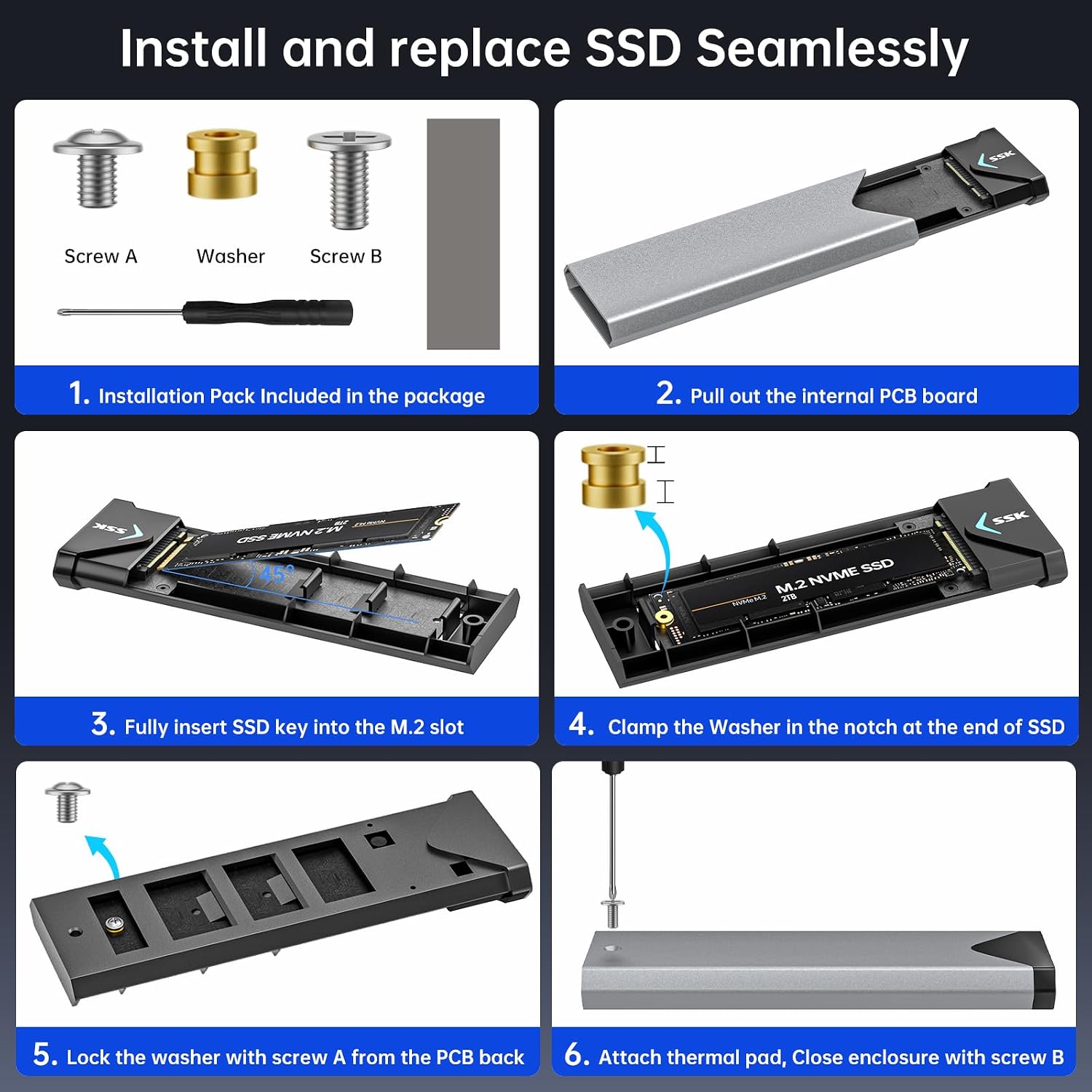

Install M.2 modules carefully and use the supplied thermal pads to aid heat transfer to the aluminum shell. For best sustained speeds with NVMe SSDs, connect to a USB-C Gen 2 or Thunderbolt 3 port on your computer. If you plan to move very large files frequently, consider active cooling or short transfer bursts, because passive aluminum enclosures improve dissipation but can warm under prolonged heavy use. New SSD media should be formatted and partitioned in a file system compatible with your host operating system to be accessible. System compatibility includes Windows 7, 8, 8.1, 10, Linux, and macOS, with plug-and-play operation and no extra drivers required for most setups.
