SecKrew Heat Shrink Butt Connectors, 22-10 AWG

Technical details

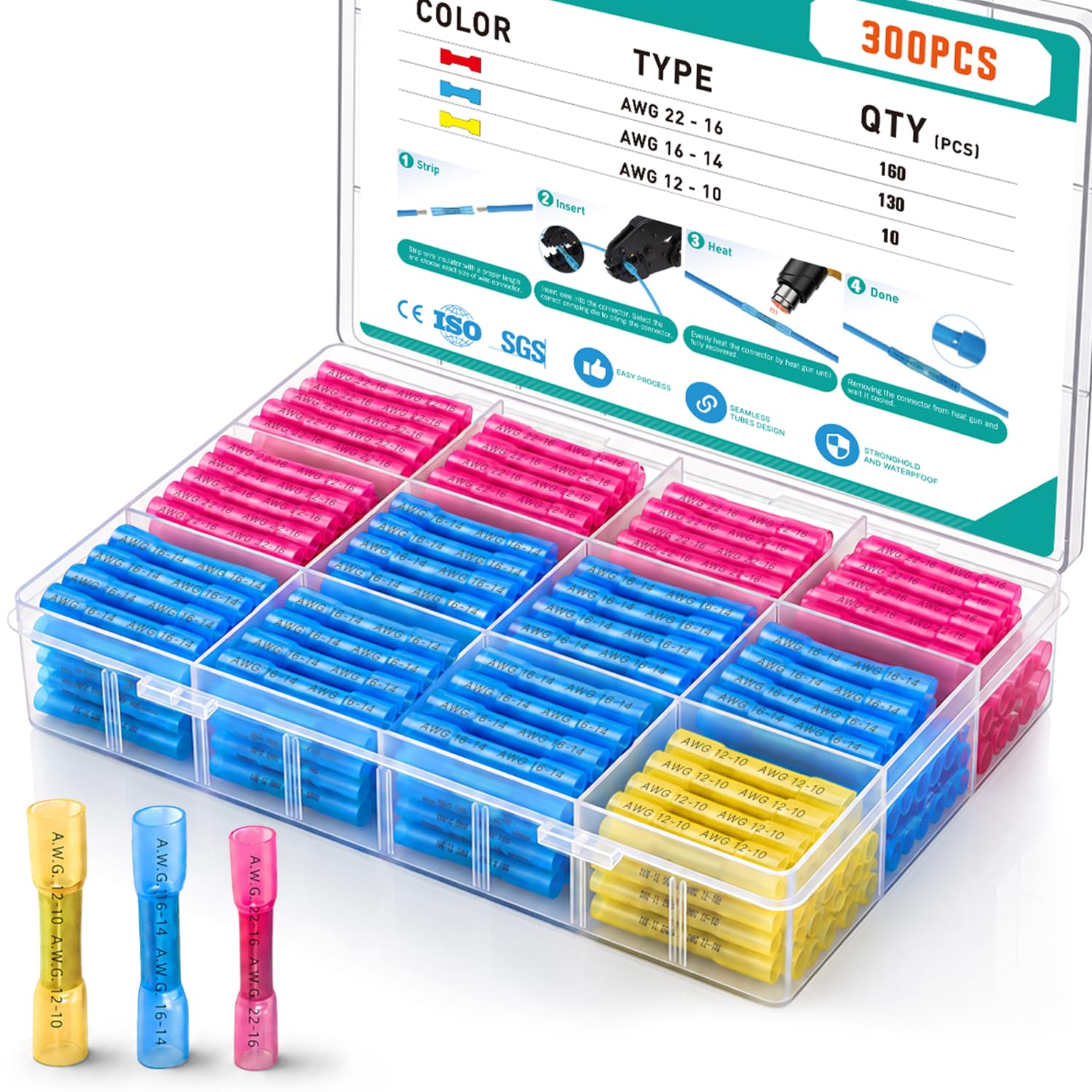

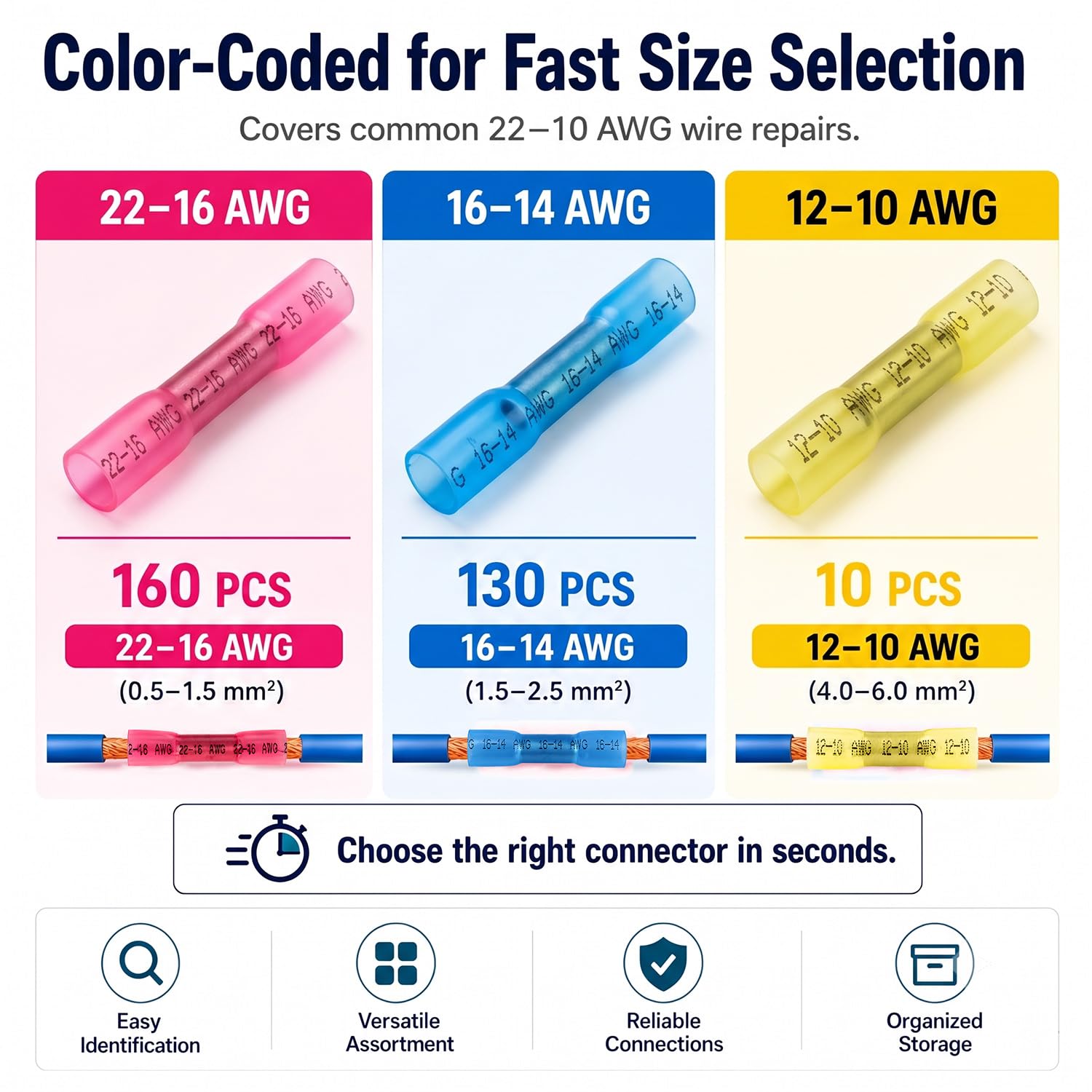

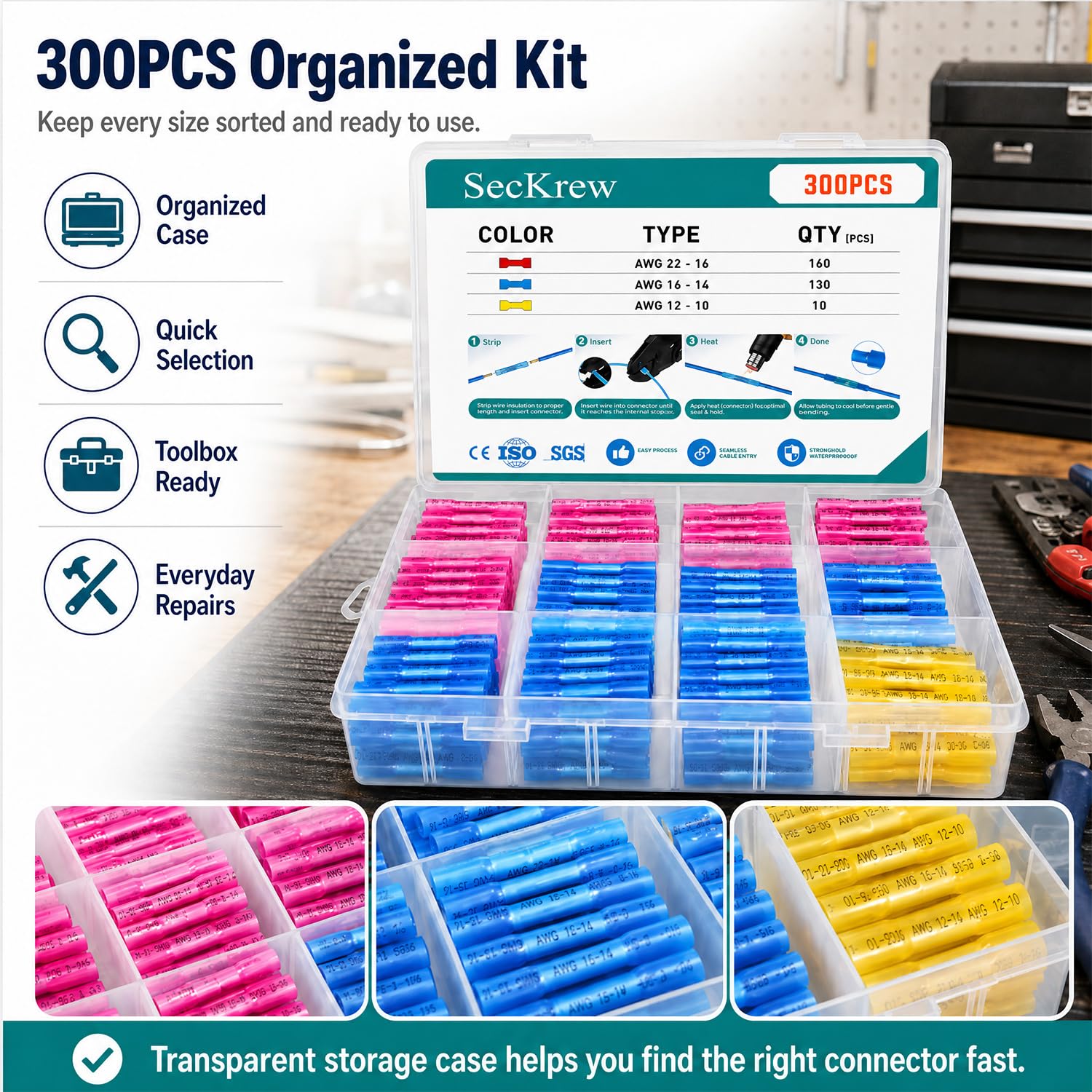

For a repair that needs a joined wire and an insulated finish in one step, this SecKrew kit groups heat-shrink butt connectors by wire gauge. The 300-piece set covers 22-10 AWG and uses red tubing for 22-16 AWG, blue for 16-14 AWG, and yellow for 12-10 AWG. The color bands and gauge markings are meant to make selection quicker, the ranges overlap at 16 AWG, so use the printed markings and the wire size rather than color alone.

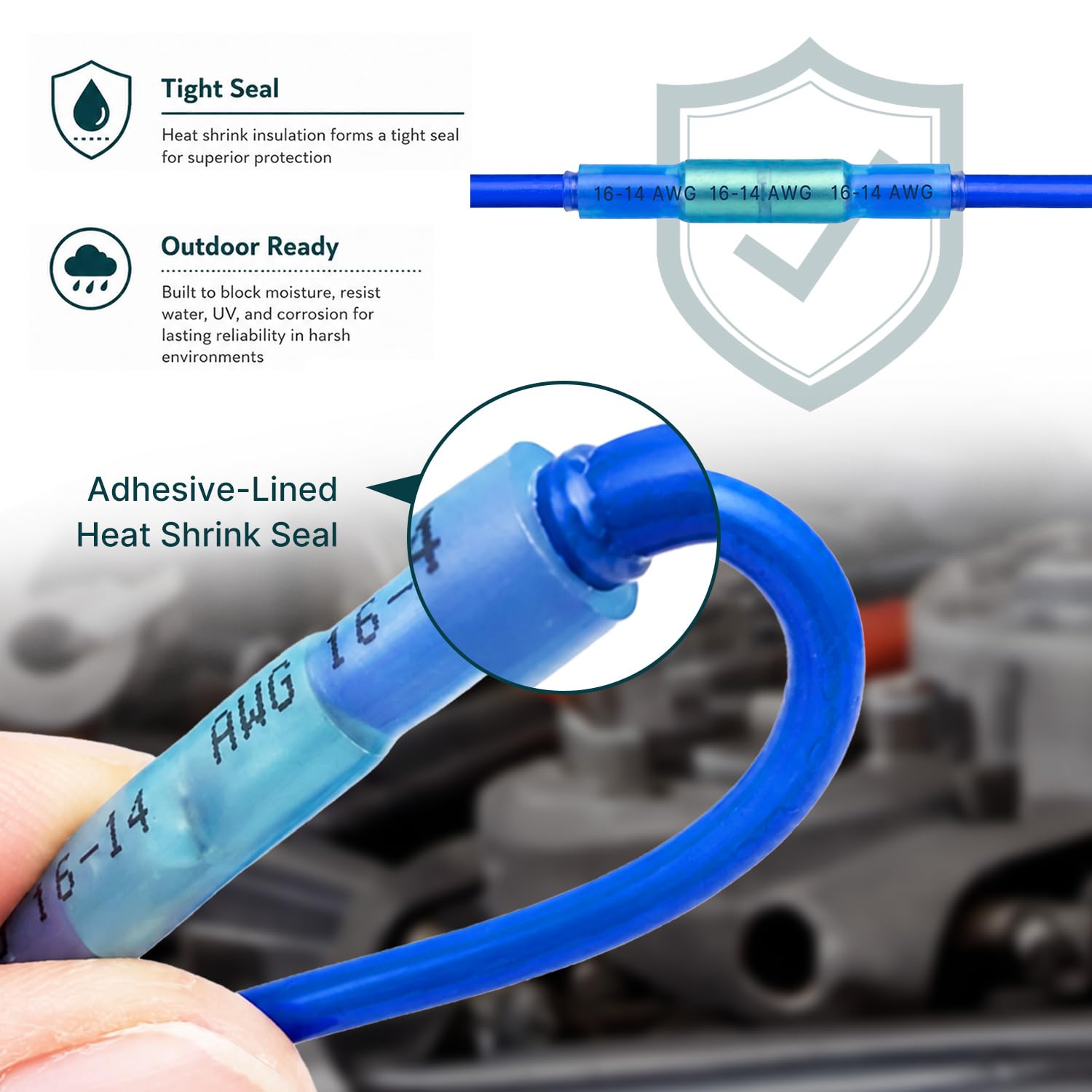

The tubing has a 3:1 shrink ratio and is described as marine-grade, waterproof, and flame-retardant. Those properties make the connectors relevant to marine and automotive wiring repairs, but the listing does not provide test results or details about how the 300 pieces are divided among sizes. That missing breakdown matters if you need a particular gauge in bulk.

Compatibility & requirements

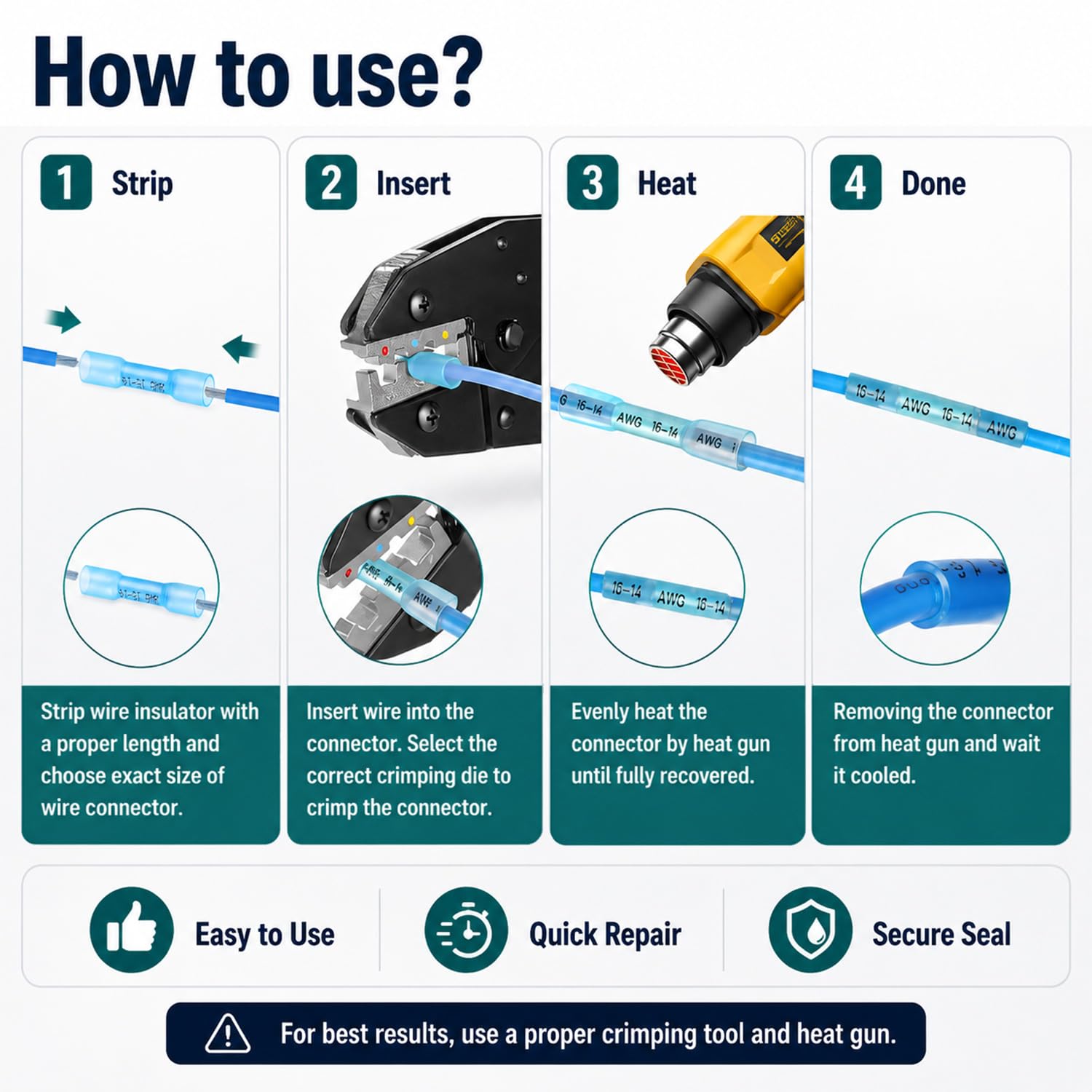

These are butt-splice terminals for joining wires, not a general-purpose connector for every electrical task. The stated range is 22-10 AWG, and installation calls for a standard crimping tool and a heat gun. The basic sequence is strip the wire, crimp the connector, then apply heat so the tubing shrinks around the joint. A crimper alone will not complete the heat-shrink step.

The product is presented for marine, automotive, boat, and truck repairs, as well as underground applications. It makes sense if you need assorted insulated splices across those wire sizes and already have the required tools. Not the best choice if your wiring falls outside 22-10 AWG, or if you need a specific quantity per gauge that the listing does not spell out.

Usage tips

Start by identifying the wire gauge, then match it to the marking on the connector tubing. Strip only enough insulation for the conductor to seat in the splice, crimp it securely, and heat the tubing after the connection is made. For example, when repairing a boat’s wiring, you can select the marked gauge, join the wire ends in the butt splice, and finish the joint with a heat gun rather than leaving the crimp exposed.

Work carefully around nearby insulation and components when applying heat. The listing states that the tubing is waterproof, but that does not establish a specific installation rating or guarantee for every environment. A well-matched connector and sound crimp still matter, heat-shrink tubing cannot correct a loose or poorly seated wire.

Questions before you buy

What wire sizes does the kit cover? It is listed for 22-10 AWG, with red, blue, and yellow connectors assigned to the ranges shown above.

What tools are needed? A standard crimping tool and a heat gun are specified for the strip, crimp, and heat installation process.

Can it be used for marine wiring? The product is described for marine use and has marine-grade heat-shrink tubing. The listing does not give test results or a more specific environmental rating, so the stated use is not a substitute for checking requirements for a particular repair.

Final verdict

This kit is aimed at practical wire-splice repairs where a crimped connection also needs a heat-shrink covering. Its range, color coding, and stated marine and automotive uses give it more flexibility than buying a single gauge of basic butt splice, especially for a mixed repair kit. The tradeoff is that the per-size count and detailed performance ratings are not provided. Choose it when the 22-10 AWG range fits your wiring and you have both tools, look for a more narrowly specified kit if exact quantities or documented ratings are essential.
