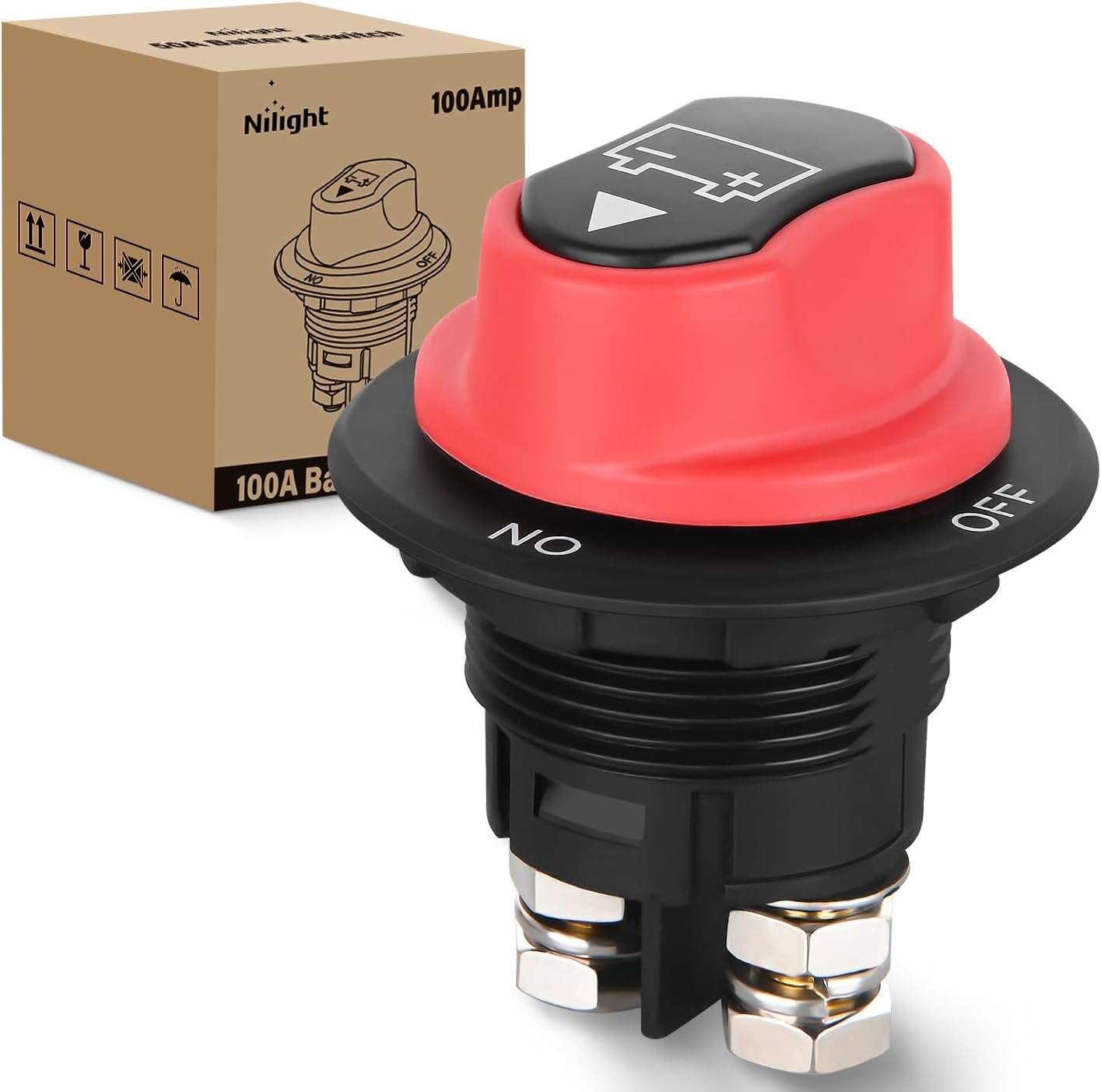

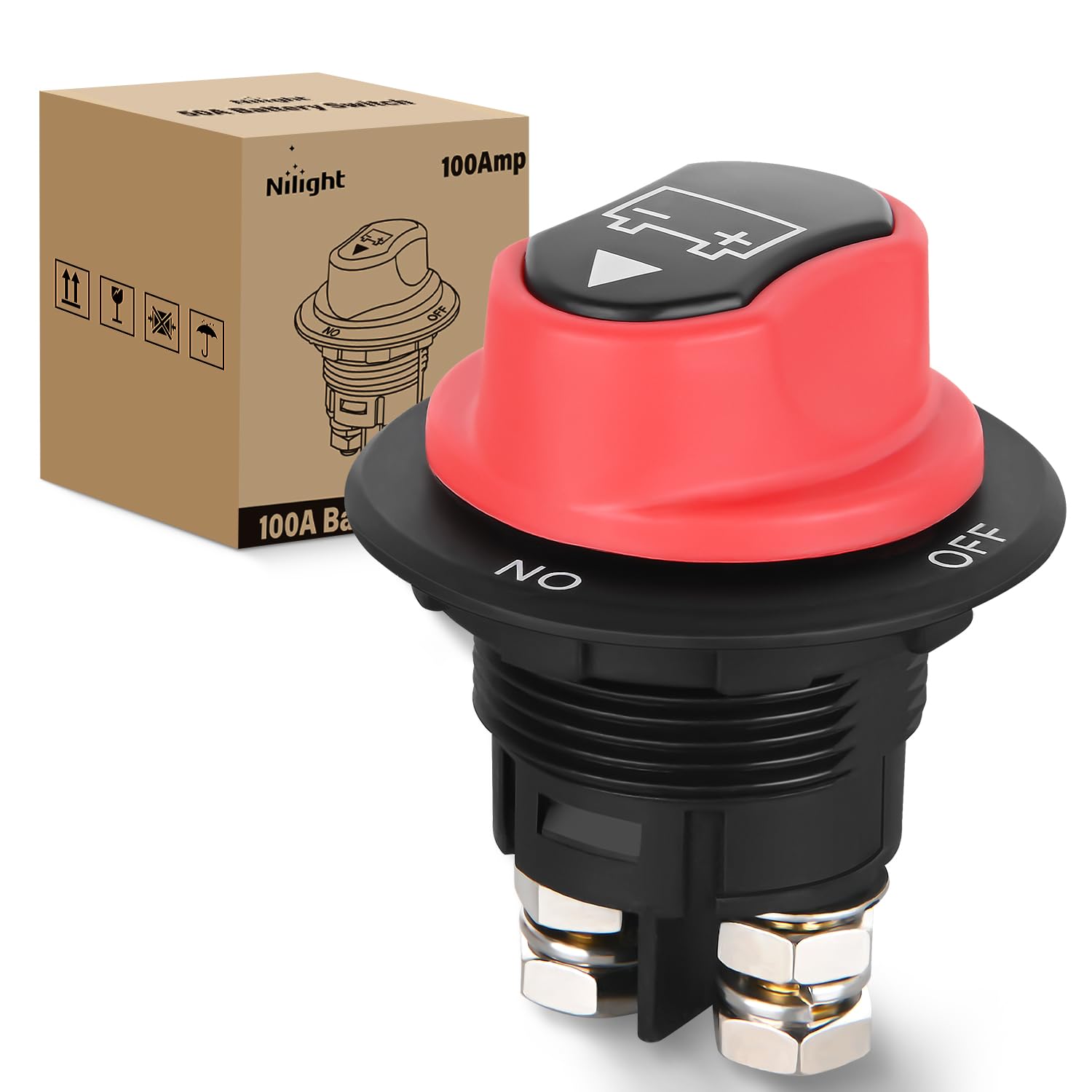

Nilight Battery Disconnect Switch 100A Waterproof ⚓

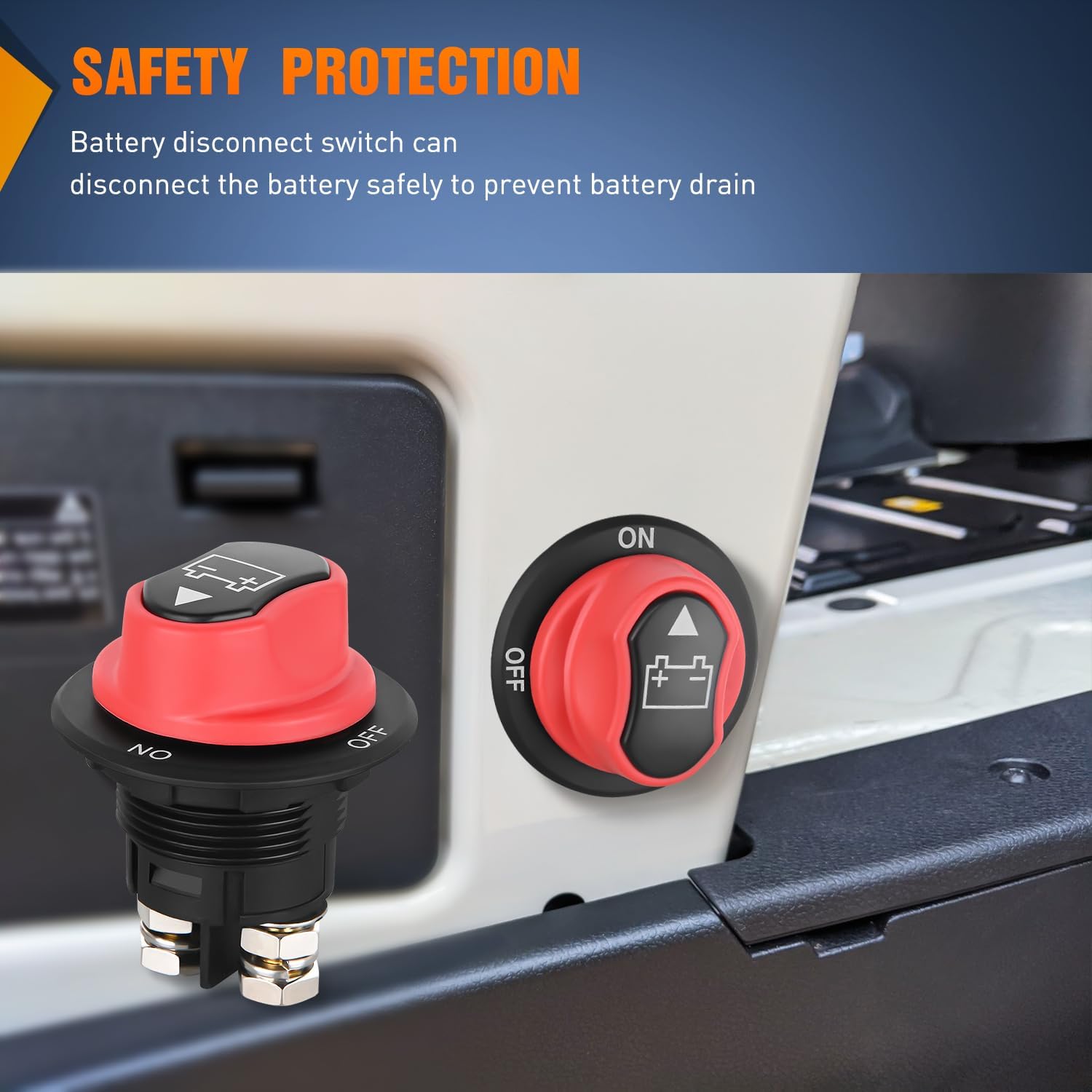

This heavy-duty battery disconnect switch cuts power to your electrical system to prevent battery drain when a vehicle or boat is idle, offering a simple manual On-Off control for safety and maintenance. It works with 12–32 VDC systems and is useful for marine, RV, automotive and off-road applications where isolating the battery quickly is important.

Key Points

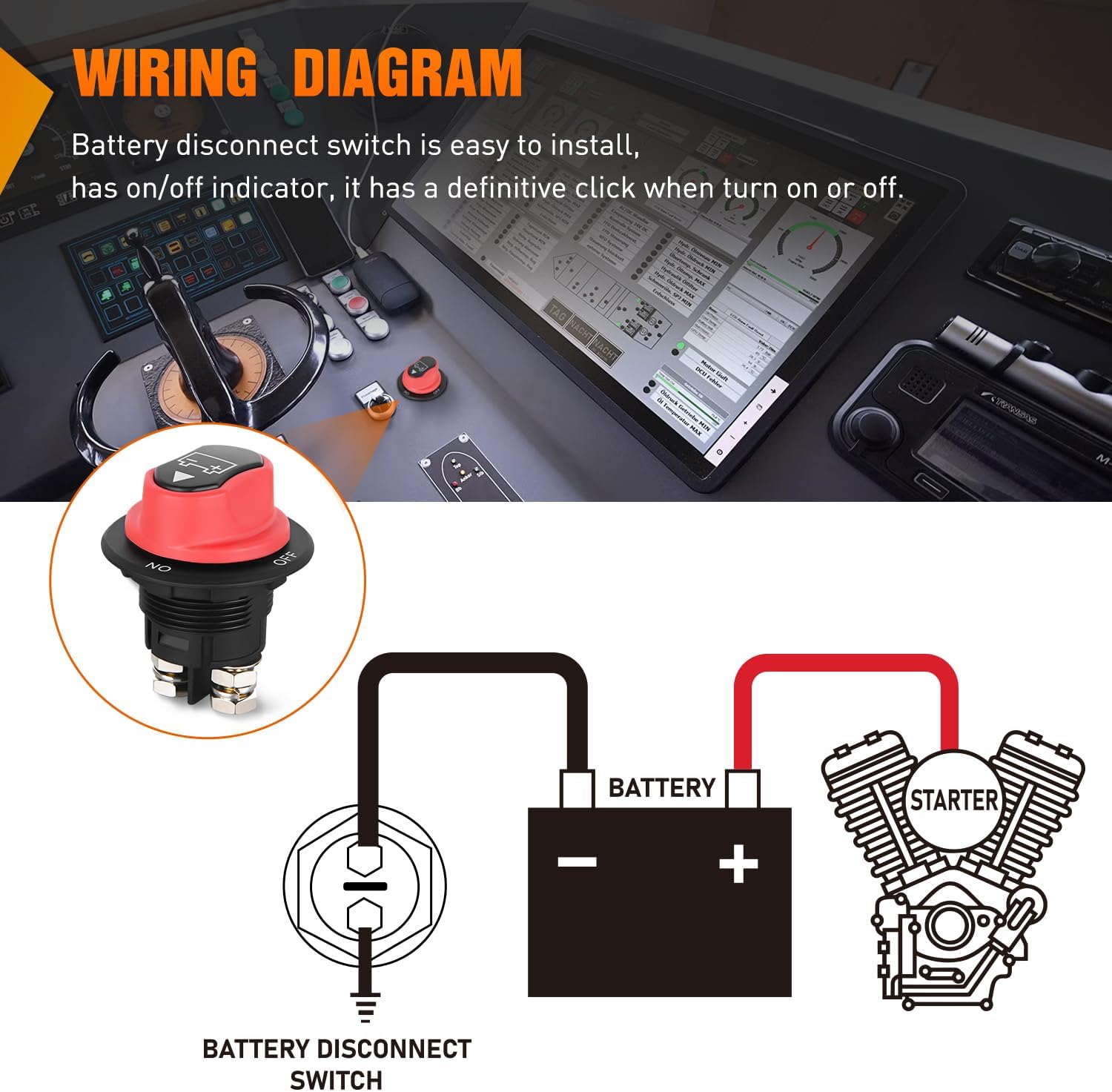

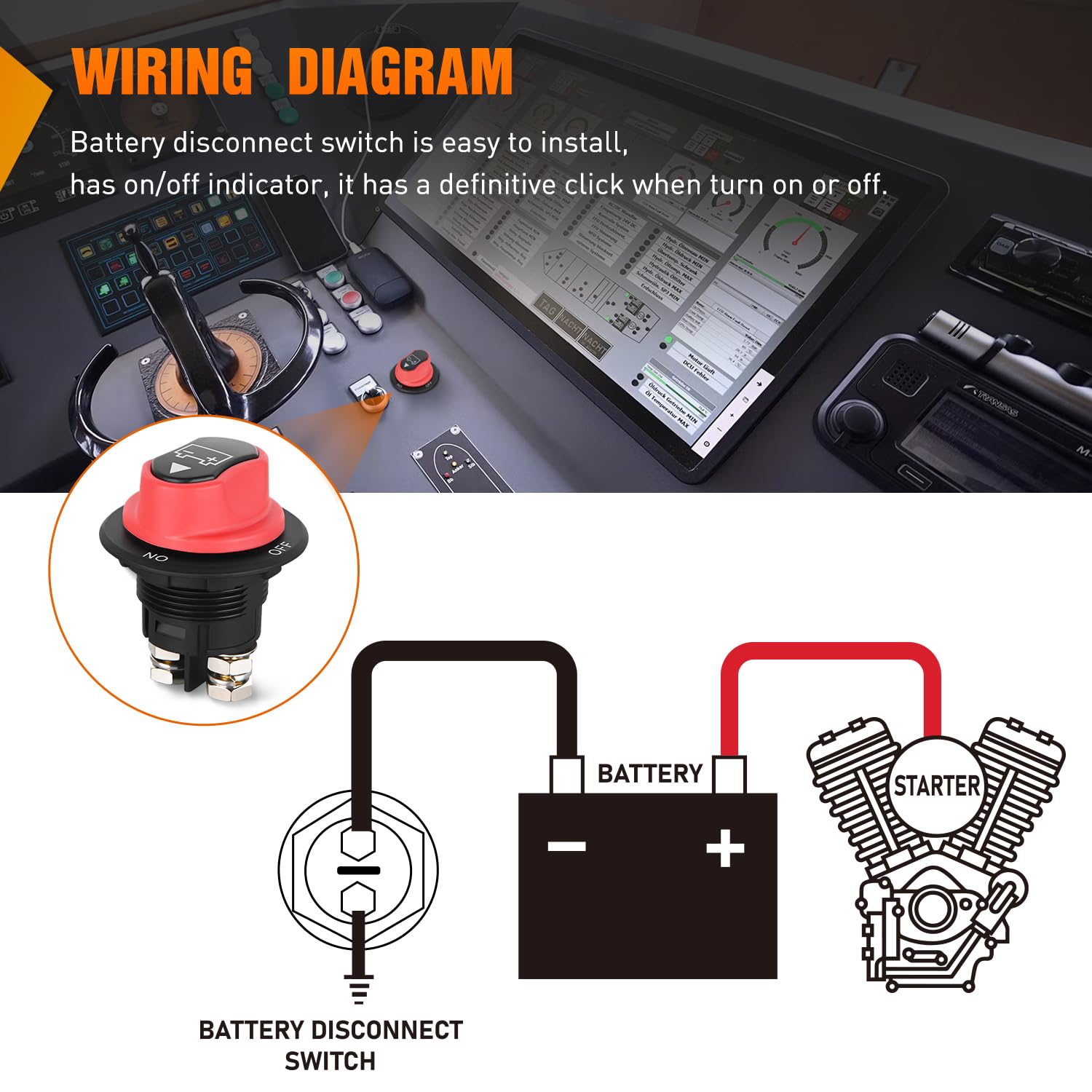

The switch features a robust ABS plastic housing and premium copper terminal construction for long-term durability and corrosion resistance in demanding environments. According to the manufacturer, the unit has a continuous rating of 100 A at 32 VDC and an intermittent rating of 150 A, with a cranking capacity of 500 A for 5 seconds, so it can handle both steady loads and occasional engine-start surges. It can be used alone or locked together with other switches for added security, and comes with a wiring diagram and a two year warranty. ⚓

Technical Specifications

• Name: Nilight Battery Disconnect Switch 100A Master Disconnect
• Voltage range: 12–32 VDC
• Continuous rating: 100 A at 32 VDC
• Intermittent rating: 150 A
• Cranking rating: 500 A for 5 seconds

Usage Recommendations

Install the switch on the positive battery lead in a dry, ventilated location away from direct heat sources and moving parts. For marine installations, ensure terminals and connections are treated for saltwater exposure and tightened to the manufacturer’s torque suggestions. During winter storage or extended idle periods, turn the switch off to minimize parasitic drain and prolong battery life. 🔧

Positive Aspects

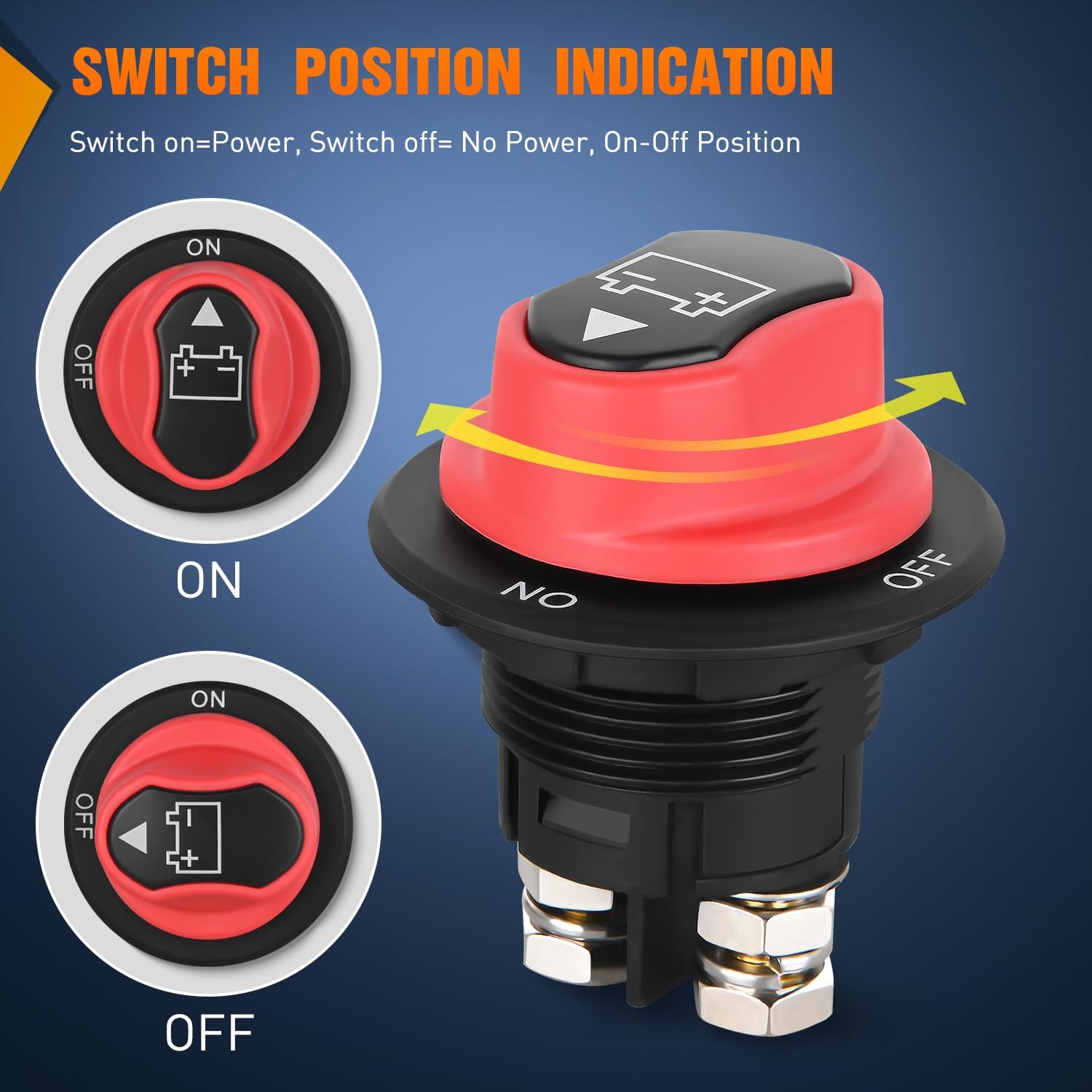

This model’s simple two-position operation makes it easy to use during routine checks and maintenance, and the sturdy copper terminals help maintain low-resistance connections under load. The supplied wiring diagram simplifies installation for technicians and competent DIYers alike. Consider that the switch is manual rather than remote-operated, which may be preferable for straightforward installations but less convenient if you need in-cabin control. ⚙️.
