BDFHYK Air Tank, 4.0 Gallon
Product description
How to use it
A pneumatic setup can be frustrating when it lacks a dedicated place to store compressed air or enough connection points for the accessories you want to run. This 4.0-gallon BDFHYK air tank is intended to add storage and multiple outlets to vehicle systems such as air suspension, air brakes, tire inflation, and horns. Its listed capacity and port mix make it worth considering when a project needs a tank that can serve several air lines.
Picture routing an air line to a suspension component while keeping other ports available for a gauge or accessory. Would that be more useful than buying a tank with only one outlet? The answer depends on your plumbing plan, since the tank itself is only one part of a complete air system.
Pros

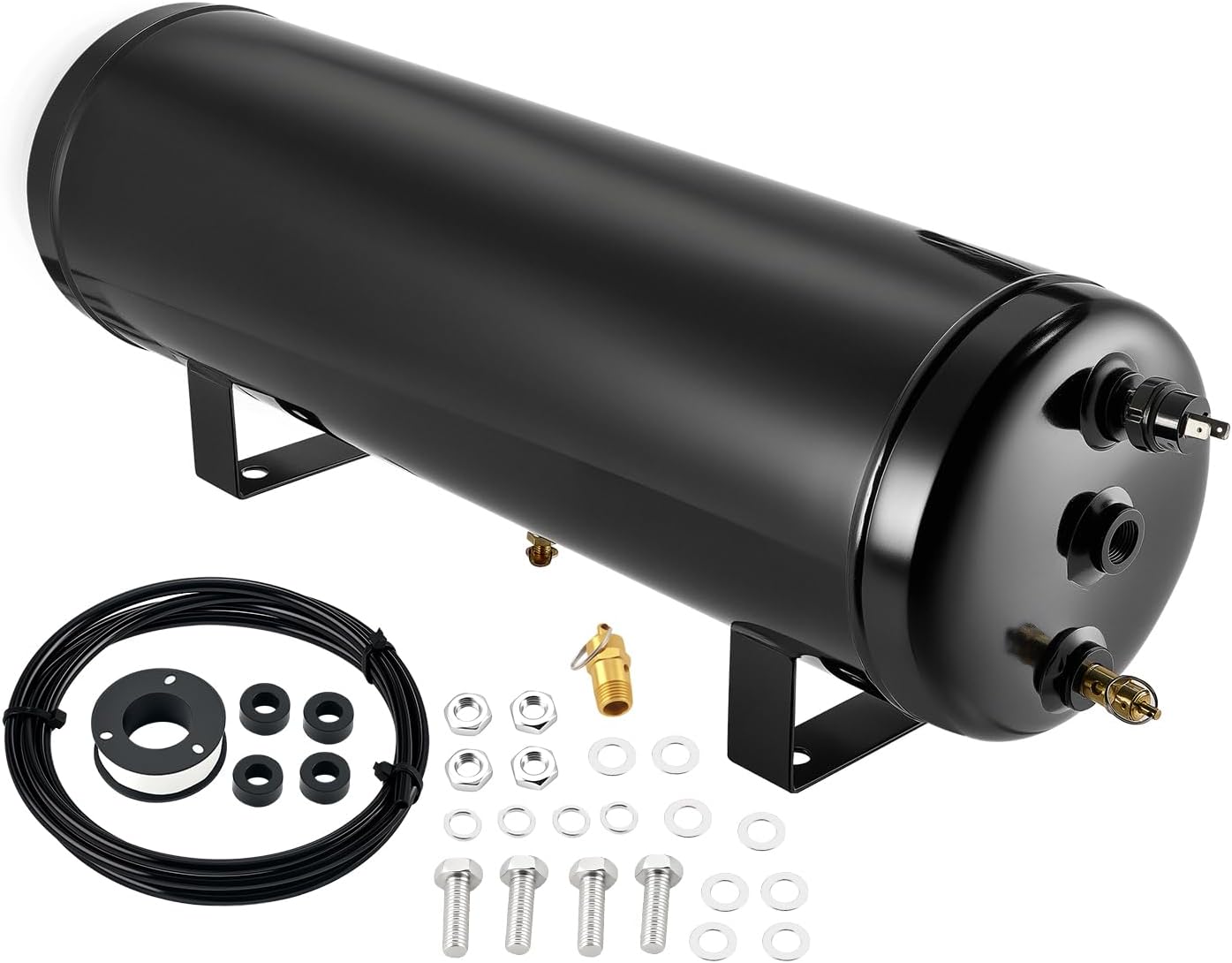

The layout has three 1/4-inch NPT ports and four 3/8-inch NPT ports, giving an installer options for connecting different lines. The included parts also go beyond the tank: the package lists a drain valve, pressure gauge, 240 PSI safety valve, air outlet nozzle, 2-meter nylon tube, pressure switch, mounting bolts, Teflon tape, and a rubber gasket. That can reduce the number of separate pieces to source for a setup, though it does not mean every installation will use every included item.
An internal anti-rust coating is intended to help limit rust and moisture damage. It is a useful feature to consider for a tank that stores compressed air, but the listing does not provide material details or long-term test results. You’ll appreciate it if you need several connection points and want installation accessories included. Better avoided if you need a complete air supply system in one package: a compressor is not listed among the included items.
Spec sheet

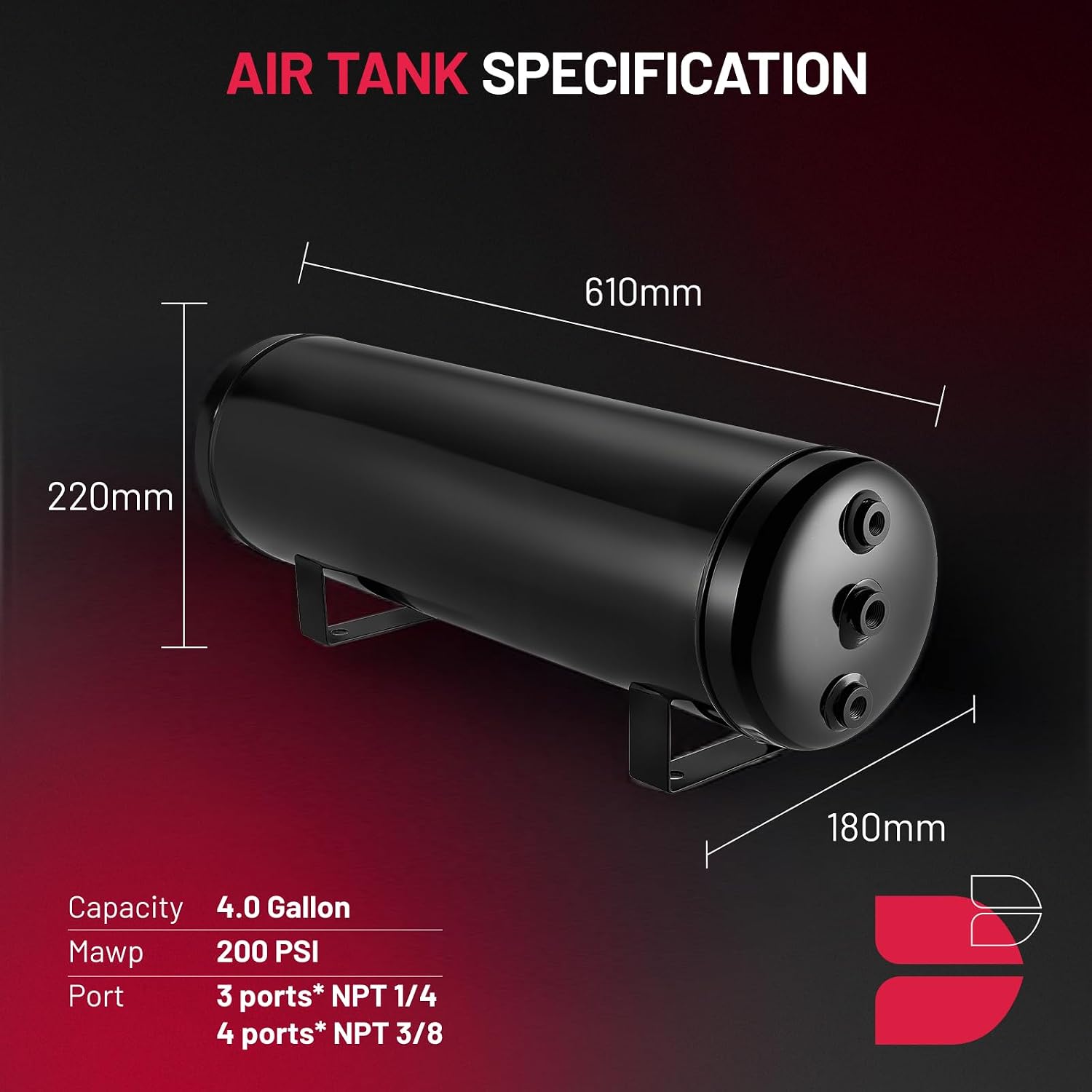

- Capacity: 4.0 gallons
- Ports: 3 × 1/4-inch NPT and 4 × 3/8-inch NPT
- Tank pressure listed in the product name: 200 PSI
- Pressure switch: 170–200 PSI, NPT 1/4
- Safety valve: 240 PSI, NPT 1/4
- Included tube: 2 meters, 6 mm nylon
- Included fittings and hardware: drain valve, gauge, outlet nozzle, bolts, Teflon tape, and rubber gasket
The 200 PSI figure is the tank rating stated in the product name, the pressure switch range and safety-valve rating are separate listed specifications. Plan the rest of the system around your compressor, required pressure, line sizes, and vehicle application rather than assuming the ports alone guarantee compatibility. The listing describes the internal coating as anti-rust, but does not specify the tank’s construction material or dimensions.
When it makes sense
This tank may suit a vehicle project that needs stored air for a suspension system, air brakes, tire inflation, or truck and train horns, especially when multiple NPT ports are useful. It is a more component-focused purchase than choosing an all-in-one compressor system: you get the tank and several listed accessories, but still need to account for the compressor and any installation-specific parts not included.
If your setup already has a compatible air source and you want a multi-port tank, the capacity and supplied hardware give you a practical starting point. If you need a ready-to-run kit, have limited room for installation, or cannot match the NPT connections and pressure controls to your system, this package may require more planning than a simpler, fully matched setup. The listing names broad vehicle uses, but does not give application-specific fitment details, so the intended system should guide your decision.
