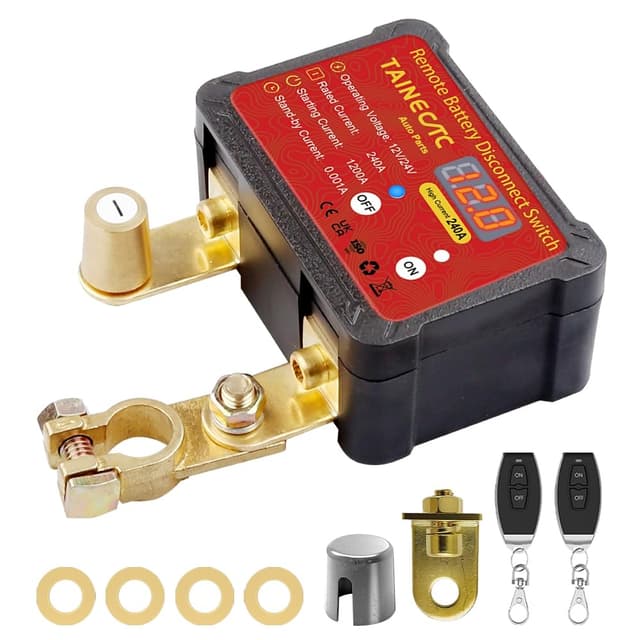

Remote Battery Disconnect Switch 12V 240A with LED Voltage Display (0.001A standby) for Car, RV, ATV, Truck, Tractor, Boat
Product description
The essential idea
A remote battery disconnect switch is one of those upgrades you don’t notice every day—until you really need it. This 12V, 240A battery kill switch is designed to let you cut off power remotely, helping prevent battery drain during long-term parking, storage, or forgetful moments (yes, that happens).
The standout theme here is control with very low standby current. On paper, the “ultra-low standby current (0.001A)” matters because the switch itself shouldn’t be quietly draining your battery while everything else is off. It also includes an LED voltage display, so you’re not flying blind.
There’s also smart protection behavior based on battery voltage: if voltage drops below a threshold, it can automatically disconnect after a delay, and it restricts remote switching above another voltage level to reduce wrong operation while driving. It’s not a replacement for good battery habits, but it’s built to add safety layers.
What you’ll notice in real use

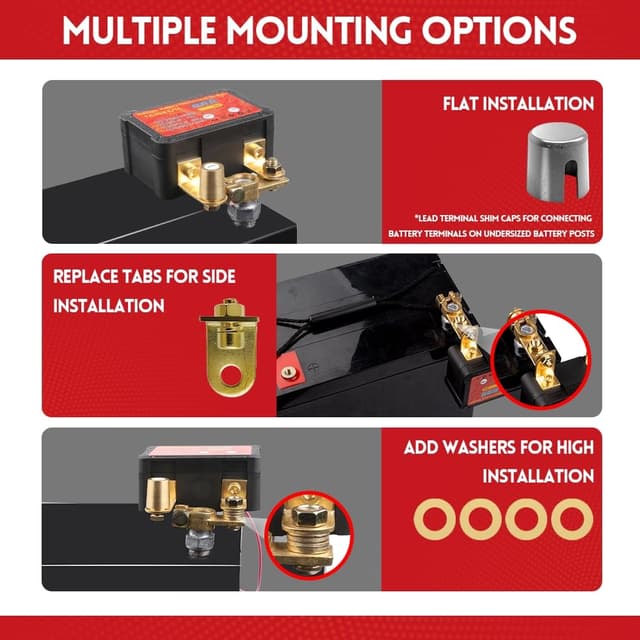

Installation is described as connecting to the negative terminal, with a note about using transfer shims if the “flat installation doesn’t match.” That detail is important: the physical fit can depend on your battery setup, especially on vehicles with tight access or nonstandard terminal positioning.
Once installed, the workflow is straightforward. You’re aiming to reduce the kind of drain that can show up after days or weeks: classic car self-discharge, forgotten lights, or long-term storage. In a practical scenario, imagine parking an RV for a few weeks. Instead of crossing your fingers and checking the battery every couple of days, you can disconnect power (manually via remote buttons as described) to keep the battery from slowly losing charge.

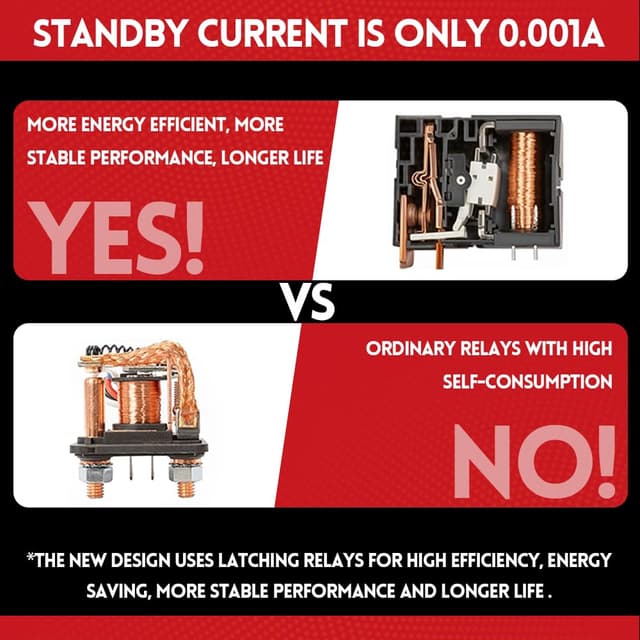

Also, the “latching relay” approach suggests the unit is meant for stable, durable switching rather than constantly cycling. Over time, that tends to feel more reassuring than basic solutions that don’t account for power management.
Key points to consider before buying
This switch is rated for 12V systems with a rated current of 240A, and it’s positioned for a wide range of vehicles like cars, boats, RVs, trailers, trucks, tractors, and ATVs/UTVs.

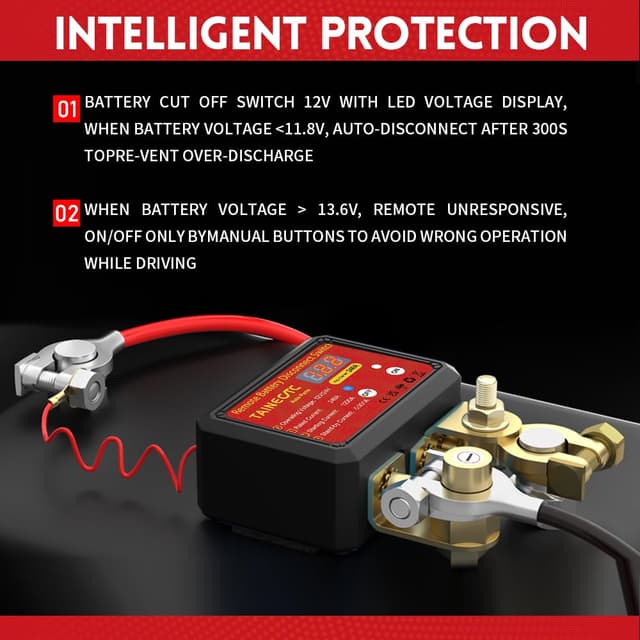

Still, there are a couple of limits you should keep in mind: - The auto-disconnect logic triggers based on battery voltage thresholds and a stated timing (auto-disconnect after 300s when battery voltage is below 11.8V). If your use case expects different behavior, you may want to double-check that threshold and delay align with how you store or manage your vehicle. - The description also says that when battery voltage is above 13.6V, “remote unresponsive” and switching is limited to manual buttons to avoid wrong operation while driving. That’s helpful for safety, but it means the remote control behavior isn’t identical in every situation.
If your priority is simple, always-remote switching no matter the conditions, this may not match that expectation. But if you want it to be smarter about battery protection, that behavior looks intentional.

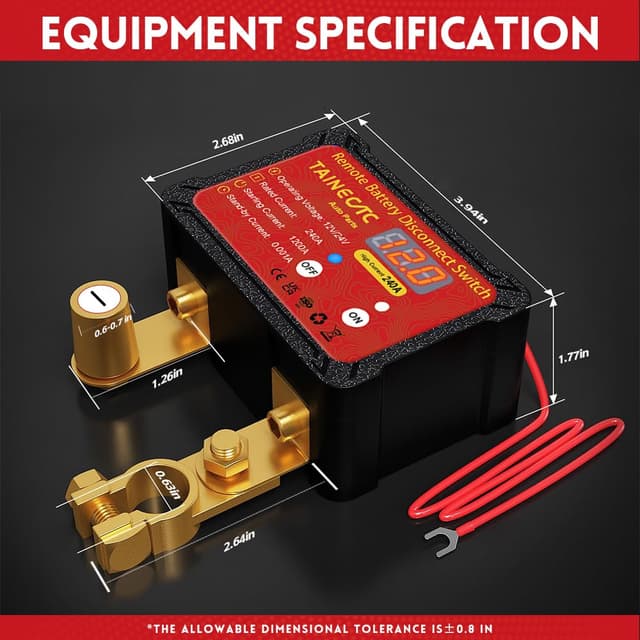

Tech specs
- Type: Remote battery disconnect / battery kill switch (latching relay)
- System voltage: 12V
- Rated current: 240A
- Starting current: up to 1200A
- Standby current: 0.001A (ultra-low)
- Battery voltage auto-disconnect trigger: below 11.8V
- Auto-disconnect delay: 300s
- Remote switching behavior limit: remote unresponsive when battery voltage is above 13.6V, on/off by manual buttons
- Switching/connection: connected to the negative terminal
Who it suits best (and who should skip it)
It’s a strong fit if you routinely deal with long-term parking, storage, or battery drain risk—like seasonal vehicles, boats, classic cars, tractors, or any setup where a single forgotten load can take the battery down. The LED voltage display and the very low standby current are the kind of details that make this more “set and forget” than basic disconnects.
It may not be the best match if you need something with behavior that’s fully consistent regardless of battery voltage conditions. The described remote unresponsive logic above 13.6V could be a deal-breaker for people who want remote control to always work the same way.

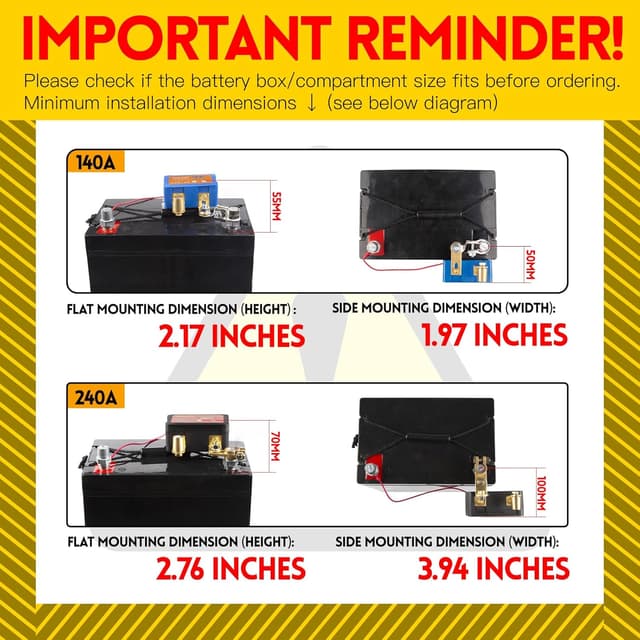

And if your installation space doesn’t align, pay attention to the shim note. You shouldn’t assume every battery terminal layout will fit “as-is.”
Final verdict
Worth buying if you want a 12V battery kill switch with remote control, an LED voltage display, and anti-theft/battery drain protection that’s designed around ultra-low standby current (0.001A) and voltage-based safeguards. It looks especially practical for vehicles that sit for weeks.
Skip it if your main requirement is uninterrupted remote switching under all voltage conditions, or if you’re not confident your battery terminal setup will work with a negative-terminal connection and potential shim adjustments.
Mini FAQ
Is the switch meant to help prevent battery drain while the vehicle is parked?
Yes. The description specifically frames it around stopping battery drain from long-term parking, self-discharge, and forgotten lights.
What does the LED voltage display add?
It’s there to show battery voltage so you can monitor what’s happening rather than guessing.
Does it auto-disconnect to protect the battery?
According to the description, if battery voltage is below 11.8V it will auto-disconnect after 300s, which is intended to prevent over-discharge and extend battery life.
Can I rely on remote control while driving?
The description says that when battery voltage is above 13.6V, remote switching is unresponsive and on/off is done by manual buttons to avoid wrong operation while driving.
What vehicles is this intended for?
It’s described as suitable for 12V vehicles and rated for a 240A current, including cars, boats, RVs, trailers, trucks, tractors, and ATVs/UTVs.
