Orion Motor Tech 3-Way AC Diagnostic Manifold Gauge Set (R134A, R12, R22, R502) with 5FT Hoses
Product description
Key features that matter in real A/C work
If you’re dealing with weak cooling, unstable pressure readings, or you’re simply trying to recharge an A/C system the right way, a 3-way diagnostic manifold gauge set is the tool that helps you read what’s happening on the line. The Orion Motor Tech set is built around that job: checking pressure in A/C lines, helping with leak determination, doing freon top-offs, supporting recovery work, and handling full A/C recharges.
On paper, what stands out is the combo of a color-coded hose layout and gauges scaled for common automotive service ranges. You get three 5-ft charging hoses in three colors—red for high pressure, blue for low pressure, and yellow for the refrigerant bottle—so you’re less likely to mix connections mid-job.
What you’ll notice using it
The gauges are described as easy to read, with Fahrenheit units on the instrument panel. The low-pressure (blue) gauge is rated 0–350 PSI, and the high-pressure (red) gauge is rated 0–500 PSI. That gives you a practical window for diagnosing rather than guessing.

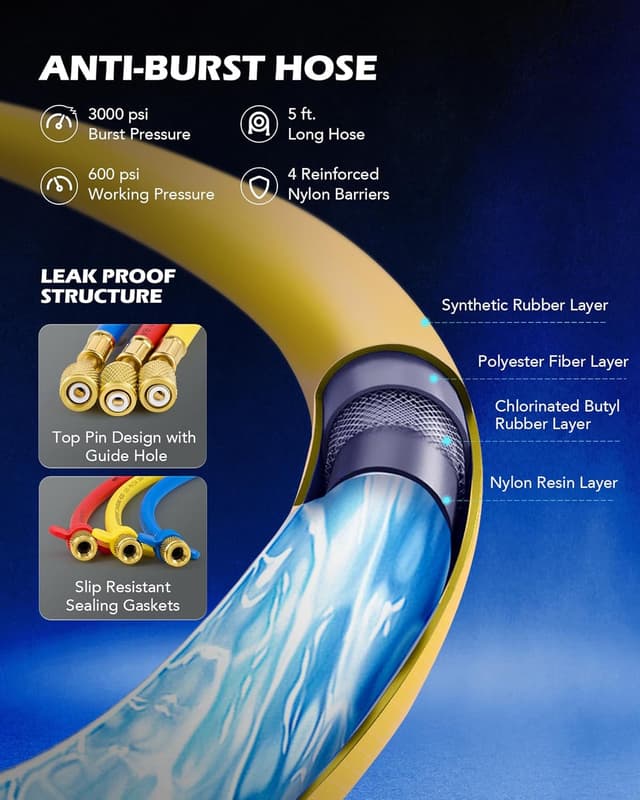

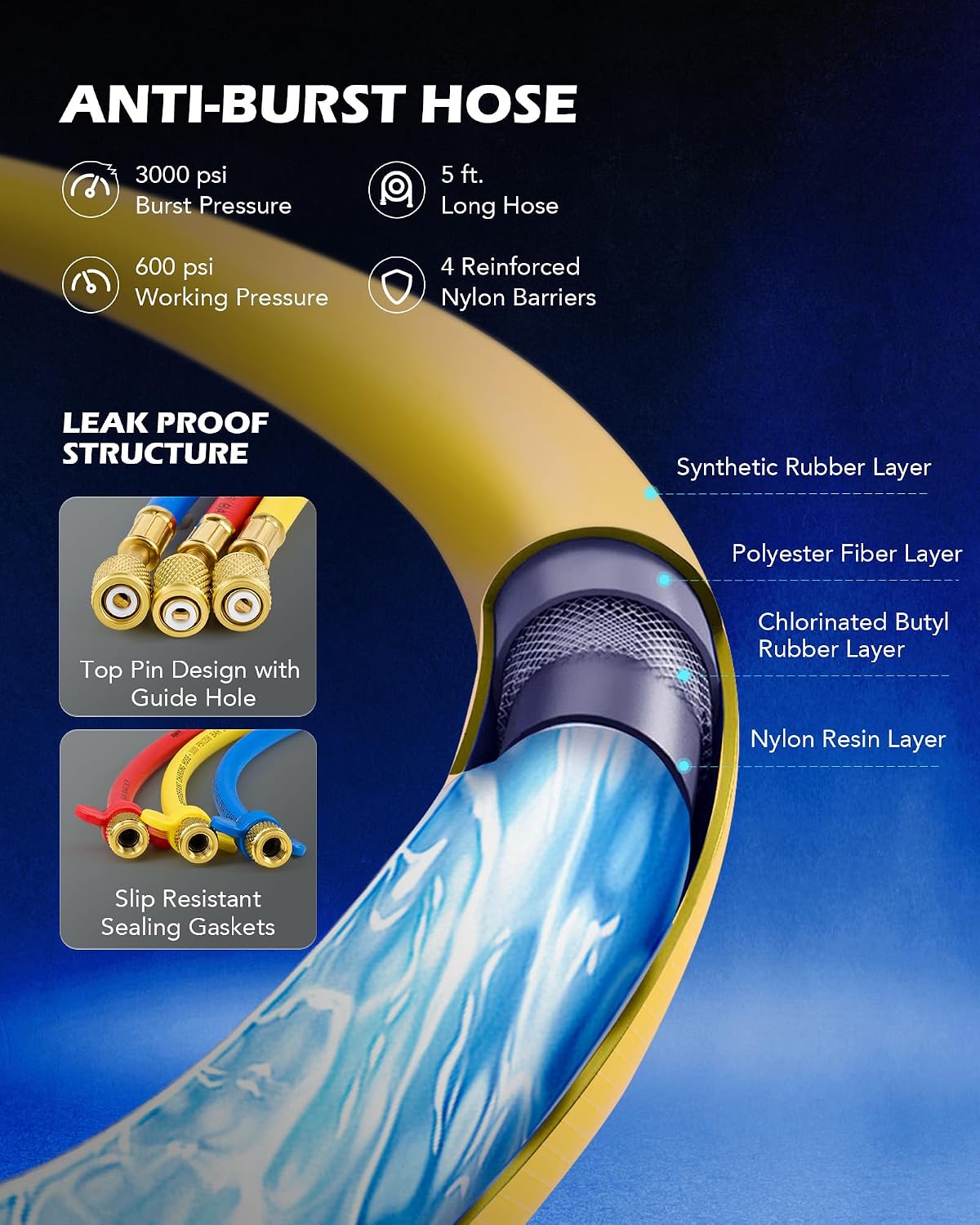

The hoses are noted as extra-strength, with burst pressure at 3000 PSI and a max working pressure of 600 PSI. In everyday use, that’s the kind of spec that’s meant to reduce the “this feels fragile” worry—especially when hoses get bumped during real garage workflows.

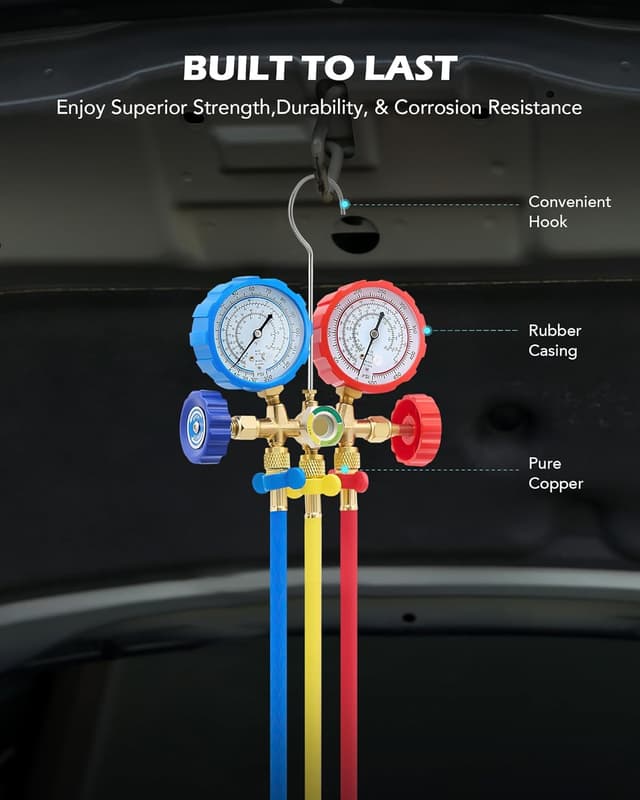

There’s also an emphasis on durability: the set is made from solid brass, aluminum, PVC, and durable plastic. The included case and parts diagram/manual are a nice touch if you’re new and want to avoid confusion during setup.
A quick example: if your A/C isn’t blowing cold, you typically hook the blue and red lines to the low/high ports, then watch the gauge behavior while the system runs. The color-coded hoses help you keep the low/high connections straight so you can focus on interpreting the readings.
Tech specs (so you can sanity-check fit and expectations)
- Color-coded hoses: red (high pressure), blue (low pressure), yellow (refrigerant bottle)
- Low-pressure gauge range (blue): 0–350 PSI
- High-pressure gauge range (red): 0–500 PSI
- Hose burst pressure: 3000 PSI
- Max working pressure: 600 PSI
- Hoses included: 3 hoses, 5 ft each
- Refrigerants listed as compatible: R134A, R12, R22, R502
- Case and documentation: includes a custom molded case and a detailed user manual
- Noted materials: solid brass, aluminum, PVC, and durable plastic
Where it shines—and where it may not
This set makes the most sense if you want one manifold gauge kit that covers multiple refrigerants (R134A, R12, R22, R502 are explicitly listed) and you care about clear hose identification. It’s also positioned for heavier garage use, not just light tinkering, based on the hose pressure ratings and the construction materials.
That said, it may not be perfect for every scenario. Since the description focuses on diagnostics and recharges but doesn’t spell out vehicle-specific port types beyond the included adapters/couplers, you should double-check that your A/C service ports and fittings match what’s in the box. Also, if you’re expecting a simple “plug in and go” experience with zero learning curve, keep your expectations realistic—manual guidance is included, but manifold gauges still require you to use them correctly.
If you’re mainly looking for a very basic low-cost way to add refrigerant without monitoring pressure, a manifold gauge set like this is more capability than you strictly need. On the other hand, if you’re the kind of owner/mechanic who actually wants readings for diagnosis, it’s a more purposeful purchase.
What’s included (to avoid last-minute surprises)

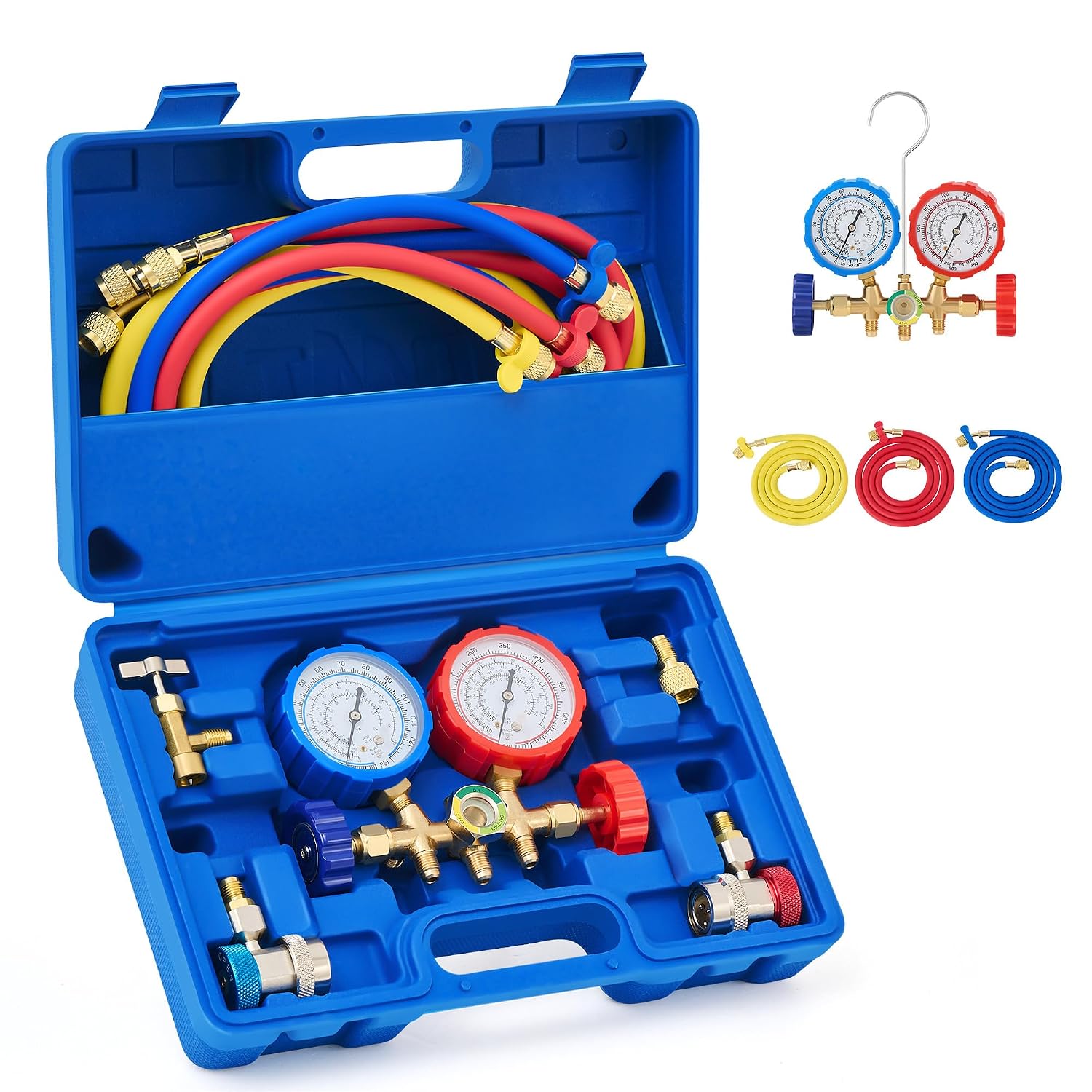

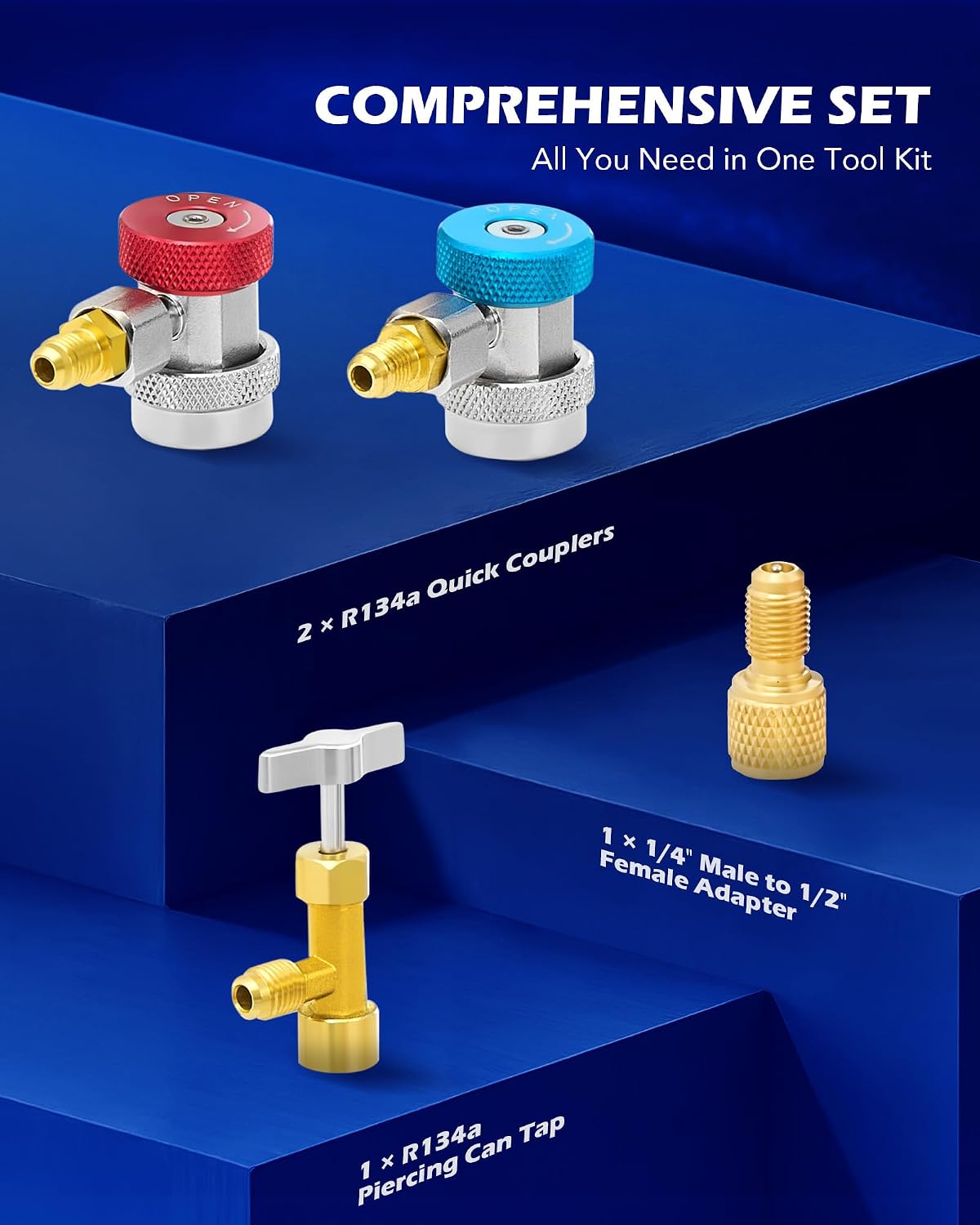

The kit is described as including: 1pc 3-way gauge (1/4" male), 3pc hoses (1/4" female), 2pc adjustable couplers (1/4" male), 1pc can tap (piercing-style) (1/4" male), 1pc adapter (1/4" Male to 1/2" Female), a custom molded case, and a detailed user manual. If you’re buying to support multiple tasks—top-offs, leak checks, recovery-style work, or full recharges—having couplers and a can tap can matter more than people think.
Who it’s for (and who should skip it)
It suits you if you want a professional-style A/C diagnostic manifold set with color-coded hoses and clearly stated gauge ranges, and you’re working with refrigerants listed in the product description (R134A, R12, R22, R502).
You may want to skip it if you only need a minimal solution for occasional recharging and don’t care about pressure monitoring, or if you’re not sure your system ports will match the included fittings and adapters.
Final verdict
Worth it if you’re serious about A/C diagnostics—monitoring low/high pressure, supporting recharge work, and doing it with hose colors that reduce connection mistakes. Not the best fit if you want something strictly “minimal” for simple top-offs or if you can’t confirm your fittings/ports align with the included couplers, gauge connection (1/4" male), and adapter (1/4" to 1/2").
If you prioritize readable gauges, stronger hose construction, and the included manual/case for organization, this kit feels built for garage reality rather than just light use.
Mini FAQ
1) Which refrigerants does this manifold gauge set support?
The description lists R134A, R12, R22, and R502.
2) Are the hoses color-coded?
Yes. Red is for high pressure, blue is for low pressure, and yellow is for the refrigerant bottle.
3) What are the gauge ranges?
The low-pressure gauge (blue) is 0–350 PSI, and the high-pressure gauge (red) is 0–500 PSI.
4) How long are the hoses?
Each charging hose is described as 5 ft.
5) Is there guidance for beginners?
The kit includes a detailed user manual and a parts diagram, which should help if you’re new to manifolds and want step-by-step instructions.
