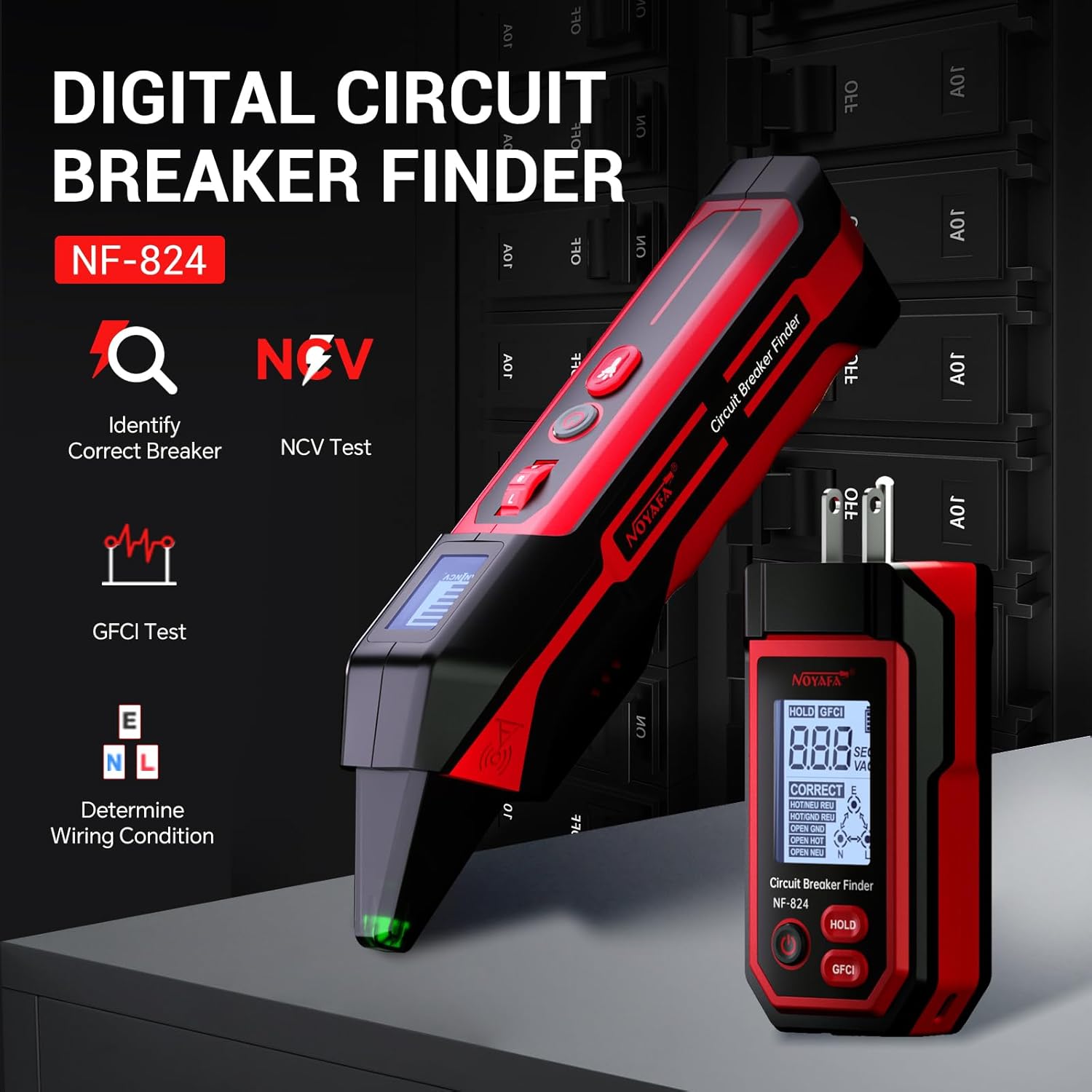

NOYAFA NF-824 Circuit Breaker Finder 90-230V

This rechargeable circuit breaker finder combines fast identification and portable convenience for electricians and DIYers. The tool traces energized circuits in 90 to 230V AC systems, and its LCD shows real time voltage and signal strength so you can work with more confidence. The first paragraph integrates the main long tail naturally, circuit breaker finder, and highlights the core benefit of accurate breaker locating with visual and audible cues.

Key features

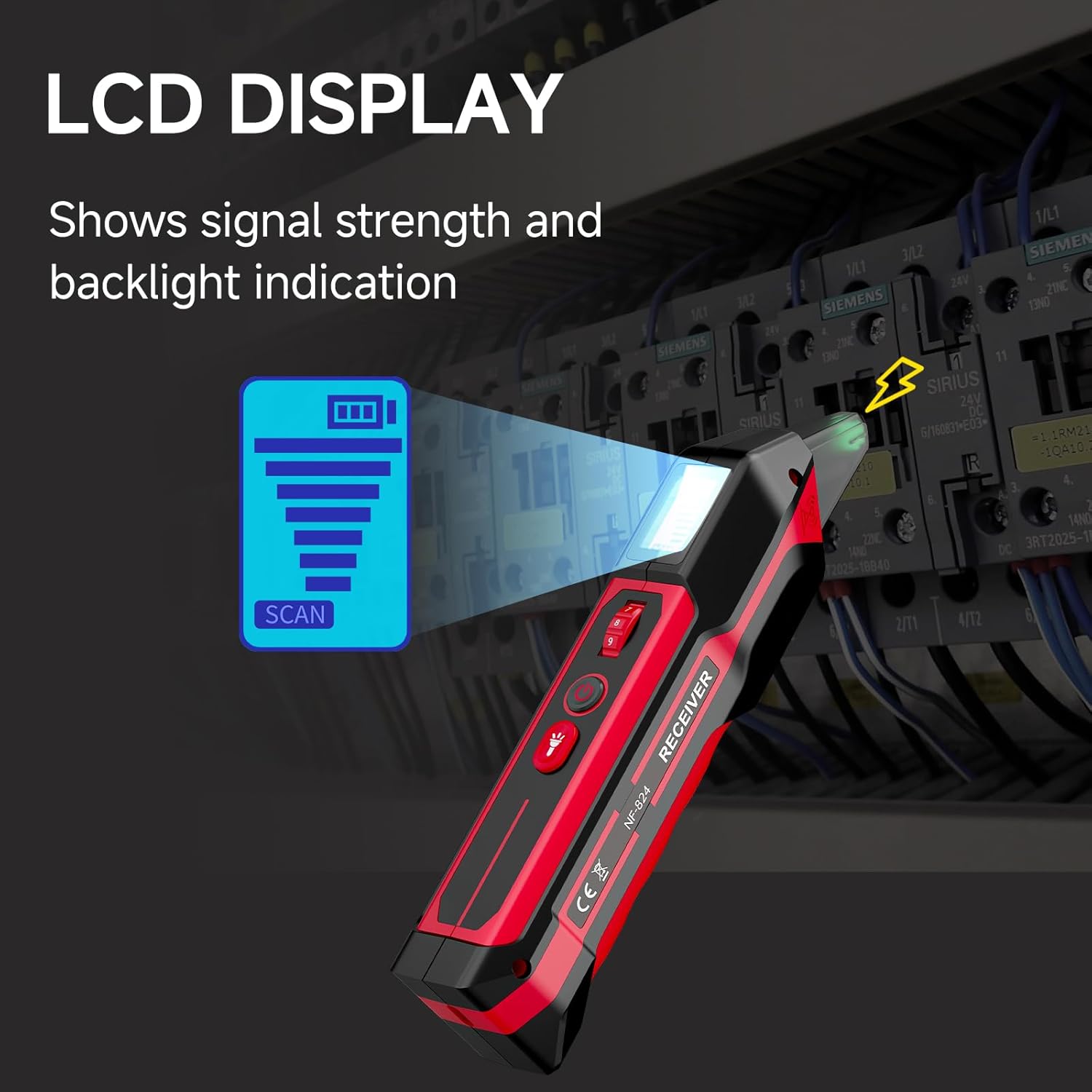

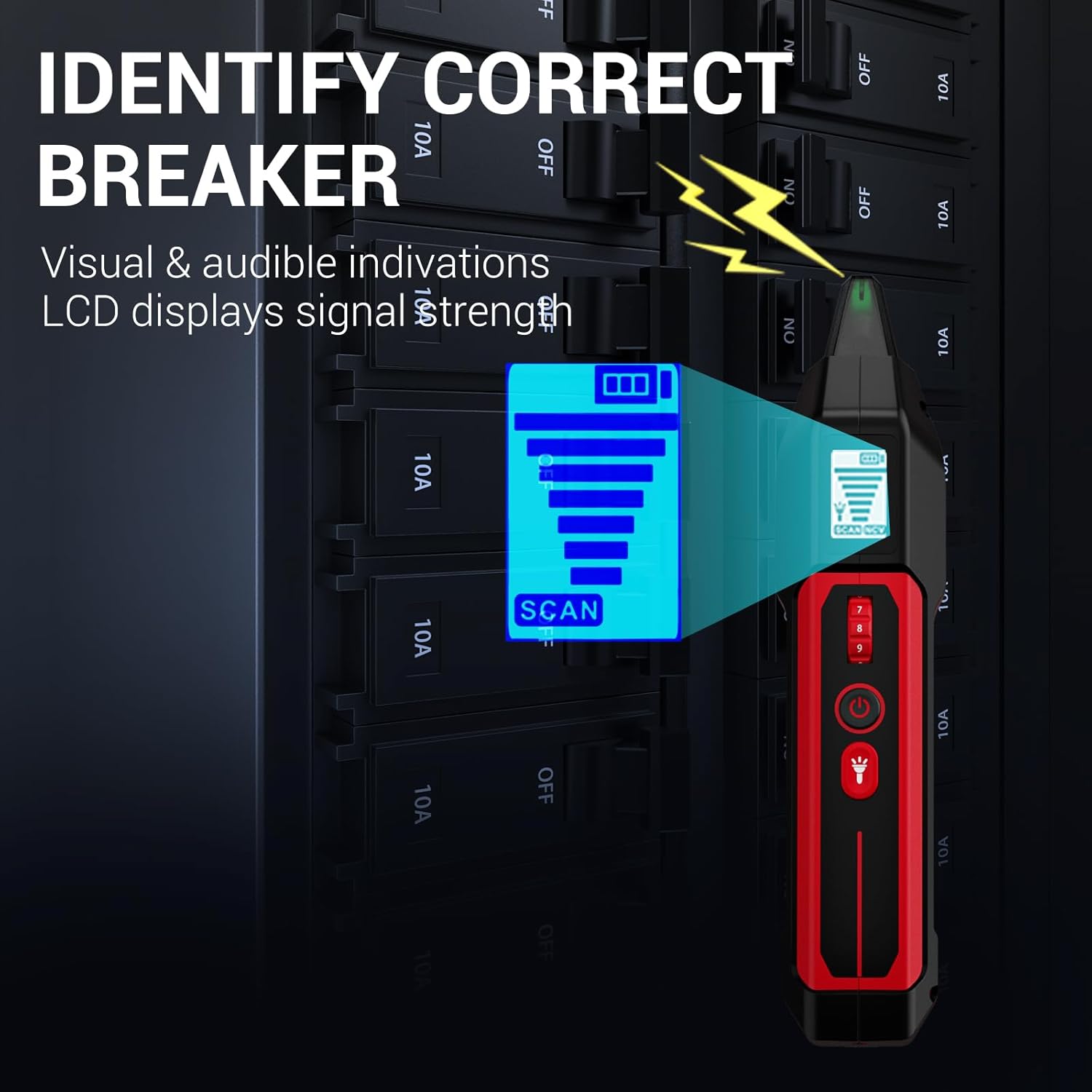

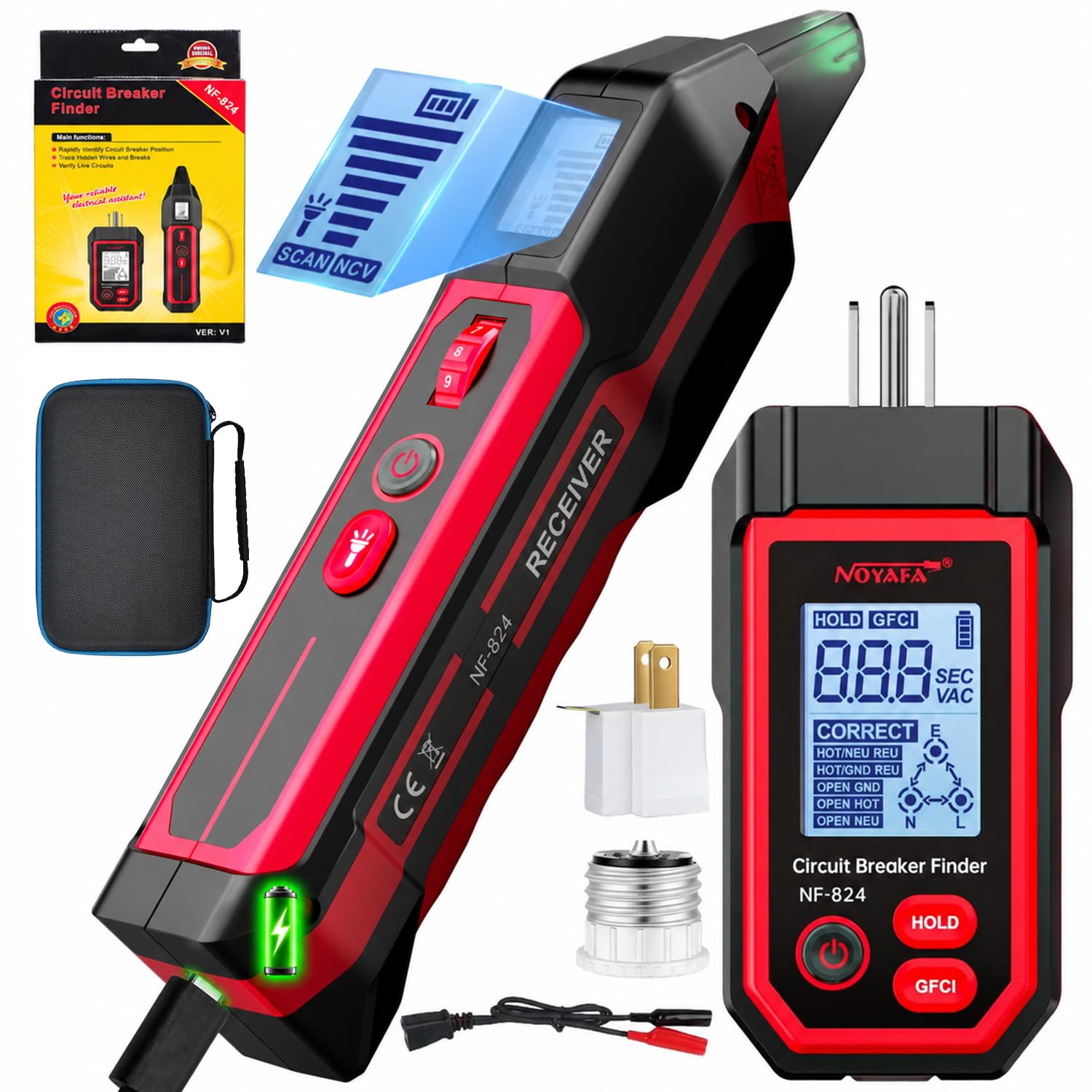

The kit includes a transmitter and receiver that work together to locate breakers on standard 90 to 120V and higher voltage panels. A large backlit LCD displays voltage reading and signal bars while red and green indicators clarify wiring faults such as open circuit or reverse polarity. The receiver emits beeps and visual flashes when approaching the correct breaker, and sensitivity can be raised or lowered across seven levels to reduce false positives. The built in flashlight helps when panels are in dim spaces. ⚡

Technical details

• Name: NOYAFA NF-824
• Voltage range: 90-230V AC

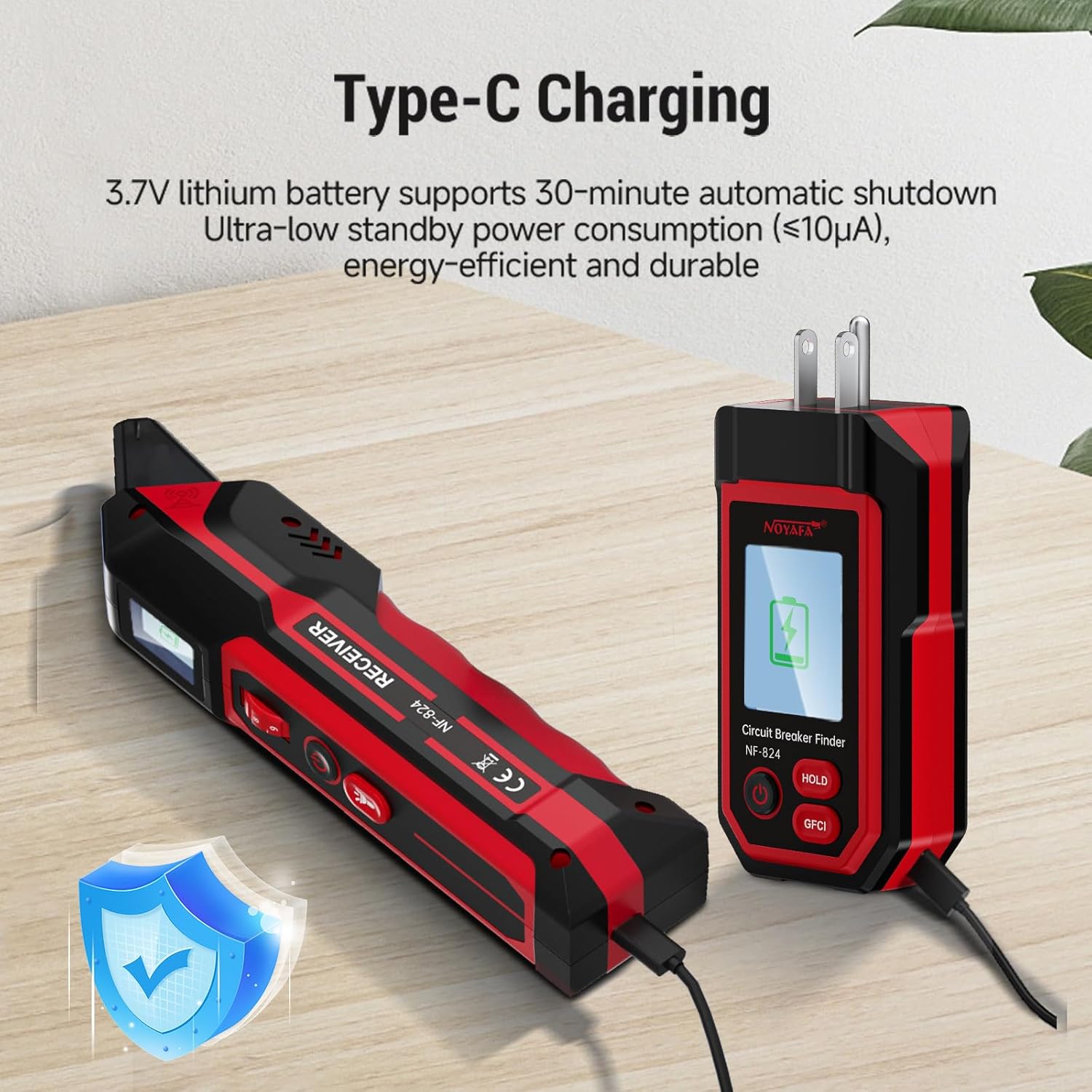

• Battery: 390mAh 3.7V
• Runtime: up to 5 hours
• Charging: Type-C

Benefits

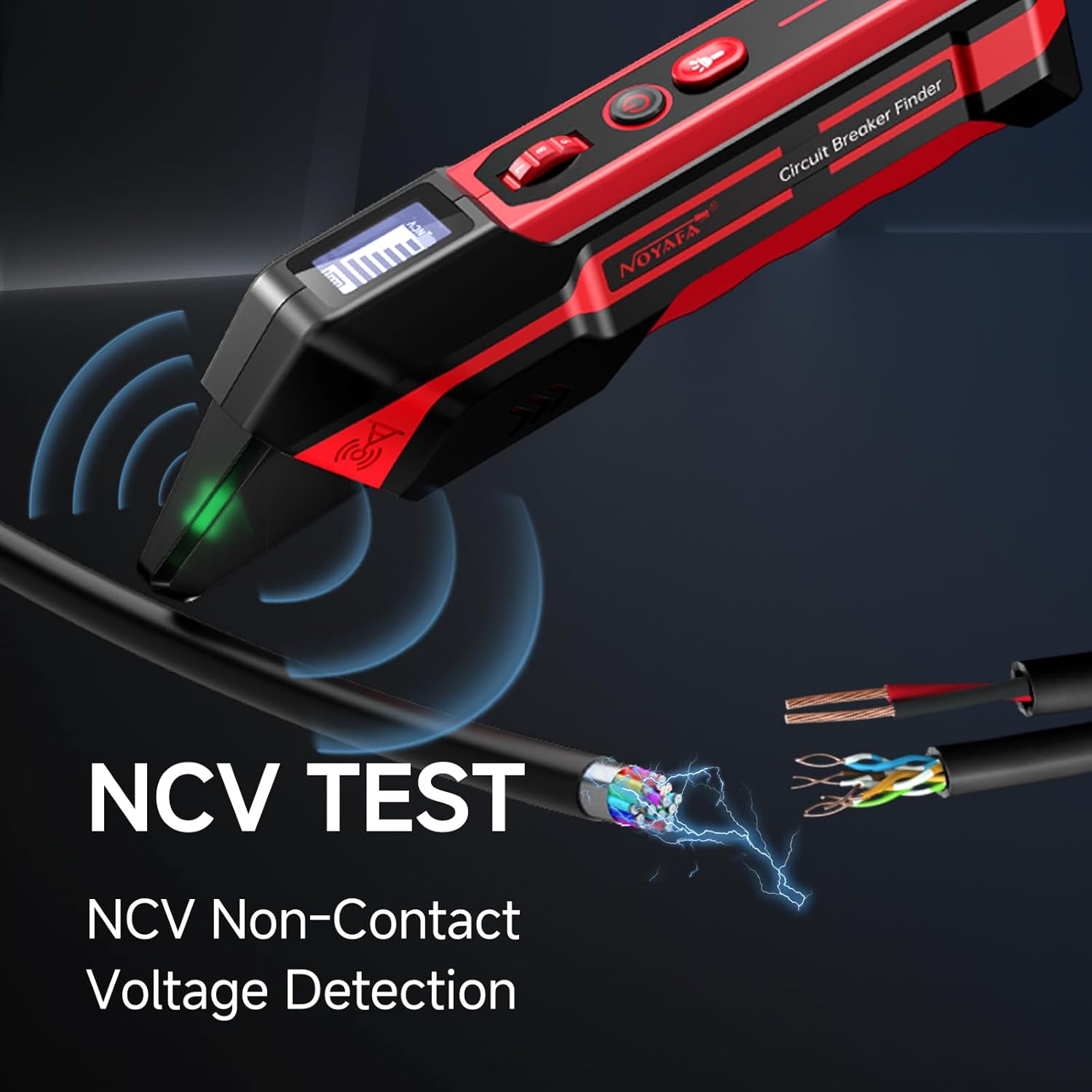

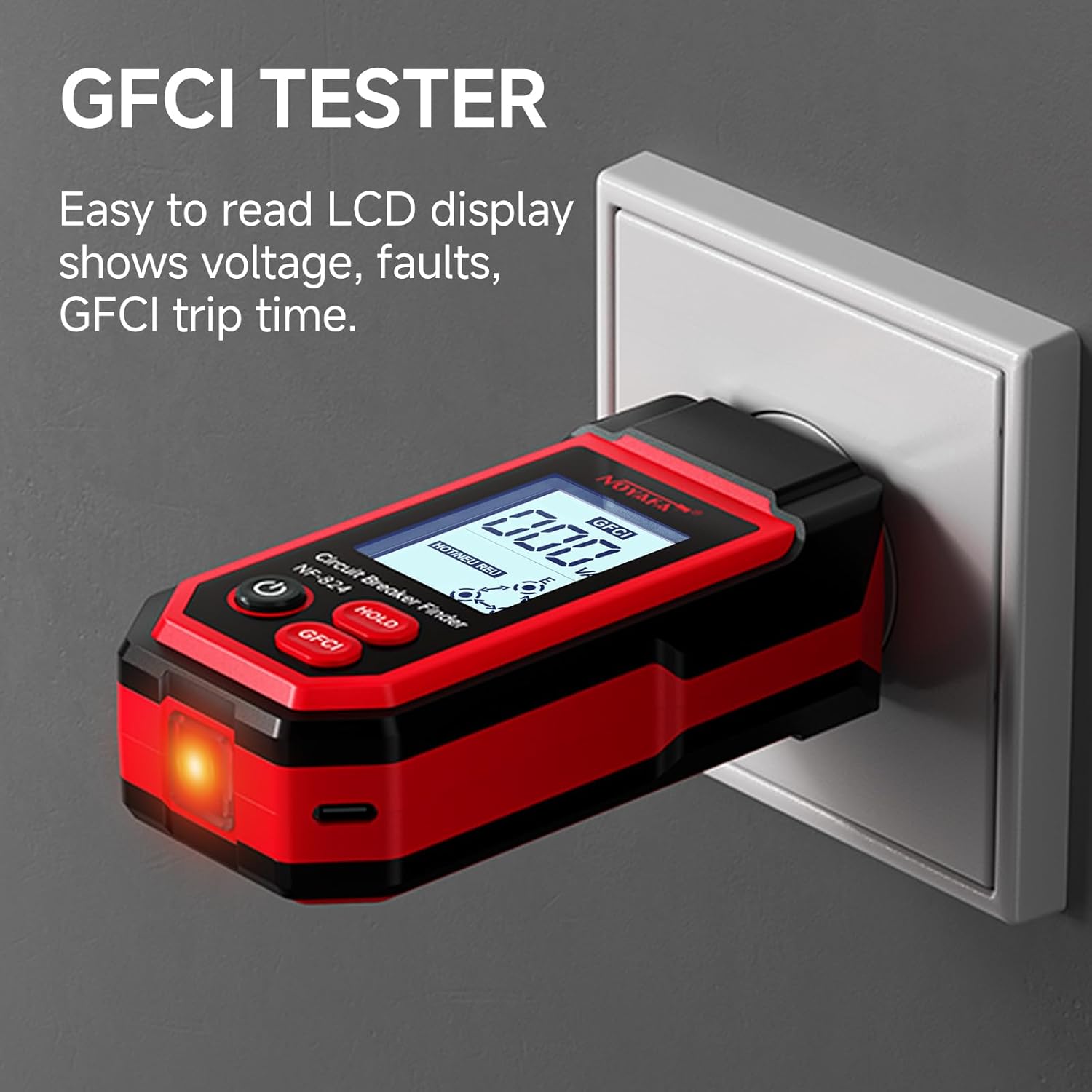

The NF-824 reduces guesswork when mapping circuits and diagnosing wiring issues. The NCV detection adds a layer of safety by alerting to live voltage without contact, and the GFCI test function verifies outlet protection. Portability gets a boost from the included carrying case and adapters, so the tool adapts to three prong, two prong, light socket and clip connections. Large LCD and signal strength display deliver clearer feedback than simple LED only finders. 🔍

Usage tips

Connect the transmitter to the outlet or fixture you want to trace and scan the breaker box with the receiver while adjusting sensitivity. Start at a lower sensitivity to avoid neighboring circuit interference then increase if the signal is weak. Keep an eye on the low battery indicator and recharge via Type-C before long jobs. Note that accuracy is according to manufacturer conditions and results can vary with panel layout and nearby wiring. 🛠️
