INSTRODOTS Circuit Breaker Finder 90–135V

This digital breaker finder with integrated GFCI outlet tester speeds up circuit mapping and safety checks for residential and light commercial electrical work. It plugs into standard outlets and then helps you locate the matching breaker in panels that use 90-135V AC systems, saving time when troubleshooting or updating wiring. The transmitter/receiver pair is geared toward electricians and DIYers who need clear visual and audible signals while tracing circuits.

Key Points

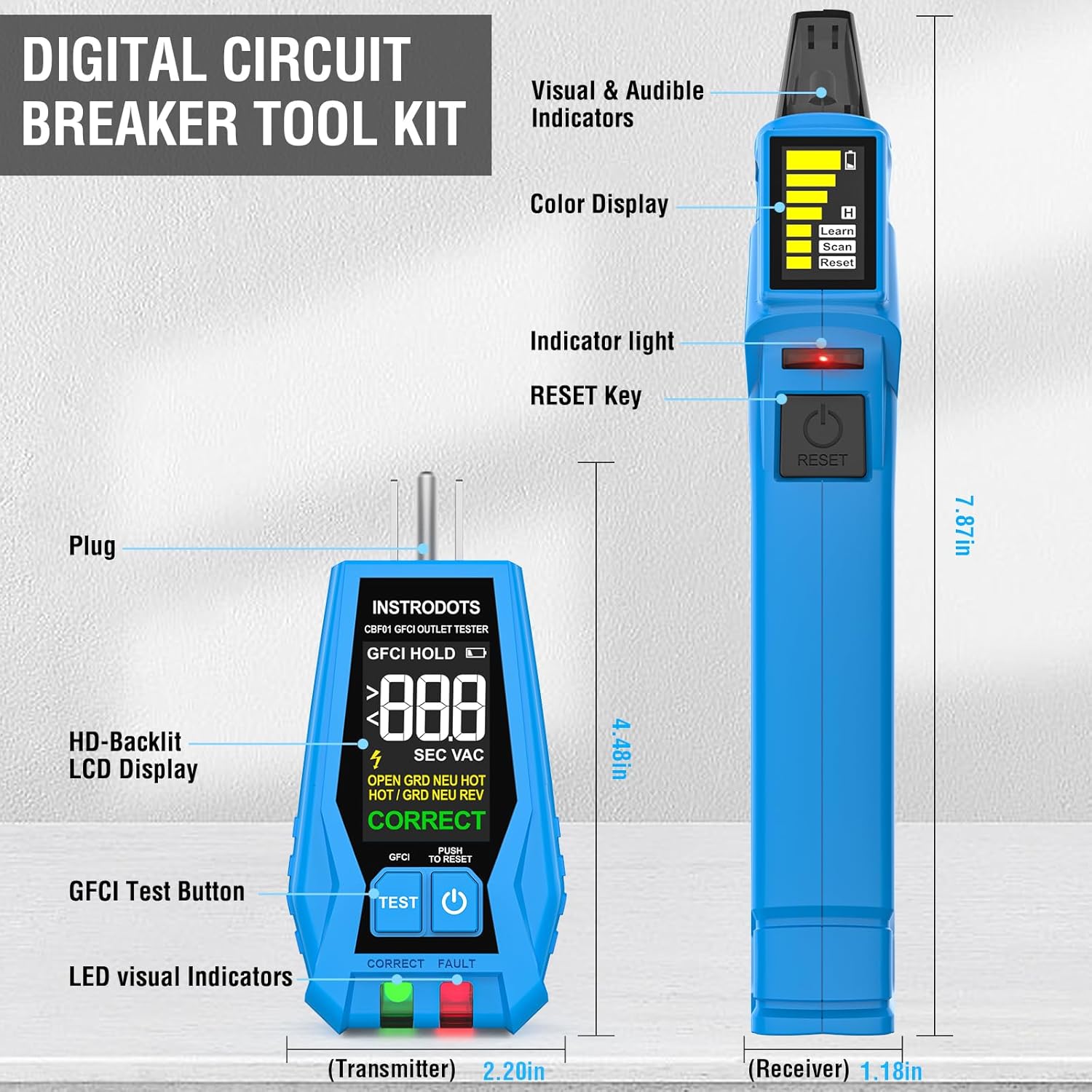

The kit includes a transmitter that doubles as a GFCI outlet tester and a handheld receiver that scans the breaker panel with both visual and audible cues. The transmitter’s bright color screen and LED indicators make wiring faults and polarity issues easier to see, while the receiver uses an analog bar and buzzer to confirm the correct breaker. Additional adapters expand compatibility with two-prong outlets, light sockets, and bare wires, which helps when tracing circuits in older homes or fixtures. Consider that the device is optimized for systems within the 90-135V AC range and may not work on lower-voltage or nonstandard installations. 🔌

Benefits

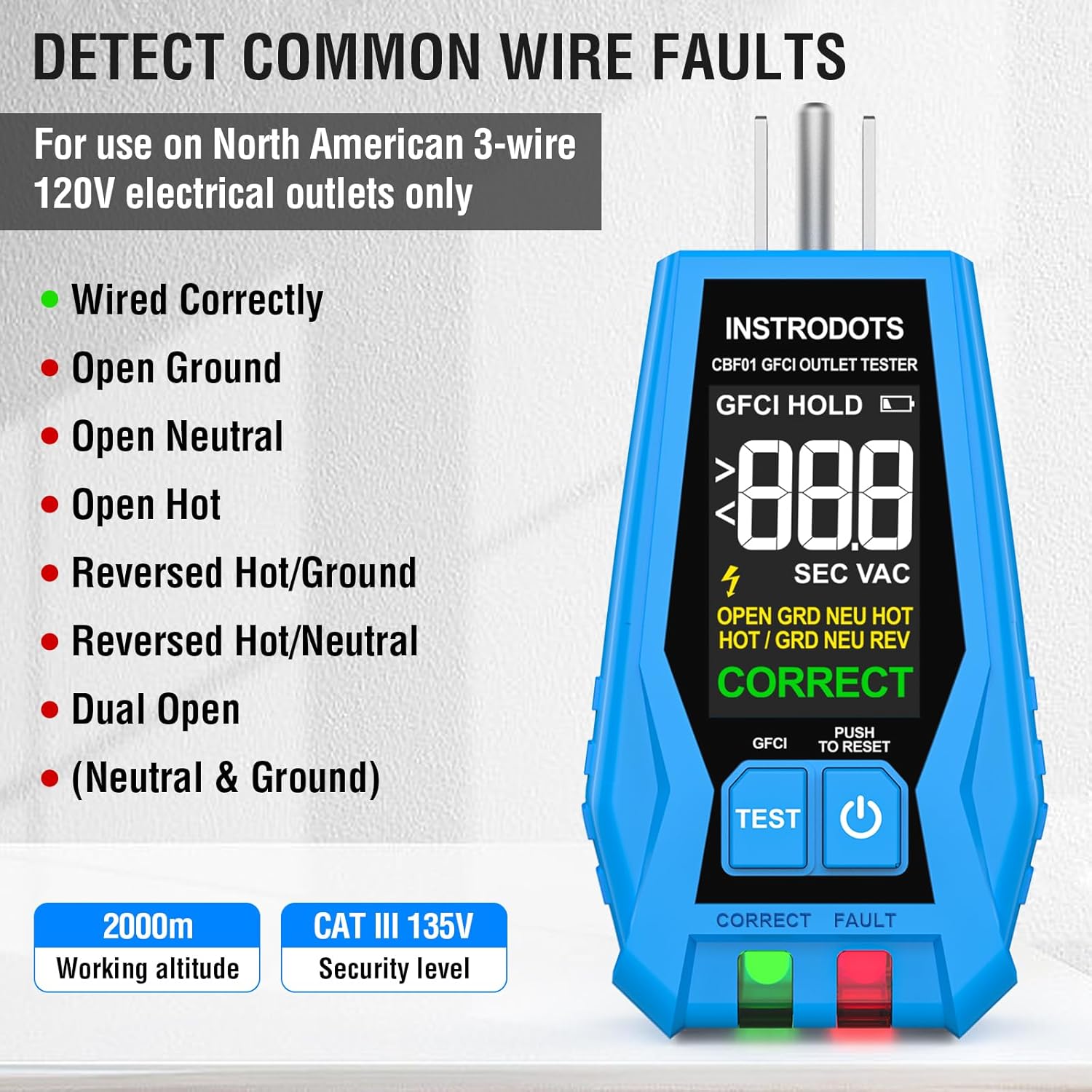

Using the transmitter’s built-in GFCI test function lets you verify trip response times and detect common wiring faults quickly. The unit’s auto-hold function locks readings for awkward or hard-to-reach outlets. Portability is covered with a compact carrying case and included batteries, so field work is straightforward. The rugged case design offers dust and drop resistance, making it more durable for jobsite handling. For larger electrical projects, the audible buzzer reduces panel squinting, and the clear visual clues speed up breaker identification. ⚡️

Technical Specifications

• Name: INSTRODOTS CBF01

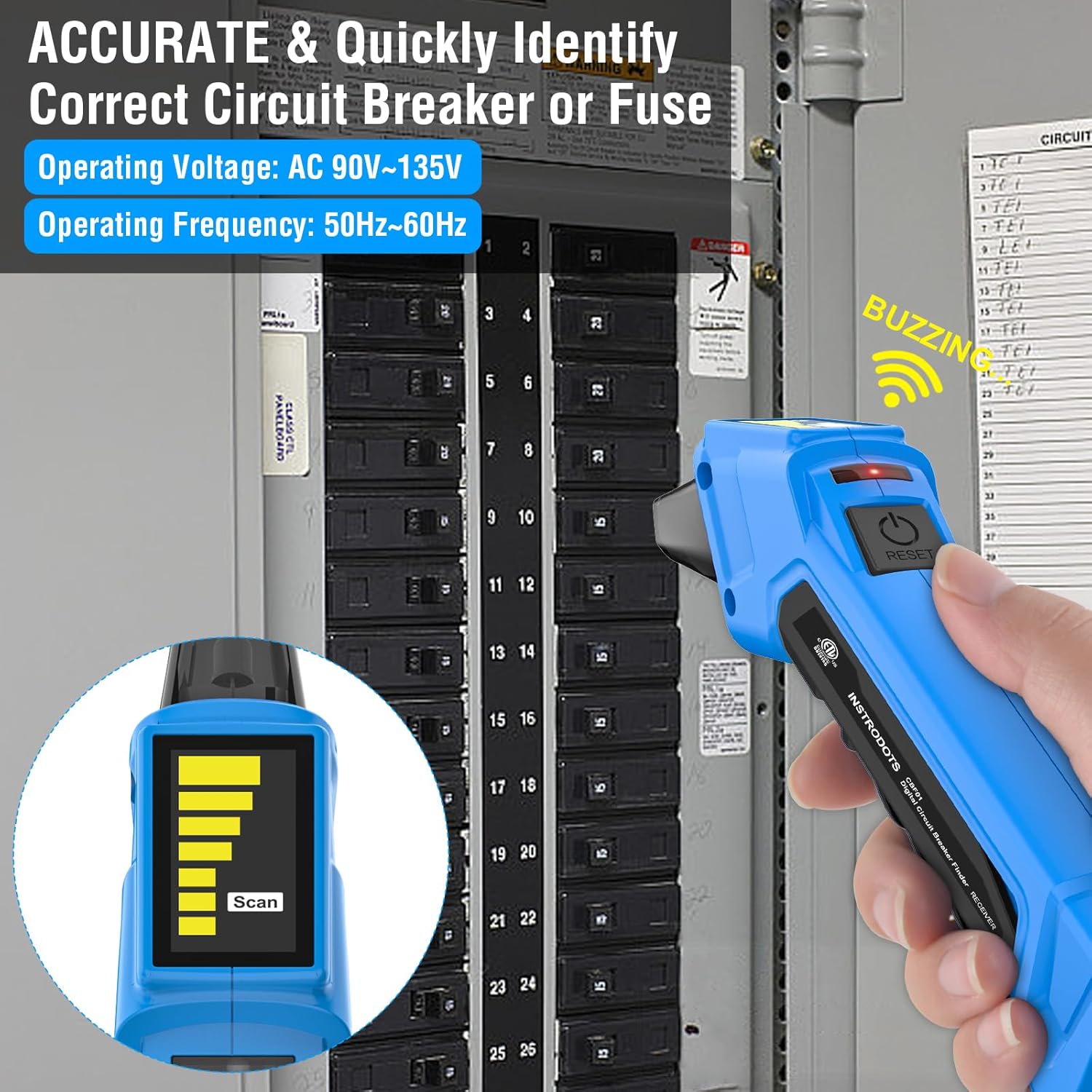

• Voltage compatibility: 90-135V AC
• Frequency: 50/60Hz
• Safety rating: CAT II 135V, IEC61010-1 screw-sealed battery compartment

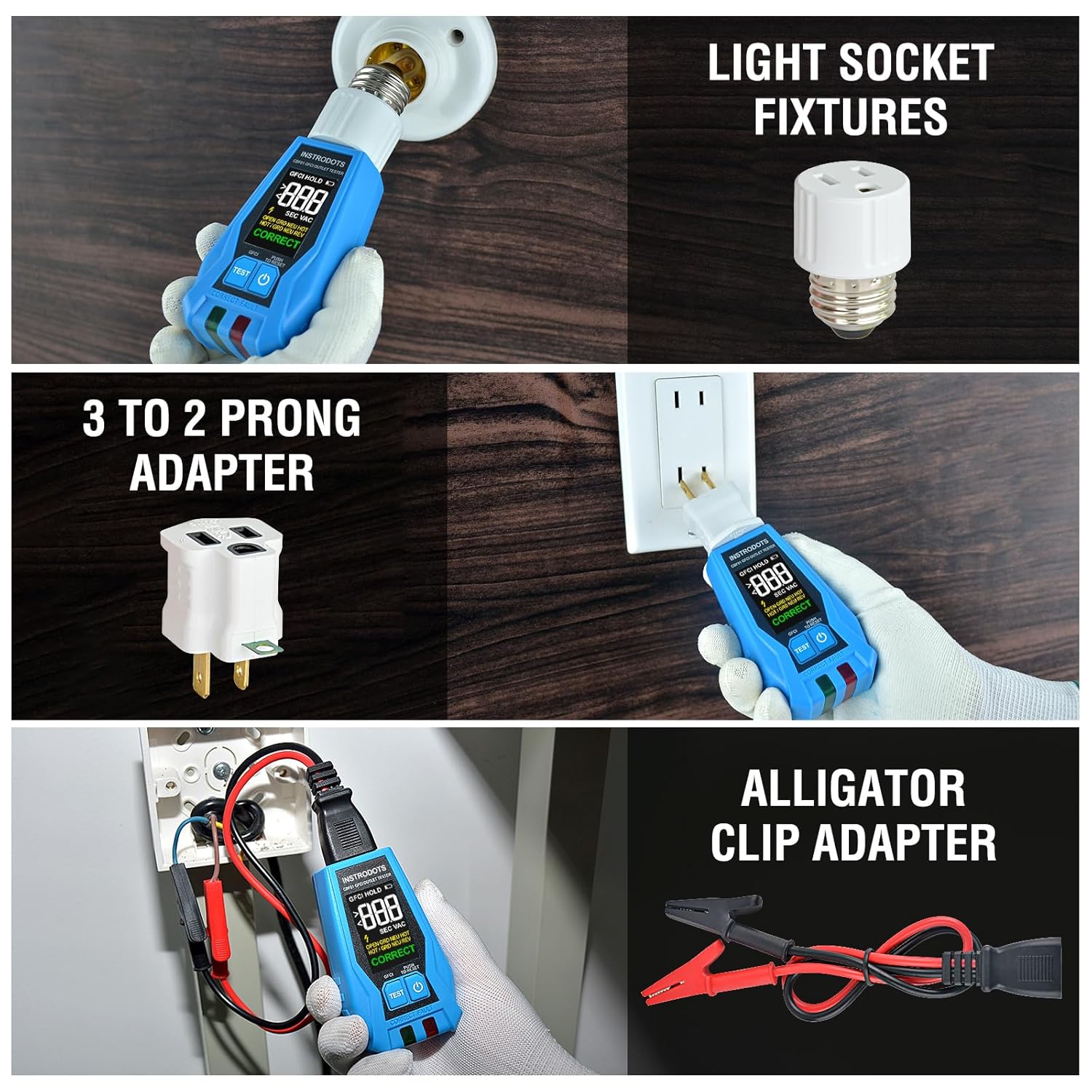

• Included accessories: 3-prong to 2-prong grounding adapter, light socket adapter, alligator clip adapter, 2×AAA for transmitter, 1×9V for receiver, carrying/storage bag.

Usage Recommendations

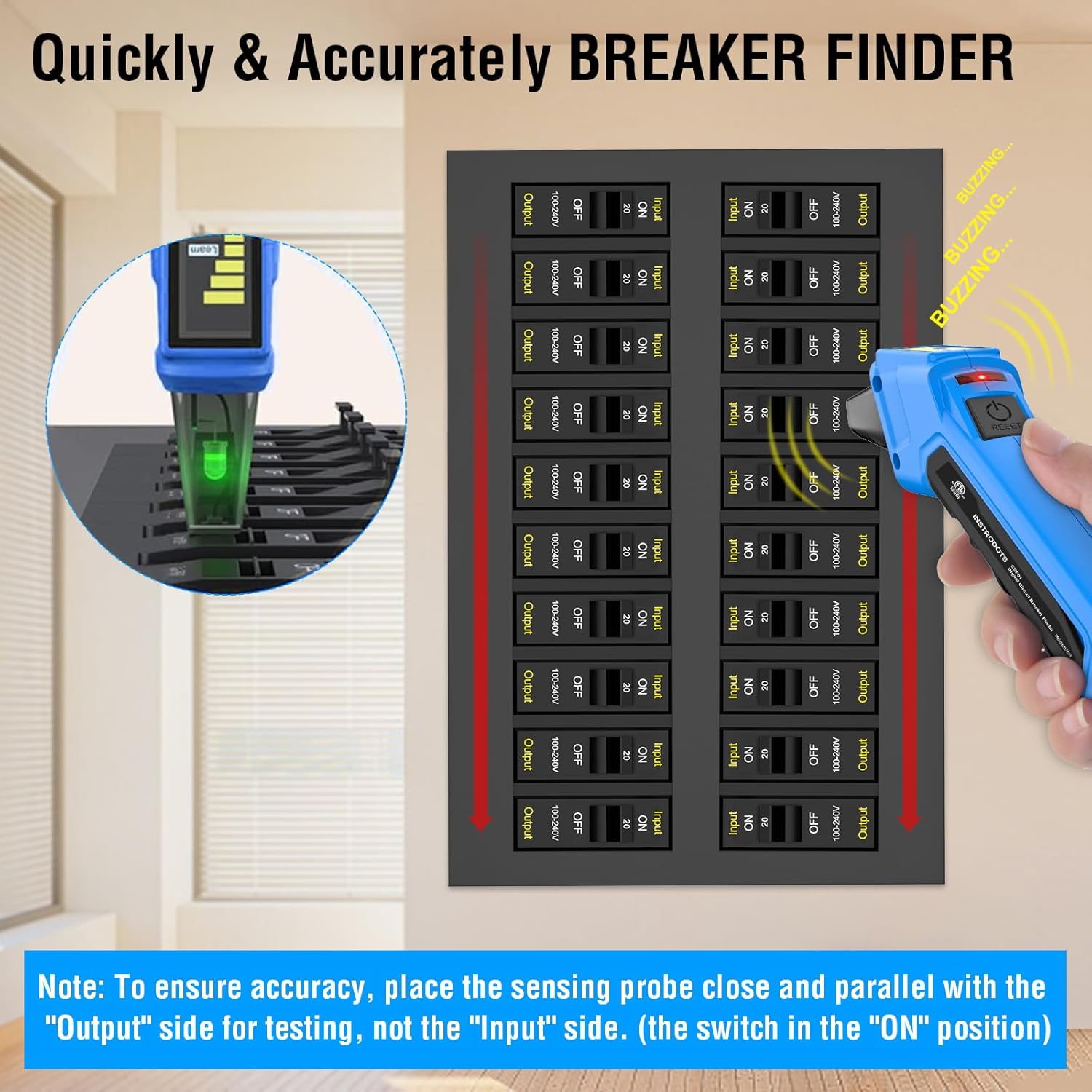

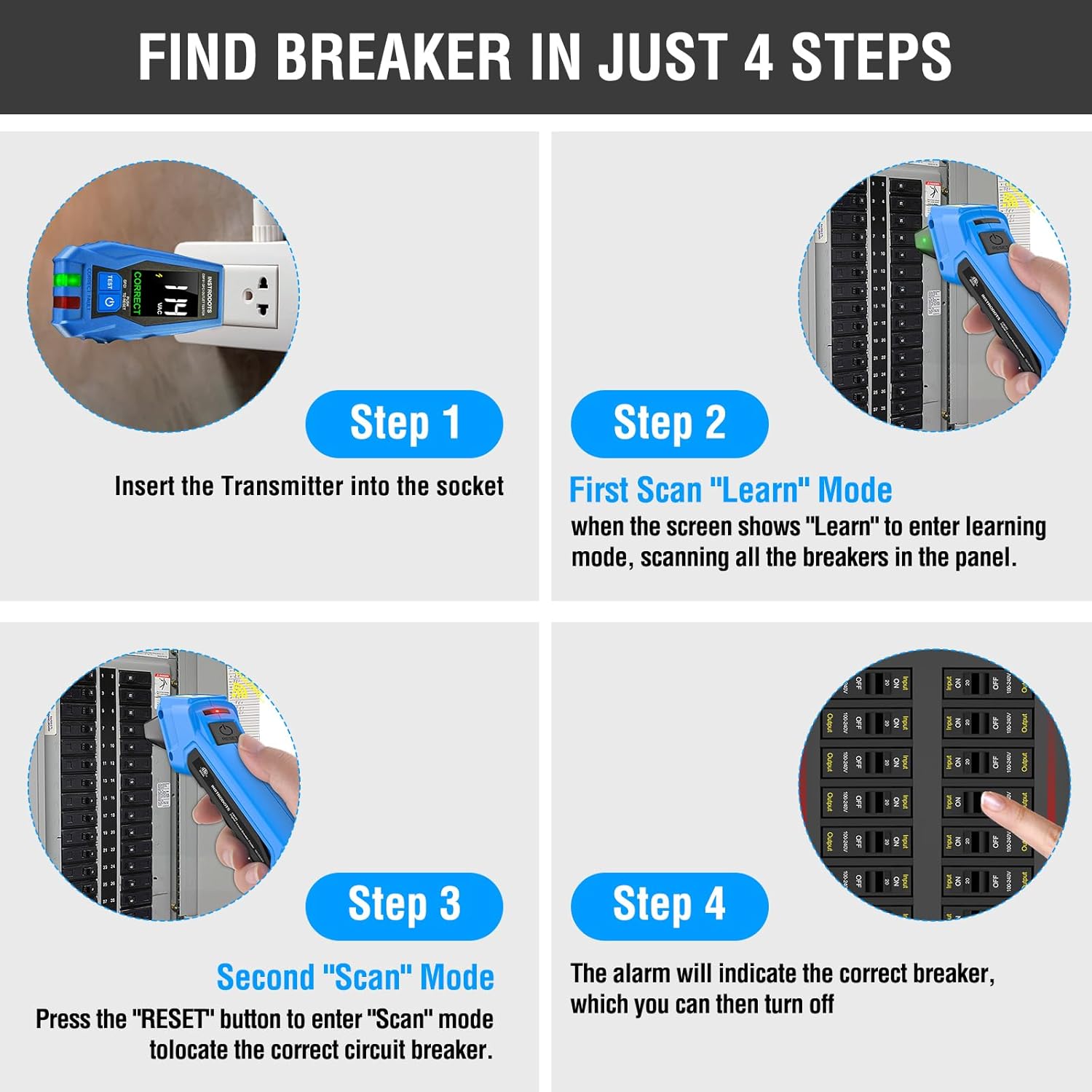

Start by plugging the transmitter into the outlet or fixture you want to map and then walk to the breaker panel with the receiver to scan each breaker. Watch the receiver’s bar display and listen for the buzzer to pinpoint the match, and use the transmitter’s color display to confirm outlet wiring and GFCI operation. When working with lighting circuits, add the light socket adapter to reach fixtures without exposed outlets. Replace batteries if the low-battery indicator appears to maintain reliable signals and avoid interrupted tracing during a session.
