Catilon 6931EL3003D Dryer Thermal Fuse Kit with Thermistor and Thermostat

When an LG or Kenmore dryer needs attention for a heating or temperature-control issue, matching replacement parts can help keep the repair focused. The Catilon 6931EL3003D kit brings together three dryer components in one set.

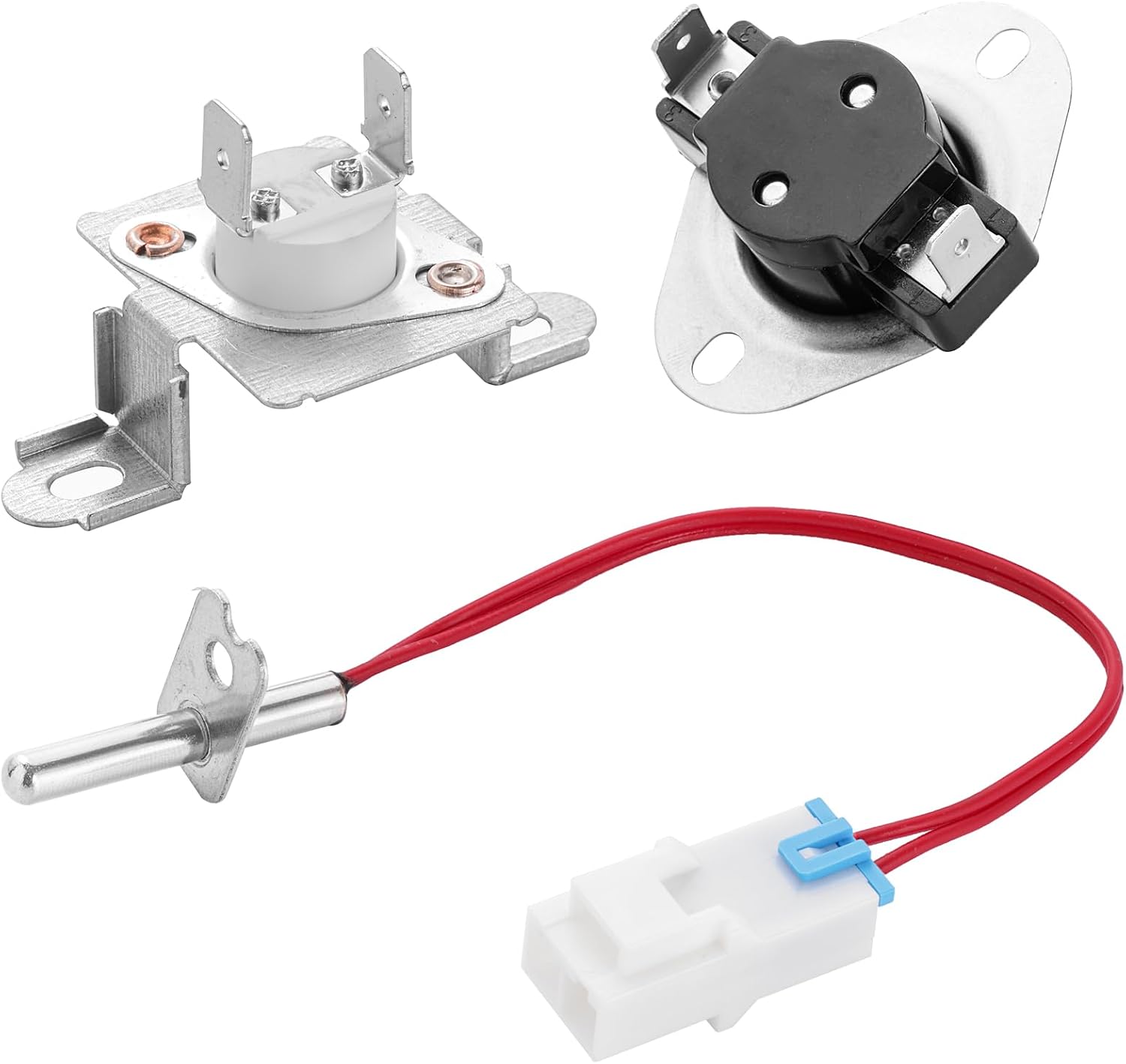

It includes a thermal fuse, a thermistor temperature sensor, and a high-limit thermostat. Together, these parts address functions involved in monitoring dryer temperature and controlling heat.

If you are replacing several related parts, this bundle offers a different approach from sourcing each component separately. The listed part numbers also help identify whether the set matches the parts you need.

How it fits

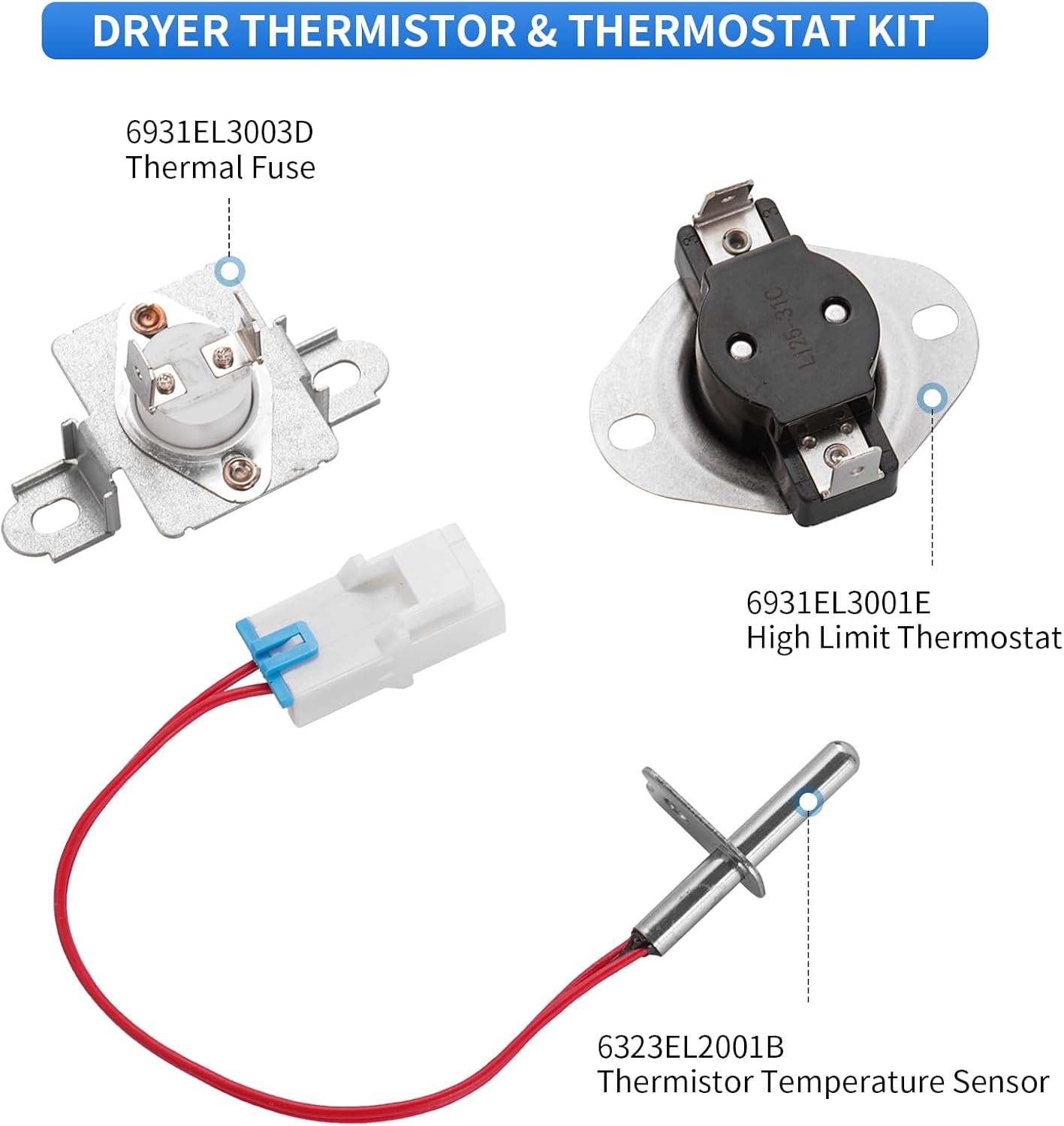

This kit is listed as compatible with LG and Kenmore dryers. It contains the 6931EL3003D thermal fuse, 6323EL2001B thermistor, and 6931EL3001E high-limit thermostat. The thermistor uses a wire harness and changes resistance in response to surrounding temperature, supporting temperature control during a drying cycle. The high-limit thermostat is designed to shut off the heating element when it senses high dryer temperature.

The set is intended for repair situations associated with no heat or insufficient heat, extended drying, overheating, a dryer that will not start, or a unit that shuts off too soon. These symptoms can have different causes, so use the dryer’s model information and the part numbers on the components to select the appropriate replacement.

Strengths

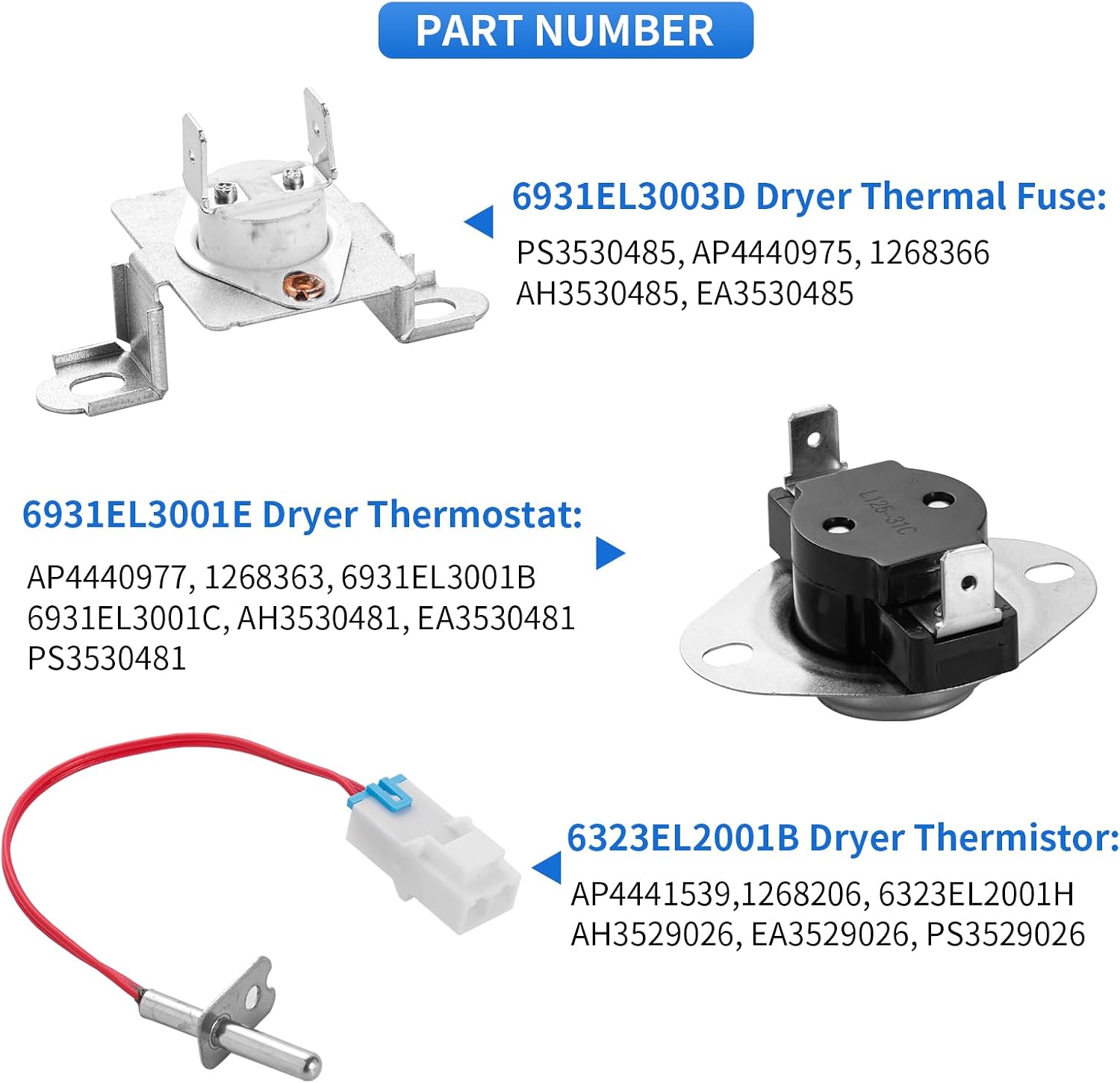

Having the three components together is useful when a repair calls for replacing more than one temperature-related part. It also gives you the individual identifiers needed to compare the kit with a repair list or the parts being removed: 6931EL3003D, 6323EL2001B, and 6931EL3001E. Listed cross-reference numbers include AP4440975 for 6931EL3003D, AP4441539 for 6323EL2001B, and AP4440977 for 6931EL3001E.

In a practical repair scenario, a technician or experienced DIYer can use those identifiers to check the intended parts before installation, then replace the relevant components as part of dryer maintenance. If your repair requires only one specific part, buying that part individually is another approach, this kit is suited to repairs where the included thermal fuse, thermistor, and thermostat are all needed.

The metal and plastic construction is specified for the components, and the manufacturer lists a one-year warranty. The kit’s value comes from the clearly identified set of parts and their temperature-control roles, rather than from treating every dryer symptom as the same fault.

Tech specs

• Type: Dryer thermal fuse kit
• Brand: Catilon
• Components: 6931EL3003D thermal fuse, 6323EL2001B thermistor, 6931EL3001E high-limit thermostat
• Compatibility: LG and Kenmore dryers
• Frequency: 50/60Hz
• Amperage: 25A
• Temperature: 185°F/85°C
• Material: Metal and plastic
• Warranty: One year

Is it worth it?

For an LG or Kenmore dryer repair that calls for these three temperature-related components, the Catilon kit keeps the thermal fuse, thermistor, and high-limit thermostat together and makes each part easy to identify by number. That makes it a practical choice when you want a coordinated replacement set for a heating or temperature-control repair. Match the dryer and required part numbers before installation to ensure the kit fits the repair at hand.
