BougeRV Sunflow 30A MPPT Solar Charge Controller with Low-Temp Cut-Off, App Control & Backlit LCD
Reviews
Product description
Quick overview
If you’re running a 12V/24V solar setup for an RV, marine setup, or off-grid battery system, this BougeRV Sunflow 30A MPPT controller is designed to do the “in-between” job: it manages the charge from your solar panels to your battery, using MPPT-style tracking to help pull more usable output. On paper, the standout is the low-temperature cut-off for LiFePO4 charging (below 32℉) plus the ability to restart or activate dormant LiFePO4 batteries that may have turned off due to over-discharge or a short-circuit event.
It also goes beyond the basic controller category with a backlit LCD for on-device monitoring and an app that supports Bluetooth control. That means you can tweak settings either directly on the screen or via the BougeRV app—handy if you don’t always want to be at the controller physically.
What it’s for (and why the MPPT angle matters)

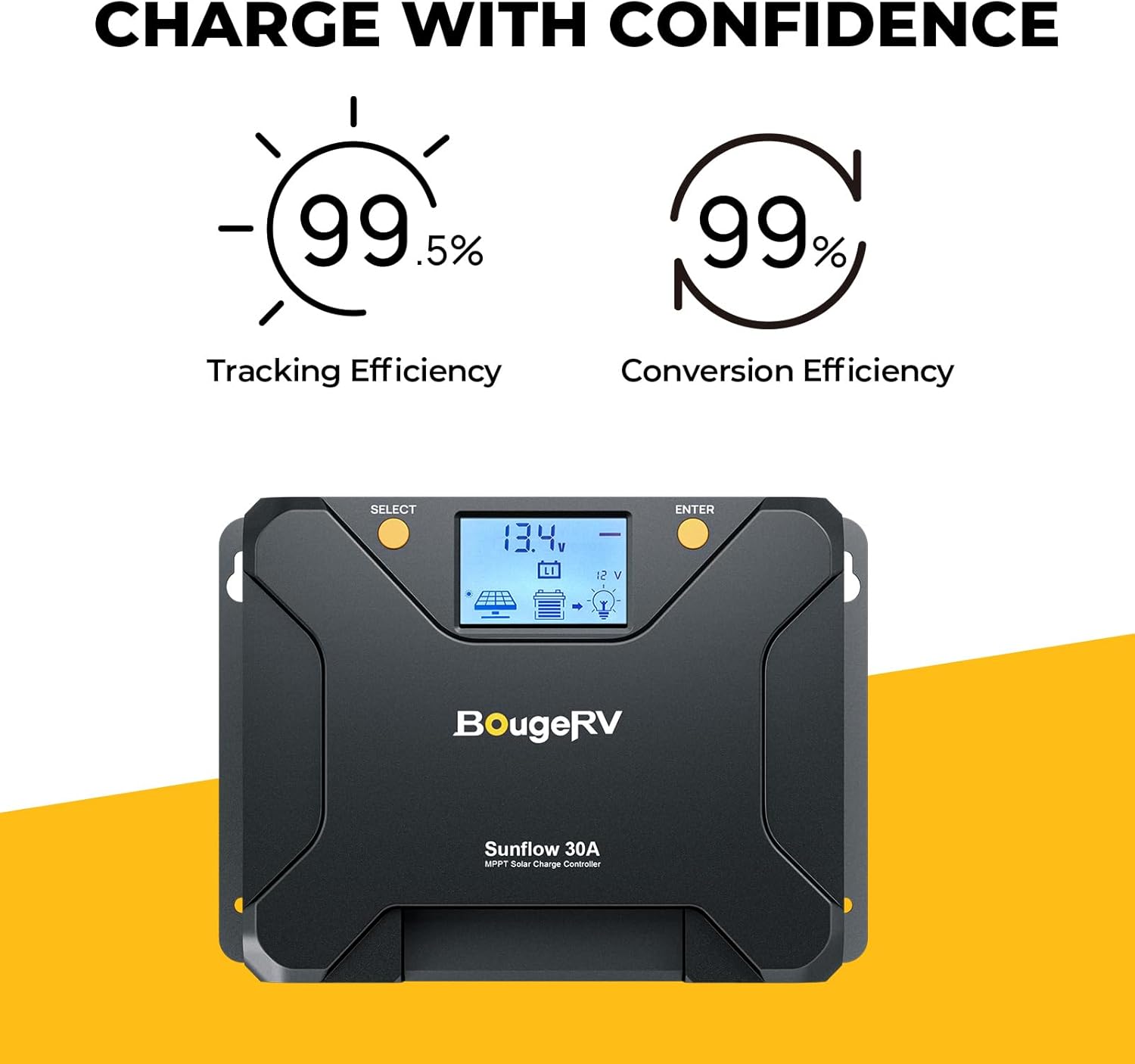

This is a solar charge controller built for 12V/24V battery systems, including LiFePO4 and also common battery types like Gel, FLD, and AGM (as listed in the product description). MPPT controllers are typically chosen when you want better panel-to-battery conversion than simpler charge methods. Here, the controller is described with high tracking efficiency up to 99.5% and peak conversion efficiency up to 99%, which is the kind of spec you look for when maximizing panel output matters.
A practical micro-example: imagine your RV battery sits in a compartment and your panels are seeing changing conditions during the day (sun angle, clouds). A controller that tracks and adjusts charge behavior can help your battery receive more consistent charging instead of relying on a fixed approach.
Key takeaways for day-to-day use
The control experience is split into two modes: full-featured operation where you can modify adjustable parameters on the screen, and other viewing/no-load modes depending on how you want the display to behave. If you prefer hands-on setup, the screen button option helps—especially if you don’t want to download or pair with the app.
If you do use the app, the Bluetooth range is listed as up to 32 feet. That’s a meaningful convenience detail in RV and boat living, where the battery compartment might not be right next to where you normally check things.
Also worth noting: the description says you should connect the battery to the controller first to complete recognition and wake up the display. It’s a small step, but skipping it could leave you staring at an “is it on?” moment.
Where it shines (and the protections you’re buying)
There’s a theme here: the controller tries to protect your battery and reduce heat stress while preventing unsafe electrical behavior. It uses a dual MOS circuit to help prevent reverse current and reduce heat during operation.
The product description lists 6 protections, including over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention, and protection against current flowing backward. This is the kind of checklist that matters if you plan to wire once and then move on—because you don’t want to babysit the system every time conditions change.

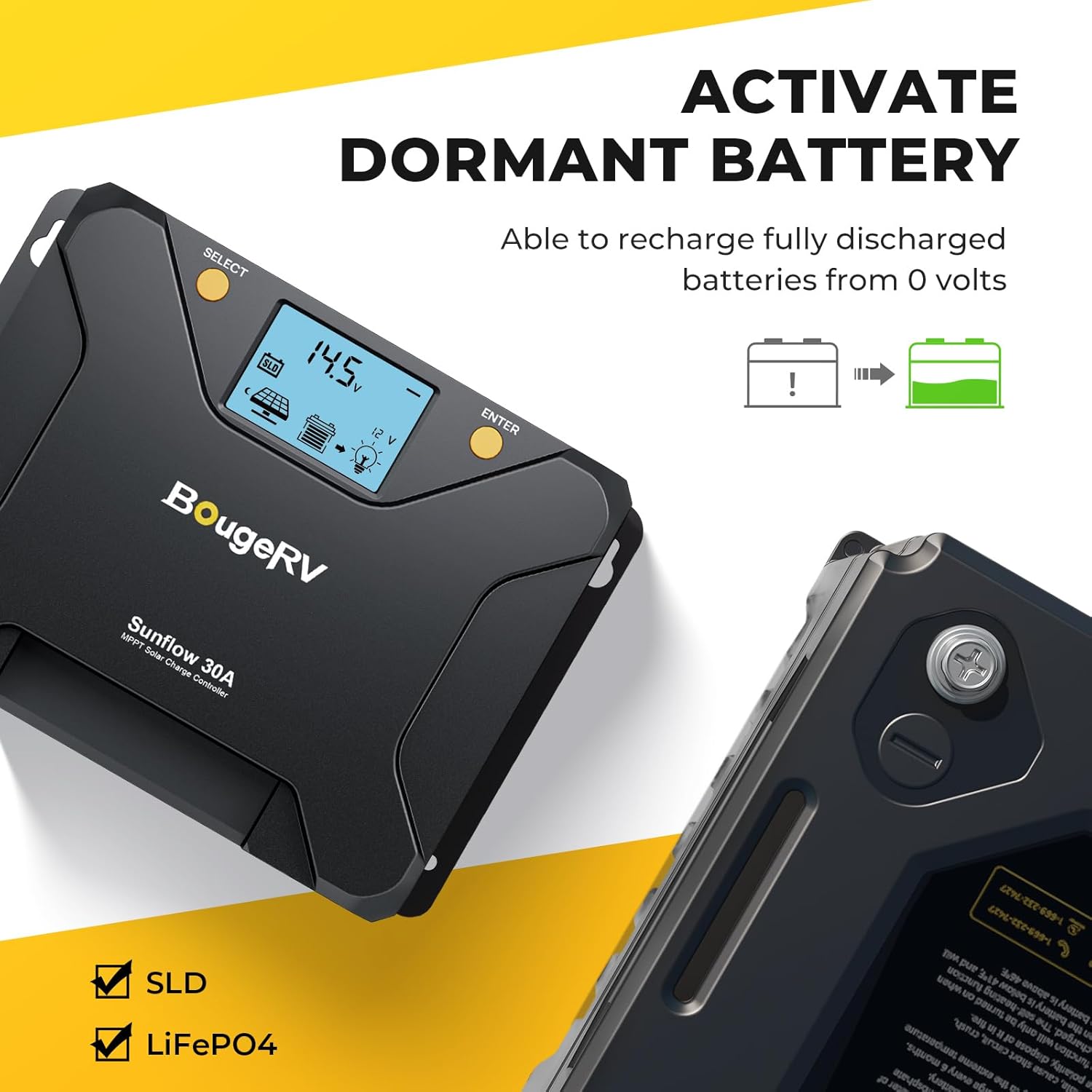

On the LiFePO4 side, low-temp cut-off is specifically called out below 32℉, which is a clear “don’t charge when it’s too cold” safeguard. The same controller is also described as being able to restart or activate dormant 12V/24V LiFePO4 batteries that may be turned off due to short circuits or over-discharging. That’s a helpful capability if you’ve ever had a battery go into a protective shutdown state.
Tech specs that affect buying decisions
Here are the practical specs you’ll want to match to your solar and battery setup:
- System voltage: 12V/24V

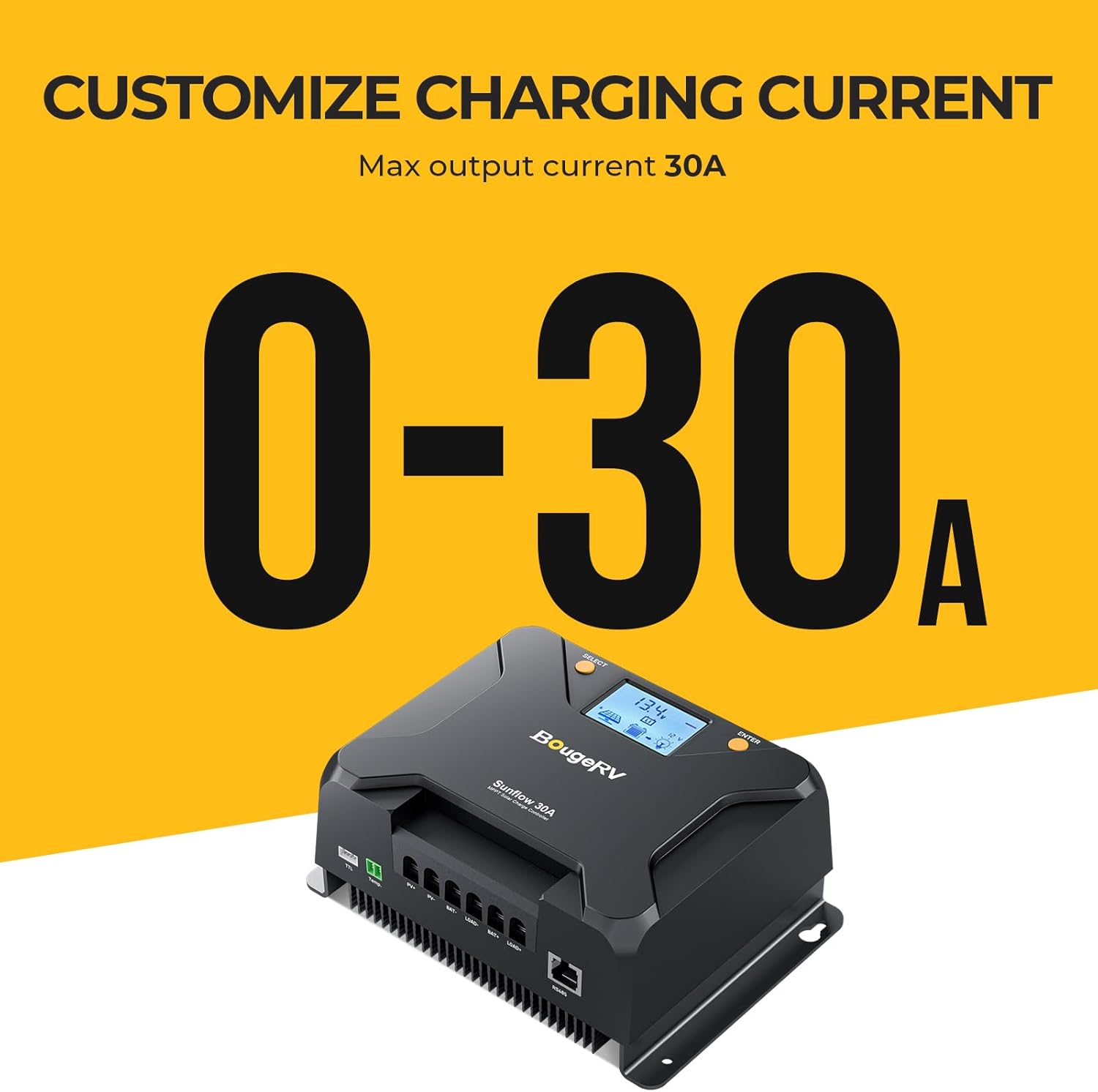

- Adjustable charge current range: 0A to 30A
- Low-temp cut-off: below 32℉ (for LiFePO4 charging)
- Max PV input voltage: 95V
- Max PV input power: 450W for 12V, 900W for 24V
- Rated load current: 20A
- Wire specifications: 15-8AWG
- Bluetooth range (app control): up to 32 feet
Two quick “be careful” notes: first, the listed max PV input power is tied to 12V vs 24V, so sizing matters. Second, the rated load current is 20A, so if you’re planning larger loads through the controller output, you may need to confirm that it matches your intended wiring plan.
Who should buy it (and who should skip it)
This is a solid pick if you want a feature-rich MPPT solar charge controller for a 12V/24V system and you care about LiFePO4-specific behavior—especially cold-weather charging control. The app control plus backlit LCD can be worth it if you like visibility and adjustability without guesswork.
It may not suit you if you’re building the simplest possible solar setup and just want a basic controller with minimal configuration. Also, if your system requirements are very specific beyond what’s listed (for example, you need guaranteed performance beyond the stated limits), you may find yourself wanting more documentation than what’s provided here.
It’s not perfect in the sense that the description doesn’t explain exact installation steps, detailed compatibility beyond the listed battery types, or how each display mode behaves under every scenario. So if you’re the type who needs a lot of wiring guidance and deep parameter clarity, you’ll still want to double-check your setup plan before buying.
Care & maintenance
For long-term reliability, treat the controller like the electronics it is: keep it ventilated (heat management is part of its design, after all) and avoid dusty, moisture-prone locations where seals and airflow could suffer. The description mentions an aluminum heat sink and aims to minimize power loss under full load—so good mounting and airflow are a practical part of getting the benefits the specs are pointing to.
Is it worth it?
Worth buying if you run a 12V/24V solar system and want MPPT tracking plus LiFePO4-focused features like low-temp cut-off below 32℉, along with app control and a backlit LCD for monitoring and adjustments. It’s also a good match when you want built-in protection coverage and a controller designed to manage heat and reverse-current behavior.
Better avoided if your setup doesn’t align with the stated electrical limits (max PV input power, PV input voltage, and rated load current), or if you don’t care about LiFePO4-specific charging behavior and just want a stripped-down controller with fewer moving parts.
Mini FAQ
FAQ
Does it work with LiFePO4 batteries?
Yes, the description states it’s fully compatible with LiFePO4 and includes low-temperature cut-off below 32℉ to protect LiFePO4 charging.
Can it control the settings without using the app?
Yes. The controller supports a full-featured mode where you can modify adjustable parameters via the screen button.
What’s the cold-weather behavior?
For LiFePO4, it’s designed to cut off charging below 32℉. The description also notes it can restart/activate dormant LiFePO4 batteries that were turned off due to over-discharge or short circuits.
What solar panel voltage does it handle?
The listed max PV input voltage is 95V, so you’ll want your panel configuration to fall under that.
Should you wire the controller in a certain order?
The description specifically advises connecting the battery to the controller first to complete recognition and wake up the display.
