BougeRV Solar Connectors Y Branch Adapter Cable ⚡

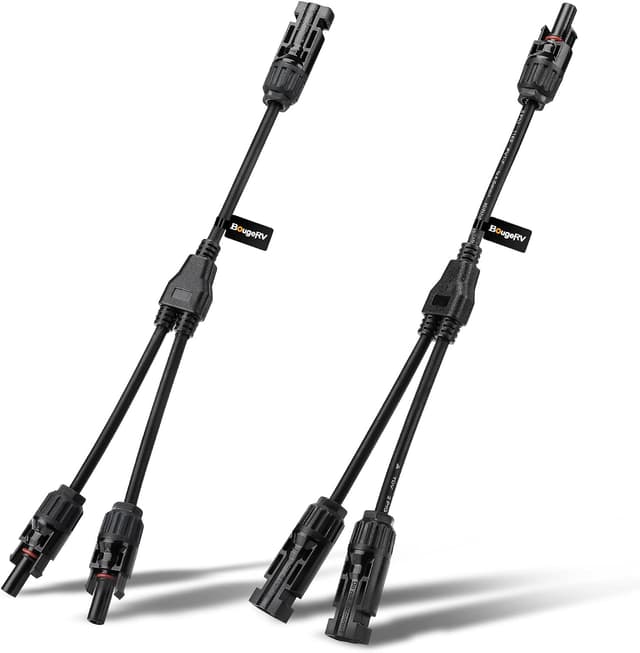

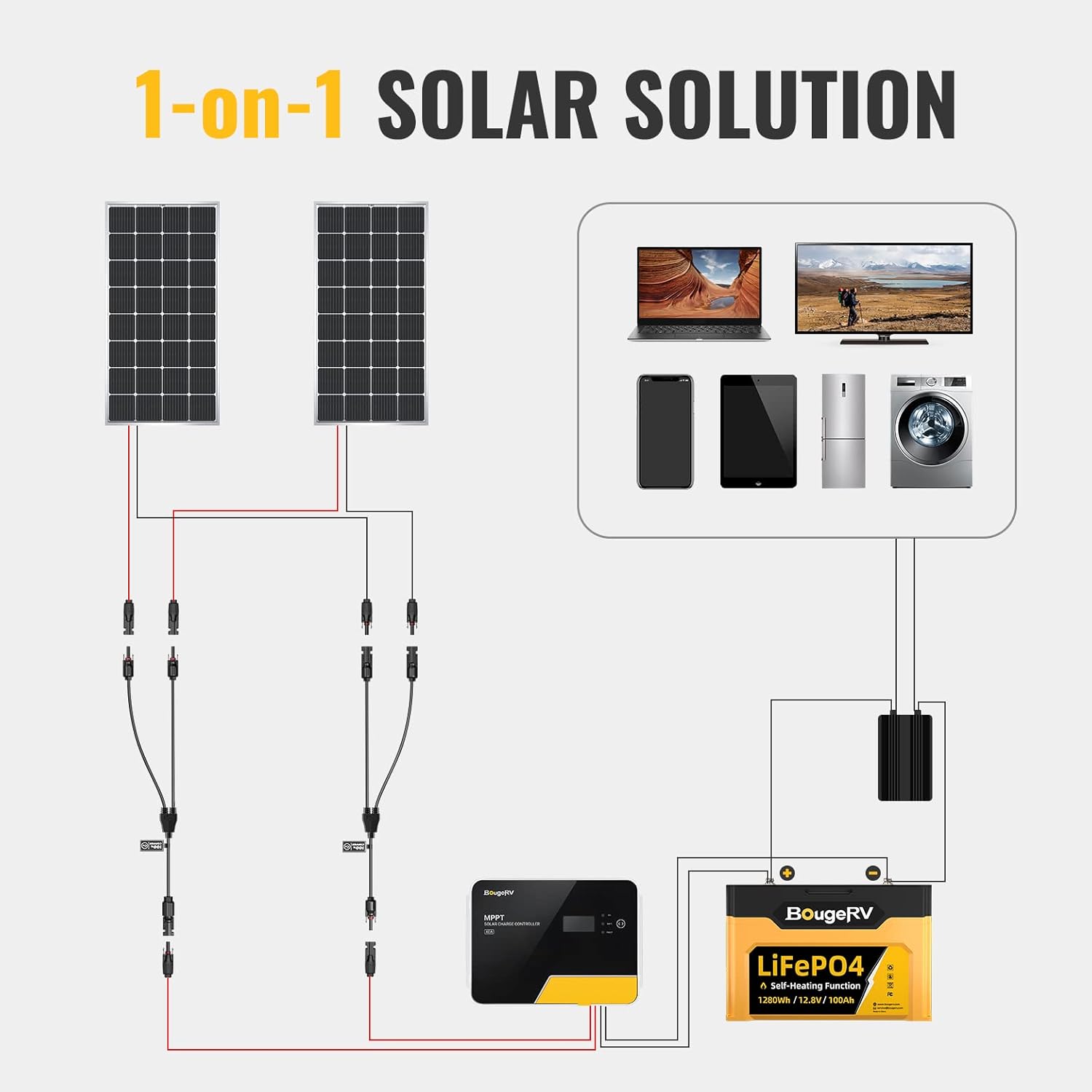

This Y-branch adapter cable from BougeRV lets you link two solar panels in parallel quickly and safely, making it easier to expand small off-grid arrays or add panels to an RV setup. It connects with standard 14–10 AWG solar cables and is built for outdoor use where dust and occasional moisture are a concern.

Key Points

The kit includes both 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM) connectors so you can configure parallel wiring without complicated tools. According to the manufacturer, the connectors are rated at 20A and DC 1000V, which covers many portable solar panel setups and small systems used on campers and boats. The waterproof ring and UV-resistant PPO housing improve durability outdoors, though consider that heavy continuous loads near the current rating will produce heat over time.

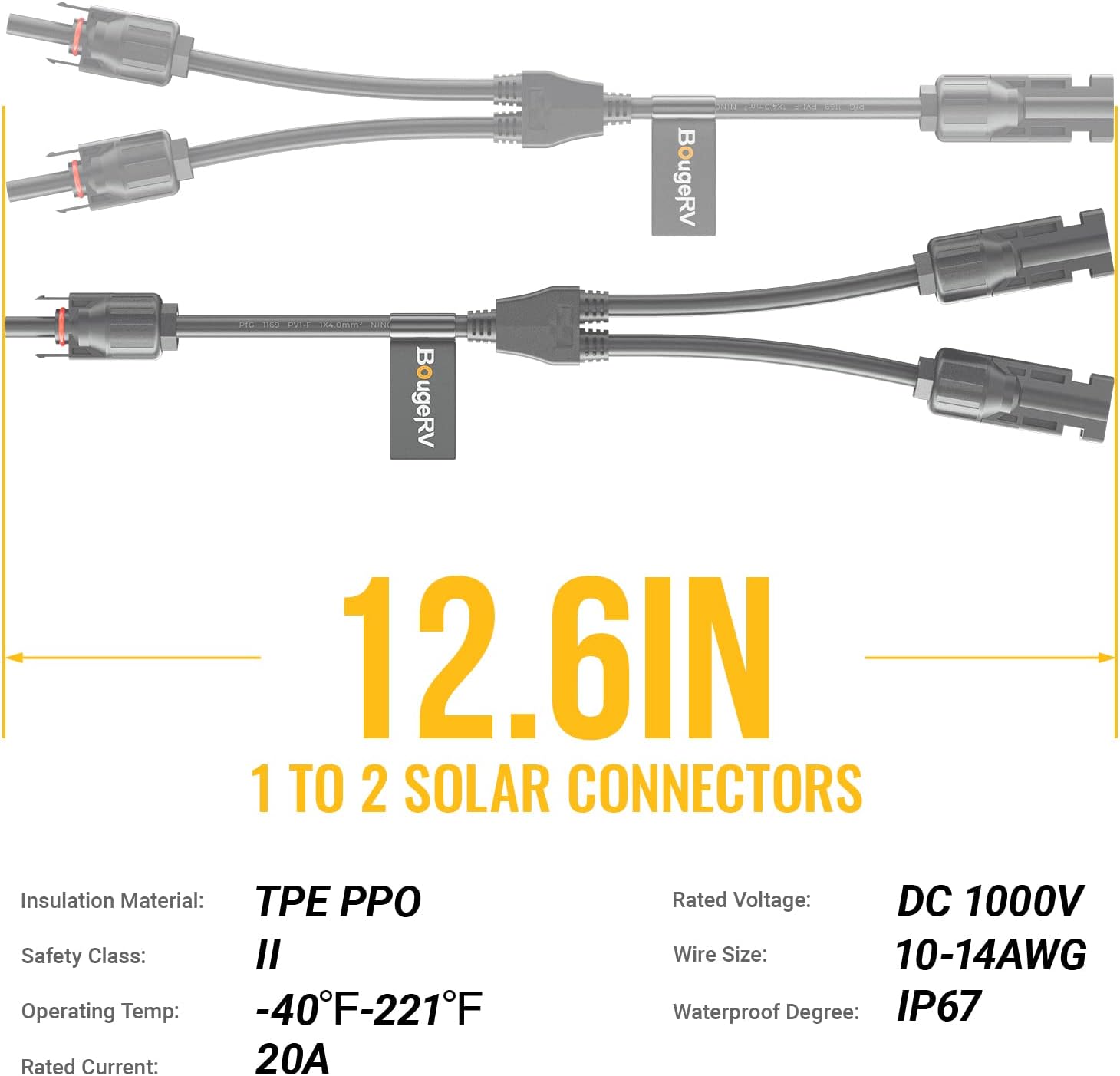

Technical Specifications

• Name: BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit
• Rated Current: 20A
• Rated Voltage: DC 1000V

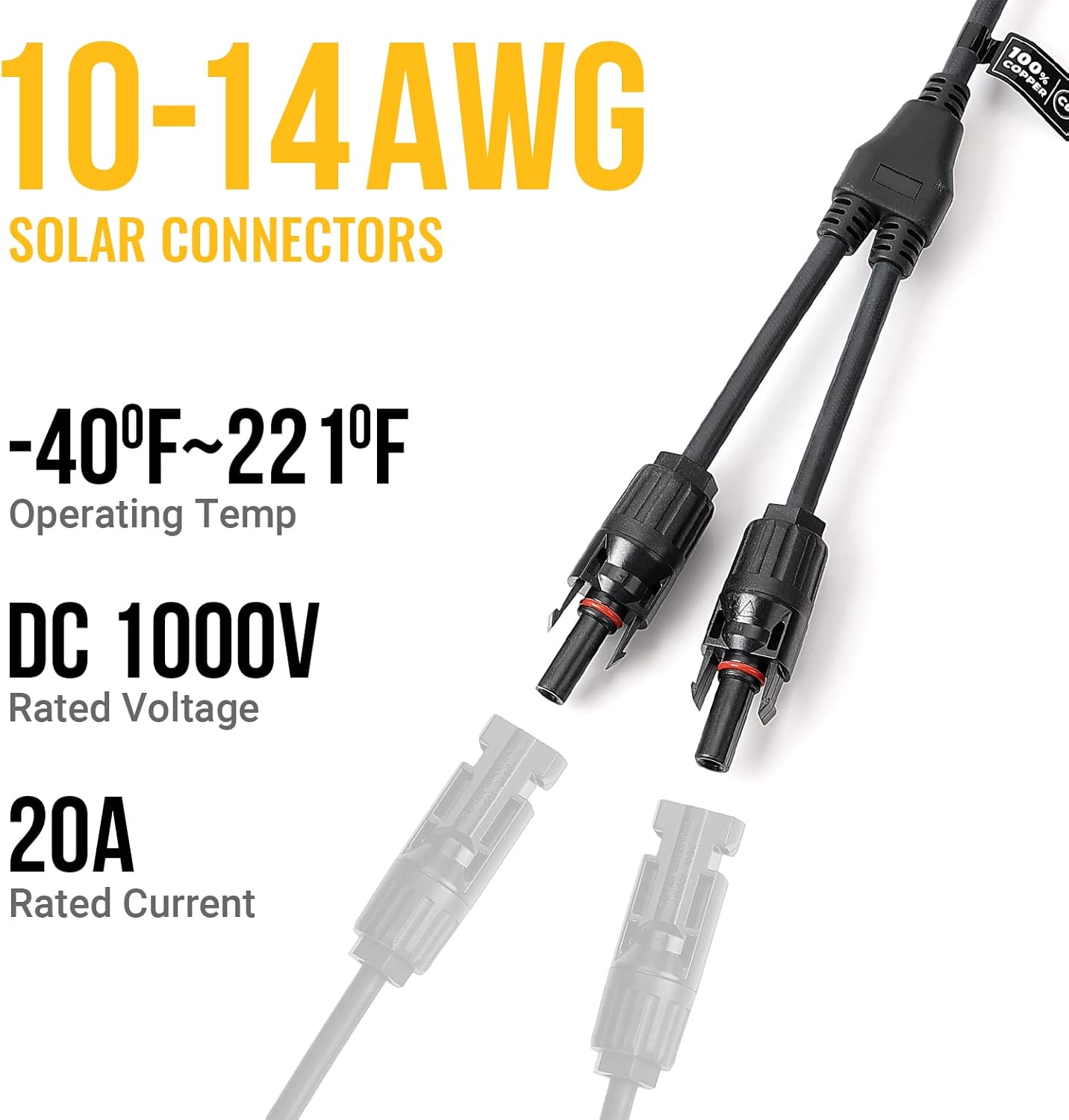

• Compatible Cable: 14–10 AWG (1.5 mm² – 6 mm²)

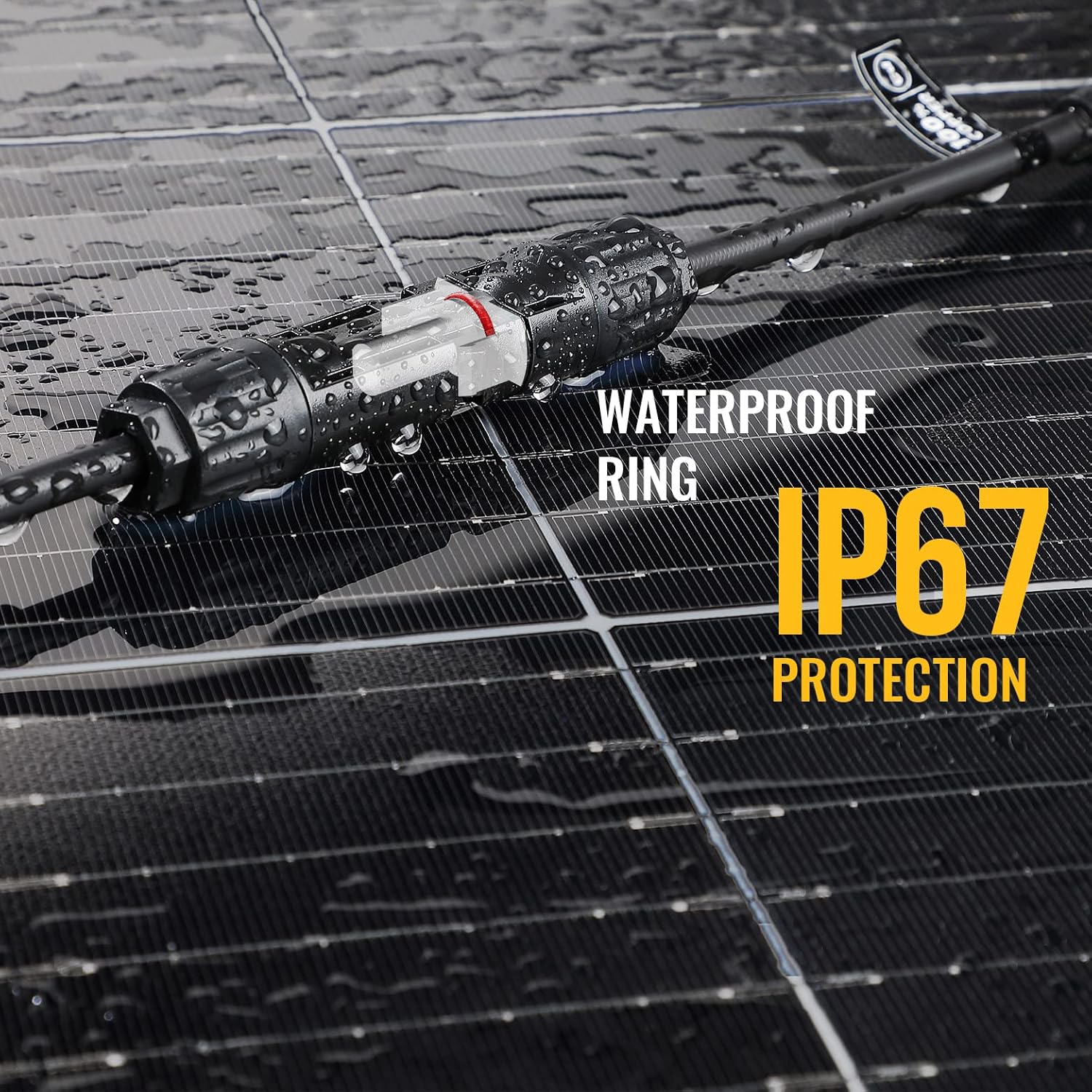

• Protection Rating: IP67

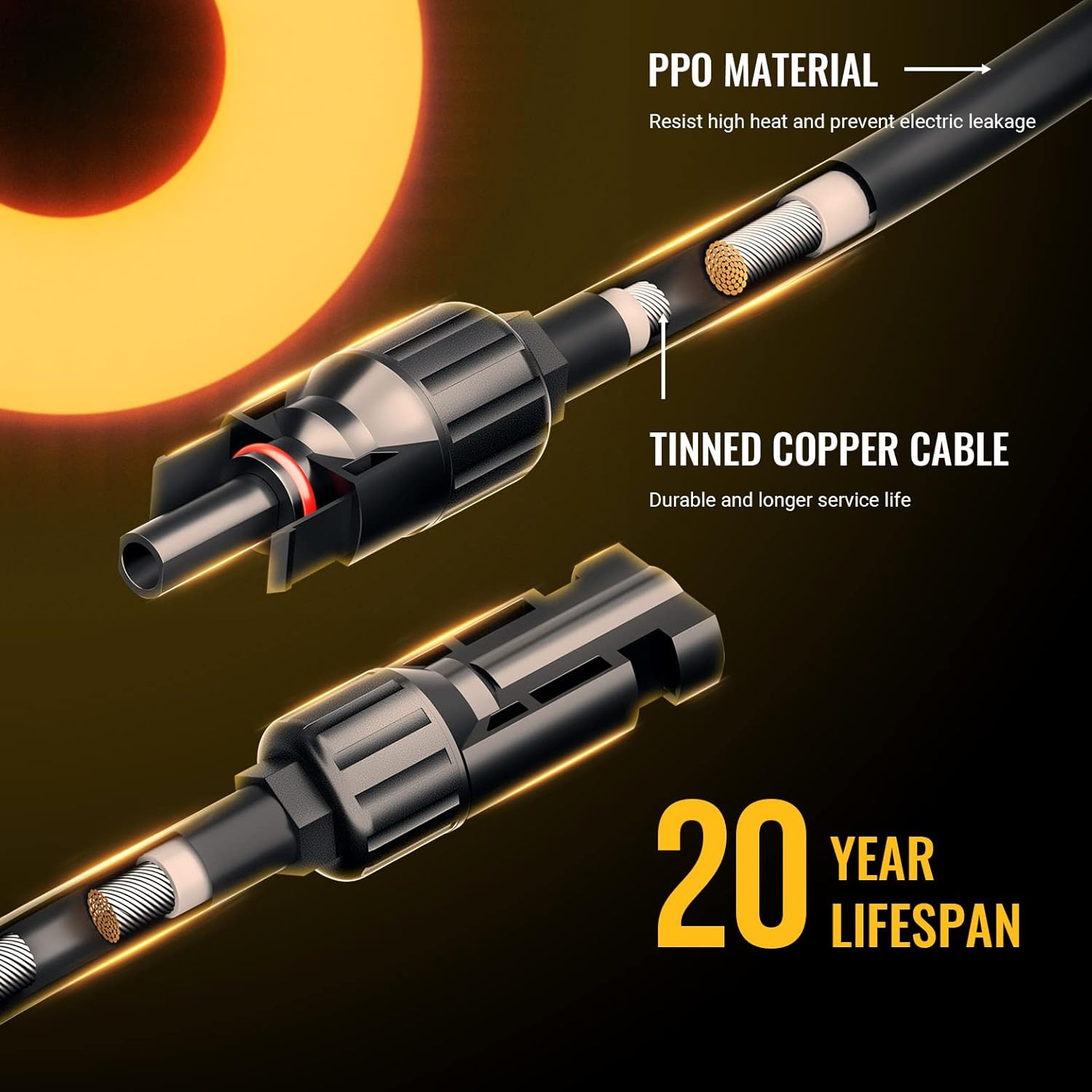

• Material: PPO, UV resistant

Usage Recommendations

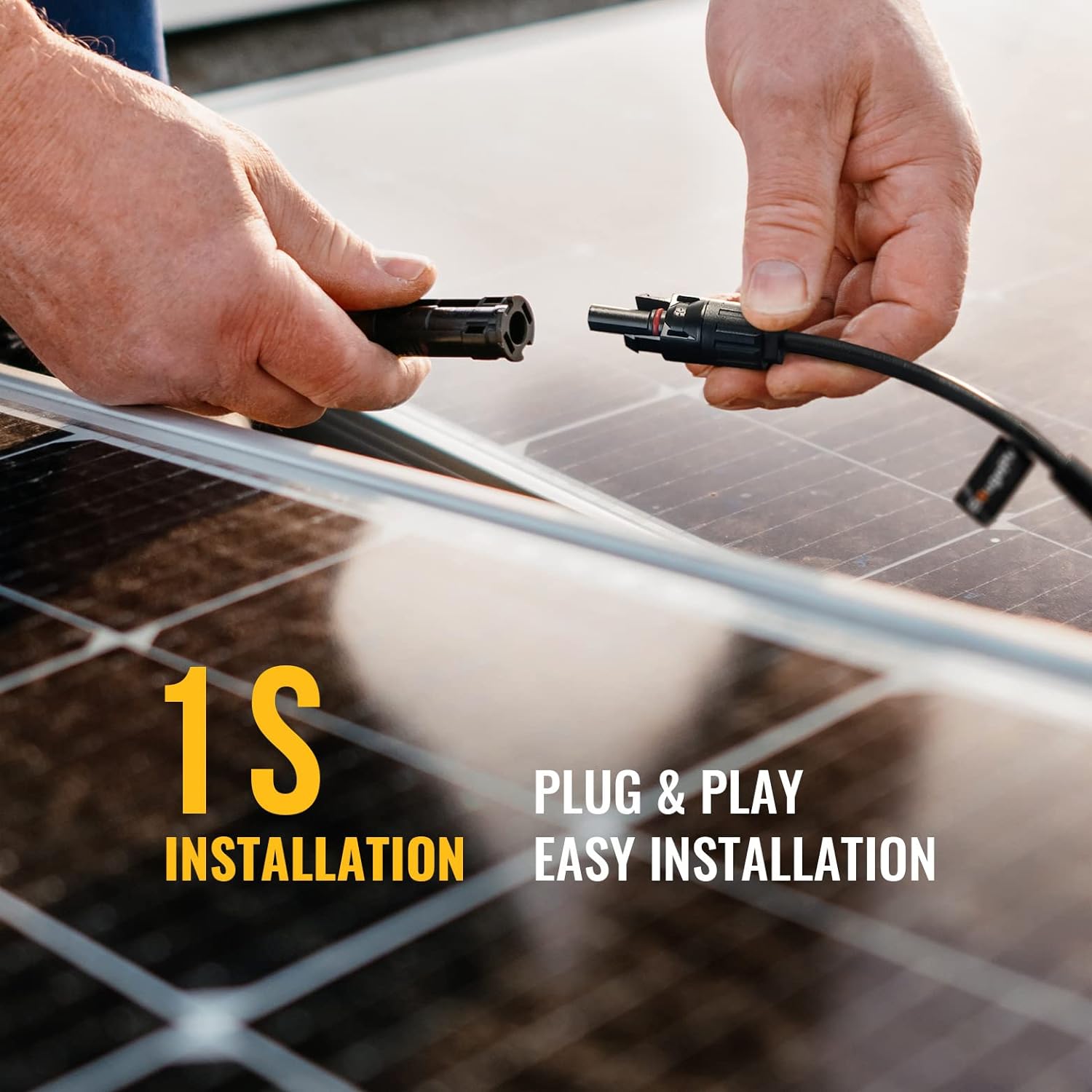

For a straightforward installation, match the connector polarity carefully and press the built-in lock on the male connector until it clicks to ensure a secure connection. The kit is plug-and-play and can be assembled without soldering or crimping for many setups. For long runs or higher currents, check conductor size and connection tightness regularly because connectors near their maximum rating can warm during extended use.

Advantages

The compact Y-branch format makes it easy to add a second panel without changing existing wiring or using a combiner box. The IP67 sealing and heat-resistant material offer protection against rain and sun exposure, which helps maintain reliable contact over seasonal use. The set covers common cable sizes so it integrates with most portable solar panels and RV power systems.
