AUTO-VOX Wireless Backup Camera 5" Monitor
Product description

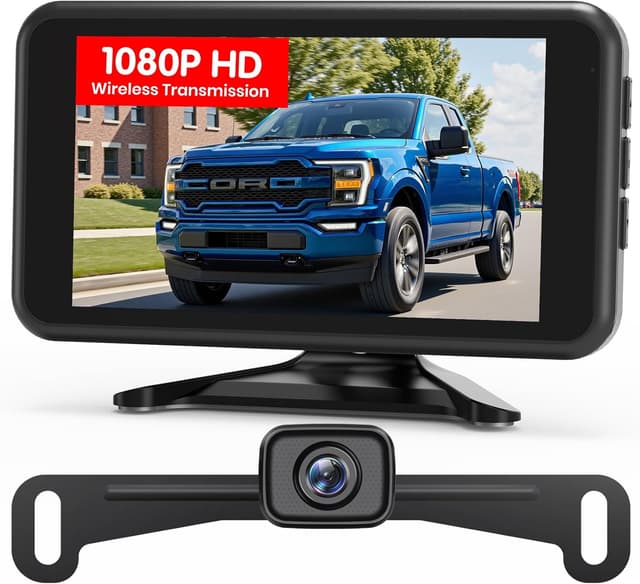

This wireless backup camera system brings clearer reverse vision to trucks, SUVs, pickups and trailers while keeping installation simple and unobtrusive. The 5-inch monitor pairs automatically with the camera to show 1080P HD images that help you spot obstacles and park more confidently, including in low light according to the manufacturer.
Key Points

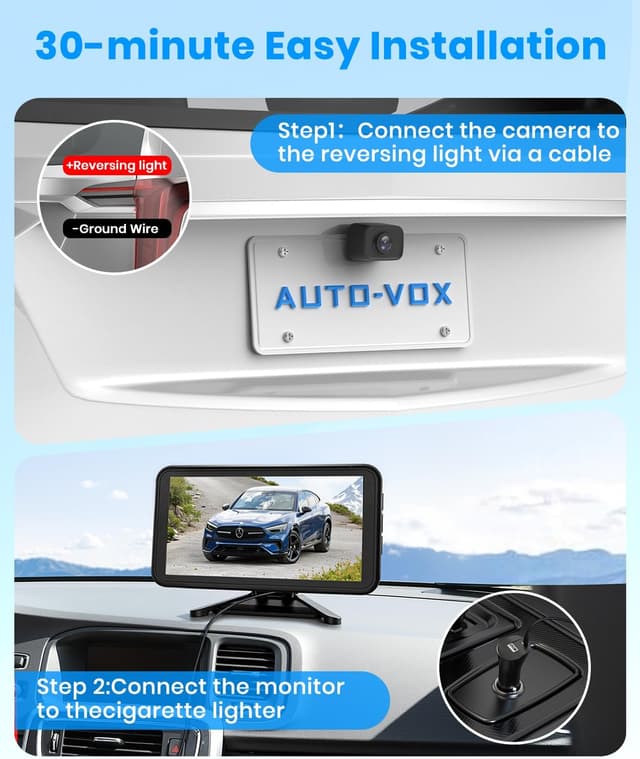

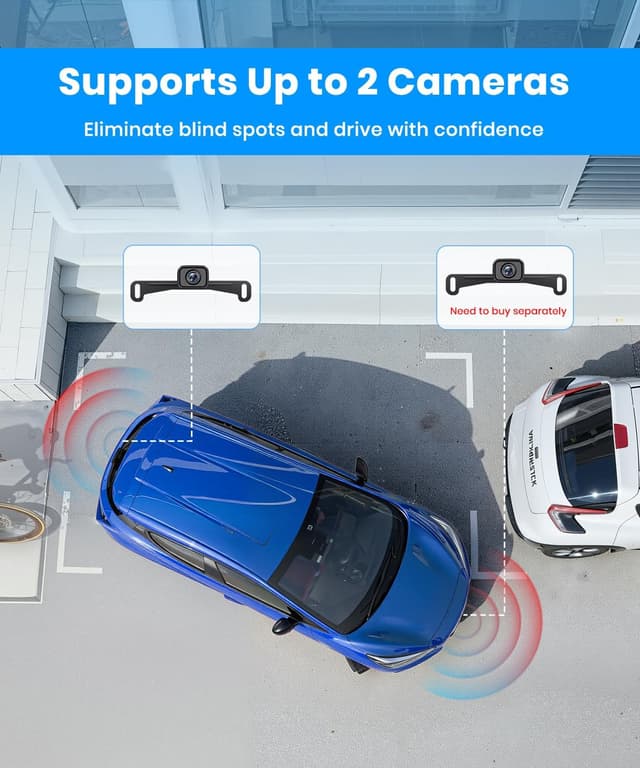

The monitor plugs into a cigarette lighter socket and the camera draws power from a 12V taillight or reverse light, so signal transmission is wireless but the camera still needs a power connection. Setup is advertised as a 30-minute job and the system auto-pairs the screen and camera after power is applied. Night vision produces true-color images in dim conditions, which is useful for dark garages and low-visibility parking situations. Support for a second camera expands coverage for blind spots and front monitoring when turning or making U-turns.
Technical Specifications
- Name: AUTO-VOX Wireless Backup Camera System
- Monitor size: 5 inches
- Camera resolution: 1080P HD
- Waterproof rating: IP69K
- Operating temperature range: -4°F to 149°F
Benefits

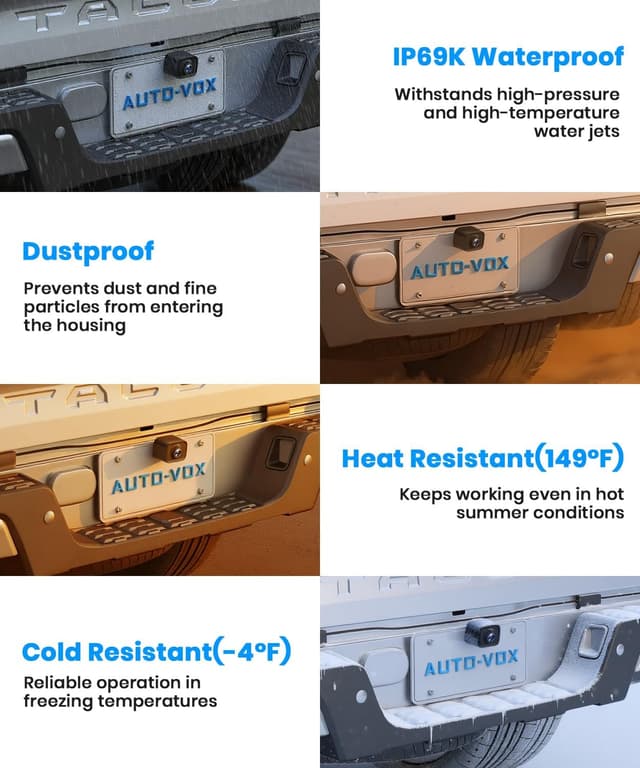

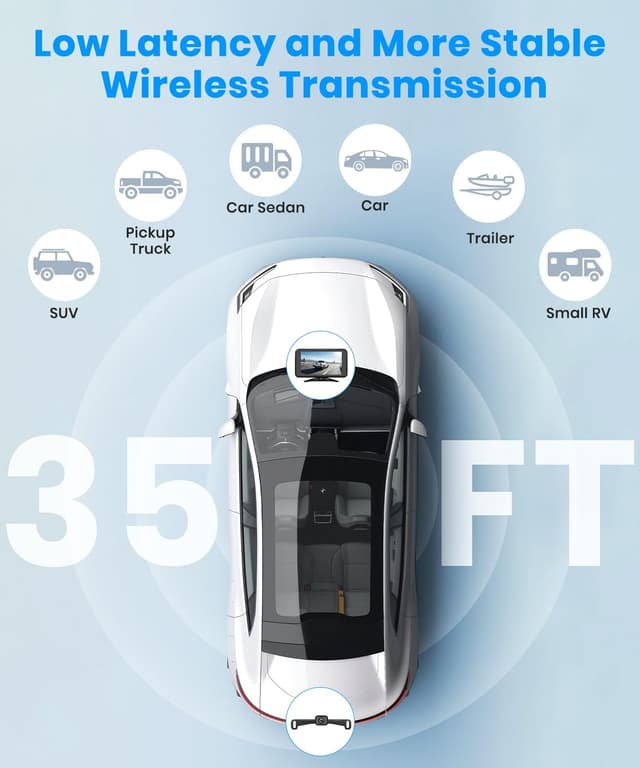

Image clarity on the 5-inch screen makes it easier to judge distance and identify small obstacles when reversing in tight spaces or crowded lots. Stable digital transmission aims to deliver low-latency video so what you see on the monitor closely matches real-time movement. The ability to add a second lens offers more situational awareness, reducing blind spots during maneuvers. Durability features such as the IP69K rating and wide operating temperature range mean the camera is designed to resist heavy rain and high-pressure cleaning, which can be important for vehicles exposed to harsh conditions.
Usage Recommendations
For best results, run the camera power wire to the reverse light circuit so the image appears automatically when backing up. Place the 5-inch monitor where it does not block your forward view and where reflections are minimized. If you plan to use a second camera, position it to cover areas not visible from the rear lens, for example the front bumper or side blind zones. Consider that wireless refers to the video link and not to the power feed, so routing a power wire to the light assembly is still necessary.
