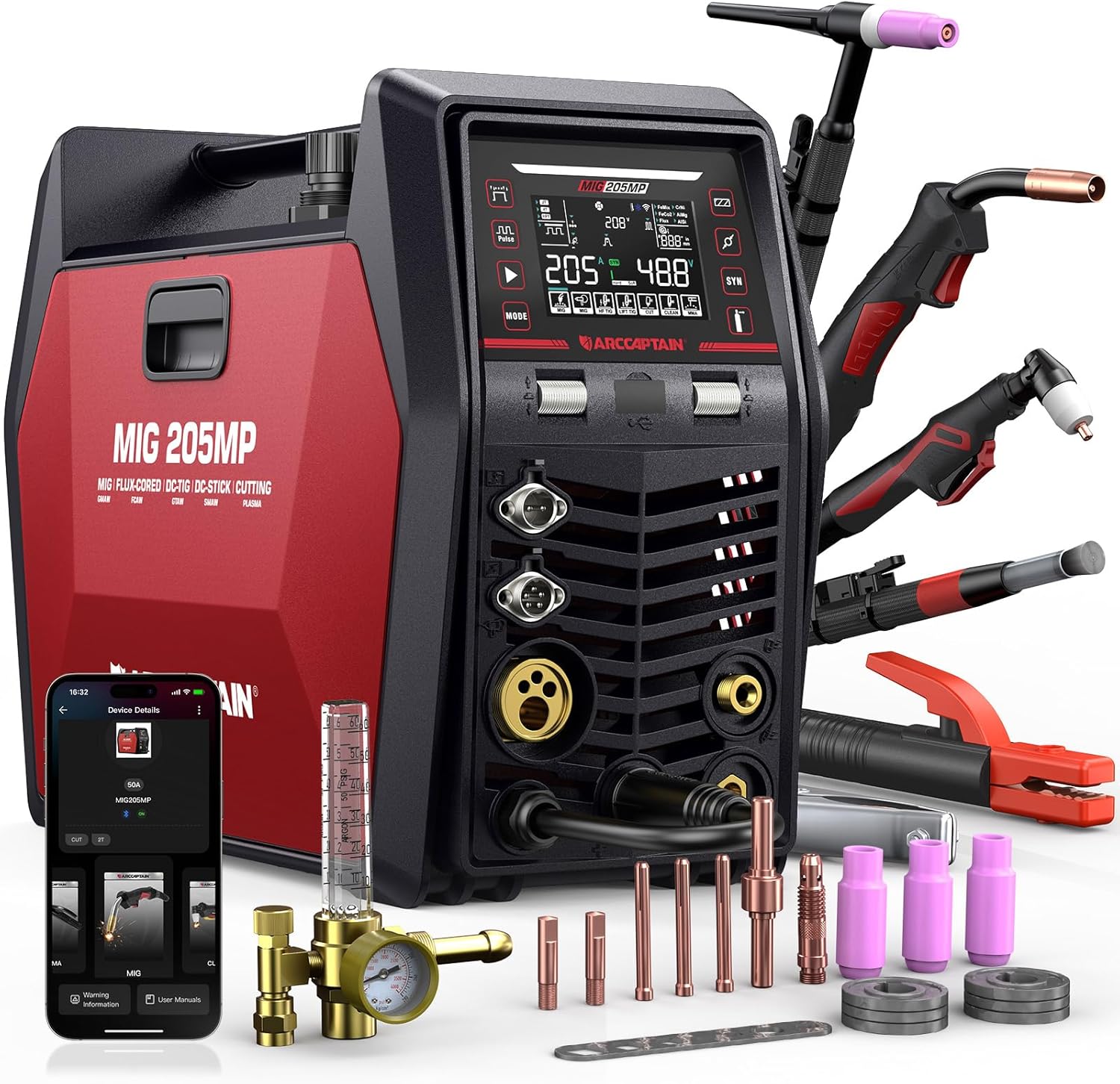

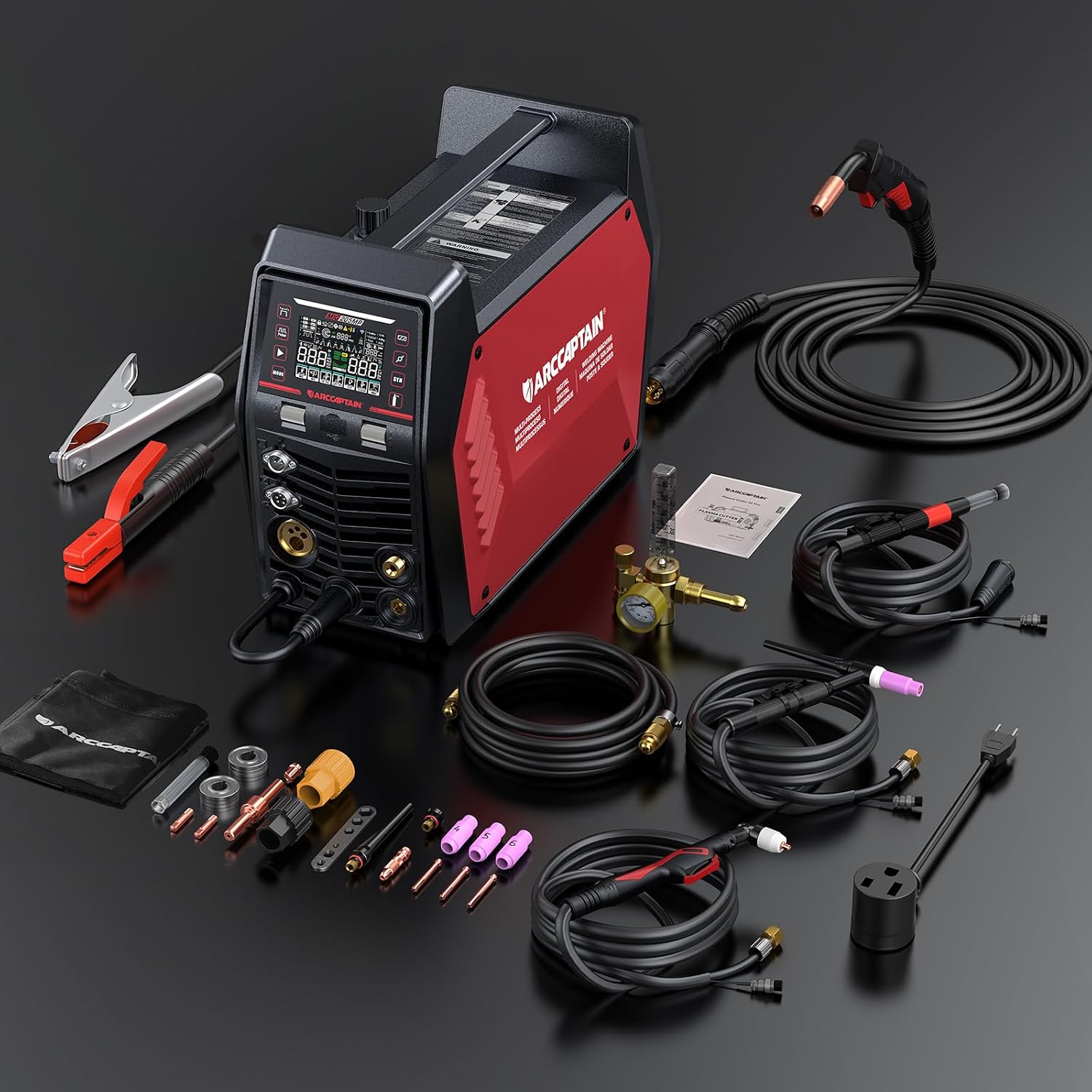

ARCCAPTAIN MIG205MP 9-in-1 Welder with Plasma Cutter, App Control, 120/240V

For home DIYers and garage users who need several metalworking processes in one machine, the ARCCAPTAIN MIG205MP combines welding and plasma cutting functions. Its nine modes cover common workshop tasks, from MIG welding and stick welding to cutting and cleaning. App control lets you adjust and monitor settings from your phone. Dual-voltage operation supports 120V or 240V power.

Where it shines

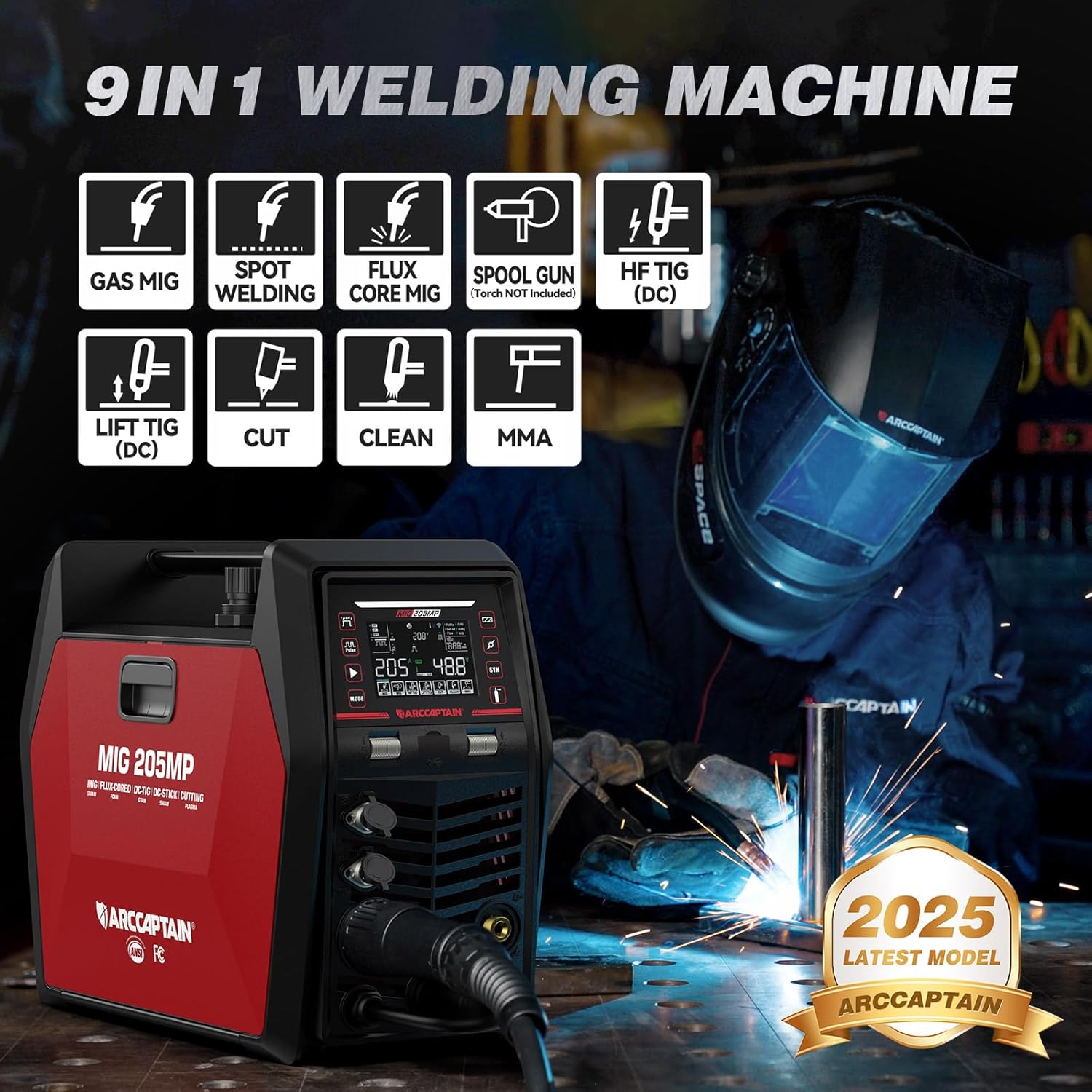

Move between projects without relying on a separate machine for every process. The MIG205MP supports Gas MIG, Gasless MIG, DC HF TIG, DC Lift TIG, MMA Stick, Cut, Clean, Spot Welding, and Spool Gun Aluminum Welding. That range makes it useful for home projects, garage work, outdoor repairs, farm equipment, and road maintenance. For example, a DIYer can use a MIG mode for a fabrication task, then switch to plasma cutting for a separate repair job.

The aluminum spool gun mode extends the machine’s applications, the spool gun must be purchased separately. DC HF TIG and DC Lift TIG torch support share a torch connection, and the machine is also compatible with foot pedals for added control. For buyers choosing between a dedicated welder and a multiprocess setup, this unit brings several welding processes and a cutter together in one machine.

Key points

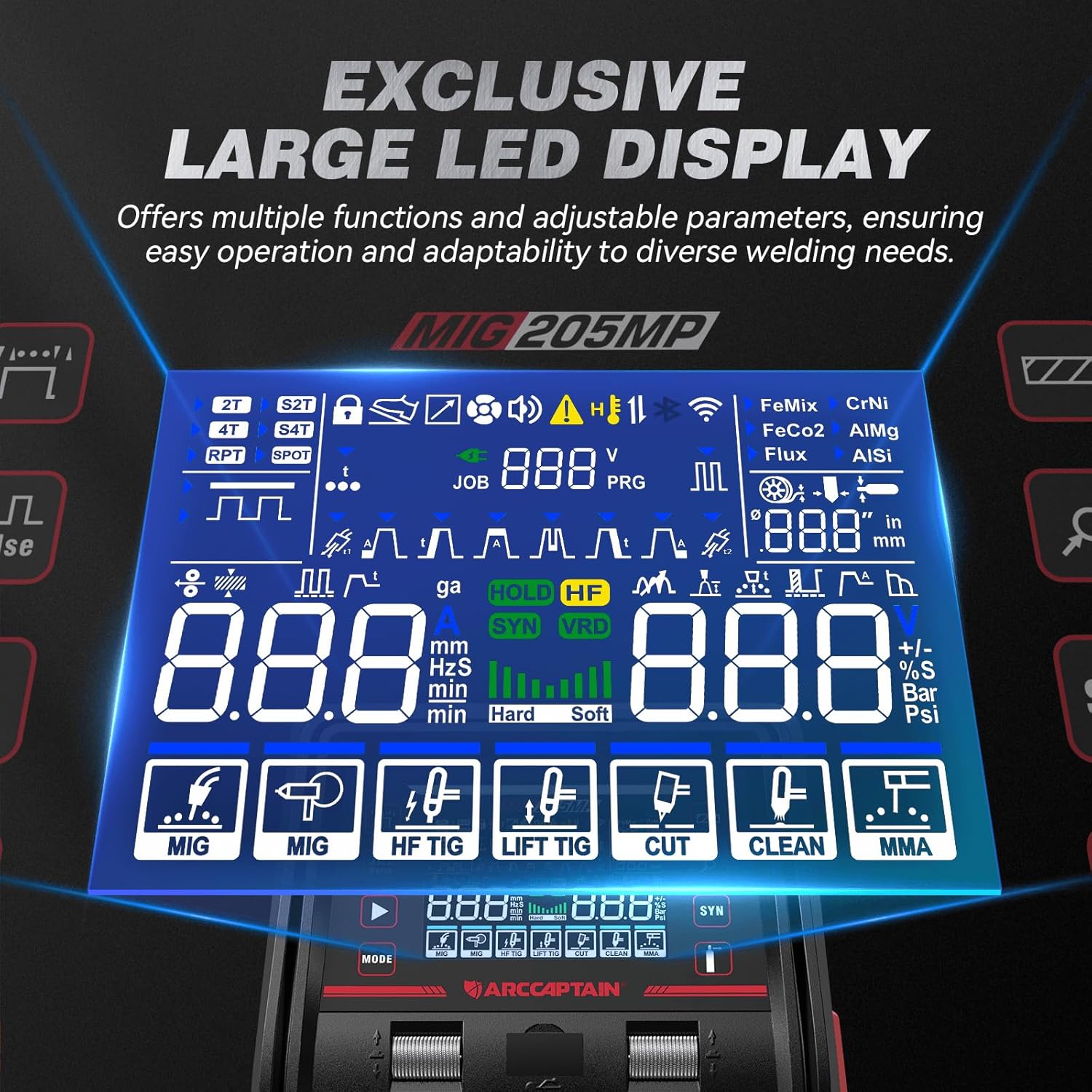

A large LED display keeps selected settings and parameters visible at the machine. The smart parameter-matching system adjusts current and voltage based on the selected metal type or electrode size, offering a guided starting point for setup. Users who want more control can fine-tune parameters for MIG, DC TIG, and MMA, including settings such as inductance, pulse frequency, hot start, and arc force.

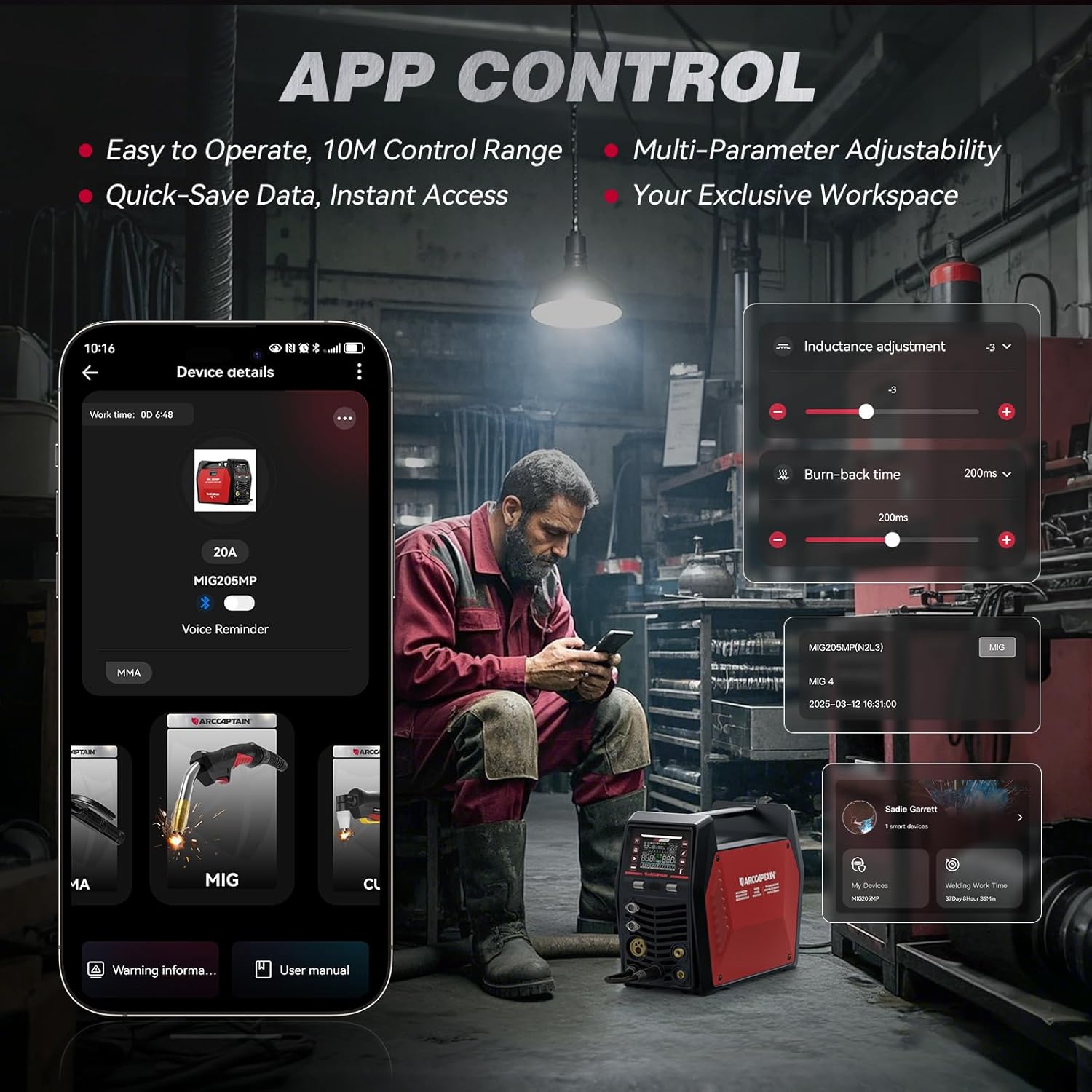

The app supports parameter adjustment, real-time monitoring, and status detection within a 10-meter range. It also provides preset memory, so custom settings can be saved and named for repeat jobs. The machine’s rated duty cycle is 60%. Its listed current ranges are 30–205A for MIG, 20–205A for DC TIG and MMA, 20–40A for Clean, and 20–50A for Cut. Cutting thickness is listed as 10mm (3/8") for quality cuts and up to 18mm (2/3") maximum.

Buyer feedback often highlights the range of functions and suitability for home use. Opinions on the interface and adjustment experience are mixed: some appreciate the app and controls, while others find the interface confusing. Some buyers also report reliability problems, so feedback on durability is not uniform.

Everyday use

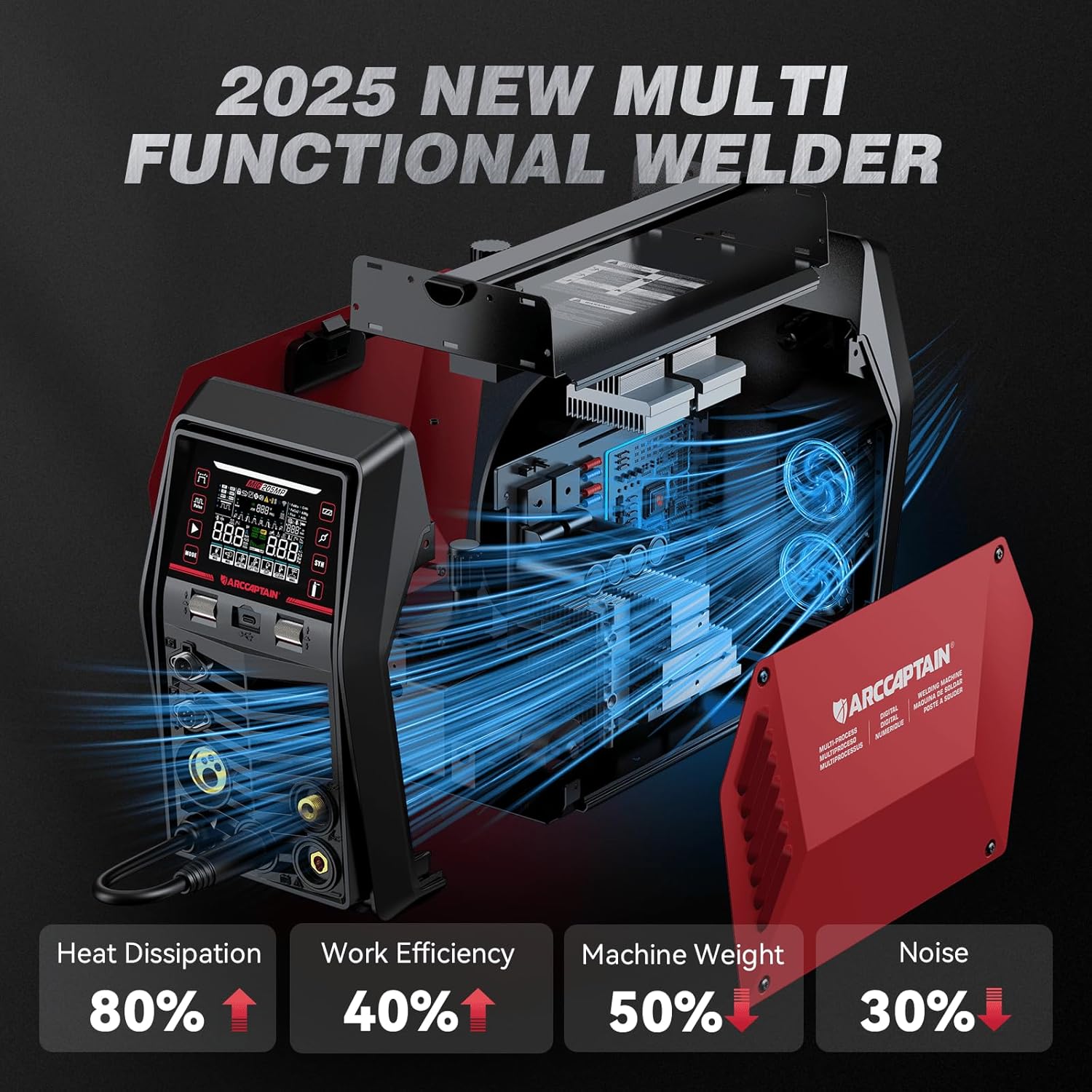

The dual-voltage design gives the MIG205MP flexibility across 120V and 240V power setups. When changing voltage, turn the screen off and wait for it to shut down before switching. Dual cooling fans support heat dissipation, while VRD functionality, fault alarms, and protection against overcurrent, overvoltage, overload, and overheating are built into the machine.

Practical questions

What processes can the MIG205MP handle? It supports Gas MIG, Gasless MIG, DC HF TIG, DC Lift TIG, MMA Stick, plasma cutting, cleaning, spot welding, and spool gun aluminum welding.

Can I adjust settings from a phone? Yes. The app allows parameter adjustment, monitoring, and status detection within a 10-meter range, and it can store named presets.

Can it run on either 120V or 240V? Yes. It has dual-voltage operation. Turn off the screen and wait until it shuts down before switching between the two settings.

Final verdict

For a home workshop or garage that benefits from having multiple welding processes and plasma cutting in one unit, the MIG205MP offers a broad, practical set of options. Its app-based controls, saved presets, and adjustable parameters make it especially useful for users moving between different types of repair and fabrication work.
