ARCCAPTAIN CUT55 55A Non-HF Plasma Cutter, 110V/220V, 1-Inch Max Cut

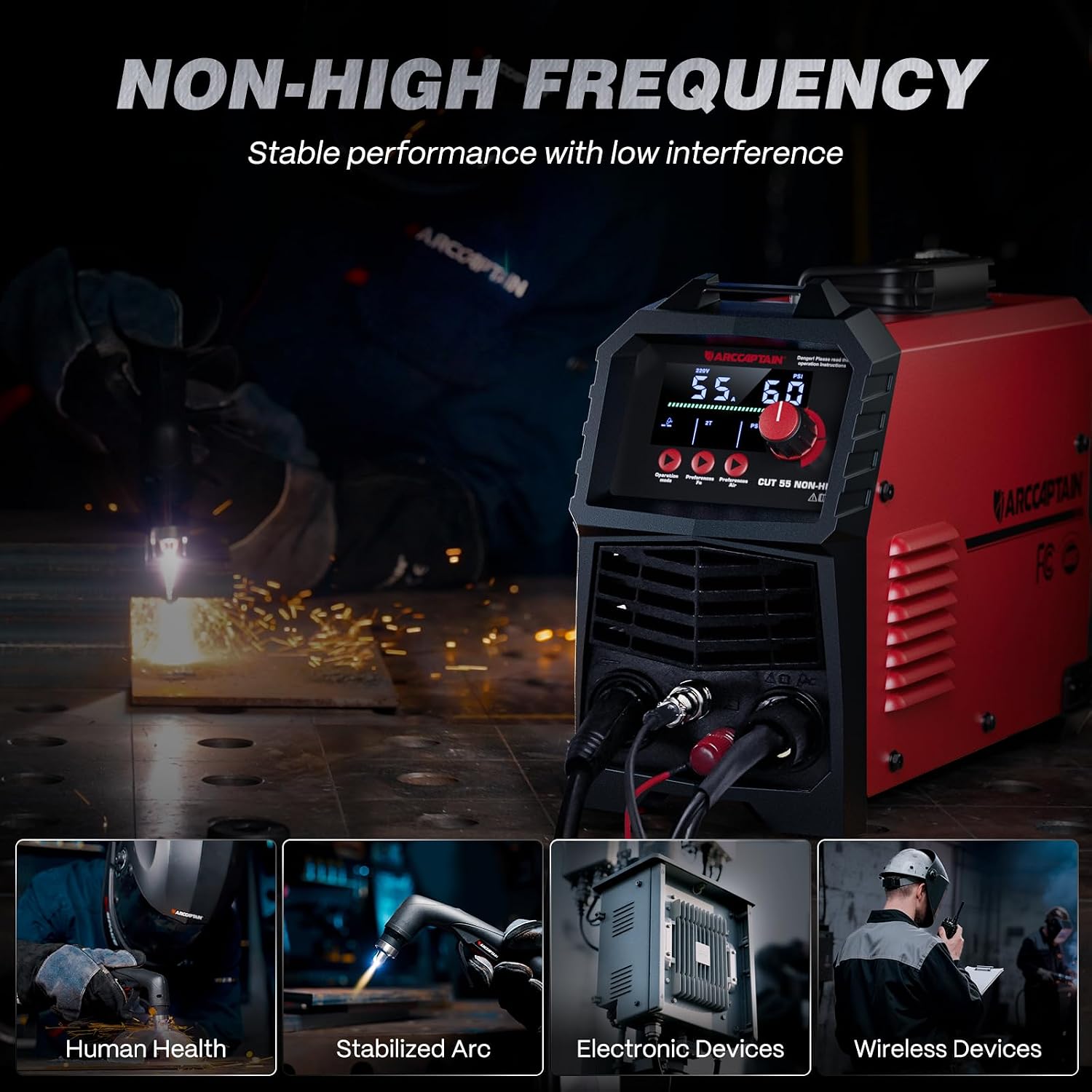

For cutting plate, expanded metal, or rusty surfaces in a home garage or workshop, the ARCCAPTAIN CUT55 combines a blowback pilot arc with selectable 110V/220V input. Its non-HF arc start is designed to reduce signal interference, while the large LED screen displays settings and air-pressure information as you work.

Mesh cutting and rust removal modes add useful options beyond straight cuts. Need to work around expanded metal or prepare an oxidized surface before welding or painting? The adjustable pilot arc and post-flow controls let you tailor operation to the task.

Key specifications

• Type: Non-HF plasma cutter with blowback pilot arc
• Current: 20–35A at 110V, 20–55A at 220V
• Maximum cut: 5/8 inch at 110V, 1 inch at 220V

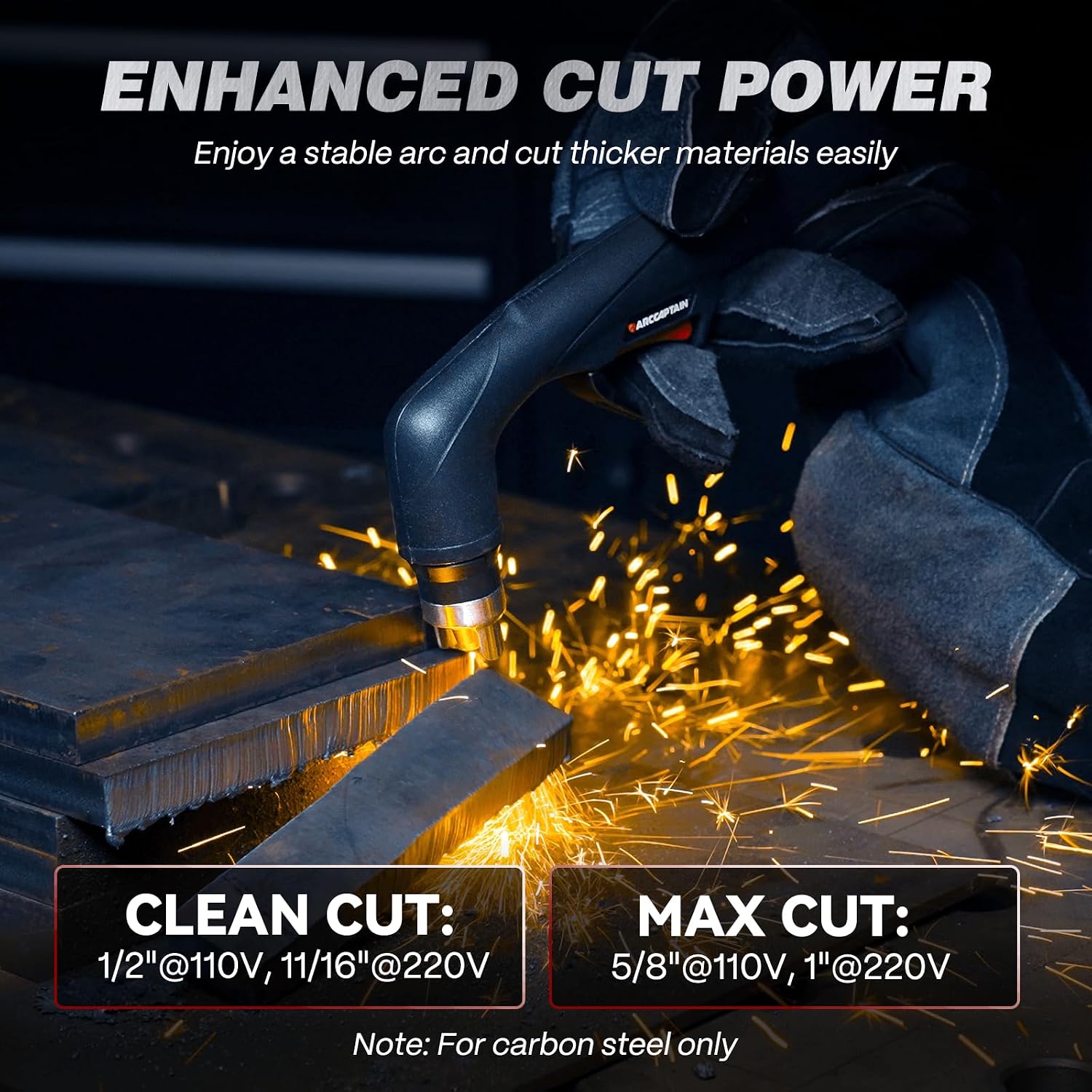

• Clean cut: 1/2 inch at 110V, 11/16 inch at 220V
• Controls: LED display, 2T/4T operation, adjustable pilot-arc time and post-flow cooling
• Air connection: Pre-installed filter with 1/4-inch NPT fitting

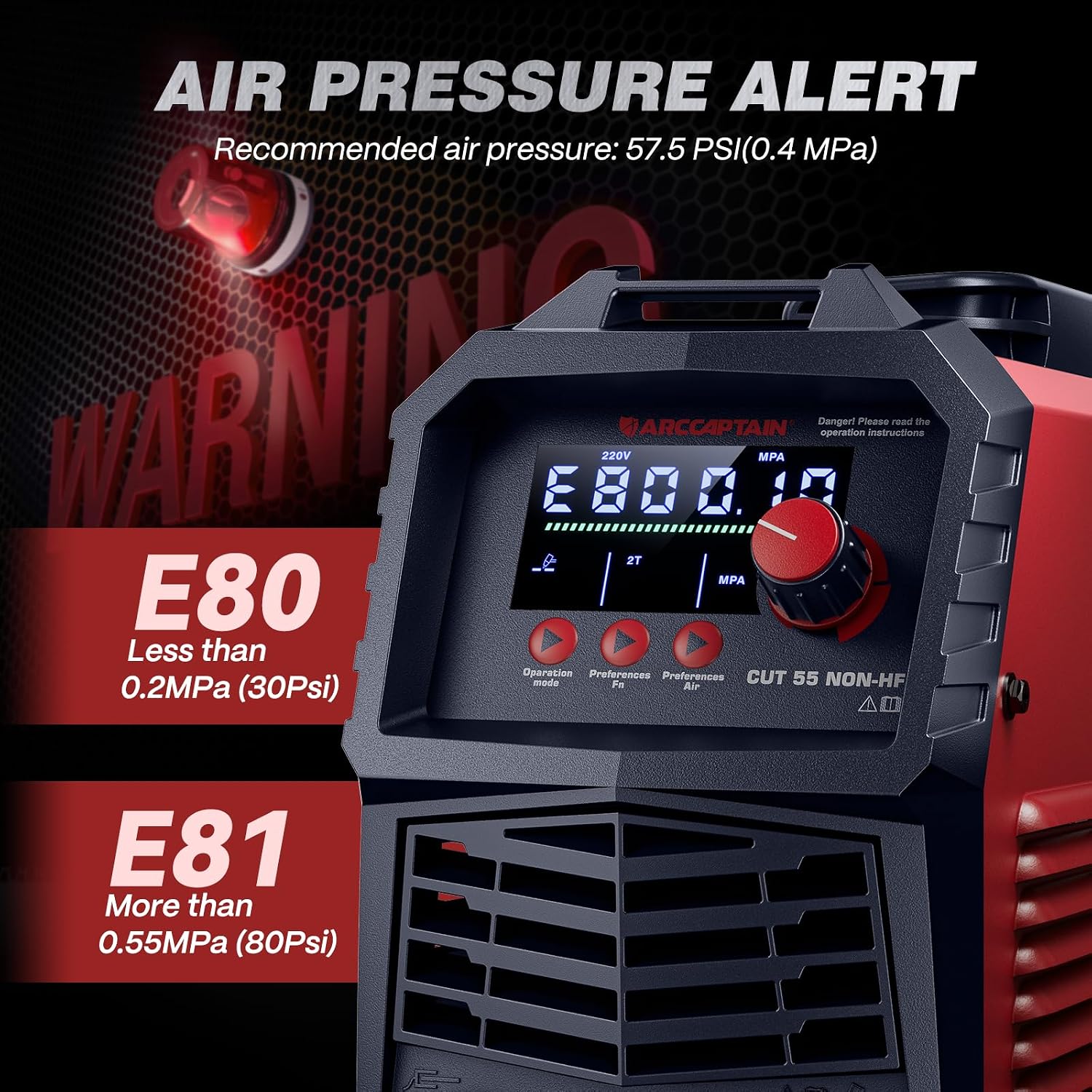

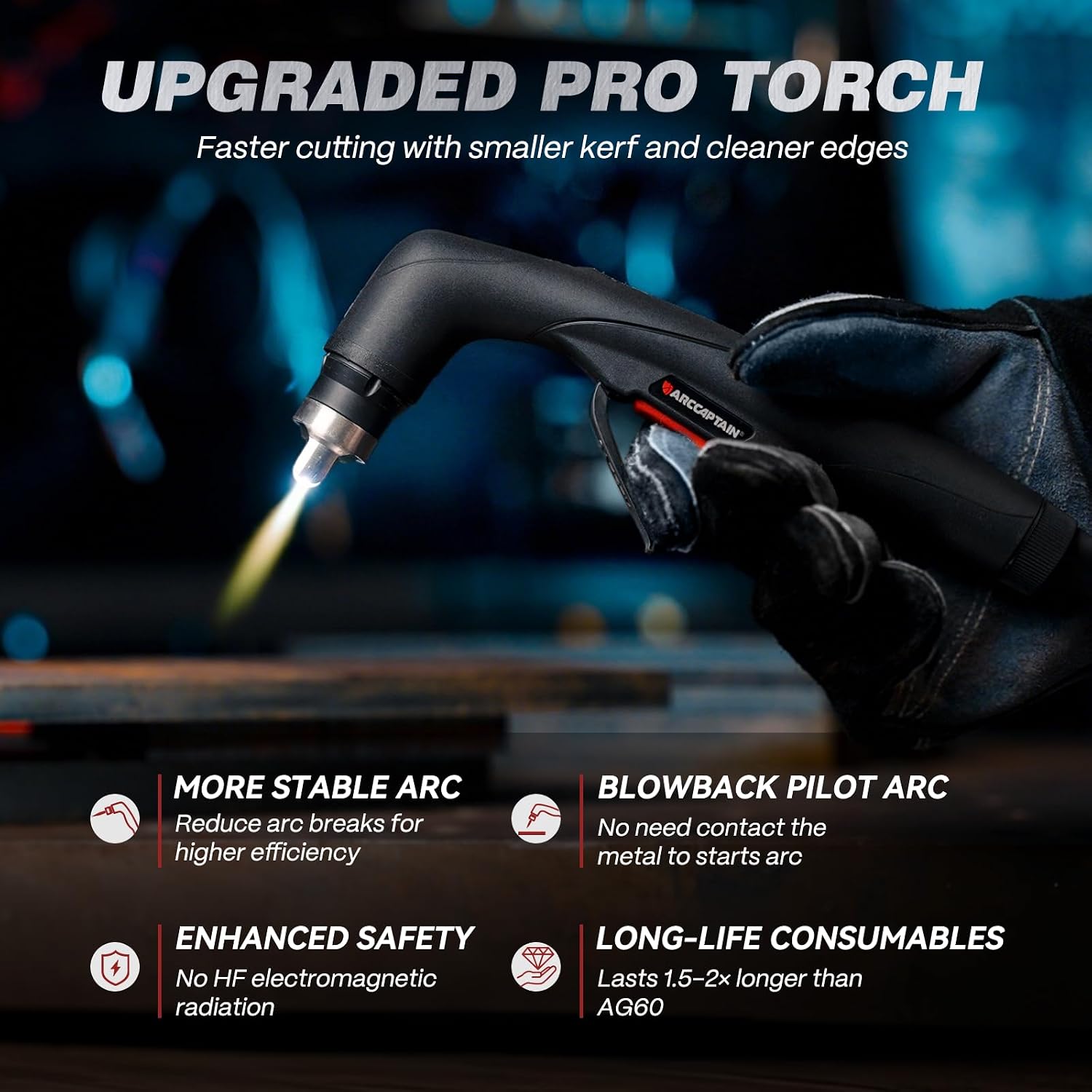

The pilot arc can start without touching the metal, which is useful when working with rough, painted, or rusty surfaces. Adjustable pilot-arc time supports mesh cutting, and 2T/4T modes provide a choice of trigger operation. Air-pressure monitoring displays live pressure and gives an alert if it falls below 30 PSI or rises above 80 PSI. Built-in overload, overheat, and overcurrent protection uses error codes to identify issues.

Buyer feedback is positive about cutting performance, while experiences with the power supply are mixed. The listed input options and pressure guidance make it important to match the machine’s settings to the power and air setup being used.

Requirements

The cutter supports 110V or 220V input and requires an external air compressor. Recommended air pressure is 55 PSI at 110V and 50–75 PSI at 220V. The screen’s pressure-detection mode can help check the air supply before cutting, the machine signals below 30 PSI and above 80 PSI. Select the input voltage and corresponding operating range for your setup.

Usage tips

Choose the cutting mode for the material task: use the mesh function for expanded metal, or the rust-removal mode to clean oxidized or dirty surfaces before welding or painting. For cutting, the listed maximum and clean-cut thicknesses vary with input voltage, so use the figures for the voltage selected. Set pilot-arc time from 2–10 seconds and post-flow cooling from 5–15 seconds according to the task. The air-pressure display helps you monitor supply while working, and 2T/4T operation lets you choose between trigger control modes.

Compared with a basic cutter focused only on straight plate cuts, the CUT55 adds mesh handling and surface-cleaning functions in one machine. Those modes are especially relevant when a project involves more than dividing flat stock.

Practical questions

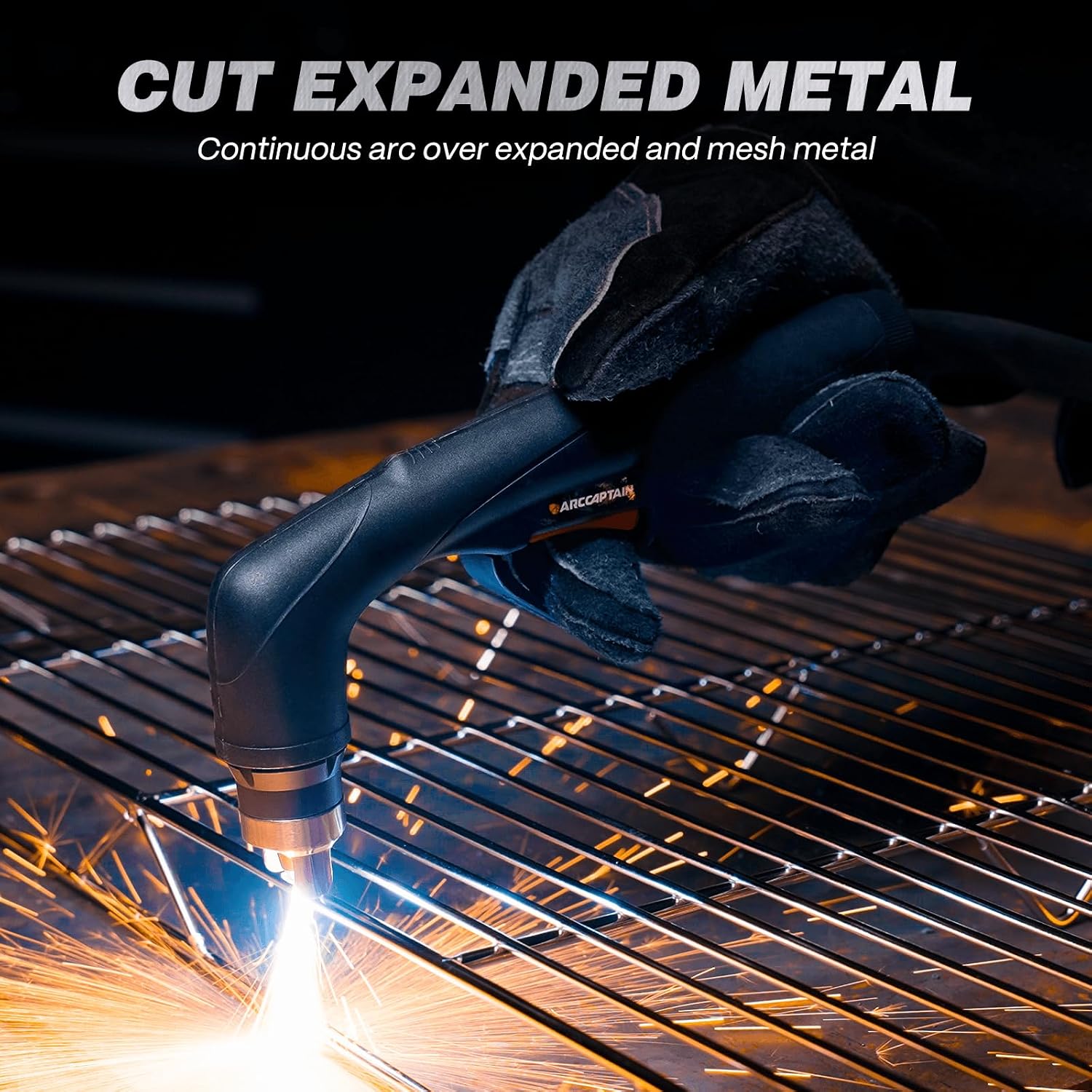

Can it cut expanded metal? Yes. Its mesh-cutting function and adjustable pilot arc are designed to support cutting mesh and expanded metal.

What thickness can it cut? The listed maximum is 5/8 inch at 110V and 1 inch at 220V. Clean-cut figures are 1/2 inch and 11/16 inch, respectively.

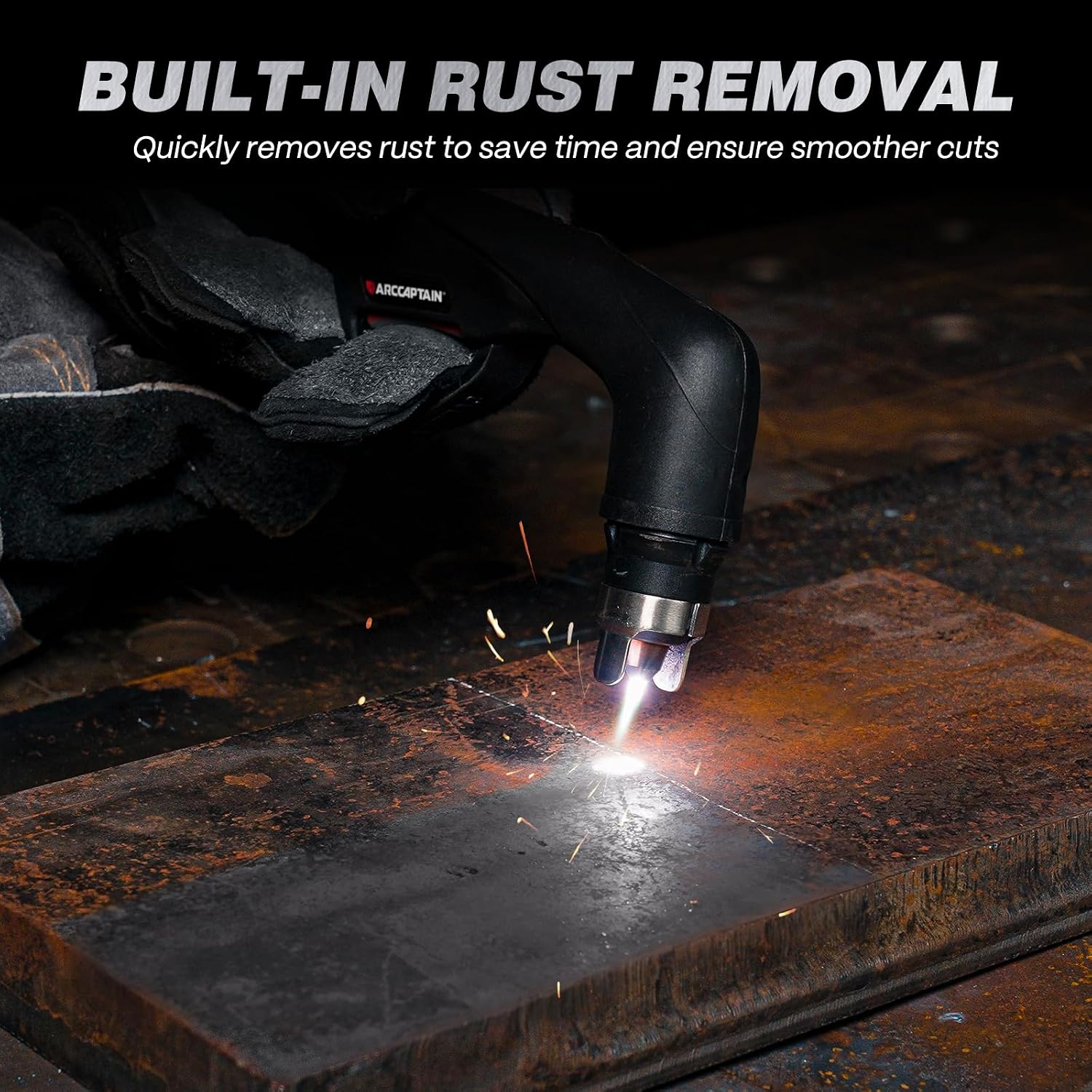

Can it remove rust? It has a rust-removal mode for cleaning oxidized or dirty surfaces before welding or painting.

Is it worth it?

The CUT55 brings voltage flexibility, a non-HF blowback start, pressure monitoring, and dedicated mesh and rust-removal functions to garage and workshop cutting tasks. It’s a practical fit for users who want one plasma cutter for plate work as well as expanded-metal cutting and surface preparation, with operating settings visible on the LED screen.
