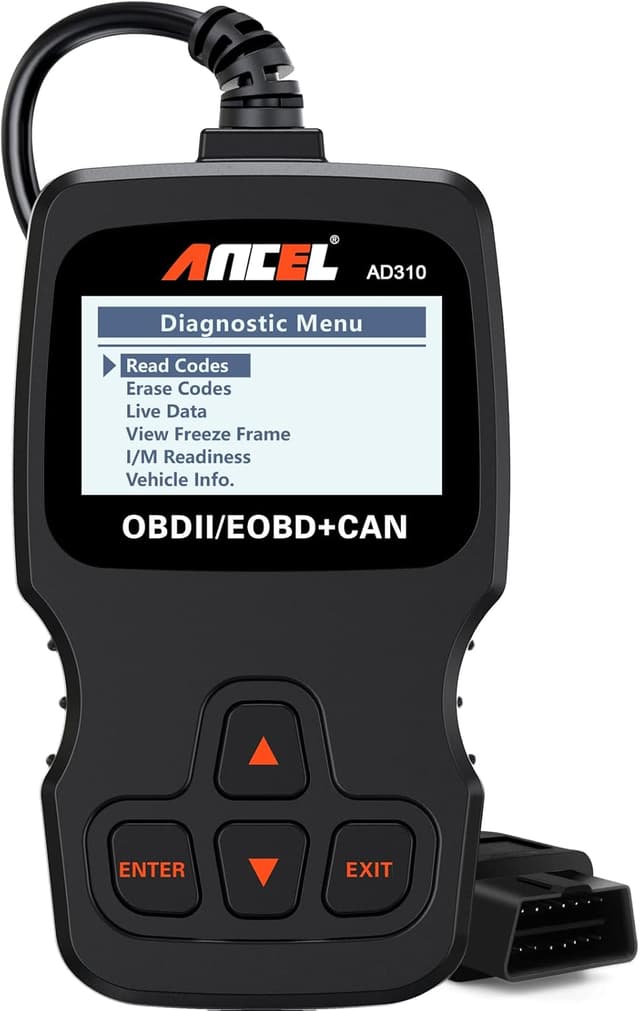

ANCEL AD310 Classic OBD2 Scanner for Cars 📷
Description:

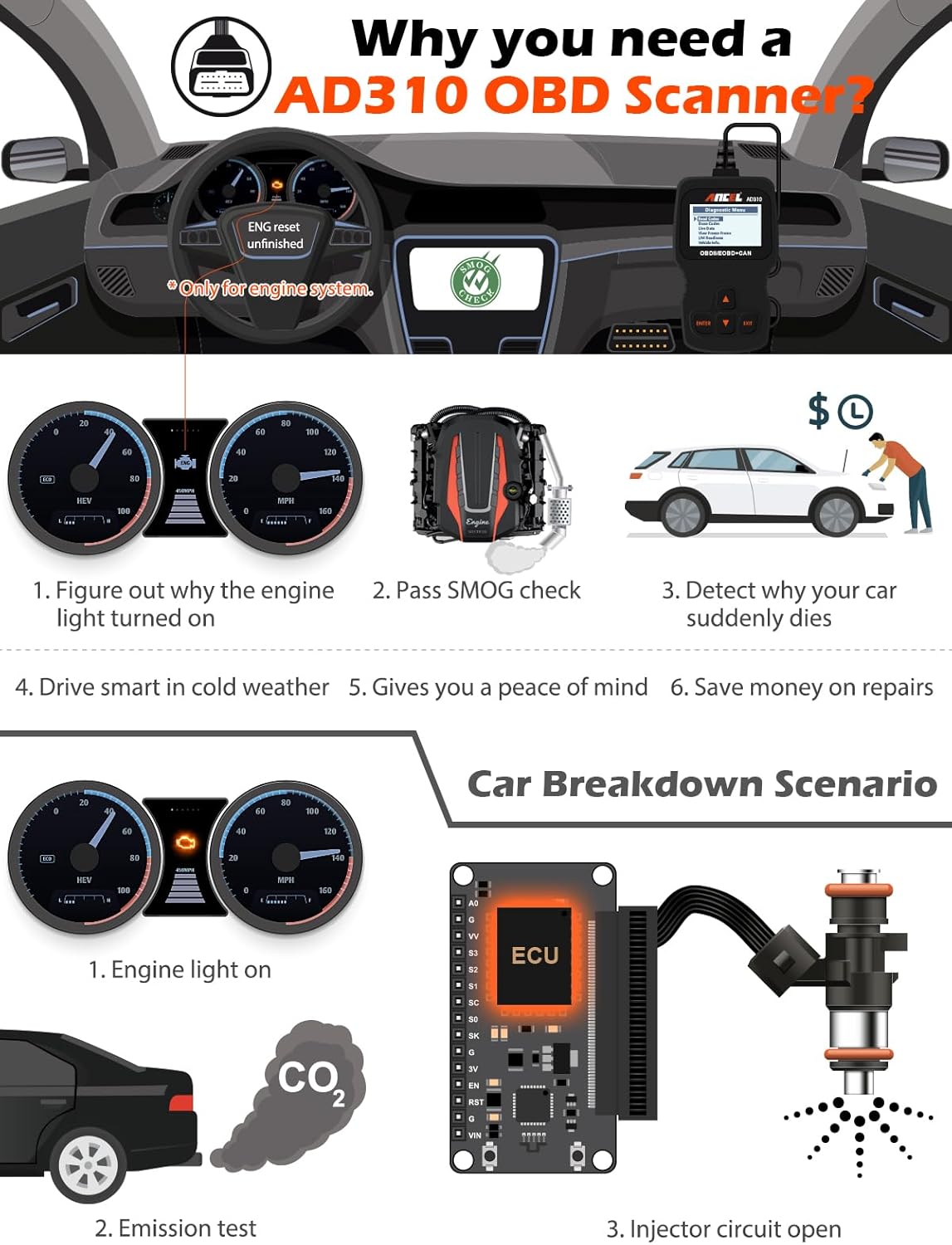

This compact OBD2 scanner reads and clears engine fault codes and displays live data so you can diagnose a check engine light at home or on the road. It is aimed at drivers who want a simple, plug-and-play tool to identify engine-related issues quickly and share useful information with a mechanic.
Key Points

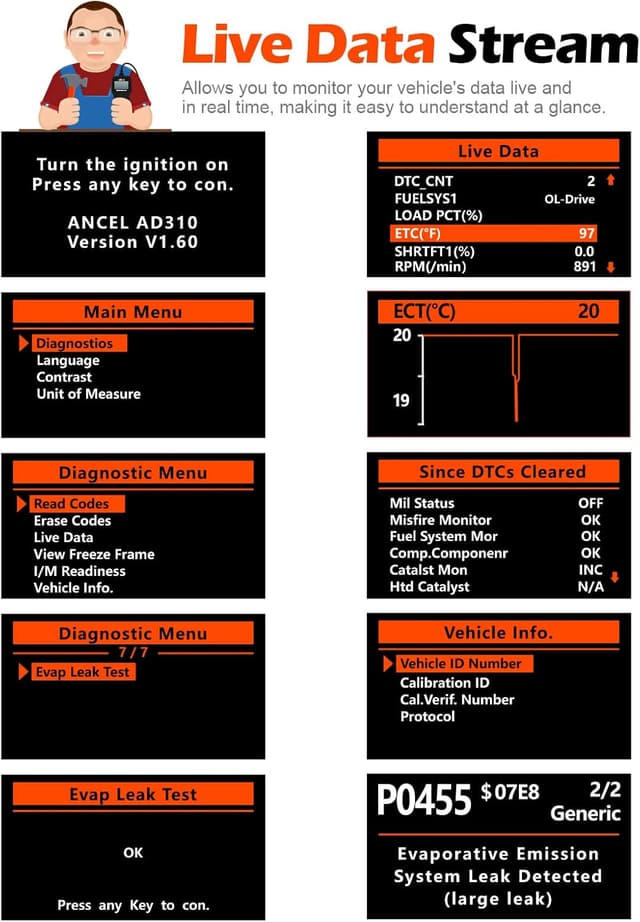

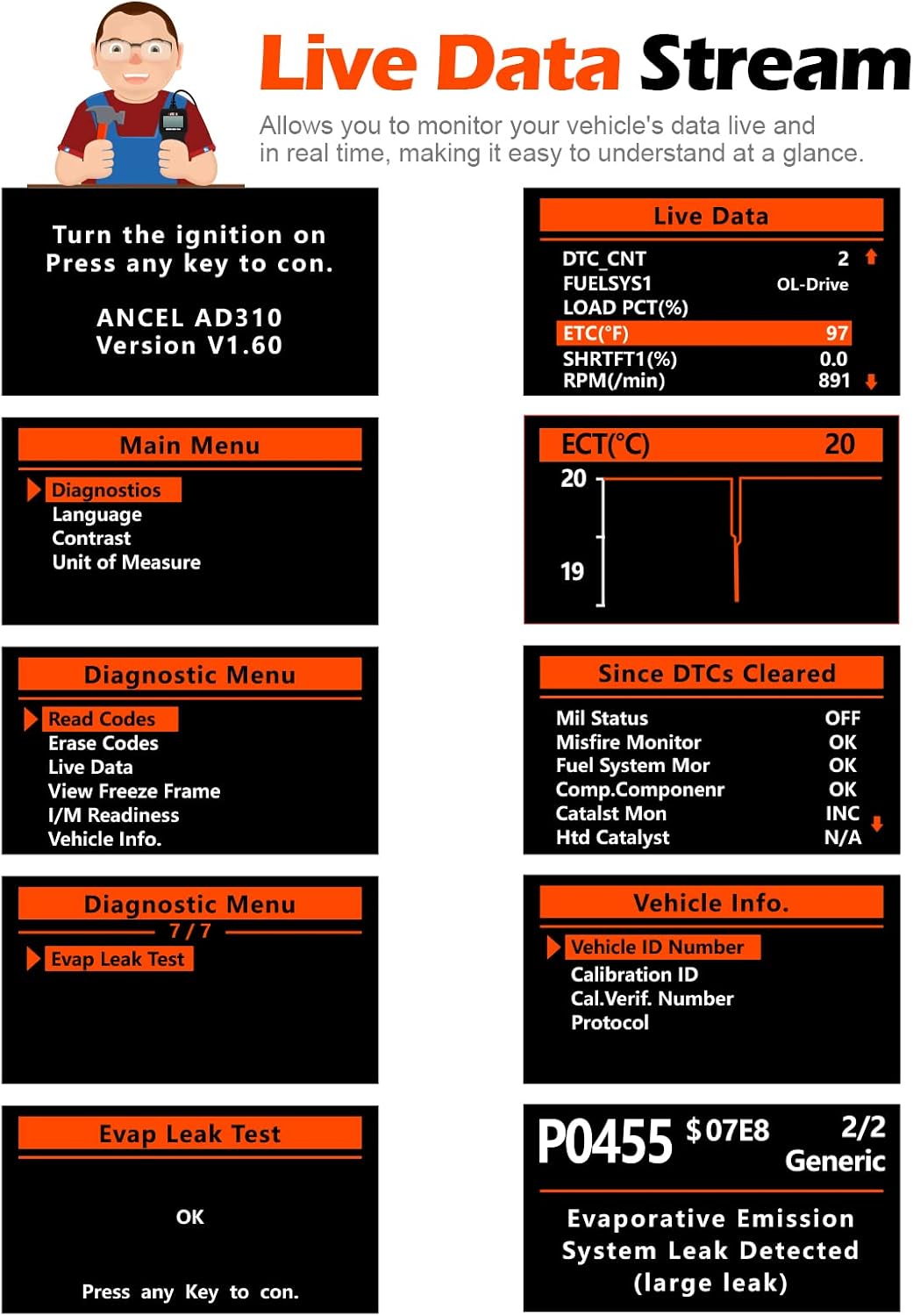

The ANCEL device focuses on engine system diagnostics only, allowing fast read and erase of diagnostic trouble codes and showing freeze frame and live sensor data. It draws power straight from the vehicle OBDII port, so there is no need for batteries or charging. The unit is built with a thick, flexible 2.5 foot cable and a sturdy plastic housing that resists the typical bumps and drops encountered during roadside checks. ⚙️

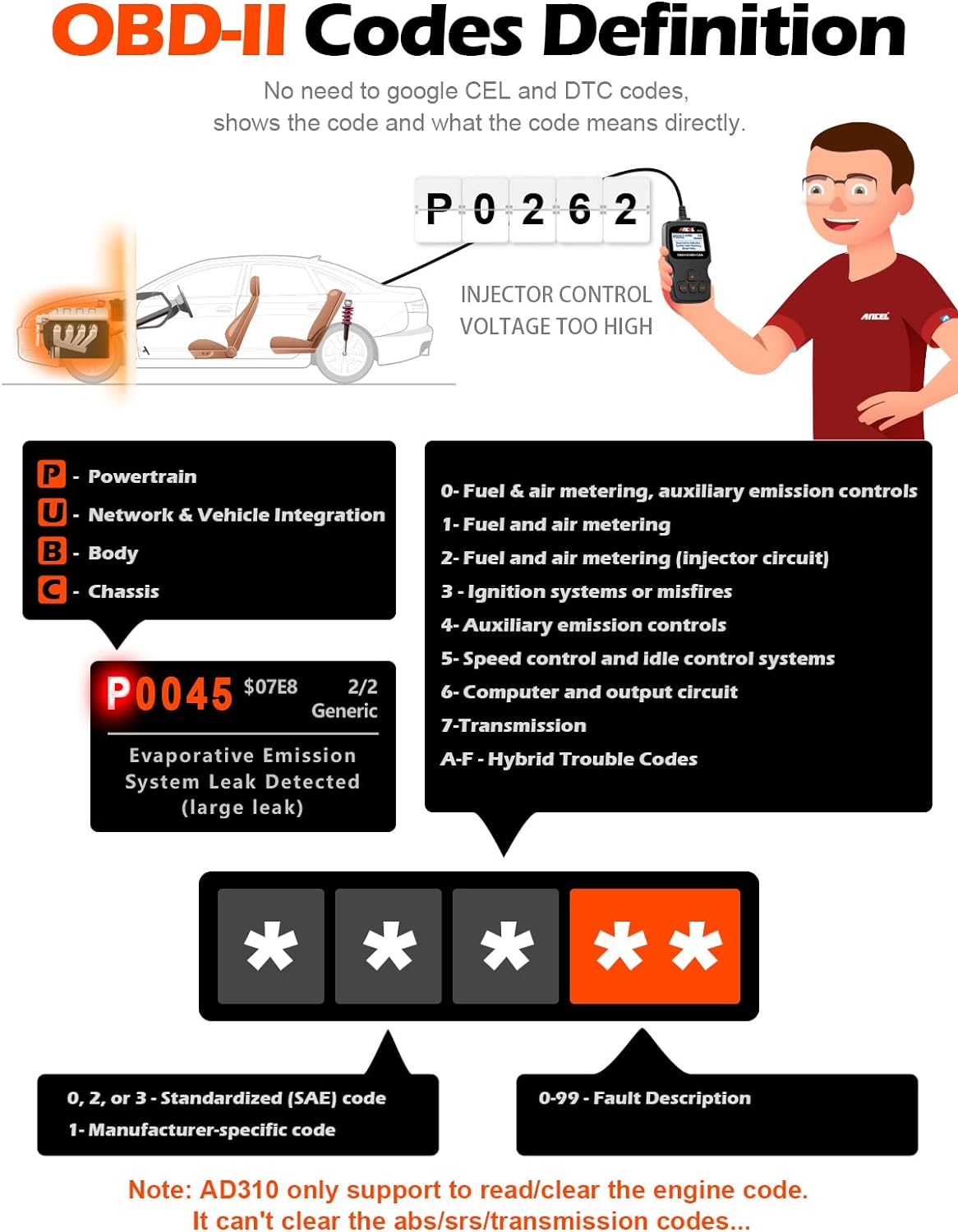

Because protocols and vehicle systems vary, some advanced services are not supported on older or certain European models. Consider compatibility limitations before expecting non-engine modules like ABS or airbag data to be available. The device can save you a trip to the shop by pinpointing engine codes quickly and by showing code definitions on-screen for immediate context. 🔧
Technical Specifications
- Name: ANCEL AD310 Classic Enhanced Universal OBD II Scanner
- Supported protocols: KWP2000, J1850 VPW, ISO9141, J1850 PWM, CAN
- Power source: Vehicle OBDII data link connector, no batteries required
- Dimensions: 8.9 x 6.9 x 1.4 inches
- Weight: 12 ounces
- Cable length: 2.5 feet

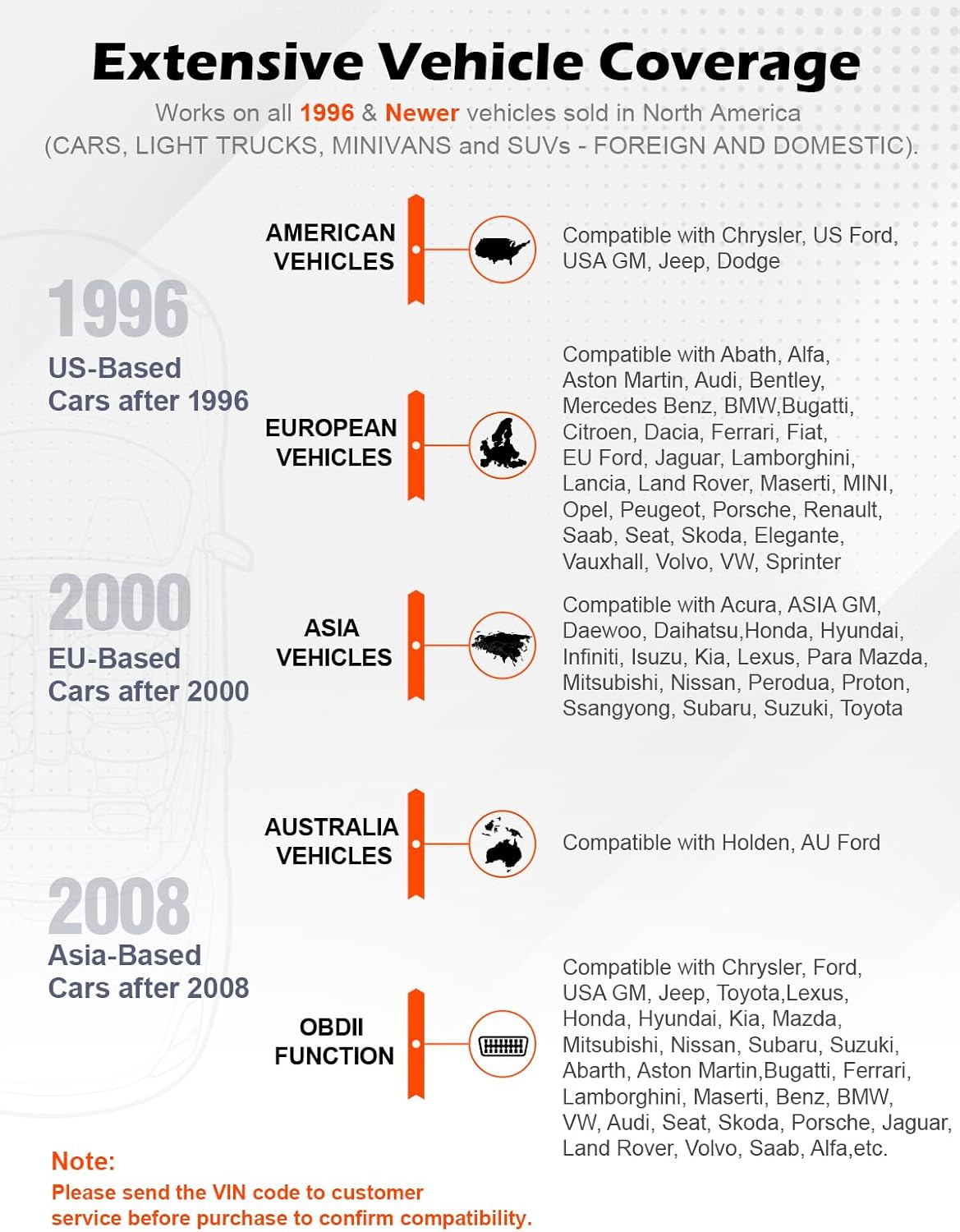

- Supported vehicles: OBD2-compliant vehicles from 1996 (U.S.), 2000 (EU), and later models
Usage Recommendations

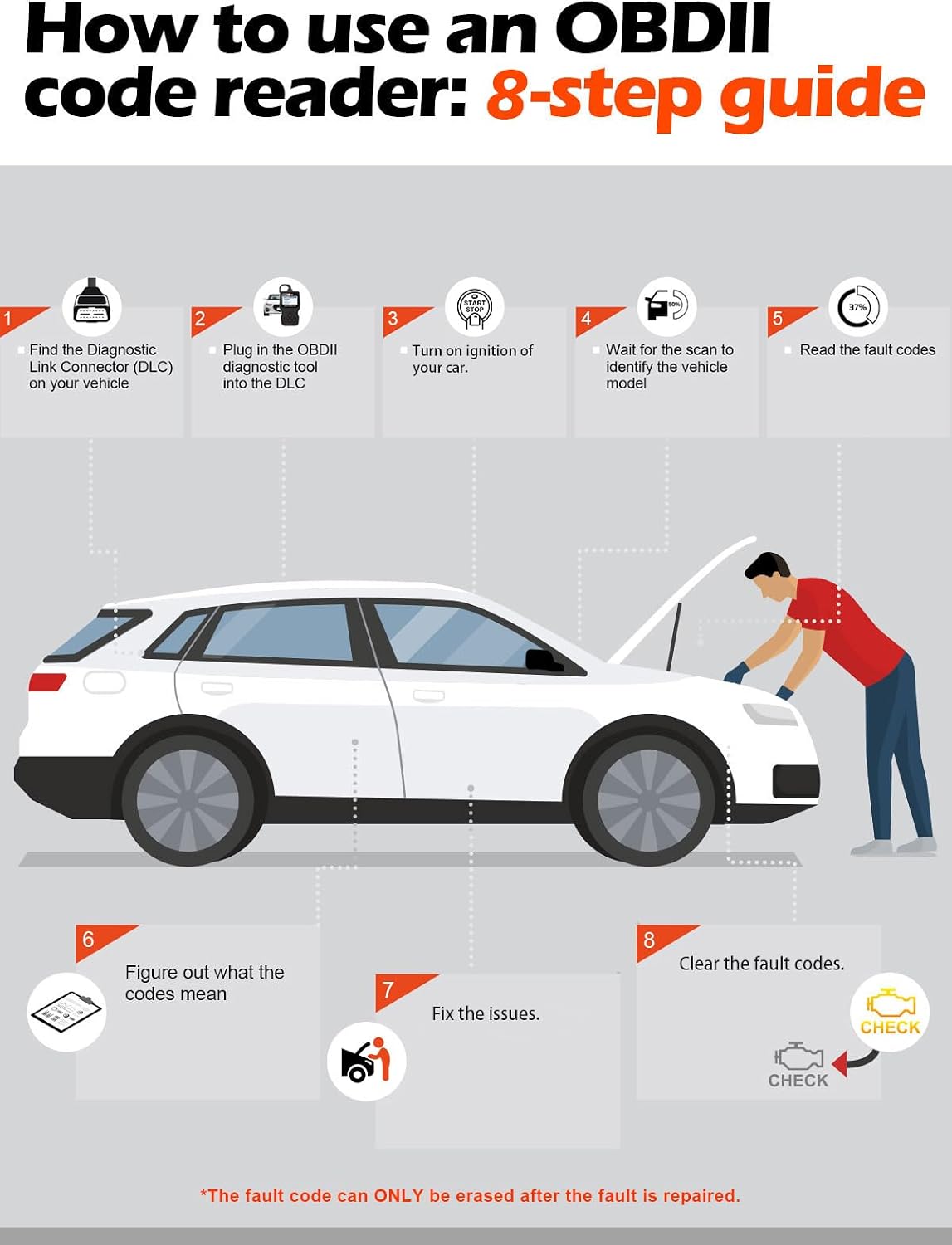

Connect the scanner to the vehicle’s OBDII port with the engine off, then turn the ignition on to power the unit and access vehicle data. Use the clear, labeled buttons to navigate a menu that displays codes, live data, and readiness monitors. For freeze frame data, read the stored snapshot immediately after the code appears to capture conditions that triggered the fault. If the check engine light returns after clearing codes, record the code and share it with a technician for deeper diagnostics. 📊
Advantages
This reader supports all standard OBDII protocols and works with most domestic and many import vehicles, making it a practical basic diagnostic tool for owners and hobbyists. The large screen and straightforward interface reduce the learning curve, so even those with limited automotive knowledge can obtain meaningful information. Note that the unit does not access non-OBDII systems like ABS, SRS, or electric parking brake functions, and function availability can vary by model and regional variant according to the manufacturer.
