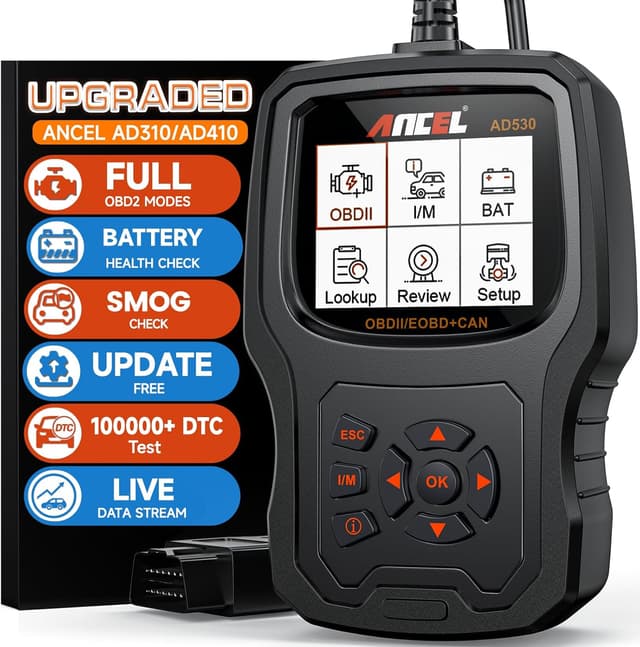

ANCEL AD530 OBD2 Scanner, Full OBDII Tool
Product description
This OBD2 scanner from ANCEL focuses on engine diagnostics, offering quick reading and clearing of trouble codes and live data for on-the-road troubleshooting. It helps identify engine faults and monitor battery health, making it useful for DIY mechanics and drivers who want clearer diagnostic information before visiting a workshop.
Key Points

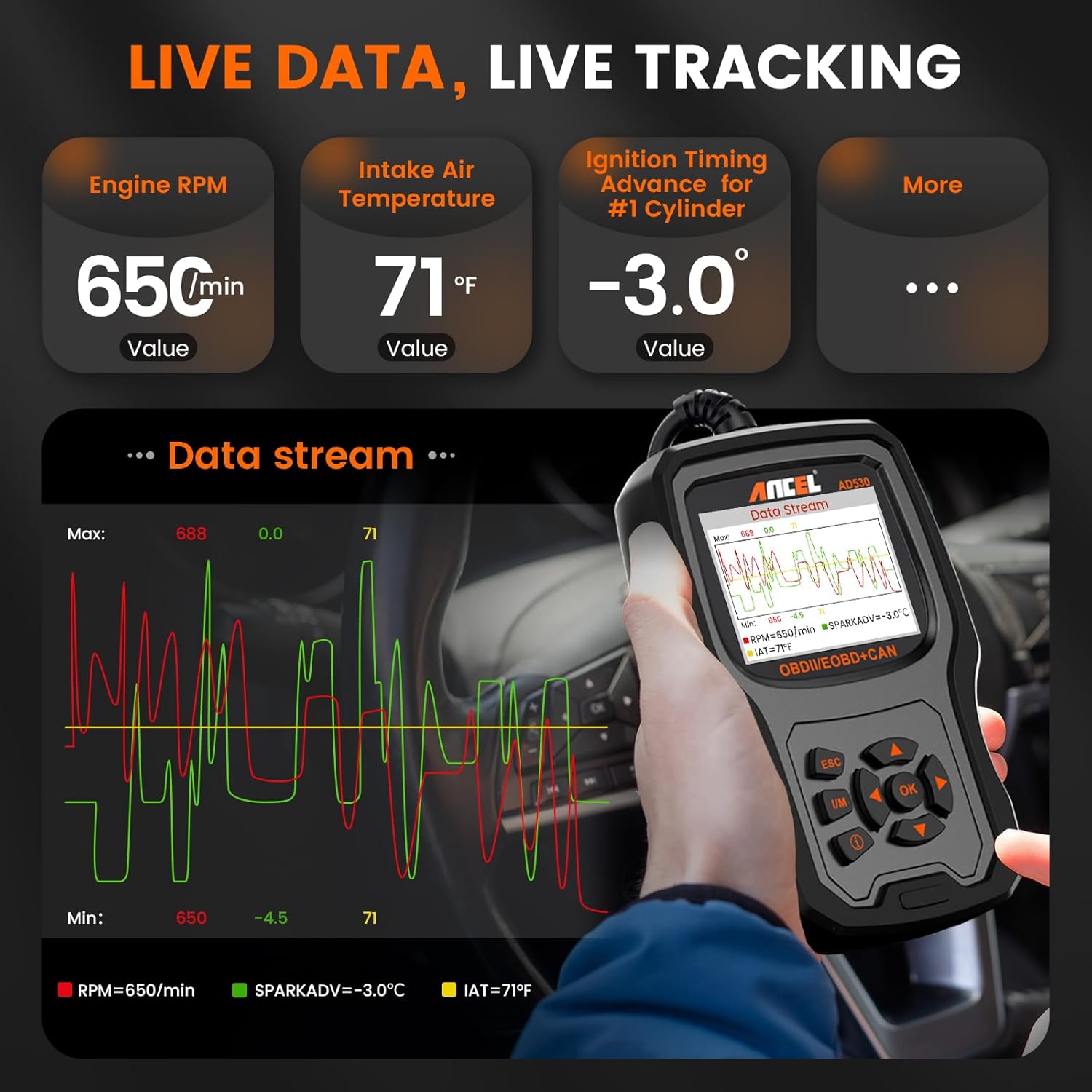

The ANCEL AD530 reads and clears engine fault codes and shows live data in graphical form, which makes it easier to spot intermittent problems while driving. It supports all standard OBDII protocols used in most vehicles sold in the United States from 1996 onward, with different year thresholds for European and Asian markets according to the manufacturer. The unit includes an enhanced battery detection feature that displays battery condition with graphical data instead of a simple pass/fail result, so you can assess battery life and performance more precisely. ⚙️


The scanner does not access advanced systems like ESP, ABS, SRS or electronic parking brake reset. This model focuses exclusively on the engine control system and related OBDII functions. Consider compatibility for specific vehicle makes and unique ECUs before assuming full feature coverage. 🔍

Technical Specifications
- Name: ANCEL AD530
- Display: 2.8-inch color TFT
- CPU: 32-bit STM processor
- Protocols supported: ISO9141, KWP2000, J1850 PWM, J1850 VPW, CAN
- Vehicle coverage: US vehicles 1996+, EU vehicles 2000+, Asian vehicles 2005+
- Languages: 16 languages supported
- Functions: Read/clear codes, live data graphing, freeze frame, O2 sensor test, EVAP test, I/M readiness, VIN retrieval



Benefits
Live data graphs and freeze-frame display help translate sensor values into a visual timeline, which can reveal patterns that single readings miss. The advanced code definitions let you press the information key to see concise repair guidance instead of opaque technical jargon, which may save time and help decide whether a simple fix is possible. The device includes free lifetime software updates from the manufacturer, which can add parameters or address bugs over time. 🔧

The improved battery test feature gives a more informative picture of battery status than typical code readers. This can reduce guesswork when diagnosing starting issues or intermittent electrical faults. Keep in mind that complex system resets or airbag diagnostics are not supported by this model.
Usage Recommendations
Connect the unit to the vehicle OBDII port with the engine off, then start the vehicle to view live data and run tests. Use the graphing mode when checking sensors that fluctuate with RPM or load, as the visual timeline is easier to interpret than single numeric snapshots. For error code details press the info key to read the provided repair tips and consider printing codes with definitions if you need to share them with a technician.
