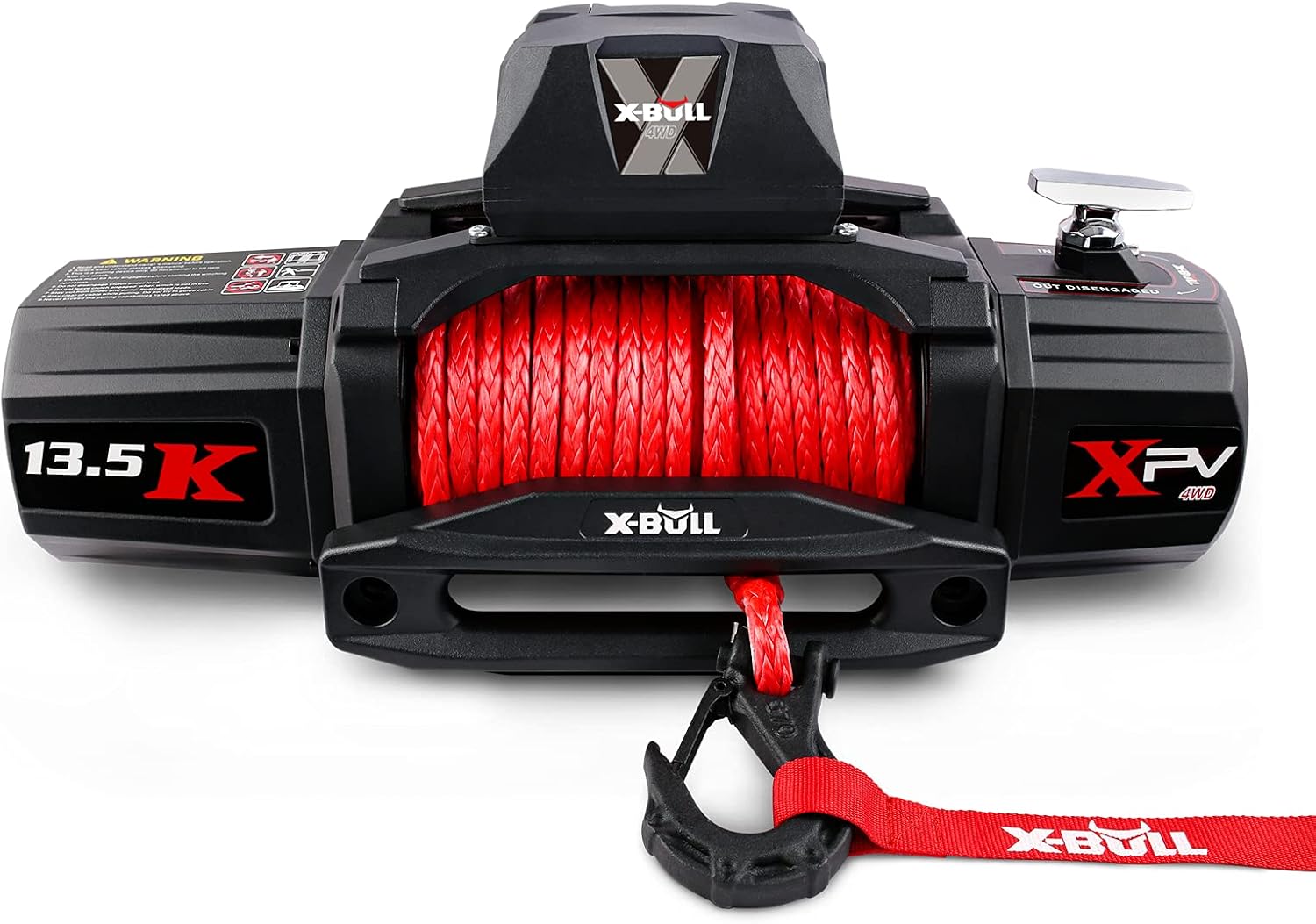

X-BULL Winch 13500 lb Electric Winch

This electric recovery winch brings heavy duty pulling power for off road and worksite needs, combining a high torque motor with a weatherproof control system for reliable performance. Designed to handle demanding recoveries, it pairs a 13500 lb rated capacity with synthetic rope and both wired and wireless remotes for flexible operation.

Key features

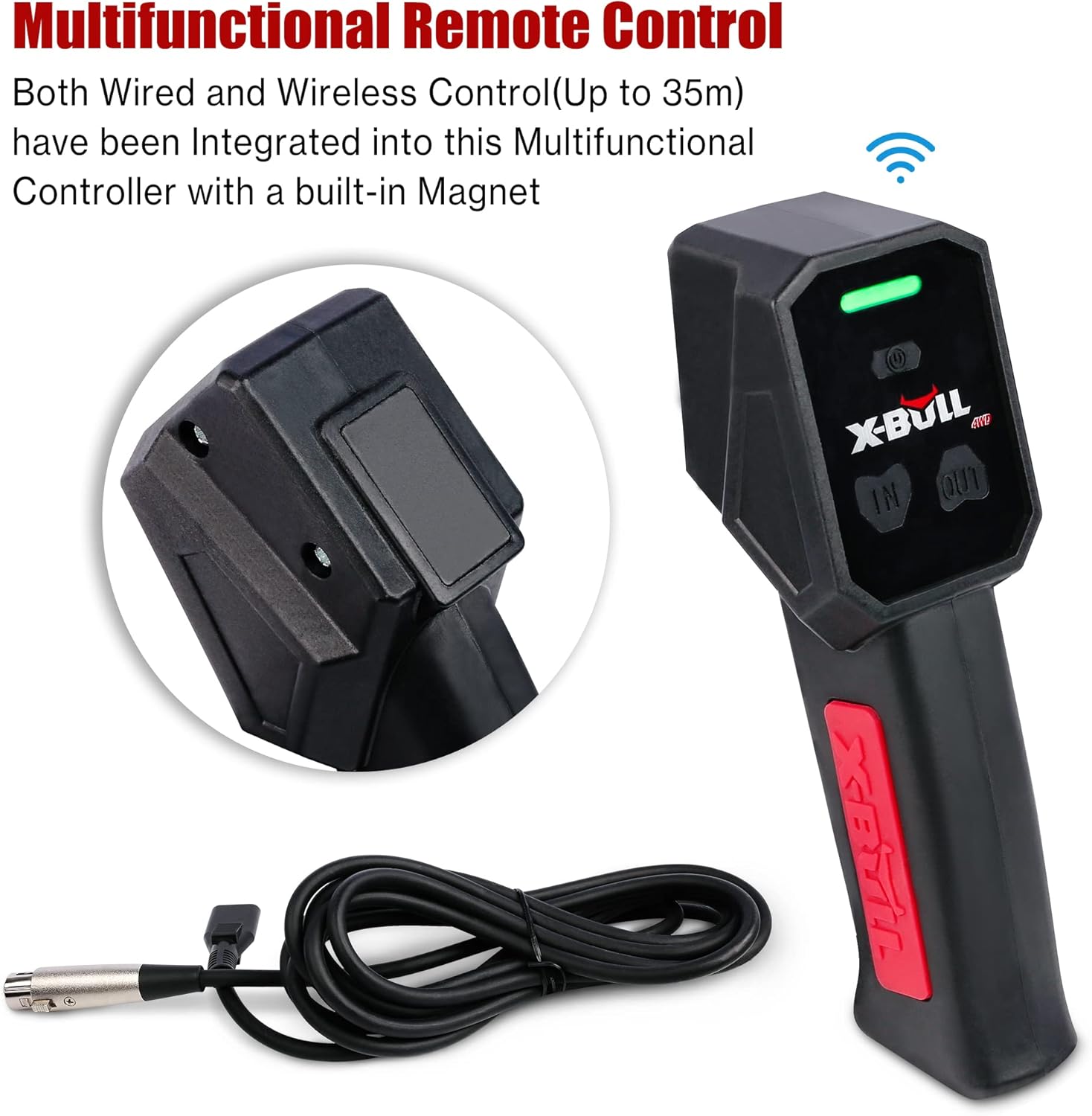

The X-BULL Winch-13500 lb combines a 4.5 kW 12V series wound motor with a 265:1 planetary gear ratio to deliver steady torque where it matters most, according to the manufacturer. It includes a free spooling clutch for quick line deployment and a three stage planetary gear system that balances pulling strength and line speed. The package also features an IP67 waterproof rating and a new generation wireless remote with up to 35 m range, so you can control winching from a safe distance in wet or muddy conditions. Keep in mind that the wireless range can be affected by terrain and obstructions.

Specifications

• Name: X-BULL Winch-13500 lb
• Capacity: 13500 lb
• Motor: 4.5 kW 12V series wound motor
• Gear ratio: 265:1 planetary
• Rope: 3/8" x 82 feet synthetic rope
• Dimensions: 20.8" x 6.5" x 10.2"
• Mounting bolt pattern: 10.00" x 4.50"
• Protection: IP67 waterproof

Why it’s worth it

This winch is built for users who need a robust recovery tool without fuss. The reinforced clutch and upgraded solenoid improve durability and reduce the risk of overheating during heavy pulls. The dual control options give you the convenience of a handheld wireless remote and the reliability of a corded controller when precise movements matter. It’s a solid choice if you frequently tackle muddy trails, steep recoveries, or heavy equipment pulls.

How to use it

Start by mounting the unit using the specified bolt pattern and secure battery connections that match a 12V system. Practice free spooling in a safe area to get familiar with rope deployment and clutch engagement. When performing a recovery, position yourself clear of the winch line and use the wireless remote to keep distance. It’s a good idea to inspect the synthetic rope and fittings after heavy use and replace any frayed sections promptly.
