3M 5302 Motor Pigtail Splice 1 kV 🔌
Product description
This motor pigtail splice from 3M simplifies joining motor lead cables to incoming feeder cables with a focus on industrial reliability and straightforward installation. It suits workshop and plant environments where secure, insulated stub connections are required, and helps reduce installation time while keeping a compact footprint.
Key points

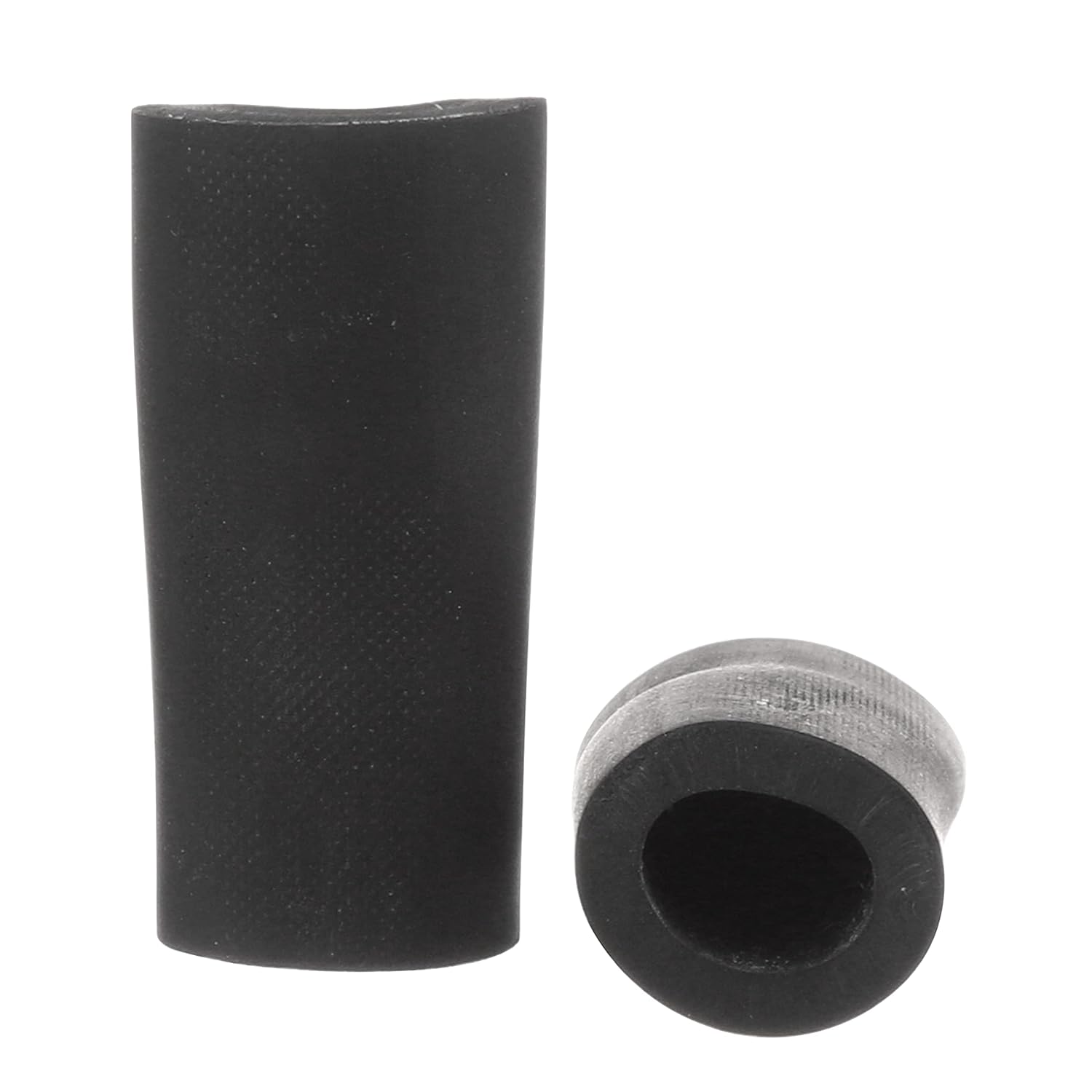

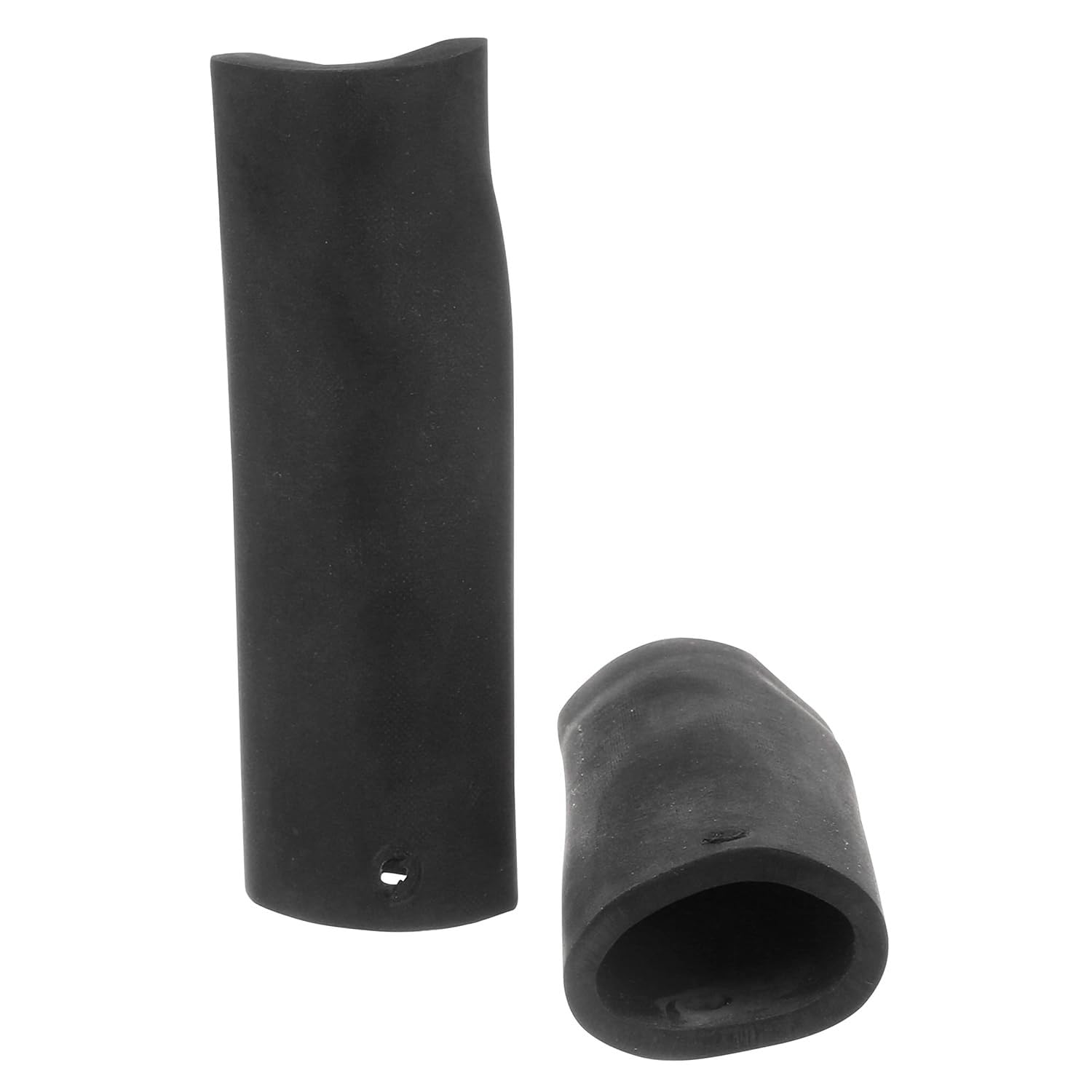

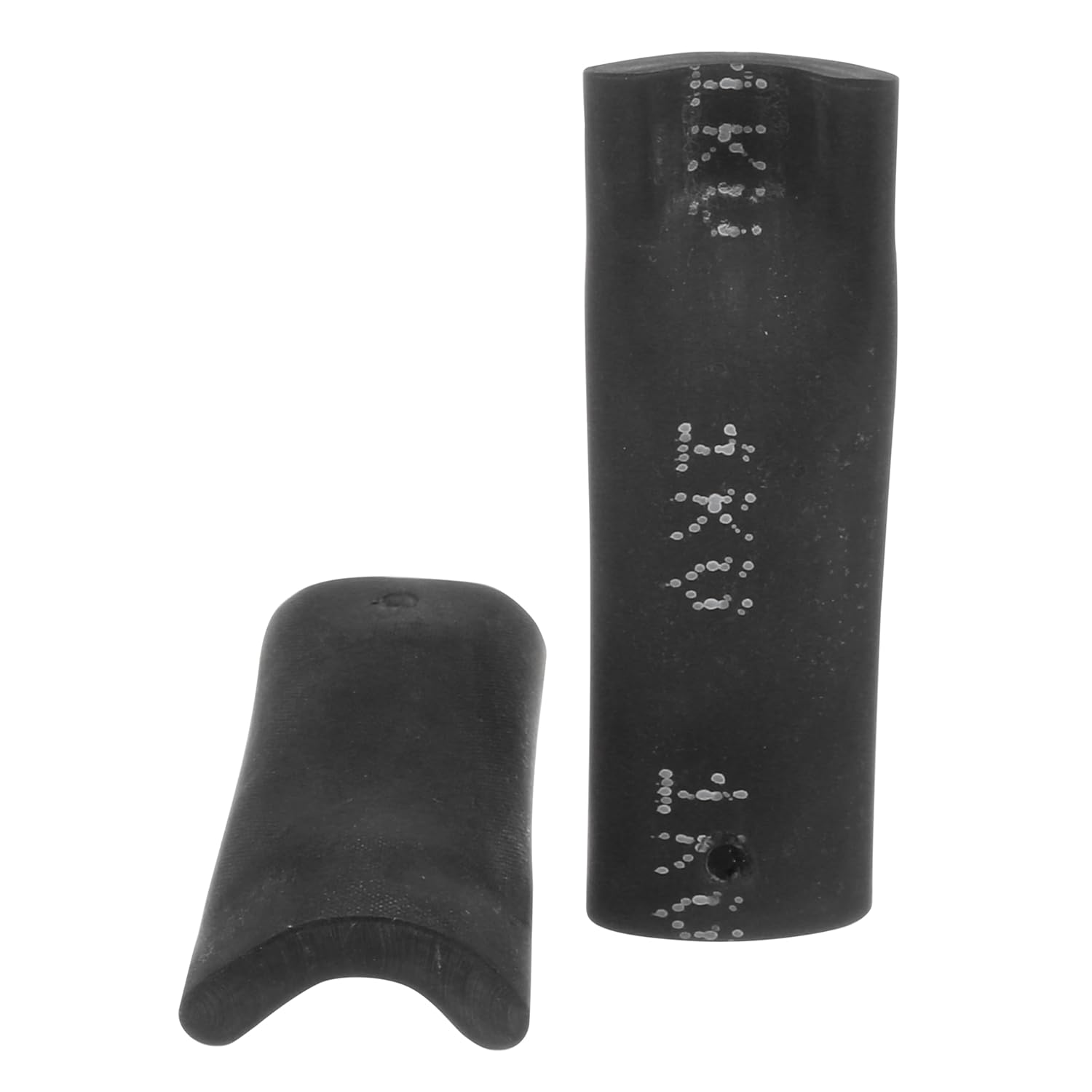

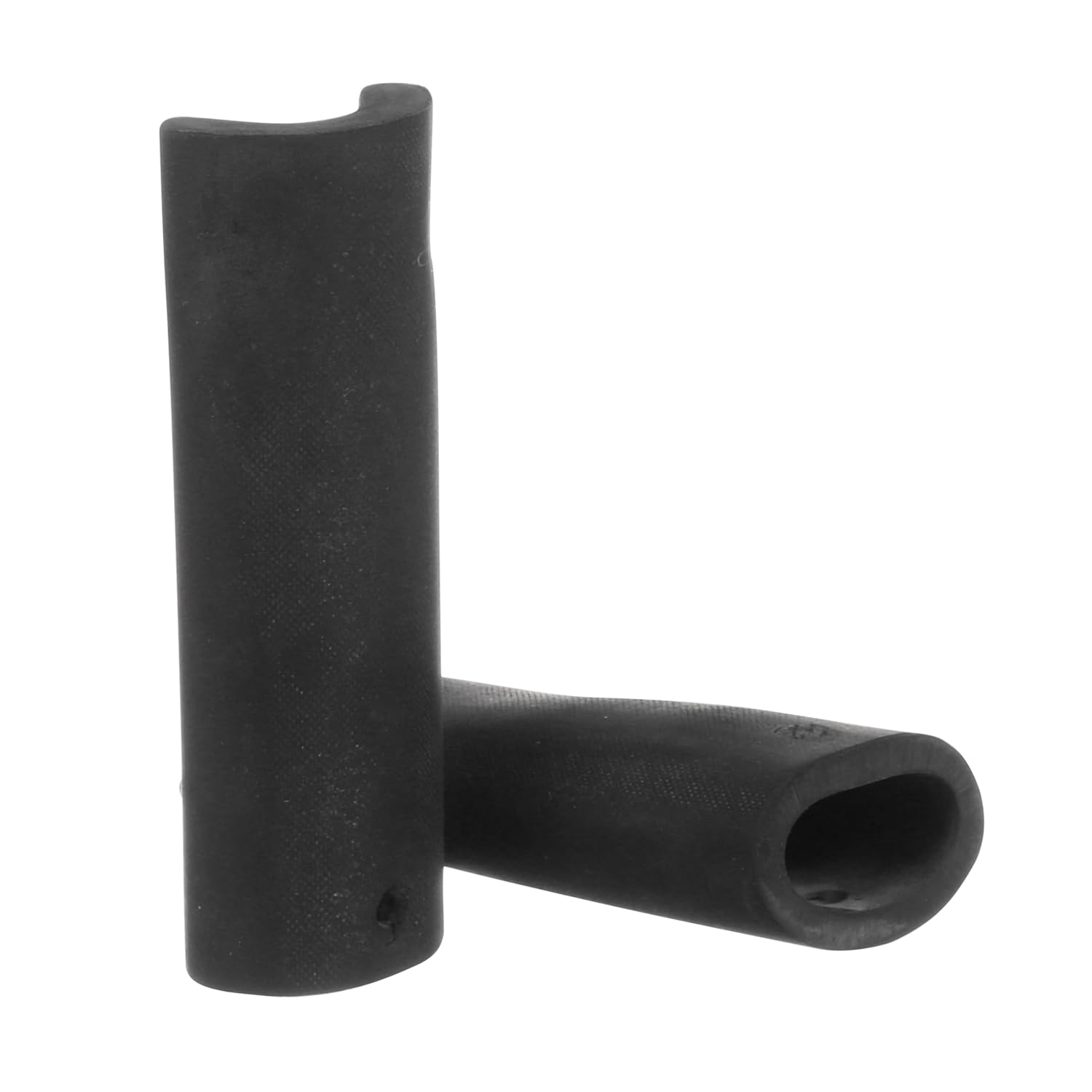

The 3M 5302 splice is built for pigtail (stub) connections at 1000V or less, offering a practical solution for connecting motor leads to feeders in industrial or occupational settings. It comes with slip-on lug covers made of durable EPDM rubber that protect the lug and provide insulation. The kit includes multiple accessories to help complete the splice in the field and comes CSA Certified and RoHS 2011/65/EU compliant, according to the manufacturer. ⚙️
Technical details
- Name: 3M 5302 Motor Lead Pigtail Splice
- Type: 1-hole lug connection
- Voltage: 1 kV
- Compatibility: copper compression lugs, motor lead 4-1/0 AWG, feeder 2-1/0 AWG
- Color: Black
- Contents: 3 pigtail lug covers, mastic sealing strips, tubes of silicone grease, instruction sheet
Where it shines
This splice stands out for quick field assembly and durable insulation. The EPDM slip-on cover resists common shop conditions and helps maintain a safe insulated joint. Because the kit bundles sealing strips and silicone grease, it reduces the number of trips back to the parts room and speeds up completion of repetitive splices. 🔧
Who it’s for
It’s a great fit if your work involves routine motor maintenance or installation in industrial facilities and you need a compact, certified pigtail solution that accepts common AWG sizes and copper compression lugs. You’ll appreciate the included covers and consumables for on-site assembly. It may not be a great match if you require components rated above 1000V or if your project specifies non-copper lug types, since the product is designed for copper compression lug use only.
Care tips
Handle the slip-on EPDM covers by their edges to avoid contaminating the sealing surfaces, and store the silicone grease tubes in a clean, dry place. When sealing the splice, follow the included instruction sheet and observe all workplace electrical safety procedures to maintain certification conditions. 🛠️
