154827601 Dishwasher Bottom Door Seal Kit with Lower Seal and Splash Shields

Practical tips

If water appears near the dishwasher door or the door seal needs attention, this replacement kit brings together the bottom door seal, lower seal, and splash shields for a focused repair. Before ordering, compare your dishwasher’s full model number and the existing part numbers with the compatibility information. The listed fit includes select Frigidaire, Kenmore, and Crosley models, examples include FDB700BFB1, FFBD2405KW0A, and CDB500NB0A.

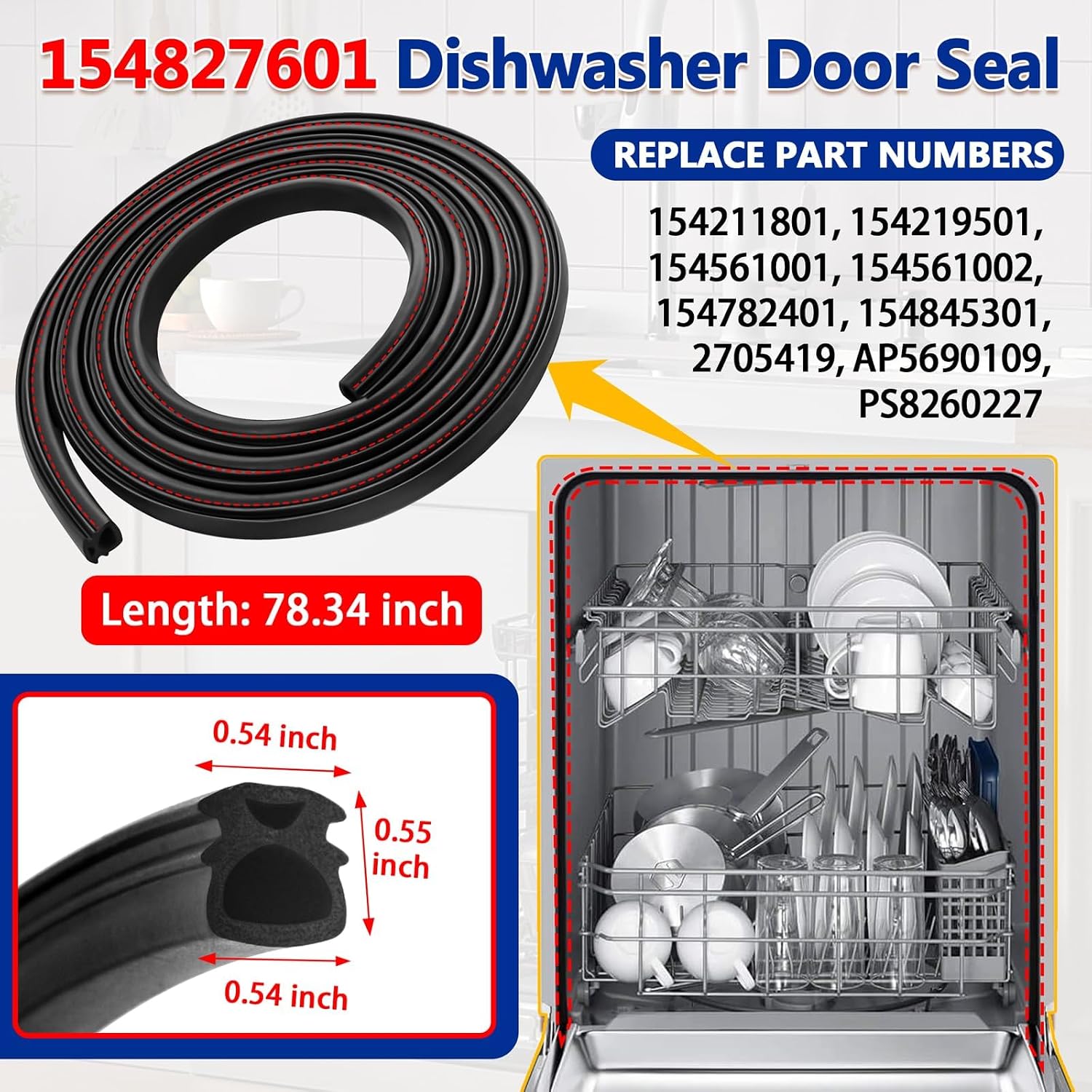

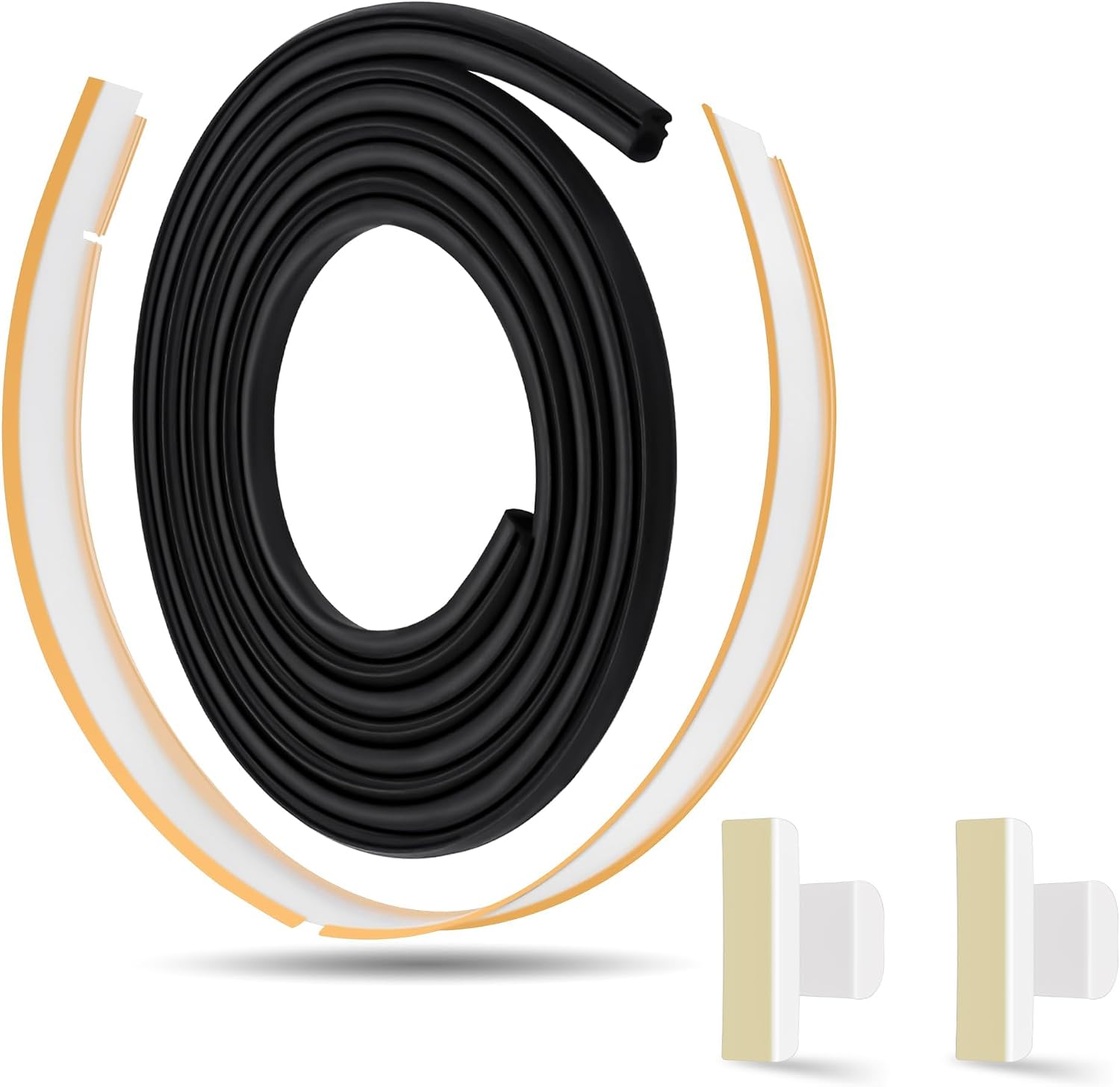

The set includes one 154827601 door seal measuring 78.4 inches long, one 809006501 lower seal measuring 22.5 inches long, and a 154701001 splash shield kit in a two-piece pack. Matching the replacement parts to the appliance helps keep the repair centered on the seal components designed for that model. If you are planning the work yourself, identify the existing seals and shields before removing them so you can compare their placement with the replacement parts during installation.

Where it shines

This kit suits repairs where the dishwasher’s lower door sealing area needs more than one component. The main door seal, lower seal, and splash shields address different parts of that area, so having them together can be useful when replacing a single gasket would leave other worn sealing pieces untouched. That makes it a practical alternative to sourcing each listed part separately when all three component types match the repair.

For example, if you notice water escaping near the lower edge of the door, the kit gives you the corresponding door and lower seals along with the splash shields. It is also listed for symptoms such as a door that will not close, a door that feels loose or heavy, and door noise. These are reasons to inspect the sealing area and confirm the dishwasher model, rather than a guarantee that a seal replacement will resolve every cause of a problem.

Highlights

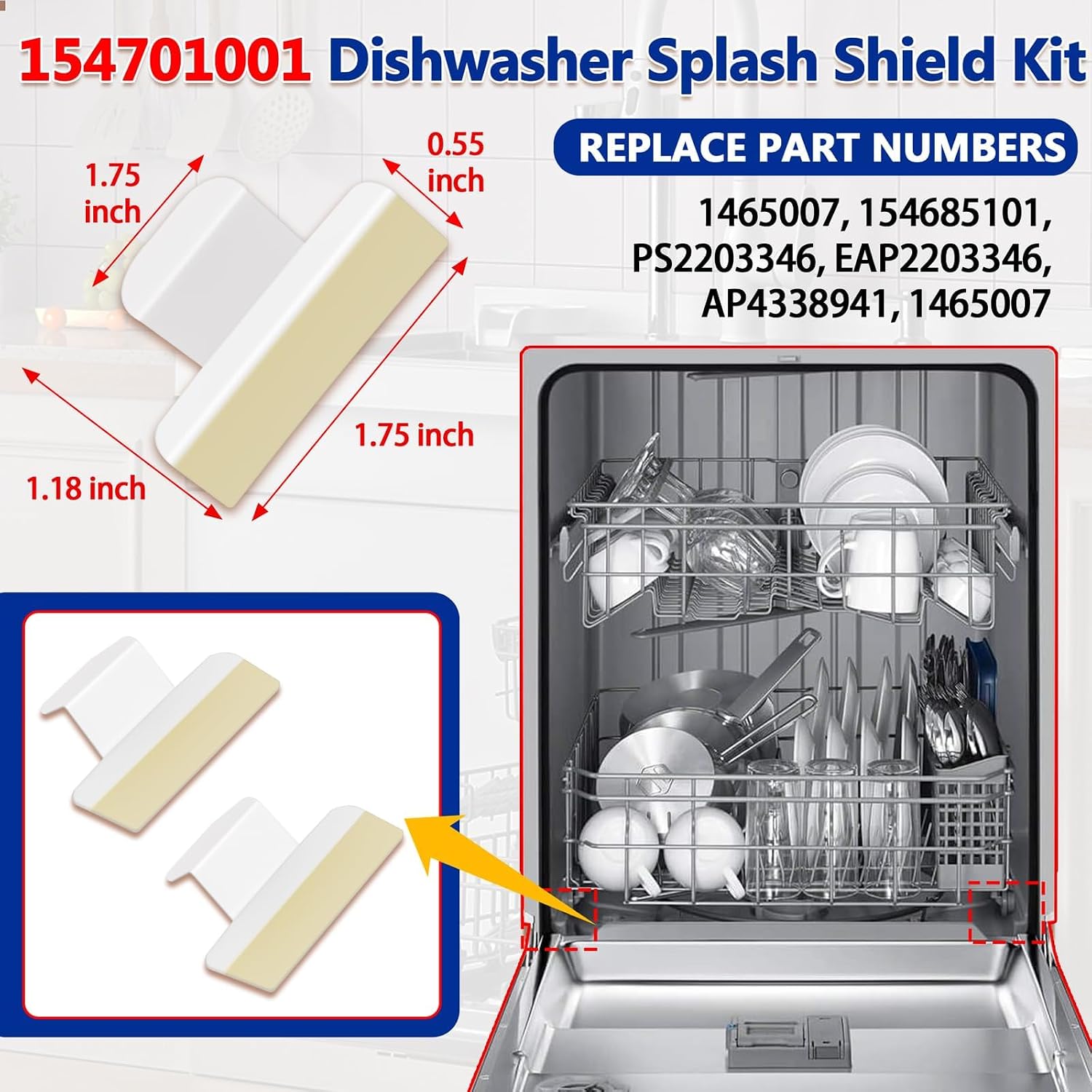

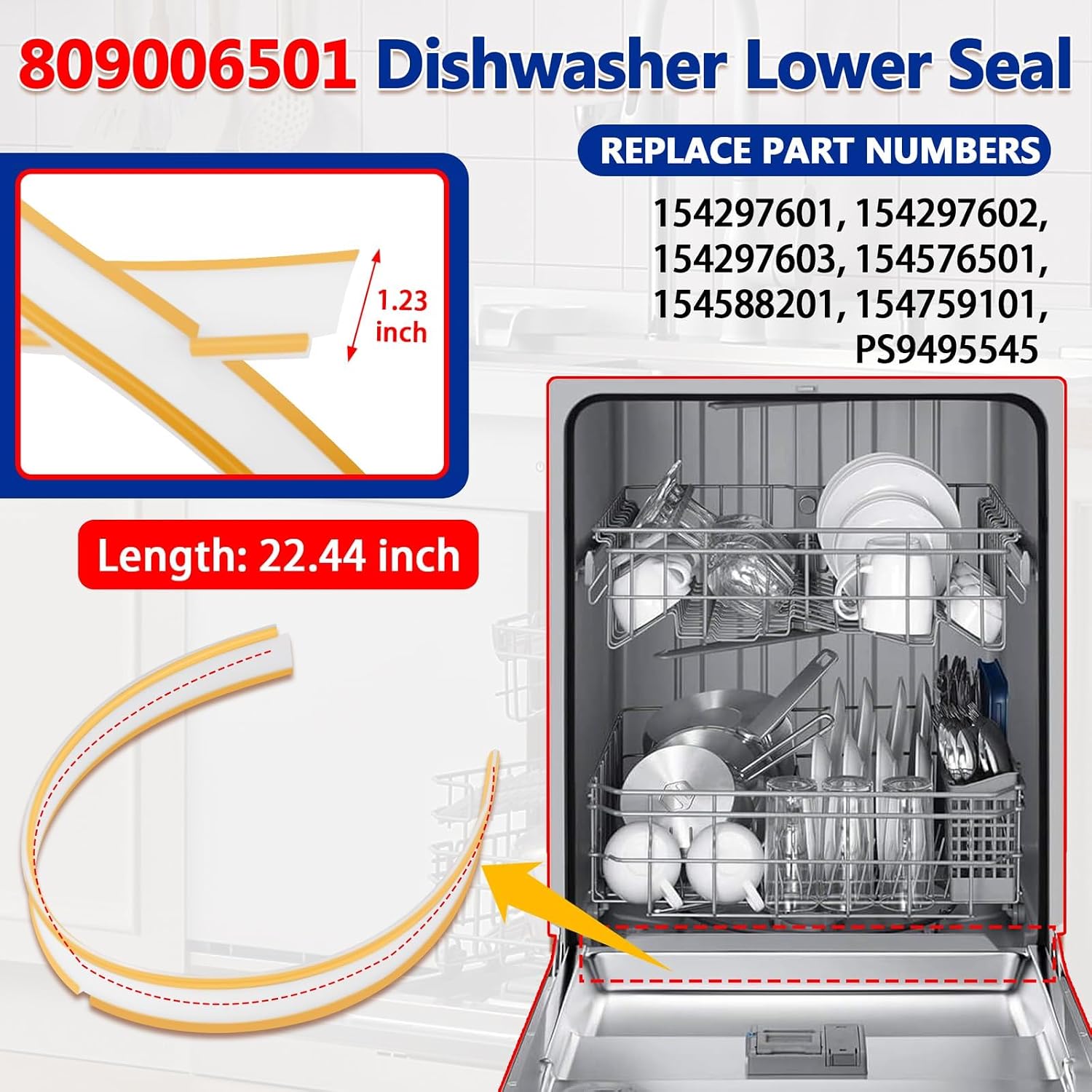

The kit is identified by the 154827601, 809006501, and 154701001 part numbers. The 154827601 door seal replaces several listed part numbers, including 154211801 and 154845301, the 809006501 lower seal replaces listed numbers including 154297601 and 154759101. The 154701001 splash shield kit is also associated with replacements such as 154685101. These cross-reference numbers can help when comparing the original component or repair information for your appliance.

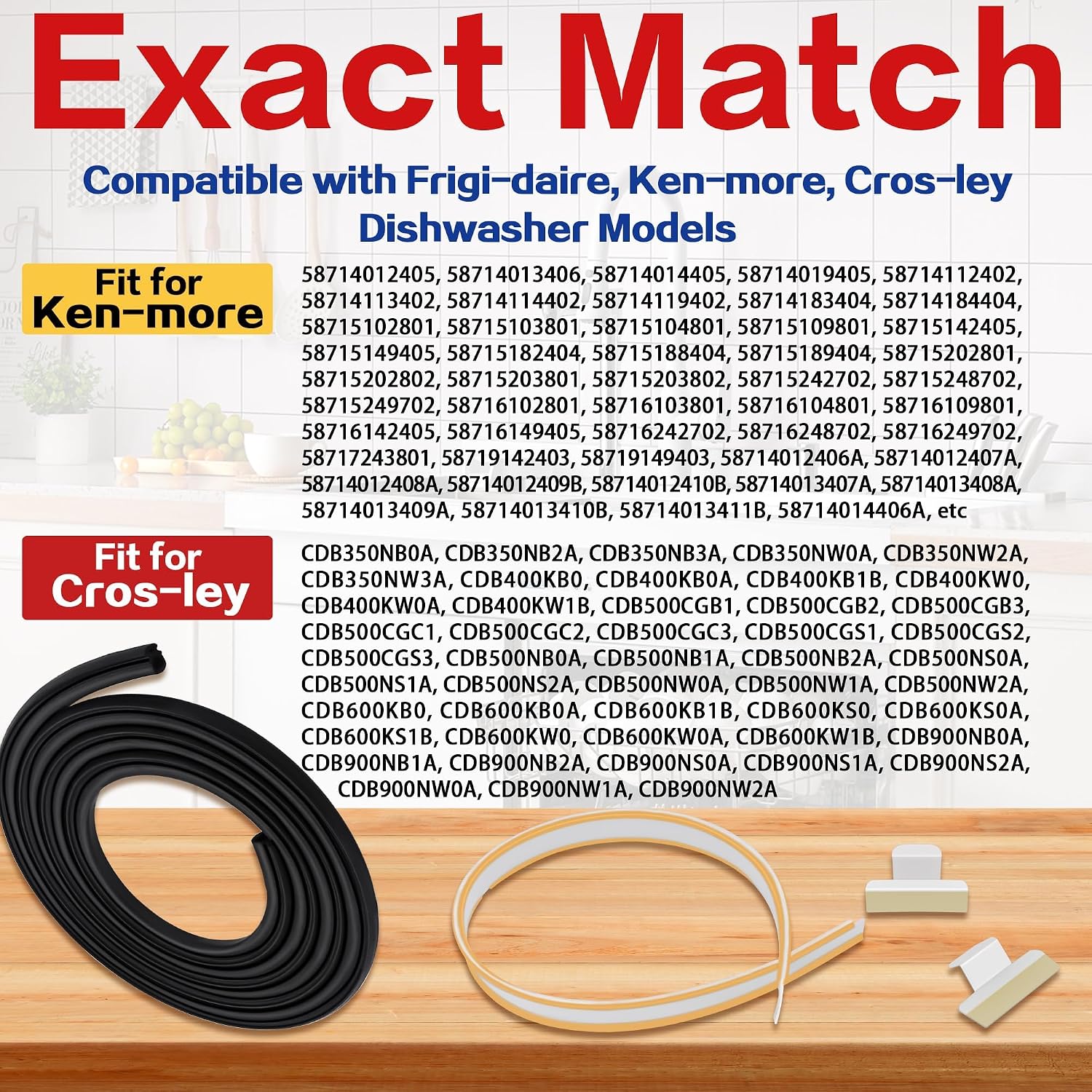

Compatibility covers a broad range of listed dishwasher models, including select Frigidaire FDB and FFBD series, Kenmore 587 models, and Crosley CDB models. The exact model suffix matters, so use the complete model number when checking fit. For a repair that calls for these three seal components, the combined kit keeps the relevant replacements together and clearly identified by their part numbers.

Practical questions

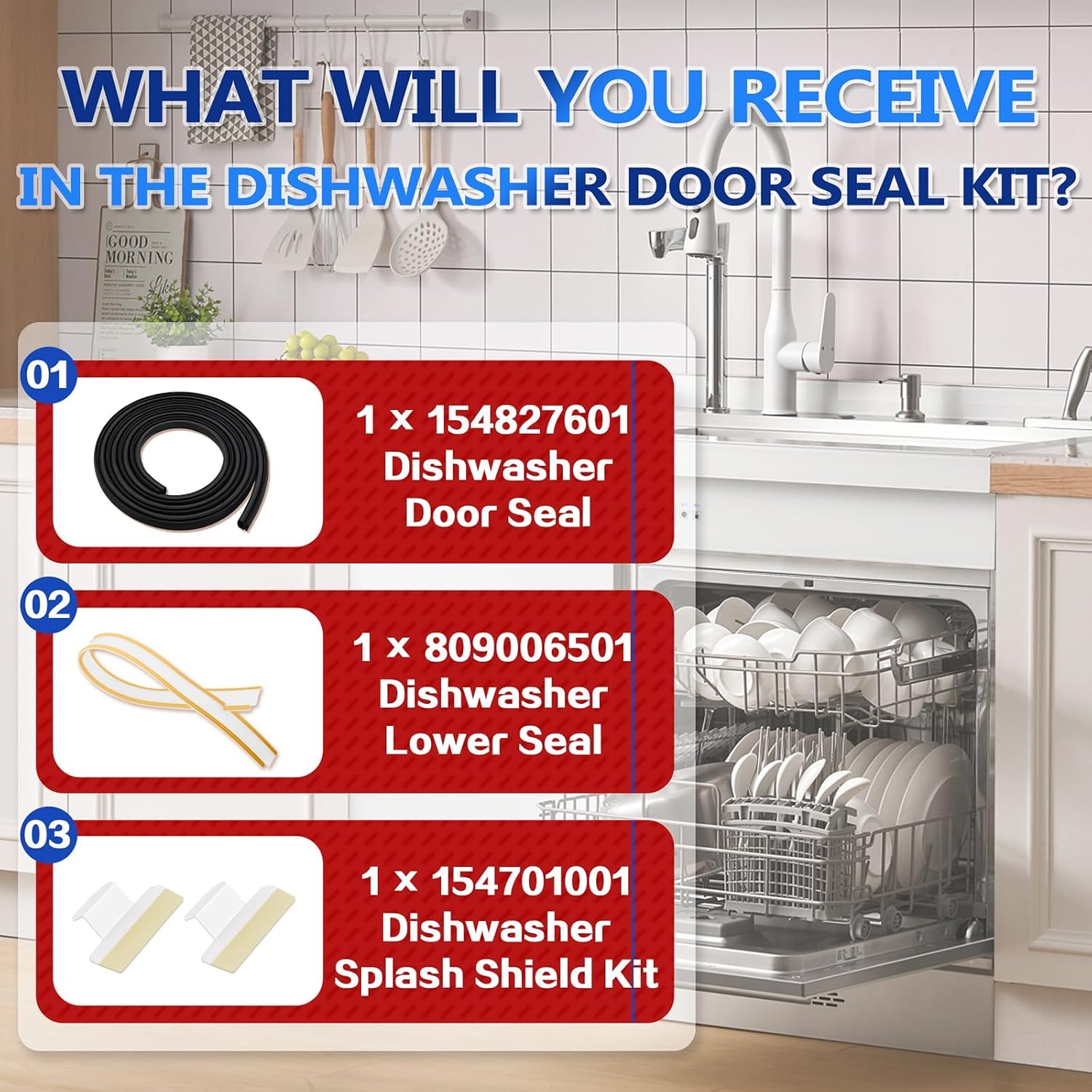

What parts are included? The kit contains one 154827601 dishwasher door seal, one 809006501 lower seal, and a 154701001 splash shield kit with two shields.

Which dishwashers does it fit? It is listed for select Frigidaire, Kenmore, and Crosley dishwashers. Check the complete appliance model number against the compatibility list, examples include Frigidaire FDB700BFB1, Kenmore 58714012405, and Crosley CDB500NB0A.

What issues is the kit intended to address? The listed symptoms include water leakage, a dishwasher door that will not close, a door that feels heavy or loose, and door noise. These symptoms can help guide inspection of the door’s sealing components.

Is it worth it?

For a dishwasher repair that calls for the 154827601 door seal, 809006501 lower seal, and 154701001 splash shields, this kit groups the three replacement components in one purchase. Its value is clearest when the appliance’s full model number matches the fit information and the repair involves these specific parts, giving you a direct set of components for work around the dishwasher’s lower door seal.
