Wirefy Heat Shrink Ring Terminals #10 – Marine Grade, 150 PCS, Red, 22–16 AWG
Product description
What it is and what it’s for

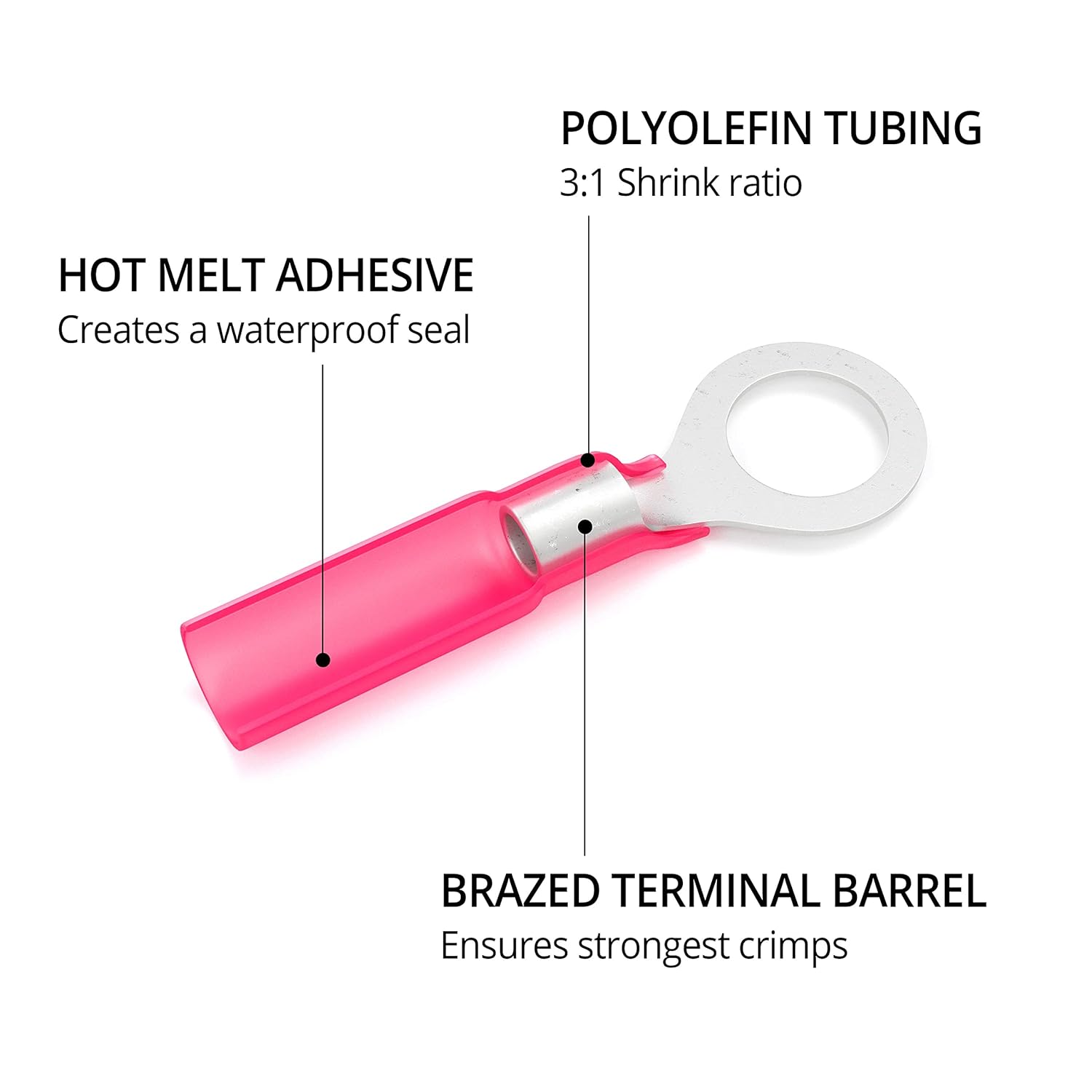

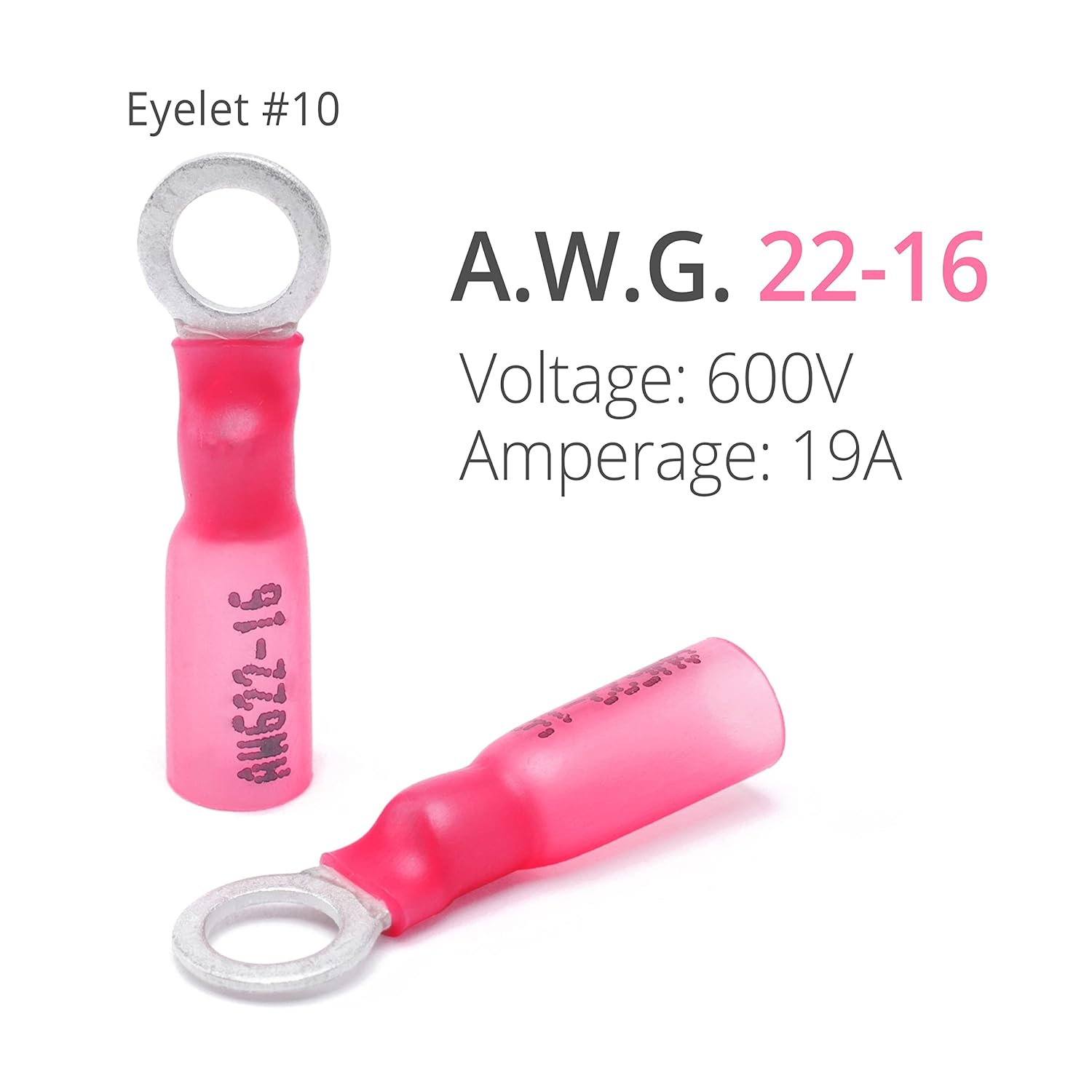

These are red heat shrink ring terminals designed for #10 screws, compatible with wire gauges from 22 to 16 AWG. They’re built from thick copper with a crimp barrel intended to minimise wire slippage, and they include heat-activated adhesive lined tubing to create an airtight seal and help protect against corrosion. The product is marketed as marine grade, which implies suitability for damp or exposed environments where moisture resistance matters. The package contains 150 pieces, offering a value pack for larger projects or ongoing use.
How it works in practice

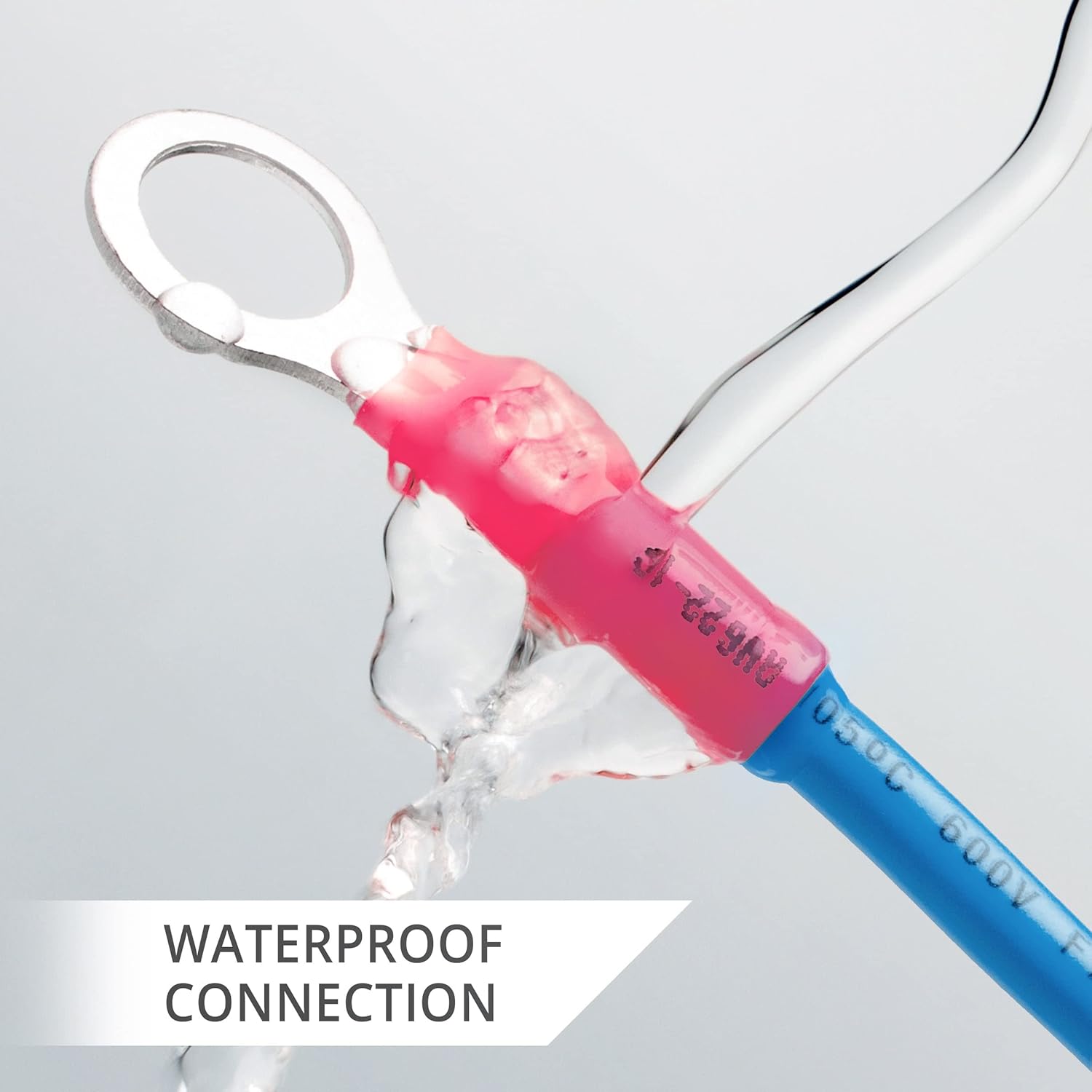

On installation, you crimp the copper barrel around the stripped conductor and then apply heat to the heat shrink sleeve. The adhesive activates to seal the joint and the insulation tightens around the wire, reducing the chance of moisture ingress. The claim of the highest shrink ratio on the market means the sleeving can shrink to about one third of its original size, which can help with bundling and neatness in crowded wiring looms.
What stands out
For a kit, the combination of thick copper and adhesive-lined heat shrink can deliver reliable conductivity with a secure mechanical grip. The marine-grade framing is useful if your projects involve outdoors or damp conditions, such as boat or trailer wiring. The broad wire gauge range (22–16 AWG) increases the versatility for different circuit sizes. The SGS, CE, ISO 9001:2008, and ROHS compliance mentioned provides a level of third-party confidence around safety and quality.
Limitations and caveats
On paper, the emphasis is on conductance and moisture sealing, but the description does not specify exact current ratings or temperature limits. If your application involves high vibration, prolonged exposure to harsh chemicals, or temperatures outside typical automotive/marine ranges, you may want to verify suitability. Also, while the kit size is generous, there is no information about pre-insulated compatibility with different wire insulation materials beyond the general claim of a strong seal.
Who it’s for
This set is well-suited to DIYers, boat owners, and automotive hobbyists who need a reliable, corrosion-resistant ring terminal option in red for #10 screws and a variety of wire gauges. If your project demands straightforward, moisture-resistant connections with a tidy finish, it could be a practical choice.
Who it isn’t for
If you require precise current ratings, high-temperature operation, or a product subjected to extreme mechanical stress, this kit may not satisfy those stringent specs. It may also not be the best pick for tiny, space-constrained installations where the shrink sleeve size or crimp diameter becomes limiting.
Before you buy: what to check
- Confirm compatibility with your wire type and gauge (22–16 AWG).
- Consider whether you’ll benefit from the adhesive seal in a damp environment or if simpler non-adhesive terminals would suffice.
- Ensure the #10 screw size matches your terminal stud.
- If possible, inspect the crimp barrel thickness to assess how well it will grip your conductor and resist pull-out.
How it compares to alternatives
If you’re weighing options, you might consider standard insulated ring terminals without heat shrink or fewer-ply options with a basic seal. The heat-shrink, adhesive-lined design generally offers improved moisture resistance and a neater finish, which can matter in marinas, boats, or exterior wiring runs. However, for very cleanroom interiors or short-term projects, simpler terminals can be quicker to install and cheaper per connection.
Practical use case

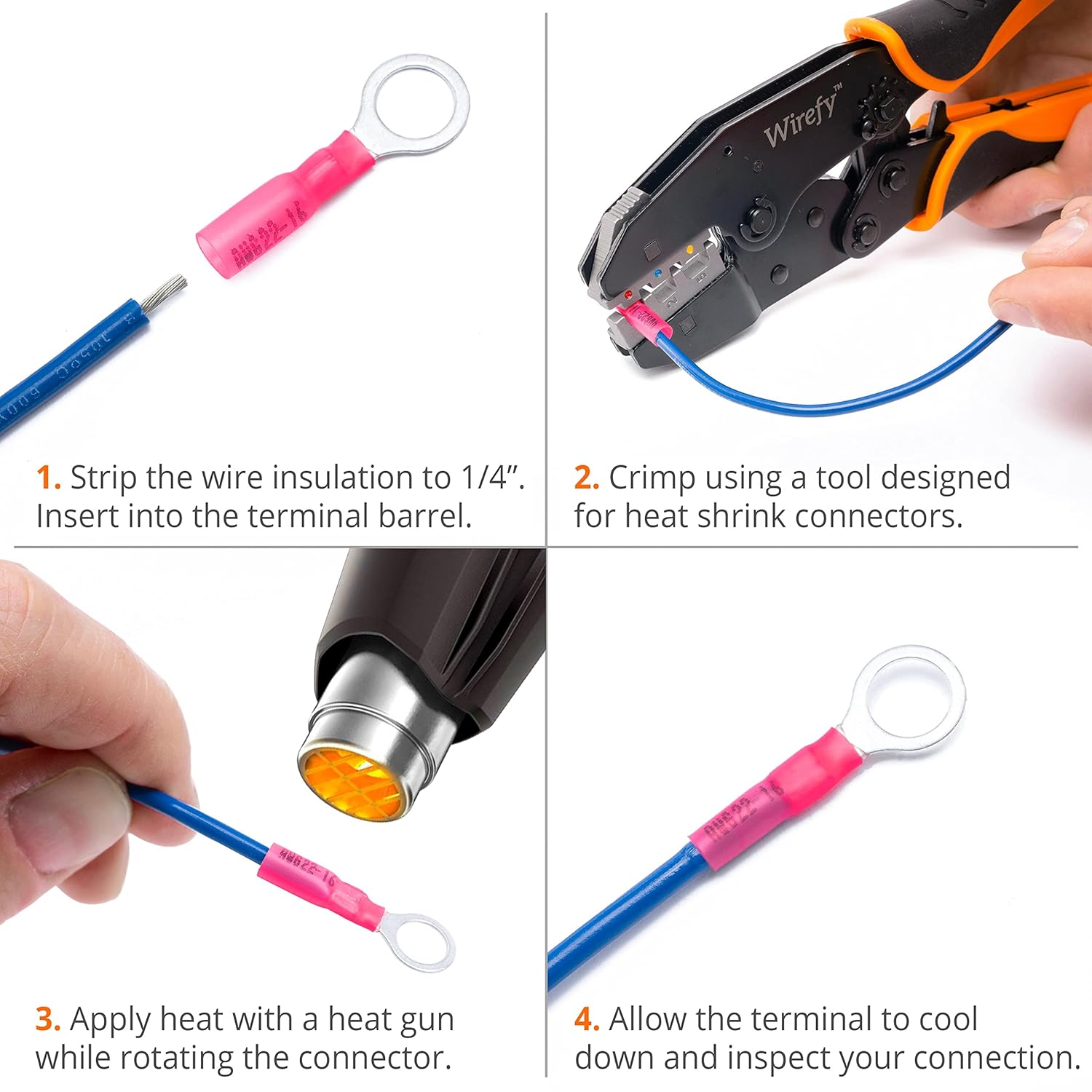

Imagine wiring a bilge pump or navigation light where exposure to humidity is likely. After stripping the wire, you crimp the copper barrel around the conductor, then slide the heat shrink sleeve over before applying heat. The adhesive oozes to seal the joint as the sleeve tightens, leaving a single, protected connection inside a tidy loom.
Is it worth it?
Is it worth it? Worth considering if you prioritise moisture resistance and a robust crimp in a marine or outdoor context, and you’re dealing with 22–16 AWG wires. It may not be the best option if you need certified current ratings or operation under extreme temperatures.
FAQ
- Do these terminals require a special heat source? A standard heat gun or controlled heat source used for heat-shrink tubing is typically used.
- Will the adhesive seal stop corrosion in saltwater environments? The adhesive-lined sleeve is designed to seal and resist moisture, but long-term salt exposure can vary by installation and maintenance.
- Can I reuse a terminal if I remove the wiring? Reusing crimped connections is generally not recommended, if a seal compromises, replace the terminal.
Final decision
Should you buy it? It makes sense if you need a bulk supply of red ring terminals for #10 screws that can handle 22–16 AWG wires and you value moisture sealing for marine or outdoor use. It’s less ideal if you require exact electrical ratings or operation beyond standard automotive/marine conditions. A solid pick for practical, value-conscious projects that benefit from a tidy, protected finish.
