E-WeiChat EW-LP16 Industrial IP68 Quick-Connect Connector (4 Pin) with PBT Shell
Reviews
Price
Product description
What matters most
If you’re wiring equipment destined for harsh environments, the E-WeiChat EW-LP16 aims to combine ruggedness with practical quick-connect usability. On the paper specs, it offers IP68 protection (2m/2h when mated), a 10A current rating, and a 500V operating voltage, all housed in a high-performance PBT shell. It’s designed for solder/weld assembly and uses a one-touch plug/unplug mechanism with an automatic insertion lock. These features collectively target environments where moisture, dust and routine maintenance challenges are part of the job.
Tech specs
This variant is an M16 circular connector with a 4-pin configuration, sold as a male plug and female socket pairing. The contact core is copper alloy with gold plating, and the seal relies on a high-quality silicone ring. Cable compatibility accepts 1.0–1.5 mm² (18–16 AWG), with a cable diameter range of 4.0–9.0 mm. Durability is stated as ≥1900 mating/un mating cycles. Electrical resistance and insulation are specified as <3 mΩ and >1000 MΩ respectively. Operating temperature ranges from -40°C to 80°C, with a high-temperature ageing test of 85°C for 168 hours and a 10A current rise of 30K. The design warns against plugging while energised.
What stands out
On the positive side, the combination of IP68 sealing and a self-locking, one-touch disconnect/reconnect mechanism can simplify maintenance in challenging sites—think machine rooms, outdoor stages or marine-adjacent setups where dust, splashes and humidity are common. The broad temperature tolerance adds versatility for varied climates and industrial environments. The gold-plated copper contacts suggest reliability in corrosion-prone or vibration-heavy applications.
Practical use and real-world fit
If your project involves machinery, energy storage systems, or field equipment that must withstand wet or dirty conditions, this EW-LP16 could be a sensible choice for a robust interconnection. The solder/weld assembly style means you’ll need appropriate skills or tooling, which is typical for industrial connectors. A limitation to bear in mind is the fixed M16 shell and the 4-pin layout—this isn’t a universal, modular option. If your system uses more channels or a different form factor, you’ll want to assess whether this version aligns with your existing or intended cabling strategy.
What to check before buying
- Confirm that your cable setup (1.0–1.5 mm² or 18–16 AWG) fits the 4-pin contact arrangement and that the 4.0–9.0 mm cable diameter range won’t squeeze into the seal.
- Ensure the operating voltage and current (500V, 10A) match your load profile, faults or overrating can compromise performance.
- Verify the mating cycle requirement (≥1900 cycles) aligns with anticipated maintenance intervals.
- Mind the installation note: avoid energising the plug during insertion or removal to reduce arcing risk.
Comparison and buying context

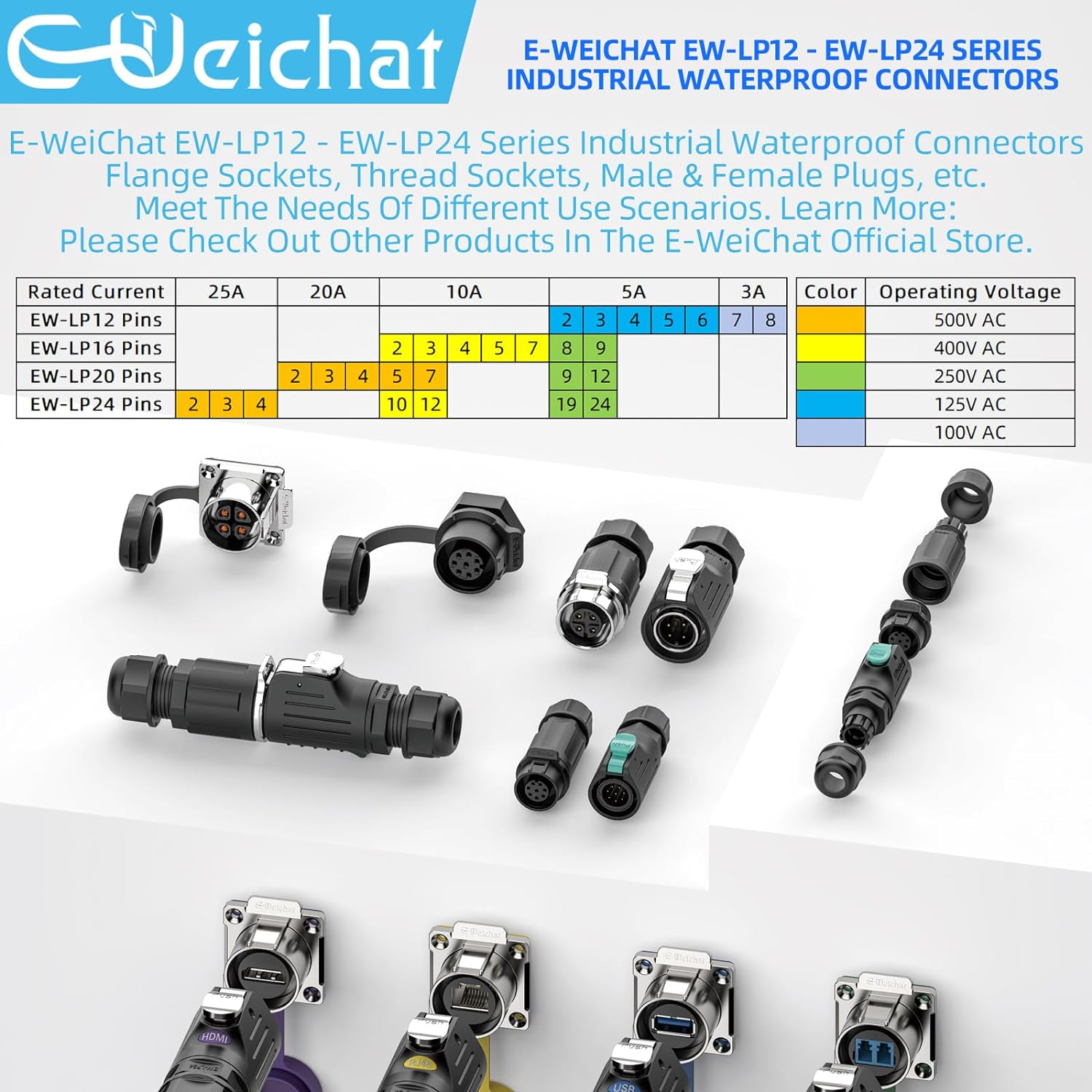

This connector sits in a practical, durable category rather than a glossy, feature-rich premium tier. It’s well-suited for environments where ingress protection and quick disconnects matter more than ultra-high pin counts or modular expansion. If you require many channels or a different configuration, you might prefer alternatives offering other pin counts or modular housings.
Is it worth it?
Should you buy it? It’s worth considering if your priority is a rugged, IP68-rated quick-connect interface that can survive tough conditions and temperatures, with reliable electrical specs and a robust seal. It may not be the best fit if you need more pins, a different shell size, or lower-profile assembly. A practical, no-nonsense choice for industrial, marine, or outdoor setups where durability and quick servicing are valued.
FAQ
- What does IP68 mean for this connector? It indicates protection against dust and immersion up to 2 metres for 2 hours when mated.
- Can I field-install this connector? Yes, it supports solder/weld assembly, though you should be comfortable with crimping or soldering and sealing credentials.
- How many mating cycles can I expect? The specification lists ≥1900 cycles, which should suffice for many industrial maintenance schedules.
Final decision: Should you buy it?
It’s a solid pick if you need a dependable, weatherproof 4‑pin connector for challenging environments and you’re prepared to use a solder/weld approach to termination. If your use case demands more pins, a different form factor, or a lower-profile connector, you may want to explore alternatives before committing.
