Ralcam 360° Articulating Borescope 6.5mm

This compact inspection camera from Ralcam is built for accessing tight spaces in engines, pipes and machinery, offering both front and side views to speed up diagnostics and repairs. With a 6.5 mm slim probe and a 5.0 ft semi-rigid snake, this borescope helps visualise hard-to-reach areas while adjustable lighting improves clarity in dark cavities.

Key Points

The unit combines a four-way 360° articulating tip with a dual-lens arrangement so you can inspect frontal and lateral angles without retracting the probe. The joystick control provides intuitive four-way articulation and makes navigation through bends straightforward, which saves time during automotive checks or plumbing investigations. The 5-inch IPS screen displays real-time images and video at a resolution specified by the manufacturer, making it easier to document findings for later review. Battery power is rechargeable and intended for prolonged field use according to the manufacturer, and portability is enhanced by the integrated display and probe design. Consider that the probe diameter of 6.5 mm is slim enough for most cylinder and pipe inspections, though extremely narrow channels under 6 mm will not be accessible.

Technical Specifications

• Name: Ralcam 360° Articulating Borescope Dual Lens

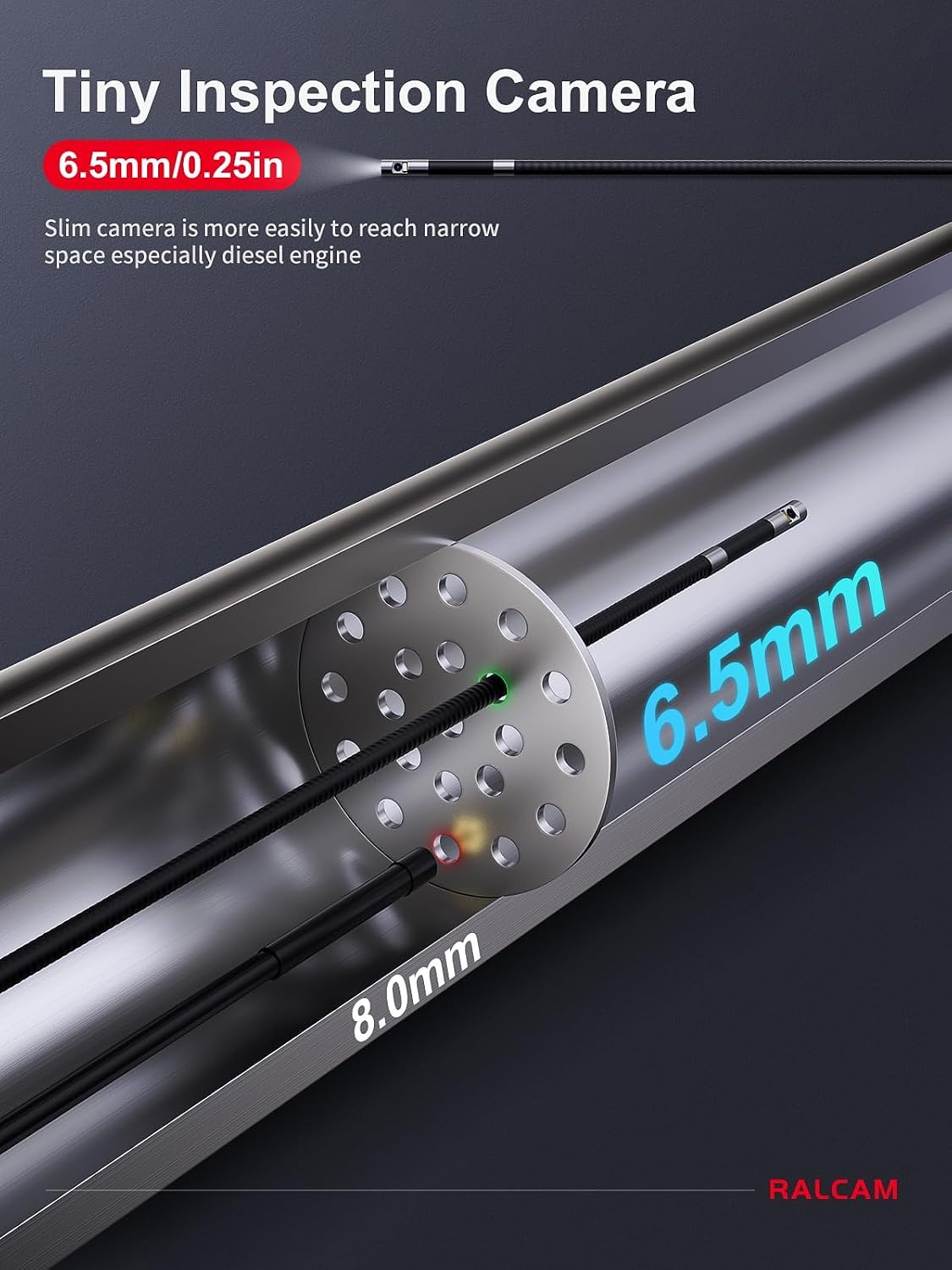

• Probe diameter: 6.5 mm

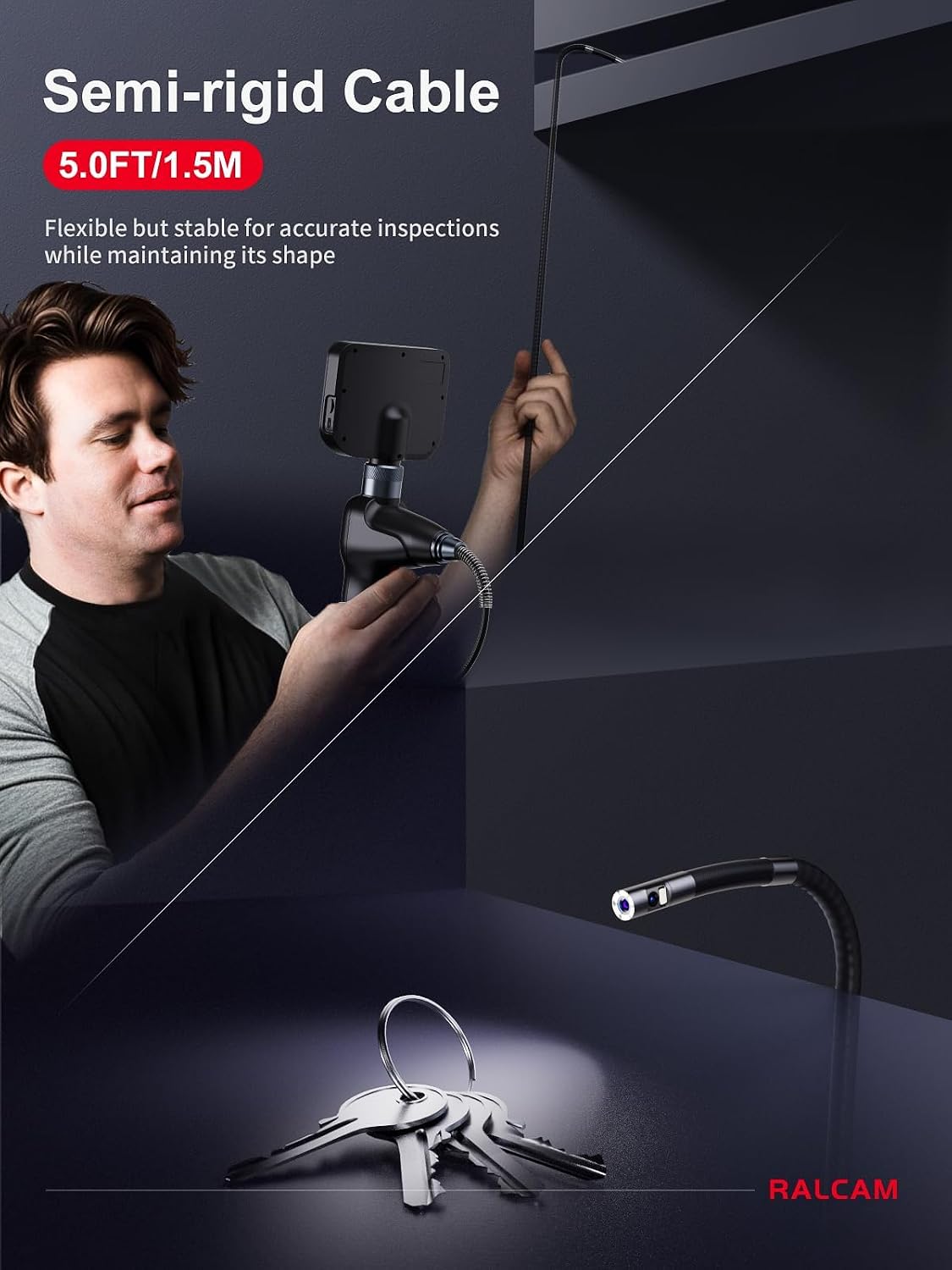

• Probe length: 5.0 ft (semi-rigid snake)

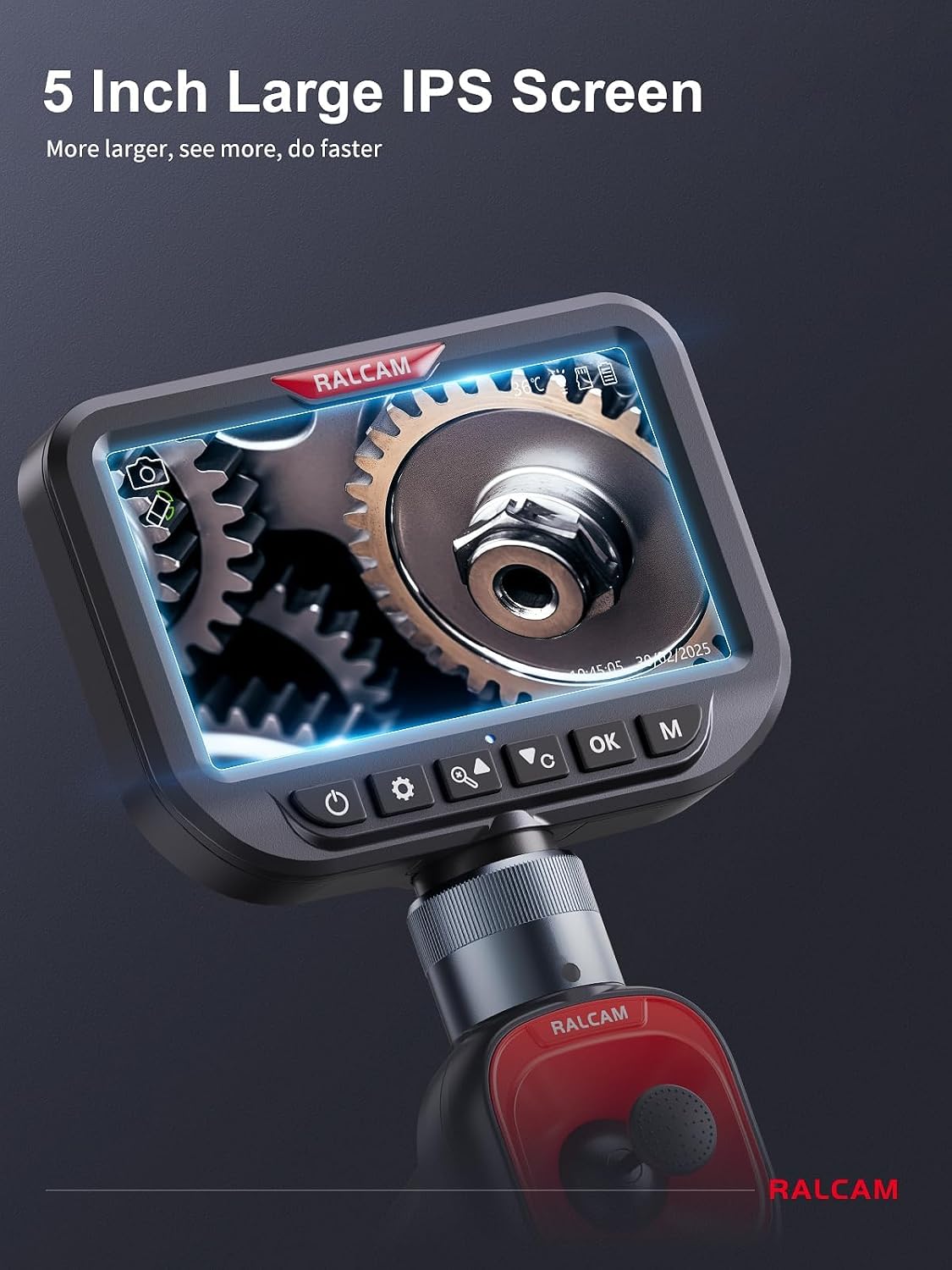

• Screen: 5-inch IPS display

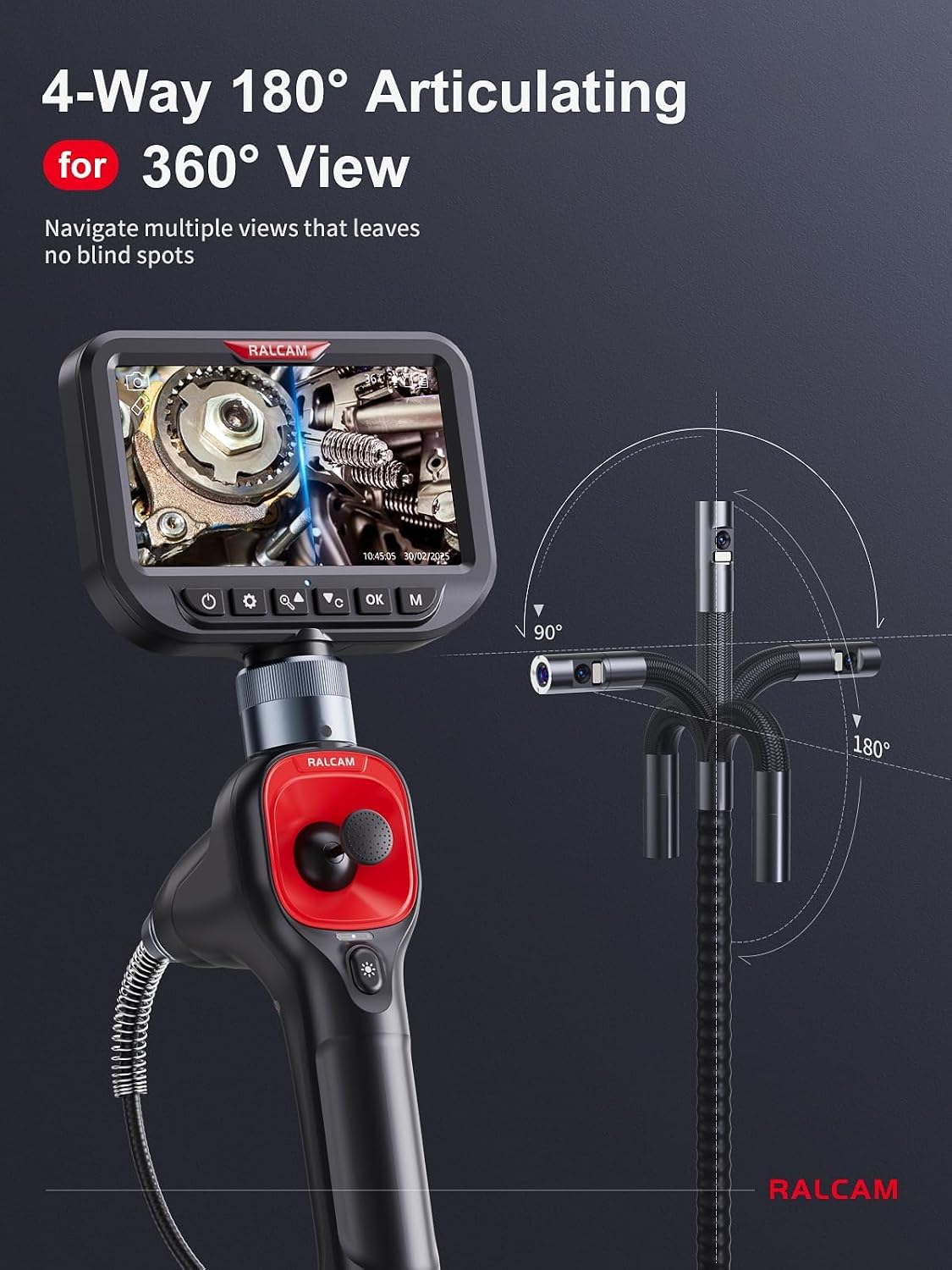

• Articulation: 4-way 360° articulating tip
• Power: Rechargeable battery (manufacturer states long life)

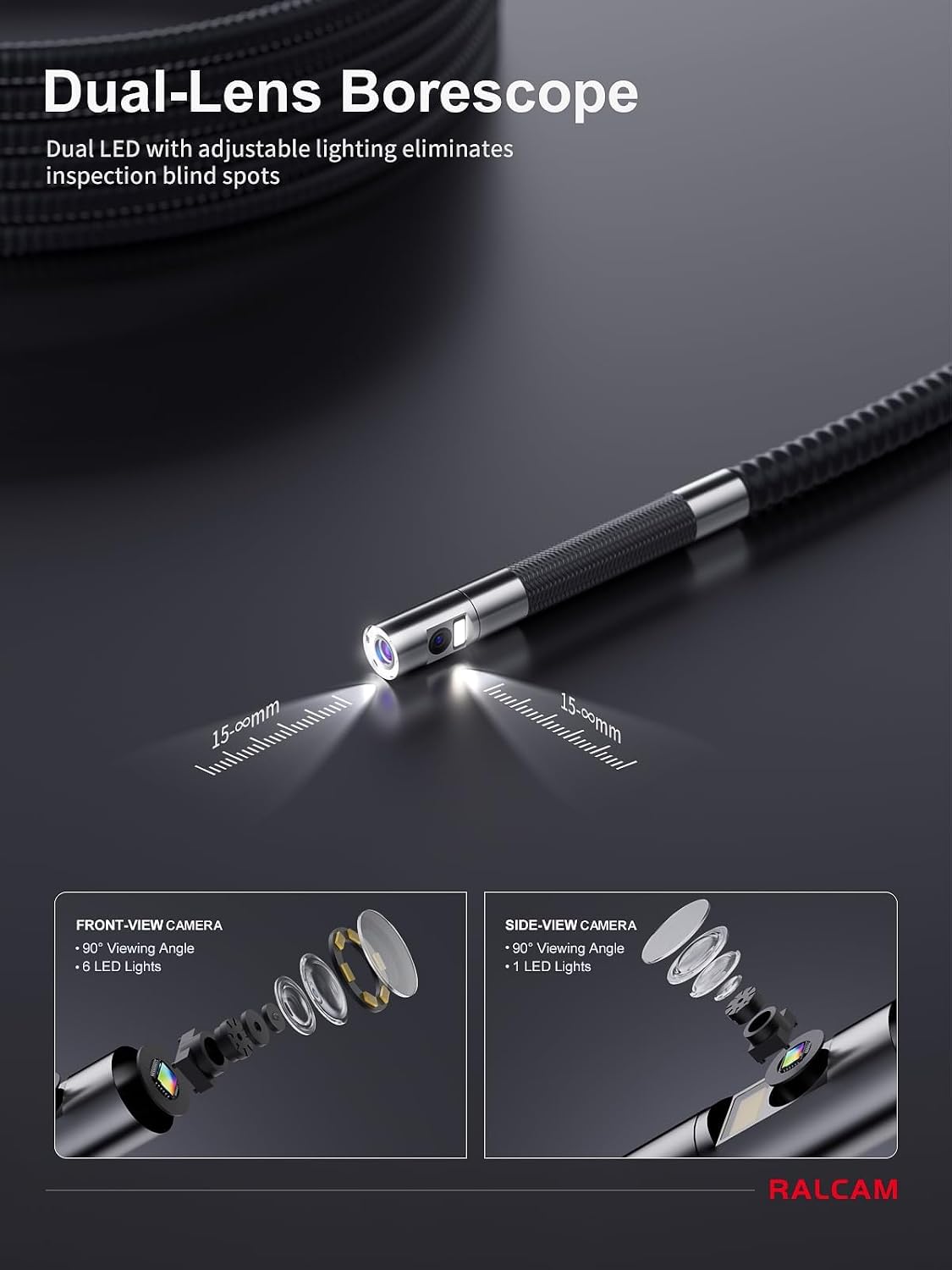

• Lenses: Dual lens configuration (front and side views)

Advantages

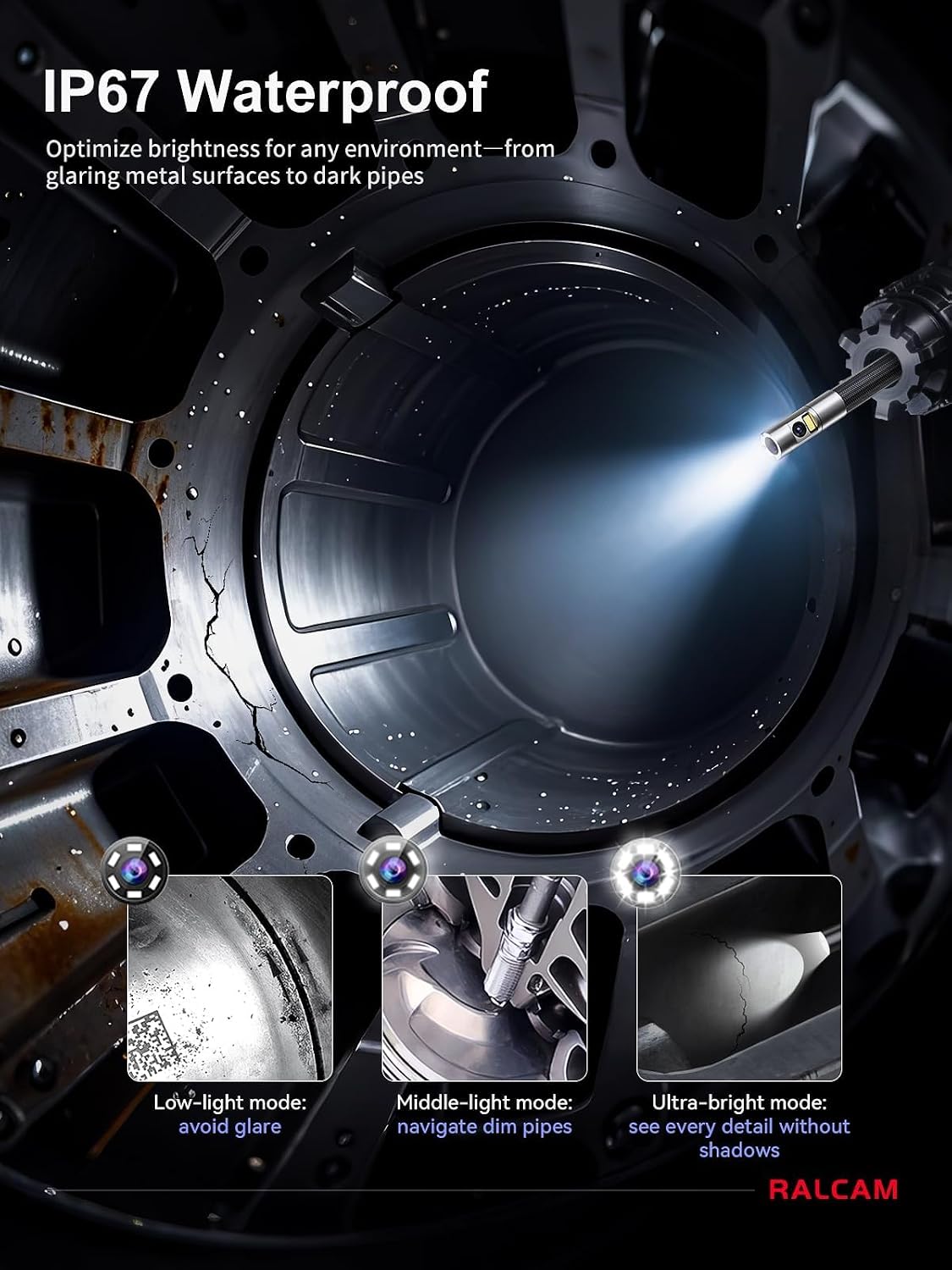

Having two lenses available means fewer probe repositions and more comprehensive imaging during a single pass, which reduces inspection time and risk of disturbing delicate components. The semi-rigid tube holds shape while bending so the camera stays on line of sight, improving stability when recording. Adjustable brightness lets you tackle reflective or very dark interiors, and the joystick control is designed for operators who prefer tactile, precise input over touch-only interfaces.

Practical Tips

Use the dual-lens mode when you need to capture both peripheral and direct views simultaneously, for example when checking combustion chambers or complex valve assemblies. For long inspections, charge the battery fully before starting and keep a clean cloth to wipe the probe after contact with oil or debris. If working in wet environments, take care around connectors and check sealing according to the manufacturer before use.
