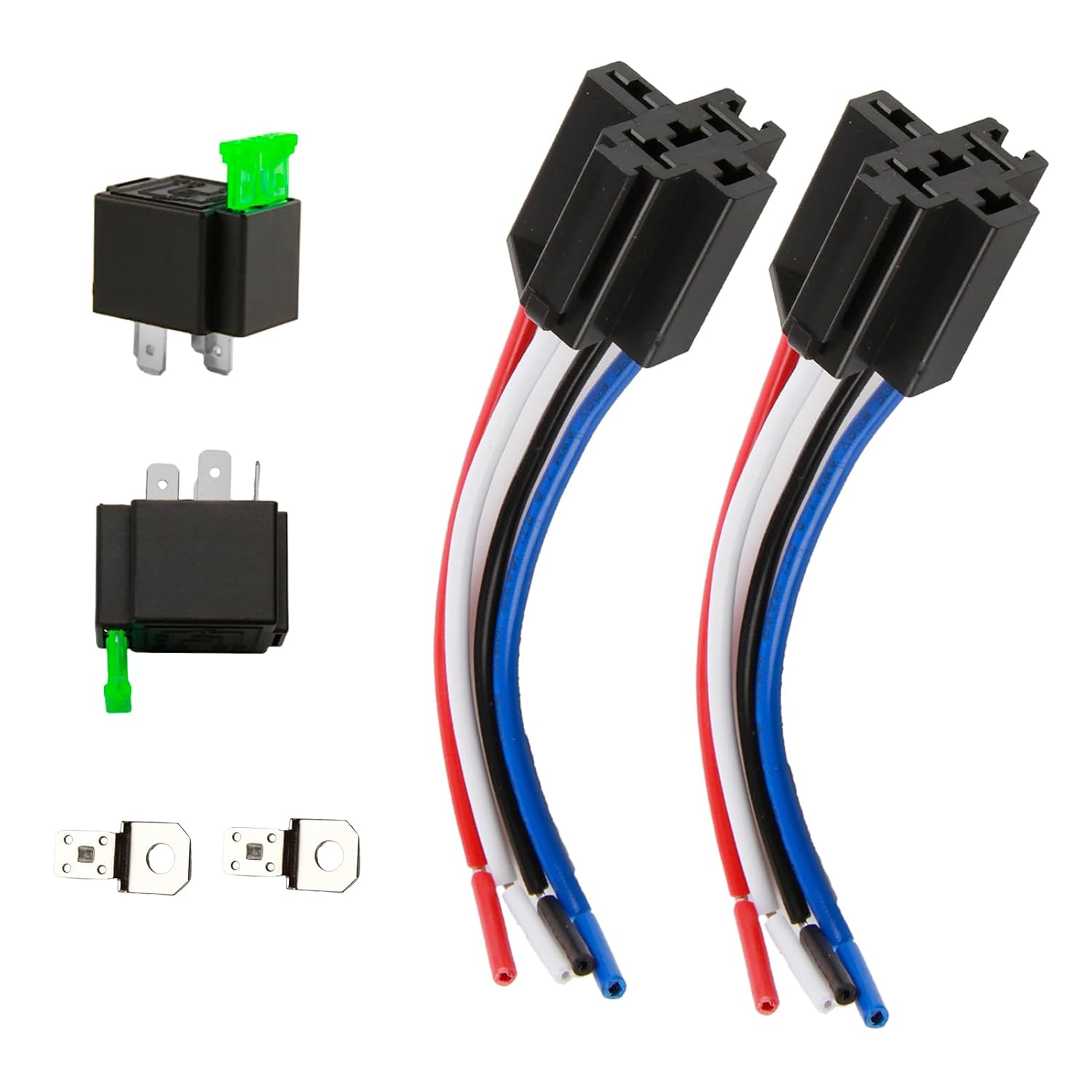

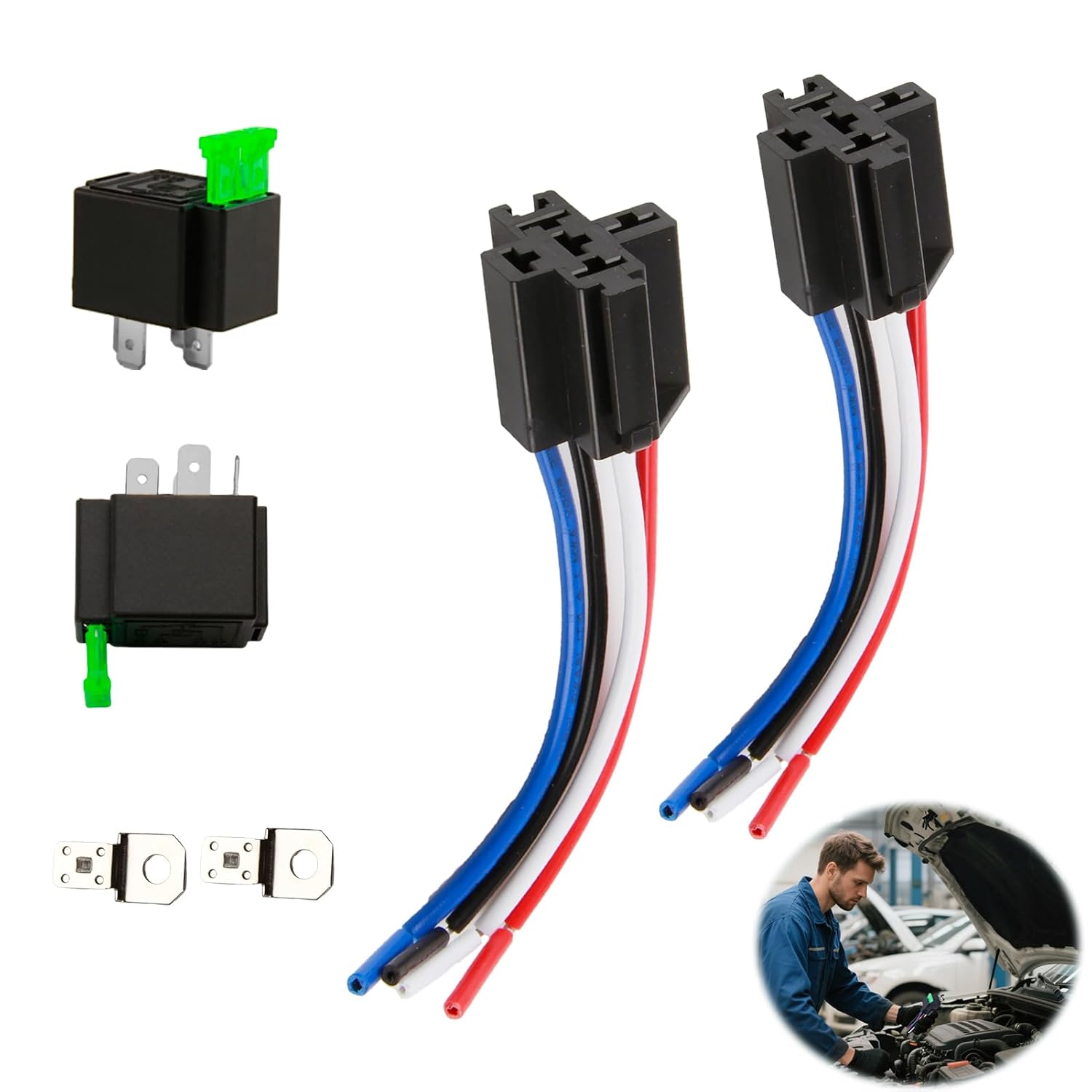

2 Packs 12V Fuse Relay Switch Harness Set with 30A Fuse and 4-Pin SPST Relays (12 AWG) – Interlocking Mount
Product description
What this is and what it helps you do
This is a pair of 12V fuse relay switch harness sets designed to simplify wiring for automotive electrical projects. Each set uses a standard 4-pin SPST relay with thicker 12 AWG wires and an integrated 30A ATO/ATC blade fuse in the relay socket. The idea is to provide a compact, durable solution for controlling high-current loads such as headlights, fog lights, fans or audio systems, while reducing the number of separate components you need to manage.
How the wiring is laid out and why that helps
Colour-marked cables make installation more intuitive. In the standard colour coding: black for ground (85), red for power (30), white for contact signal (86), and blue for output (87). This visual guide can help you avoid cross-wiring during a first-time installation and can be a real time-saver when you’re under a dash or in a tight engine bay.
Build quality and durability on paper

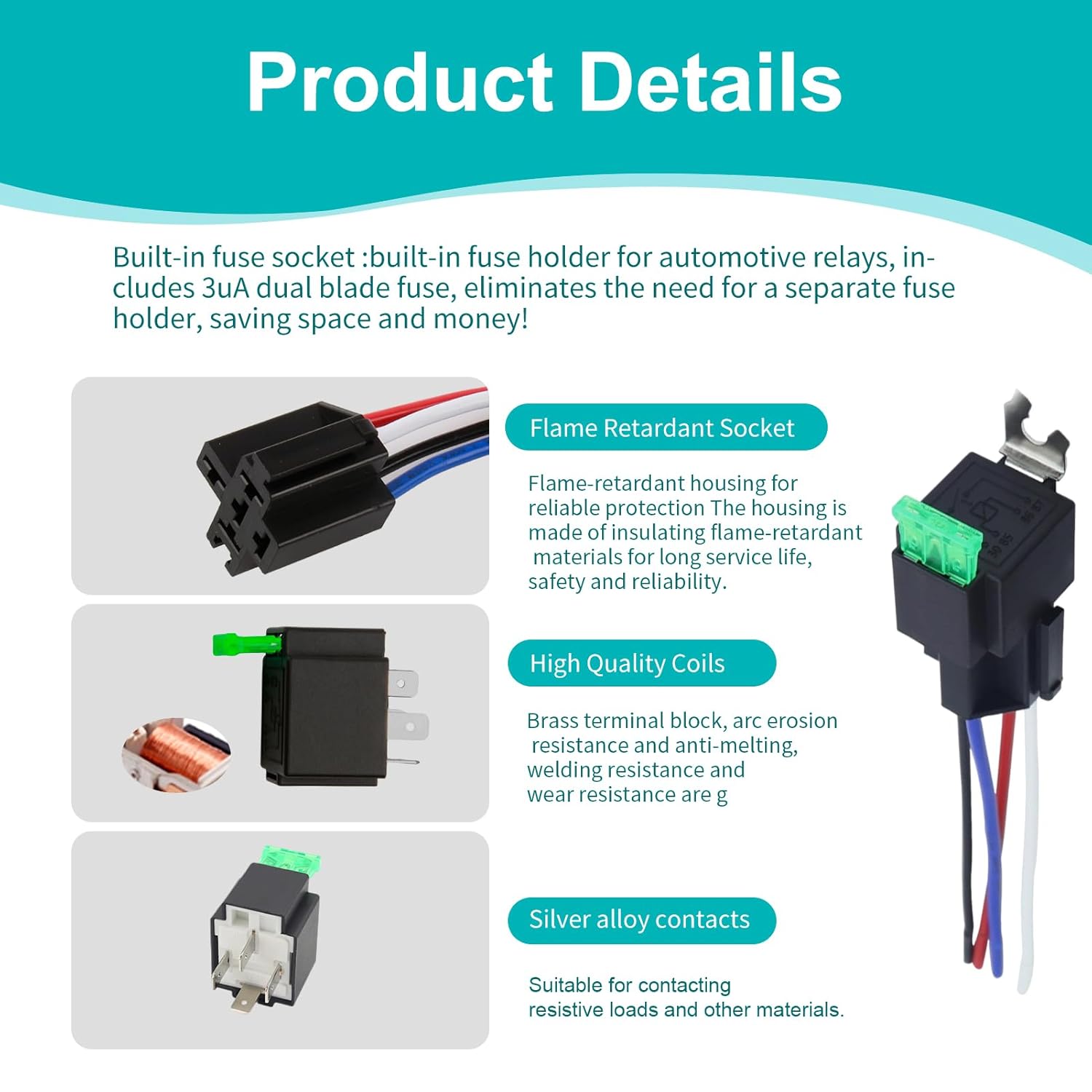

The harness uses heavy-duty 12 AWG wires to handle higher current loads with stability. The housing is described as durable and designed for environments that may involve higher temperatures, humidity, or frequent use. An integral part is the fused relay socket containing a 30A fuse, which eliminates the need for a separate fuse holder and may reduce failure points in the wiring loop.
Where it shines in practice

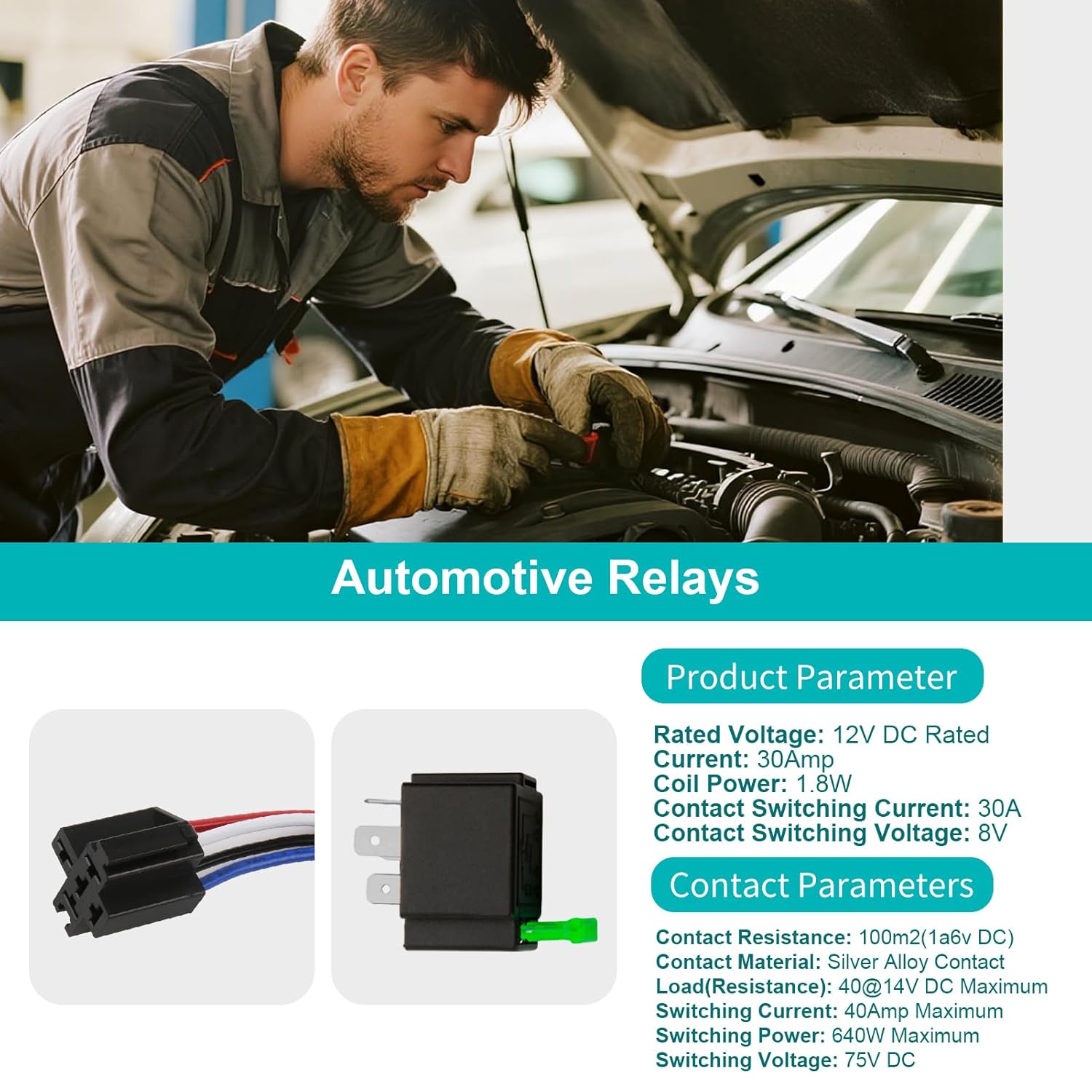

If you’re upgrading or repairing a vehicle’s electrical circuit—whether a car, truck, off-road vehicle, or RV—this set offers a ready-to-wire solution with a mounting bracket included for secure placement. The 12V DC operation supports loads up to 30A, which covers many common auxiliary circuits like headlights, wipers, fans and basic power feeds to add-ons.
What you’ll notice in day-to-day use
On the positive side, the integrated fuse and straightforward colour-coding can shorten installation time and improve safety by centralising protection closer to the load. The interlocking mount feature is helpful for a tidy, fixed installation, reducing movement-related wear.
Potential limitations worth considering
No product is perfect for every scenario. If you’re dealing with exceptionally high-current loads or unconventional voltages beyond 12V, this harness may not be suitable. Also, the provided mounting hardware is intended to simplify fitment, but you’ll still need to assess space and access in your specific vehicle. If you prioritise ultra-compact wiring or a fully sealed harness for extreme water exposure, you might want to compare with purpose-built waterproof solutions.
Who this is for
This harness set is well-suited for DIY enthusiasts doing circuit modifications or repairs in cars, trucks, boats or RVs, and for anyone who wants a compact, fuse-protected relay solution with clearer wiring. If you value a straightforward, ready-to-install arrangement and are comfortable with standard 12V automotive electronics, it should fit into your toolkit.
When it makes sense to buy
Consider this setup if you need a simple, pre-wused method to switch/load a high-current circuit without juggling separate fuse holders and multiple wires. It’s practical when you want to speed up wiring tasks and reduce potential miswiring while keeping a robust fail‑safe via the built-in fuse.
What to check before buying
- Confirm the load you intend to switch does not exceed 30A per relay.
- Ensure the space where you plan to mount the relay can accommodate the interlocking bracket.
- Verify that the vehicle’s electrical system is compatible with 12V DC operation and that you’re comfortable with basic relay wiring.
How it compares to simpler alternatives
If you’re weighing options, you might consider a standalone relay without a built-in fuse or with smaller gauge wire. In that contrast, this set offers a more integrated approach that can save time and reduce points of failure, at the cost of less customisation on a per-project basis. For high-current tasks where space is tight, the interlocking mount and thicker 12 AWG conductors are advantages that reduce voltage drop and wear over time.
FAQ (practical quick-hits)
- Do the cables come colour-coded for quick installation? Yes, black ground, red power, white signal, blue output.
- Is the fuse already inside the relay socket? Yes, a 30A ATO/ATC blade fuse is built-in.
- Can this handle 12V systems in boats or RVs? It is described as suitable for a range of vehicles, including boats and RVs, but always check the exact electrical load and environmental exposure for your setup.
Final decision — Should you buy it?
It’s worth considering if you want a pragmatic, integrated relay harness for 12V circuits up to 30A, with clearer wiring and a simple mounting solution. It may not be the best fit if you need ultra-compact size or non-standard fuse types, but for everyday automotive modifications, it offers sensible value and a straightforward installation path.
