NEEWER GM-MP2 140mm Macro Focusing Rail with 360° Rotation and Arca-Type QR Plate
Product description
What it is and why you’d want it
The NEEWER 140mm Macro Focusing Rail (GM-MP2) is a macro focusing rail built for people who want more control than “turn the focus ring and hope”. In macro photography and close-ups, small focus shifts matter a lot, especially with tight depth of field. This rail is designed to help you move the camera in a controlled way using sliders, so you can dial in focus precisely.
It also leans into video work: the smooth, repeatable movement concept makes it a sensible tool if you’re doing close-up sequences or time-lapse style shooting where the camera needs to shift consistently from frame to frame. No, it won’t replace a full rig for every studio setup, but for macro shooters who care about repeatability, it’s the kind of add-on that can make your results feel more “planned”.
Key features that affect real shooting

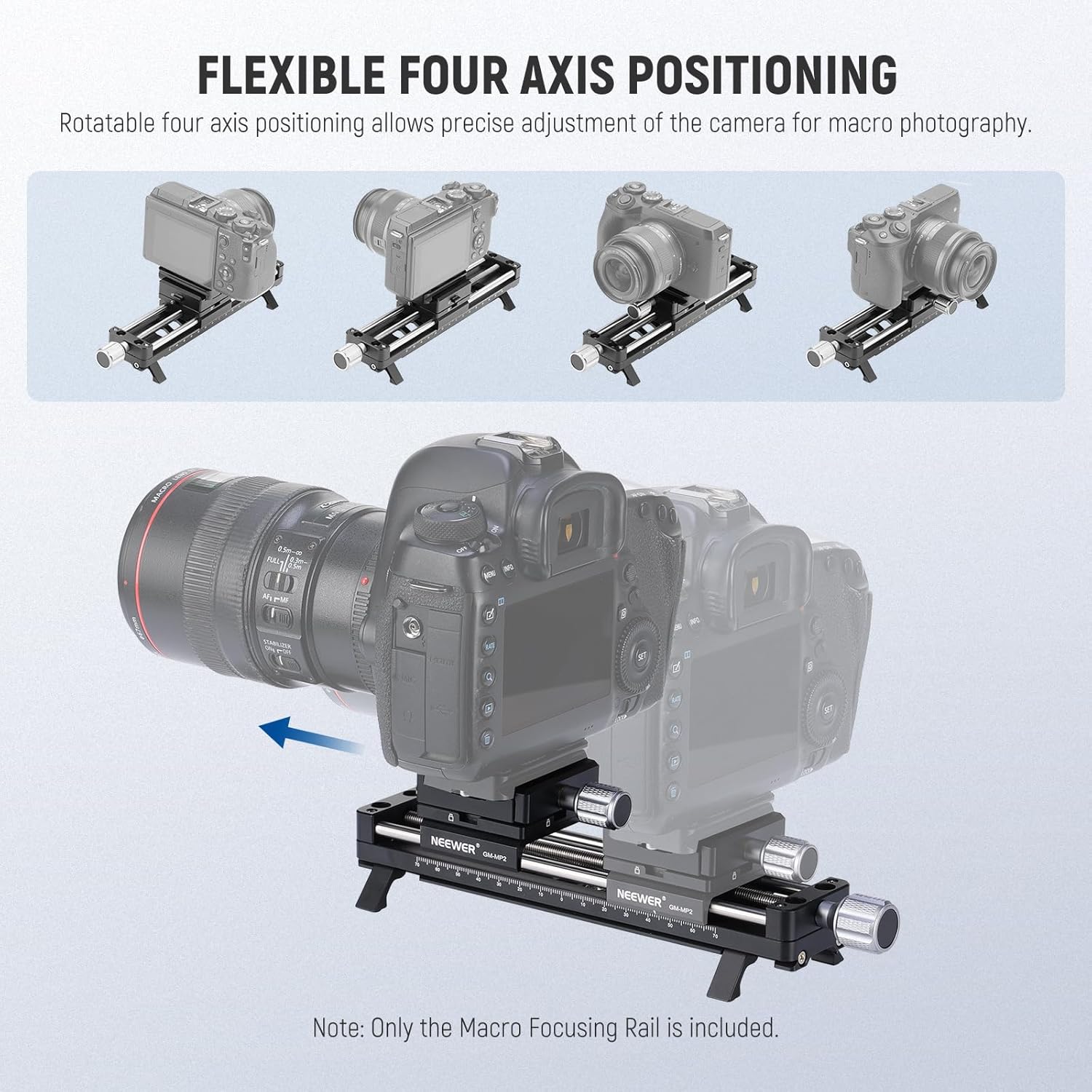

On paper, the headline benefits are the 360° rotation and the multi-direction locking. The rail supports 360° rotation, and it can lock in 90° positions in four directions. That’s the practical bit: it lets you orient the rail how you want, then lock it so the movement stays stable while you focus.

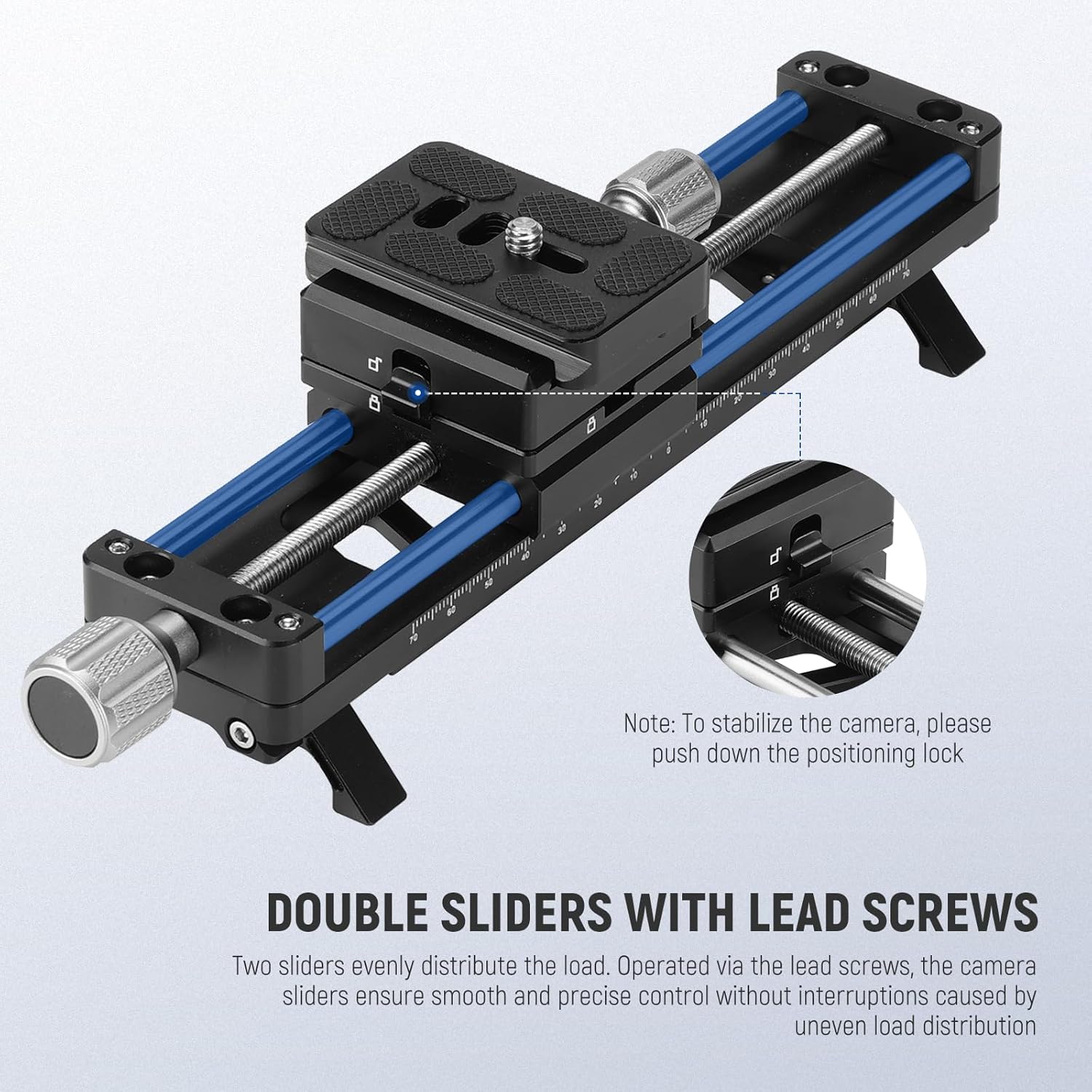

Another thing worth noting is how the movement is driven. The description points to double sliders operated via lead screws. That matters for macro work because lead screws are meant to give you smooth, controlled travel rather than jerky motion.
What stands out in use
When you’re doing a close-up, the “feel” of the focusing mechanism can be as important as the specs. With evenly distributed load across two sliders, the system is designed to reduce the chance of uneven behaviour while the camera moves. In practical terms, that can help if you’re trying to keep your framing steady while shifting focus.

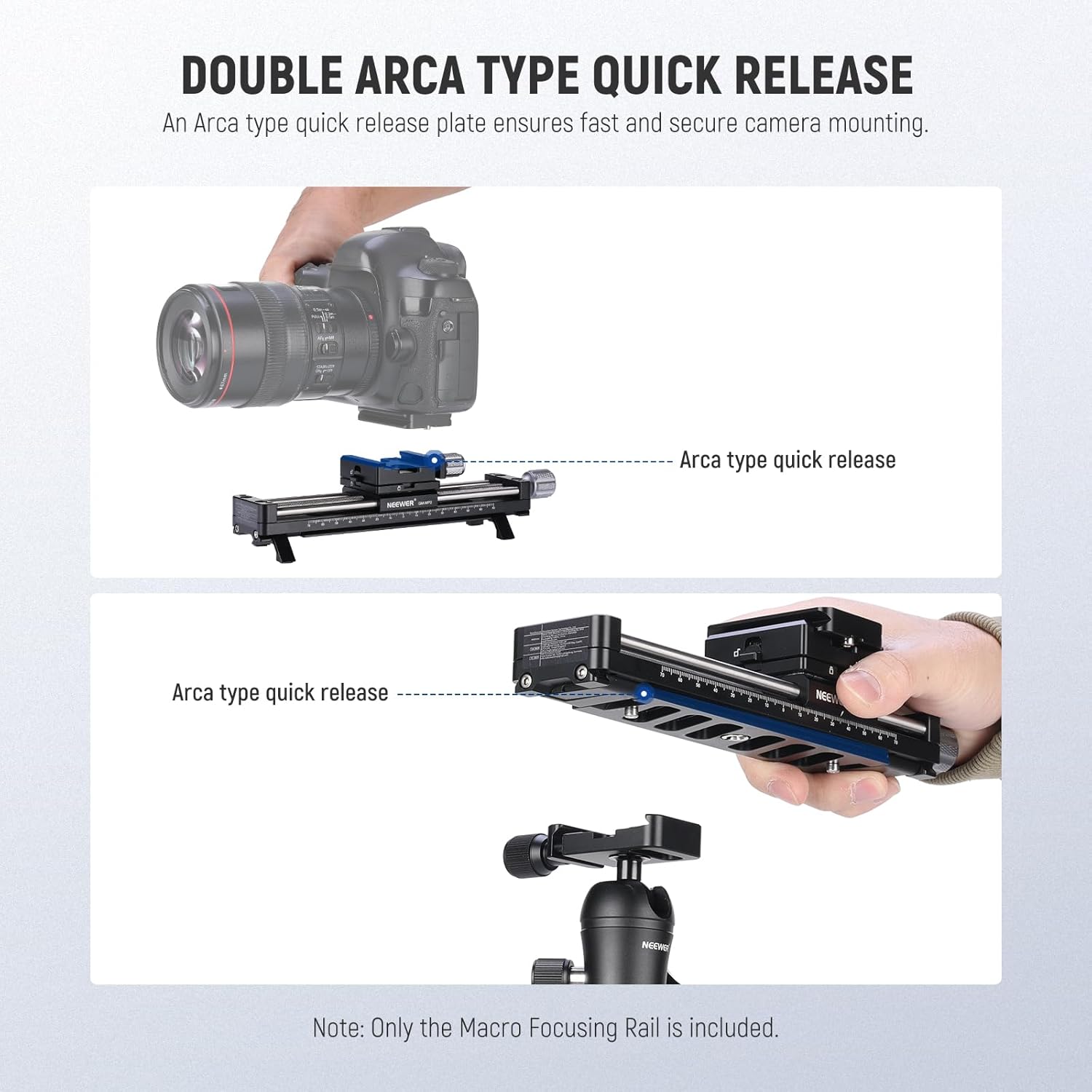

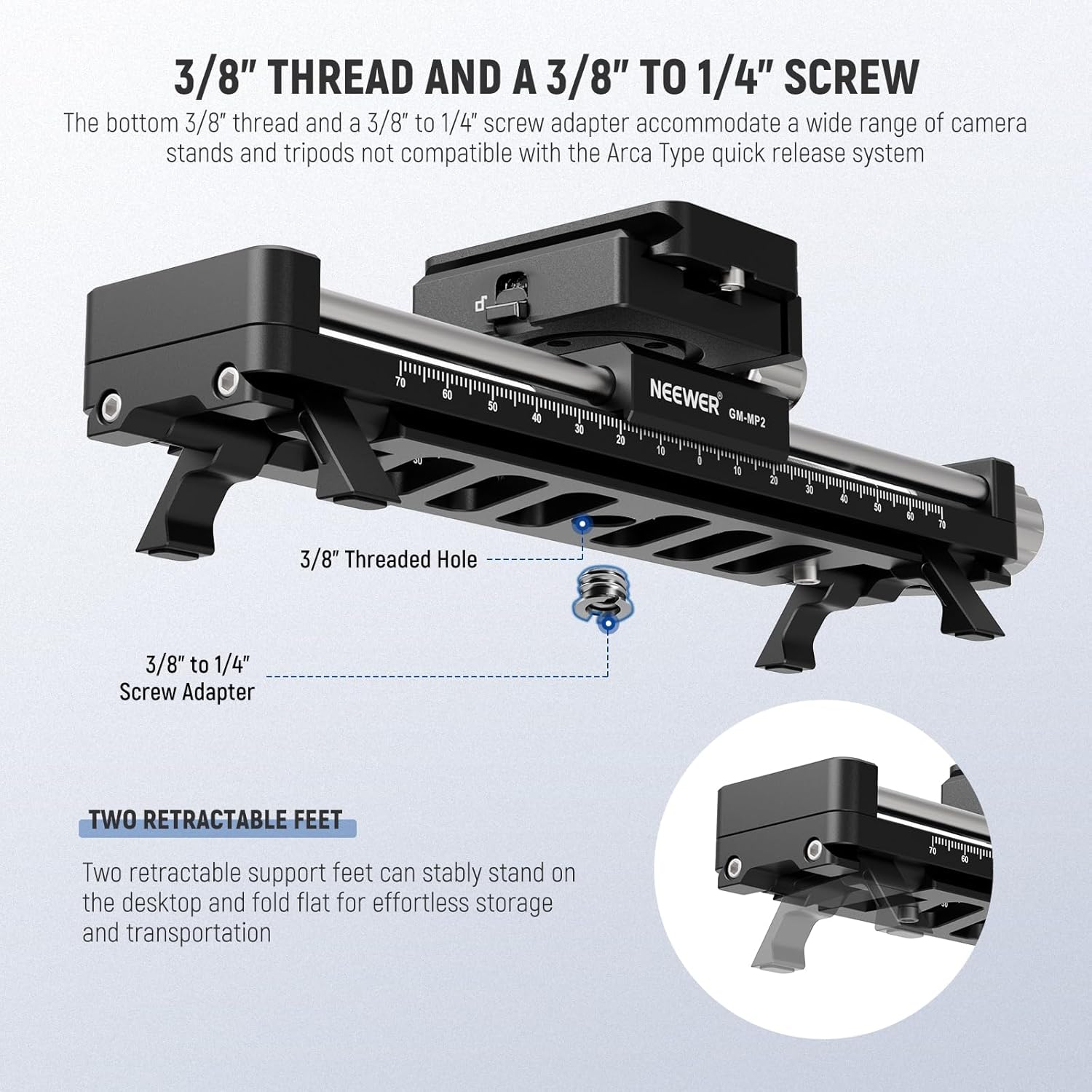

The Arca type quick release plate is also aimed at convenience. If your setup already uses Arca-type components (for example, an Arca type tripod head), the camera mounting should be quicker. The rail’s bottom threads and adapter are there to widen compatibility: it mentions a 3/8" thread and a 3/8" to 1/4" screw adapter for stands and tripods that aren’t Arca compatible.
Locking, range, and stability: where to be realistic

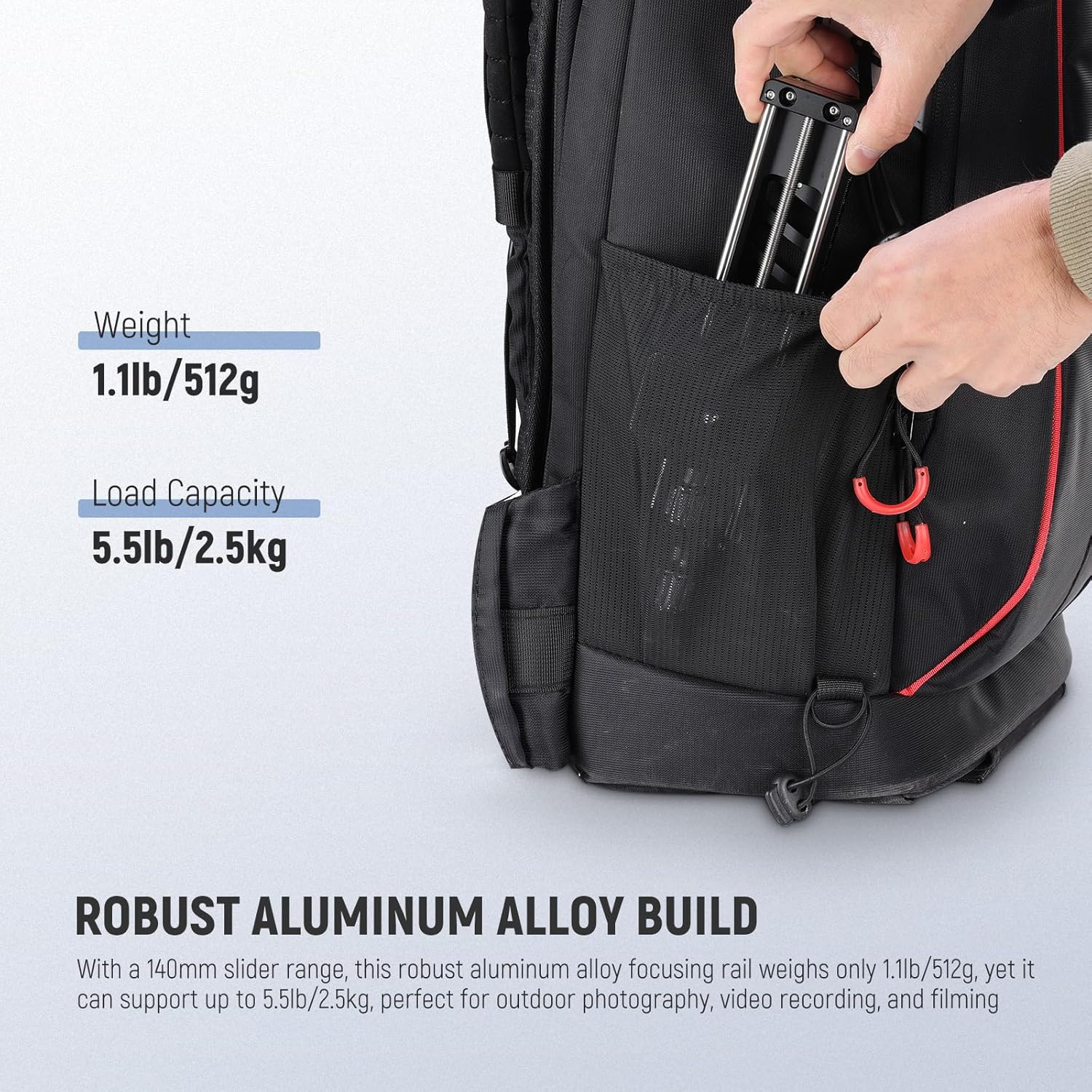

The focusing rail range is listed as 140mm, and the build is an aluminium alloy design. The description also claims it weighs about 512g, yet supports up to 2.5kg. That’s a strong combo for a portable macro accessory.
Still, a small limitation to keep in mind: you’ll need to stabilise your setup properly. The description specifically mentions that to stabilise the camera, you should push down the positioning lock. If you’re careless with that step, any focusing rail can feel like it’s fighting you.
Also, if you expect this to be “one rail does everything” for every macro rig geometry, you may find it a bit more constrained than a fully modular high-end rail system. It’s very much designed around controlled macro close-up movement, not every possible cinematography workflow.
Tech specs (as stated)
- Name: NEEWER 140mm Macro Focusing Rail, Macro Rail Slider with 360° Rotation, 4 Directional Locking, Retractable Feet, Acra Type QR Plate, 1/4" & 3/8" Screw for Macro Photography Close Up Shooting, GM-MP2
- Type: Macro focusing rail
- Size: 140mm slider range
- Weight: 1.1lb/512g
- Load support: up to 5.5lb/2.5kg
- Build: robust aluminum alloy
- Rotation: 360° rotation
- Locking: 90° locking in four directions
- Slider control: lead screws
- Mounting: Arca type quick release plate
- Threads: bottom 3/8" thread
- Adapter: 3/8" to 1/4" screw adapter
- Feet: two retractable support feet (fold flat for storage)
Who it suits (and who should pause)

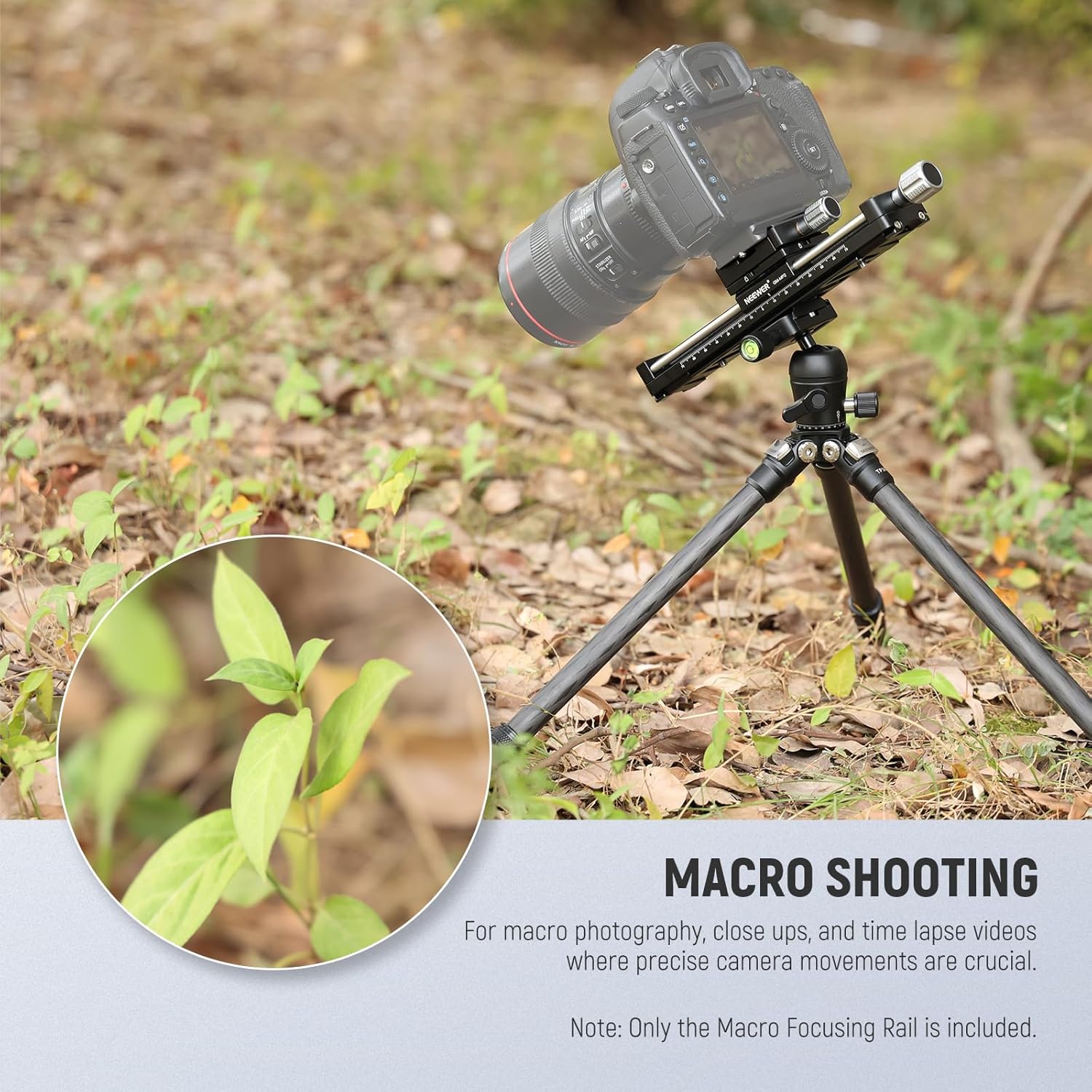

It’s a good fit if you regularly shoot macro photography and want controlled, accurate focus shifts for close-ups, or if you’re exploring time-lapse-style sequences where smooth, consistent movement is important.
It may not suit you if your primary goal is fast, handheld-style macro shooting. This is a rail-based approach, so you’ll get the most from it when your camera is mounted and stabilised.
You may want to skip it if you’re already happy with manual focus on a stable tripod setup and don’t really need repeatable micro-movements. In that case, spending on a focusing rail could feel like overkill.
Getting the most from it (quick practical example)
Imagine you’re photographing a small subject (like a flower detail) and the depth of field is so thin that one slight shift changes what’s sharp. You mount the camera via the Arca type quick release plate (or via the listed screw/adapter route), lock the rail in the direction you want, then use the lead screw-driven sliders to move the camera in controlled increments. For video or time-lapse, that same controlled movement is what helps you capture a sequence without “guessing” the next focus point.
Is it worth it?
Worth considering if you want a macro focusing rail that focuses on smooth, controlled camera movement, with 360° rotation and multi-direction locking, plus an Arca-type quick release plate for quicker setup. The retractable feet and aluminium alloy build also point towards something you can actually take out for close-up work.
Not the best choice if your workflow is mostly handheld, or if you don’t need precise, repeatable focus shifts. And do keep in mind the stabilisation note about pushing down the positioning lock—this kind of gear is only as steady as the way it’s secured.
Mini FAQ
Does it work with Arca-type tripod heads?
The description says the base connects to an Arca type tripod head for stable shooting, using an Arca type quick release plate.
What if my tripod isn’t Arca compatible?
It mentions a bottom 3/8" thread and a 3/8" to 1/4" screw adapter, intended to accommodate stands and tripods that aren’t compatible with the Arca Type quick release system.
Is it suitable for video or time-lapse?
The description specifically calls out close-up shooting and time lapse videos where precise camera movements are crucial.
How much travel does it offer?
The stated slider range is 140mm.
Does it come with retractable feet?
Yes, it has two retractable support feet that can stand on a desktop and fold flat for storage and transport.
