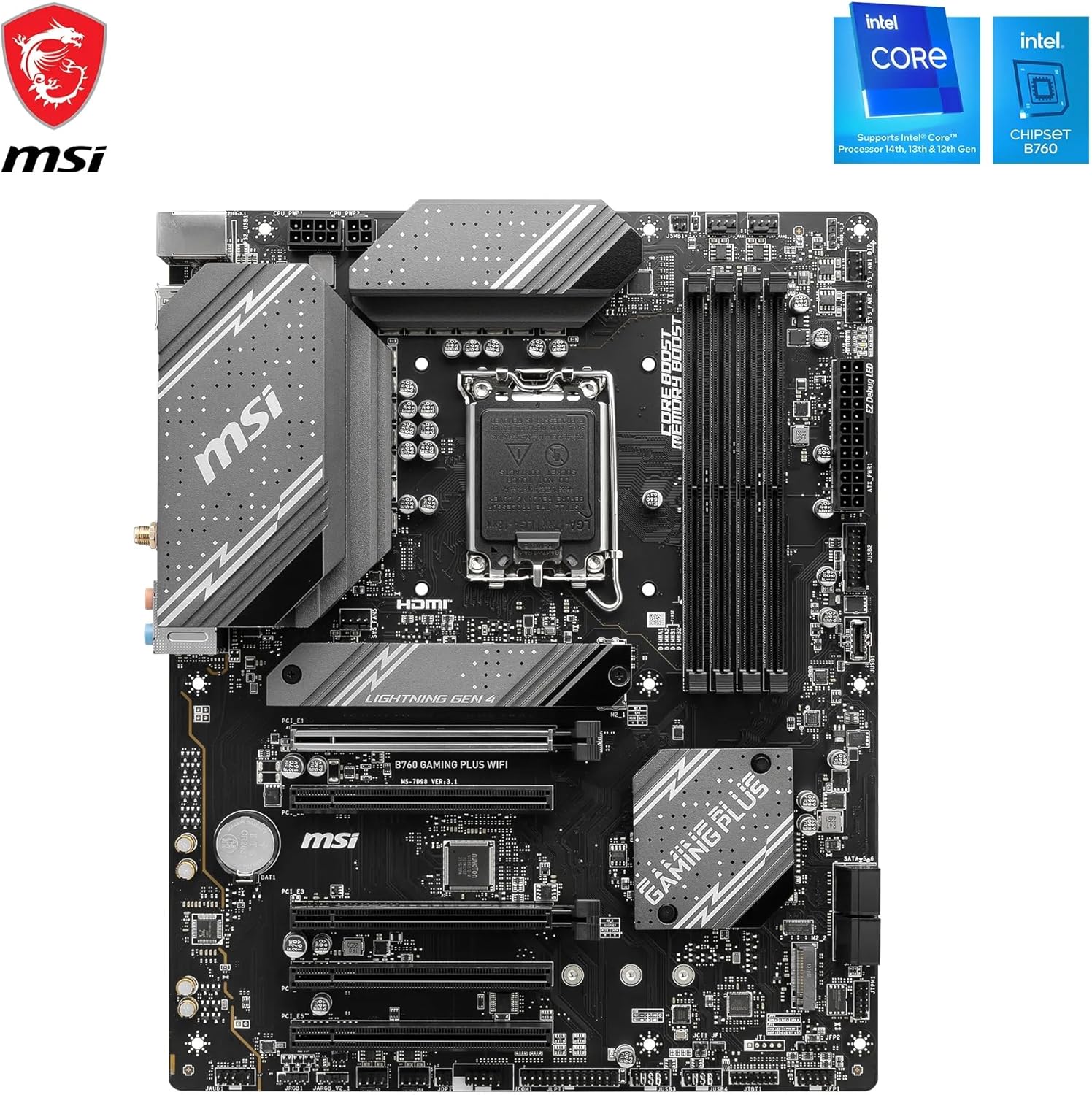

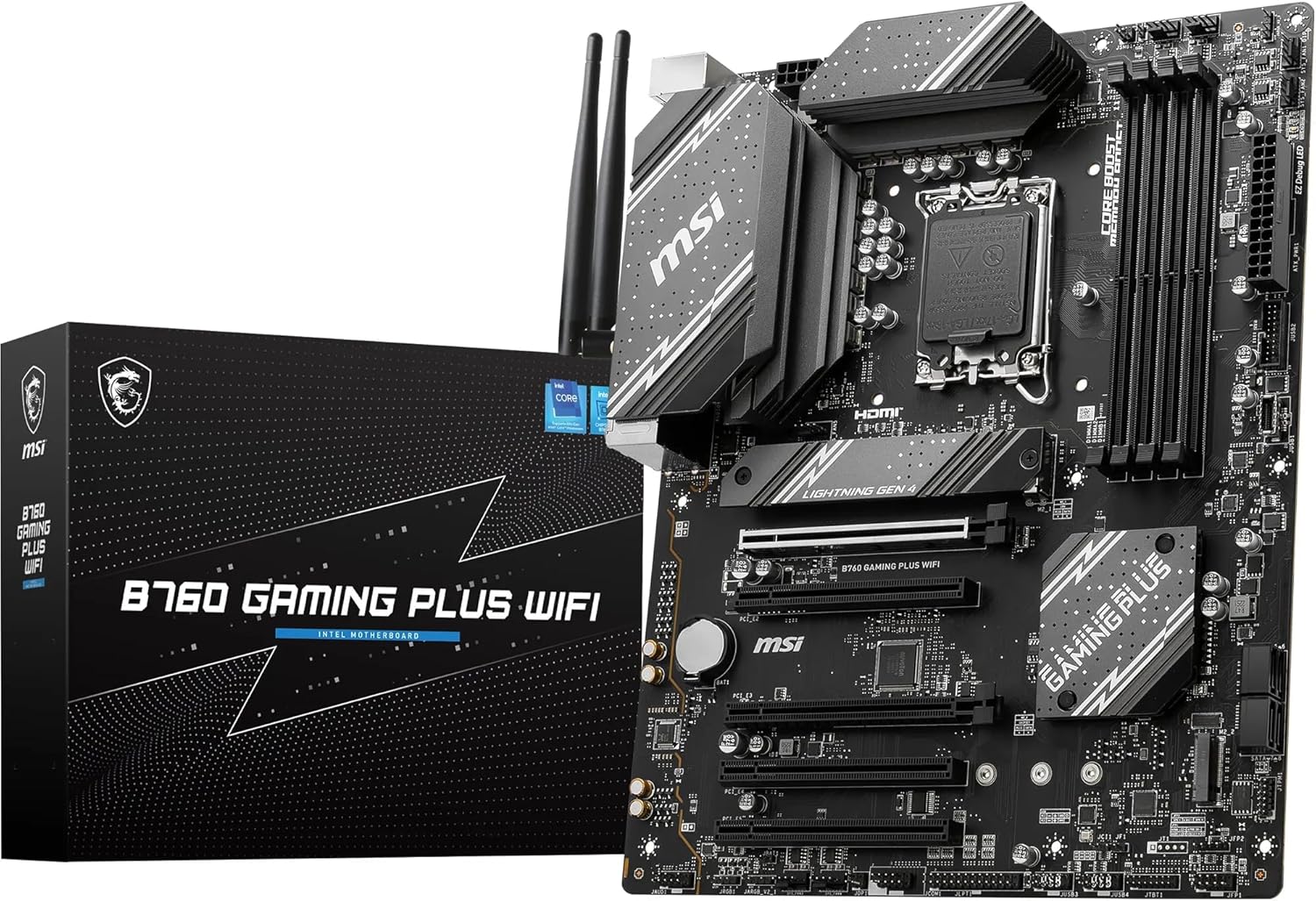

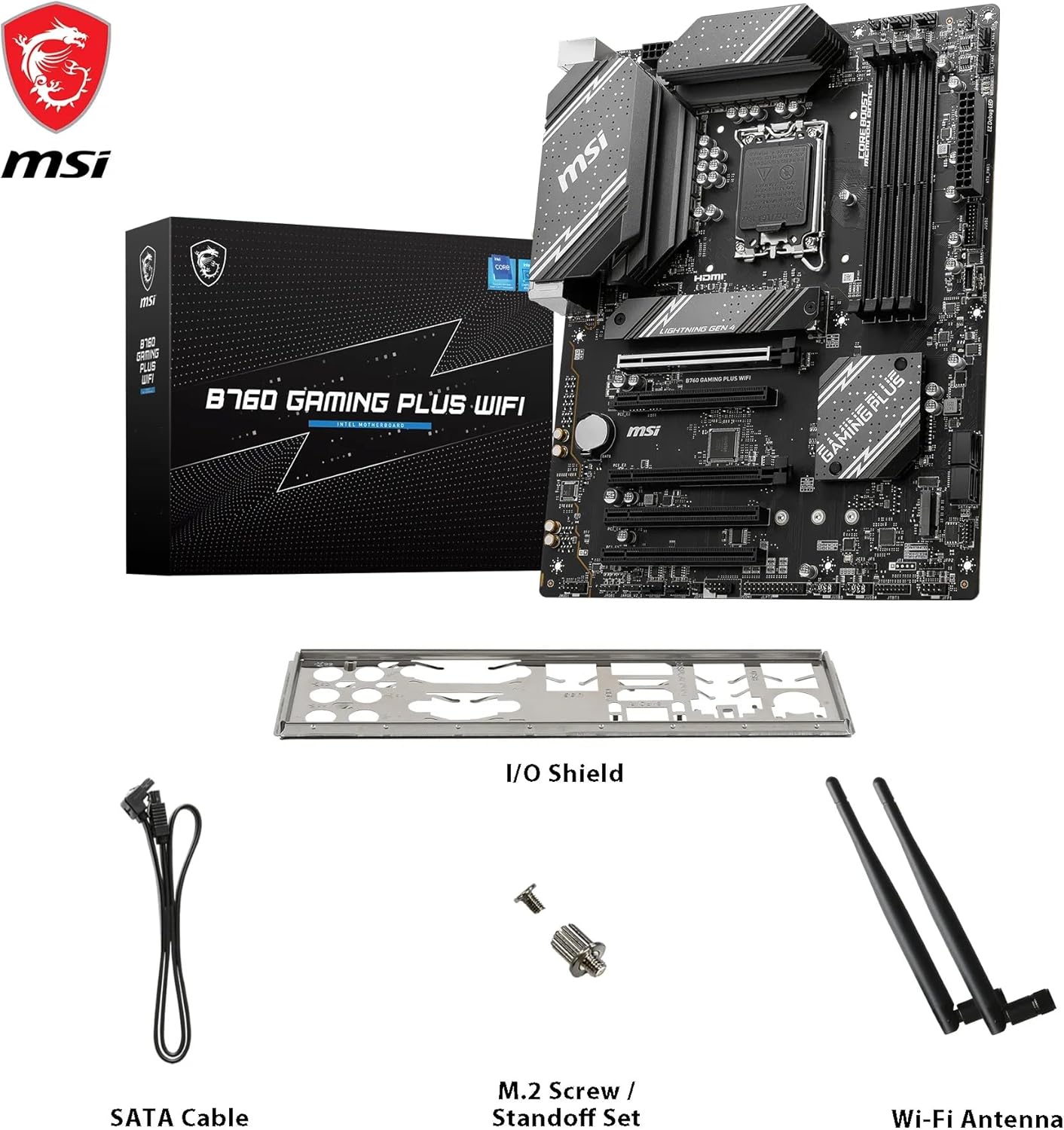

MSI B760 GAMING PLUS WIFI (ATX) LGA 1700 motherboard with Wi‑Fi 6E and DDR5 support
Product description
The essentials
If you’re building a modern Intel-based ATX system and want Wi‑Fi built in, the MSI B760 GAMING PLUS WIFI is a fairly straightforward choice on paper: it’s a B760 chipset board for LGA 1700 CPUs (supports 14th, 13th and 12th Gen Core), paired with DDR5 memory and dual PCIe 4.0 x16 graphics slots. It also leans into day-to-day practicality with a Wi‑Fi 6E module plus 2.5G LAN.
It’s not trying to be a full-on halo board, but it looks like it’s aiming for sensible stability and cooling where it matters—especially around the VRM and M.2 storage—rather than flashy extras you’ll only notice in benchmarks. That approach can make sense if you’re mostly after a dependable gaming/creator PC that runs cleanly under normal sustained loads.
What stands out in everyday use
Power and cooling where it matters
The board uses a 12 Duet Rail Power System (P‑PAK) VRM for the Intel B760 chipset and includes MSI Core Boost technology for improved stability and performance. Around the VRM, MSI mentions integrated cooling with 7W/mK MOSFET thermal pads and an extended heatsink, plus a chipset heatsink.
On the practical side, this is the sort of design that can help keep thermals under control when your CPU is working continuously—think longer game sessions, exporting video, or running heavier workloads without “waiting for it to calm down”.
Memory and upgrade headroom

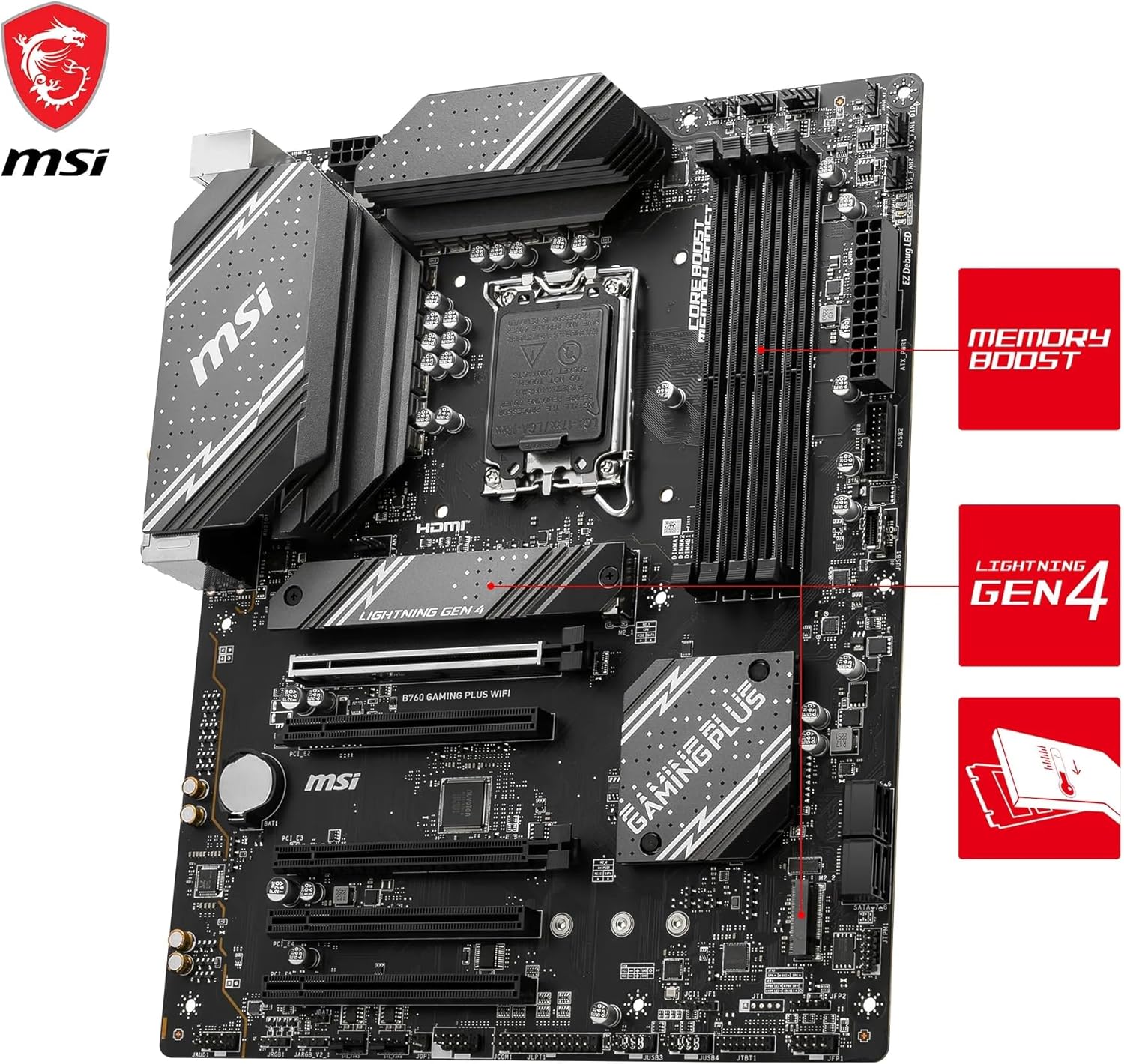

You get four DDR5 DIMM slots and Memory Boost isolated circuitry for overclocking, with support stated as 6800+ MHz (1DPC 1R). If your plan includes tuning RAM speeds, it’s the right category of motherboard to consider.
That said, RAM overclocking results can vary depending on the CPU and memory kit you choose. So while 6800+ MHz/OC is clearly part of the pitch, it’s worth treating it as “potential with the right setup”, not something guaranteed in every configuration.
Storage cooling for faster M.2 drives
There are 2 x M.2 Gen4 x4 64Gbps slots. MSI also includes Shield Frozr cooling on the primary M.2 slot, specifically described as helping prevent thermal throttling during hyper-fast SSD access.
If you regularly move large files or you’re installing games on an NVMe drive, this is one of those touches that can help the system behave more consistently, especially in warmer cases.
Connectivity and I/O you’ll actually use
Wi‑Fi 6E plus 2.5G LAN
The integrated Intel Wi‑Fi 6E module includes Bluetooth 5.3. Alongside that, the board provides 2.5G LAN. This combination is useful if you want wireless convenience but still prefer a wired connection when you can.

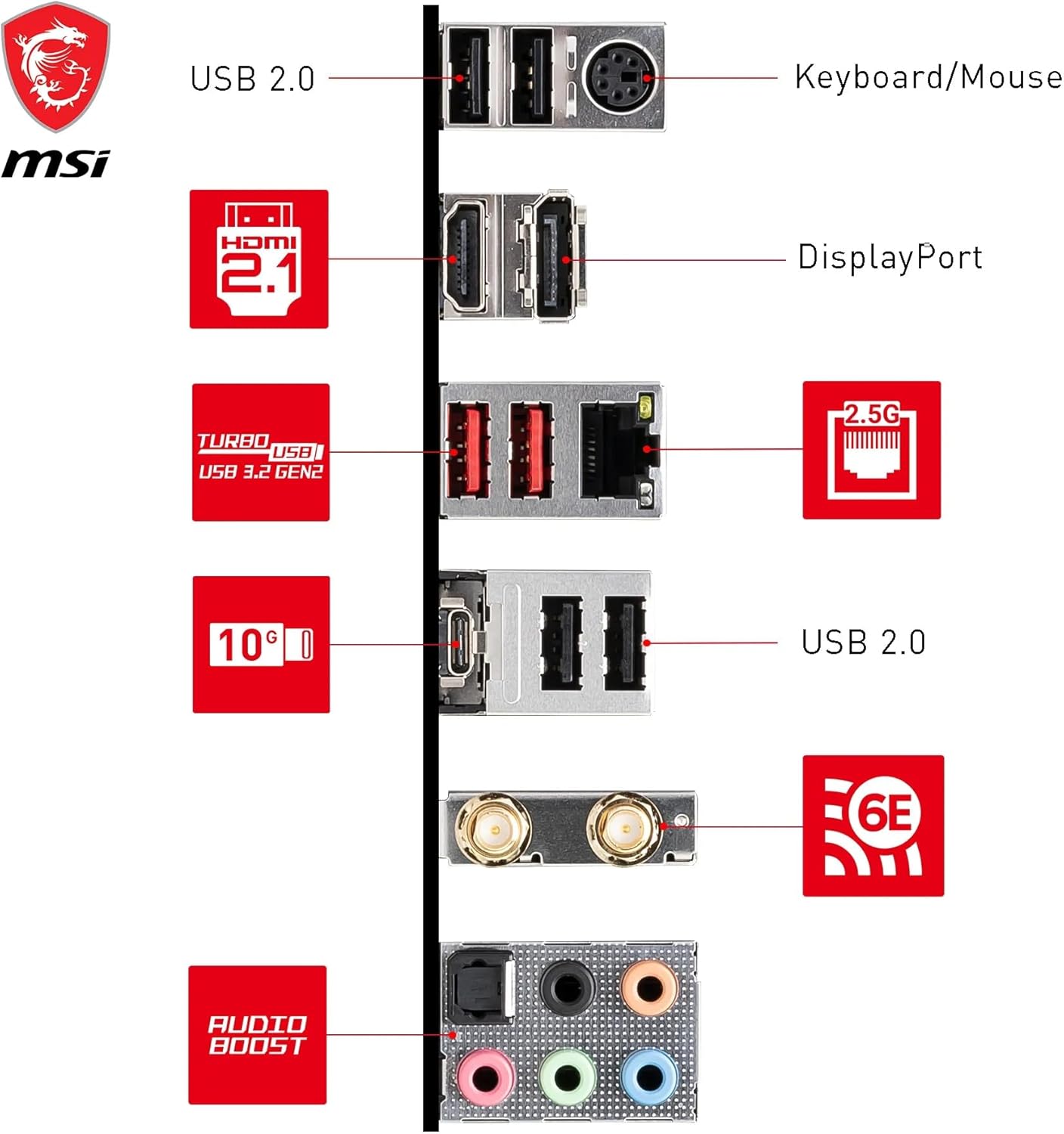

Rear ports and display options
On the rear, you’ll see HDMI 2.1 and DisplayPort 1.4 alongside USB 3.2 Gen 2 Type‑C and Type‑A ports (10Gbps). For audio, it lists 7.1 HD Audio with Audio Boost, including support for S/PDIF output.
If you’re aiming for a tidy setup with modern peripherals, the USB speed and the mix of video outputs can be handy. Still, if your primary intent is to use only one monitor and one USB device, it may be more I/O than you truly need—this board is better thought of as an all-rounder with room to grow.
Tech specs
- Chipset: Intel B760
- CPU socket: LGA 1700 (supports 14th, 13th & 12th Gen Core processors)
- Motherboard format: ATX
- Memory: 4 x DDR5 DIMM slots, Memory Boost (isolated circuitry for overclocking), supports 6800+ MHz/OC (1DPC 1R)

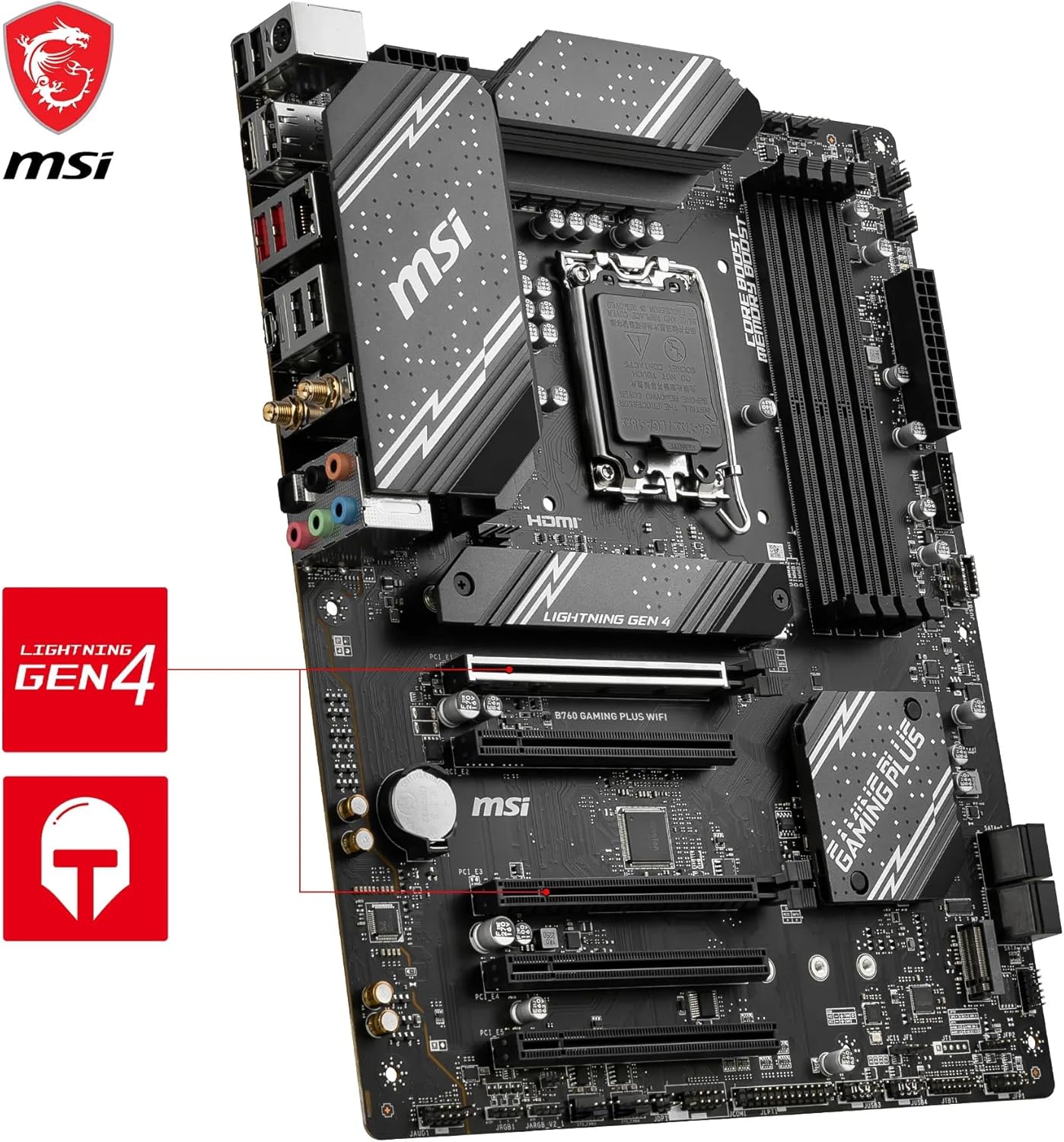

- PCIe slots: 2 x PCIe 4.0 x16 (64GB/s)
- Graphics slot detail: primary PCIe x16 slot includes Steel Armor
- Storage: 2 x M.2 Gen4 x4 64Gbps slots (primary has Shield Frozr to help prevent thermal throttling)
- VRM/power: 12 Duet Rail Power System (P‑PAK) VRM, MSI Core Boost
- Cooling: VRM cooling with 7W/mK MOSFET thermal pads and extended heatsink, chipset heatsink, M.2 Shield Frozr, dedicated pump-fan cooling header
- Networking: Intel Wi‑Fi 6E module with Bluetooth 5.3 and 2.5Gbps LAN
- Rear I/O highlights: USB 3.2 Gen 2 Type‑C and Type‑A (10Gbps), HDMI 2.1, DisplayPort 1.4
- Audio: 7.1 HD Audio with Audio Boost, supports S/PDIF output

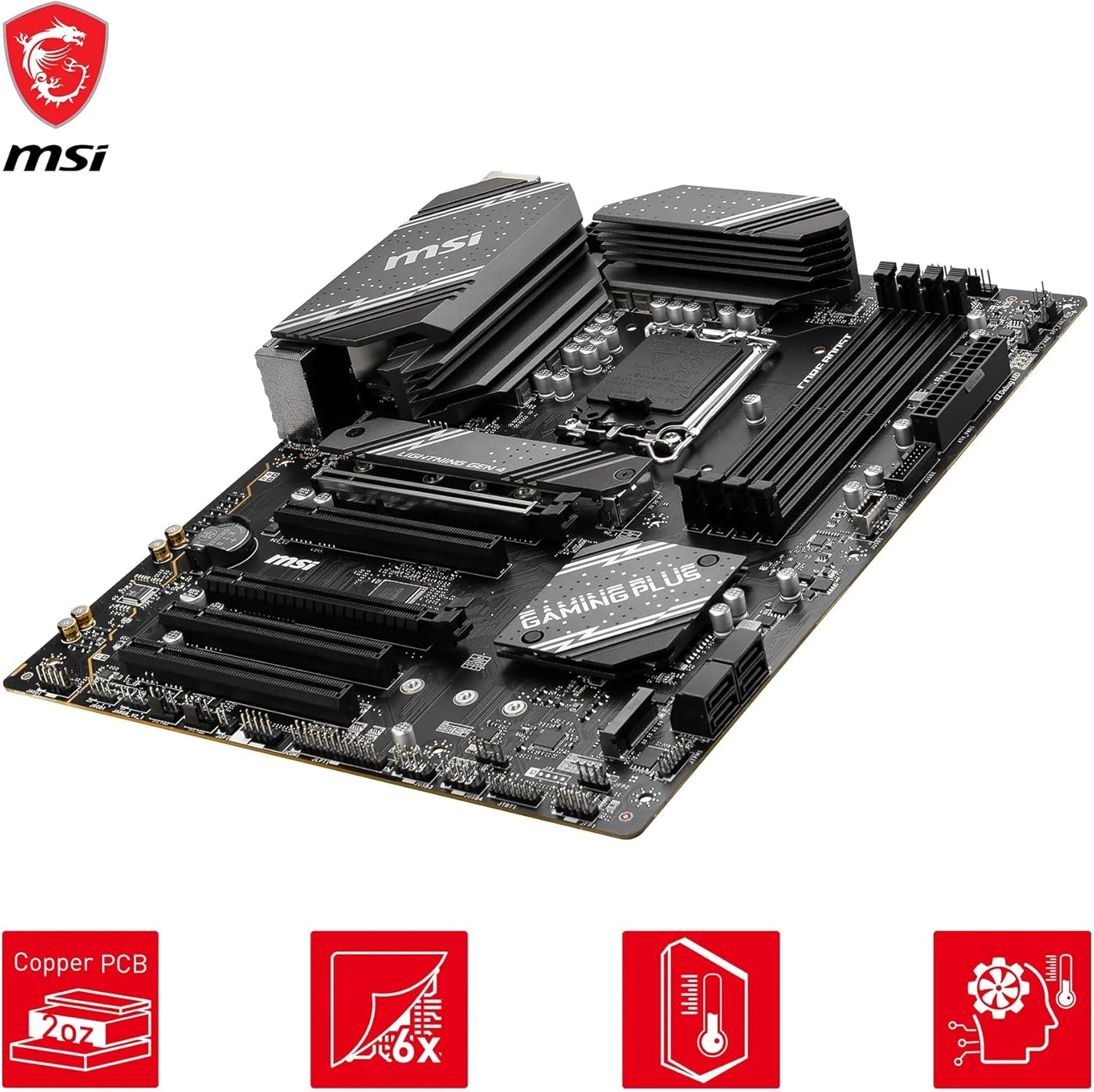

- PCB: 6-layer PCB with 2 oz thickened copper DDR5
Where it makes sense (and where it doesn’t)
It makes sense if you’re building an ATX PC around an Intel 12th/13th/14th Gen Core CPU and you want DDR5, Wi‑Fi 6E, and a board that’s clearly designed with cooling in mind for both VRM and M.2.
You may want to skip it if you’re after a purely budget-focused motherboard, because B760 boards with built-in Wi‑Fi and the extra cooling features tend to cost more than the simplest “wired-only” options. And if you have no intention of using Wi‑Fi and you’re not going to populate M.2 storage, you might not feel the benefit as much.
A small reality check too: “Supports 6800+ MHz/OC” is the headline, but actual stability depends on your CPU and memory kit. If you just want plug-and-play without tuning, you can still buy this comfortably—but don’t treat the overclock headline as a guaranteed result.
Getting the most from it
Here’s a practical way to think about the build. If you’re putting an NVMe SSD in the primary M.2 slot, the Shield Frozr cooling is relevant—especially if you’re doing sustained installs, game libraries, or repeated file transfers. Pair that with the VRM cooling design and a case with reasonable airflow, and the board is more likely to feel “steady” over time rather than getting warm and throttling.
If you’re planning multi-drive storage, the dual M.2 Gen4 slots give you flexibility. Just make sure your case layout allows both drives to be installed neatly, and don’t forget to plan the CPU power and fan headers you’ll use.
Final verdict
When it makes sense
Worth considering if you want an ATX MSI B760 motherboard for LGA 1700 with DDR5 support, Wi‑Fi 6E built in, 2.5G LAN, and two PCIe 4.0 x16 slots plus dual M.2 Gen4 storage with cooling.
Not the best match if
You may want to look elsewhere if your priority is absolute minimum spend, or if you’re only building a very basic PC where you won’t use the Wi‑Fi, the extra connectivity, or the multi-drive capability.
Quick buying checklist before you commit
Before buying, double-check that your CPU is compatible with LGA 1700 (12th/13th/14th Gen Core, as listed), that your intended DDR5 kit is what you can use comfortably at the speeds you’re targeting, and that your case supports ATX and the layout you want for drives.
Mini FAQ
Can this motherboard use Intel 14th Gen CPUs?
Yes—according to the product details, it supports Intel 14th, 13th and 12th Gen Core processors on the LGA 1700 socket.
Does it have Wi‑Fi built in?
It includes an Intel Wi‑Fi 6E module, plus Bluetooth 5.3. It also has 2.5Gbps LAN if you prefer wired.
How many M.2 drives can you install?
It lists 2 x M.2 Gen4 x4 64Gbps slots, with cooling (Shield Frozr) on the primary slot to help reduce thermal throttling.
What about graphics expansion?
There are 2 x PCIe 4.0 x16 slots, and the primary PCIe x16 slot includes Steel Armor.
Does it support DDR5 overclocking?
The board mentions Memory Boost isolated circuitry for overclocking and lists support for 6800+ MHz/OC (1DPC 1R). As with any OC, stability depends on your specific CPU and memory kit.
