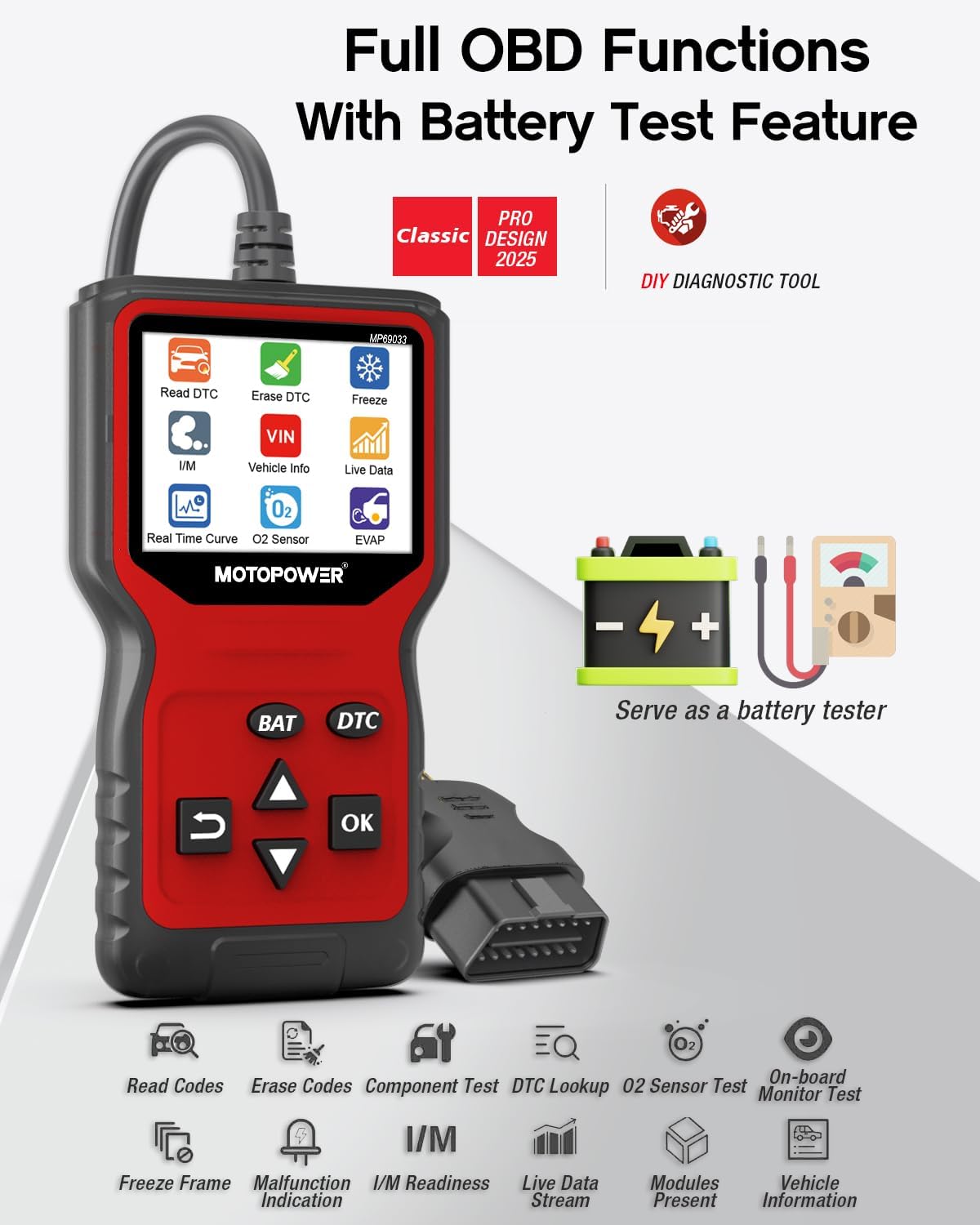

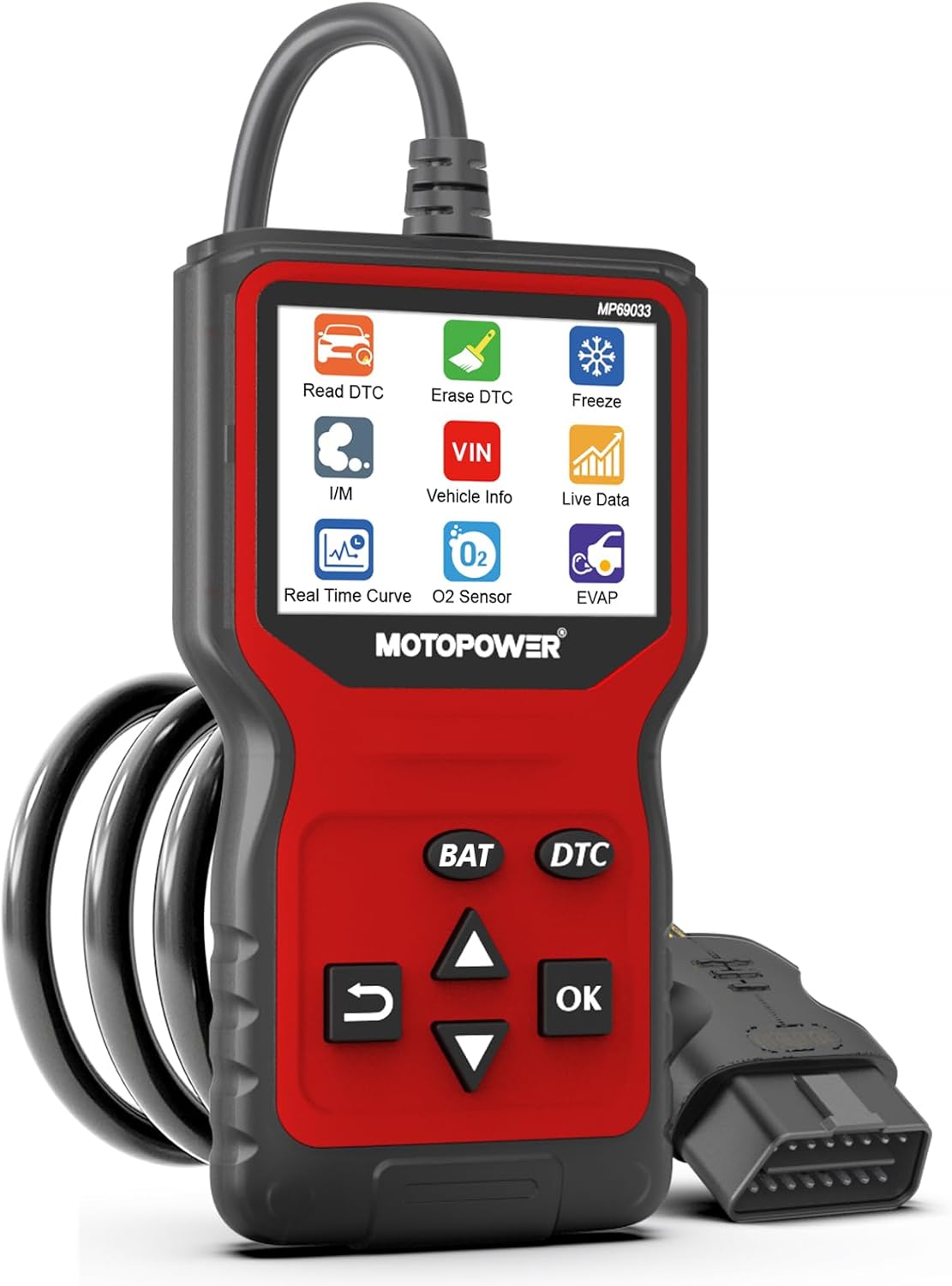

MOTOPOWER MP69033 Pro OBD2 Scanner with Battery Tester
Product description
This compact OBD2 scanner combines engine diagnostics with a battery and alternator tester, offering quick checks for daily garages and DIY mechanics. It helps identify engine fault codes, view live data and monitor battery health, making routine troubleshooting faster and more informed.
Key Points

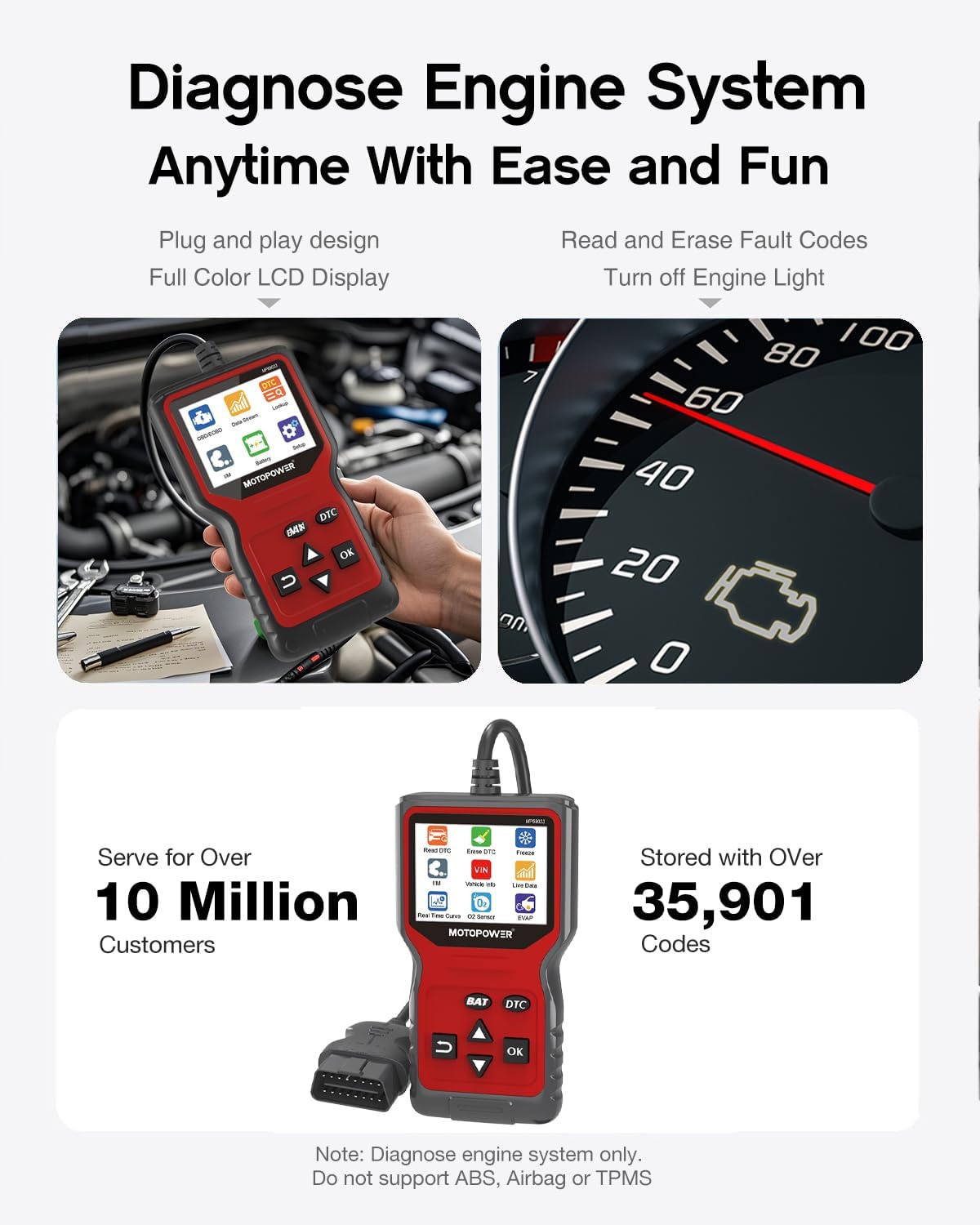

The unit reads and erases OBDII diagnostic trouble codes and displays code definitions from a built-in library. Real-time data stream and freeze frame help you observe parameters such as engine speed, coolant temperature and vehicle speed while diagnosing faults. The battery and alternator tests include ripple analysis to detect diode issues and measure starting performance, which can clarify whether a charging or battery problem is present. It is plug and play and does not require apps or WiFi, so operation is straightforward for non-professionals and workshop users alike. Consider that ABS and airbag systems are not supported because these are outside standard OBDII functions.
Technical Specifications
- Name: MOTOPOWER MP69033 Pro OBD2 Scanner
- Screen: 2.8-inch TFT colour display
- Protocols: KWP2000, J1850 VPW, ISO9141, J1850 PWM, CAN

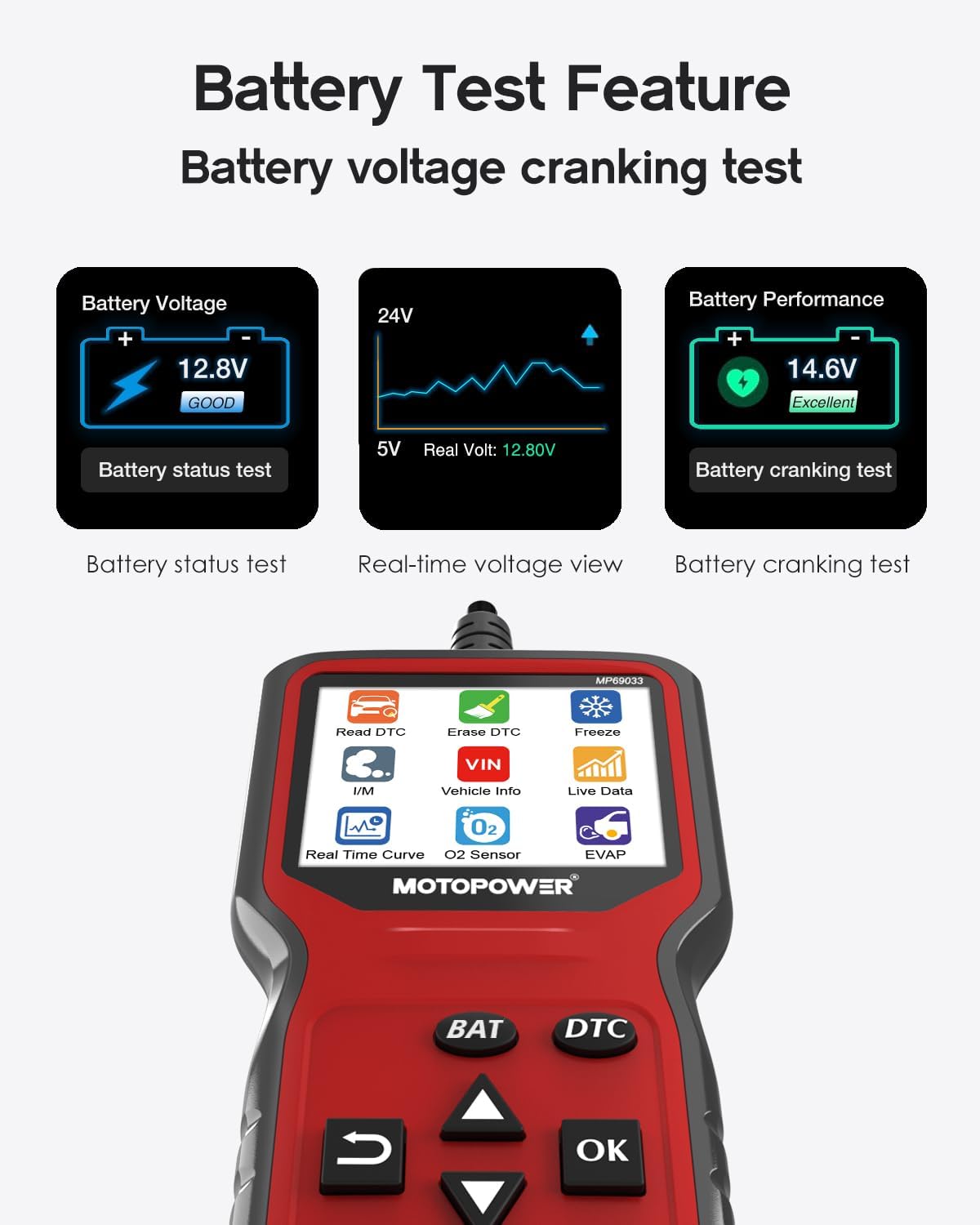

- Battery test: 12V battery health and alternator output with live ripple analysis
- Languages: English, German, Dutch, Spanish, French, Italian, Russian, Chinese
Usage Recommendations

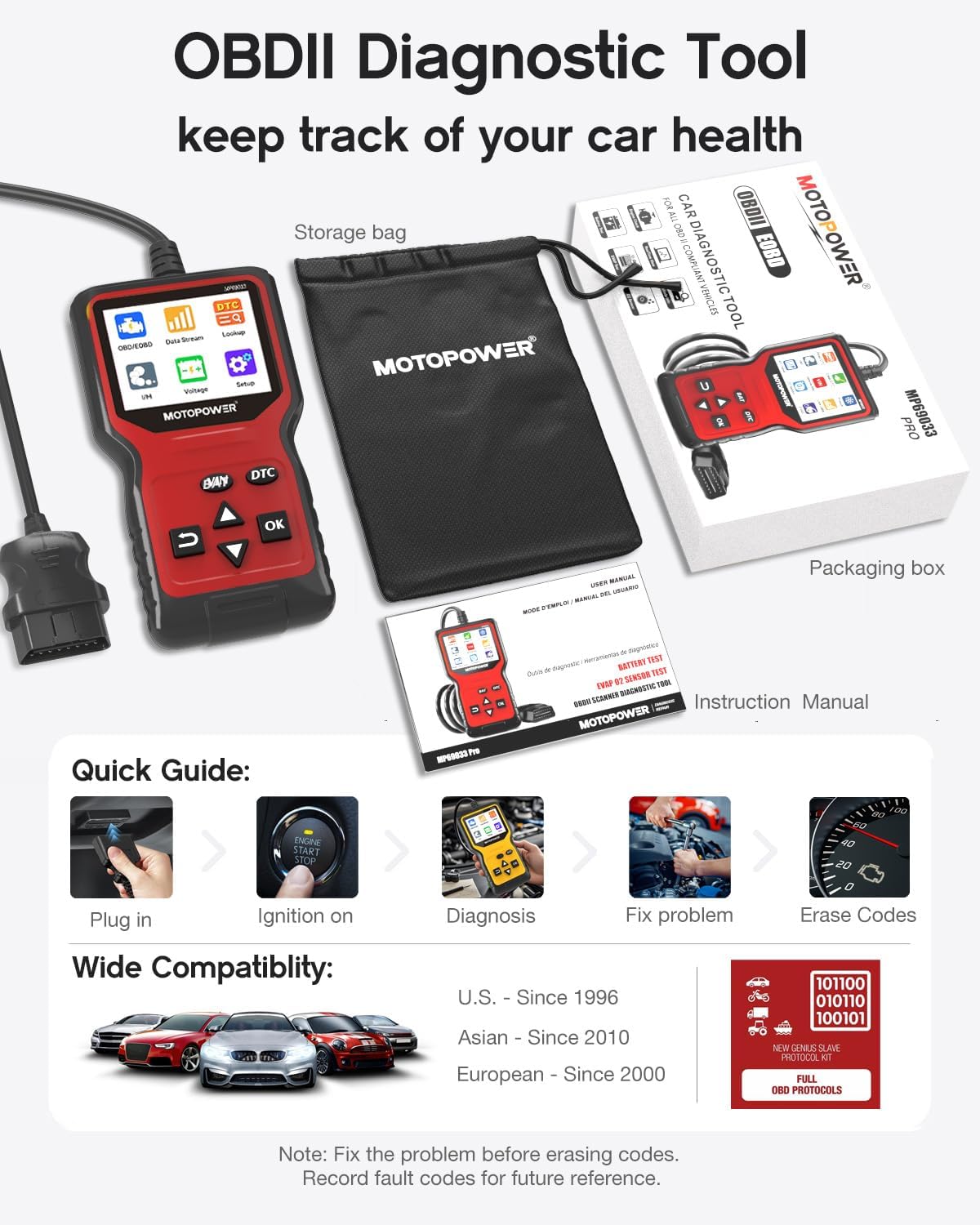

Connect the scanner to the vehicle OBD2 port and follow the on-screen menu to read codes or start live data logging. For battery checks, run the alternator and starter tests as instructed on the device and compare readings to the manufacturer thresholds, because results may vary with temperature and vehicle age. Use the freeze frame and data stream when a fault appears intermittently to capture running conditions at the time of the error.
Advantages
The tool is lightweight and portable, with an extended cable to reach awkward connector positions and an industrial chip that the manufacturer states operates up to six times faster than comparable devices. It provides clear numeric values and simple code descriptions so drivers can understand likely causes before visiting a workshop. The absence of a need for external power or phone connectivity simplifies use in remote locations, and multi-language support broadens usability for a wider audience.
