KAIWEETS Car Battery Tester 12V/24V

This compact battery analyser from KAIWEETS combines quick diagnostics with workshop-grade functions for vehicles, vans, motorcycles and small boats. It checks battery condition and starting capacity while offering a clear colour display, making it useful for routine maintenance or troubleshooting on the road.

Key Points

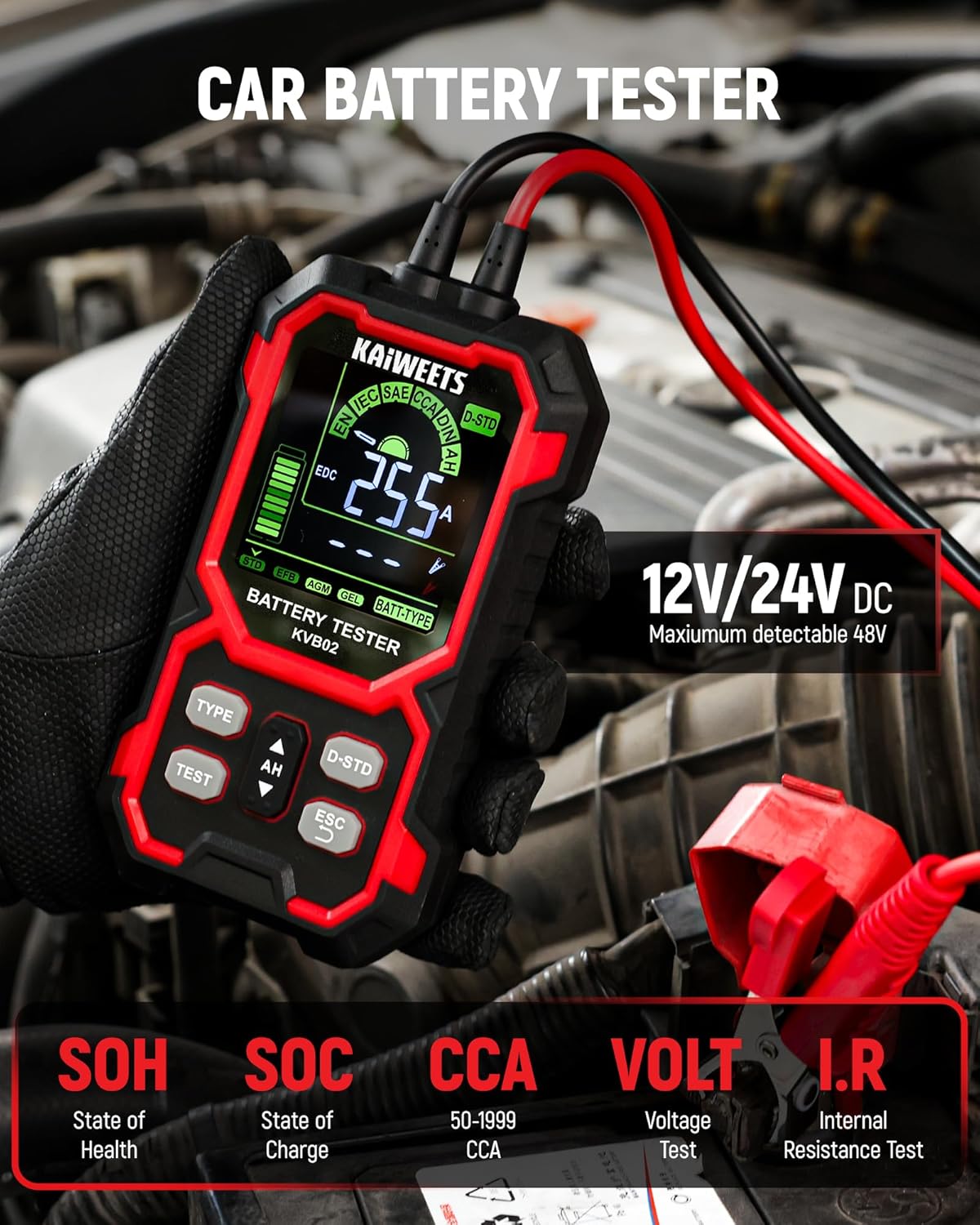

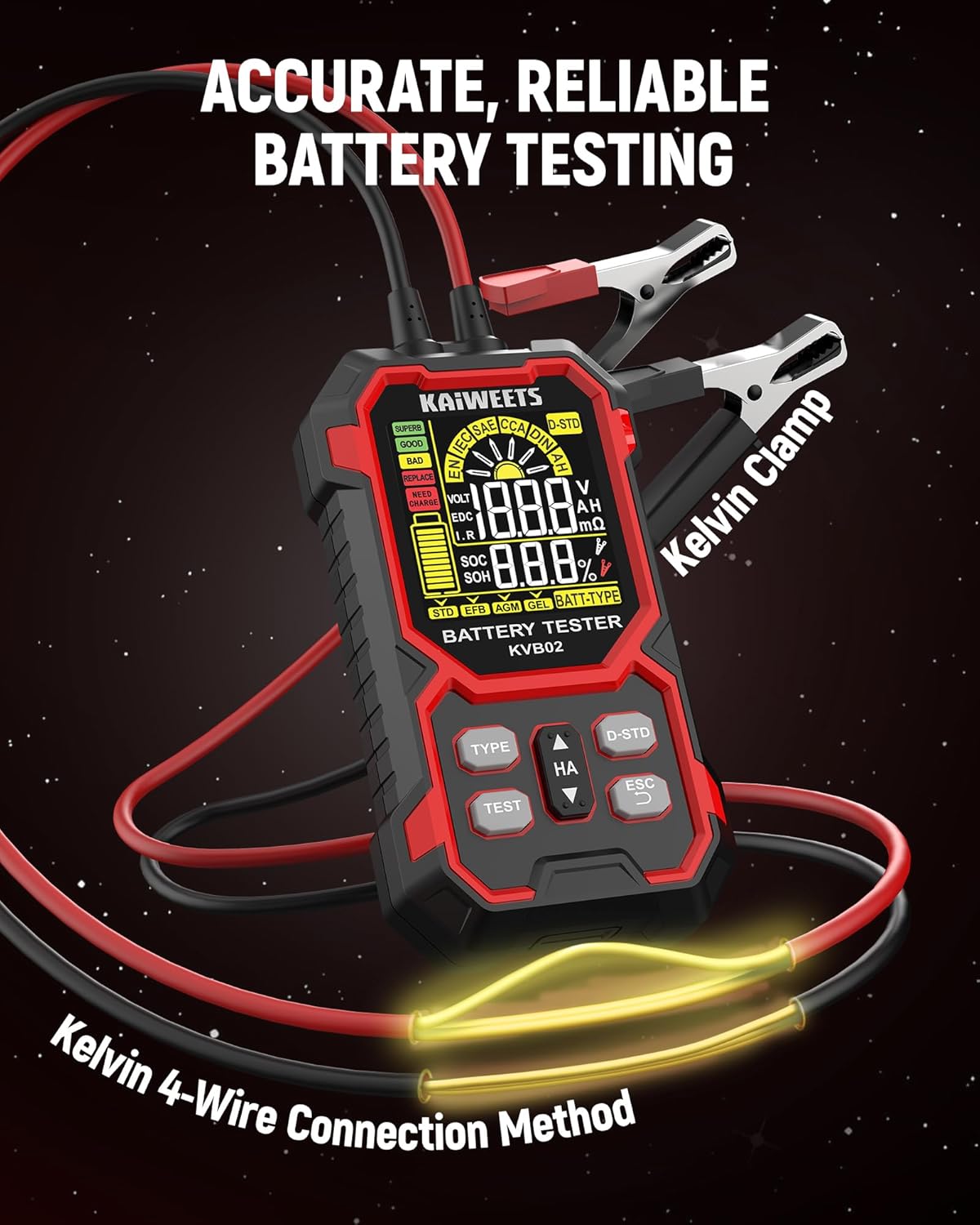

The unit tests 12 V and 24 V systems and evaluates state of health and state of charge alongside CCA readings and internal resistance. According to the manufacturer the tester can identify weak batteries, poor charging and starter-related issues without needing an external power source. The colour 2.68 inch LCD remains readable in bright light and the instrument powers directly from the battery under test. Two leads use Kelvin 4-wire clamps to reduce contact resistance and improve measurement accuracy. The casing is made of TPE and ABS for tougher handling in a workshop environment, and the device includes multiple protections against reverse polarity, short circuit, overcurrent and overvoltage.

Technical Specifications

• Name: KAIWEETS Car Battery Tester
• Voltage range: 12 V / 24 V
• CCA testing range: 50–2000 CCA

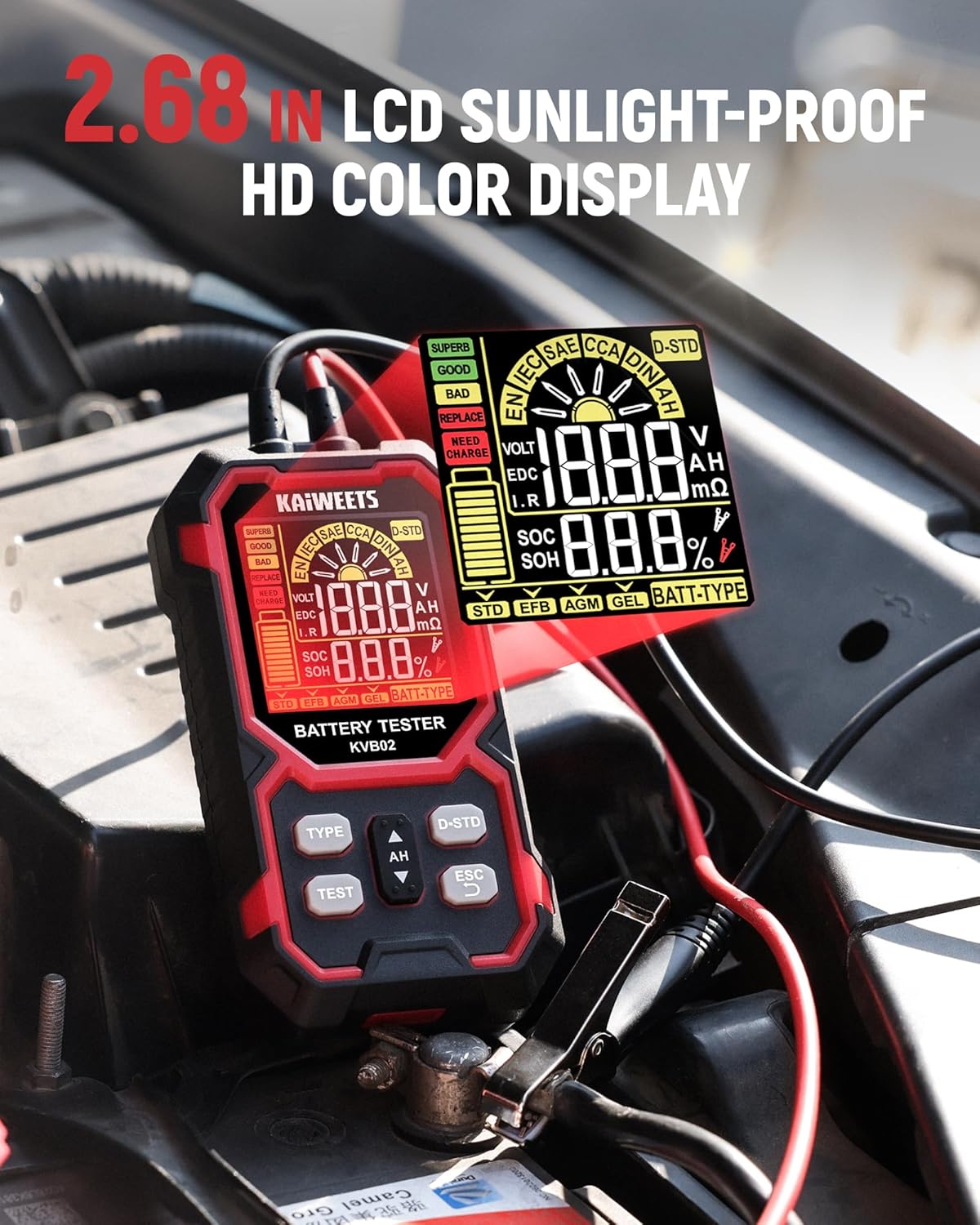

• Display: 2.68 inch colour LCD

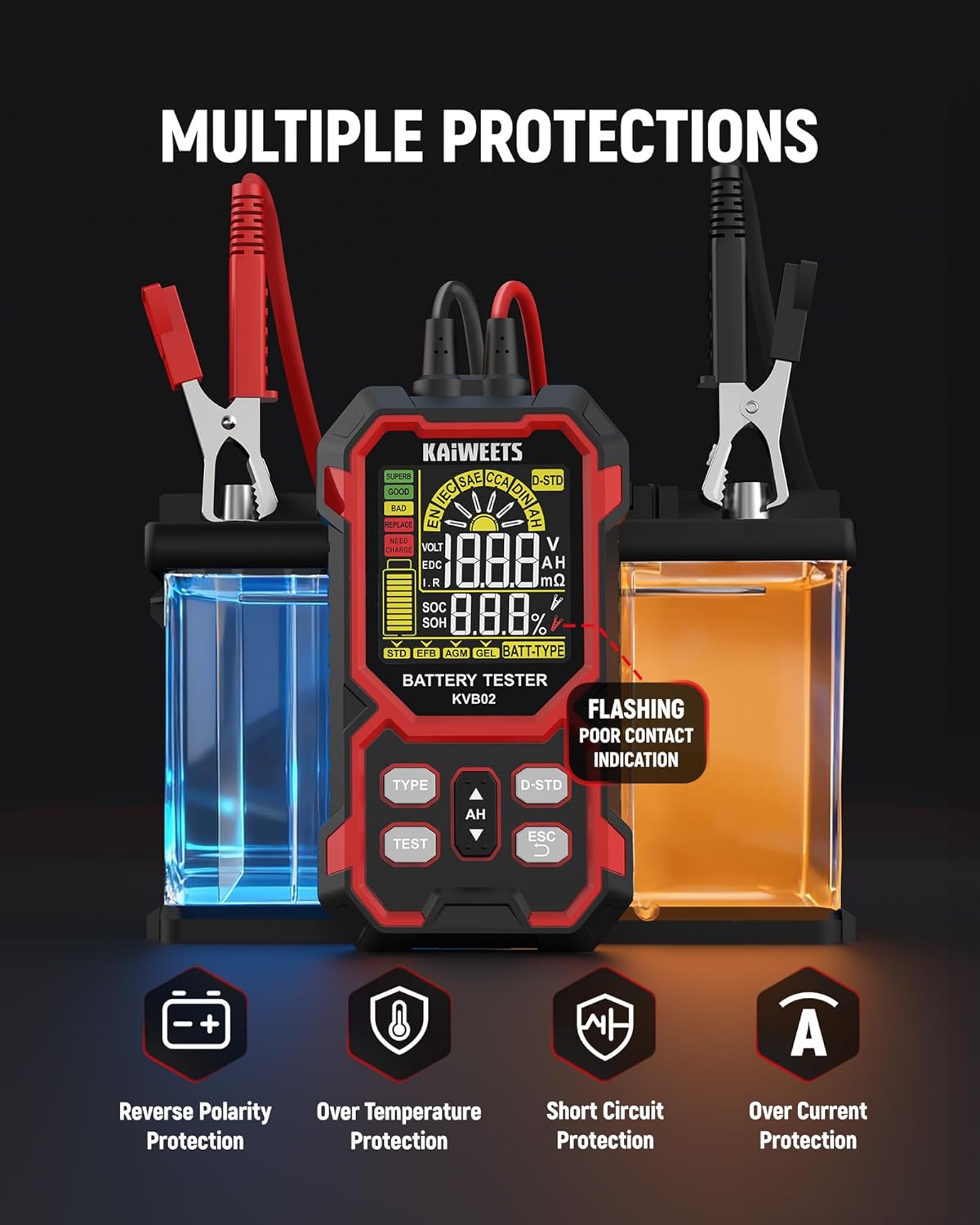

• Protection features: reverse polarity, short circuit, overcurrent, overvoltage

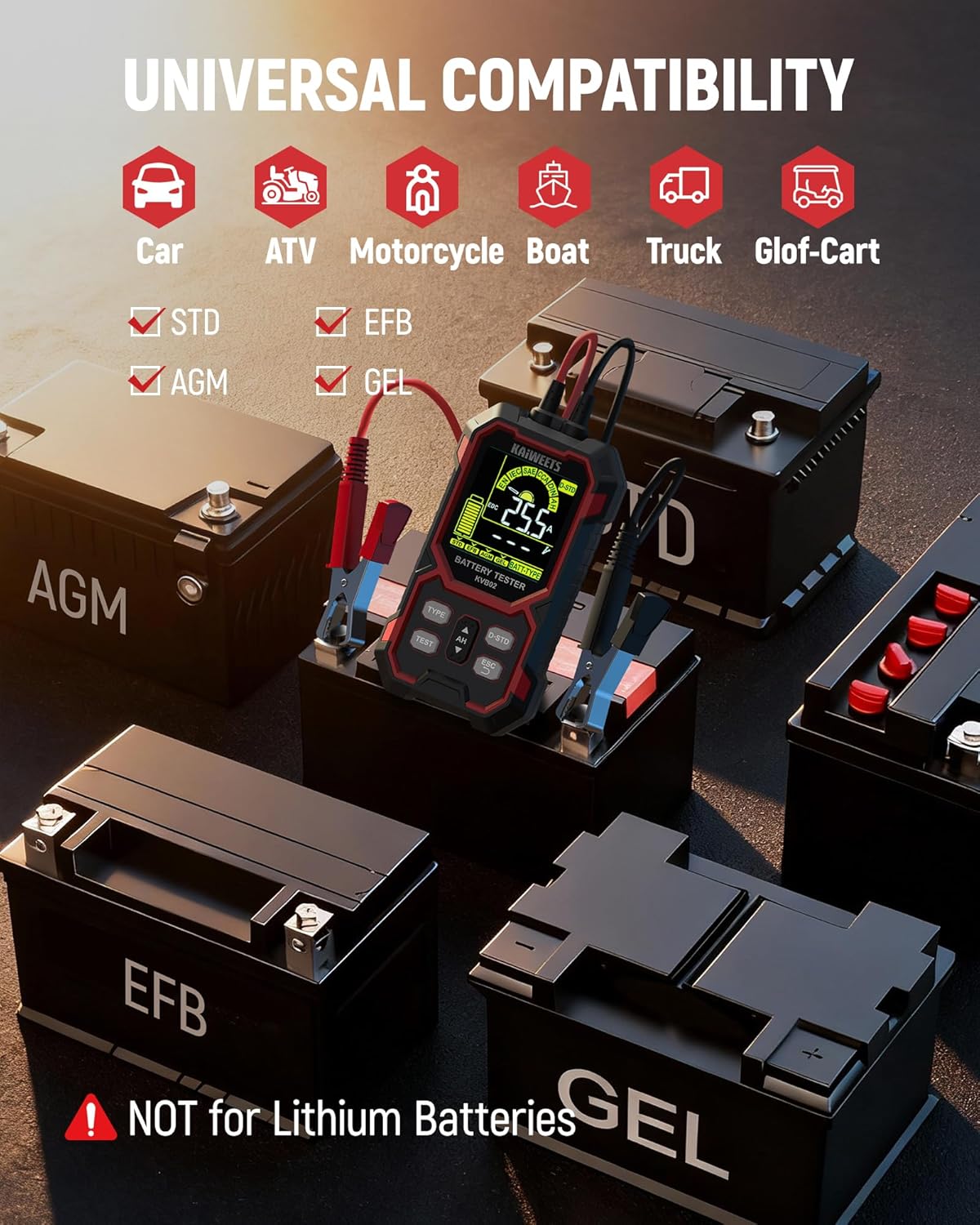

• Compatible battery types: wet, AGM, EFB, Gel

Benefits

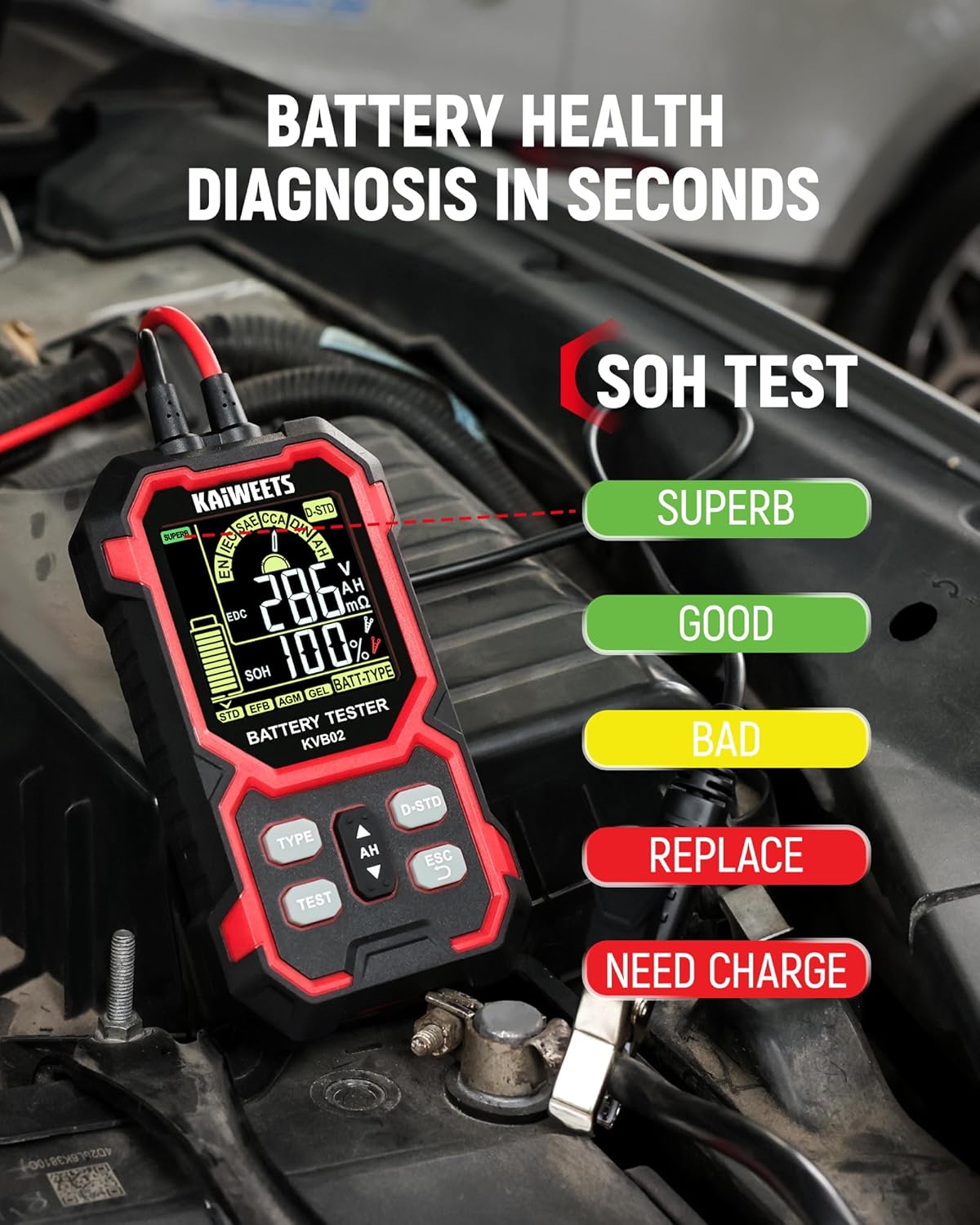

Readings cover SOH, SOC, cranking voltage and internal resistance, which helps you separate a battery that needs replacing from an alternator or starter fault. The direct power design means you do not need extra batteries or mains adapters when you inspect vehicles on location. The Kelvin four-wire clamp arrangement is particularly useful when marginal differences in contact resistance could otherwise skew results. According to the manufacturer this model is intended for both workshop and mobile use and includes protections to reduce the risk of accidental damage while testing.

Usage Recommendations

For a reliable test ensure clamps contact clean metal on the battery terminals and keep connections steady during the measurement. Allow the tester to display final readings rather than interpreting transient numbers during cranking. Consider that very old or heavily sulphated batteries may produce inconsistent results and might require more than one test or professional follow-up. If you plan to check many batteries in a single session, occasionally inspect the clamps and cable for wear to maintain consistent performance.
