Kohree 12 Way 12V fuse box with LED
Product description
The essentials
If you want a straightforward way to organise and protect 12 volt circuits, the Kohree 12 Way 12V fuse box is built for that job. It uses ATC or ATO blade fuses, with a clear panel cover and a built in LED warning indicator that makes it easier to spot problems fast. This is the kind of accessory that helps you move from guesswork to diagnosis when a fuse fails, especially on vehicles and marine setups where access can be awkward.
The Kohree 12 Way 12V fuse box gives you a 12 way layout, so you can split circuits neatly across multiple outputs rather than relying on a single crowded protection point. It also includes practical labelling so you can identify which circuit belongs to which device. For many owners of RVs, cars, boats and trucks, that combination of organisation and quick fault visibility is exactly what makes day to day troubleshooting less stressful 🙂.
Key features

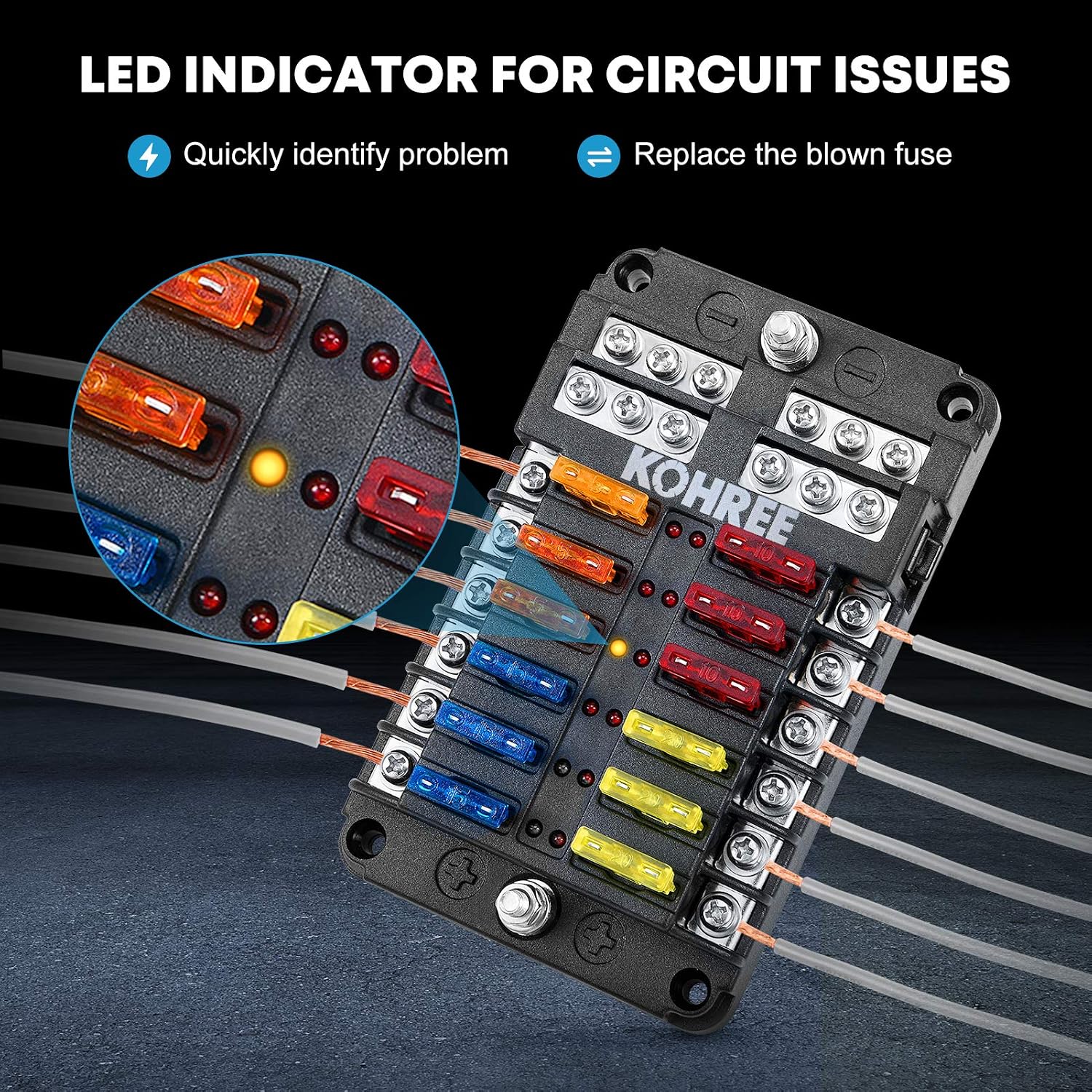

One of the standout features is the warning light that ties directly to fault conditions. According to the manufacturer, the fuse itself will melt when the current becomes too high, and the red LED will light up immediately, so you can tell when there is a short circuit or another defect and correct the issue without unnecessary delay. This is particularly helpful when you are checking multiple circuits or working in lower light conditions, where it is easy to miss a failed element.

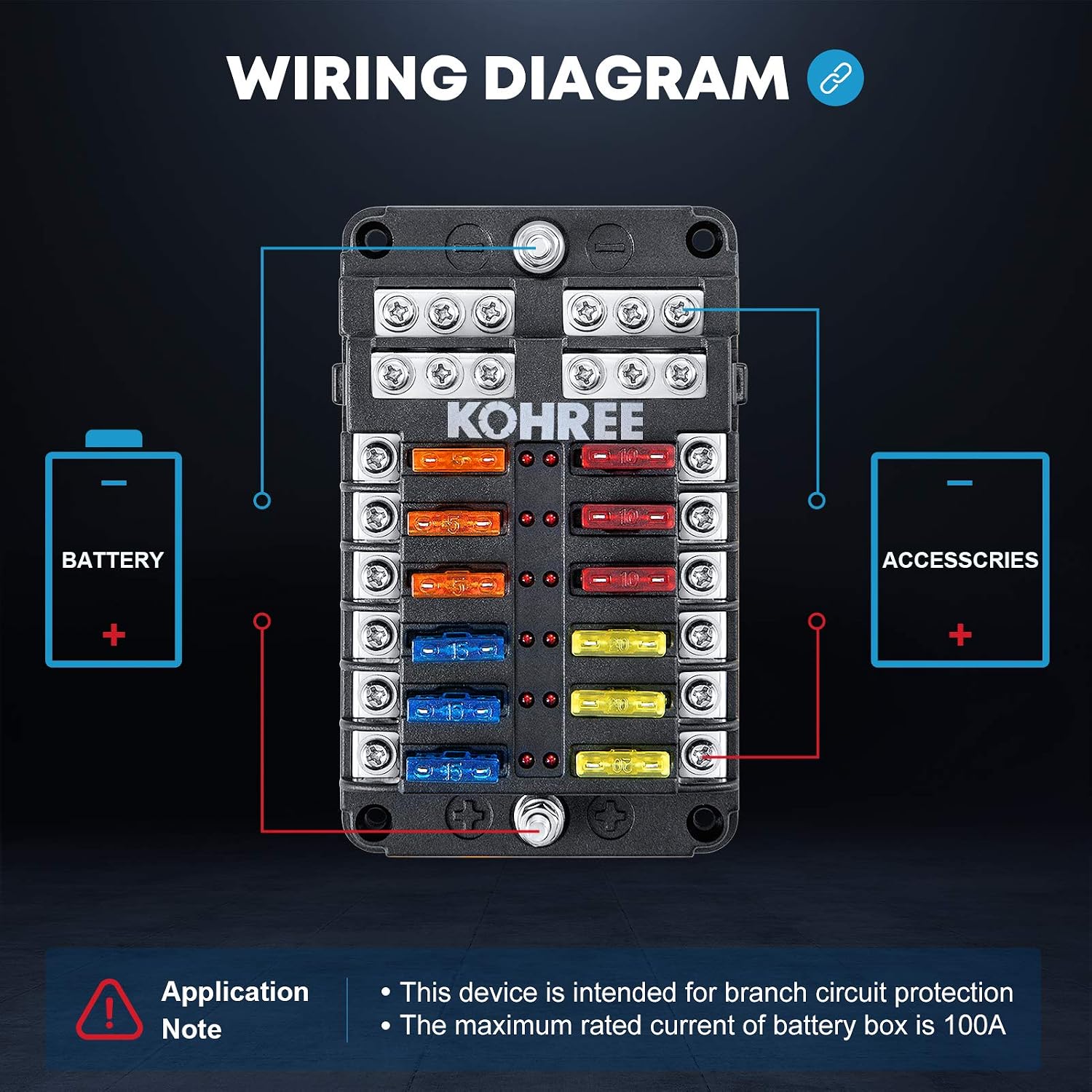

The fuse box is designed around ATC or ATO middle size blade fuses. It has a positive and negative side, meaning for every positive terminal screw there is a corresponding negative terminal screw, which can simplify wiring and reduce common assembly mistakes. There is also a defined operating ceiling for DC systems, with a maximum 32V DC operating voltage stated by the manufacturer.
Material and build quality matter for reliability, especially outdoors or in engine bay environments. The unit is made from environment friendly PBT material, described as mechanically strong and insulated, with heat resistance and flame resistance. It is also presented as splash and dust resistant thanks to a clear PC cover, giving you extra protection for the fuse elements while still allowing you to see what is going on.
There are also 30 fuses included, covering a range of commonly used ratings. The pack includes 5x 5A, 5x 7.5A, 5x 10A, 5x 15A, 5x 20A, and 5x 25A blade fuses, so you can start installing without needing to hunt for the correct values first. And if you are planning a tidy install, the included electric device name labels can help you keep everything legible and consistent when you make changes later.
Do you need one for a multi circuit build with mixed vehicle accessories? The 12 way format and the included fuses make it a practical choice for many RV and automotive setups, from camper vans to marine and truck applications, where circuit clarity helps maintenance over time 🔧.
Tech specs
- Name: Kohree 12 Way 12V Fuse Box with LED Indicator
- Type: 12 volt blade fuse block
- Size: 12 way
- Operating voltage: Max 32V DC
- Circuit rating: Max 30 Amp per circuit
- Panel rating: Max 100 Amp per panel
- Included fuses: 30 PCS ATC or ATO blade fuses with 5x 5A, 5x 7.5A, 5x 10A, 5x 15A, 5x 20A, 5x 25A
Who it’s for
It’s a good fit if you are adding or replacing protection for multiple 12V circuits and you want a neat, panel mount fuse block with visible fault indication. You’ll like it if you maintain a vehicle or leisure setup and you prefer being able to identify which circuit has an issue quickly thanks to the red LED warning light. It also makes sense if your install would benefit from a splash and dust resistant clear cover and a tidy labelling approach.
It may not suit you if your system does not use ATC or ATO middle size blade fuses, because this fuse block is specifically set up for that fuse format. Also, keep in mind that the stated ratings apply to the manufacturer’s specified limits for each circuit and the total panel. If you need a different fuse type or different voltage range, you will want to check compatibility before installing ⚙️.
