Huepar W04CG 4D 4x360° Green Laser Level with Receiver (up to 400 ft)
Product description
Quick overview
The Huepar W04CG is a 4D 4x360° green laser level aimed at tradespeople who need proper room layout and long-distance alignment, not just quick indoor marking. On paper, it pairs classic 360° coverage for walls, ceilings and floors with a receiver-led setup for longer runs, which is where this model starts to make sense.
It’s also built around workflow convenience: an electric rotating base, an app/remote for hands-free mode changes, and a touch LCD panel with a backlit display. That combination can save time on larger jobs where you’re constantly returning to the laser to tweak settings.
A small limitation to keep in mind is that the longest working range relies on using pulse mode (the entry data is explicit about that). If you mainly do short, close-up interior work, you might not need the receiver side of things.
Where it shines for outdoor and long-distance work

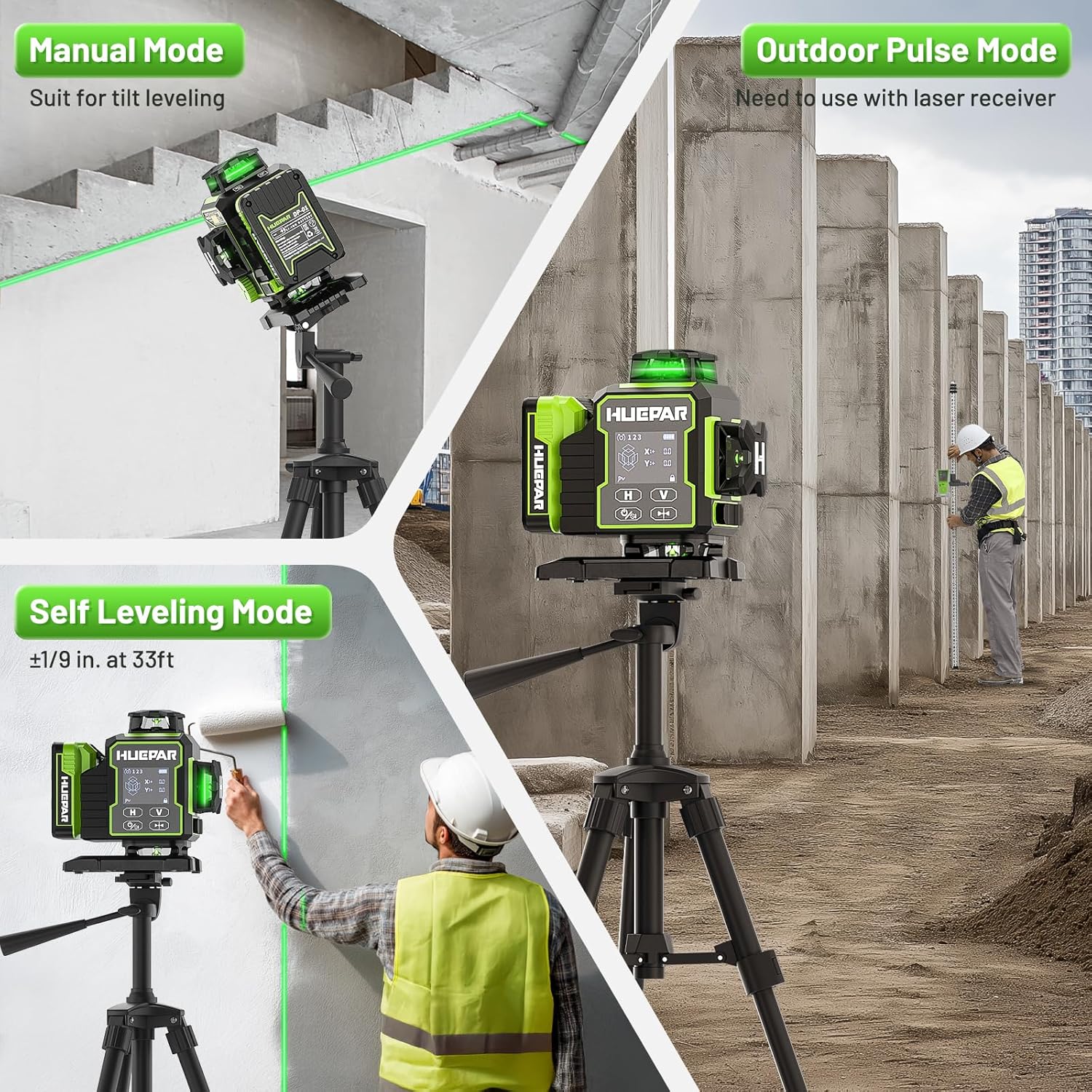

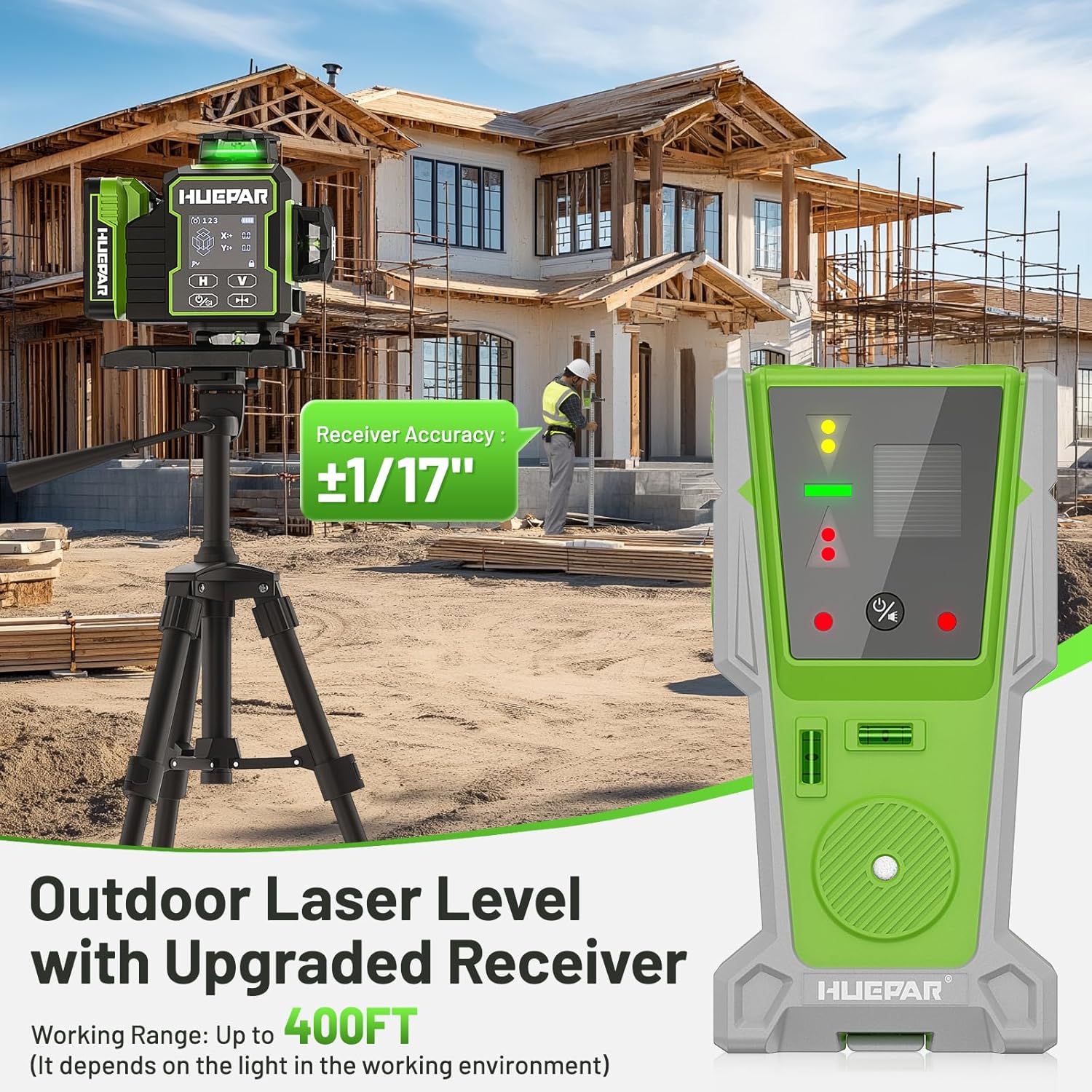

The standout feature for this laser level is its receiver support for longer distance use. With the receiver turned on and pulse mode enabled, the working range is listed as up to 400 ft. The receiver accuracy is specified as 1/17" at 33 ft, and the use case is clearly framed around outdoor alignment and large job sites, including situations where you may be working in brighter conditions.
For example, imagine setting up fencing posts or checking deck/ground fall over a wider area: instead of trying to “eyeball” marks and keep walking back and forth, you can rely on the receiver-assisted line to keep the reference consistent across the site.
Key takeaways from the laser layout

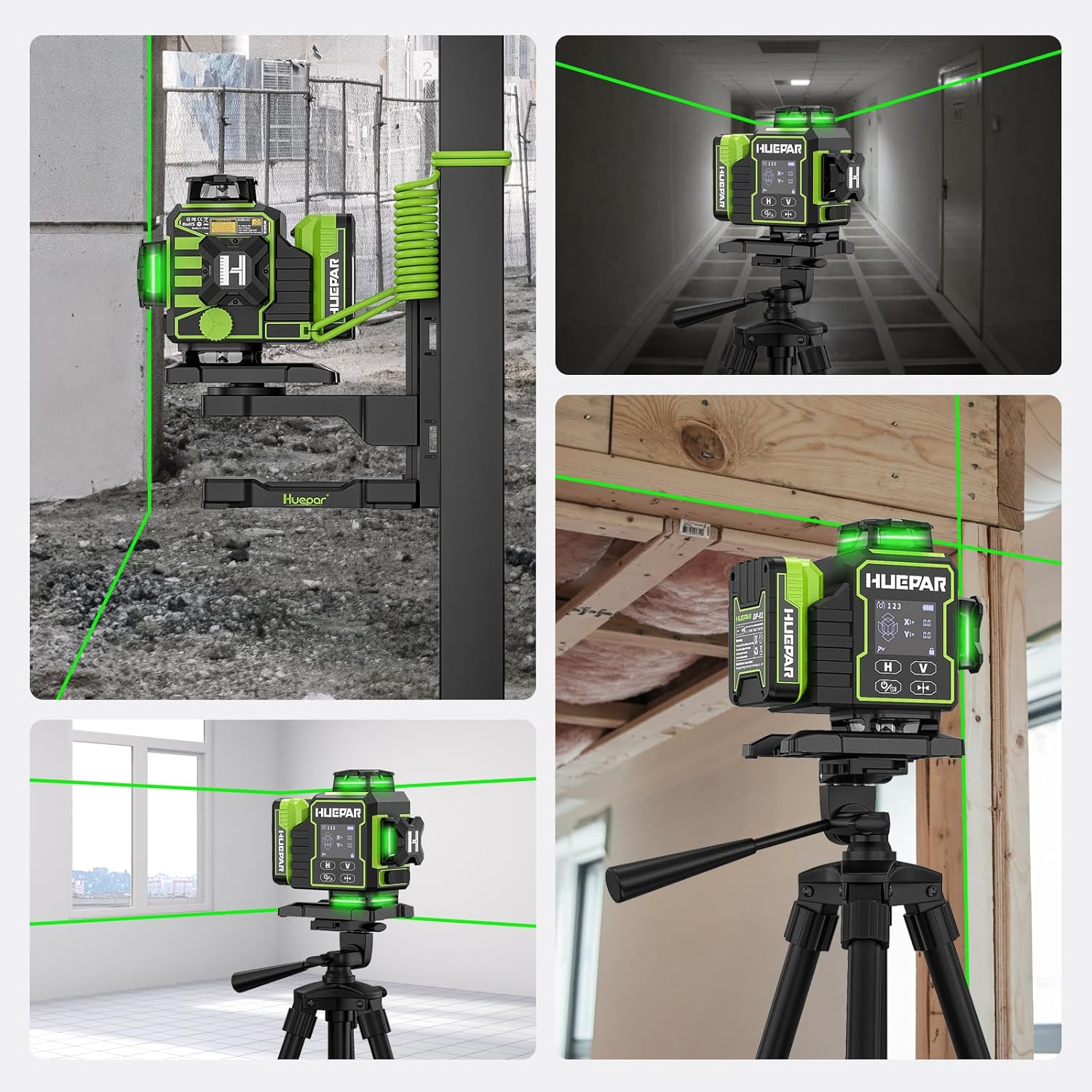

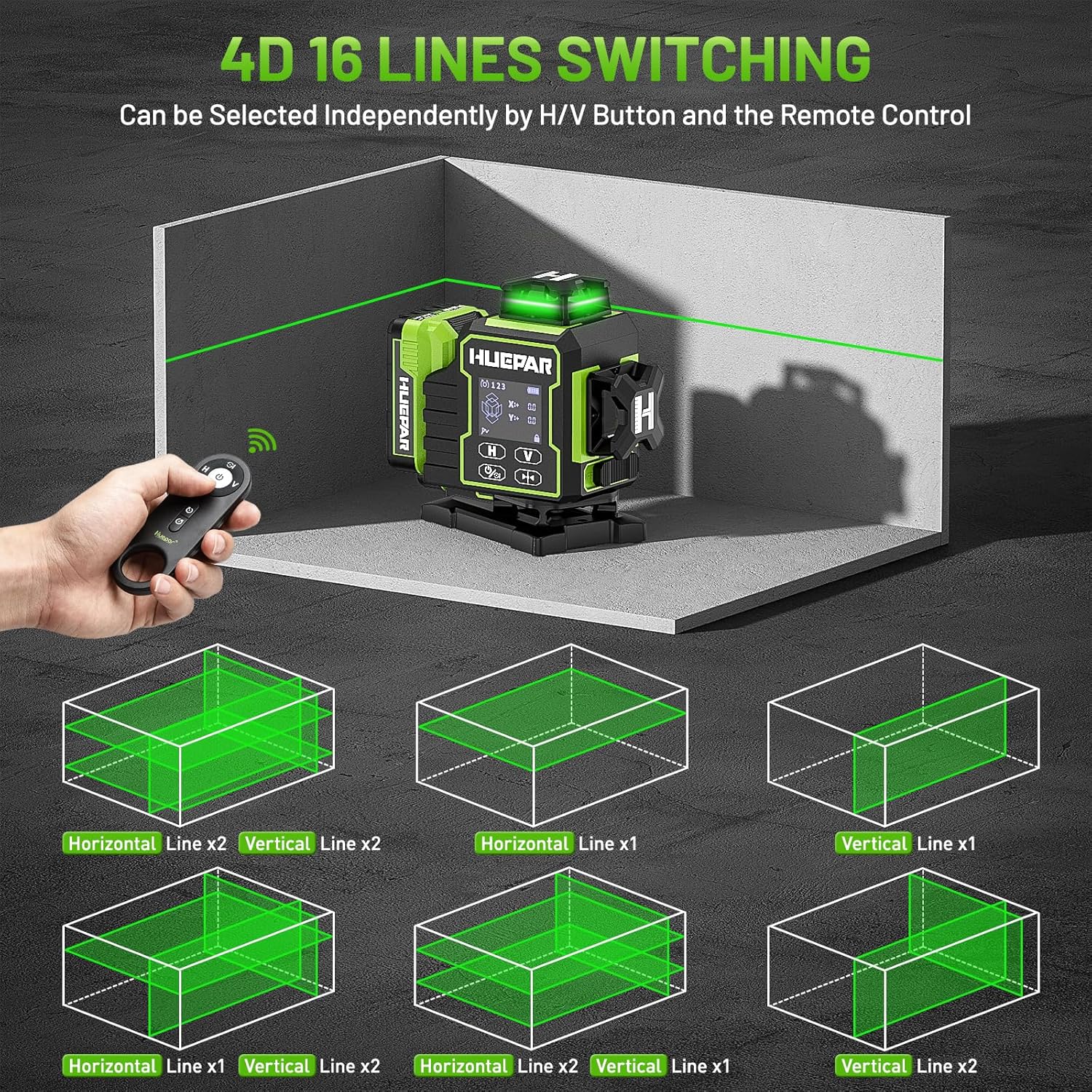

This is a 4x360° green laser level, designed to cover a full room footprint. The device uses four ultra-bright 360° laser planes: two horizontal and two vertical. That’s the practical basis for layout tasks where you need alignment across multiple planes—walls, ceilings, floors and corners.
It also includes a bottom horizontal laser that can reach down as low as 1/2" for floor tiling or levelling. There’s a liftable base that allows adjustment from 1" to 3.54", and the setup is described as convenient for squaring up rooms using 90° vertical cross lines.
If your work involves drop ceilings, framing lines, or repeated alignment on multi-surface installs, this “full layout” approach is often more useful than a simpler line laser.
What you’ll notice day to day (controls and visibility)

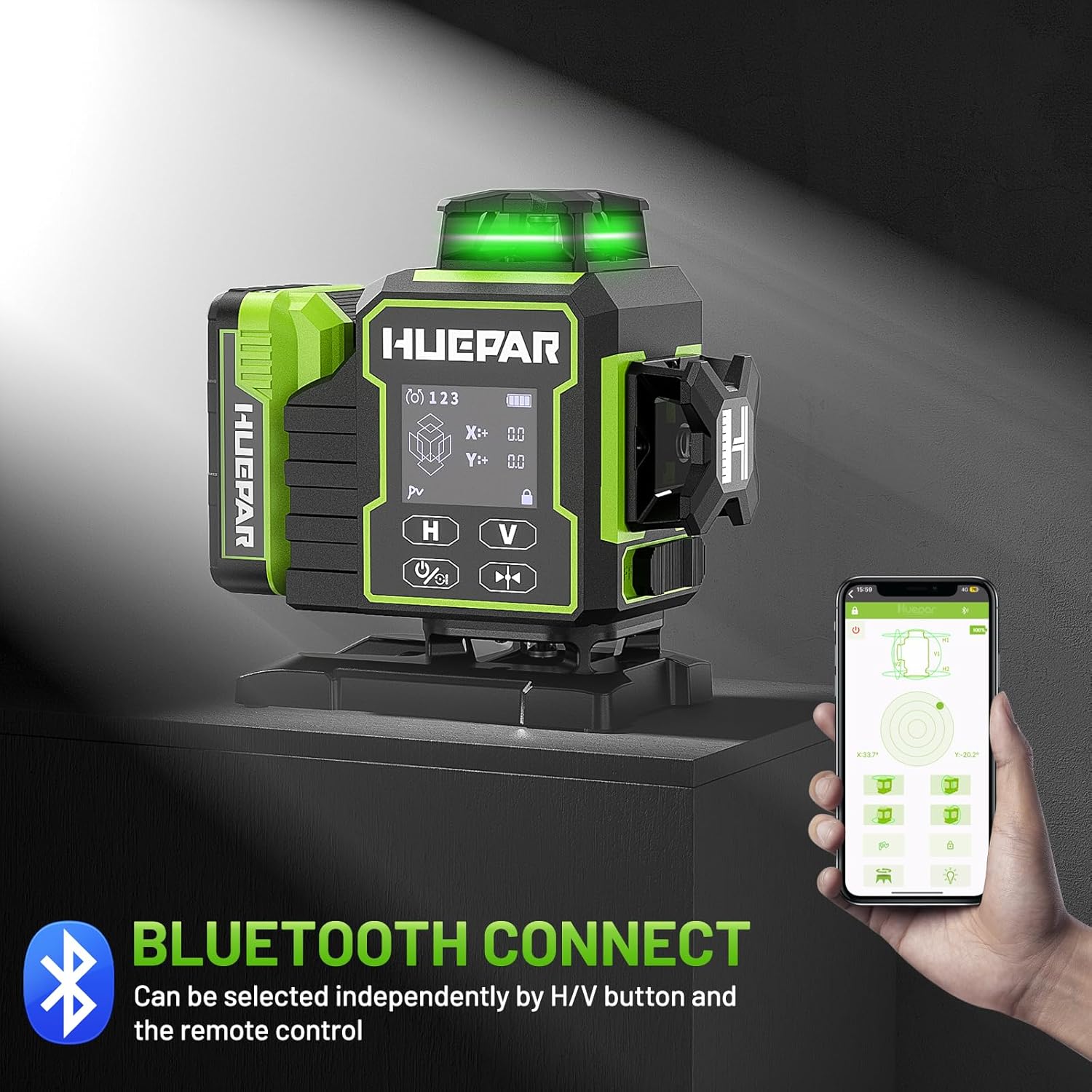

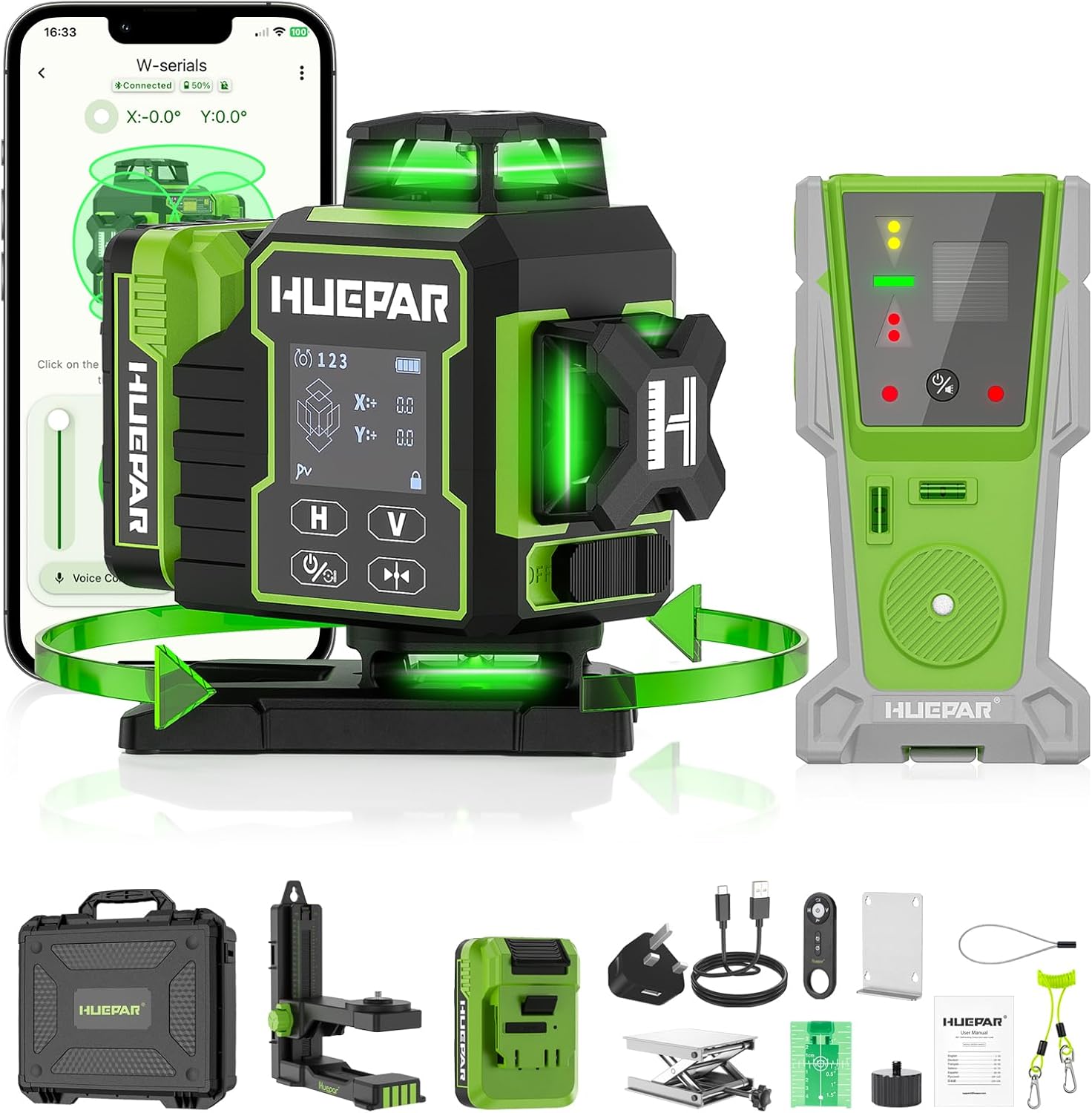

The controls here are designed to reduce friction on site. There’s an electric rotating base with 3 speed settings (listed as 9.1mm/s, 48mm/s, 240mm/s). Instead of manually turning and lining up, you can use a Bluetooth app or the included remote to dial in rotation and modes.

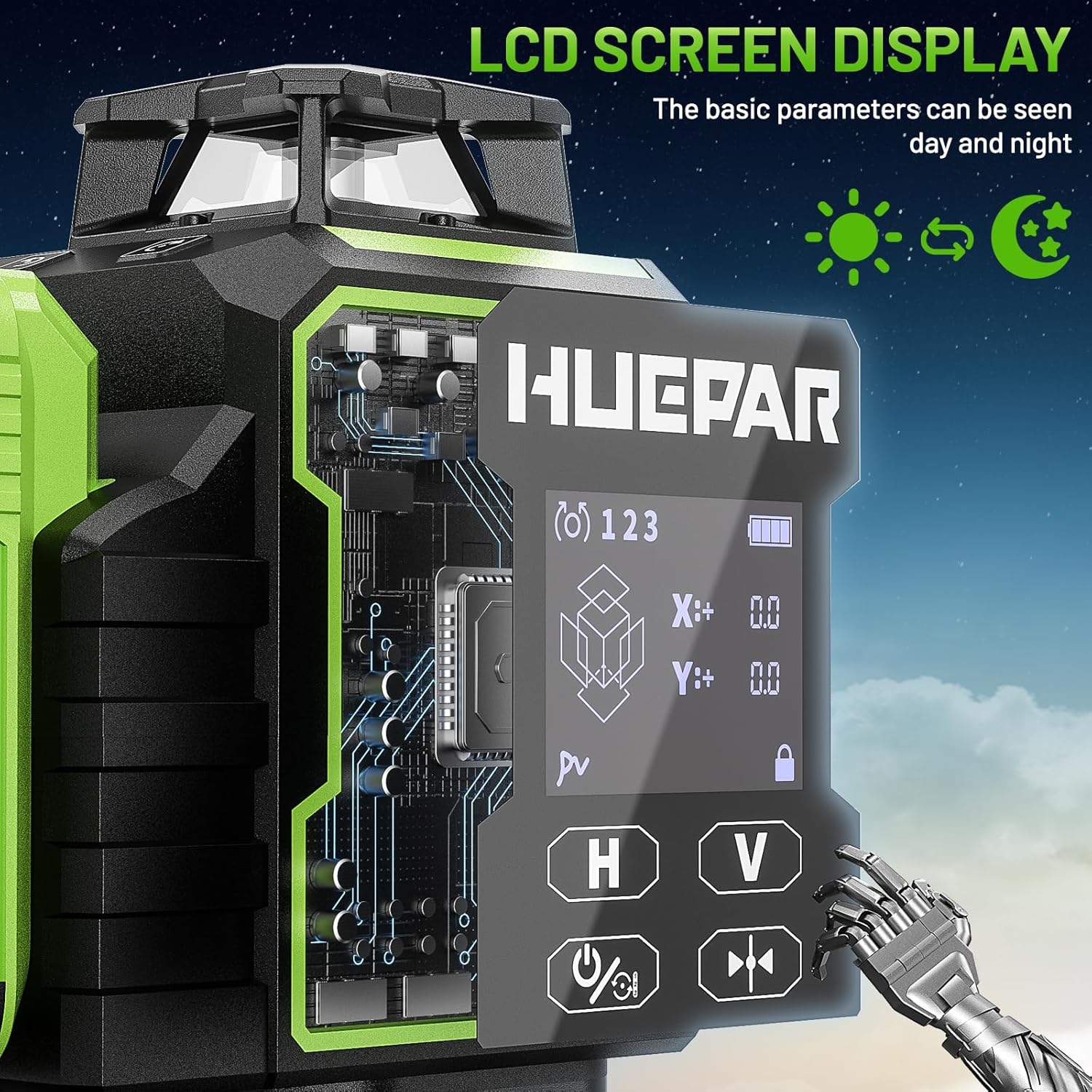

The LCD touch panel includes a backlit display and is described as glove-friendly, showing laser mode, battery life, tilt angle and more in one place. That matters because job sites aren’t always ergonomic—dusty conditions and low light happen, and having a readable display helps when you’re adjusting setup quickly.
There’s also an explicit range for hands-free control: up to 65 ft via the Bluetooth app or remote. If you spend a lot of time at the work area rather than at the instrument, that kind of remote operation can feel genuinely practical.
Tech specs
- Name: Huepar W04CG 4D Laser Level with Receiver
- Type: 4x360° self-levelling green laser level with receiver
- Format: 4D laser level tool
- Size: Not provided
- Capacity: Not provided
- Dimensions: Not provided
- Weight: Not provided
- Material: Not provided
- Colour: Green
- Display: Backlit LCD touch panel
- Resolution: Not provided
- Refresh rate: Not provided
- Processor: Not provided
- Memory: Not provided
- Accuracy: 1/17" at 33 ft
- Working range: Up to 400 ft (need pulse mode to reach this range)
- Laser plans: Two horizontal and two vertical 360° laser planes
- Floor laser reach: Down to 1/2"
- Liftable base adjustment: 1" to 3.54"
- Electric rotation base speeds: 9.1mm/s, 48mm/s, 240mm/s
- App/remote control distance: Up to 65 ft
Who it’s for (and who should be cautious)
It’s a solid pick if you regularly do larger or more complex alignment work—things like outdoor set-ups, longer-distance checks, framing, tiling, deck building, fencing, grading, or drop ceiling installation. The 4x360° coverage plus the receiver-led longer range gives you options for both full-room layout and extended referencing.
It may not suit you as well if your projects are mostly short-range indoor tasks where you won’t benefit from receiver-assisted distance or pulse mode. Also, if your budget and simplicity needs lean toward a basic laser level, the added control features and receiver focus could feel like more instrument than you need.
Warranty and support that matter for trades
Huepar provides a 5-year warranty for all 3D/4D models listed here, with lifetime technical support. The entry data also mentions a service response structure (24/7 service team, responses in 24 hours and solutions in 48 hours) and a worldwide maintenance centre for repair or replacement.
It also specifies the battery warranty period as 2 years (non-human damage) and a structured replacement approach: Year 1 free replace of the full set, Years 2–5 free replacement with refurbished or equivalent for items that are non-repairable.
This kind of coverage is worth considering if the tool will be used on real job sites rather than occasional DIY.
Final verdict
Buying verdict: consider the Huepar W04CG if you want a 4x360° green self-levelling laser level with receiver support for outdoor and longer-distance alignment, and you’ll use the app/remote to keep workflow moving. It fits trades and larger projects where multi-plane layout and consistent reference over distance are daily needs.
Skip it, or at least think twice, if your work is mostly close-up indoor alignment where you won’t use receiver mode or pulse mode. Overkill is possible, and you may be paying for features you won’t fully lean on.
Mini FAQ
How do I get the full up to 400 ft range?
The data states you need pulse mode to reach the up to 400 ft working range with the receiver.
What does the 4x360° setup actually cover?
It uses four 360° planes: two horizontal and two vertical, aimed at covering walls, ceilings, floors and corners.
Can I control the laser without walking back to it?
Yes. The entry mentions Bluetooth app control and an included remote, with a listed control range of up to 65 ft.
Is the laser suitable for tiling and floor levelling?
It’s designed for that kind of work, including a bottom horizontal laser that reaches down to 1/2" and liftable base adjustments.
How long is the warranty?
The entry lists a 5-year warranty for the 3D/4D models and lifetime technical support.
