Goodyear Air Hose Reel 9.5mm x 20m 📦
Description:

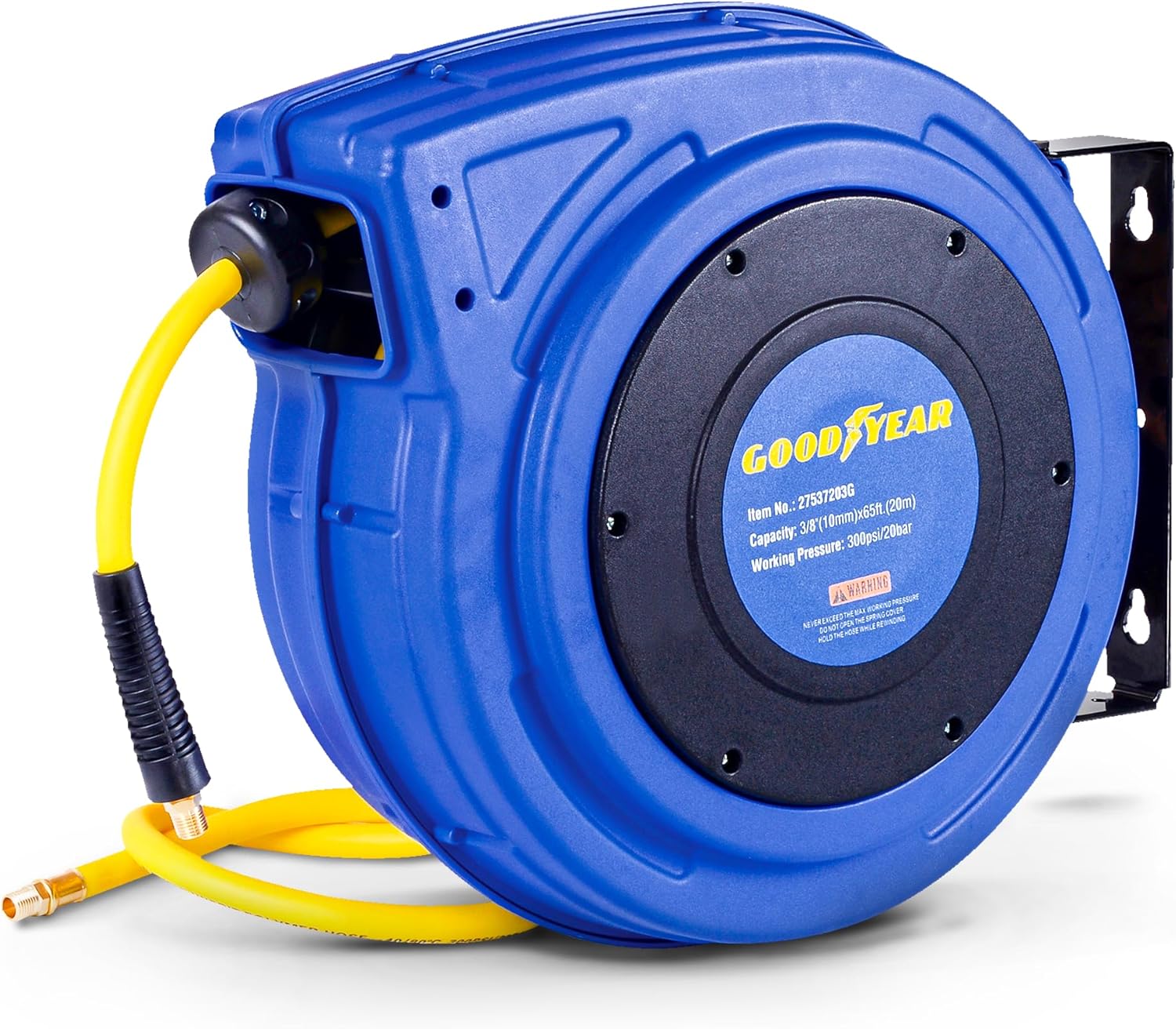

This retractable air hose reel from Goodyear combines practical length control and a robust hose design to support workshop and commercial pneumatic tasks. It locks at the desired extension and retracts smoothly, offering up to 20 metres of reach with consistent airflow for tools and compressors according to the manufacturer.
Key Points

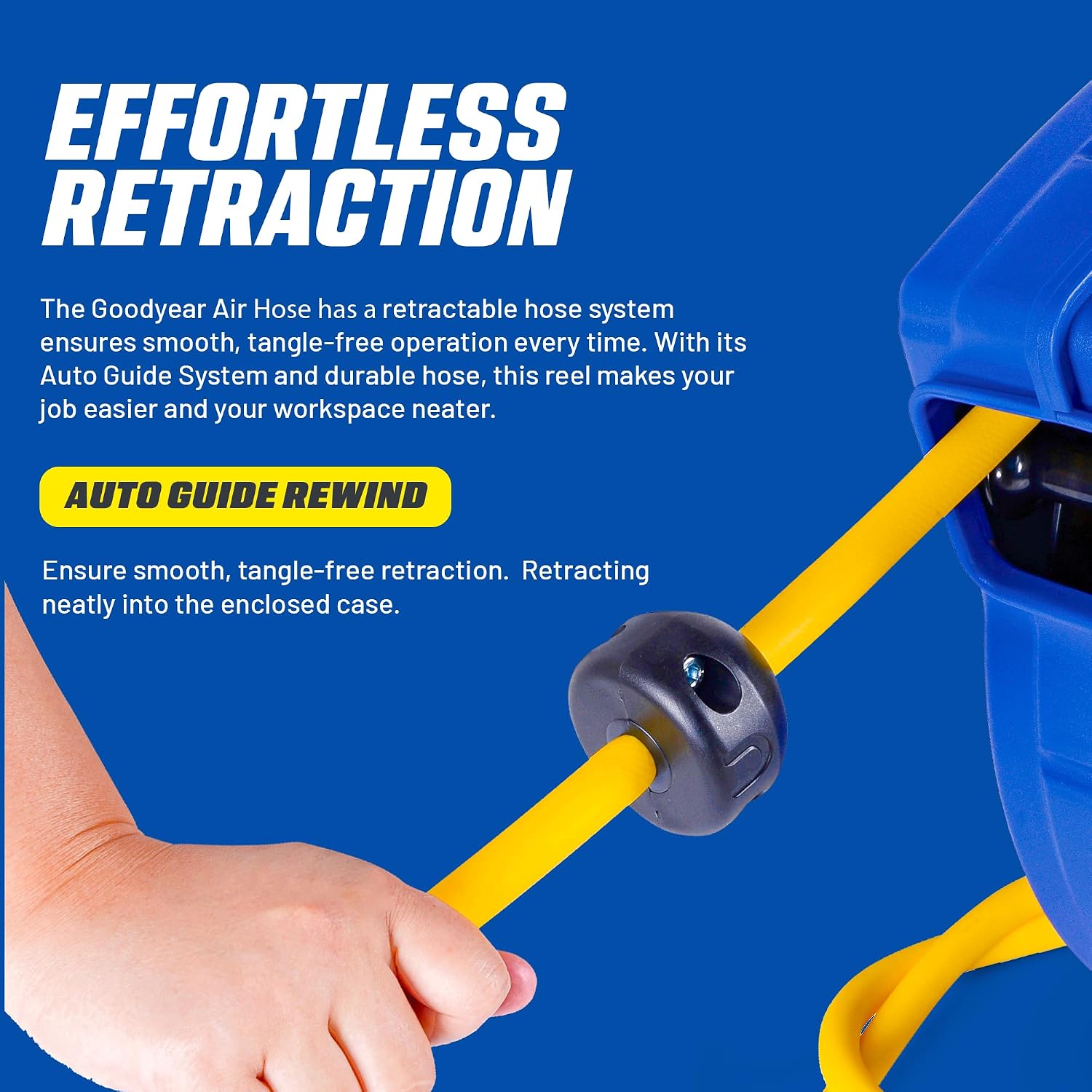

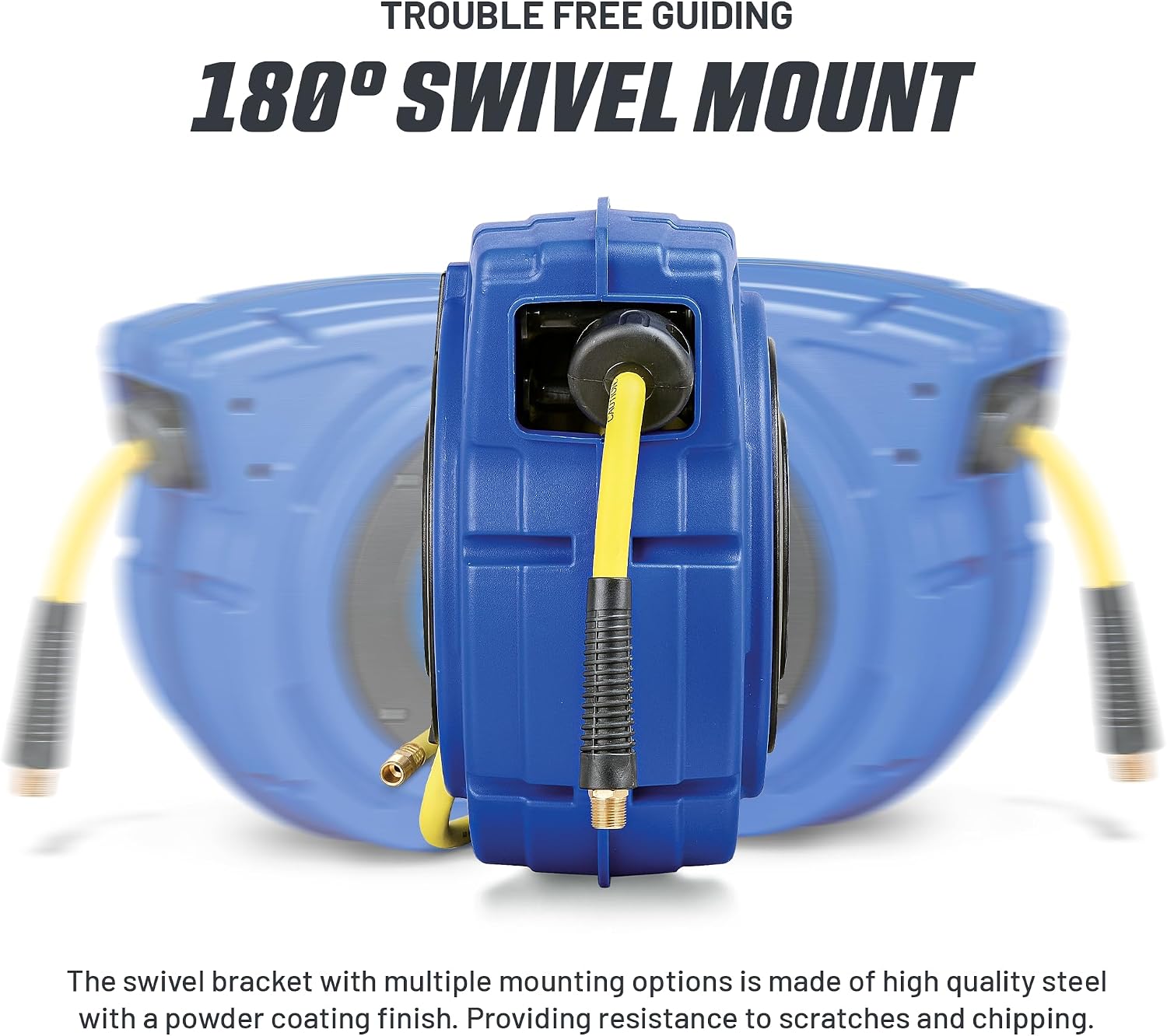

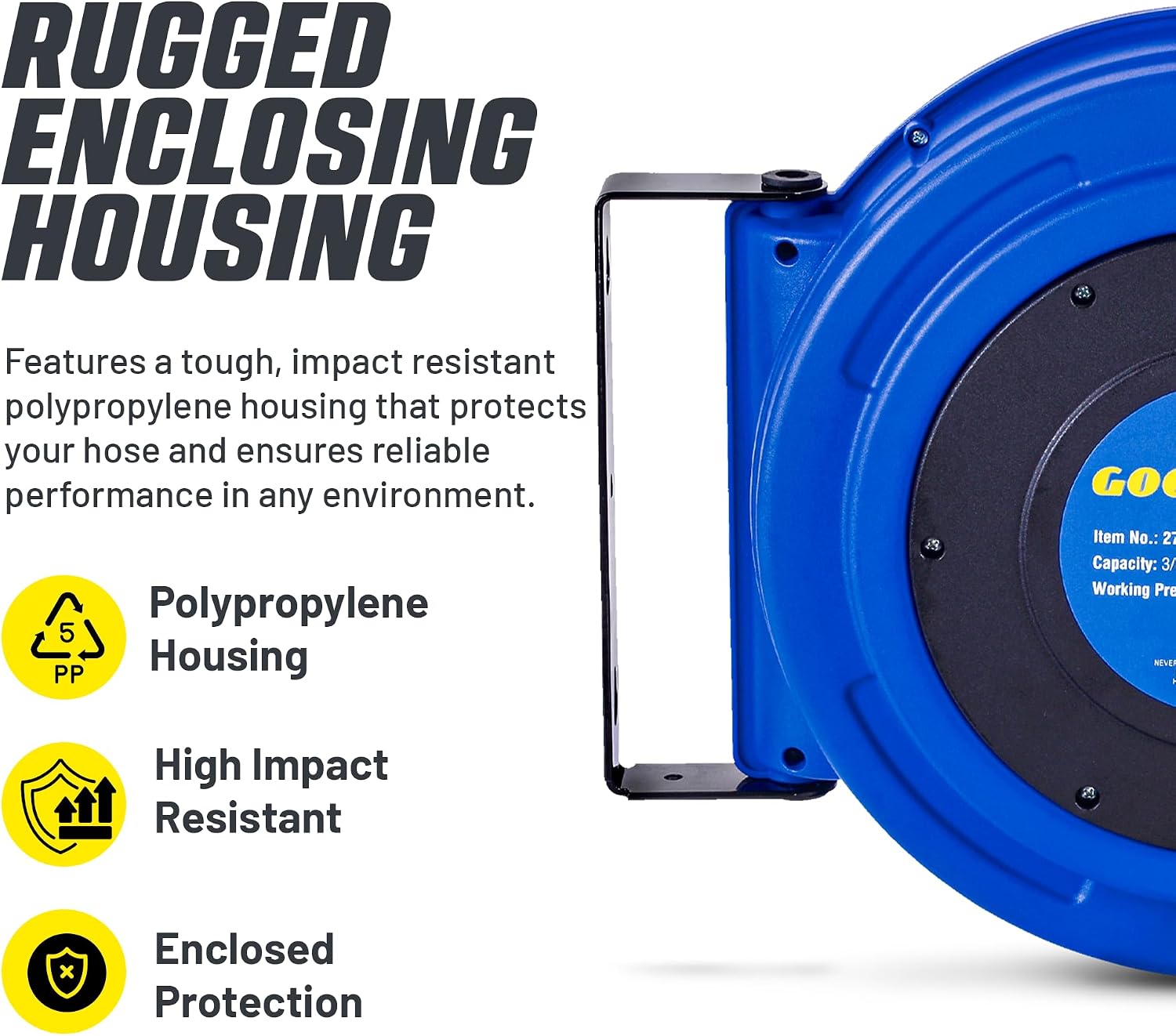

The unit includes a hybrid polymer hose with a 9.5 mm bore that resists kinking and reduces memory, so the line stays flexible even after repeated use. A two-mode ratchet adjustment allows the hose to be locked at any required length, or to be positioned without locking for quick pullback. The reel housing is made from reinforced polypropylene which improves impact resistance while keeping weight manageable for wall or ceiling mounting. Connections around the inlet are sealed and use a redesigned swivel to minimise leaks during rotation. Consider that maximum working pressure is 20 BAR according to the manufacturer, so ensure compatibility with your compressor system.
Technical Specifications
- Name: Goodyear Air Hose Reel Retractable 9.5mm x 20m
- Hose diameter: 9.5 mm
- Length: 20 m

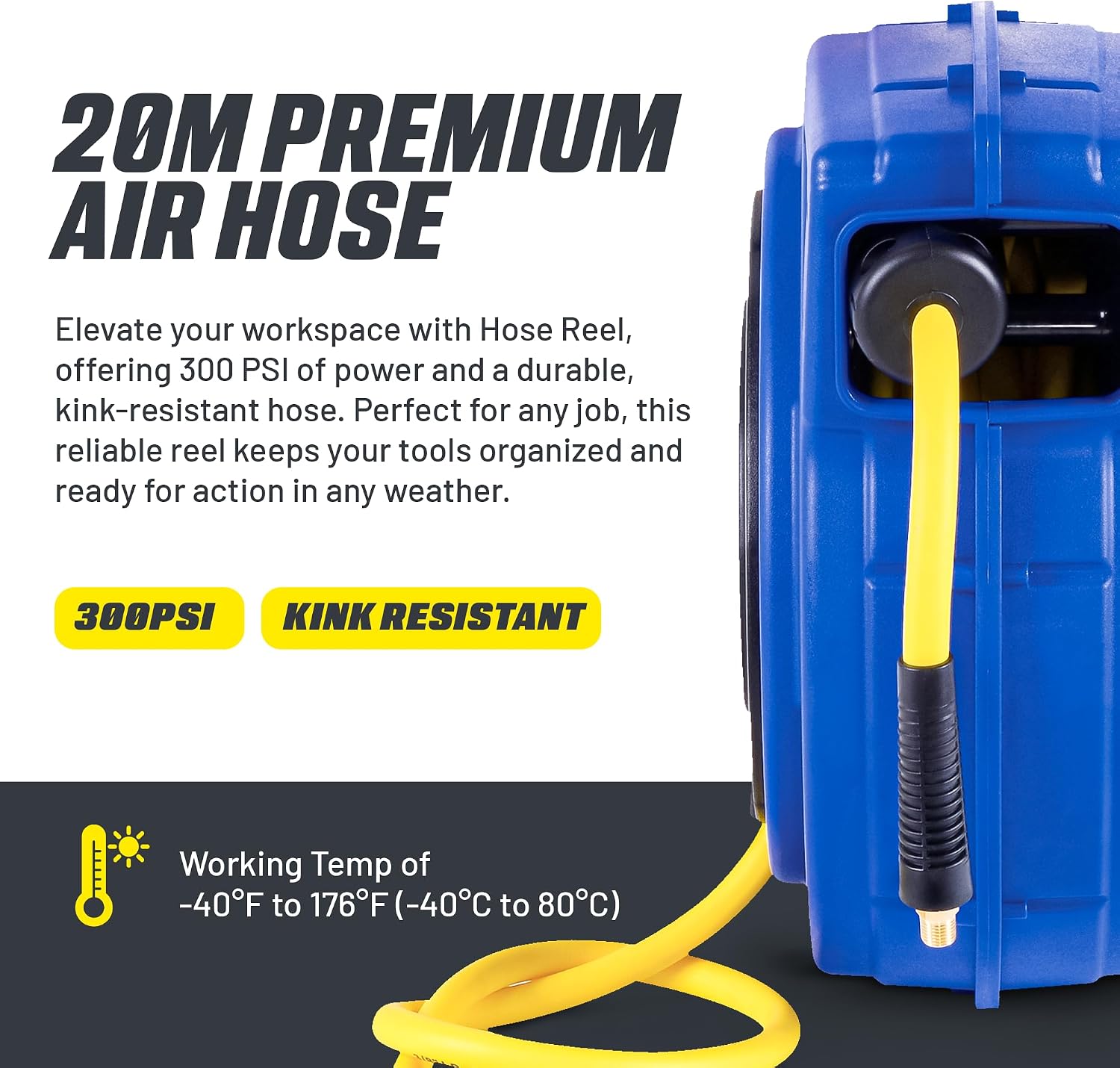

- Maximum working pressure: 20 BAR
- Housing material: polypropylene
- Handle: PVC
- Hose material: hybrid polymer
Usage Recommendations

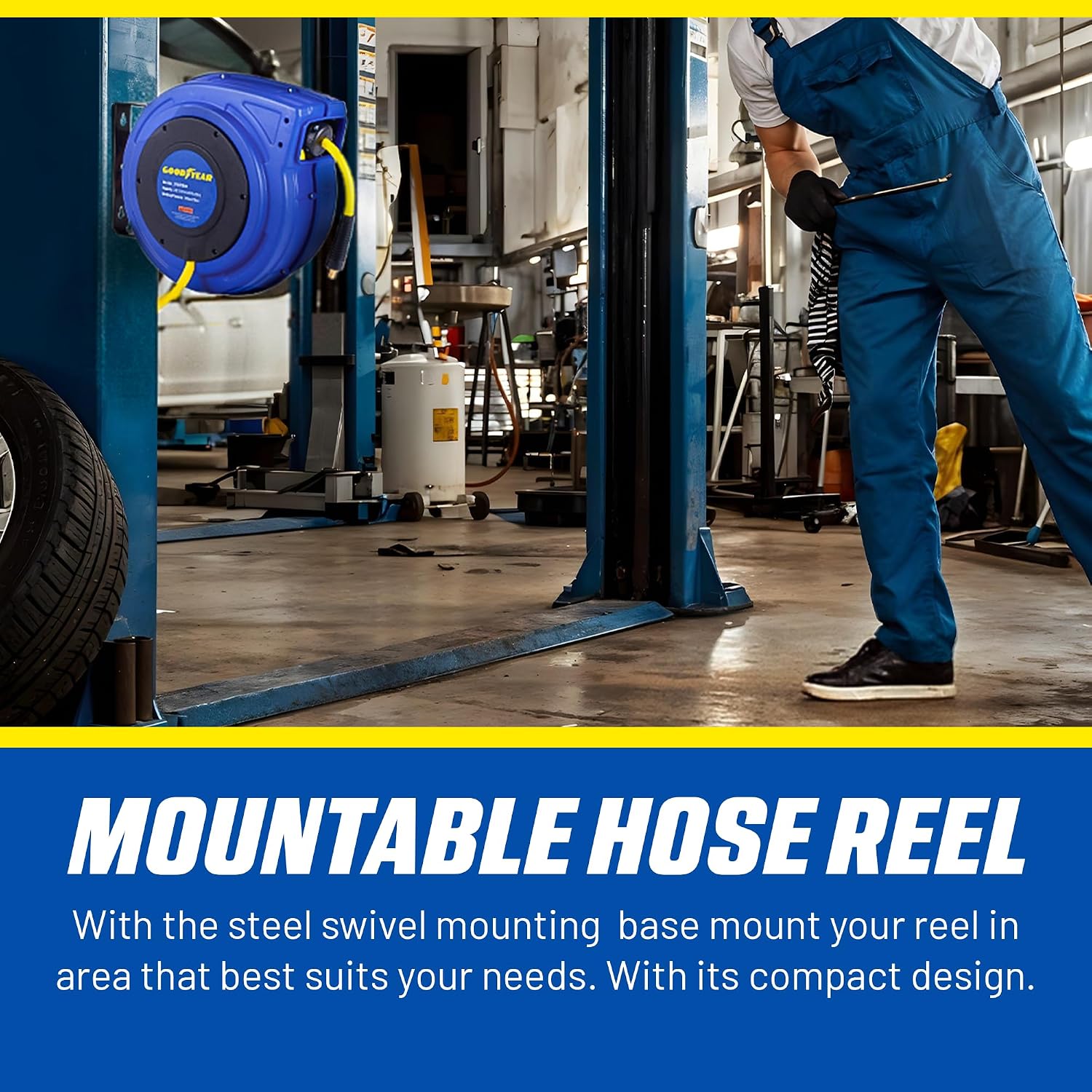

Mount the reel on a secure surface at a height that allows unobstructed pull and retraction. Allow the hose to retract evenly by guiding it gently rather than letting it snap back; this reduces wear on the swivel and internal spring. The lead-in hose supplied with the reel helps connect the reel to your compressor without stressing the pivot point. For winter or cold environments, be aware that polymer compounds may stiffen somewhat at low temperature, so keep the reel sheltered if possible to preserve flexibility.
Advantages
The hybrid polymer formulation offers better curvature radius and fewer kinks, improving tool feed and reducing interruptions during repetitive operations. Lightweight polypropylene construction provides corrosion resistance compared with metal enclosures and eases installation. The sealed connection points and improved swivel design help prevent leaks in daily use, which can improve efficiency in busy garages or service bays. The PVC handle gives a comfortable grip for manual guiding when extending or stowing the hose.
Notes on limitations and service: the reel relies on internal spring tension for retraction, and prolonged heavy use may require occasional inspection of the spring and swivel seals. Replacement parts and servicing depend on availability from authorised dealers according to the brand.
