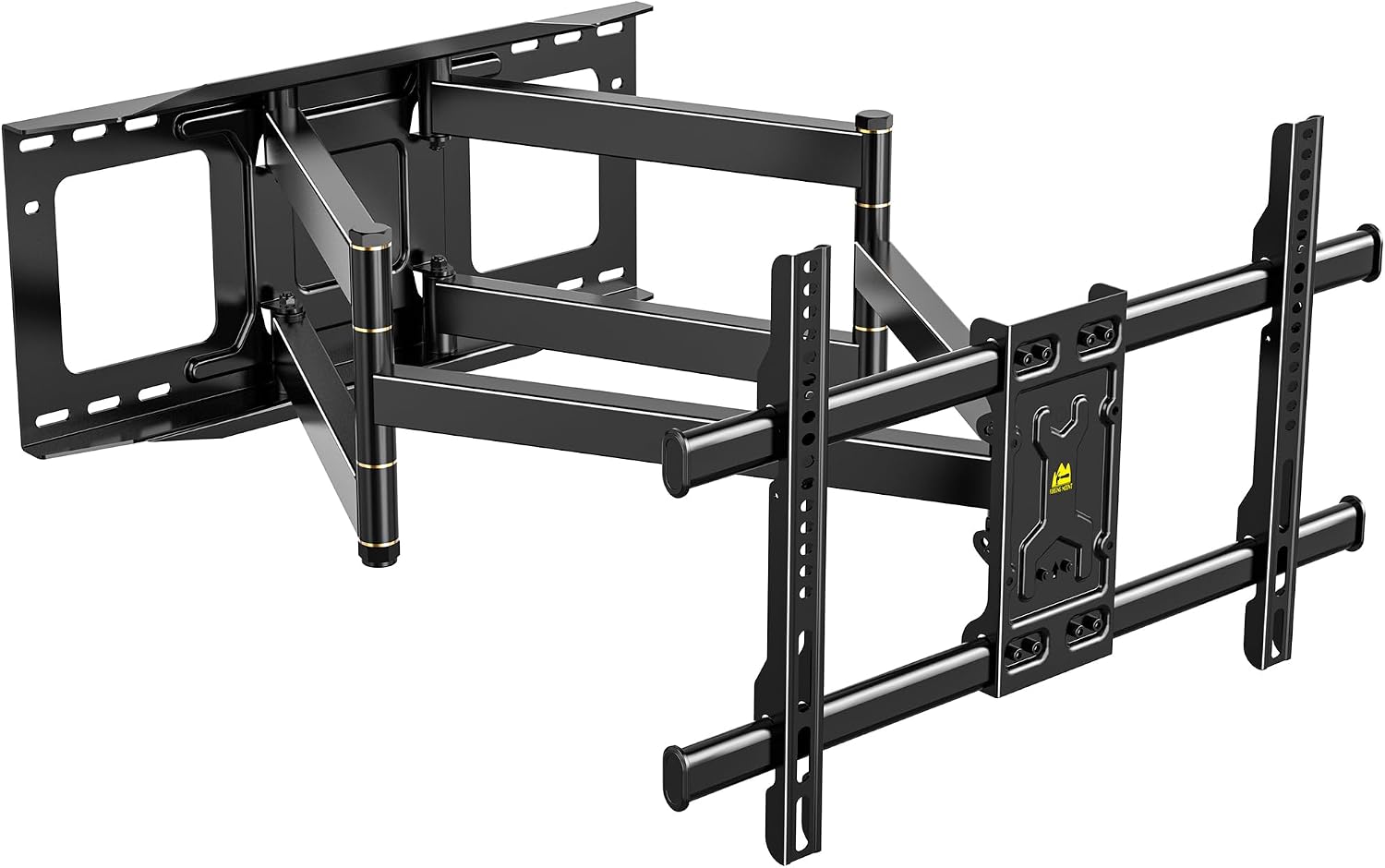

FORGING MOUNT TV Wall Bracket for 50–90 Inch TVs with 765mm Extension

What it is and who it’s for

This is a heavy‑duty TV wall bracket designed to fit most 50–90 inch flat or curved TVs, with a substantial long reach and flexible positioning. If you’re looking to clear floor space or create a cinema-like viewing from different spots in the room, this mount offers a practical solution with a notably long extension. It’s built to support up to 75kg and accommodates VESA patterns from 200x100mm up to 800x400mm, which covers a wide range of large TVs.

How far it reaches and why that matters

One standout feature is the extra long reach: the arm extends up to 765mm from the wall and can retract to 102mm when not in use. On paper, this is ideal for deep alcoves, media centres with multiple components, or where TV viewing angles benefit from extra distance. However, an extension this long may alter cable routing and may require careful wall mounting planning to ensure clearance and stability.

How it moves: tilt, swivel, and level

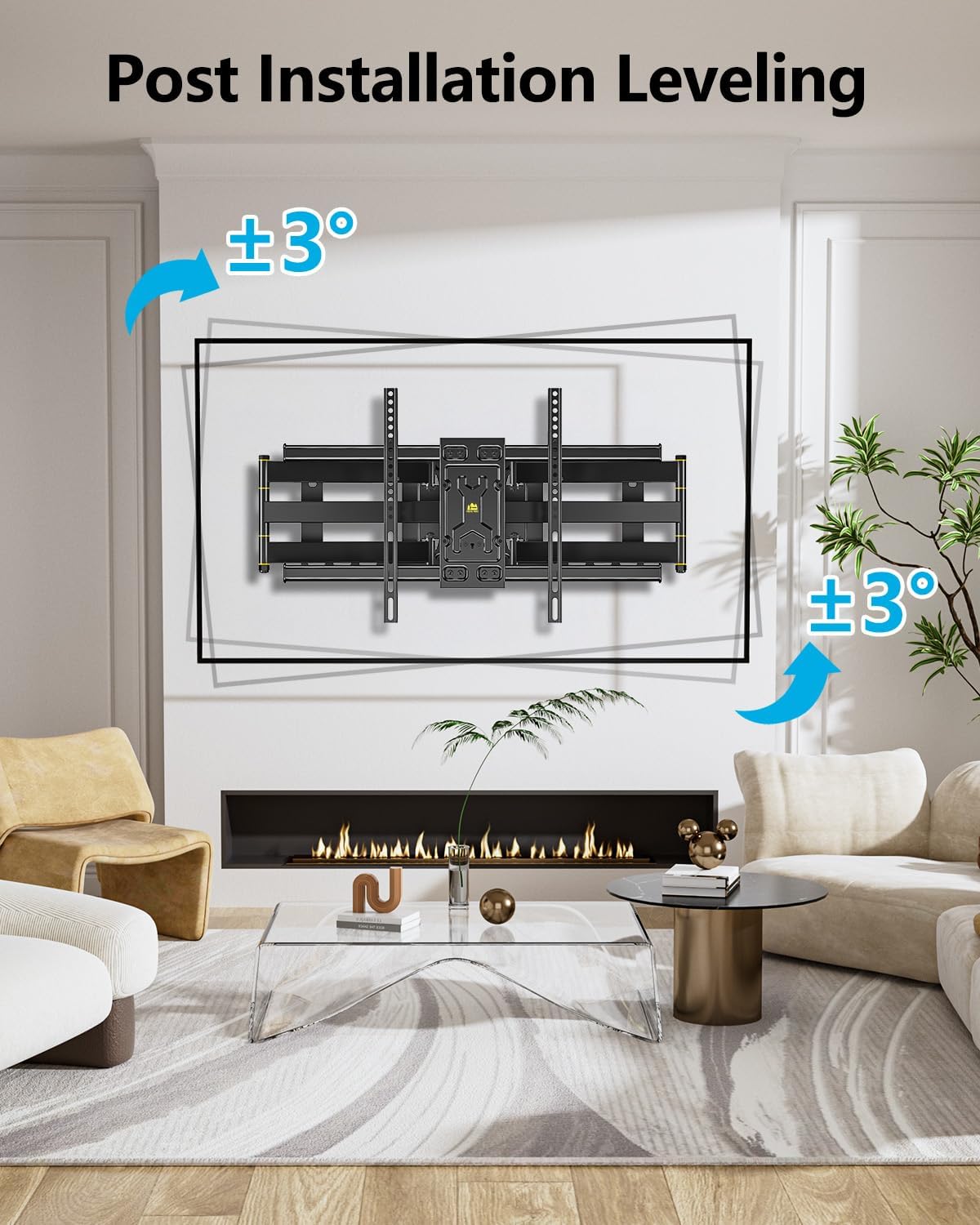

The mount uses dual articulating arms for broader movement. You can tilt the screen 5° up and 15° down, swivel up to 90° left or right (the actual swivel depends on TV size), and fine‑adjust the level by ±3°. In practice, that means you can fine‑tune your viewing angle for a sofa‑side seat or a corner setup, though very large screens may limit the maximum swivel in practice.

Build quality and compatibility notes

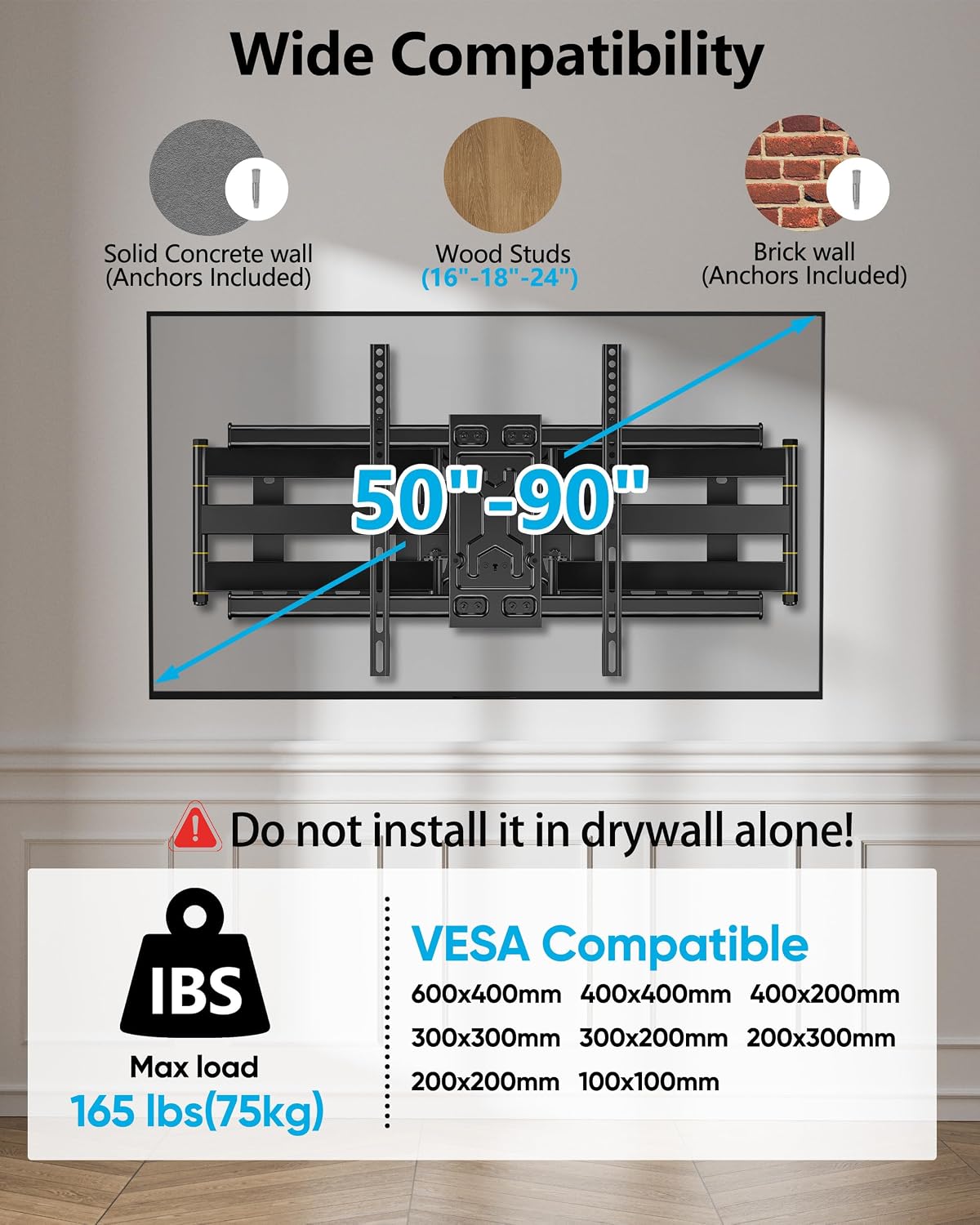

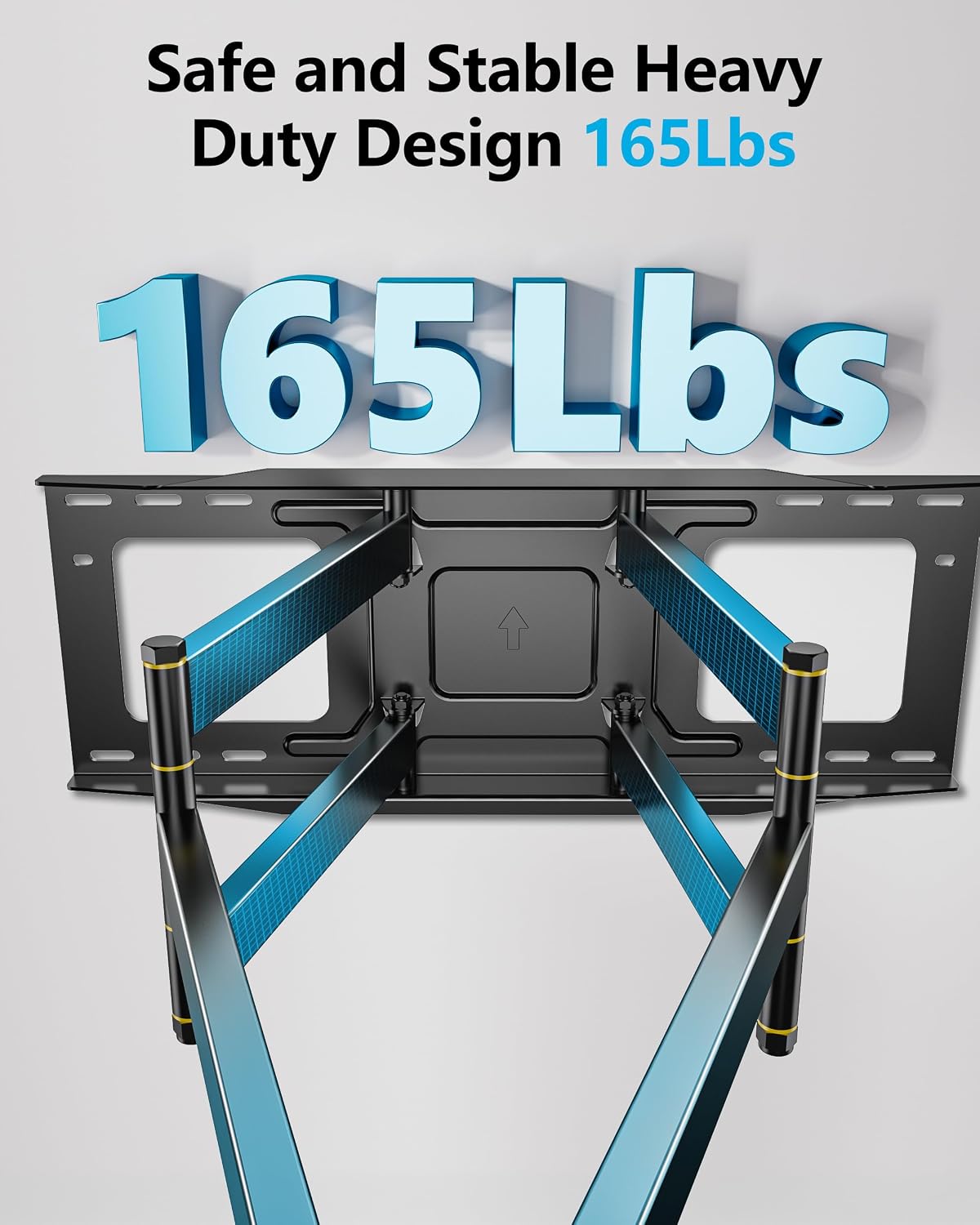

Constructed from high‑quality steel, this is described as a heavy‑duty option with a generous load capacity. It’s designed to be mounted on solid concrete, brick walls or a single wood stud, which makes it versatile for different living spaces. If your wall is hollow or you’re unsure about the wall structure, you’ll want to verify that the chosen mounting location can safely bear the load.

What’s good and where it might fall short

On the plus side, the combination of a long reach, dual arms, and broad TV compatibility makes this a compelling option for bigger screens where space saving and flexible viewing are priorities. It’s also convenient that the kit includes a pre‑set drill hole template and a range of screws, which can simplify installation across different TV brands.

Where it’s less perfect may be the requirement to manage a long extension’s cable length and the potential for more visible wall footprint when the arm is fully extended. Also, while the weight rating is up to 75kg, extremely heavy or unusually shaped TV panels may benefit from professional mounting assessment.

Who it’s for and who should think twice

This mount suits households with large TVs in living rooms or home theatres where visitors will sit at varied angles. It’s sensible if you value a neat wall look and need some degree of future flexibility for different TV sizes within the 50–90 inch range. If your room is small or you rarely reposition seating, a shorter reach mount could be more than sufficient and keep things tidier.

When does it make sense to buy

Consider this option if you: - want significant wall clearance and a broad range of viewing angles - have a wall that can support up to 75kg and accept VESA patterns up to 800x400mm - need a mount that adapts to both flat and curved screens within the specified size range

Consider delaying or exploring alternatives if you: - prioritise minimal wall intrusion and a near‑flush setup - have limited wall space or a setup where the full 765mm extension would introduce cable or clearance challenges - require a lighter duty option, or you’re mounting a TV outside the stated size/weight ranges

What to check before buying

• Confirm your TV’s VESA pattern falls within 200x100mm to 800x400mm and that the TV weight is within the 75kg limit.
• Assess wall type and stud layout to ensure safe anchorage for a long, heavy mount, consider professional fitting if unsure.
• Plan cable routing for the 765mm extension to avoid strain or visible cables when extended.
• Consider your seating arrangement and whether full extension is likely to be used frequently.

A practical comparison in the same space range

If you’re weighing options for a large TV in a modern living room, you’ll typically balance between long‑reach versatility and a more compact, tidier look. This Forging Mount sits towards the practical mid‑to‑heavy end: it offers strong support and flexible positioning, which is advantageous for dynamic viewing setups, but it may not be the best fit if you consistently prioritise a low profile or simpler installation.

Is it worth it?

Is it worth it? It makes sense if you value extensive adjustability and space optimisation for a large TV, and you can accommodate the wall and cable requirements. It may not be the best choice if you favour a minimal, near‑flush installation or if your wall structure is uncertain. A careful assessment of room layout, seating positions, and wall integrity will help determine if the long reach and dual‑arm design add real value in your case.

FAQ

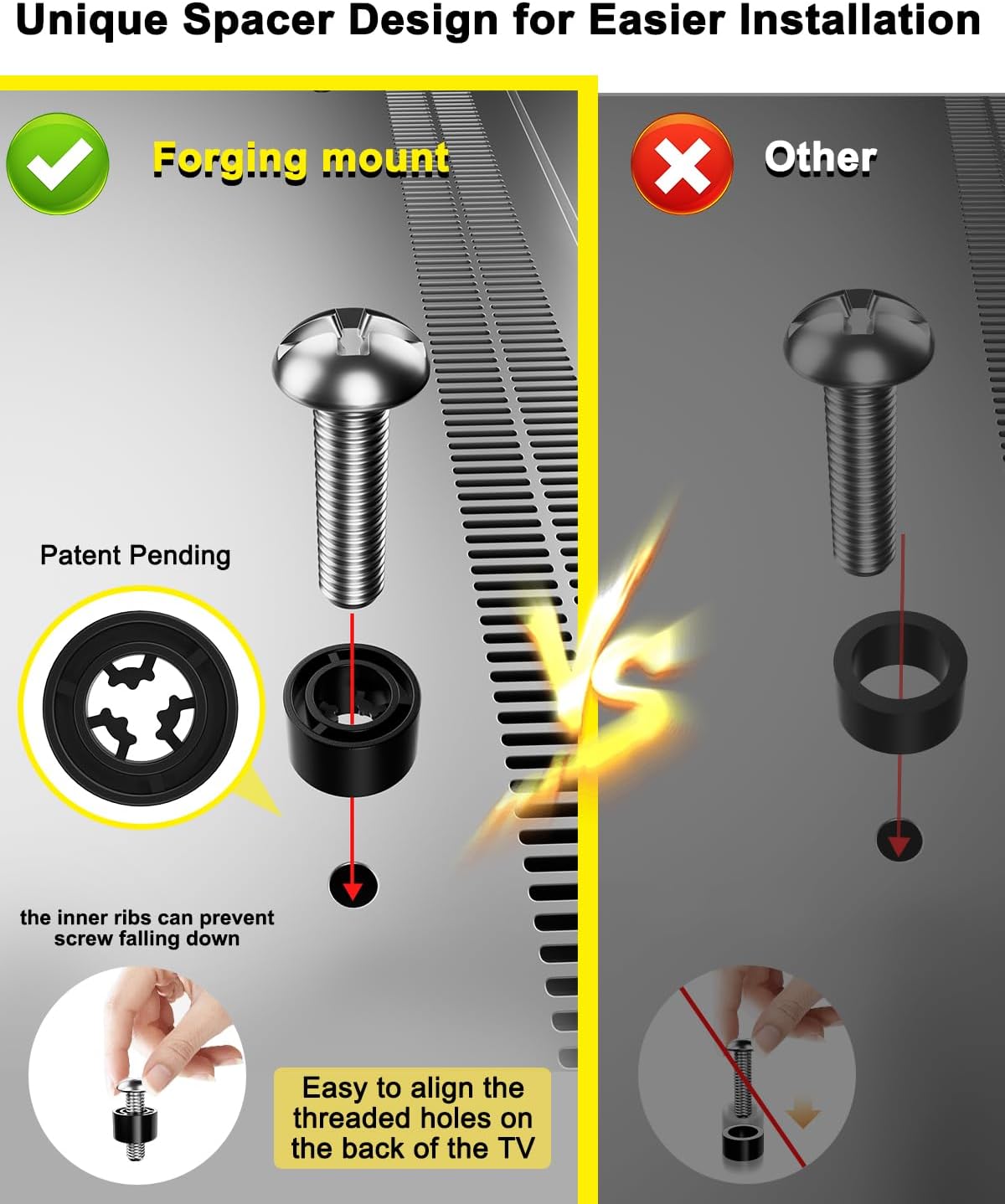

• Do I need special tools to install it? The kit includes a drill hole template and a range of screws, with an instruction manual to guide installation on common wall types.
• Will it fit curved TVs? Yes, it supports flat and curved TVs within the 50–90 inch range.
• Can I adjust the viewing angle after installation? Yes, tilting, swivelling and slight level adjustments are possible to optimise viewing from different seats.

Final thought

For a space‑saving, adaptable setup with a large screen, this Forging Mount provides substantial reach and solid load capacity. If those are priorities in your room, it’s worth considering, bearing in mind the practical considerations around wall structure, cable routing and full extension use.
