ERGAOBOY PC6-04 push fit fittings 10 pack
Product description
If you are setting up or refreshing a pneumatic air line, reliable push to connect fittings make routing simpler and quicker. These ERGAOBOY fittings are made to help you create tight, well sealed connections while also making direction changes along the route, using the same 6 mm tube OD size with 1/2 BSP thread connection. ⚙️

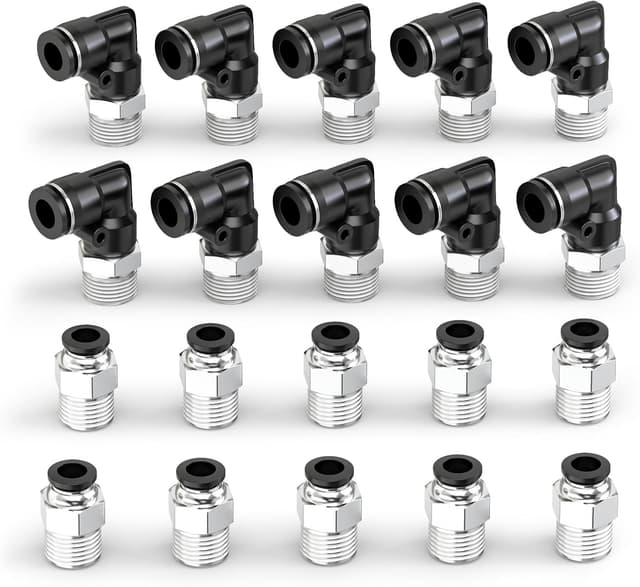

The ERGAOBOY 10Pcs Black elbow and straight combination gives you a practical mix of components, so you can plan bends and straight runs without hunting for different parts. With copper and plastic construction for wear resistance and heat resistance, they are built for day to day shop use, workshop setups, and maintenance work where air plumbing needs to stay dependable. 🔧
Key points
ERGAOBOY combines elbow and straight push-in fittings in a 10 piece set for pneumatic pipework, so you can handle common layout needs in one go. The push lock style is designed to be inserted and removed manually, which helps when you want to adjust the route during installation or service. Because these fittings allow changes in direction of the pipeline, you can reduce the number of extra parts you need to manage angles and straight sections.
A key strength is the sealing, with a connection described as tight and strong sealing for pneumatic use. The set uses 6 mm tube OD and a 1/2 BSP thread size, with the note that BSP thread size is a nominal pipe size and does not represent the actual diameter. That matters when you are matching components during planning, particularly if you are working from existing pipe layouts.
It is also worth noting the operating conditions. The manufacturer lists an operating pressure and temperature range of 0 to 1 MPA and 0 to 60°C, so it is best kept within that band for safe performance. If you are working outside these ranges, you should check your system requirements before installing the fittings.

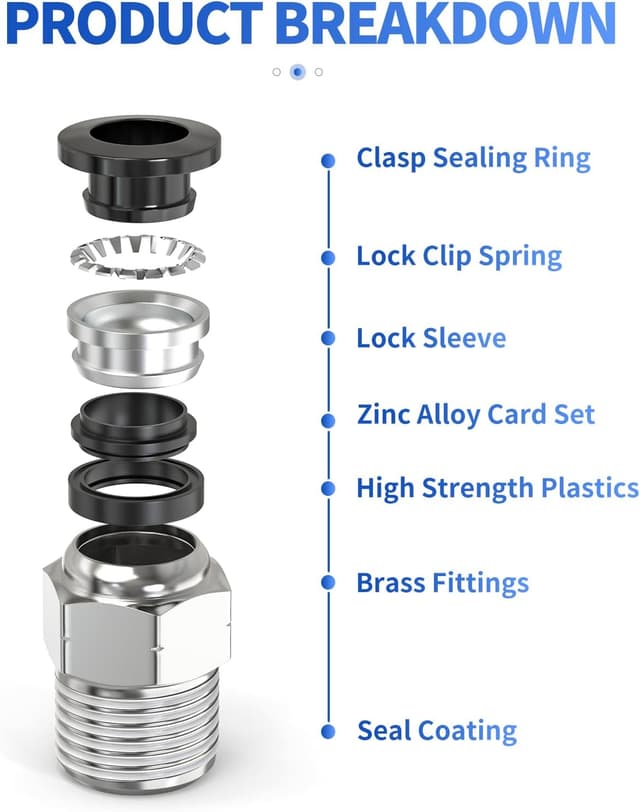

Materials are another practical consideration. The fittings use high quality copper and plastic, aimed at resisting wear and helping prevent rust and corrosion. That combination is useful where the air line setup may be exposed to typical workshop conditions, while still prioritising a stable connection.

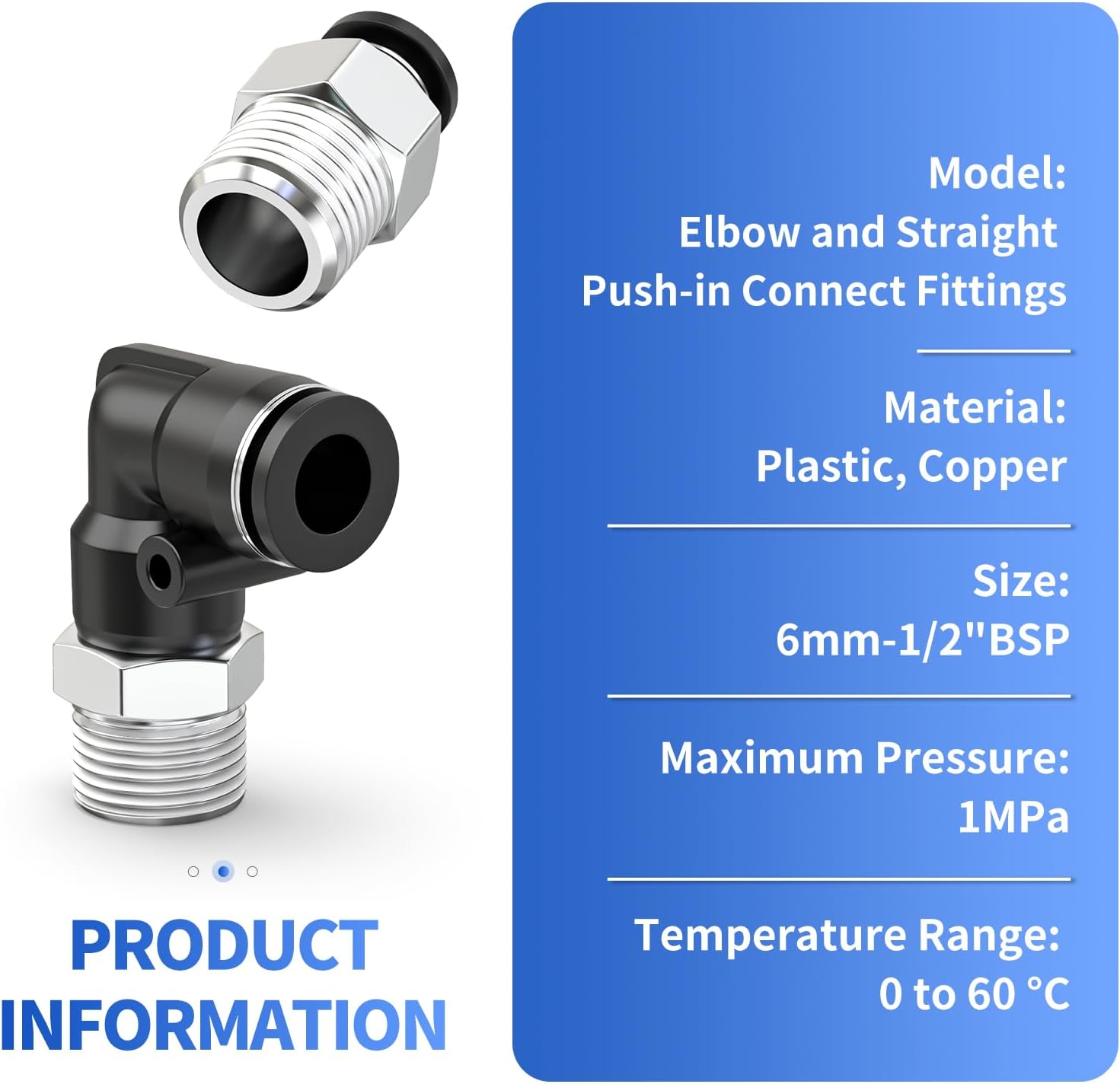

Tech specs
- Name: Black elbow and straight push-in combination pneumatic fittings
- Type: Push to connect, push lock pneumatic fittings

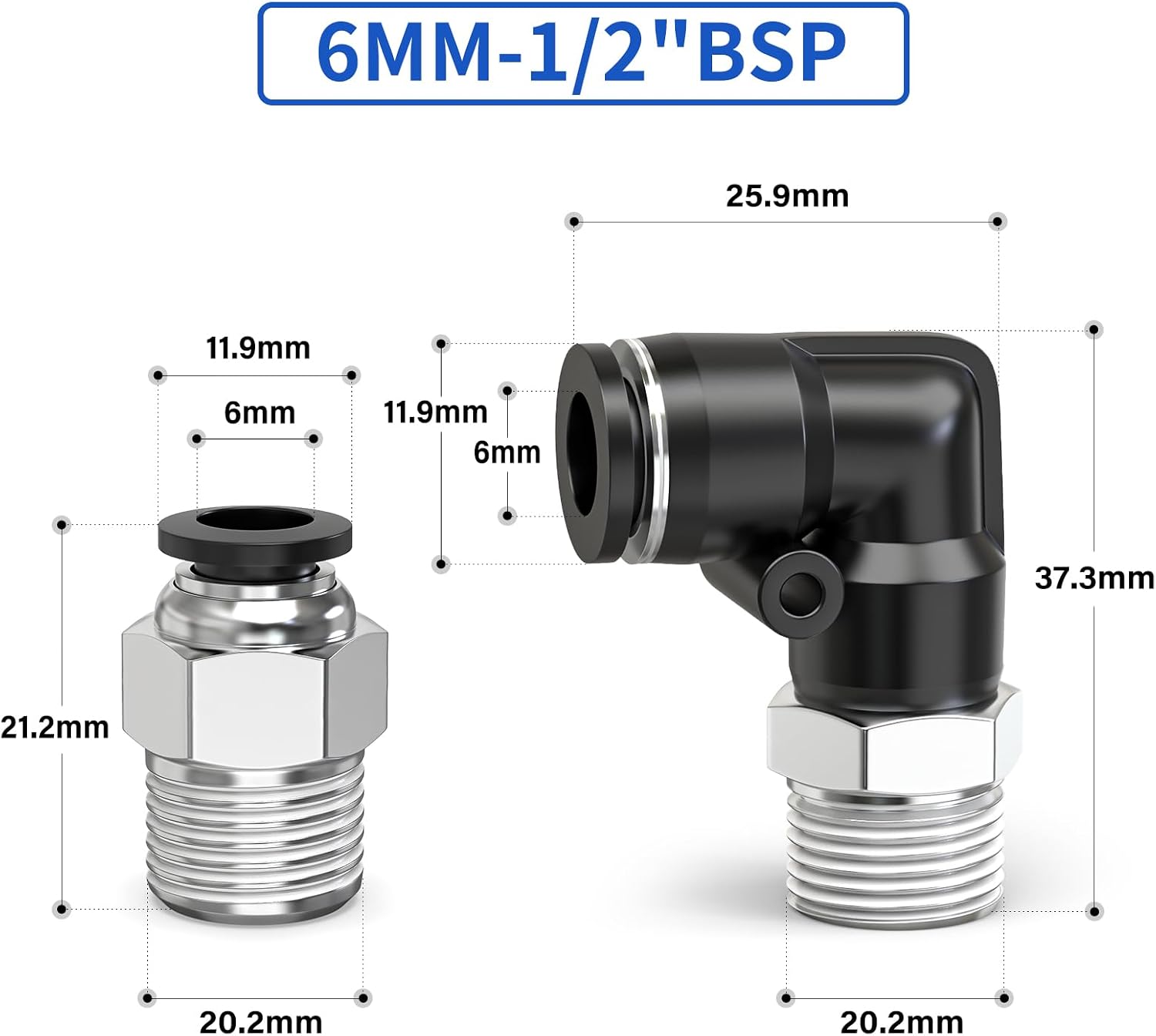

- Size: 6 mm tube OD
- Thread size: 1/2 BSP thread
- Material: High quality copper and plastic
- Operating pressure: 0 to 1 MPA
- Operating temperature: 0 to 60°C
What stands out

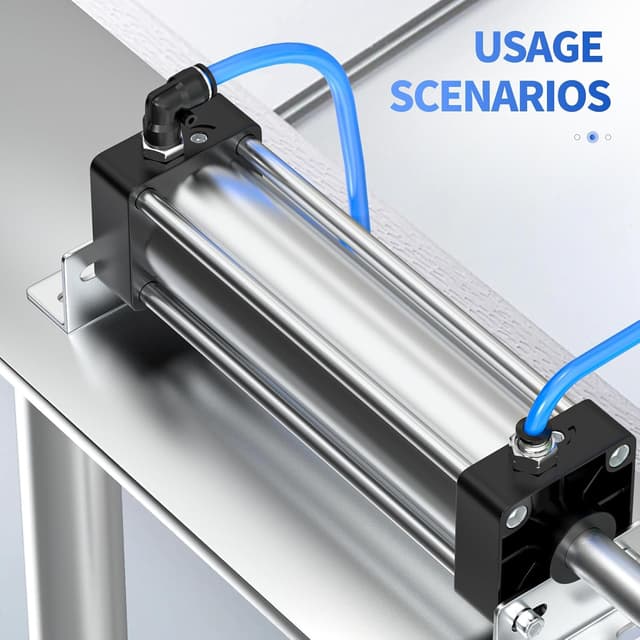

The combination of elbows and straight fittings helps you build a more complete air line layout without stopping to order extra fitting types. Straight pieces support clean runs, while elbows make it easier to route around obstacles, align with ports, or tidy up the layout around machinery. This can reduce installation friction when you are working on a pneumatic system where space and access matter.

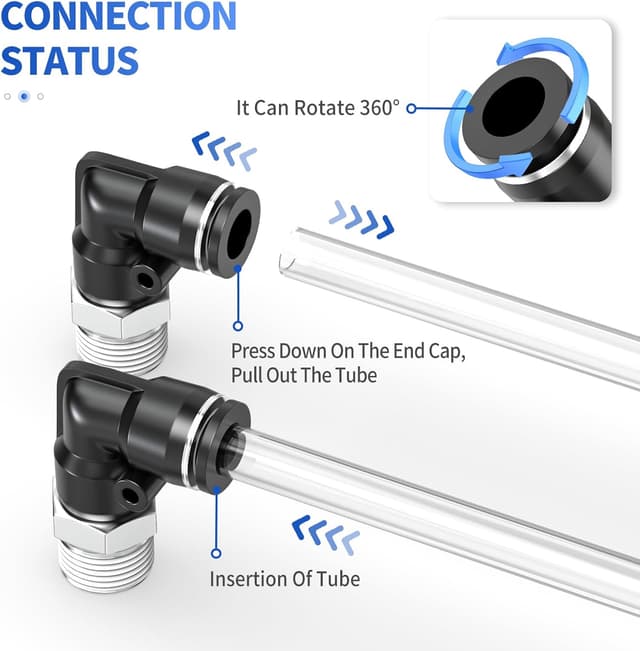

Another practical advantage is the installation approach. Push-in fittings can be installed to change direction, and the design is described as not requiring tools for manual insertion or removal from the air pipe. When you are doing regular maintenance or fine adjustments, being able to reposition without complicated steps can be a genuine time saver.

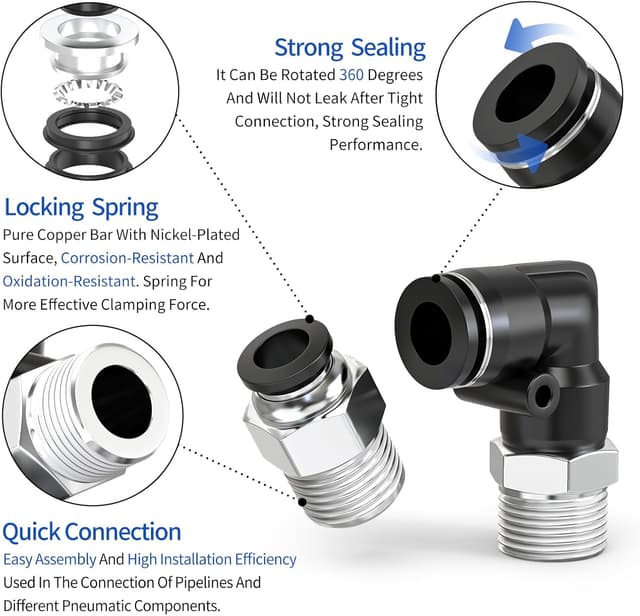

Sealing quality is also a key theme in the product description, with emphasis on tight, strong sealing at the connection point. For pneumatic setups, stable sealing helps you avoid common frustrations such as leaks that can disrupt performance or raise noise levels. In real use, that means the system is less likely to lose pressure during routine operation.
Material choice is designed for robustness. Wear resistance supports longer service life in everyday workshop conditions, while heat resistance helps within the listed temperature range. The description also notes preventing rust and corrosion, which is useful if your air plumbing area sees moisture or fluctuating humidity.
Everyday compatibility
It’s a good fit if you have a pneumatic setup that uses 6 mm tube OD and you need a 1/2 BSP thread connection, matching an existing system layout. It makes sense if you want a small mix of straight runs and elbows so you can plan common routing changes in one job, whether for new installation or maintenance work.
It might not suit you if your system requires operating pressure or temperature outside the stated 0 to 1 MPA and 0 to 60°C range. It may also not be the best match if you need a different tube size than 6 mm tube OD, since compatibility depends on that dimension and the connection requirements of your air pipework. 🛠️
