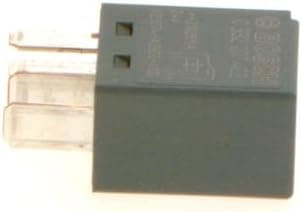

Bosch 0332207402 24V Micro Relay 10A (5-pin), IP5K4, -40°C to +100°C
Product description
If you need a dependable relay for switching a 24V circuit, this Bosch 0332207402 micro relay is built for the job. On paper it’s aimed at setups where durability matters, with a rated switching current of up to 10A and an operating temperature range stretching from -40°C to +100°C.
A micro relay like this won’t suit every project, though. Some builds need different coil voltages, different contact ratings, or a different level of protection. So the real question is whether your application matches what this relay is designed to handle.
The essentials

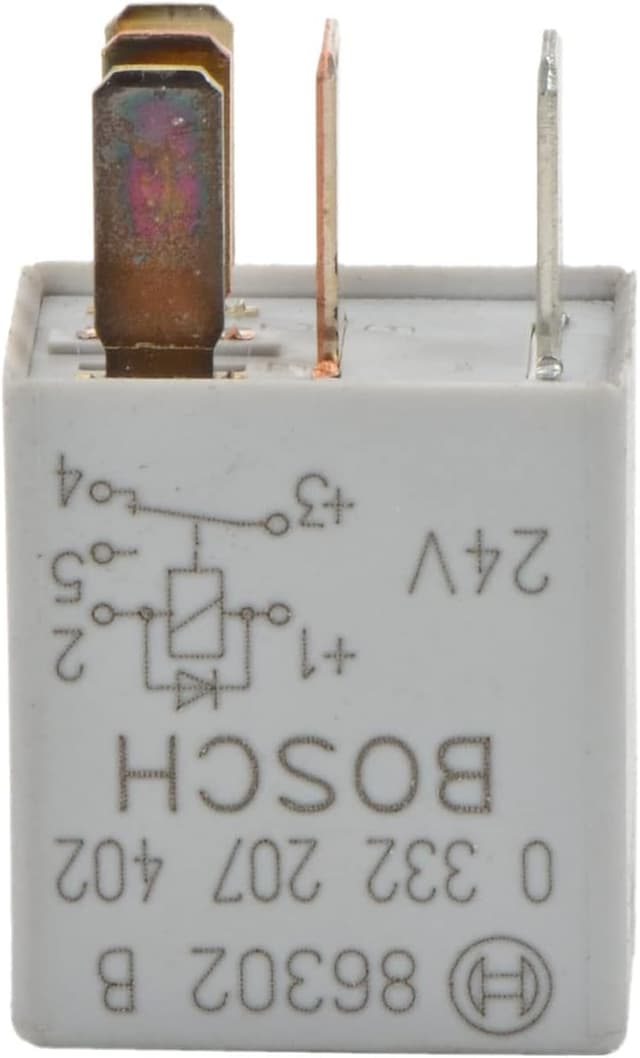

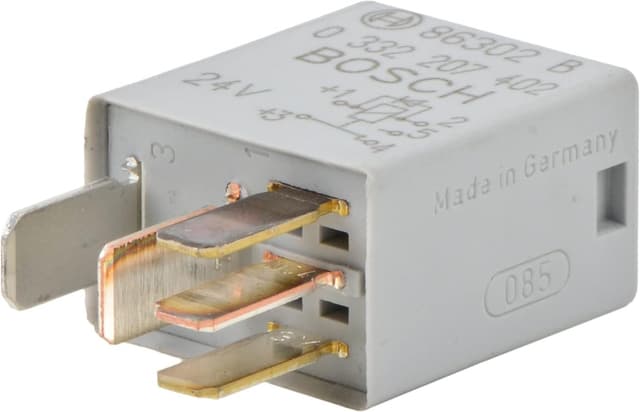

Bosch’s 0332207402 is a 5‑pin changeover relay (relay switch). It’s specified for a 24V system and is rated for switching currents up to 10A. It’s also designed to be robust in everyday industrial-style environments: the description highlights development focused on durability, plus the ability to handle up to 250,000 switching cycles at 24V / 10A.
Physically, it’s set up for standardised connectors, which is a small but practical point if you’ve installed other control components before. The housing protection is listed as IP5K4, and the terminal is listed as IP20—so it’s not the kind of relay you’d place where the terminals themselves will be directly exposed to harsh conditions.
If you’re replacing an existing relay, this one tends to make sense when the key requirements line up: 24V coil, changeover function, 5‑pin format, and the switching current you need.
Key features
The most “buying decision” features here are the ones that affect reliability over time and fit into your wiring.
- Designed for up to 250,000 switching cycles (24V 10A), which suggests the manufacturer is targeting sustained switching rather than short-lived switching use.
- Rated switching current up to 10A, so it’s meant for moderately high power loads within a 24V control system.
- Temperature resistant design, operating from -40°C to +100°C—useful if your enclosure sees cold starts, heat, or fluctuating ambient conditions.
- IP5K4 housing protection plus IP20 at the terminal, supporting better environmental resilience than bare components (but still with limits at the terminal level).
- Five‑pole / 5‑pin changeover relay format with a diode included, which is often relevant for protecting the control side in certain relay-drive arrangements.
One nuance to keep in mind: changeover relays do two-position switching, so if your existing wiring expects normally open or normally closed only, you’ll want to double-check the logic and terminal mapping before committing.
What stands out day to day
Where this relay is likely to feel worthwhile is in reliability and installation practicality. With a quoted cycle life of up to 250,000 switching cycles, it’s positioned as a long-service component for control circuits that switch regularly.
The operating temperature range is also a genuine comfort feature. If your system lives in a place that gets very cold in winter or can run hot under load, relays that are only “room temperature” friendly can become a weak link. This one is explicitly set up to cope with ambient temperatures from -40°C up to +100°C.
Also, “standardised connectors” matters more than people think: it can reduce the faff during install and maintenance, especially when you’re swapping components at the bench or on-site.
Tech specs
- Type: Changeover relay (relay switch)
- Name: Bosch 0332207402 Micro Relay 24V 10A, IP5K4
- Voltage: 24V
- Switching current: up to 10A

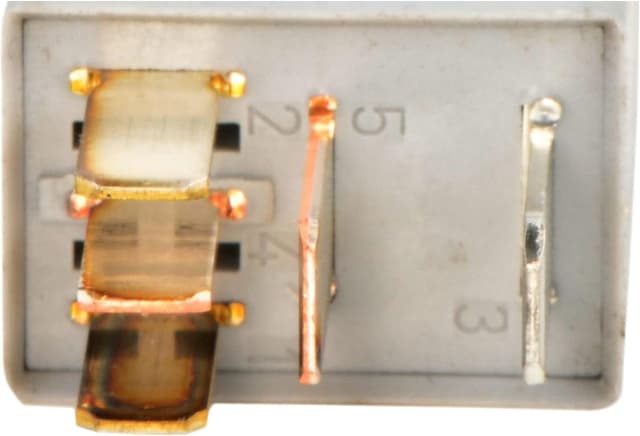

- Contact arrangement: 5‑pin relay (five pole)
- Protection rating (housing): IP5K4
- Terminal protection: IP20
- Operating temperature range: -40°C to +100°C
Where it shines (and where it doesn’t)
It’s a solid pick if you’re working with a 24V control system and you specifically need a changeover relay in a 5‑pin format. It also suits projects where the relay will be switching often, and where temperature swings are part of life rather than an edge case.
It might not be the best choice if your application needs different protection at the terminals, a different operating temperature spec, or a coil voltage other than 24V. And if your load requirements are right on the edge of the 10A switching rating, it’s worth being cautious—this is a “rated up to” specification, not a guarantee you can ignore margins.
Worth considering if you’re choosing between a basic relay and something built for harsher ambient conditions. But if your build is simple and runs warm and stable, more robust protection can be overkill.
Is it worth it?
If you’re after a 24V 10A changeover micro relay with quoted durability (up to 250,000 switching cycles) and a wide operating temperature range, this Bosch 0332207402 is the kind of component that tends to be worth paying attention to. The IP5K4 housing rating and IP20 terminal rating also add practical credibility for real-world installs.
That said, it’s not a universal solution. You’ll still need to match the relay function (changeover), the 24V requirement, the 5‑pin format, and your switching/load needs. When those details fit, it can be a dependable way to keep a control circuit steady over time. When they don’t, you may end up buying the right “type” but the wrong “fit”.
Practical tips before you buy
Before ordering, double-check the basics that are easy to miss:
First, confirm the relay function you need (changeover) and that you can wire it correctly for your circuit logic. Second, verify the coil voltage is truly 24V in your system. Third, make sure the switching current demand sits within the “up to 10A” rating for your use case.
Finally, don’t ignore the protection split: housing IP5K4 is helpful, but the terminals are rated IP20. If your installation exposes the terminals to moisture/dirt beyond what that suggests, you may want to adjust the enclosure or consider a different approach.
Quick FAQ
What is a changeover relay used for?
A changeover relay switches between two states (depending on your wiring), which is helpful when your circuit needs to route power or signals differently based on a control input.
Is the 10A rating enough for my load?
It depends on your load’s current and how it behaves when switching. The listing states switching currents of up to 10A, so it’s best to compare your requirements against that figure rather than assuming headroom.
Can it handle extreme temperatures?
The operating temperature range is listed as -40°C to +100°C, so it’s designed for wide ambient conditions.
What do IP5K4 and IP20 mean here?
The housing is rated IP5K4, while the terminal area is listed as IP20. That split matters for how you protect the relay inside your enclosure.
Does it come with a diode?
The description notes it’s a 5 pin relay with diode, which is relevant to relay-drive behaviour in certain setups.
