BINTA Digital Multimeter 6000-count multimeter 📟
Product description
This compact digital multimeter brings broad measurement capabilities to workshop and home use, combining auto-ranging convenience with features for electrical troubleshooting and component testing. With 6000 counts and live wire detection, it helps measure voltages, currents and resistance while also covering temperature, capacitance and transistor checks for a wide range of tasks.
Key Points

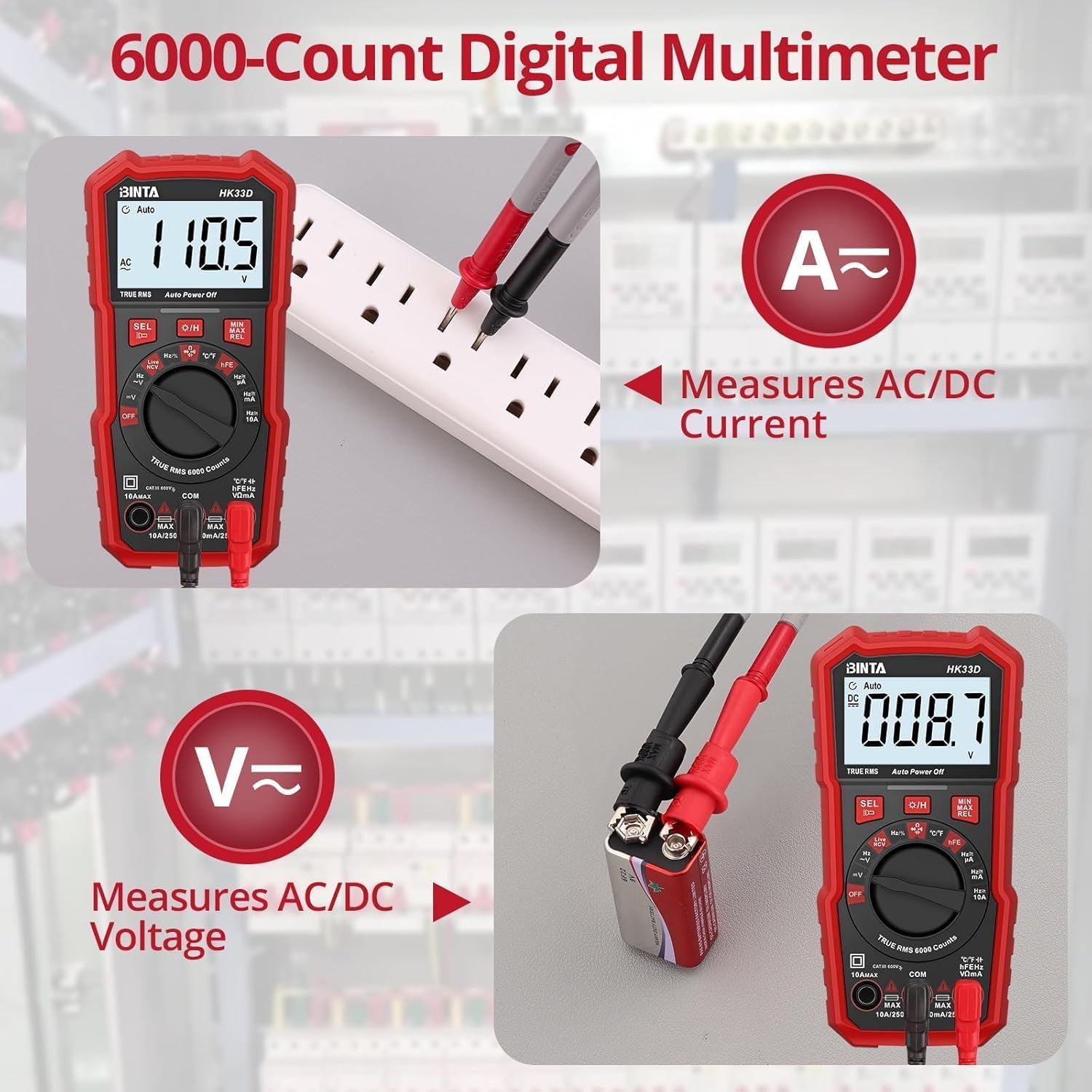

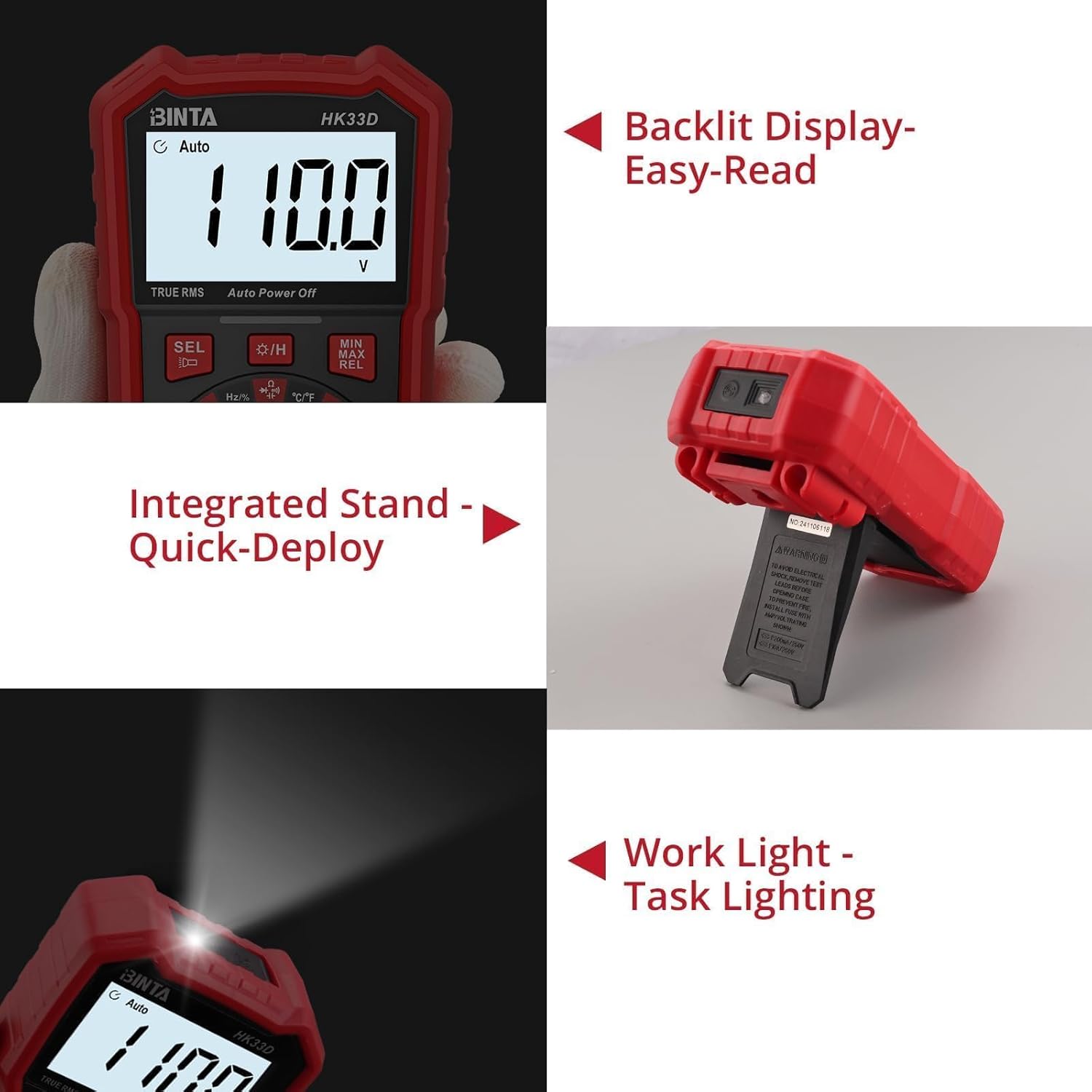

The instrument supports AC and DC voltage and current readings and includes non-contact voltage (NCV) detection for safer live wire checks. A backlight and small flashlight make readings in dim conditions easier, while data hold and max/min functions assist when documenting measurements. According to the manufacturer, safety is addressed with CAT III 600V rating and internal fuses for overload protection, and the unit has an automatic 15-minute shutdown to preserve battery life.
Technical Specifications
Name: BINTA Digital Multimeter 6000 Counts
- Display resolution: 6000 counts
- Resistance: up to 60 MΩ
- Capacitance: up to 100 mF
- Safety rating: CAT III 600 V, with built-in fuses
Usage Recommendations

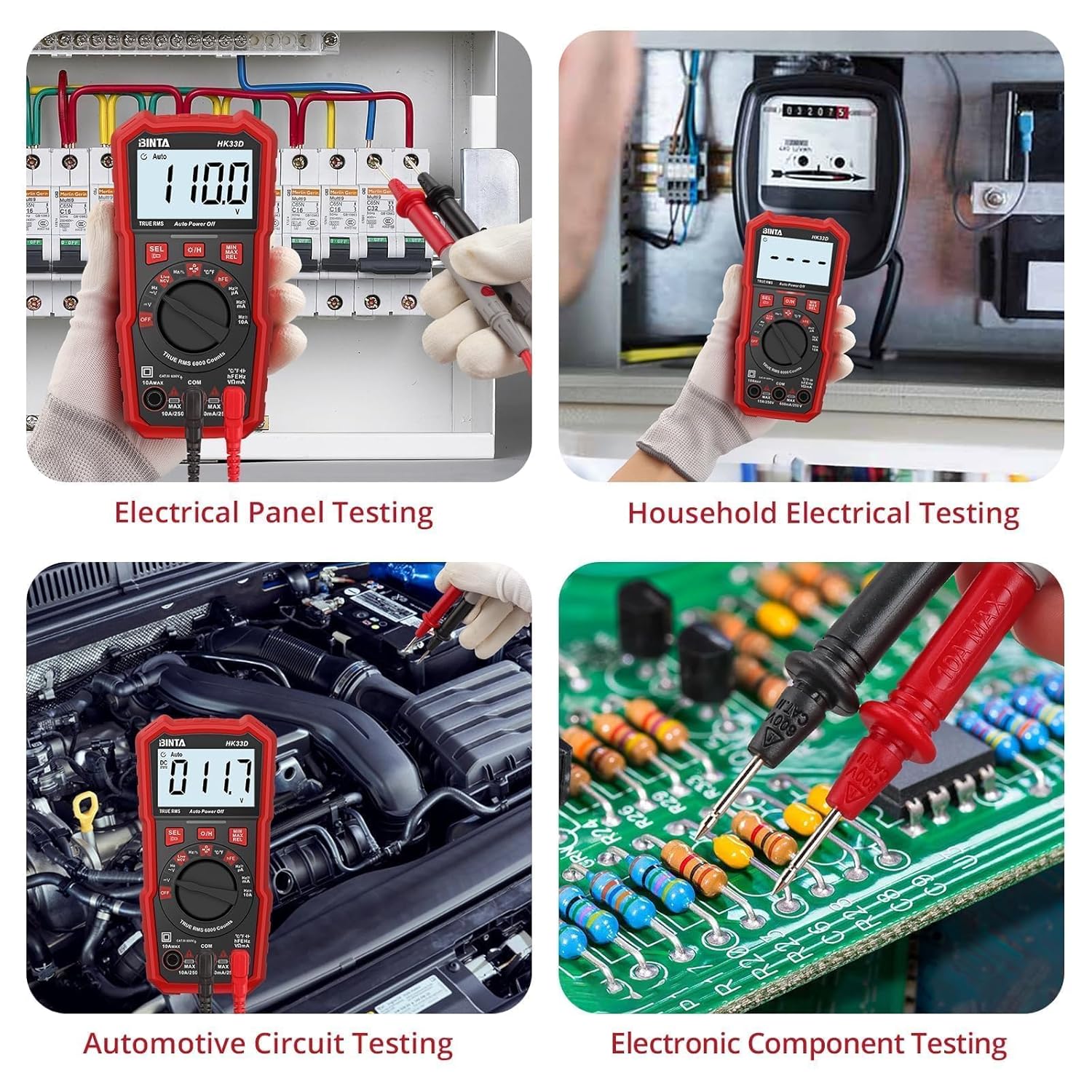

For routine diagnostics on domestic wiring and vehicle electrics, use the auto-ranging function to simplify readings and avoid manual range switching. When detecting live conductors, approach sockets and cables carefully and rely on the NCV indicator rather than bare contact. Use the data hold feature when taking measurements in awkward positions to freeze the display for later review. Consider the specified limits for capacitance and resistance to avoid testing components beyond the meter’s range, and note that extreme environmental conditions may affect accuracy.
Technical Details
- Dimensions: 150 mm x 75 mm x 47 mm

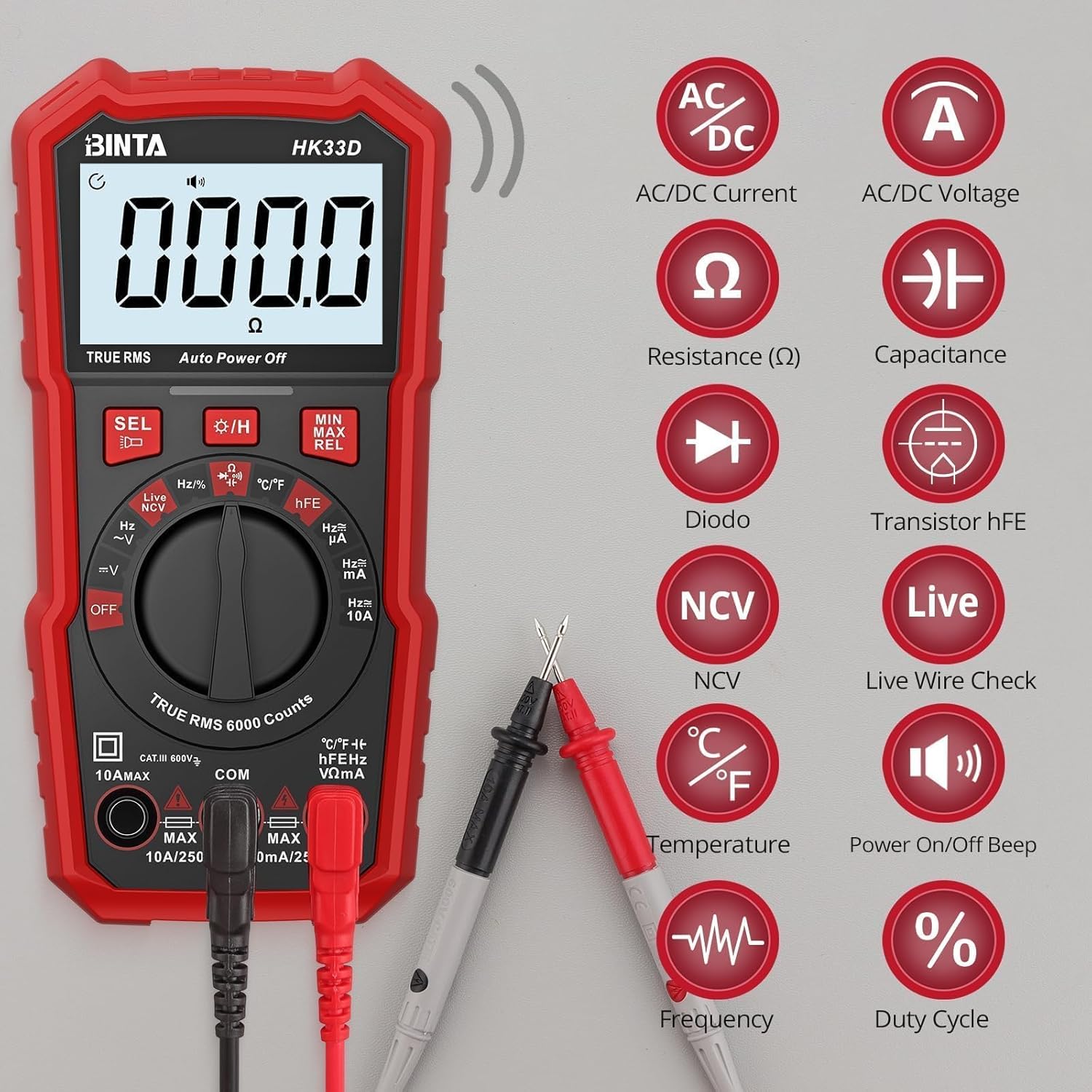

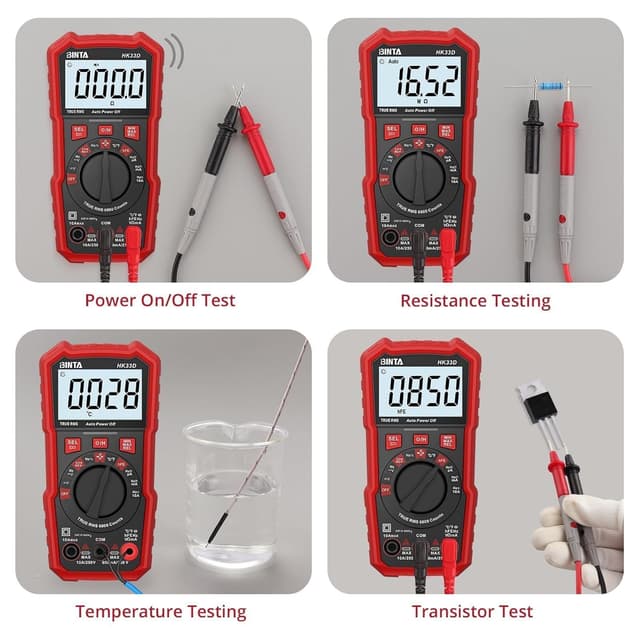

- Functions included: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity (buzzer), transistor HFE, temperature
- Extras: backlight, flashlight, data hold, max/min, automatic polarity, overrange alerts, low battery indication, 15 s backlight timeout, 15 min auto-off
Positive Aspects

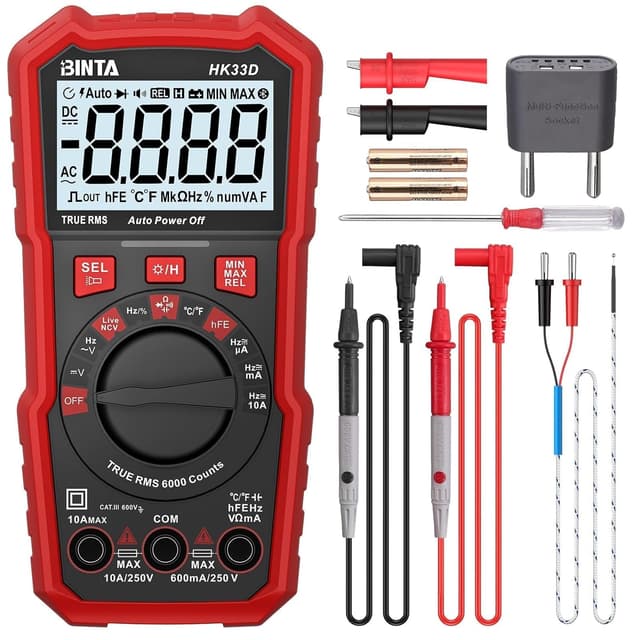

The multimeter packs many functions into a portable package that fits most tool bags and makes on-site inspection practical. It includes useful accessories such as test leads, batteries and a screwdriver, which help get it into service straight away. For hobbyists and professionals who need a single meter for mixed tasks, the blend of measurement types and protective features offers good versatility. Some users may prefer a model with a higher safety rating or extended measurement ranges for industrial work, so consider the specified CAT III 600 V and stated limits when planning your applications.
Price evolution
Description:
This compact digital multimeter brings broad measurement capabilities to workshop and home use, combining auto-ranging convenience with features for electrical troubleshooting and component testing. With 6000 counts and live wire detection, it helps measure voltages, currents and resistance while also covering temperature, capacitance and transistor checks for a wide range of tasks.
Key Points
The instrument supports AC and DC voltage and current readings and includes non-contact voltage (NCV) detection for safer live wire checks. A backlight and small flashlight make readings in dim conditions easier, while data hold and max/min functions assist when documenting measurements. According to the manufacturer, safety is addressed with CAT III 600V rating and internal fuses for overload protection, and the unit has an automatic 15-minute shutdown to preserve battery life.
Technical Specifications
Name: BINTA Digital Multimeter 6000 Counts
- Display resolution: 6000 counts
- Resistance: up to 60 MΩ
- Capacitance: up to 100 mF
- Safety rating: CAT III 600 V, with built-in fuses
Usage Recommendations
For routine diagnostics on domestic wiring and vehicle electrics, use the auto-ranging function to simplify readings and avoid manual range switching. When detecting live conductors, approach sockets and cables carefully and rely on the NCV indicator rather than bare contact. Use the data hold feature when taking measurements in awkward positions to freeze the display for later review. Consider the specified limits for capacitance and resistance to avoid testing components beyond the meter’s range, and note that extreme environmental conditions may affect accuracy.
Technical Details
- Dimensions: 150 mm x 75 mm x 47 mm
- Functions included: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, continuity (buzzer), transistor HFE, temperature
- Extras: backlight, flashlight, data hold, max/min, automatic polarity, overrange alerts, low battery indication, 15 s backlight timeout, 15 min auto-off
Positive Aspects
The multimeter packs many functions into a portable package that fits most tool bags and makes on-site inspection practical. It includes useful accessories such as test leads, batteries and a screwdriver, which help get it into service straight away. For hobbyists and professionals who need a single meter for mixed tasks, the blend of measurement types and protective features offers good versatility. Some users may prefer a model with a higher safety rating or extended measurement ranges for industrial work, so consider the specified CAT III 600 V and stated limits when planning your applications.
