VDIAGTOOL V500 Pro VDT-V500-PRO Automotive Circuit Tester with Oscilloscope

Some automotive electrical jobs need a quick voltage or continuity check, others call for tracing a fault or examining a changing signal. The VDIAGTOOL V500 Pro brings these tasks together in one circuit probe tester, with multimeter and oscilloscope modes plus a breaker finder.

For routine checks across cars, trucks, boats and other listed vehicles, it offers a broad set of diagnostic functions in a single kit.

Quick overview

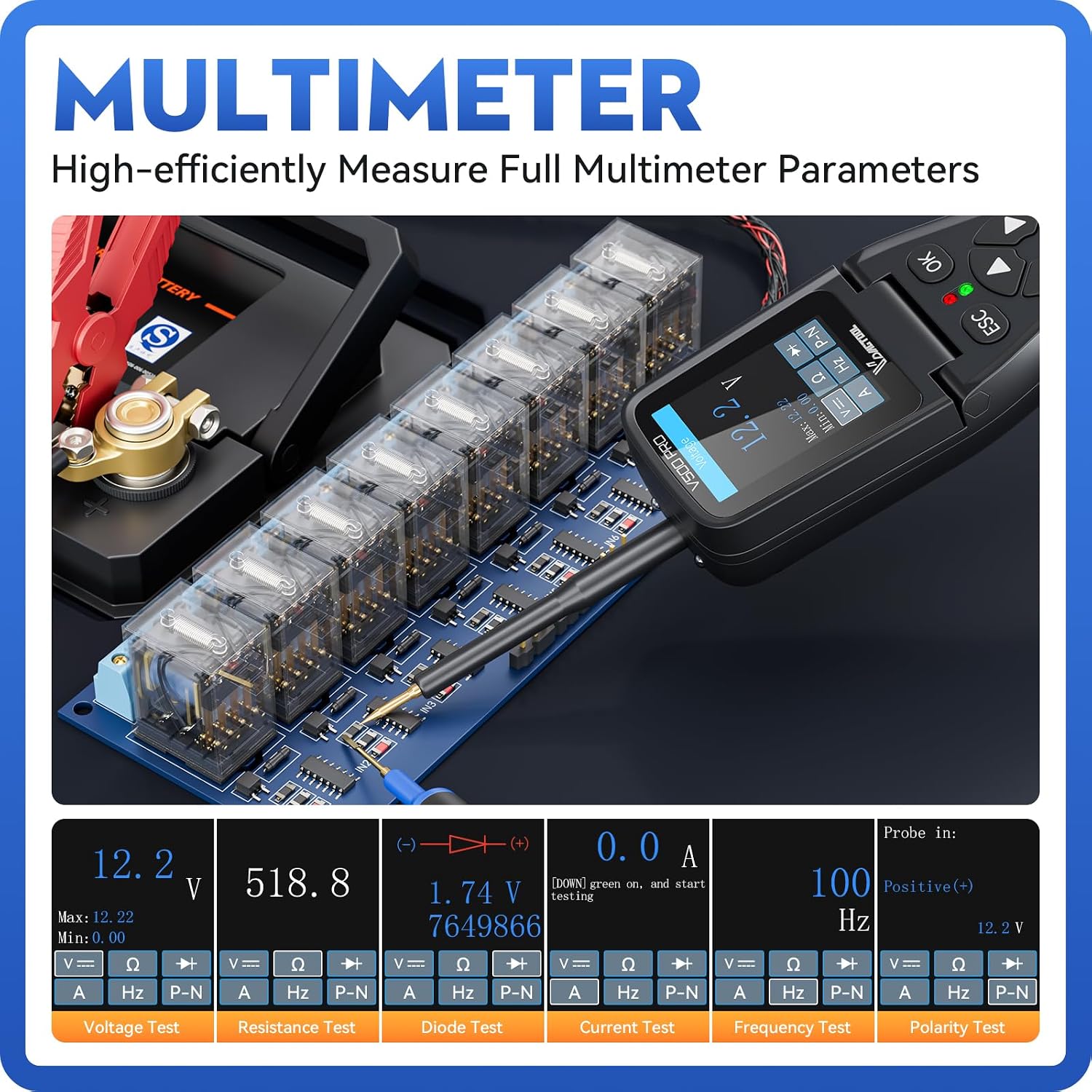

The V500 Pro tests AC and DC voltage, resistance, diodes, current, frequency, polarity, continuity and grounding. Its oscilloscope mode displays electrical signals graphically, making fluctuations easier to observe, while the multimeter mode provides several measurement options for investigating a circuit. A 90° rotating screen helps keep readings visible from different working angles.

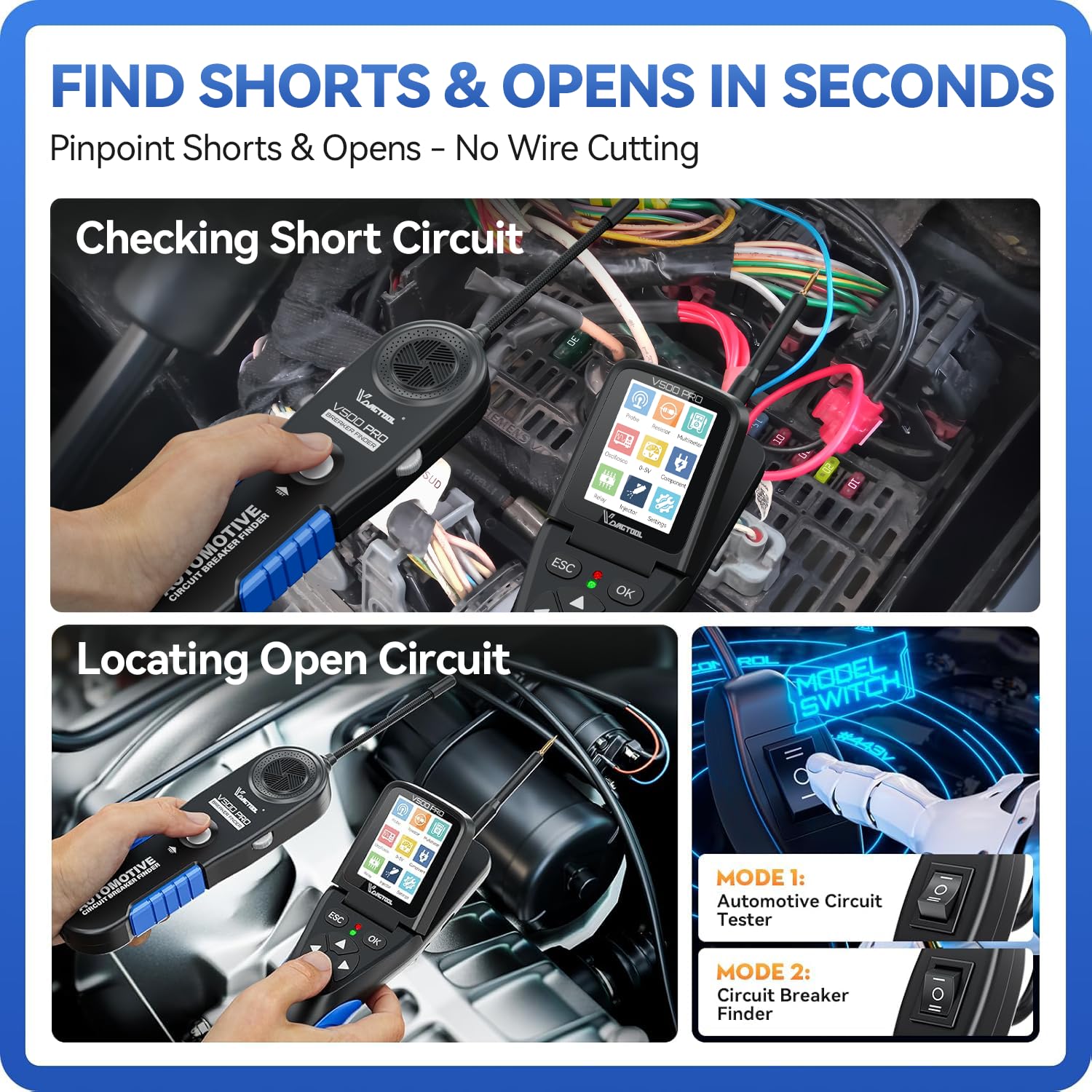

For open-circuit troubleshooting, switch to Mode II to use the breaker finder. It uses a change in tone to help locate open connections, broken wires and current leaks, and can trace wiring without damaging the insulation. The tester also supports relay and fuse checks, injector testing, trailer-light testing and component activation. Power it from a vehicle battery or cigarette lighter, its stated operating range is 9V–30V.

Tips for day-to-day use

Choose the mode that matches the task before testing: multimeter measurements for values such as voltage or resistance, oscilloscope mode to view signal changes, and the breaker finder when tracing an open circuit. For component checks, the probe can supply power to parts such as bulbs, radiator fans, starter motors, relays, window regulators and windshield wipers. The adjustable 0–5V supply is intended for low-voltage circuit diagnosis, sensor debugging and checking circuit behaviour.

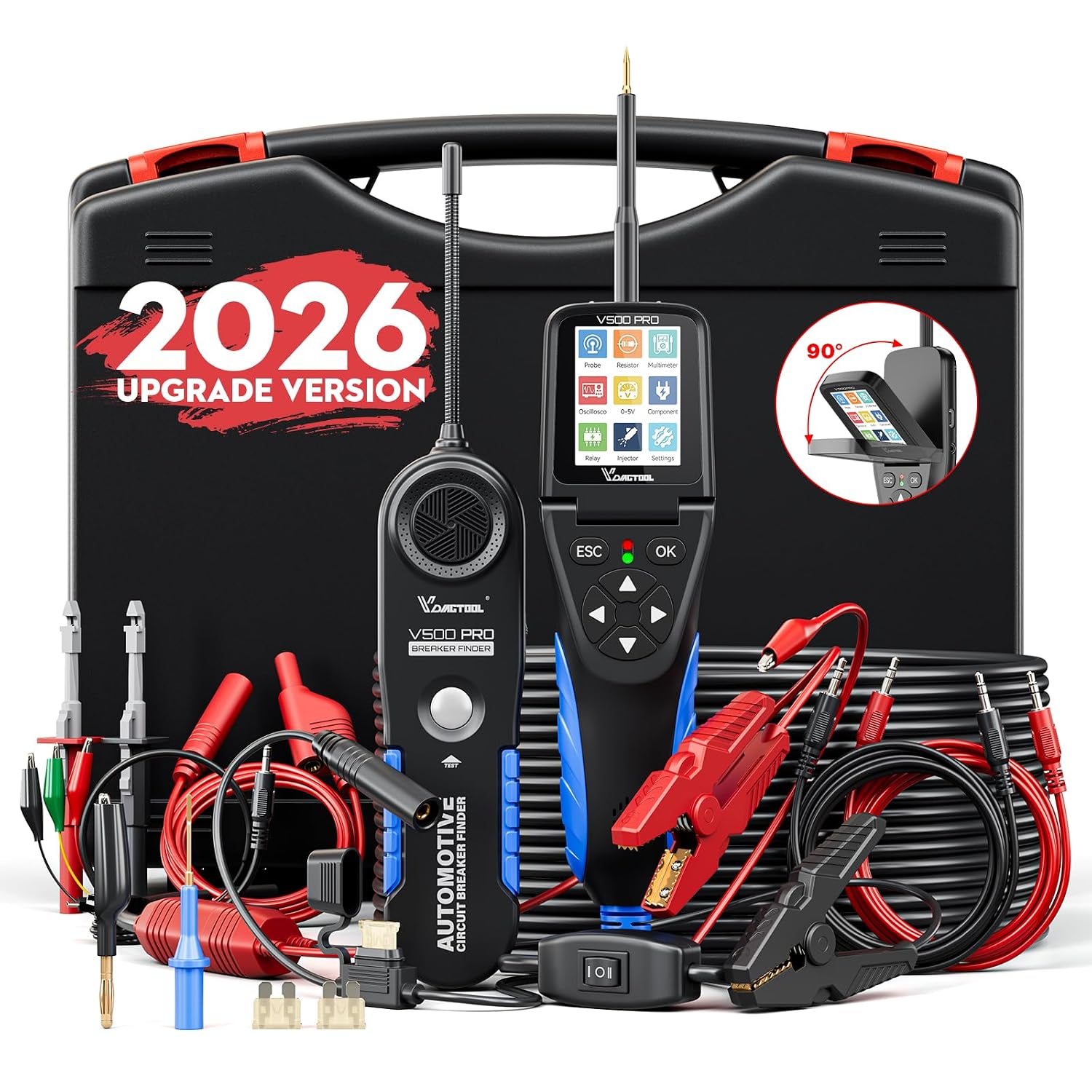

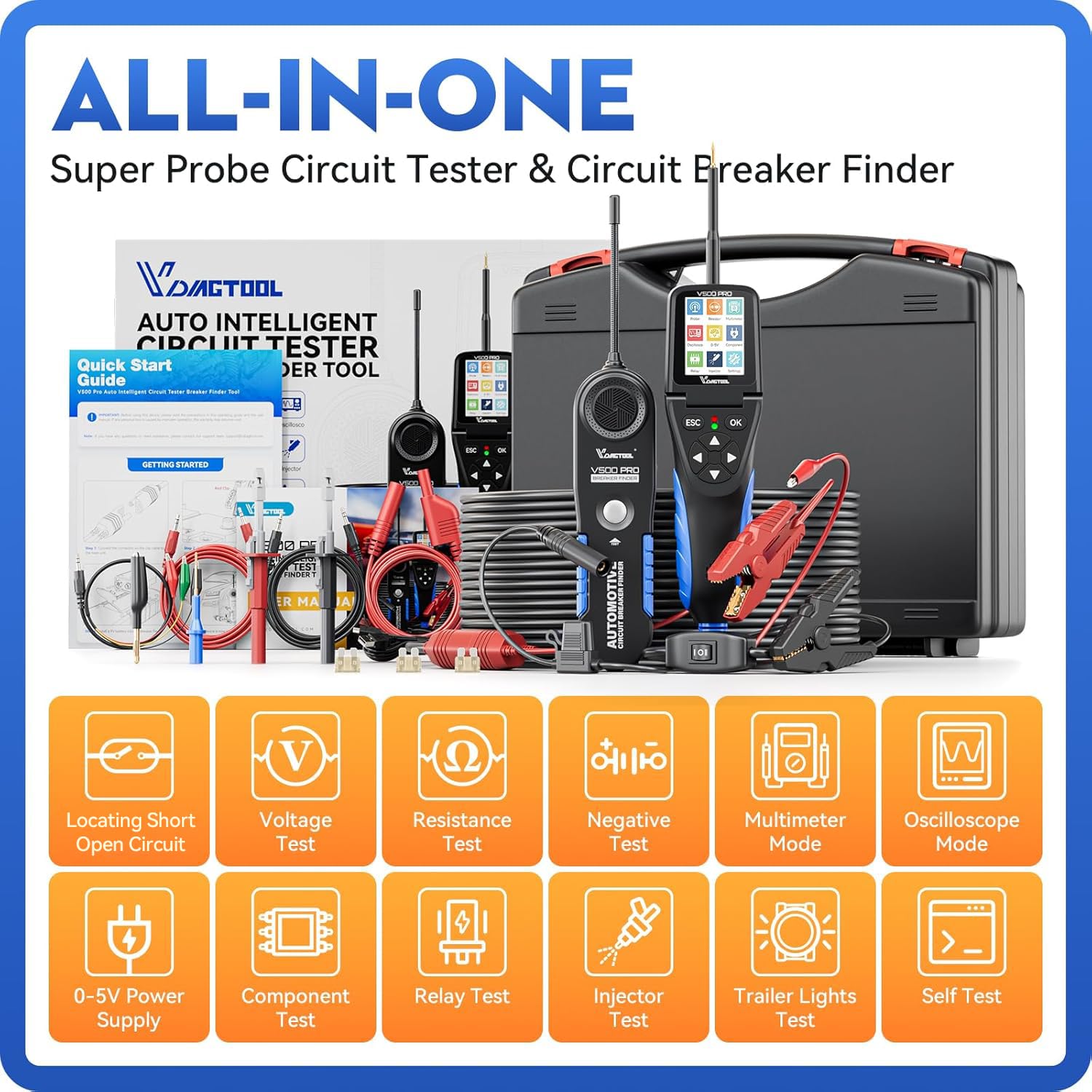

The kit includes probe tips, extension and test leads, wire-piercing probes, a relay test cable, an alligator battery clip, fuses and a Type-C data cable. These accessories support a range of testing approaches, from probing a connection to checking a relay or tracing a wire.

Everyday use

A recurring blown fuse can point to a short circuit, component activation and signal-circuit testing can help narrow down where to investigate. For an intermittent signal, the graphical oscilloscope display offers a different view from a basic voltage reading. If the task is to find a broken wire, the tone-changing breaker-finder mode provides a focused tracing method. The tool is listed for cars, SUVs, minivans, trucks, tractors, boats and motorhomes, giving technicians and DIYers a single kit for varied vehicle electrical work.

Buyers highlight the range of functions, intuitive operation and usefulness of the wire-tracing and relay-testing features. They also appreciate the cable reach and the way the all-in-one format can make troubleshooting more convenient. These are user impressions, while the specific test modes and vehicle applications define the tool’s practical scope.

Practical questions

What kinds of vehicles can it be used with? It is listed for cars, SUVs, minivans, trucks, tractors, boats and motorhomes, with a 9V–30V operating range.

Can it help trace an open circuit? Yes. In Mode II, the breaker finder uses tone changes to help locate open connections, broken wires and current leaks, and to trace wiring without damaging its insulation.

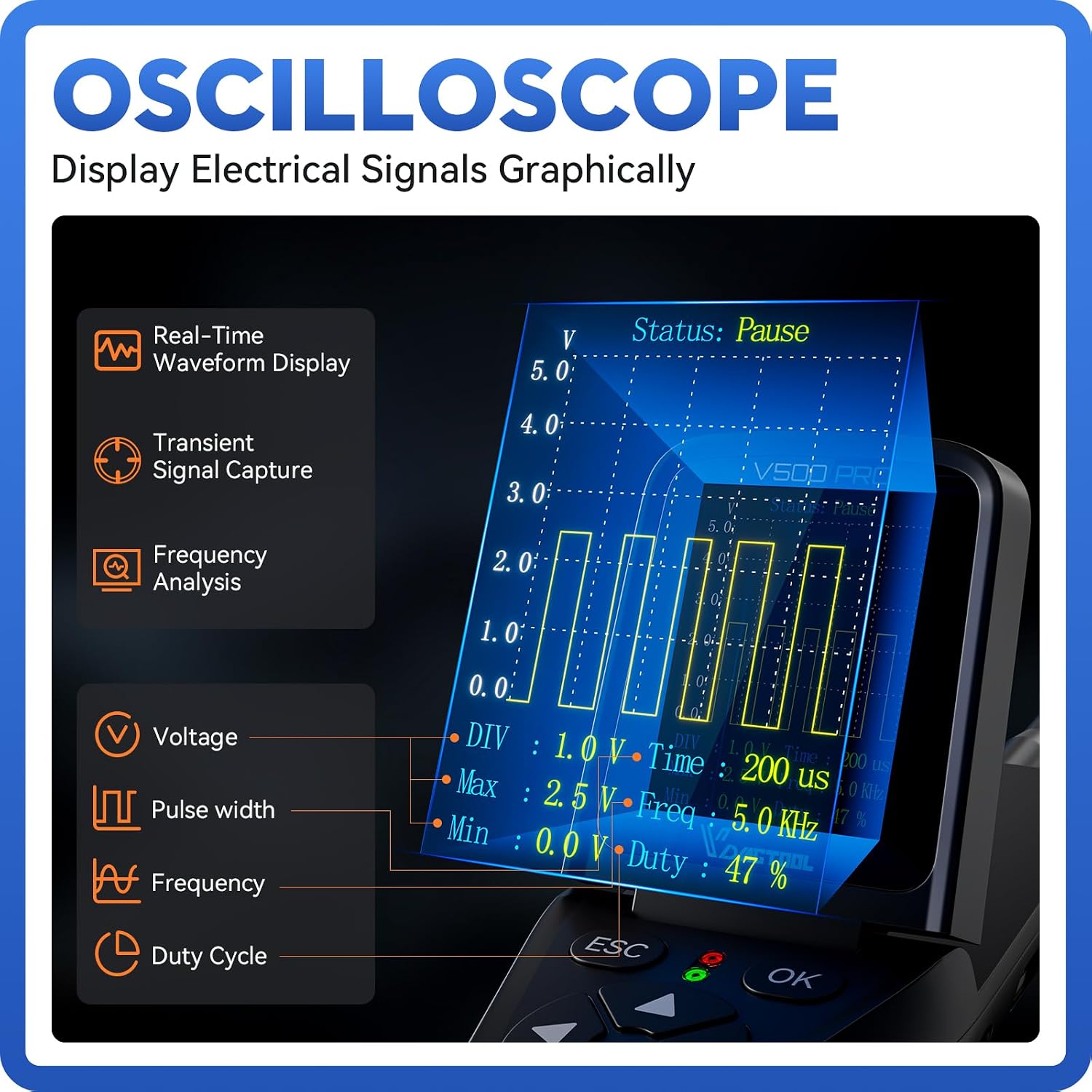

What can the oscilloscope mode show? It displays electrical signals graphically, helping make changes in the signal easier to observe during circuit diagnosis.

Final verdict

The VDIAGTOOL V500 Pro is suited to automotive electrical troubleshooting that ranges from everyday voltage and continuity checks to wire tracing, relay and injector tests, and signal viewing. Its combination of probe functions, multimeter and oscilloscope modes, and breaker finder makes it a practical fit for a working toolbox serving different vehicle types.
