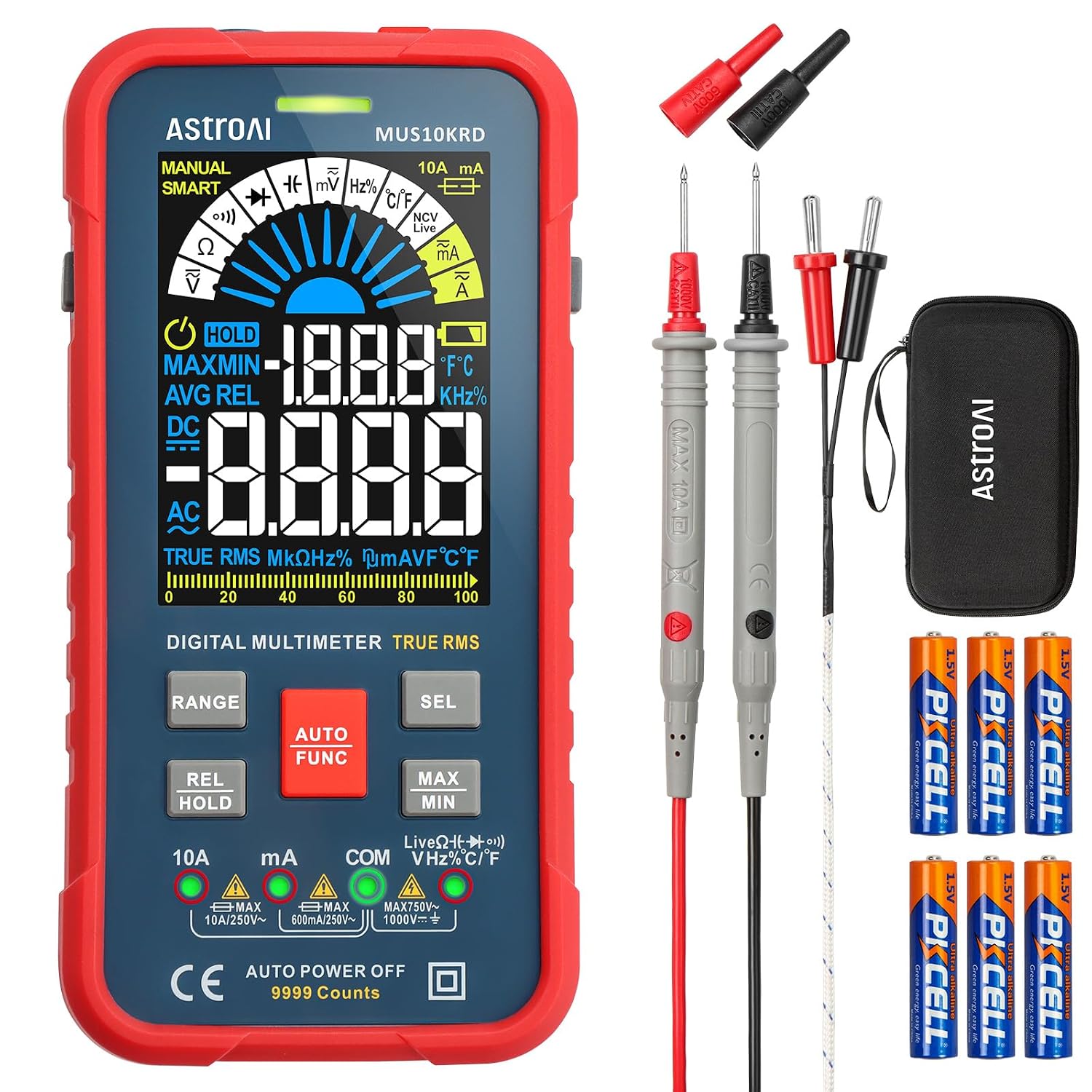

AstroAI MUS10KRD Digital Multimeter, 10,000 Counts, True RMS, Colour LCD

With a 10,000-count colour LCD, the AstroAI MUS10KRD makes a broad range of electrical readings easier to see at a glance. True RMS measurement and automatic range selection help you take readings across different troubleshooting tasks, while the backlit screen and built-in flashlight are useful when working in dim spaces.

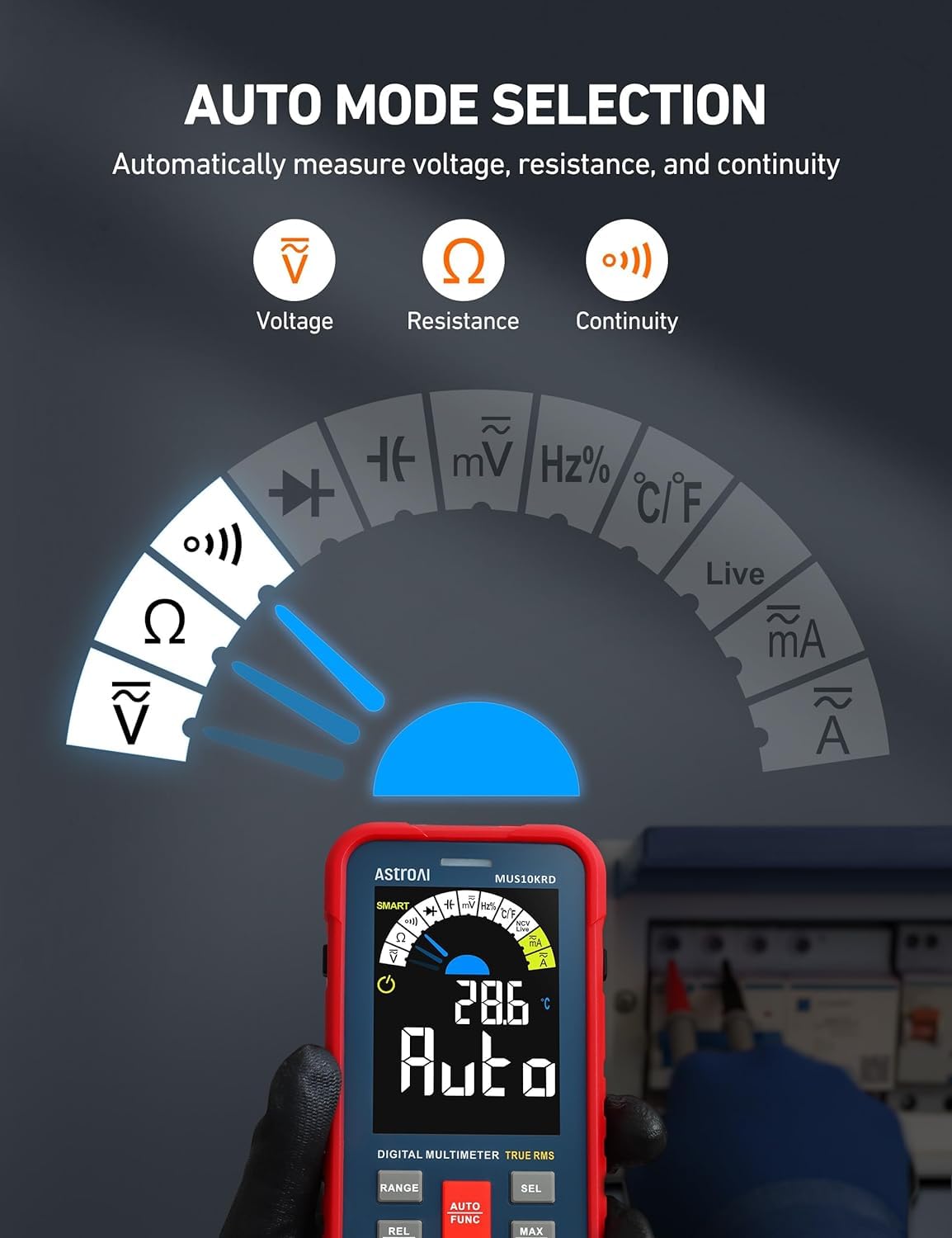

Smart mode can identify voltage, resistance and continuity automatically. For other tasks, manual and auto-ranging options let you choose how to take a measurement.

Best use cases

Use this digital multimeter to investigate household or automotive electrical issues, check continuity, or measure voltage, current and resistance. It also measures capacitance, frequency, duty cycle, diode readings and temperature, and supports NCV and live-wire detection. That range of functions makes it a practical choice when you want one meter for several kinds of circuit checks rather than a tester focused on voltage alone.

For a typical check, select smart mode to identify voltage, resistance or continuity, then use the colour display to read the result. In a dim garage or utility area, the backlight and flashlight help make the screen and work area easier to see. Data hold and MAX/MIN readings support reviewing values as you work, while the real-time temperature display keeps that measurement visible on screen.

Tech summary

• Type: Digital multimeter with True RMS
• Display: 10,000 counts, colour LCD with backlight
• Range selection: Automatic and manual, smart mode identifies voltage, resistance and continuity

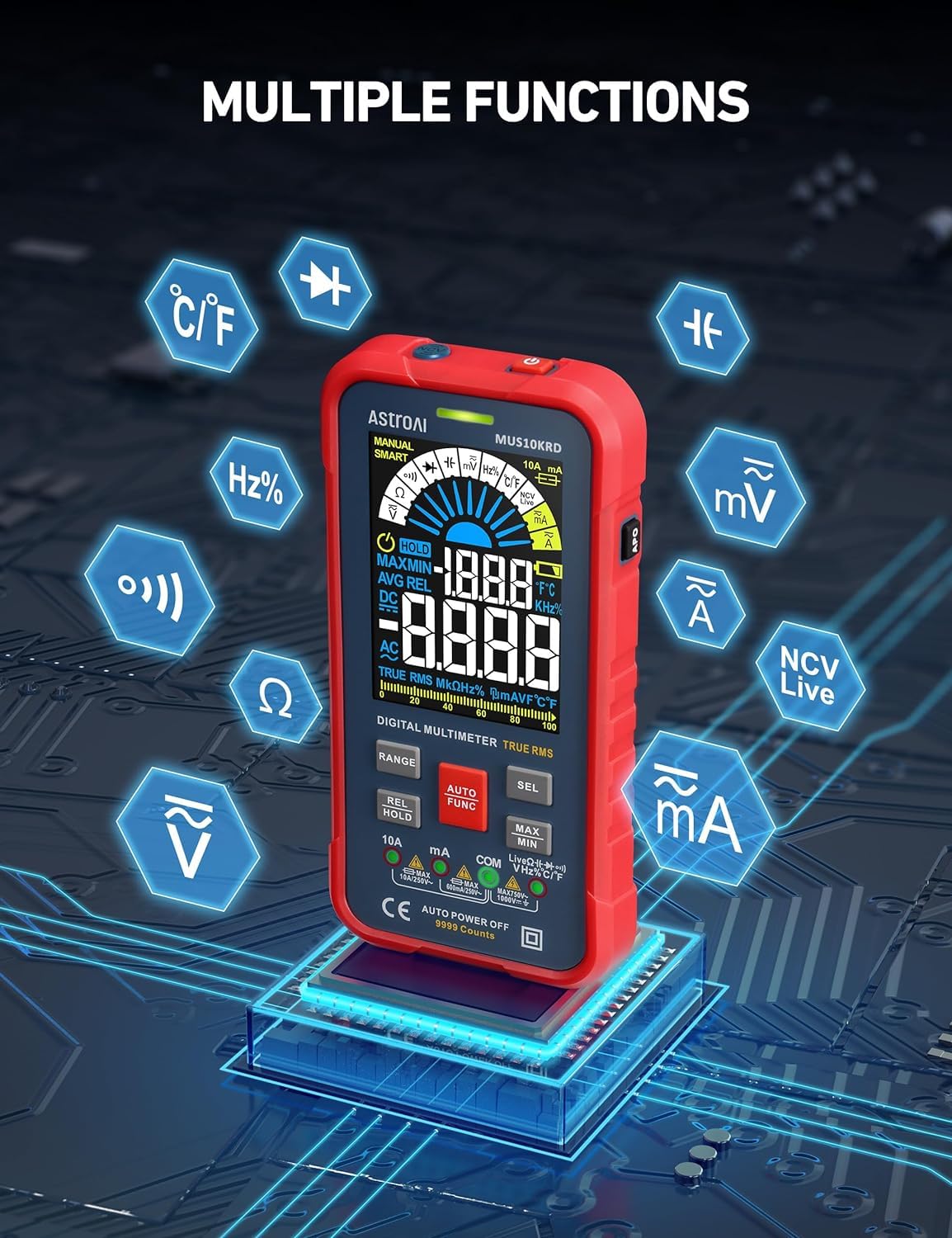

• Measurements: AC/DC voltage and current, resistance, continuity, capacitance, frequency, duty cycle, diode, temperature, NCV and live wire
• Voltage ranges: AC up to 750 V, DC up to 1,000 V
• Current: AC/DC, with a 10 A measurement function
• Safety features: Dual ceramic fuses, overload protection and silicone protective cover, designed to IEC 61010-1 CAT III 1,000 V and CAT IV 600 V overvoltage categories
• What’s included: Multimeter, pair of test leads, user manual and storage bag

Why it’s worth it

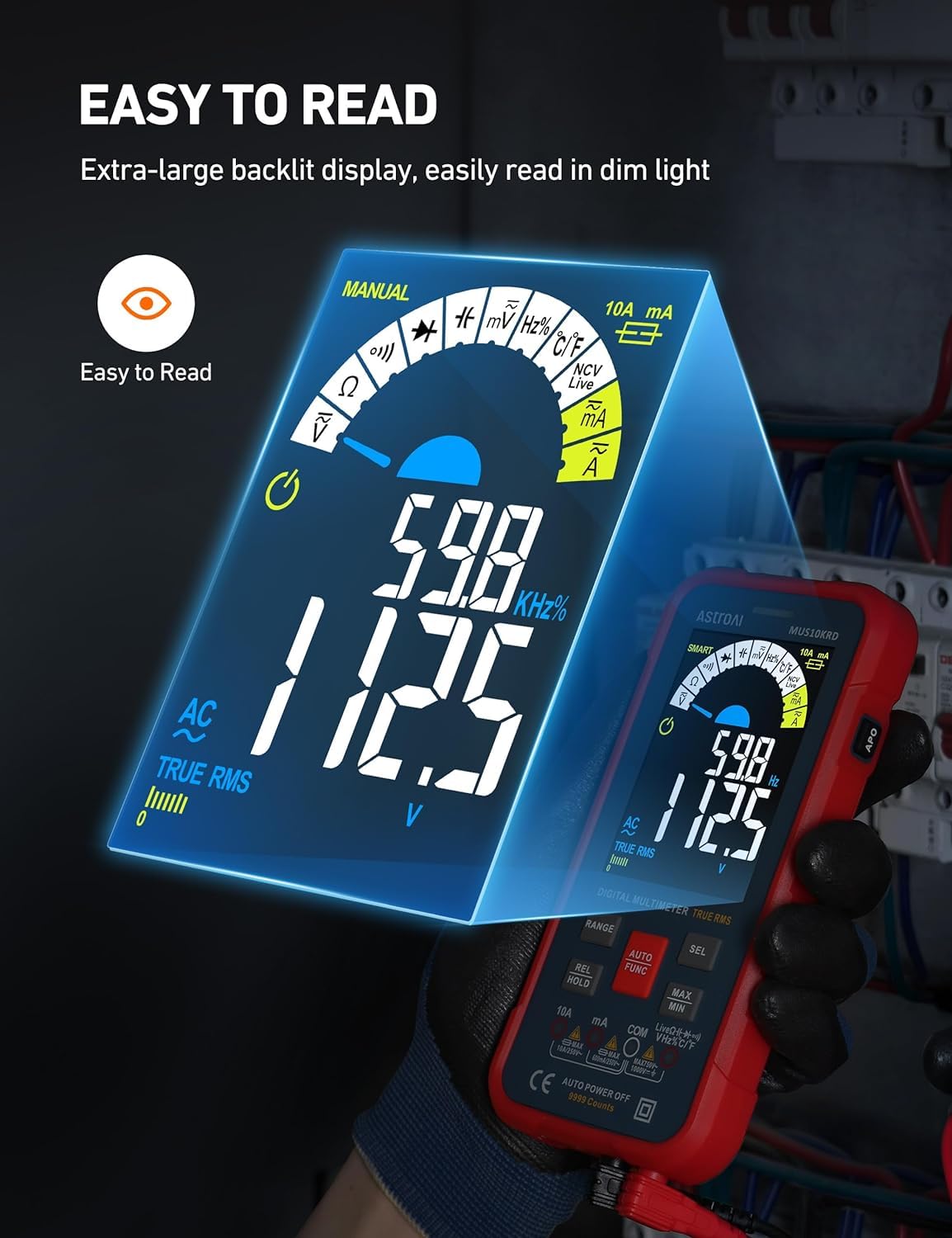

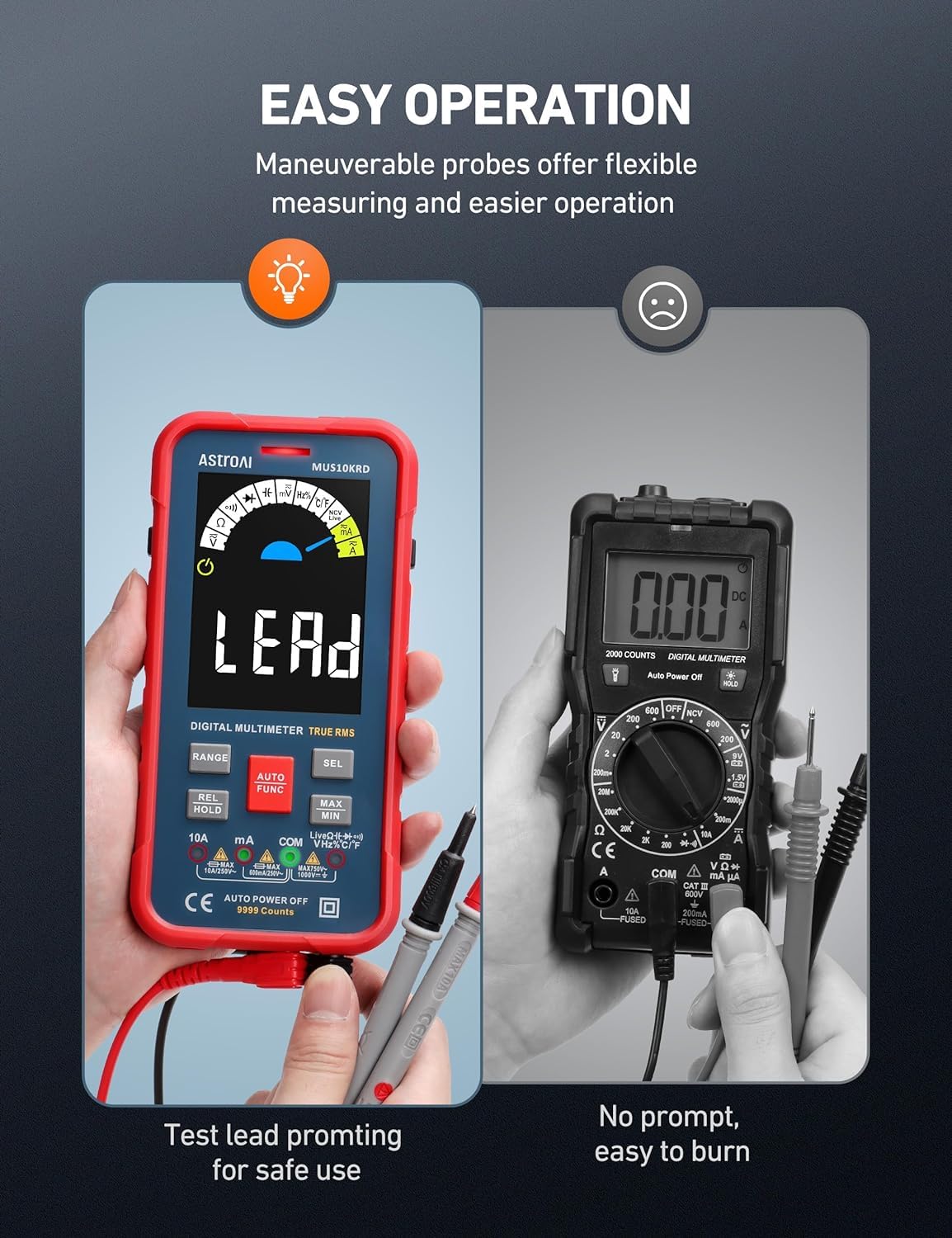

The MUS10KRD brings commonly needed electrical checks together with features that make readings easier to manage. Smart mode reduces the number of settings to choose for basic voltage, resistance and continuity checks, auto-ranging handles range selection, while manual selection is available when you want to set it yourself. The large colour display, backlight, flashlight and smart test-lead tips add practical support while you work, and the audio-visual alarm and low-battery prompt provide additional on-device cues.

Buyers often praise the readable backlit display and straightforward operation, and many describe the meter as useful for everyday testing. Some also value its feature set compared with more expensive alternatives. Opinions on its size are mixed, so consider how you prefer to hold and store a handheld meter. These comments reflect user impressions rather than a measurement guarantee, for electrical work, select the appropriate measurement function and observe the meter’s marked safety categories.

Is it worth it?

It suits you if you want a versatile meter for household or automotive troubleshooting, with more than basic voltage checks in one instrument. True RMS, a 10,000-count colour display, smart identification and a wide set of measurement functions are especially useful when moving between different kinds of checks. For DIYers and professionals who want those capabilities alongside clear readings in low-light work areas, the AstroAI MUS10KRD offers a focused, practical set of tools.
