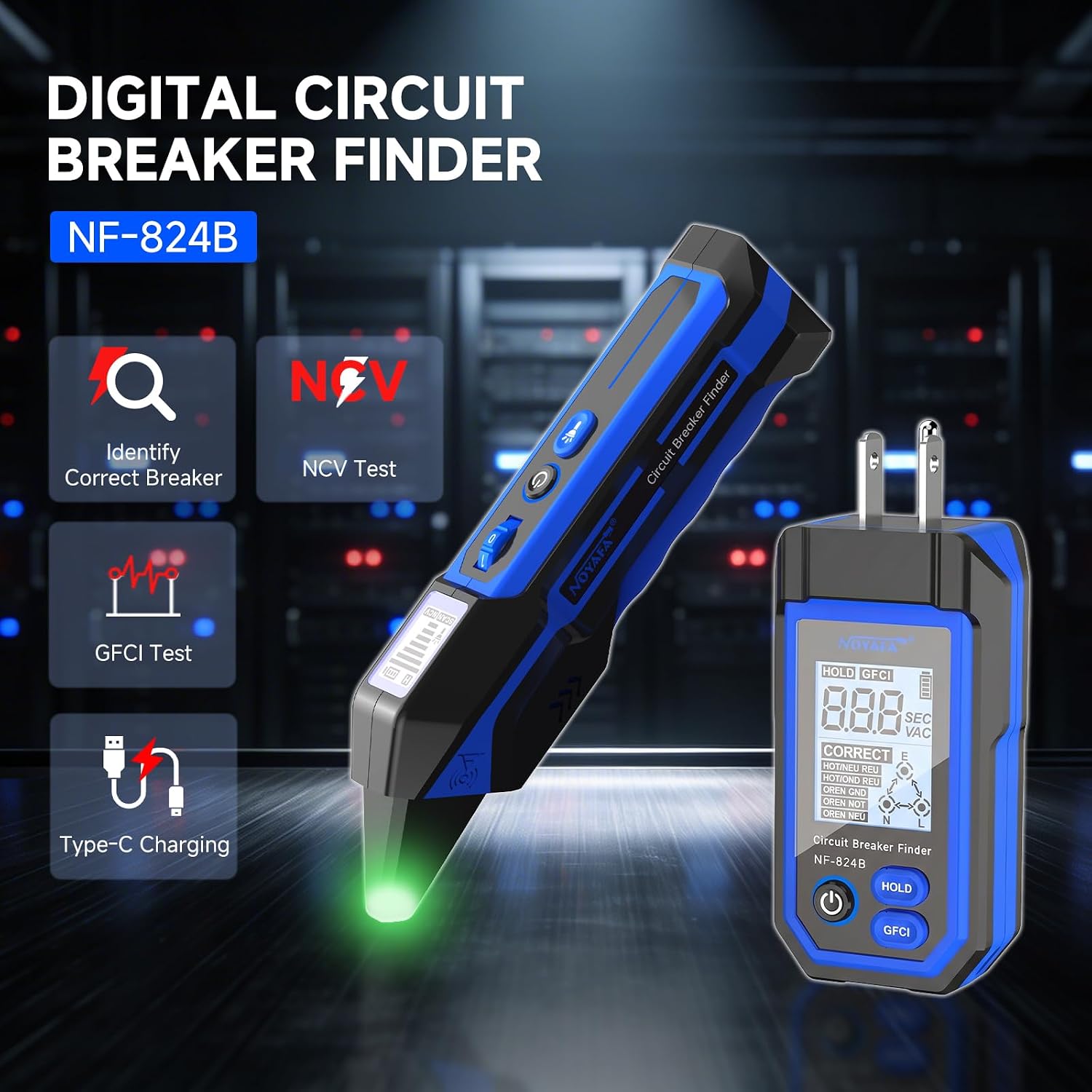

NOYAFA NF-824B Circuit Breaker Finder with LCD, GFCI Tester and NCV

Electricians, home maintenance workers and DIYers who need to trace circuits can use the NOYAFA NF-824B to identify breakers and check outlets. Its LCD shows voltage and signal strength during tracing. GFCI testing and non-contact voltage detection add useful checks for electrical troubleshooting.

Everyday use

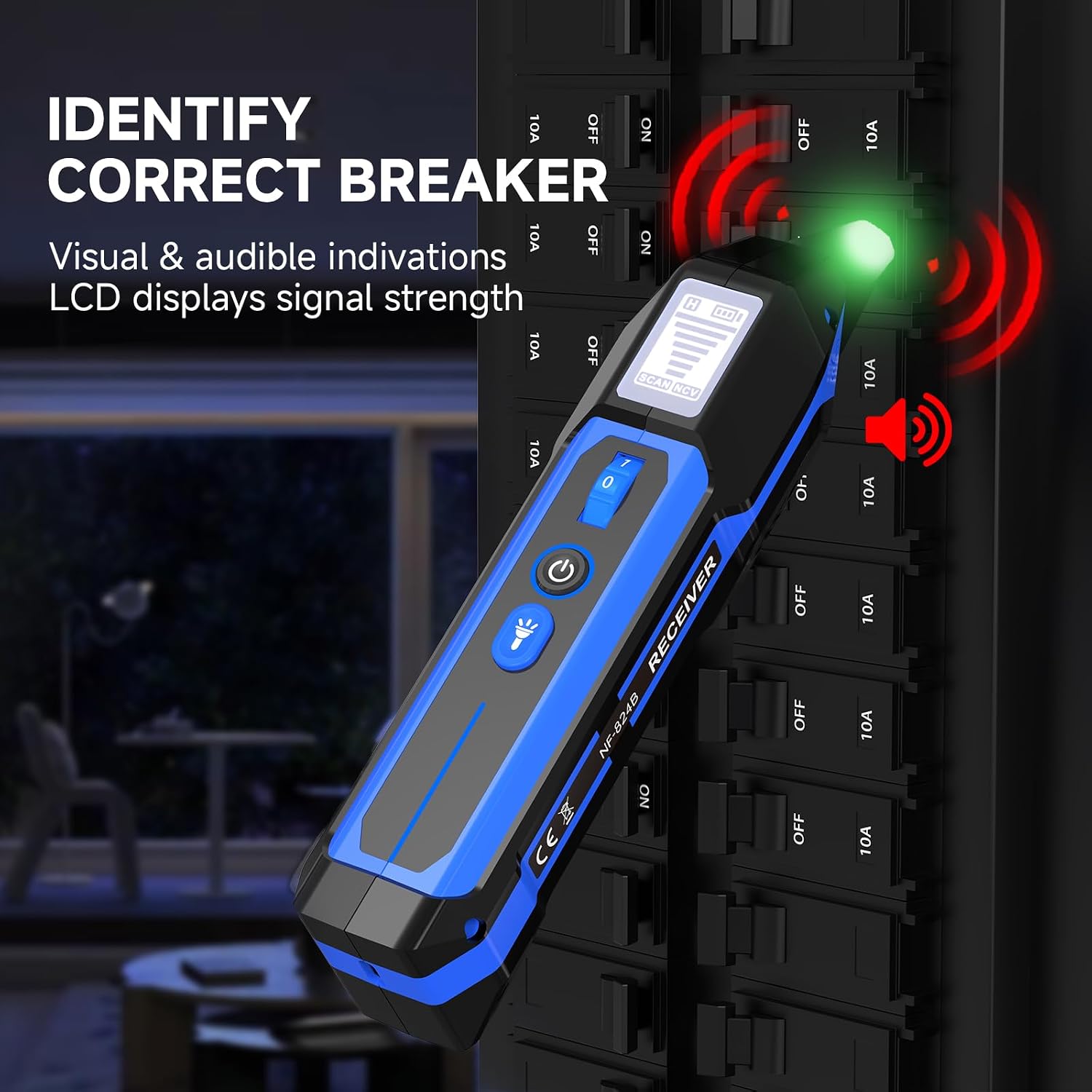

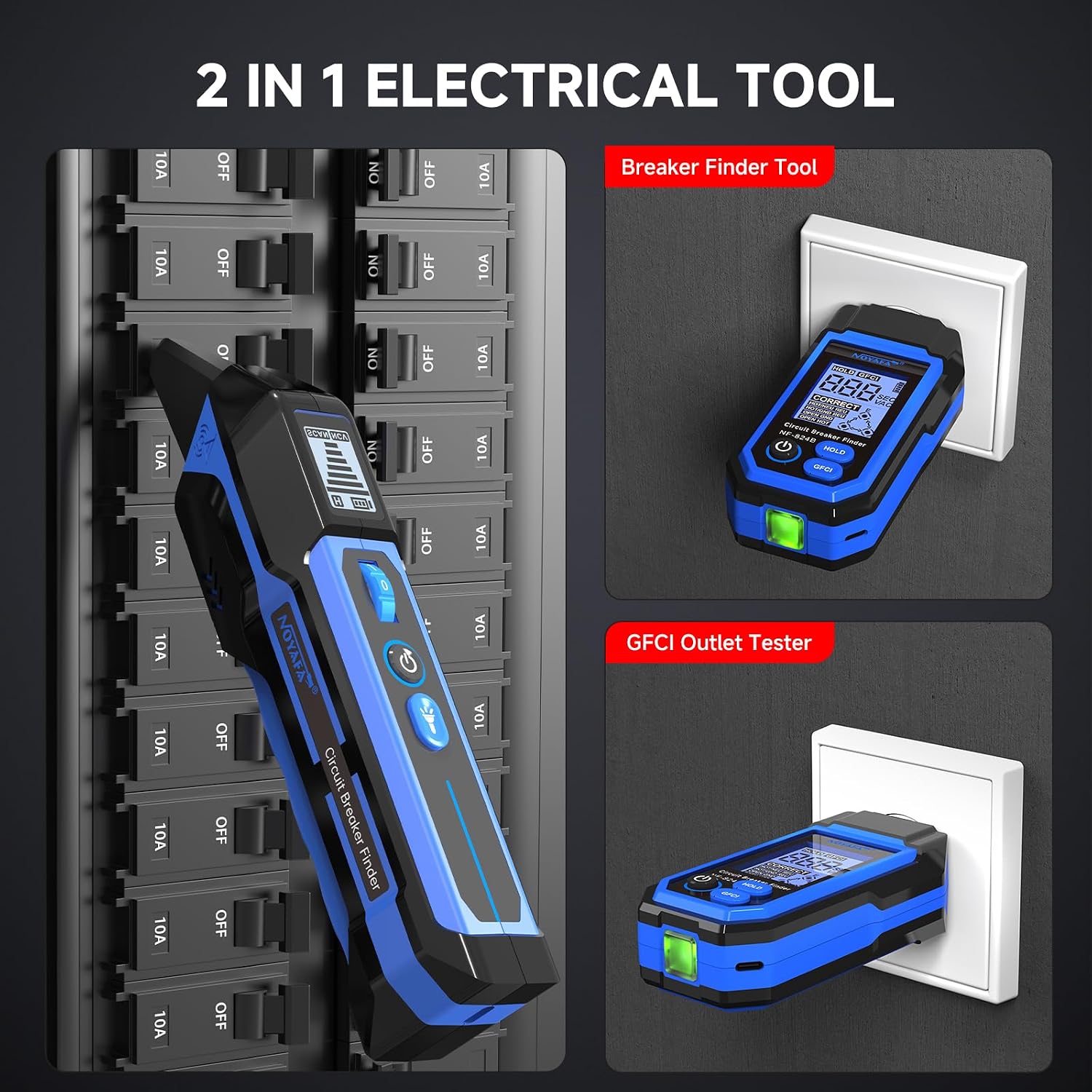

Connect the transmitter to an outlet or fixture, then scan the electrical panel with the receiver to locate the corresponding breaker. The receiver gives audible and flashing visual alerts as it detects a matching circuit, helping make panel mapping more straightforward. Adjustable sensitivity offers seven levels for refining the search, while the transmitter’s LED indicators show test status.

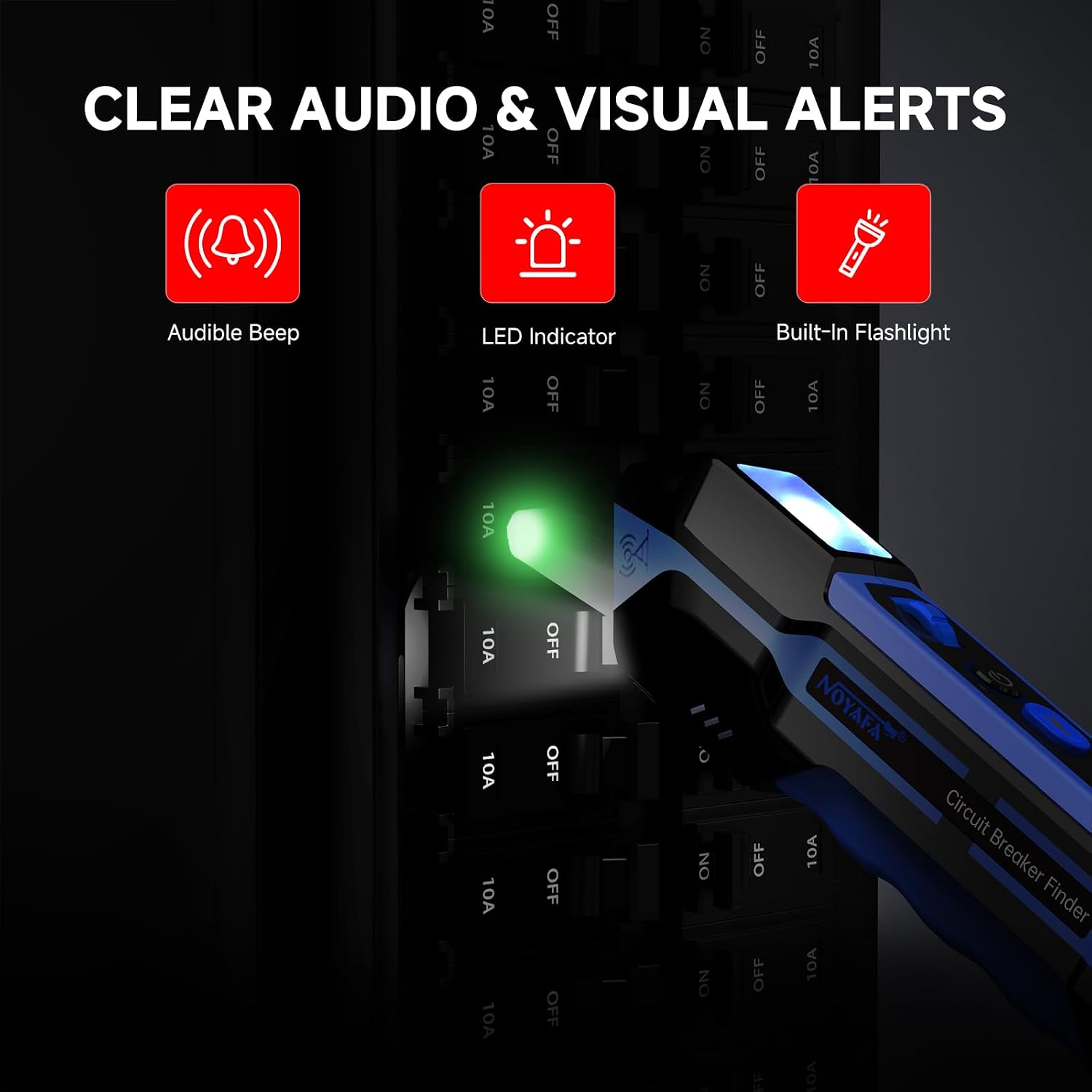

The backlit LCD displays real-time voltage and signal strength, with red and green indicator lights providing additional visual feedback. For outlet checks, the tester can identify six common wiring faults, including an open circuit and reverse polarity. The GFCI test function and non-contact voltage detection broaden its use beyond breaker identification.

Technical overview

• Name: NOYAFA NF-824B Circuit Breaker Finder
• Compatibility: Standard 90 to 120V AC breaker systems at 50/60Hz
• Display: Backlit LCD with voltage and signal-strength readings
• Detection: Non-contact voltage, GFCI test and circuit tracing
• Sensitivity: Seven adjustable levels

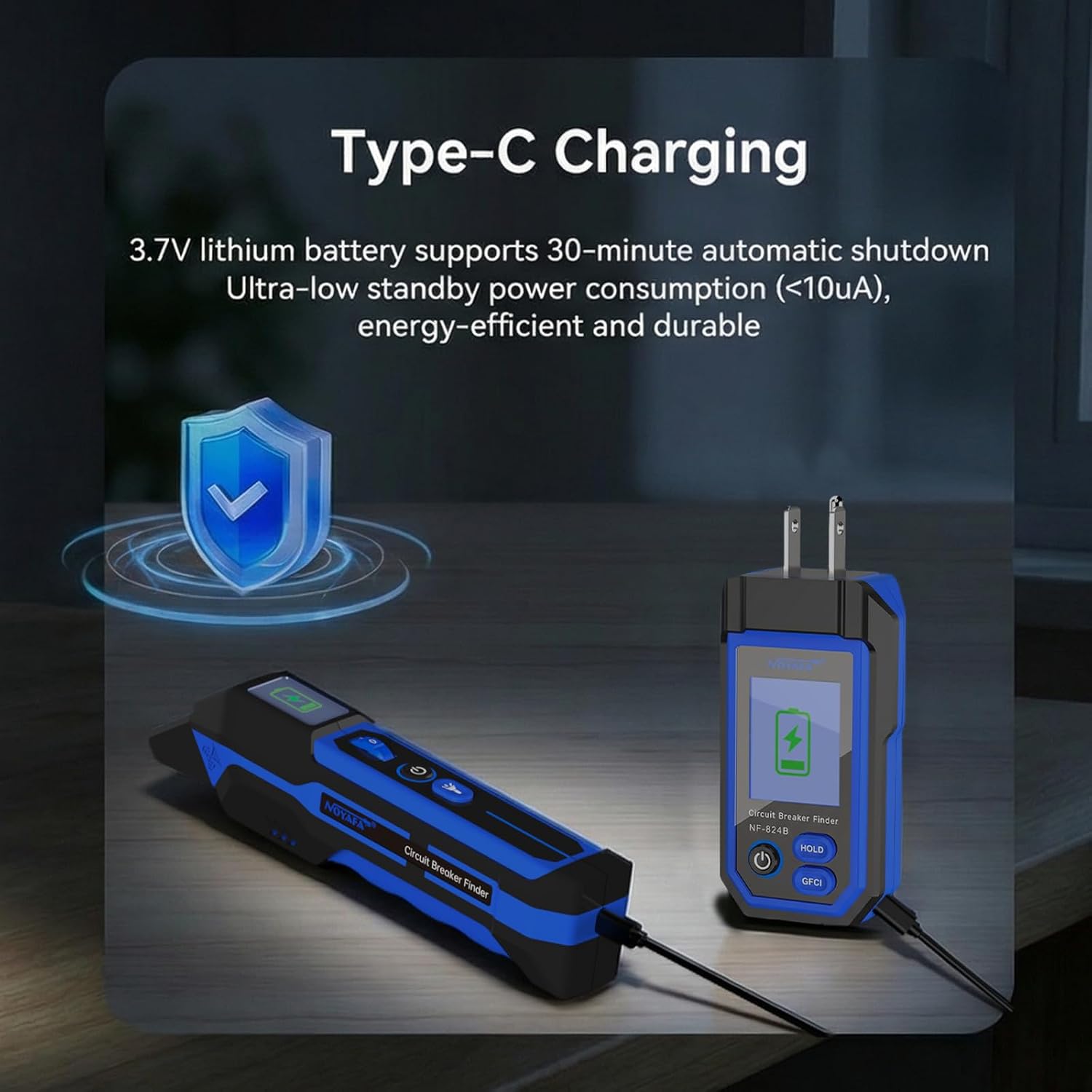

• Battery: Rechargeable 390mAh, 3.7V lithium battery, up to 5 hours of battery life
• Charging: Type-C

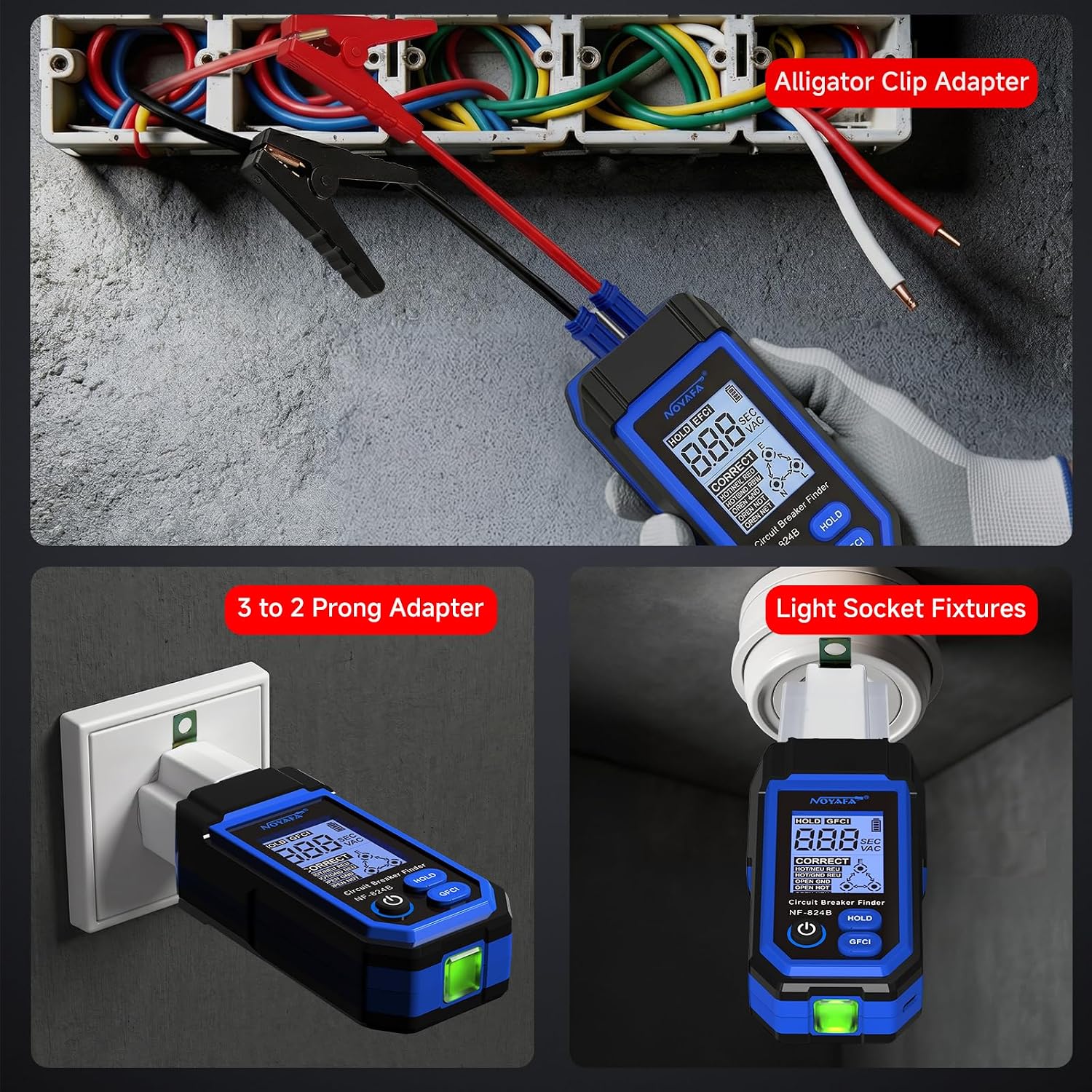

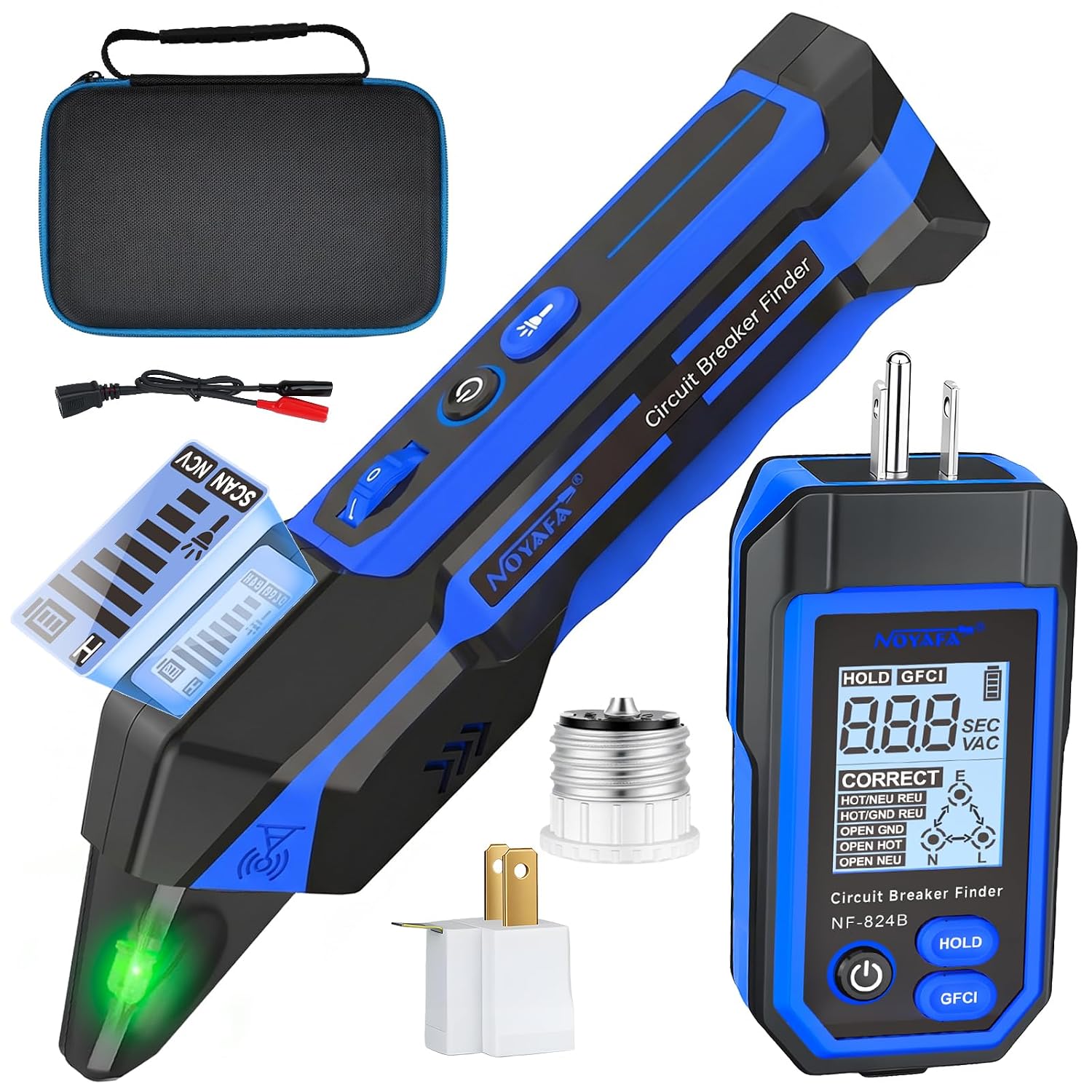

• Included: Carrying case, 3-prong to 2-prong adapter, light socket adapter and alligator clip adapter

Where it shines

For a home maintenance task such as sorting which breaker serves an outlet or light, the transmitter-and-receiver setup gives you a clear way to trace the circuit back to the panel. The LCD’s signal-strength display and the receiver’s beeps and flashing light offer more than a simple pass/fail indication, while the flashlight is a practical addition when working in dim areas. Automatic shutoff and low-battery indication help make the rechargeable tester easier to manage between jobs.

The included adapters support different connection points, and the carrying case keeps the tester and accessories together for transport. Buyers often praise the ease of tracing circuits and mapping panels, and appreciate the rechargeable design. Feedback on breaker tracking is mixed, so use the visual and audible indicators as you scan rather than relying on a single alert.

Before you decide

What voltage range does the NF-824B support? It is compatible with standard 90 to 120V AC breaker systems operating at 50/60Hz, including energized 120V systems.

Can it check outlet wiring and GFCI operation? Yes. It includes a GFCI test function and can diagnose six common wiring faults, including an open circuit and reverse polarity.

How does it locate a breaker? Connect the transmitter to an outlet or fixture and scan the panel with the receiver. Beeps and flashing visual alerts indicate the detected circuit, and the sensitivity can be adjusted across seven levels.

Buying verdict

The NF-824B brings breaker tracing, outlet fault checks, GFCI testing and non-contact voltage detection into one rechargeable kit. It’s a practical fit for electricians, home maintenance workers and DIYers who want a portable tool for tracing circuits and organizing a panel, with a display and clear alerts to guide the process.
