USB-C bare-wire power cable 22AWG
Product description
Key specifications

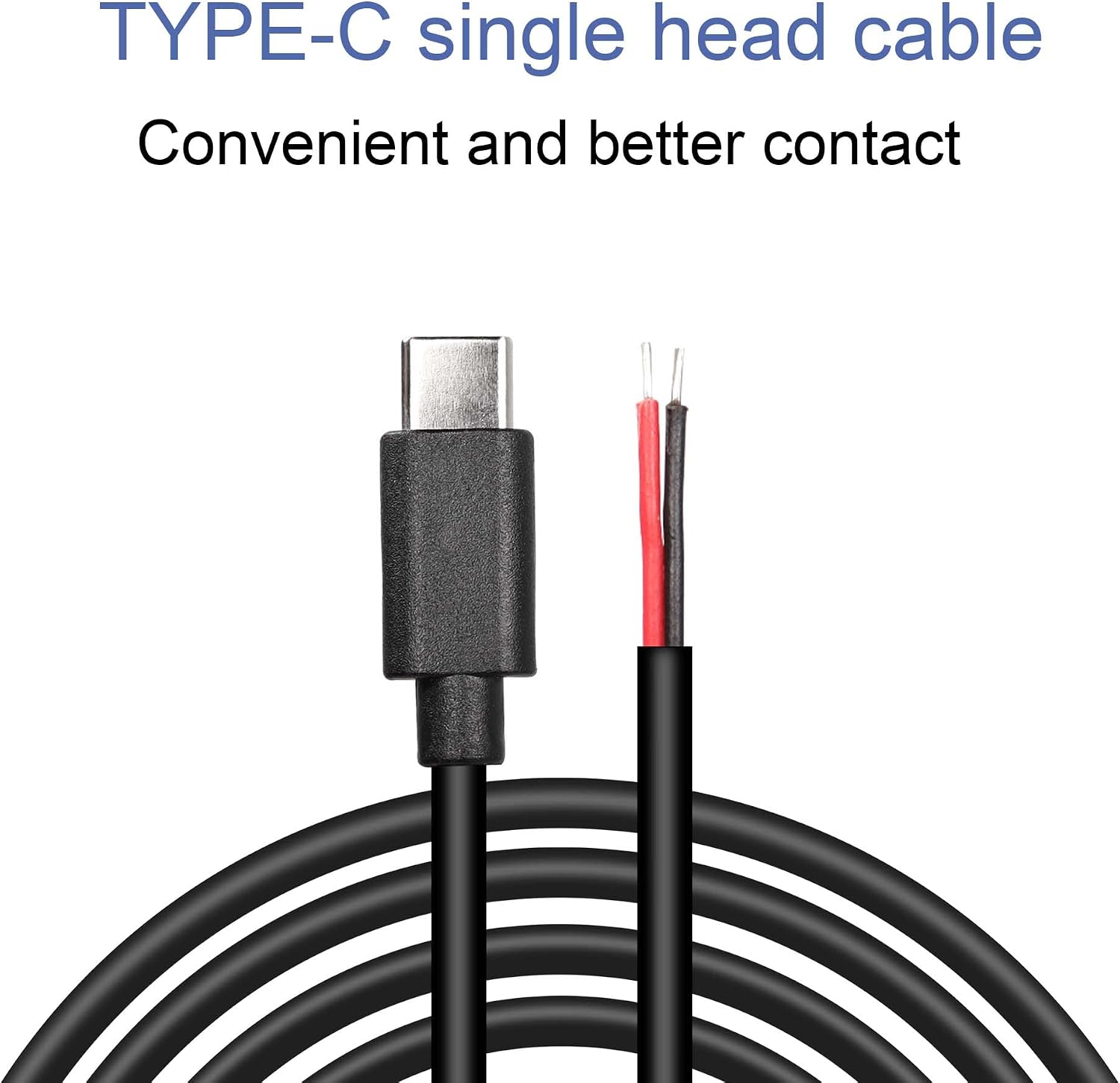

A regular USB-C cable is not much help when a small project needs bare power leads instead of a second plug. This USB-C pigtail has a male connector at one end and two bare wires at the other, so it is intended for a DIY wiring job rather than a standard plug-and-play connection.

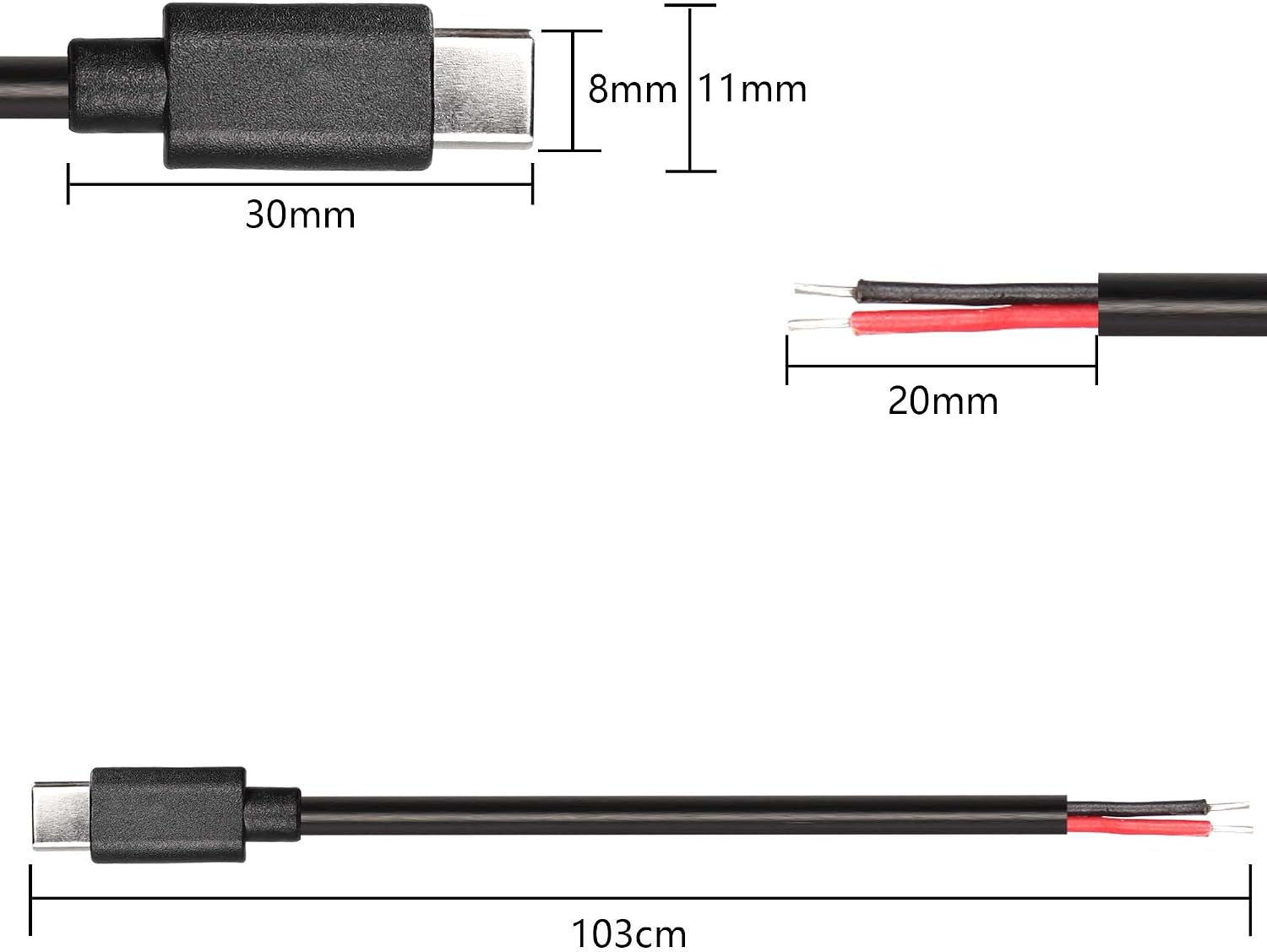

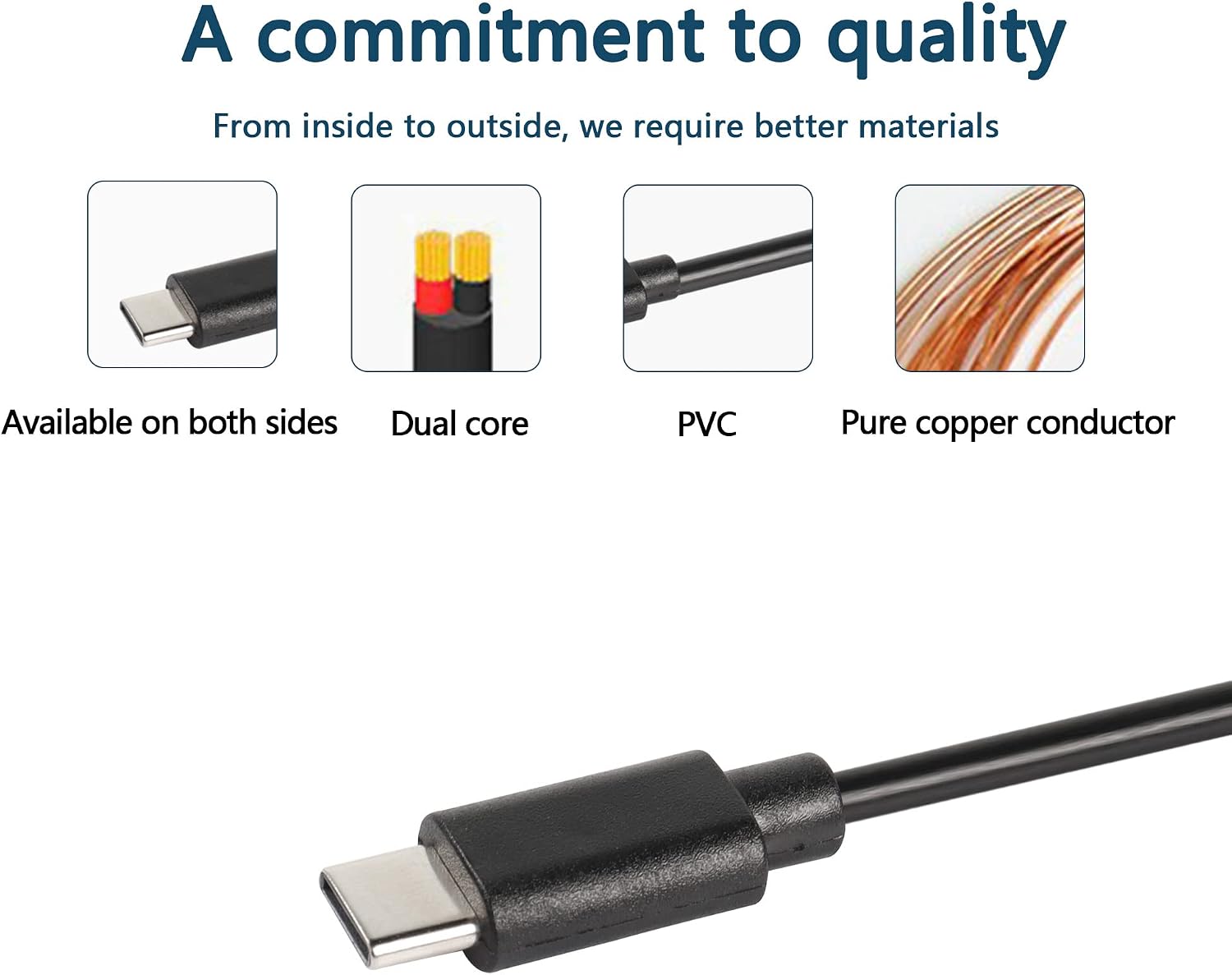

The listing specifies 22AWG cable rated for 5V, with a maximum current of 3A. The conductor is described as copper, and the outer cable material as PVC. The wire colours are red for positive and black for negative, the bare end is left for stripping and tinning as part of installation. The pack is listed as five cables, each 1 m/3.2 ft long.
That gives you a defined starting point for a low-voltage project, but the USB-C connector alone does not make every device or circuit a suitable match. The required voltage, current and wiring arrangement still need to suit the equipment you are connecting.
Who it’s for
This is aimed at people building or adapting a small 5V project who can connect bare wires themselves. Examples in the product information include a dash camera power lead, an LED desk lamp, a small fan or a bedside lamp. If you are routing power to a lamp on a desk, for instance, the USB-C end can connect to a compatible 5V USB-C source while the red and black leads are wired into the project according to its requirements.
Te encaja si you need several short pigtails for DIY work and are comfortable handling polarity and making a wire connection. A ready-made cable with a connector at each end is the simpler route when you just need to join two ports. Quizá no encaja si you want a finished cable you can connect without stripping, soldering or otherwise securing the bare ends. The listing gives a 3A maximum, so it is not a basis for assuming suitability for higher-current equipment.
Everyday use
The useful distinction here is the bare-wire end: it gives a project builder somewhere to make a custom connection, instead of locking the setup into a particular second plug. That can be handy when a small appliance or DIY assembly needs a USB-C power input but has no matching cable connection. With five included, the pack may also suit someone making several similar leads or keeping spares for bench projects.

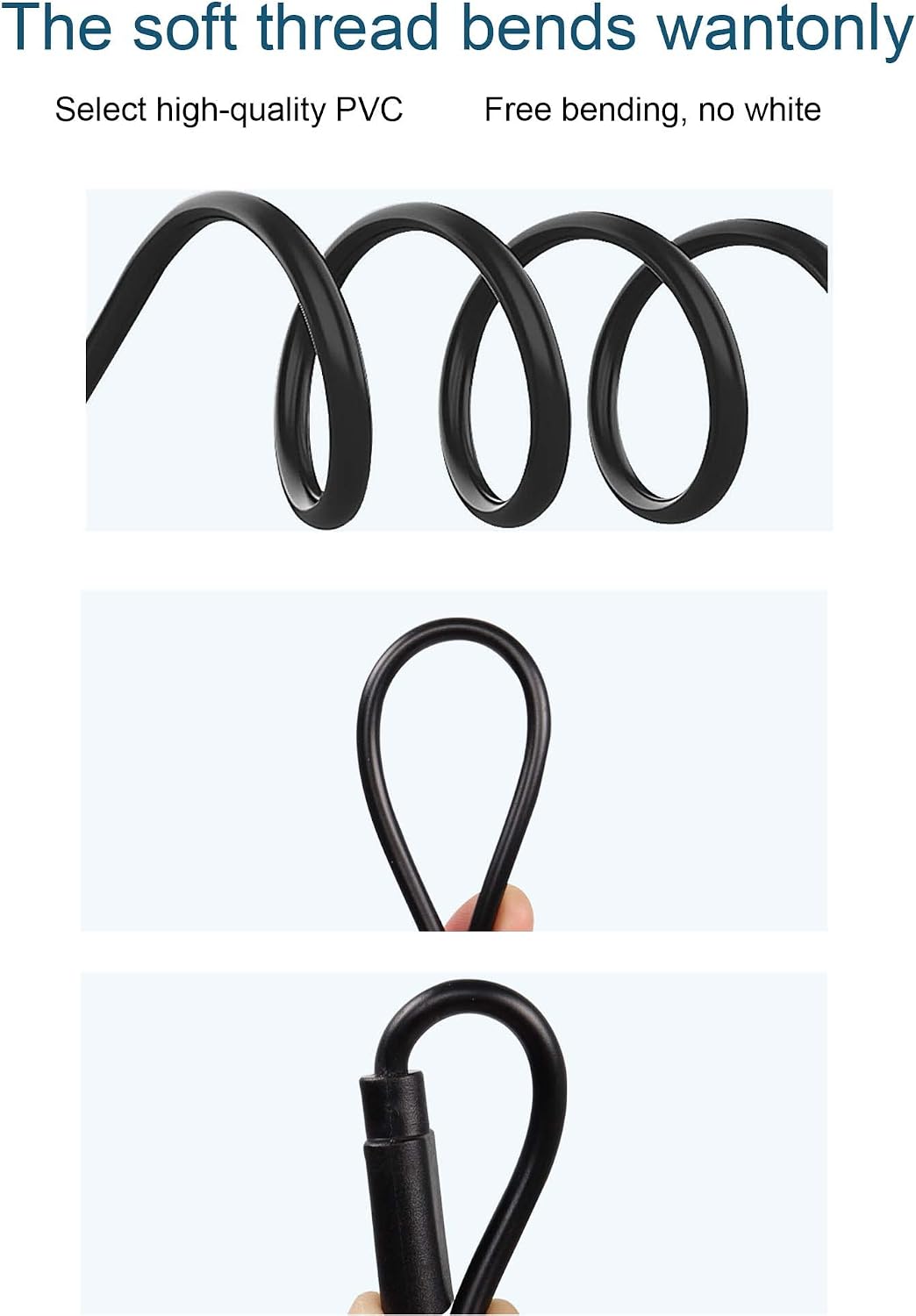

There is a trade-off. This is not a conventional USB-C extension cable, despite “extension” in the product name: it terminates in two bare wires, so it needs a suitable wired connection before use. The PVC cable is described as flexible, but the listing does not provide details such as connector dimensions or a compatibility list for specific devices. Match the electrical requirements and the physical connection for your project rather than relying on the USB-C name alone.
Buying questions
Does it connect two USB-C ports? No. It has a USB-C male connector on one end and two bare wires on the other, not a USB-C connector at both ends.
What do the wire colours indicate? The listing identifies red as positive and black as negative. Keep that polarity in mind when wiring the cable to a project.
What are the stated length and pack size? Each cable is listed as 1 m/3.2 ft, and the product is sold as a 5-pack.
Veredicto final
Choose this pigtail when your project needs a USB-C male power connection and you want bare leads for a custom 5V wiring job. Its 22AWG cable, stated 3A maximum and colour-coded wires give useful starting details for that task. Skip it if you need a finished extension lead or cannot make and secure the wire connection yourself, the bare end is the defining feature, not a minor detail.
