ORIGLE QQZJ-4X4-2PCS A-Frame Swing Set Brackets, Alloy Steel

For a backyard play area built around a wooden A-frame, the ORIGLE bracket kit provides the main connectors for assembling the swing structure.

The two alloy steel brackets have fully welded joints and a green powder-coated finish. Together, they form a practical starting point for a timber swing frame.

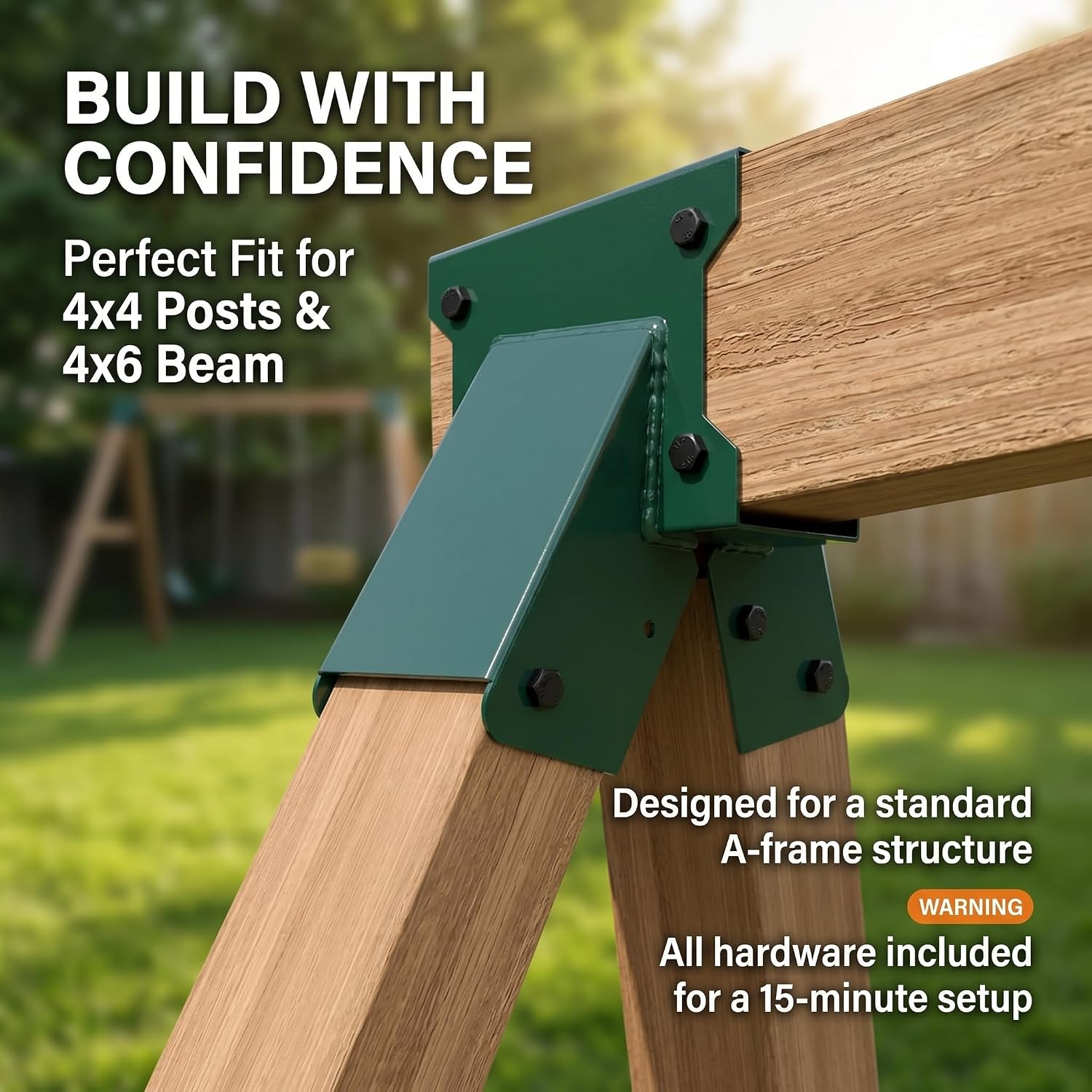

The set is designed for a 4x6 top beam and 4x4 side legs, with mounting hardware included to help secure the assembly.

Strengths

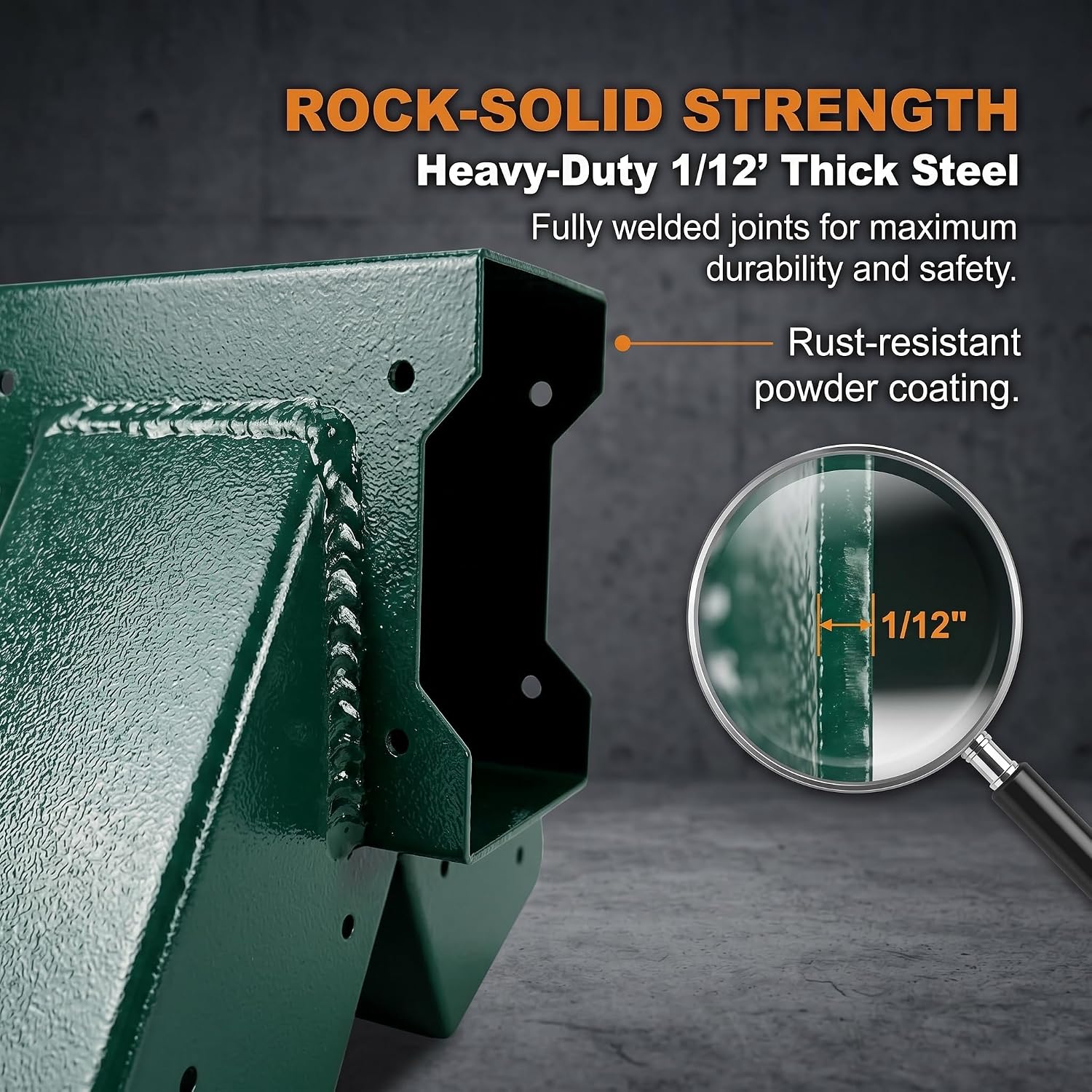

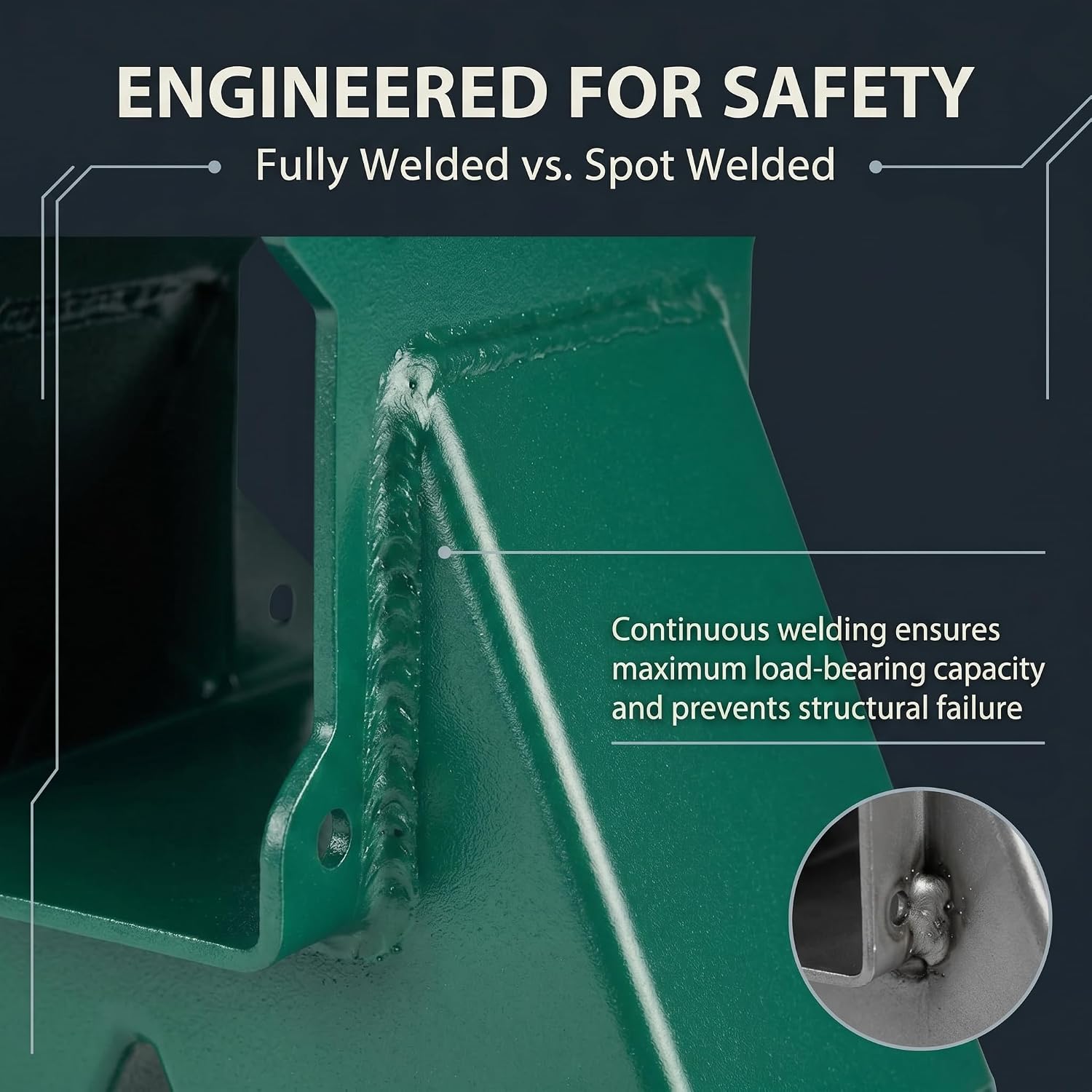

Each bracket is made from alloy steel, with fully welded joints connecting its parts. The green powder-coated finish is intended to help protect the metal from rust and corrosion outdoors. For a homeowner planning a backyard play set, having the two A-frame connectors and fastening hardware in one kit makes it easier to organize the build than sourcing those pieces separately.

The kit is listed for up to four compatible seats, giving the frame a role in a multi-seat play area. Buyers have spoken positively about assembly and functionality once the swing is built. Feedback on the brackets and lumber fit is mixed, with some buyers noting that 4x4 lumber can fit very tightly, the framing dimensions and fit guidance below are useful when planning the build.

The essentials

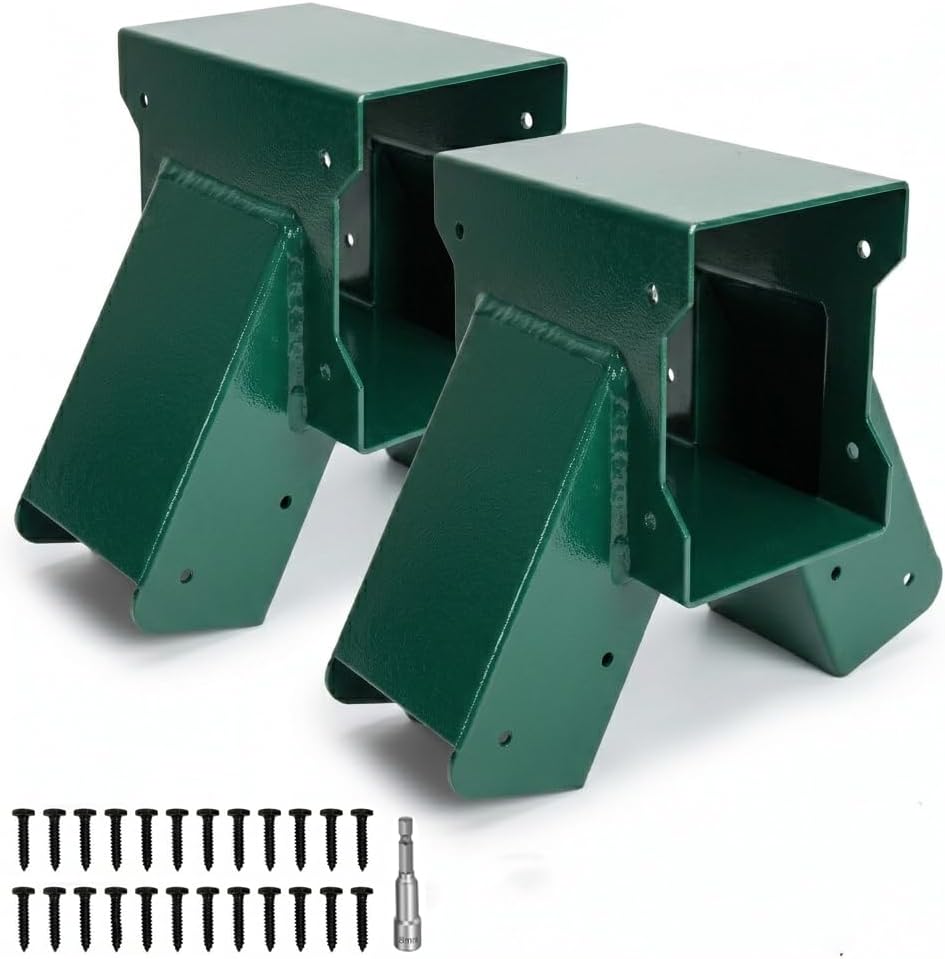

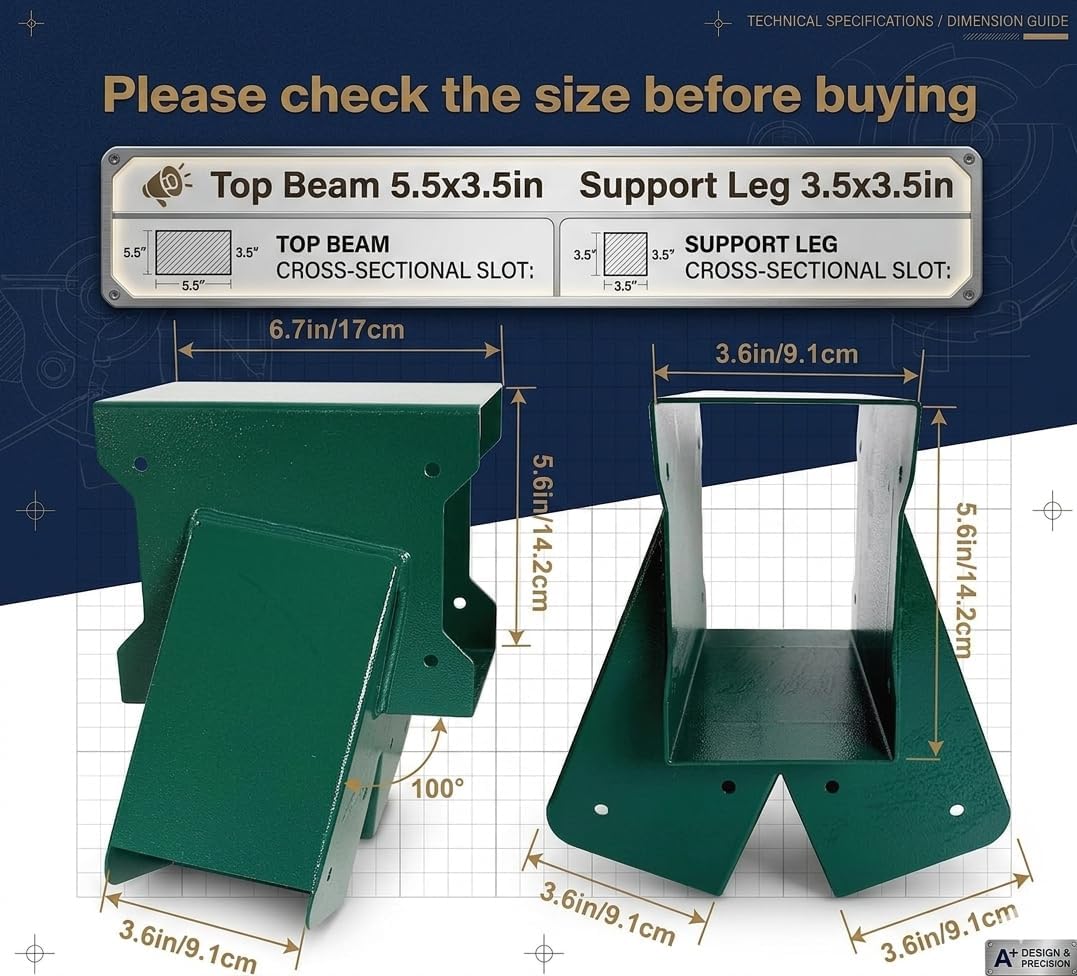

This is a two-piece bracket set for a wooden swing frame. The top beam should be 4x6, and the side support legs should be 4x4. The mounting components include 28 zinc-coated steel lag bolts measuring 5/16" x 3" and 28 washers. Lumber is not included, so the beams and legs need to be sourced separately. The listed maximum weight recommendation is 226.8 kg.

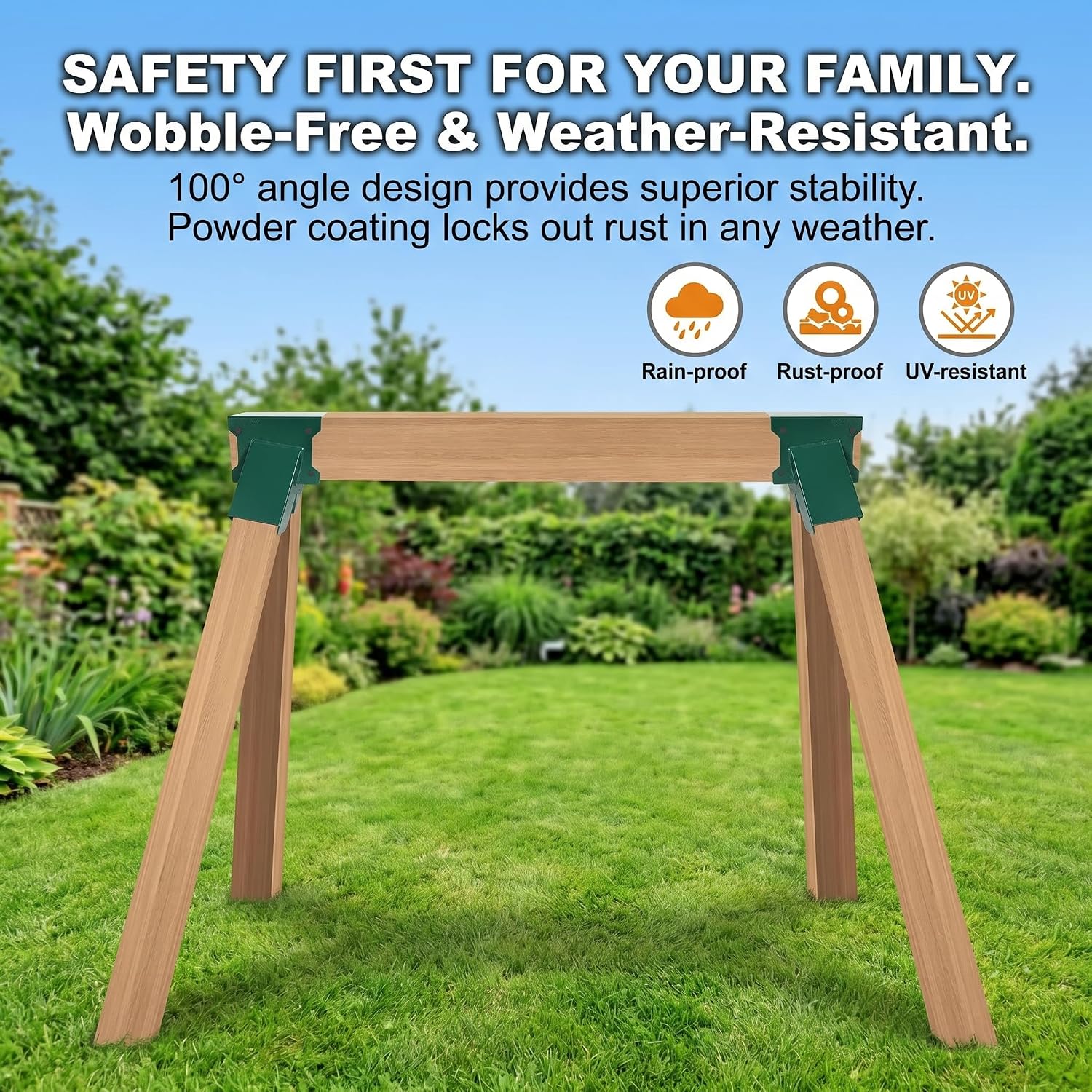

Compared with buying connectors and fasteners individually, this set groups the paired brackets and specified mounting hardware for one framing project. Its intended use is clear: make an A-frame from the specified timber sizes, then add the swing seats that suit the play area. The set name and two-piece format also make it straightforward to identify as frame hardware rather than a complete swing set.

Practical tips

For assembly, position the 4x4 legs and 4x6 top beam in the brackets, then secure the legs one side at a time, drilling holes and fastening the screws as you go. The product guidance notes that changes in wood moisture can cause lumber to swell or shrink, so a small fit adjustment may be needed. A rubber mallet or small chisel can help shave the corners of timber that needs adjustment.

A 2x4 crosspiece can be added to the legs for extra stability. Ground anchoring is also suggested for additional security, particularly if there are concerns about movement during vigorous swinging. These steps help tailor the frame assembly to the yard and the way the play area will be used.

Final verdict

The ORIGLE QQZJ-4X4-2PCS is a focused choice for building a backyard wooden swing frame with 4x4 legs and a 4x6 top beam. Its paired alloy steel brackets, welded construction and included fasteners give the project a defined starting point, while the fit guidance helps with a practical part of working with timber. Choose it when the goal is to build a custom A-frame around separately sourced lumber and swing seats.
