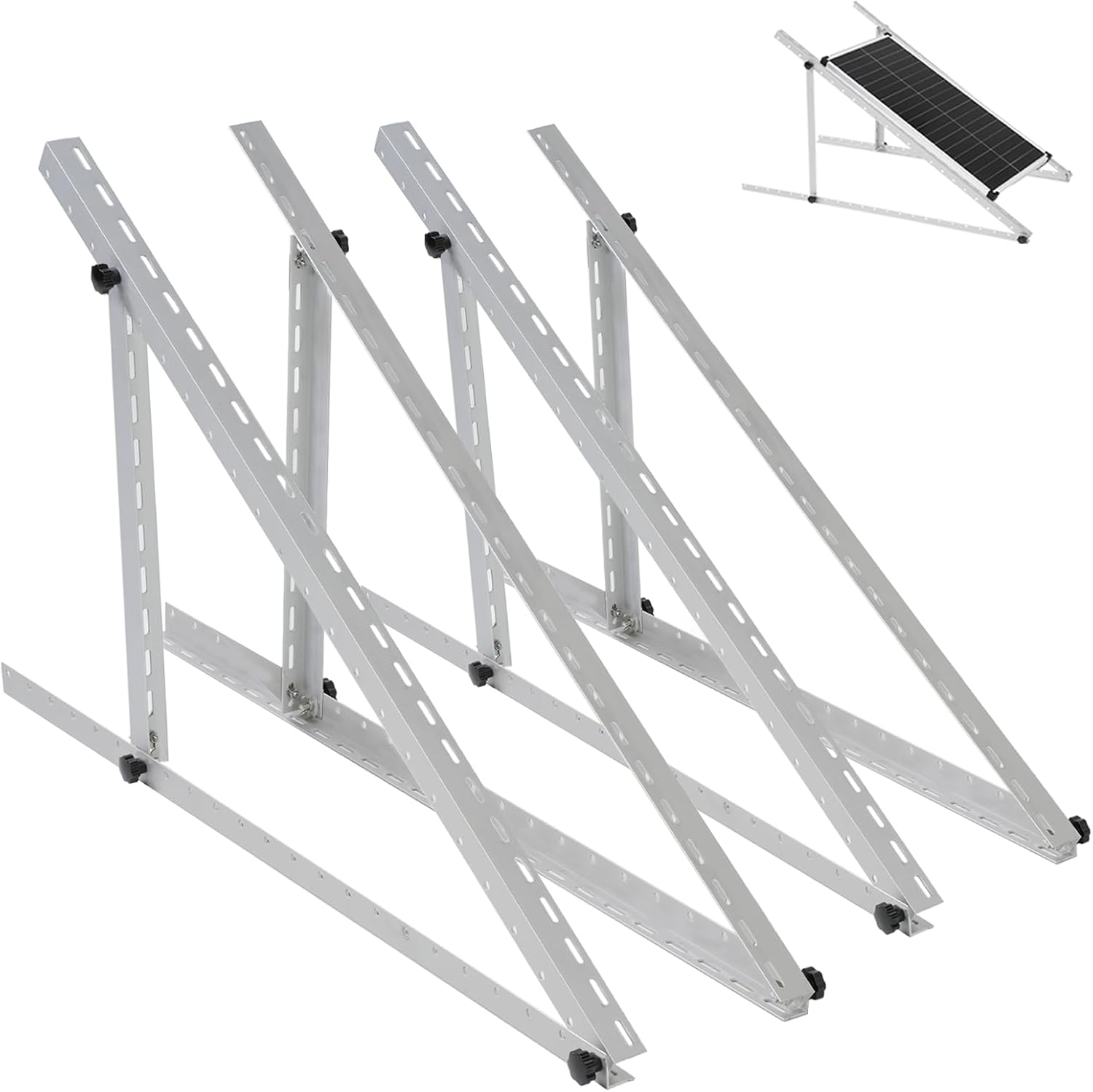

AeternaSol RXZER23 Adjustable Solar Panel Tilt Mount, 45-Inch Aluminium

Adjust the panel angle as the sun’s position changes with the AeternaSol RXZER23 tilt mount. Its 0°–90° adjustment gives you more flexibility than a fixed-angle bracket, while pre-drilled holes help make installation more straightforward.

Use it to set up a solar panel on a suitable roof, balcony, wall, boat, camper or caravan, or at ground level in a garden or terrace. The aluminium brackets are designed for both horizontal and vertical installation.

Tech summary

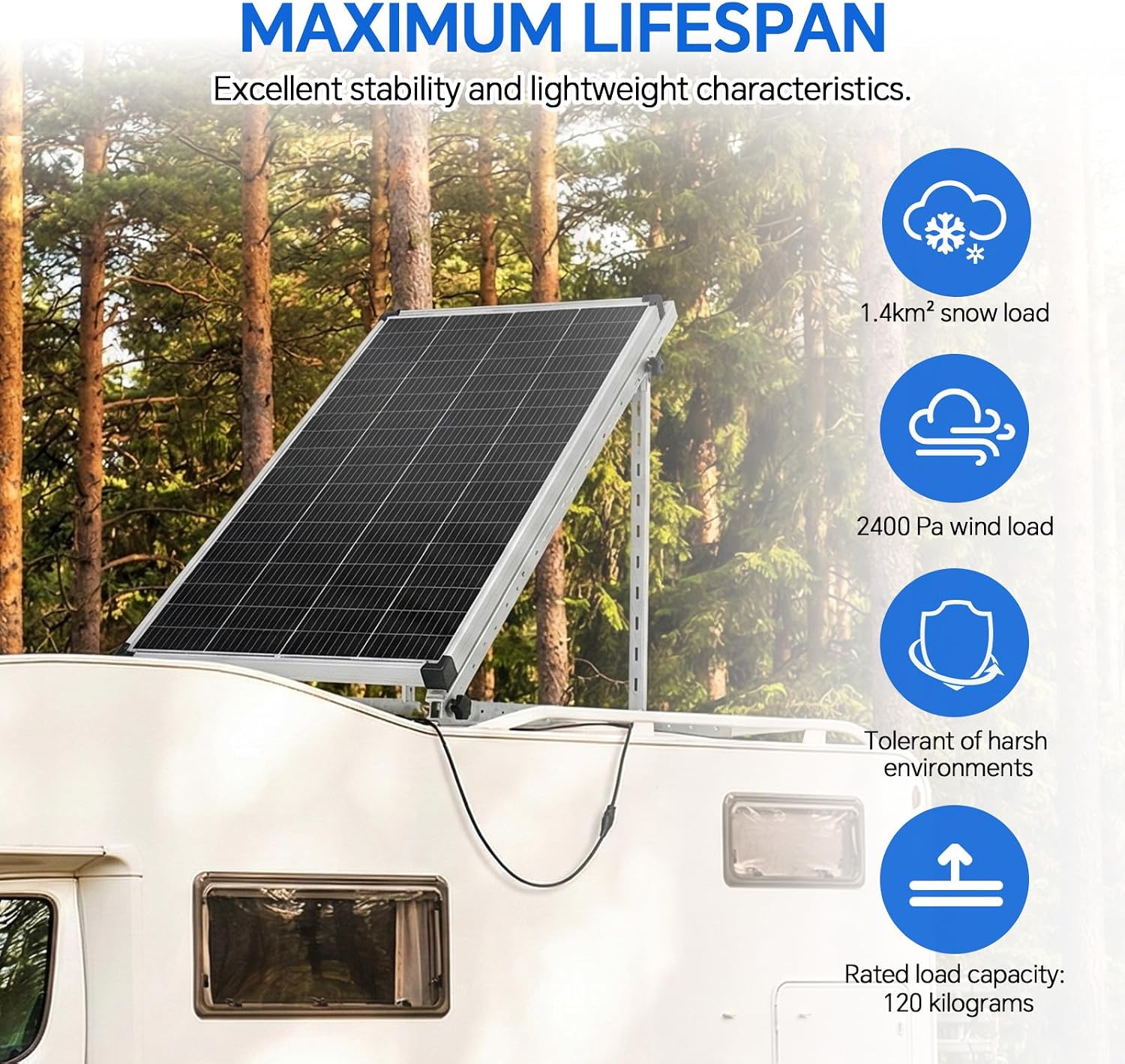

The adjustable design lets you set the panel position for your mounting location and intended use. Triangular bracing provides the structure, and the aluminium construction keeps the brackets lightweight. The manufacturer states a wind-load capacity of 2400 Pa, a snow load of 1.4 kN/㎡ and a load-bearing capacity of 120 kg.

• Type: Adjustable solar panel tilt mounting brackets
• Material: Aluminium
• Colour: Silver
• Adjustment: 0°–90°

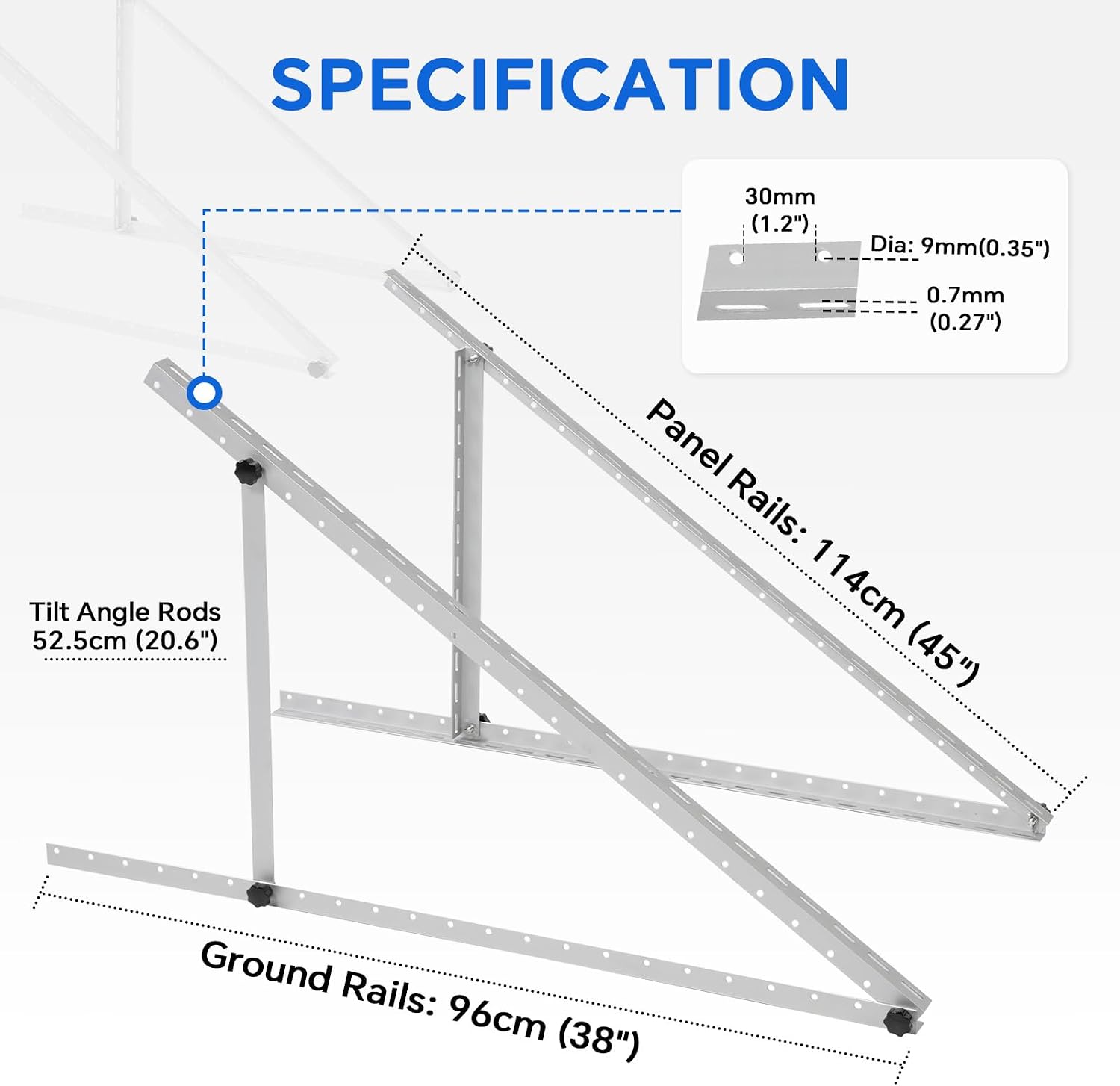

• Dimensions: 114.3 x 5.1 x 5.1 cm
• Weight: 2.72 kg
• Installation: Horizontal or vertical, pre-drilled holes

The angle adjustment is useful when you want to reposition a panel rather than keep it permanently fixed at one incline. It also folds when not in use, making the mount easier to store or move between setups.

What it works with

The brackets are intended for solar panel installations on flat roofs, garage roofs, balconies and balcony railings, as well as walls and facades. They can also be used on boats, campers and caravans, or mounted on the ground in a garden or terrace. Choose a fixed-angle approach when the panel position will stay unchanged, this adjustable mount is suited to setups where changing the tilt is useful.

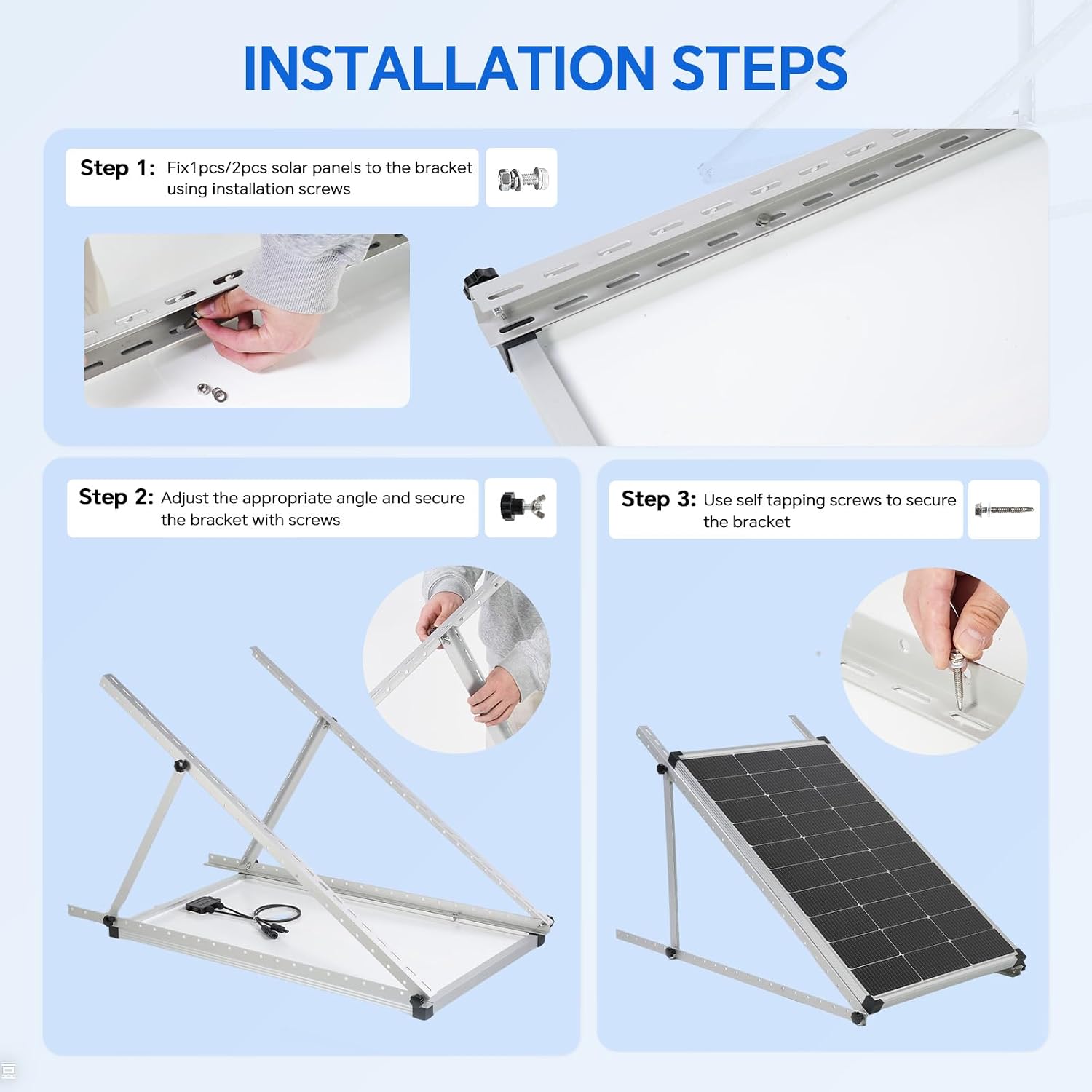

How to use it

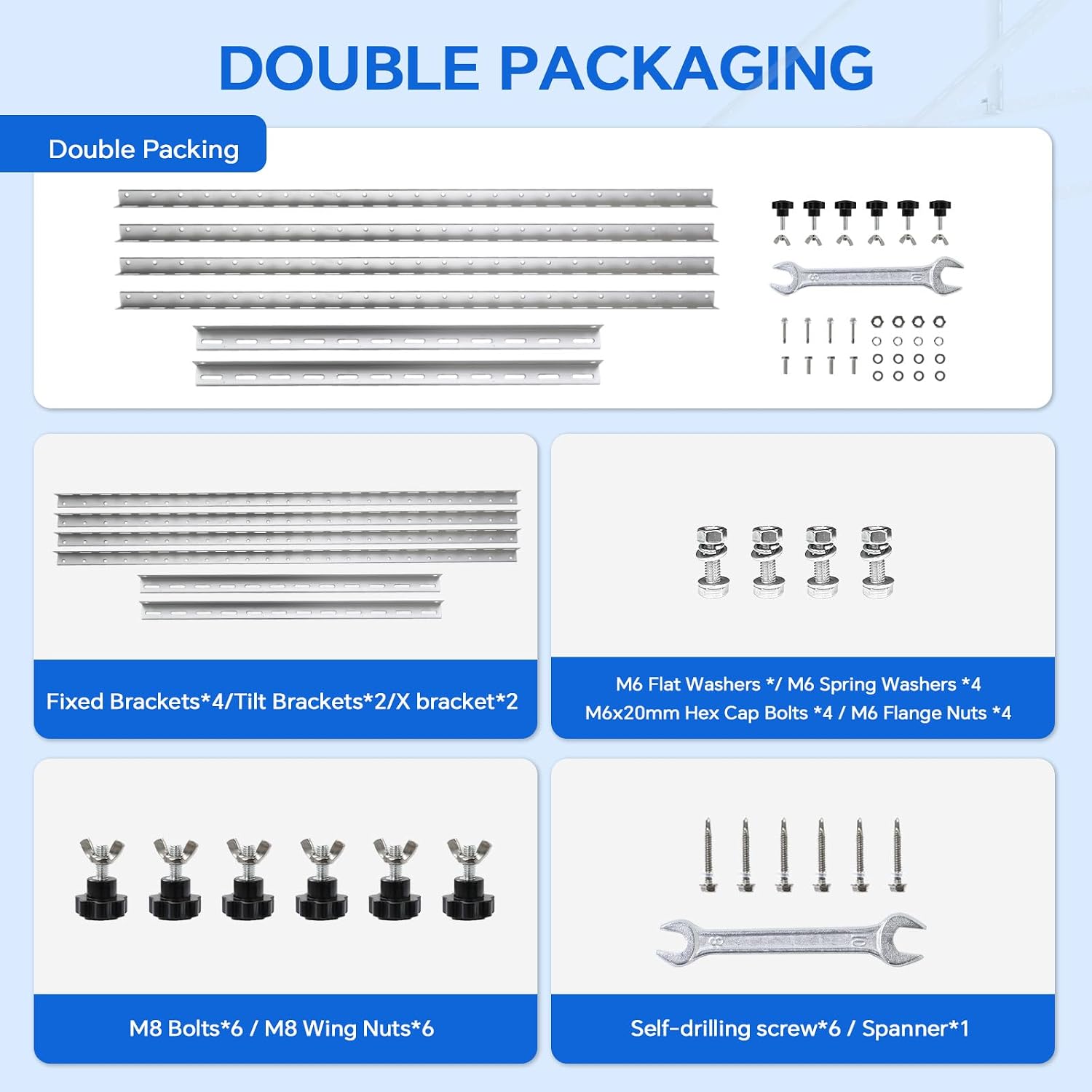

Position the brackets for the installation surface, then attach the panel horizontally or vertically using the pre-drilled holes. Set the desired tilt within the 0°–90° range and secure the adjustment before use. The kit’s stated hardware includes M8 knob screws and wing nuts, M6 bolts, nuts and washers, and self-drilling screws. Match the fasteners to the mounting surface and panel arrangement, and make sure the assembly is secured before adjusting or moving it.

For example, a panel on a balcony or terrace can be positioned to suit the available space, then tilted as needed instead of being locked into one angle. Buyers also often highlight straightforward installation and a sturdy feel, which are useful qualities when setting up a mount for regular outdoor use.

Practical questions

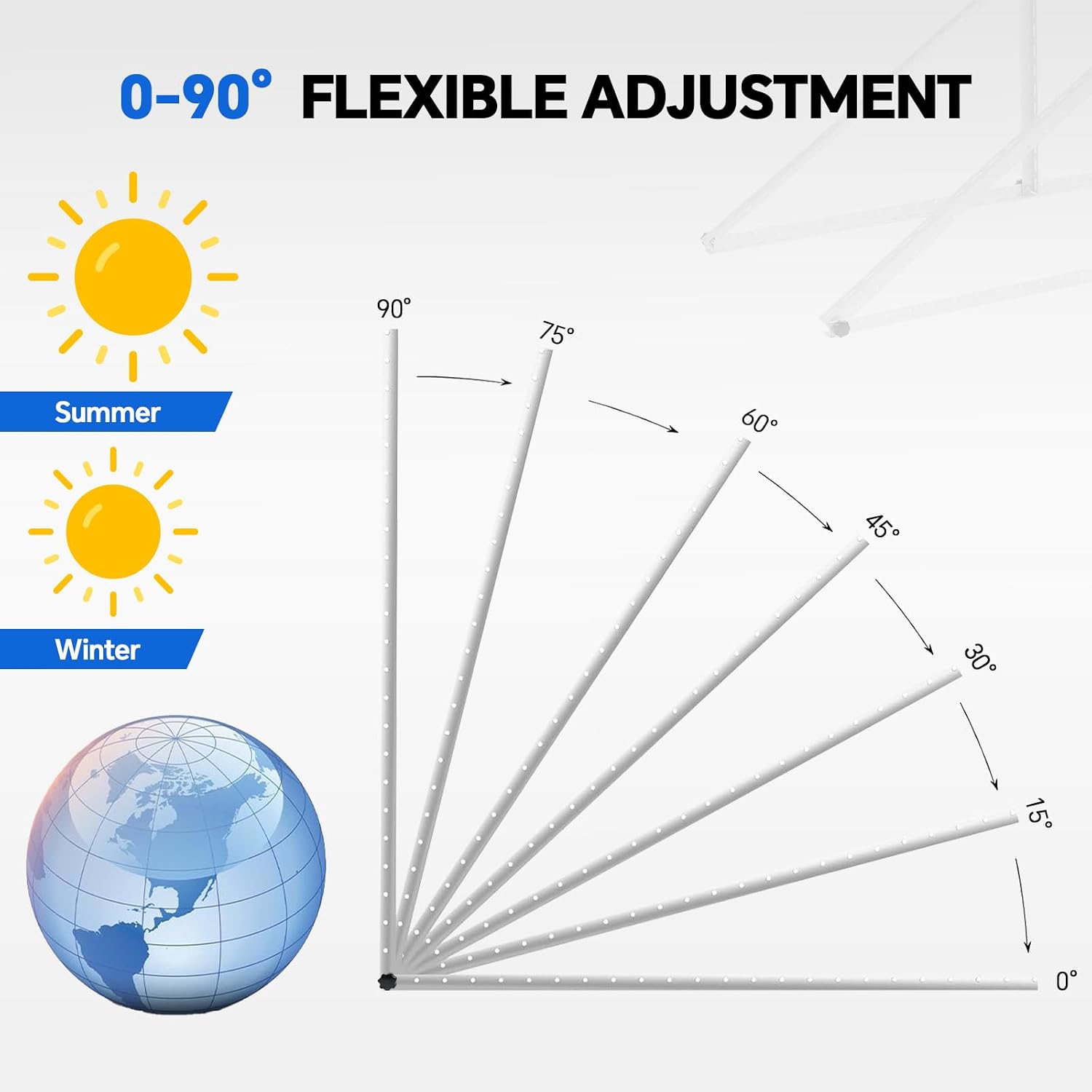

Can the panel angle be changed? Yes. The mount supports adjustment from 0° to 90°, so you can choose a tilt that suits the installation.

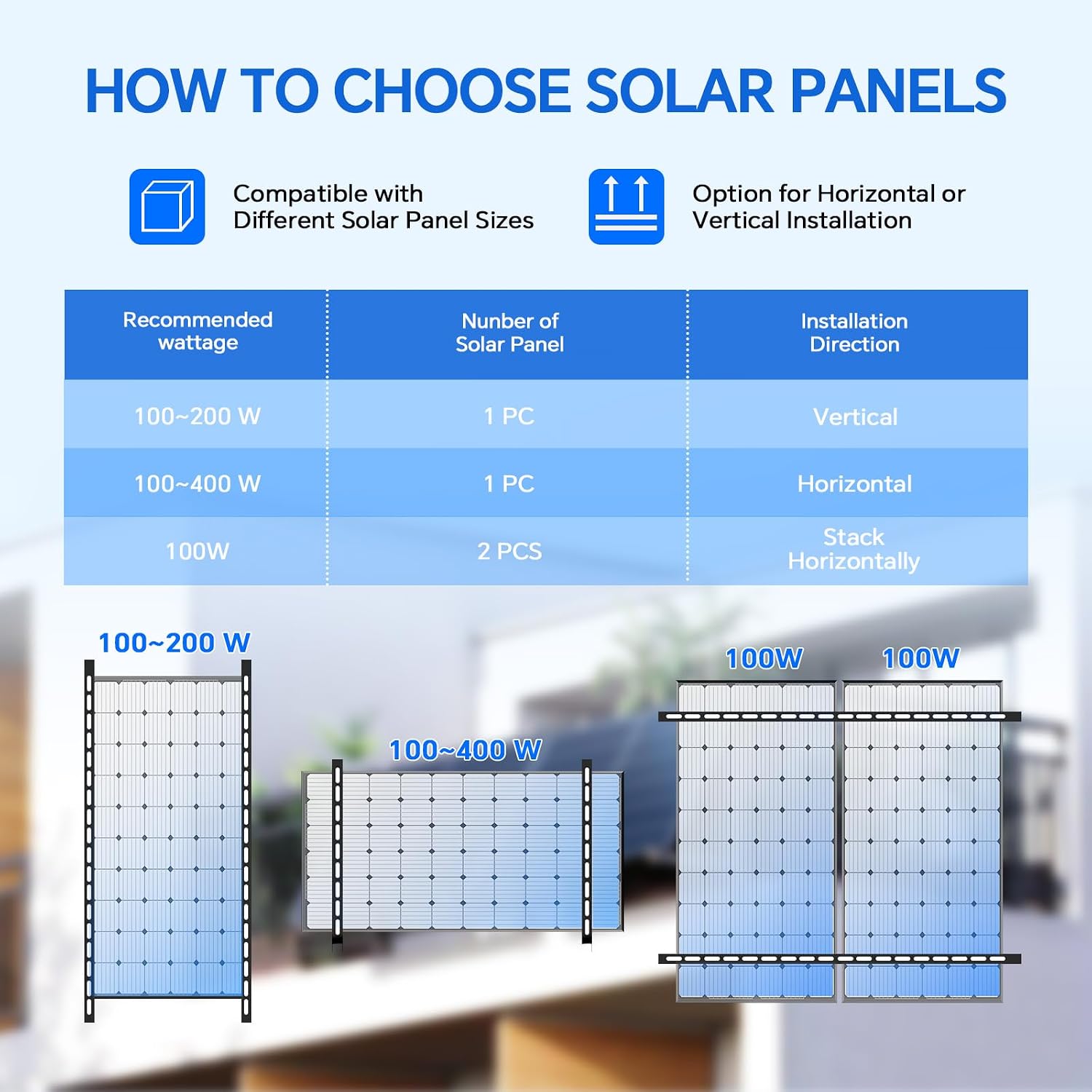

Can it be installed in either panel orientation? Yes. The brackets support horizontal and vertical installation.

Where can the brackets be mounted? Listed applications include flat and garage roofs, balconies and railings, walls, facades, boats, campers, caravans, gardens and terraces. Select a location and attachment method suited to the mounting surface.

Should you buy it?

Choose the AeternaSol RXZER23 when you want a solar panel mount that combines adjustable tilt with a range of installation settings. Its aluminium construction, pre-drilled design and horizontal or vertical mounting options make it a practical fit for adapting a panel setup to a roof, vehicle, boat or outdoor space.
