Huepar Rechargeable Digital Angle Finder with Laser, 2×180°/4×90°

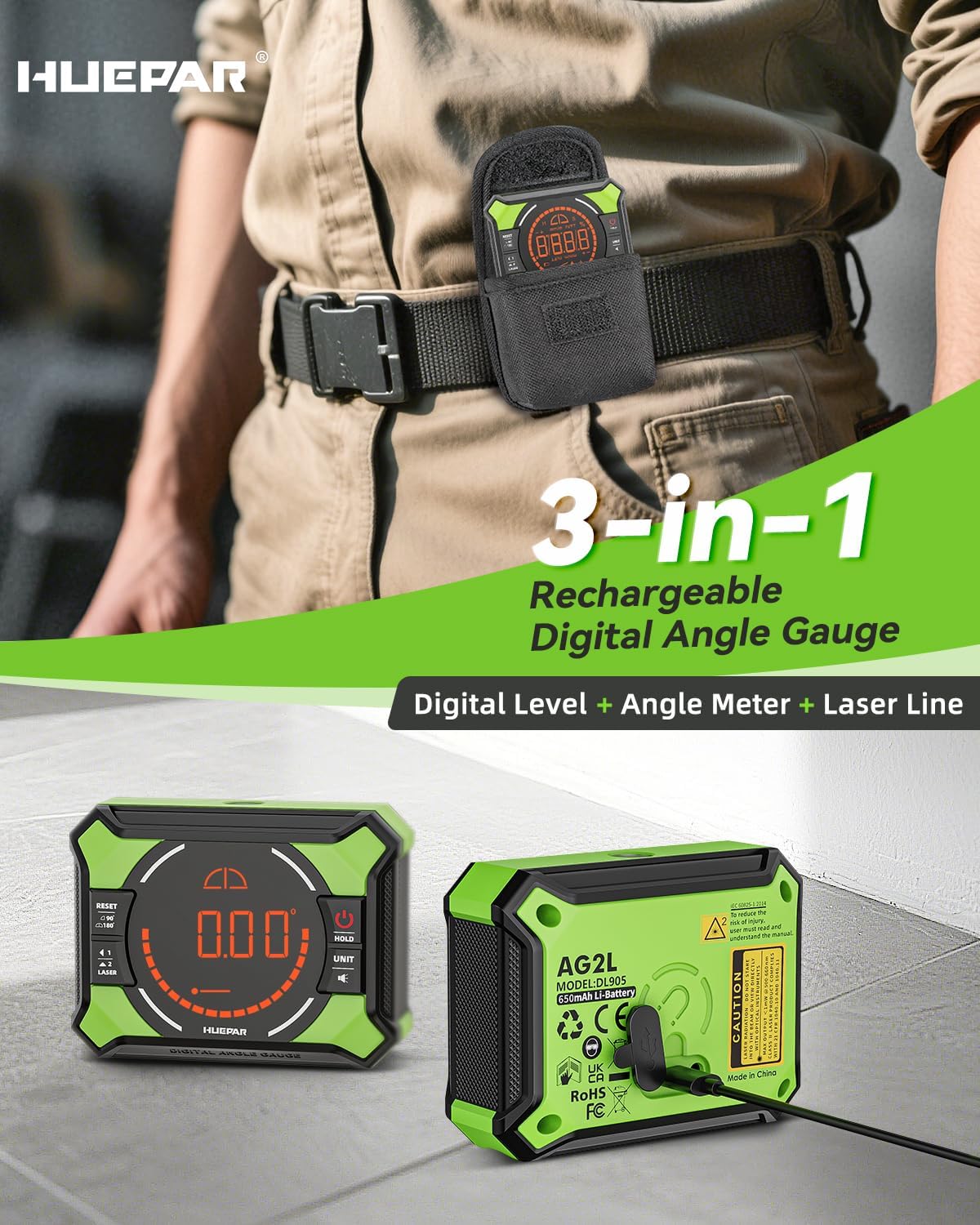

Horizontal and vertical laser lines help with levelling, while digital angle readings cover a wider range for measuring and setting angles. The Huepar combines these functions in one rechargeable tool for jobs where both alignment and angle checks matter.

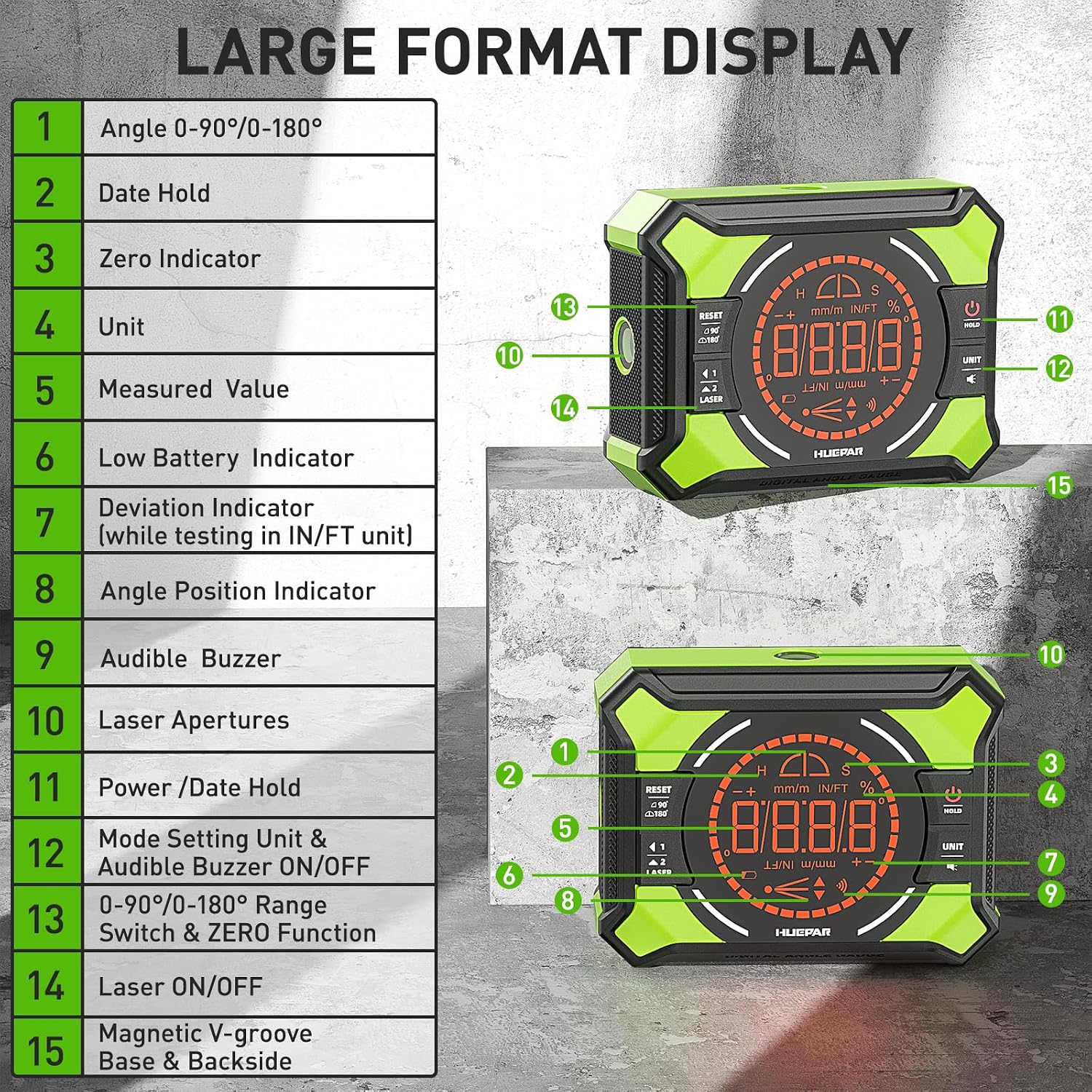

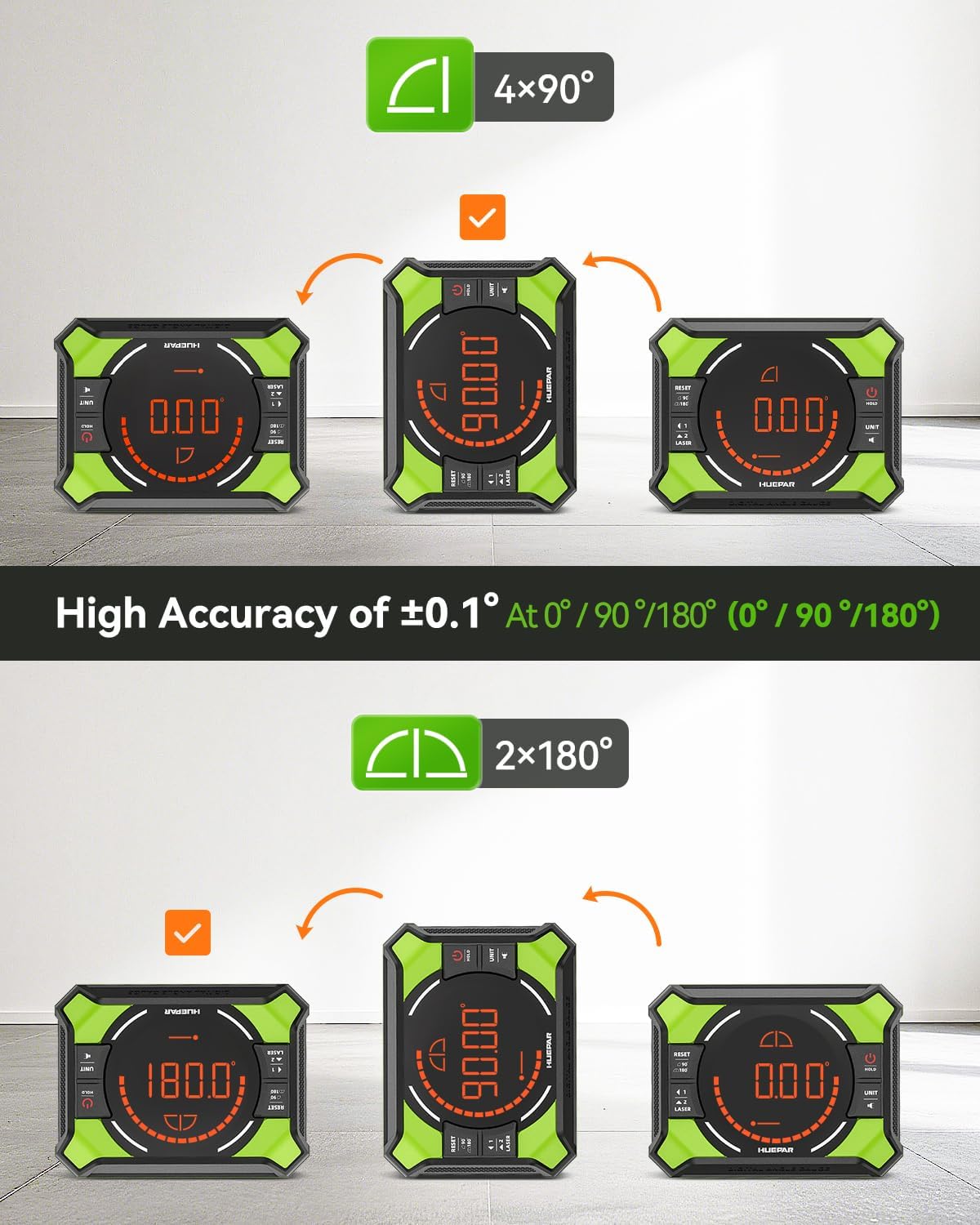

Its gauge measures across 2×0°–180° and 4×0°–90° ranges, with Absolute and Relative modes for different measuring tasks. A backlit LCD keeps readings easy to see, and the display flips automatically when the tool is mounted.

For work focused on taking an angle reading, a basic gauge may be all that’s needed. When the task also involves levelling or aligning a surface, this combined angle finder and laser level brings those functions together. It’s suited to woodworking, construction, renovations and picture hanging.

What to know

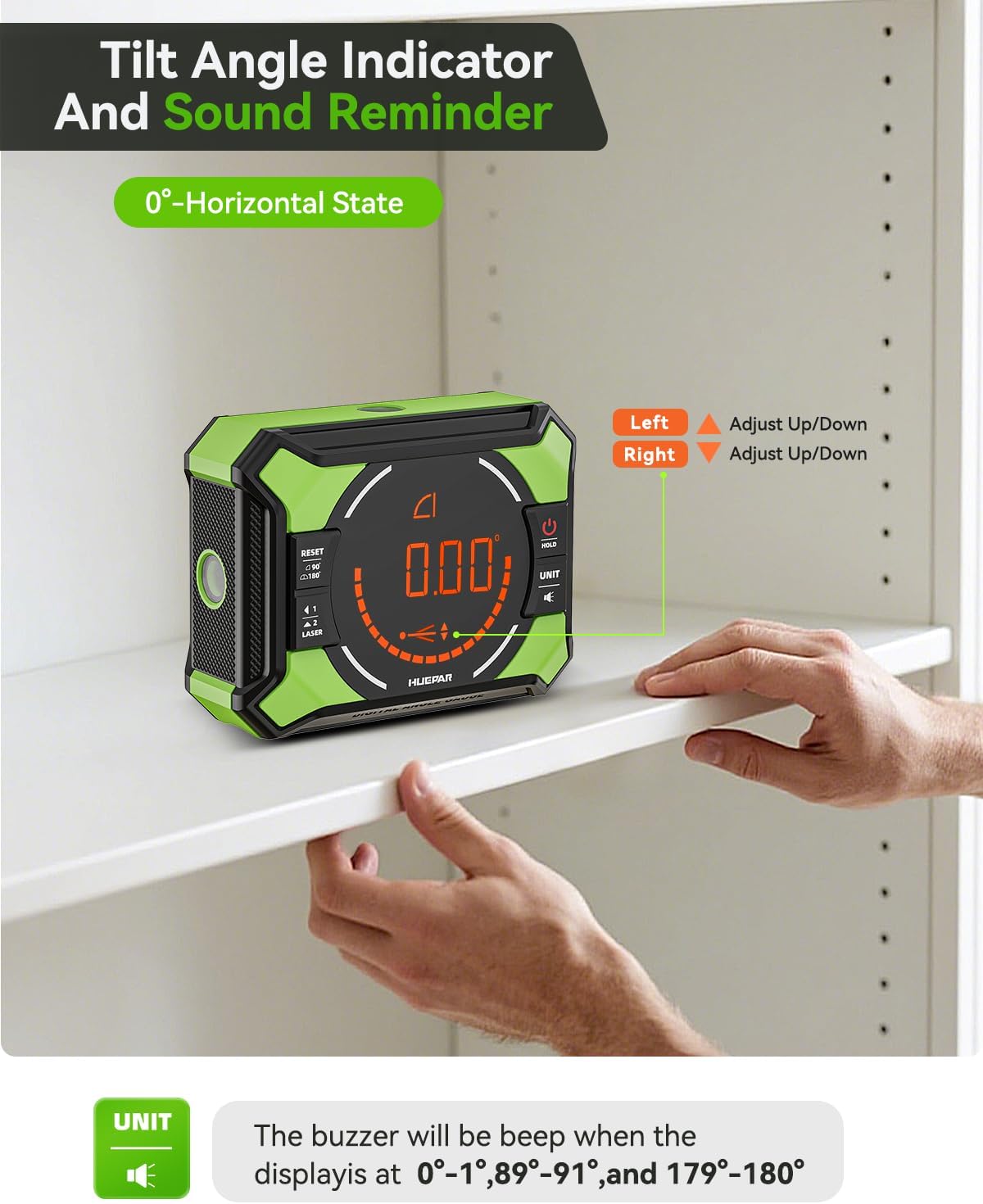

The digital gauge offers a resolution of 0.05° from 1° to 99.9° and 0.1° from 100° to 180°. Accuracy is ±0.1° at 0°, 90° and 180°, and ±0.2° at other angles. An optional buzzer sounds when the tool is within ±1° of horizontal or vertical, giving a helpful cue while positioning a workpiece or checking alignment.

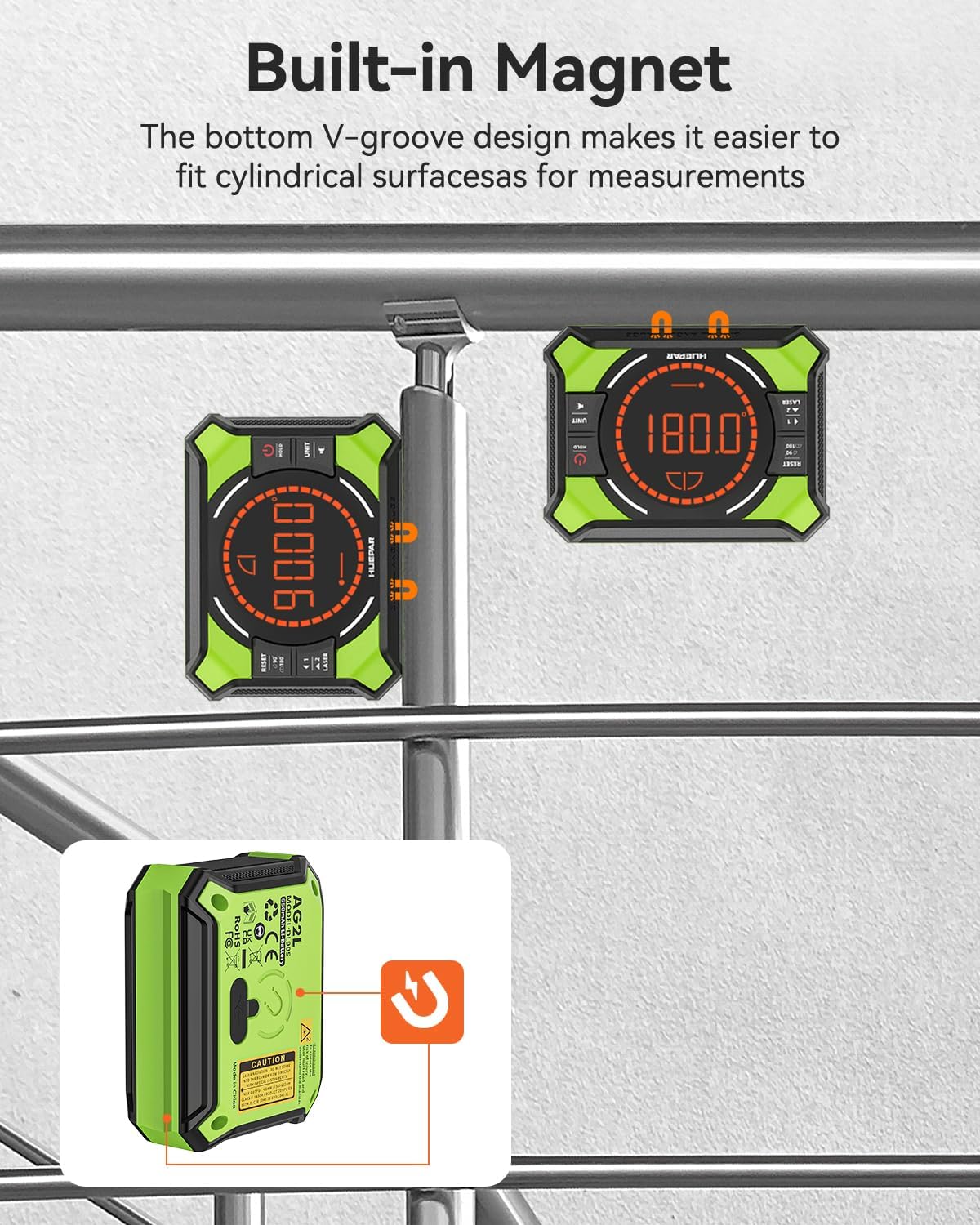

The integrated laser projects horizontal and vertical lines. Its stated accuracy is ±1/25.4 inch at 3.3 ft, and it is a Class 2 laser with output below 1 mW. The bottom and back magnets attach to ferromagnetic surfaces such as pipes, conduits, saw blades and ducts. A V-groove on the base helps it sit against round pipes.

Size & fit

The compact, pocket-size design is intended for portable use and for reaching tight spots. Its magnetic base can hold the gauge against a suitable metal surface, leaving your hands available to position materials or make adjustments. For example, when checking a pipe’s angle, the V-groove helps seat the tool against its curved surface, the digital reading and buzzer can then assist with alignment.

Everyday use

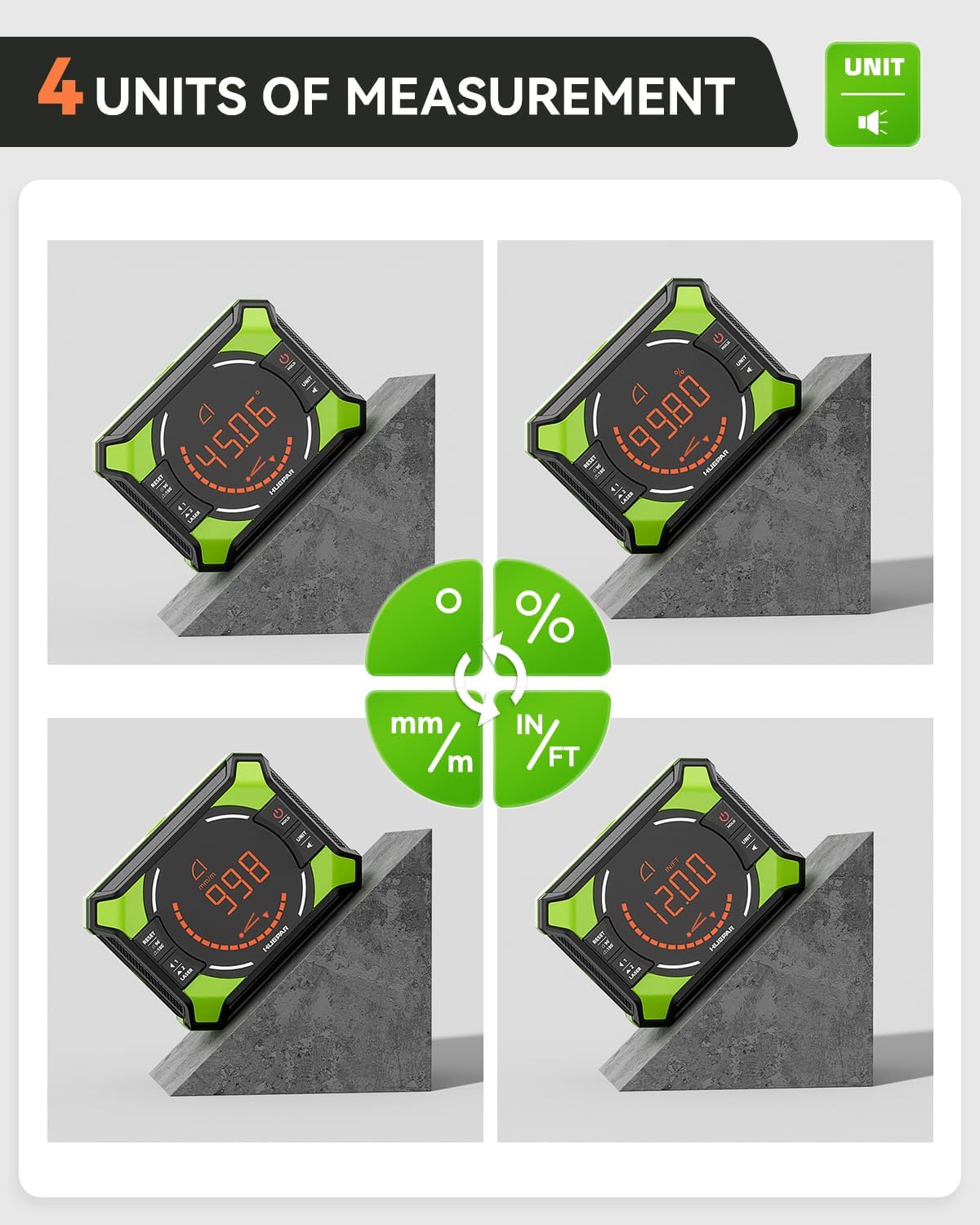

Choose Absolute mode to read an angle, or Relative mode to compare against a reference position. Data Hold, unit conversion and calibration functions add flexibility for different measuring routines. The backlit screen and automatic display flip are practical when reading from different positions, including when the gauge is mounted vertically.

The rechargeable design uses a 650 mAh lithium battery and charges through USB-C. Dust protection and an IP54 water-resistance rating make the tool suitable for work environments where some exposure to dust or splashing may occur. Customers commonly praise the gauge’s ease of use, angle readings and level function, making it appealing for both routine measuring and varied DIY tasks.

Before you decide

What angle ranges can it measure? The gauge supports 2×0°–180° and 4×0°–90° measuring ranges, covering both broad angle checks and right-angle work.

Can it help with levelling as well as measuring angles? Yes. It combines digital angle measurement with horizontal and vertical laser lines, and the buzzer can signal when it is within ±1° of horizontal or vertical.

How does it charge? The angle finder has a rechargeable lithium battery and a USB-C charging port. A USB-C charging cable is included.

Final verdict

For woodworking, construction and home projects that call for both angle checks and surface alignment, the Huepar brings a digital gauge, magnetic attachment and horizontal/vertical laser lines into one compact tool. Its multiple measuring ranges and Absolute and Relative modes make it useful for setting angles as well as checking a position, while USB-C charging supports repeat use across projects.
