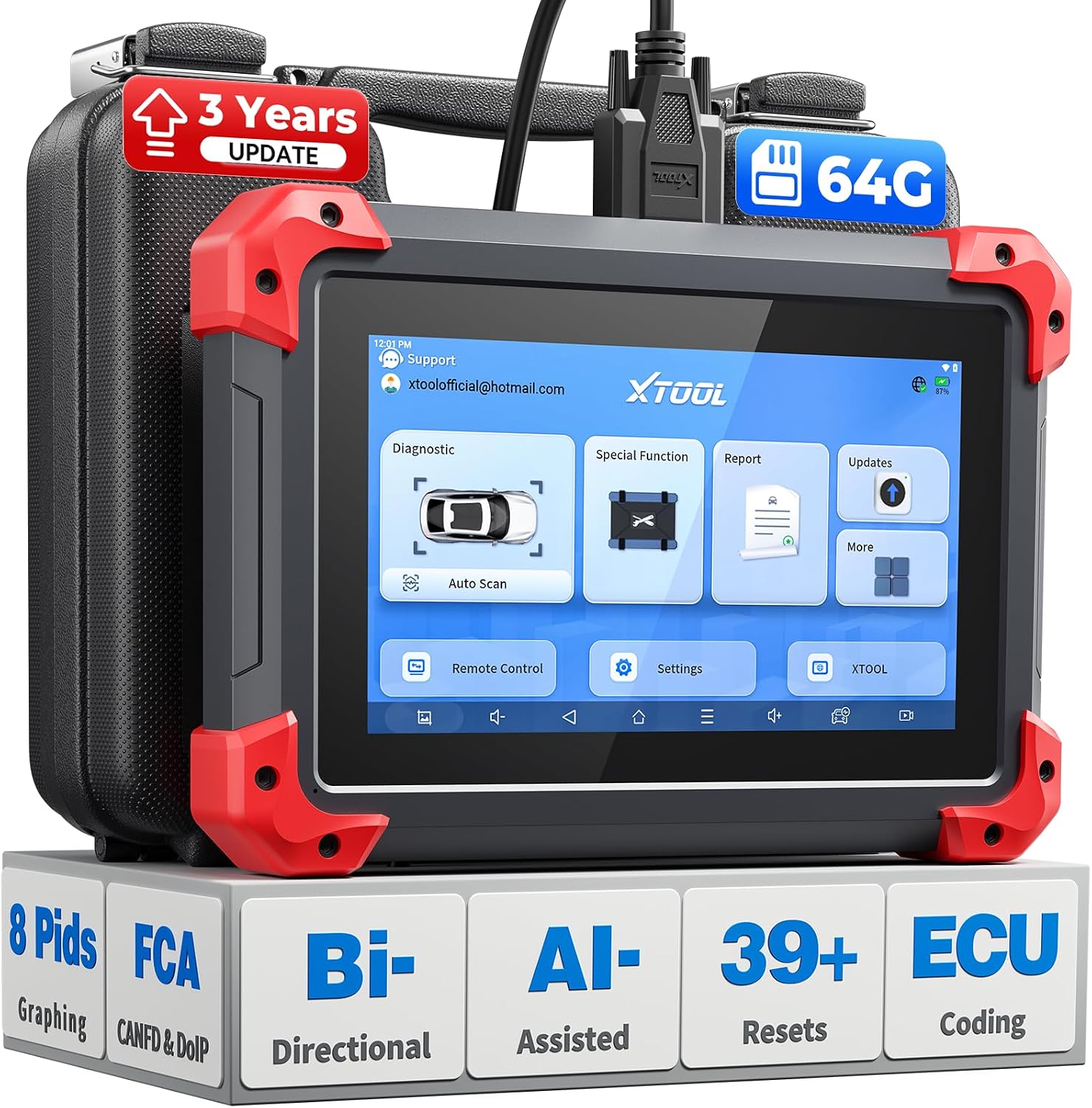

XTOOL D7 OBD2 Bidirectional Scanner, V2.0

This handheld automotive diagnostic tablet brings advanced bidirectional testing and shop-level diagnostics to independent mechanics and serious DIYers. It combines full-system scanning, over 4,000 active tests, and more than 36 special functions to speed troubleshooting and reduce guesswork, especially when diagnosing intermittent faults or performing module relearns.

Key Points

The unit supports FCA AutoAuth, CAN FD, and DoIP protocols to access newer vehicle networks and modules, extending coverage beyond basic OBD2 readers. It includes an upgraded internal storage of 64GB and a 5000 mAh battery with fast charging to keep sessions going on the road. Live data display with up to eight PID graphs helps visualize sensor behavior over time, making it easier to identify trends and recreate faults. ⚙️

This scanner also offers bidirectional control for components such as injectors, fans, ABS pump and actuators, enabling active tests that confirm repairs rather than relying solely on trouble codes. Consider that compatibility excludes some regional models and that very new vehicles may require software updates to access the latest modules, according to the manufacturer. 🔧

Benefits

Having OE-level full system access means technicians can perform one-click all-system scans, retrieve freeze frame data, and run module-specific active tests without needing multiple devices. The ability to export diagnostic reports and add shop logos and customer details makes record keeping and communication with clients straightforward. The included endoscope support and data export features make intermittent issue tracking and documentation more practical during mobile calls or in small shops.

Because the tool stores more data locally and runs on Android 10, response times during complex diagnostics are improved compared with older models that have limited memory. Users may appreciate the three years of free updates, which helps maintain vehicle coverage for longer before optional renewal.

Technical Specifications

• Name: XTOOL D7
• Storage: 64GB
• Battery: 5000 mAh (includes 2500 mAh 7.3V fast-charging)
• Operating System: Android 10
• Special Functions: 36+ (including SRS reset, battery registration, throttle relearn, TPMS reset)

Usage Recommendations

Use the scanner on a fully charged vehicle battery or with a stable power source since some active tests require sustained voltage. For graphing live data, select up to eight relevant PIDs to compare sensor responses during active tests or road captures. When working on FCA or CAN FD vehicles, ensure the device software is up to date to access AutoAuth and DoIP features. For documentation, enable the diagnostic report function to attach images or notes after each session, which helps with customer follow-up and parts justification.
