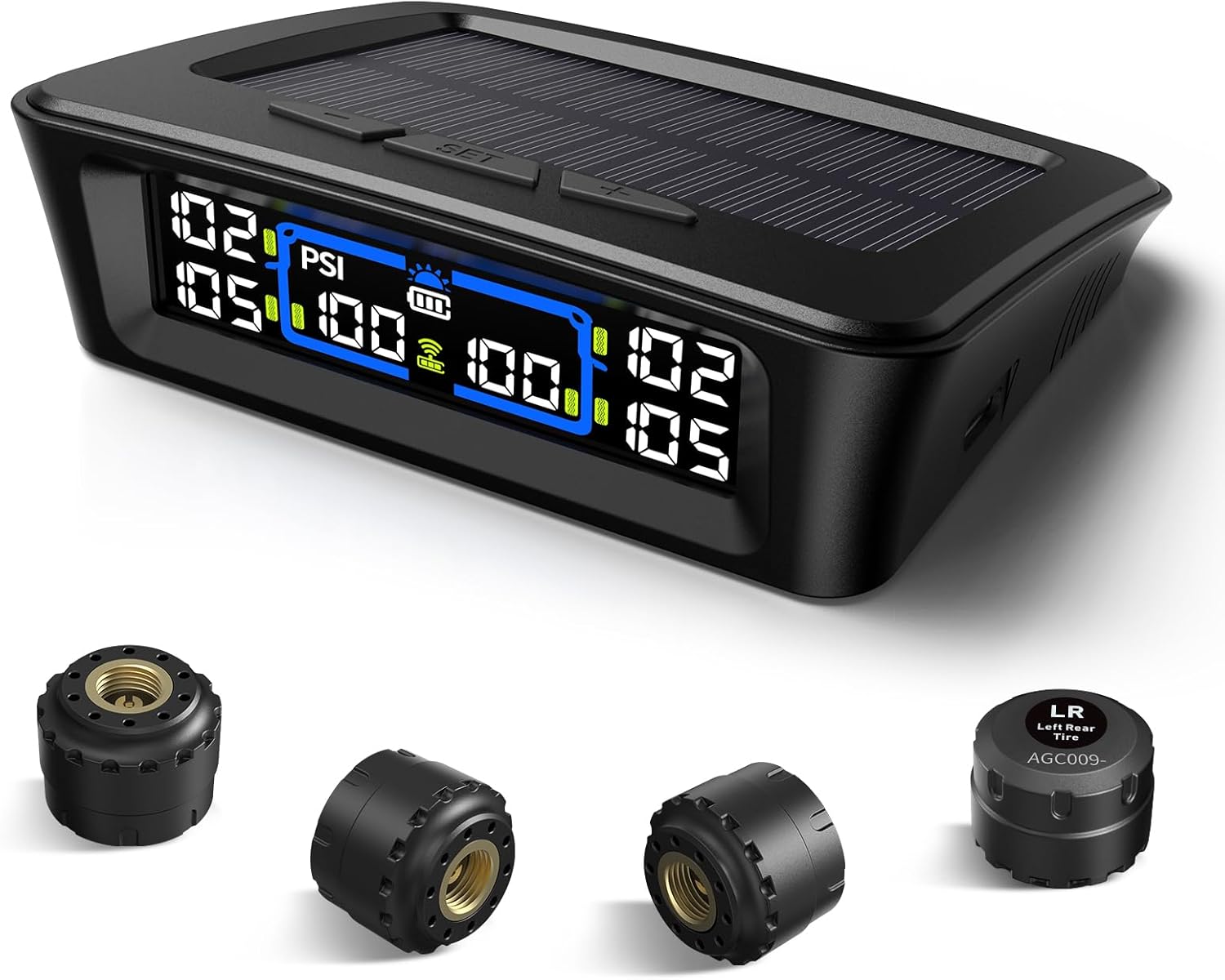

Tymate TM12 RV TPMS with Solar USB, 0–116 PSI
Product description
This RV tire pressure monitoring system brings multi-tire oversight to long trips with clear on-board alerts and flexible power options. It displays pressure and temperature data in real time so you can spot leaks or hot tires early, making it useful for RVs, trailers, trucks, SUVs, and sedans.
Key Points
The display supports split-screen monitoring of up to 12 sensors across four zones, letting front vehicle and trailer tires be checked at a glance. The unit includes configurable alarms for high pressure, low pressure, high temperature, rapid air leakage, low sensor battery, and signal loss, helping drivers stay aware of developing issues before they become dangerous. 🚐
Sensors are external, pre-programmed, and rated IP67 for water resistance, so they are easy to install and handle wet road conditions. The device uses a stable 433 MHz link with a typical transmission range of 50 ft, and the system can be expanded with additional sensors or an optional repeater for longer trailers. ⚙️
Consider that solar recharging performance depends on sunlight, and the manufacturer recommends a full USB-C charge before first use. For very large RV setups or heavy signal blockage, adding a repeater can improve reliability.
Technical Specifications
- Name: Tymate TM12
- Sensors included: set of 4 (supports up to 12 sensors)
- Pressure range: 0-116 PSI
- Signal range: 50 ft (extendable with repeater)
- Alarm modes: 6 (high pressure, low pressure, high temperature, rapid leakage, low battery, signal loss)
- Charging: USB-C charging and solar panel recharging
- Sensor rating: IP67 waterproof
Usage Recommendations
Use the pre-programmed sensor positions to match each sensor to the labeled wheel location and allow the monitor to auto-calibrate during the first drive. For towing combinations with long distances between vehicle and trailer, place the monitor where the display has a direct line of sight to sensors when possible, and add a repeater if signal loss occurs. 🔧
Check sensor battery alerts promptly according to the alarm indications, as external sensors are battery powered and will eventually need replacement. Also, keep in mind that densely packed metal structures or extreme distances can reduce transmission reliability, so plan configuration and antenna placement accordingly.
