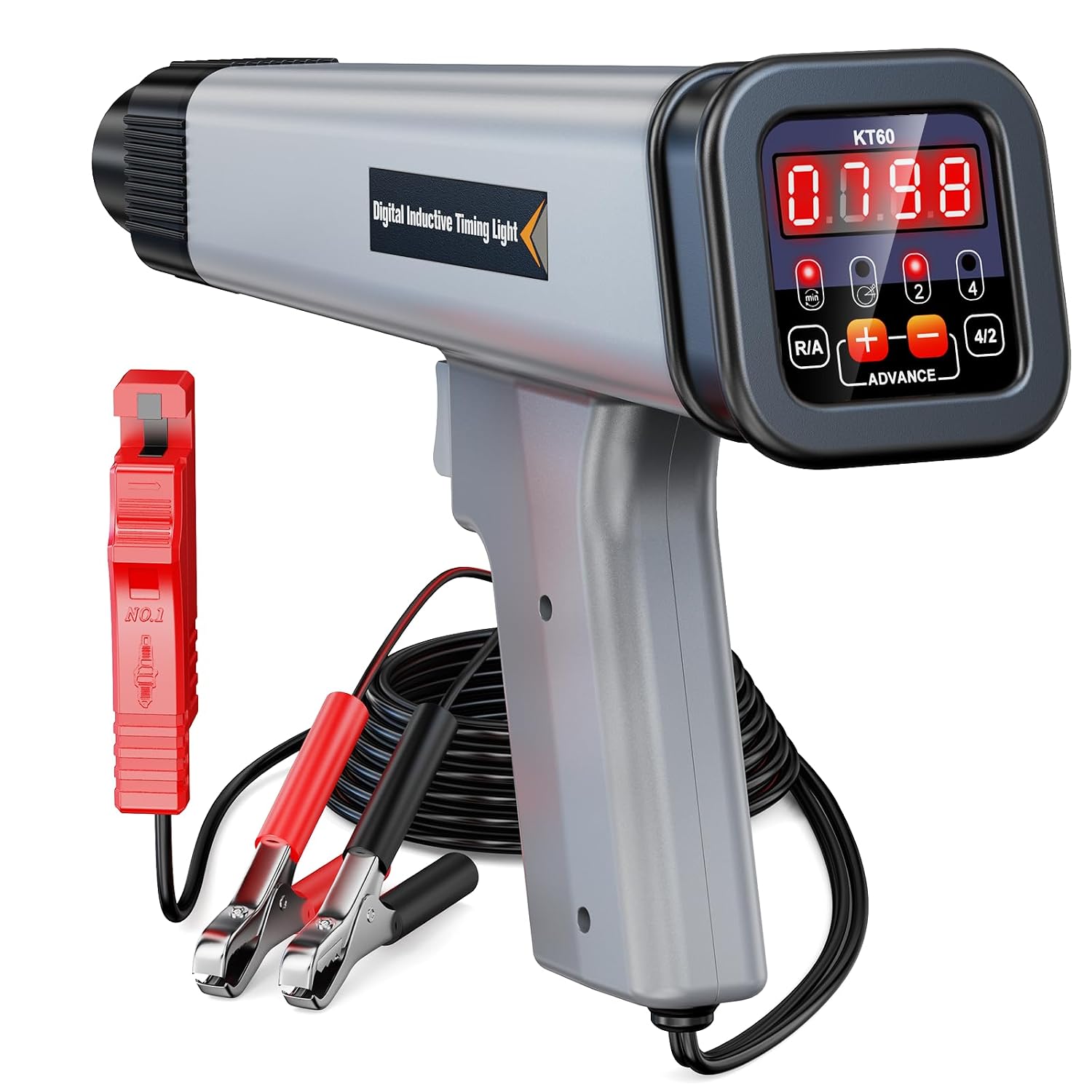

KZYEE KT60 Digital Timing Light with RPM 12V

This inductive timing light is designed to help tune ignition timing on small gasoline engines, offering clear digital readouts and a practical toolset for classic cars, motorcycles, marine motors and garden equipment. It measures engine speed and advance angle while delivering a bright flash for visible timing marks, so adjustments can be made quickly and with less guesswork. If you need a straightforward timing tool for 9V to 16V systems, this unit supports both 2-stroke and 4-stroke engines and displays RPM up to 8,000 for common tuning tasks.

Key Points

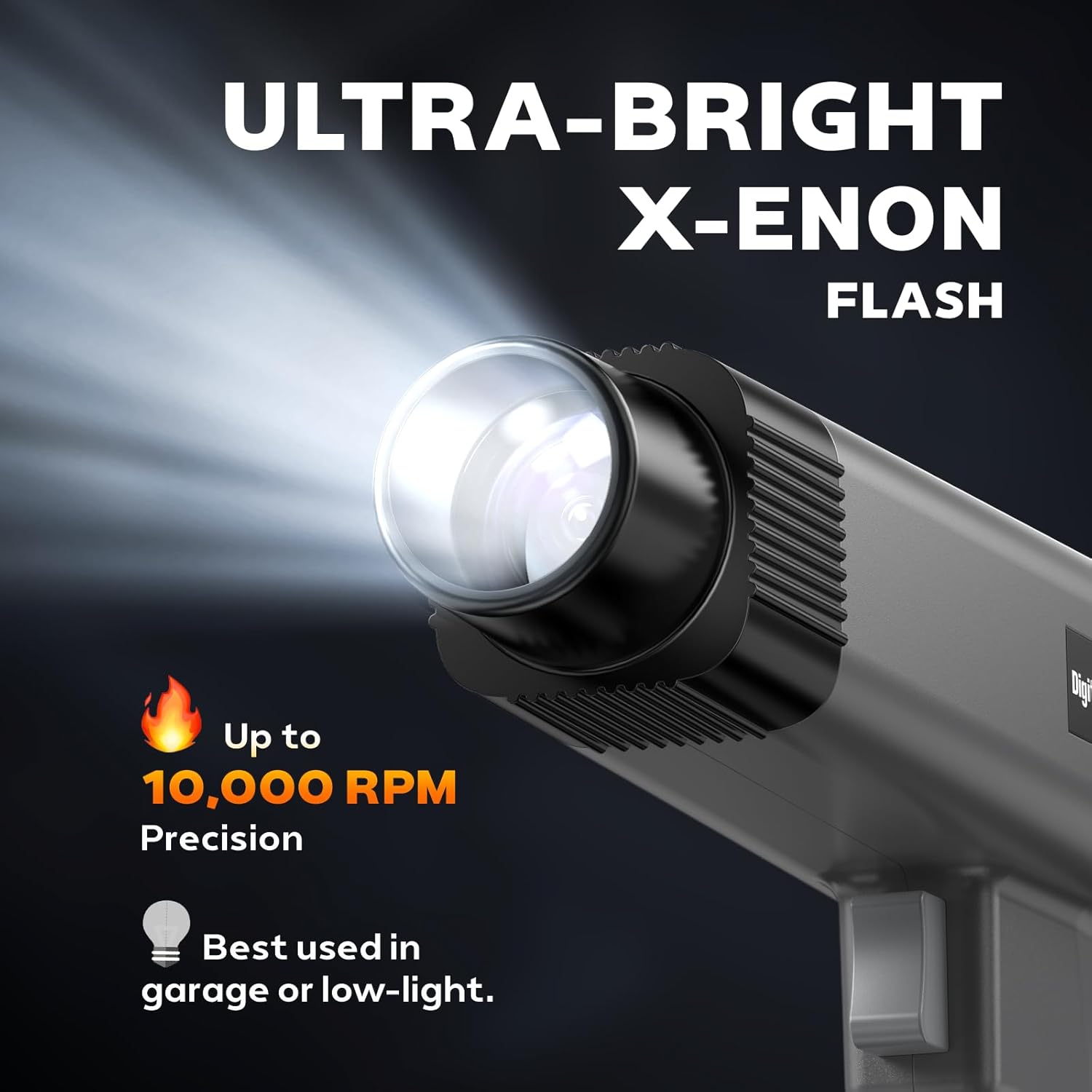

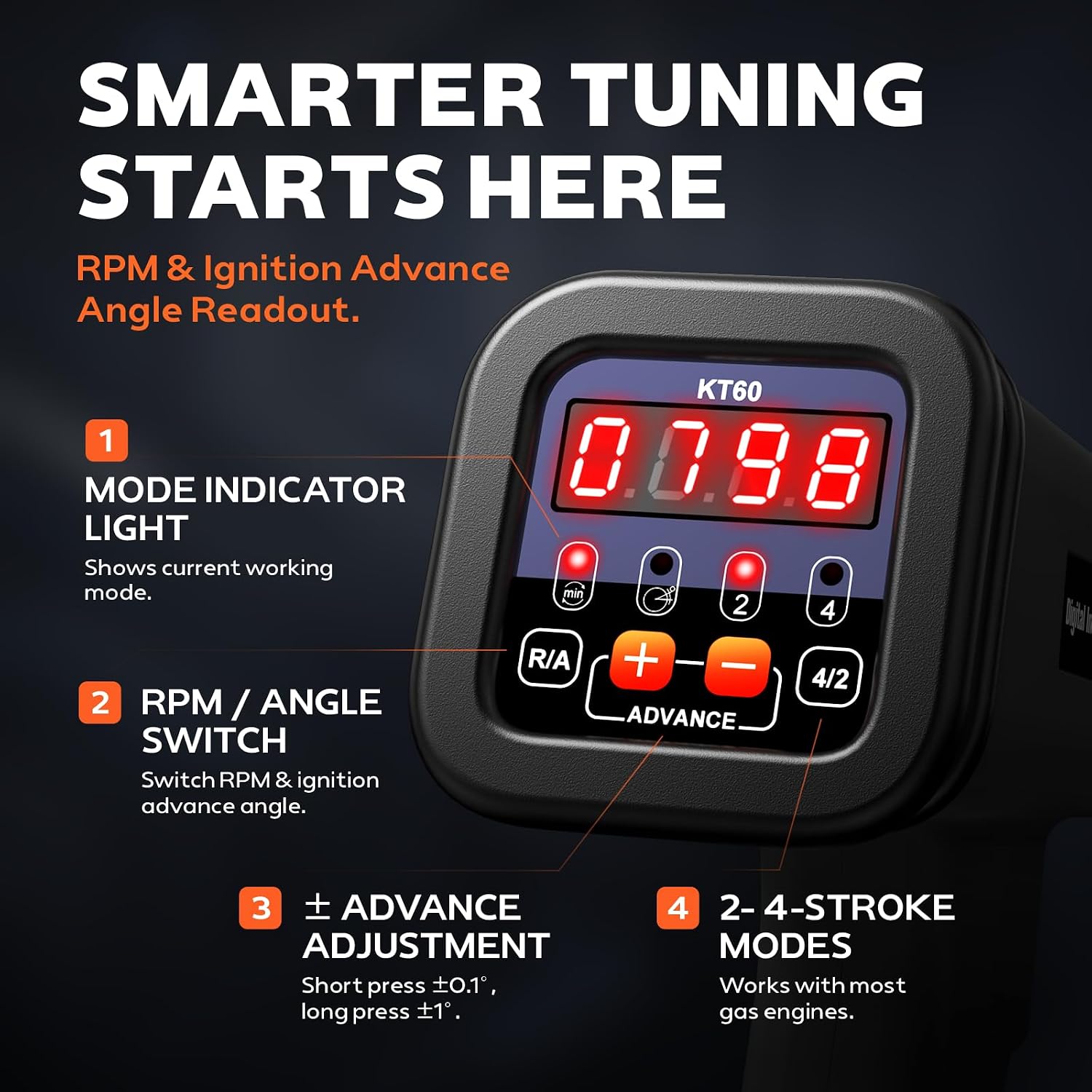

The KT60 combines a digital LED display with an inductive pickup, which means you do not need to clamp onto the battery to get RPM readings. The xenon flash tube together with a Fresnel lens gives a focused, daylight-visible strobe that helps trace timing marks under bright conditions 😊. Its ABS housing is impact resistant and lightweight, making it easy to carry during roadside or workshop checks.

Connection is simplified by color-coded clips for polarity and a clamp-style inductive sensor that attaches to the spark plug wire. Cables are grease-resistant and approximately 4.9 feet long, so you can reach most engine layouts without awkward positioning. Note that accuracy and maximum RPM are specified by the manufacturer and may vary slightly with engine type and electrical noise.

Technical Specifications

• Name: KZYEE KT60 Digital Timing Light with RPM & Advance Angle
• Voltage range: 9V to 16V
• RPM range: up to 8,000 RPM according to the manufacturer
• Compatibility: 2-stroke and 4-stroke gasoline ignition systems
• Cable length: 4.9 feet, grease resistant

Usage Recommendations

Before using the timing light, make sure the engine is at normal operating temperature and that timing marks are clean and readable. Clamp the inductive pickup onto the ignition wire and use the red and black clips to check polarity when needed. For daytime adjustments, take advantage of the focused flash and lens to see marks more clearly, particularly on reflective timing scales ⚙️.

This tool is practical for quick checks and adjustments, but consider that very high-revving modern engines or coil-on-plug systems without accessible high-tension leads may require alternative methods or adapters. Also, electrical interference from aftermarket electronics can affect readout stability, so position the pickup away from other wiring when possible 🔧.

If you plan to work on older vintage engines, the rugged ABS case and plug-and-play nature of the pickup make on-vehicle diagnostics simpler. For repeatable measurements, allow the engine to idle steadily and take multiple readings before making final timing changes.
